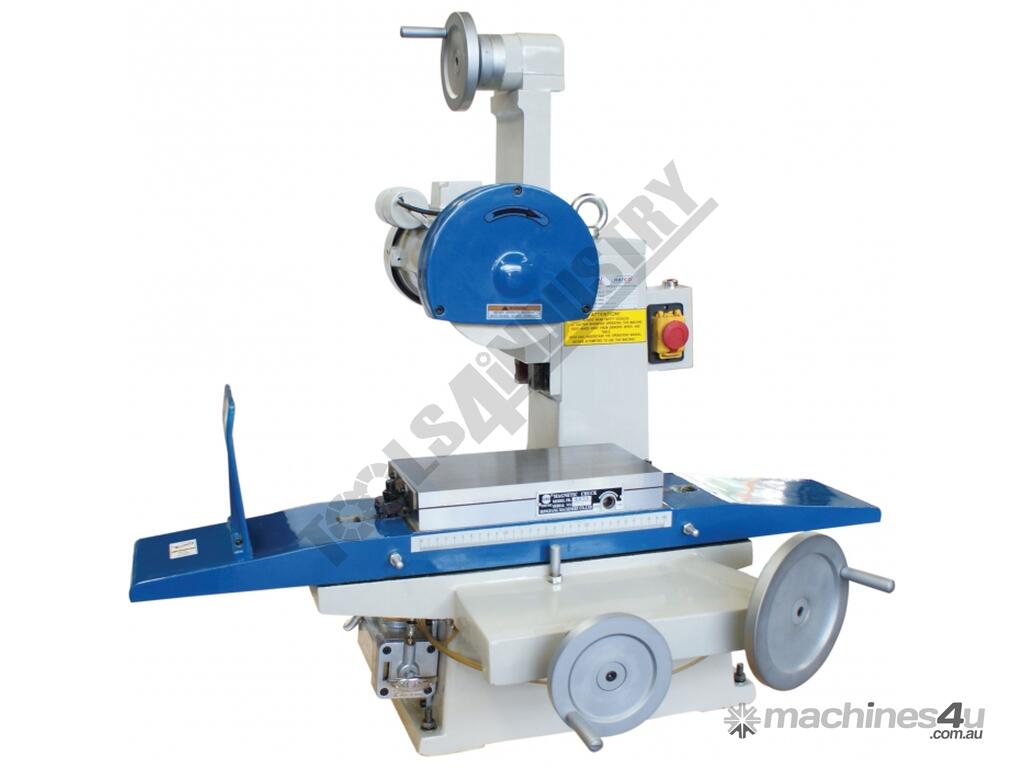

SHAW - HAFCO Surface Grinder SG-340 340x170mm

METALMASTER Surface Grinder SG-340 340x170mm

CALL FOR OUR BEST PRICE

The SG-340 manual bench mounted surface grinder is designed to enable operator to quickly change work piece and easy set-up alternate applications. Manual Feed Table (340mm) x (170mm).

When absolute surface grinding precision is needed in tough to machine materials, this is the machine to own. Large dials and fine thread screws yield maximum precision. Bring mirror-like finishes to your metalworking projects with this professional machine.

FEATURES

Precision grinding machine with minimal workshop space required
Ball bearing table slides providing smooth action
Angular contact spindle bearings that eliminates vibration enabling precision grinding

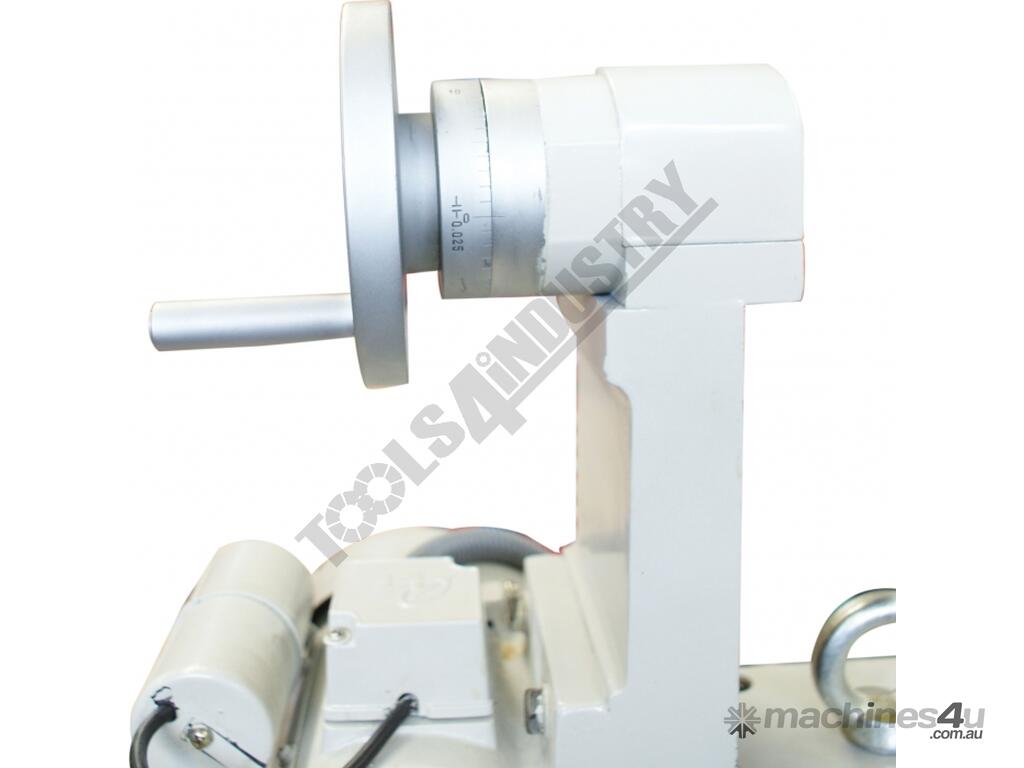

Vertical dial graduations 0.025mm

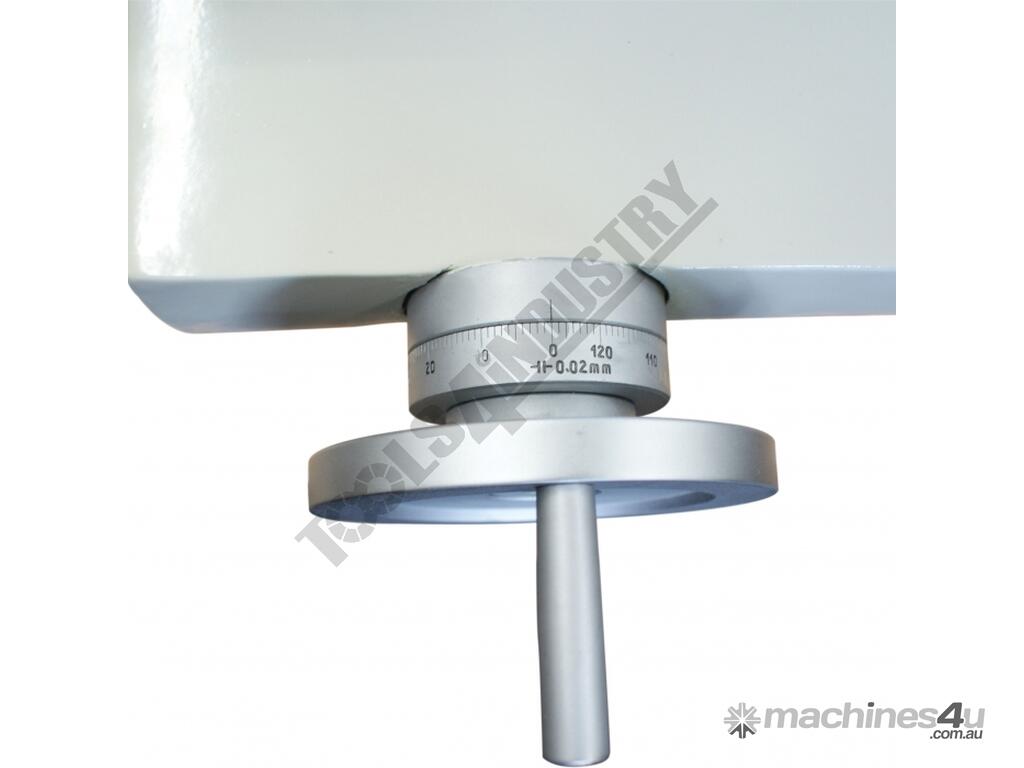

Cross travel graduations 0.02mm
Magnetic chuck (300 x 150mm)
3/4HP (550W) 240V motor

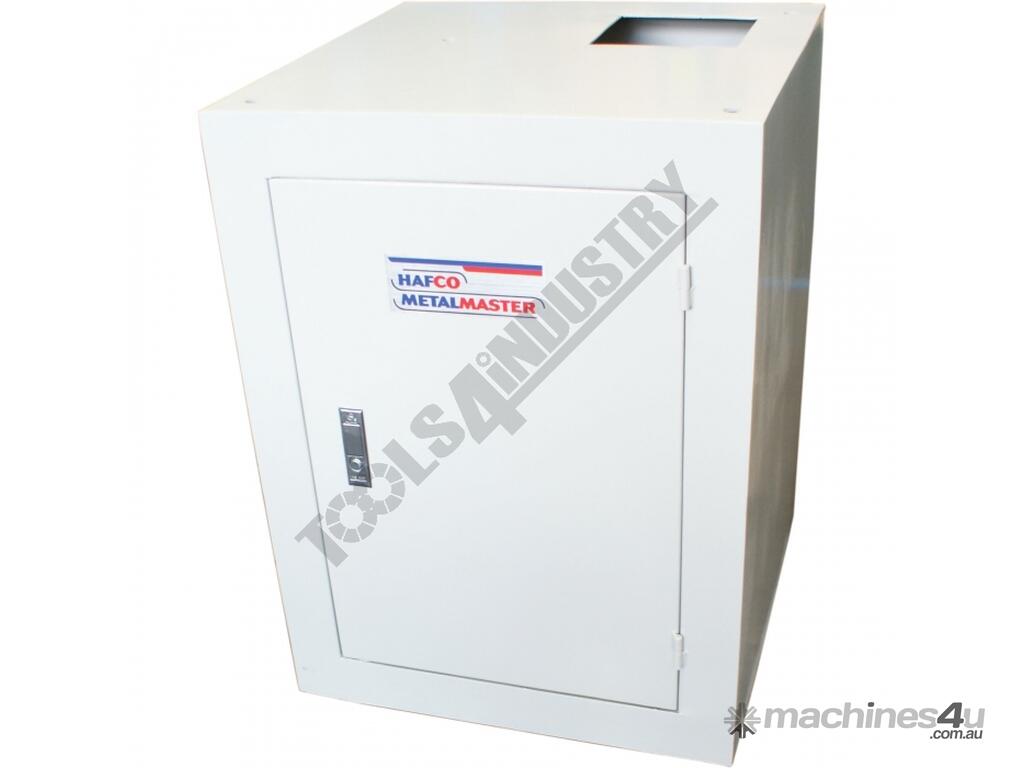

Includes cabinet stand

SPECIFICATIONS

CODE:G203
MODEL:SG-340
CHUCK SIZE:300 x 150mm
MAX. LONGITUDINAL TABLE TRAVERSE:340mm
MAX. CROSS TABLE TRAVERSE:170mm
MAX. SPINDLE TO TABLE:275mm
WHEEL DIAMETER:180mm
VERTICAL INCREMENT GRADUATIONS:0.025mm
VERTICAL GRADUATIONS PER REV.:1.25mm
SPINDLE MOTOR:550W 3/4HP
SPINDLE MOTOR VOLTAGE: 240V
WEIGHT (NETT):260kg
