SHAW - HAFCO TM-1960G Lathe

TM-1960G - Centre Lathe (415V)
480 x 1500mm Turning Capacity - 80mm Bore
Includes Digital Readout

Description
Manufactured in Taiwan
Features

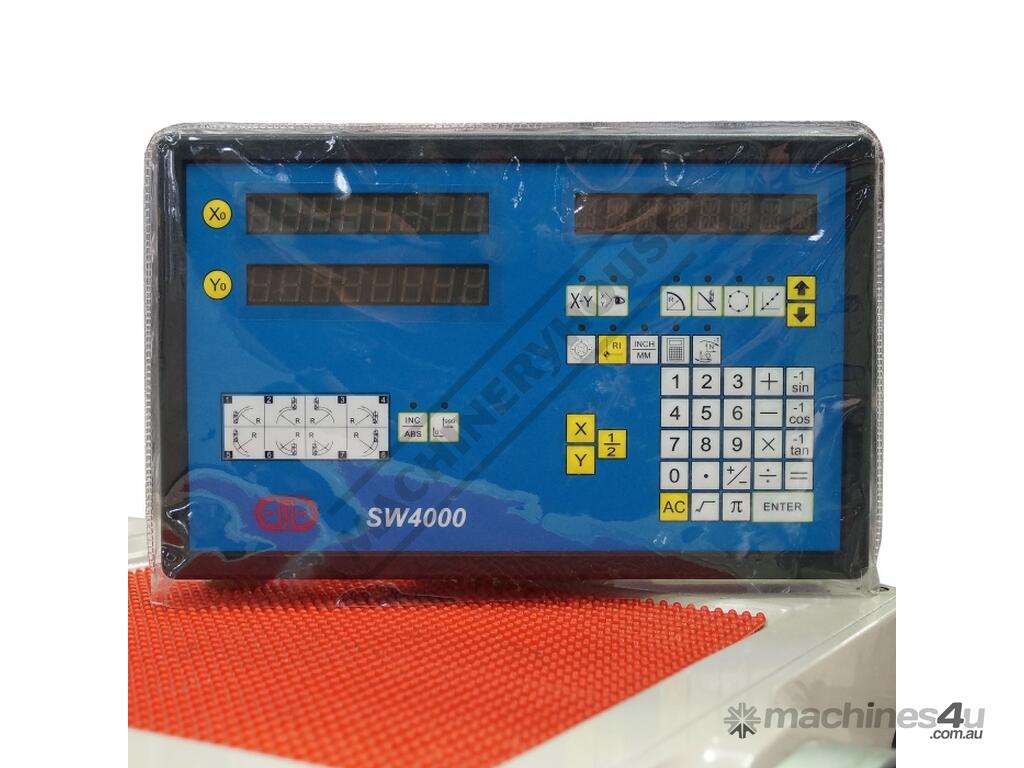

2 Axis digital readout system
Triple SKF German made bearings supporting headstock spindle
Adjustable taper roller bearings providing spindle accuracy
Precision 'V'-beds & headstock gears are all hardened & ground
High quality one-piece Meehanite cast base increases rigidity
Overload protection on drive motor and coolant system

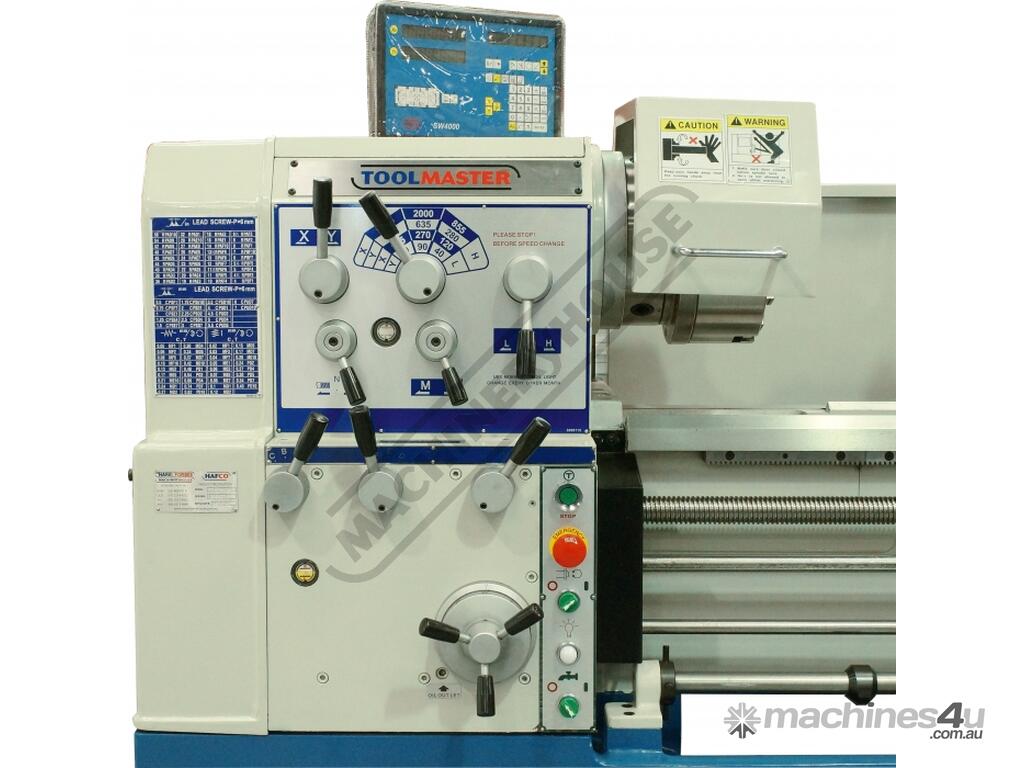

Universal enclosed gearbox incorporating metric & imperial thread capabilities

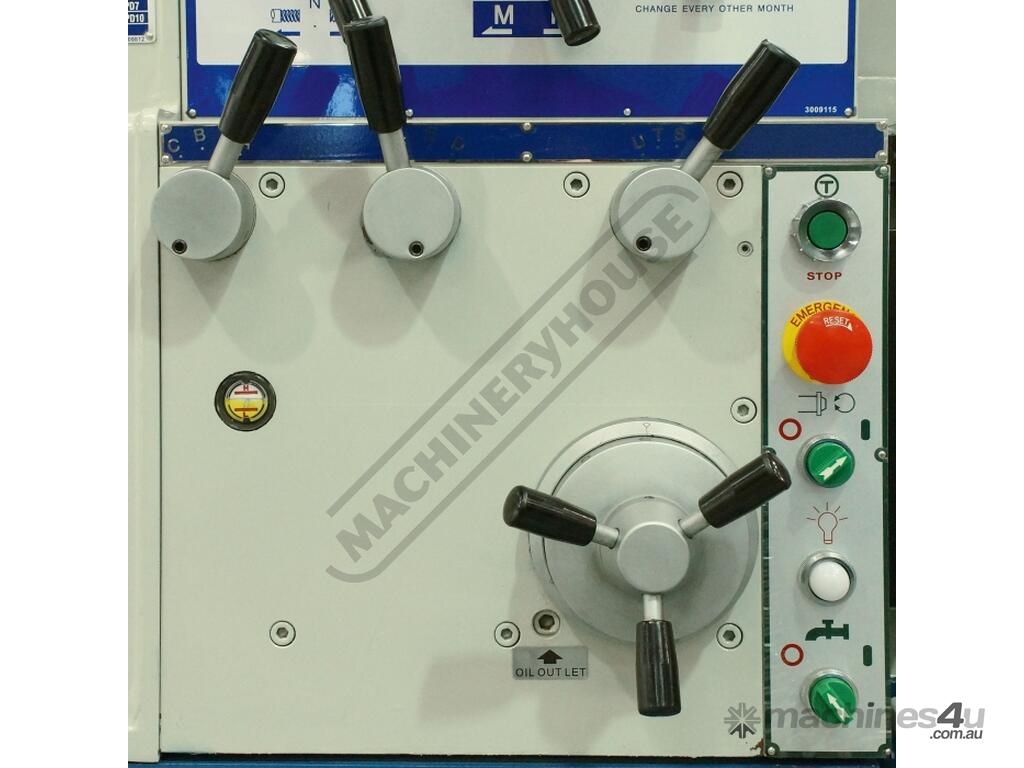

Inching button incorporated on the control panel for convenient spindle speed selection
Foot operated spindle brake with safety cut out switch
300mm wide induction hardened heavy duty cast iron bed
Removable gap bed allowing work piece to swing up to 650mm

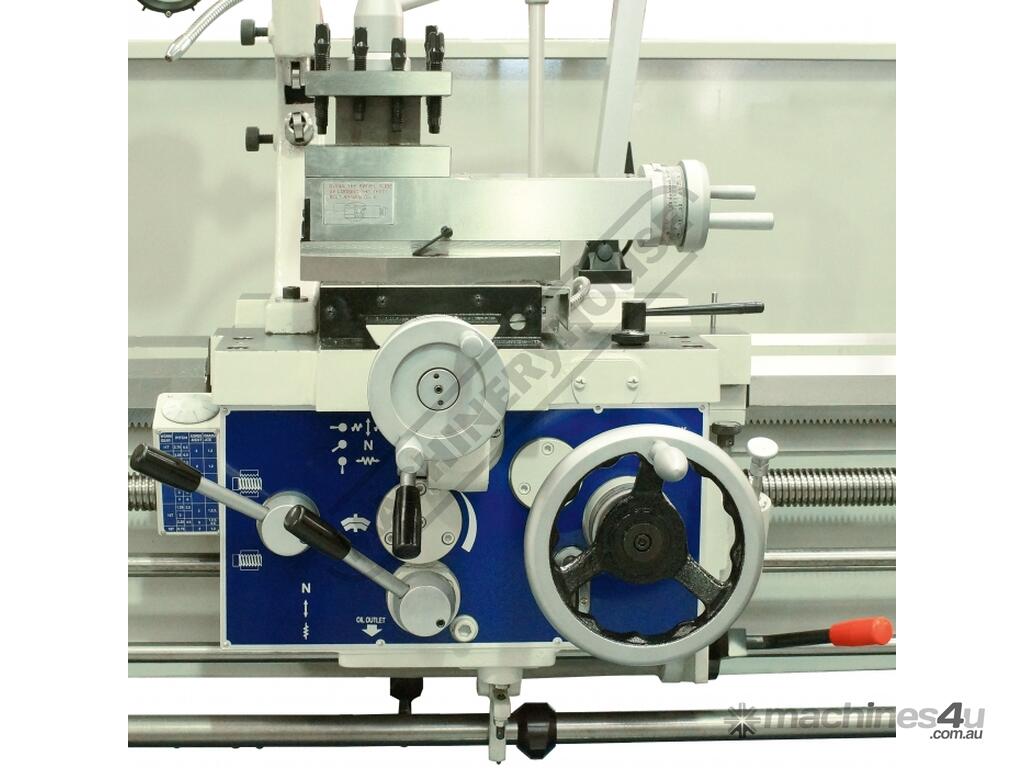

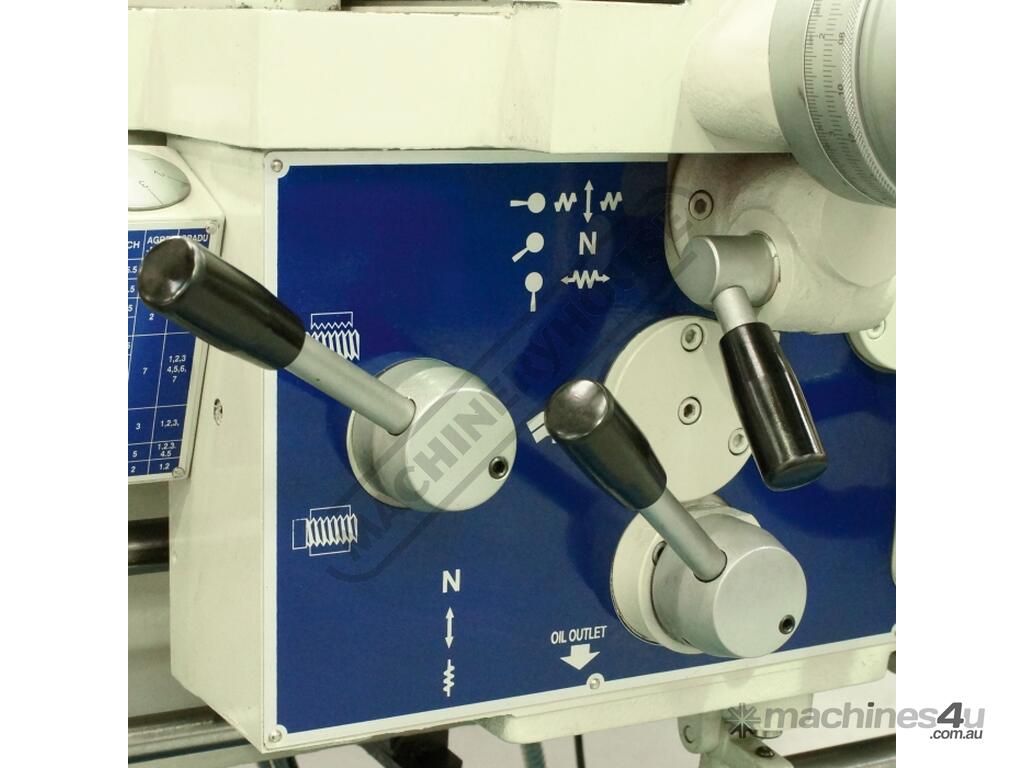

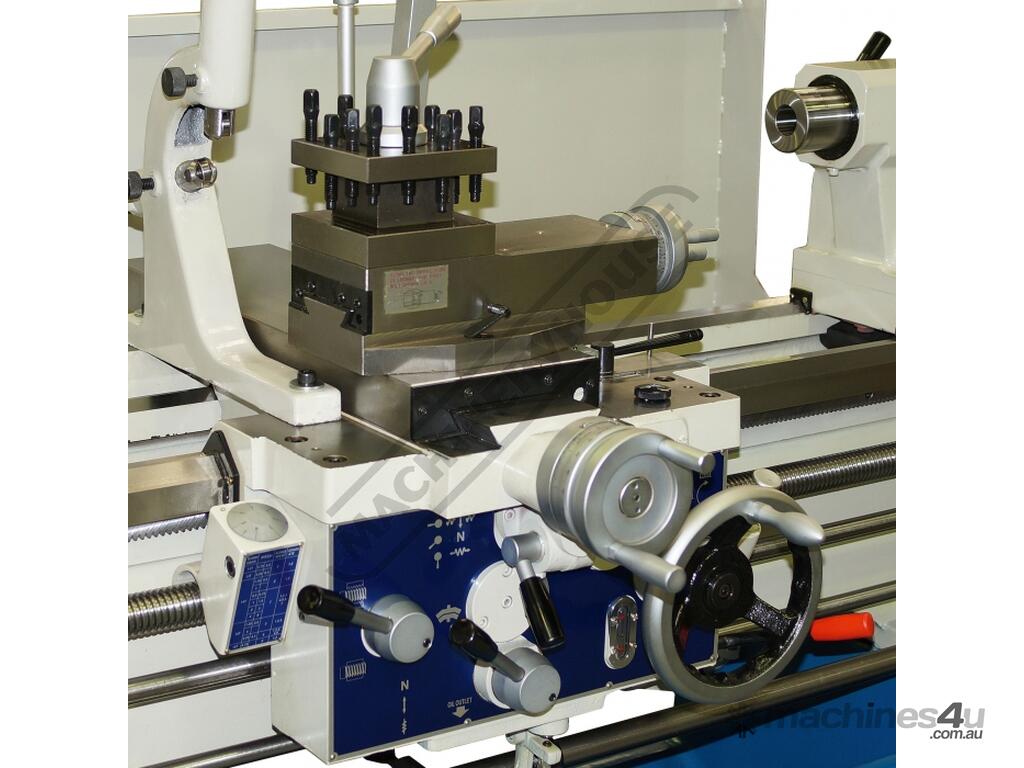

Powered longitudinal and cross feeds
Adjustable 4 position length-stop mechanism for accurate repetitive operation

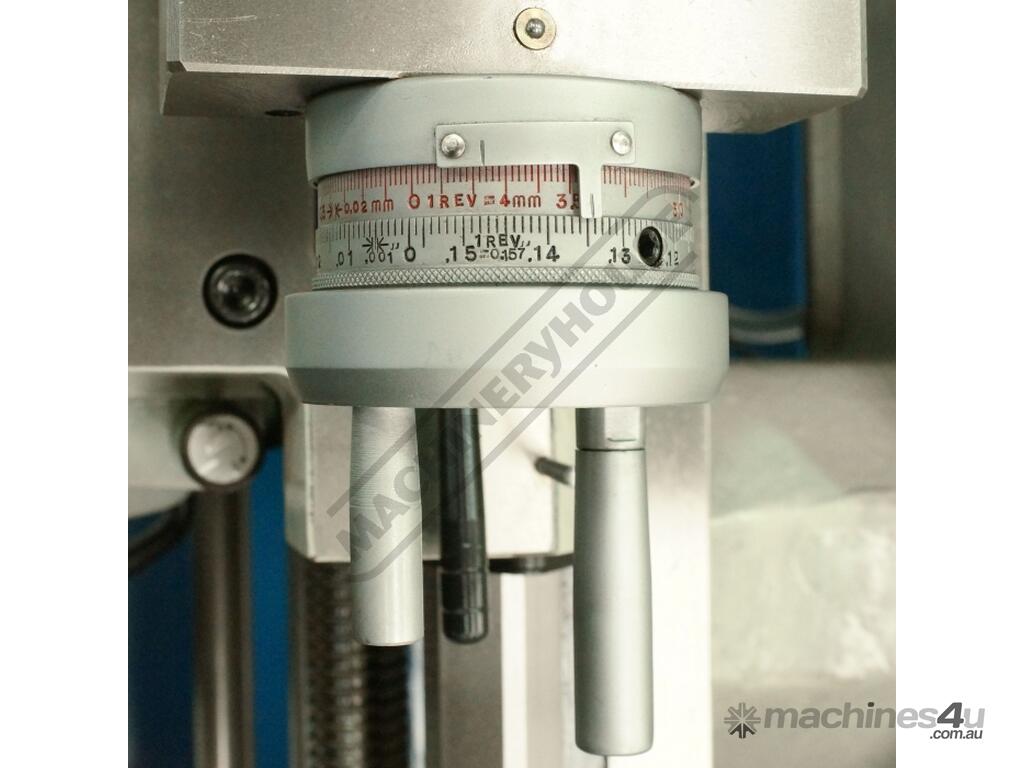

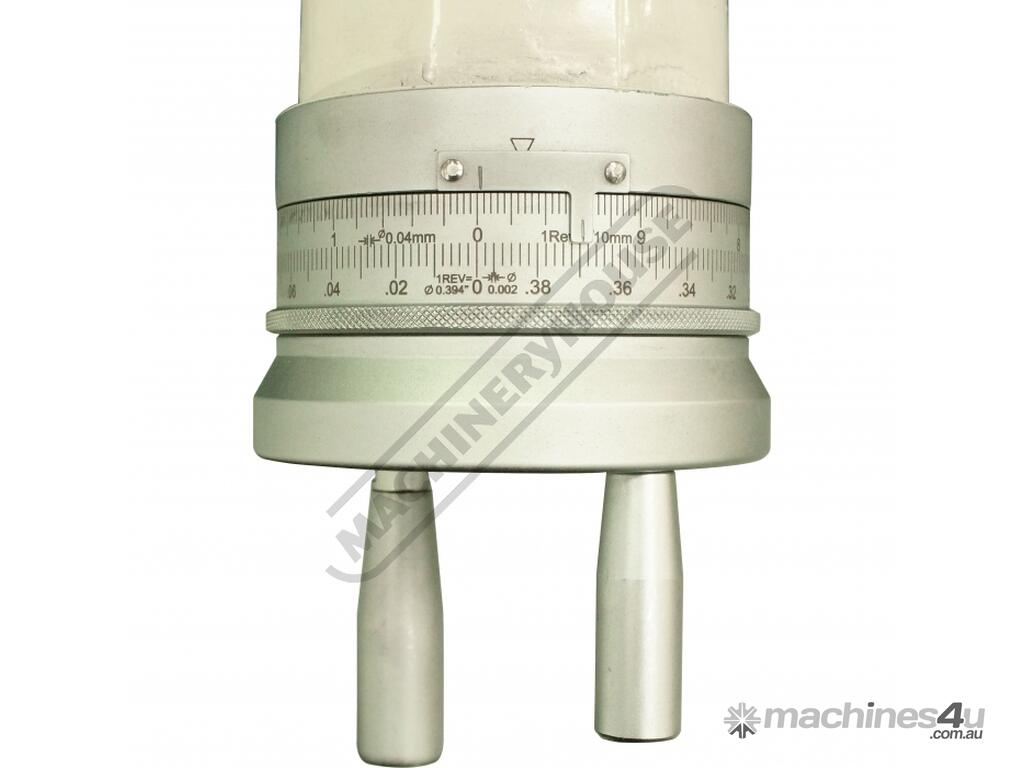

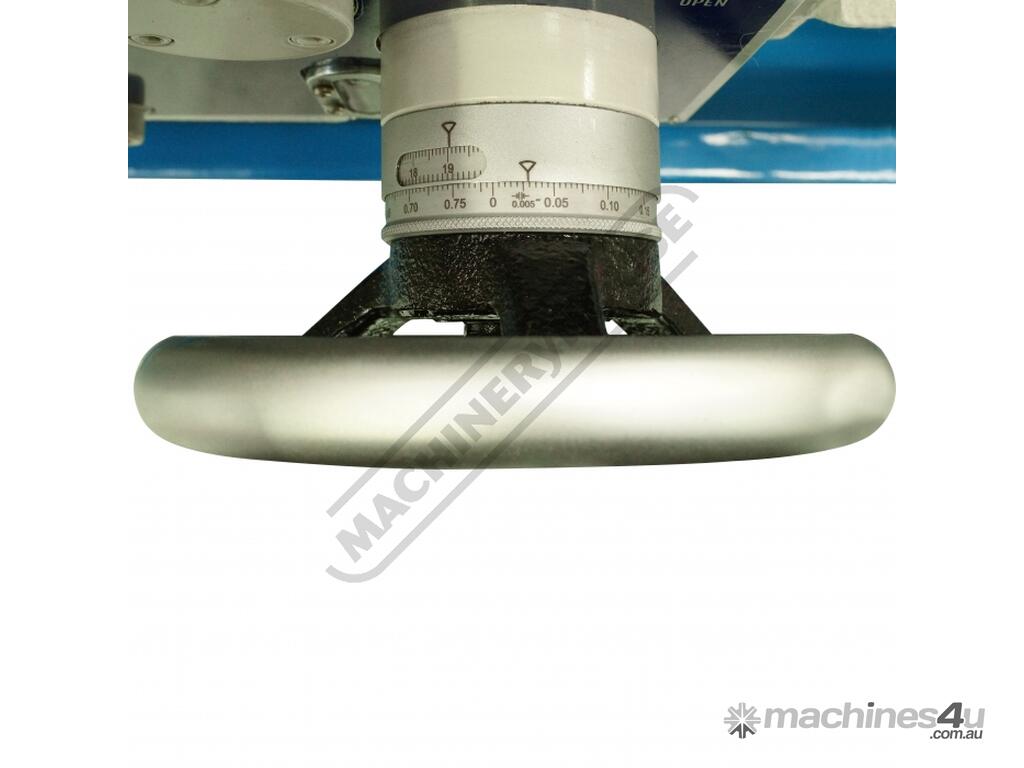

Dual calibrated dials incorporating metric & imperial graduations
Coolant system with flexible hose enabling operator to manipulate flow direction
Oil sight glass for head stock, gearbox and apron

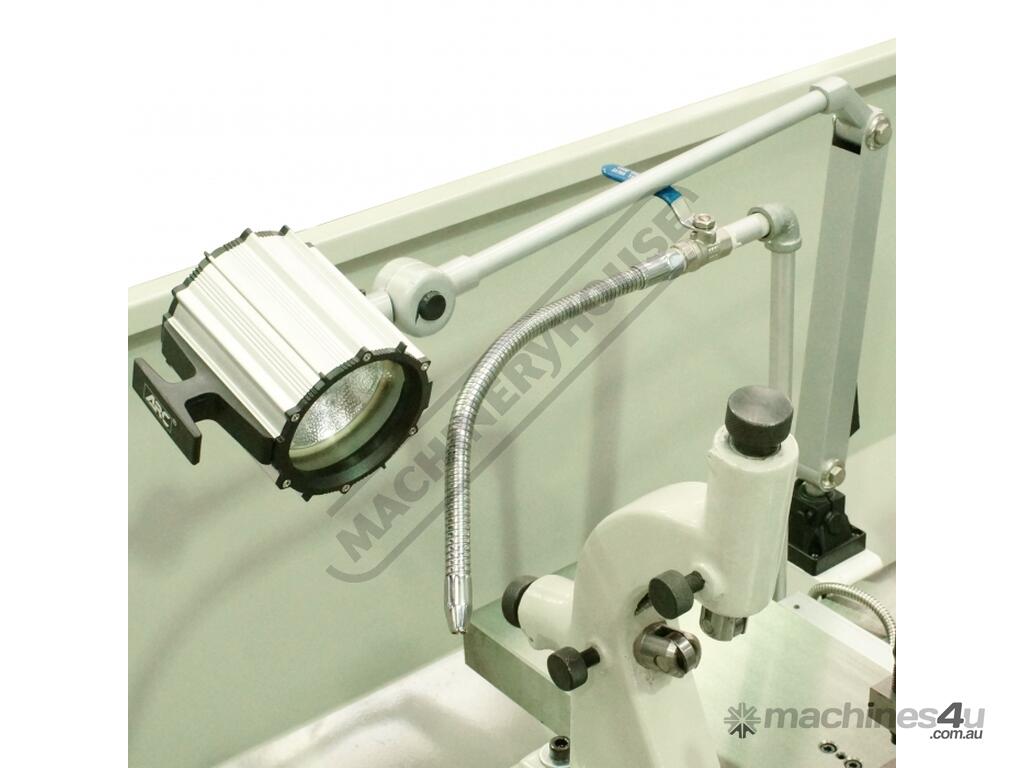

Low voltage halogen work light
Lubrication pump on saddle oiling slides
D1-8 camlock spindle for quick chuck removal

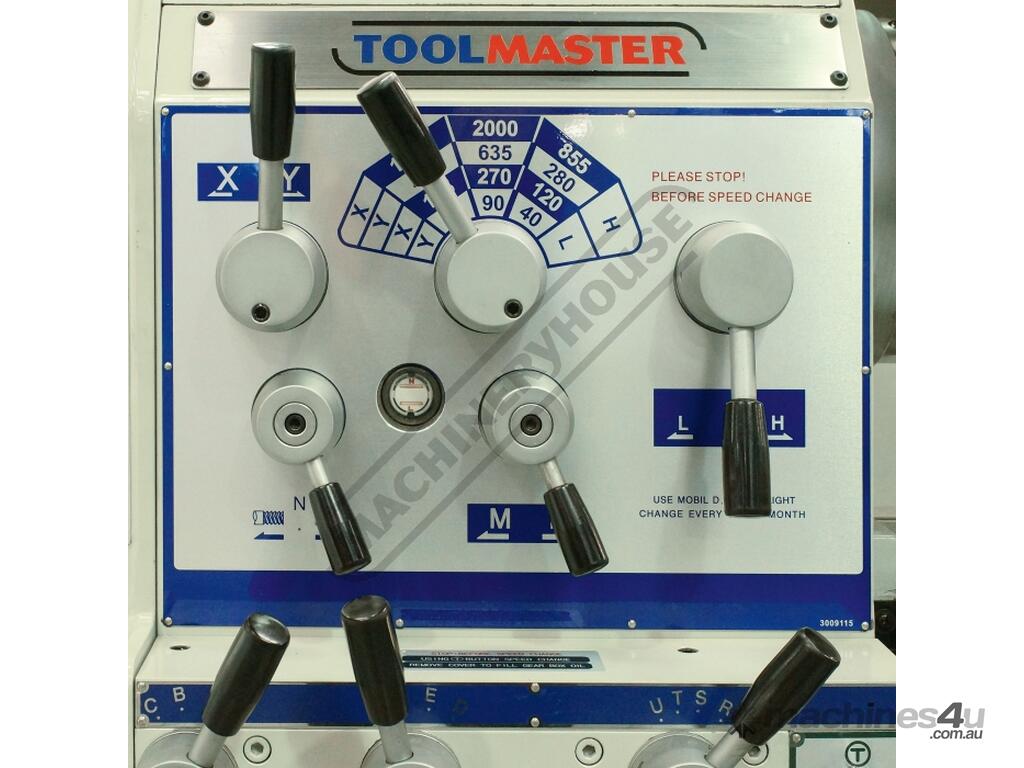

12 Spindle speeds from 40 - 2000rpm
Large 80mm spindle bore
5.5kW / 7.5HP 415V main motor
Includes
2 Axis digital readout system

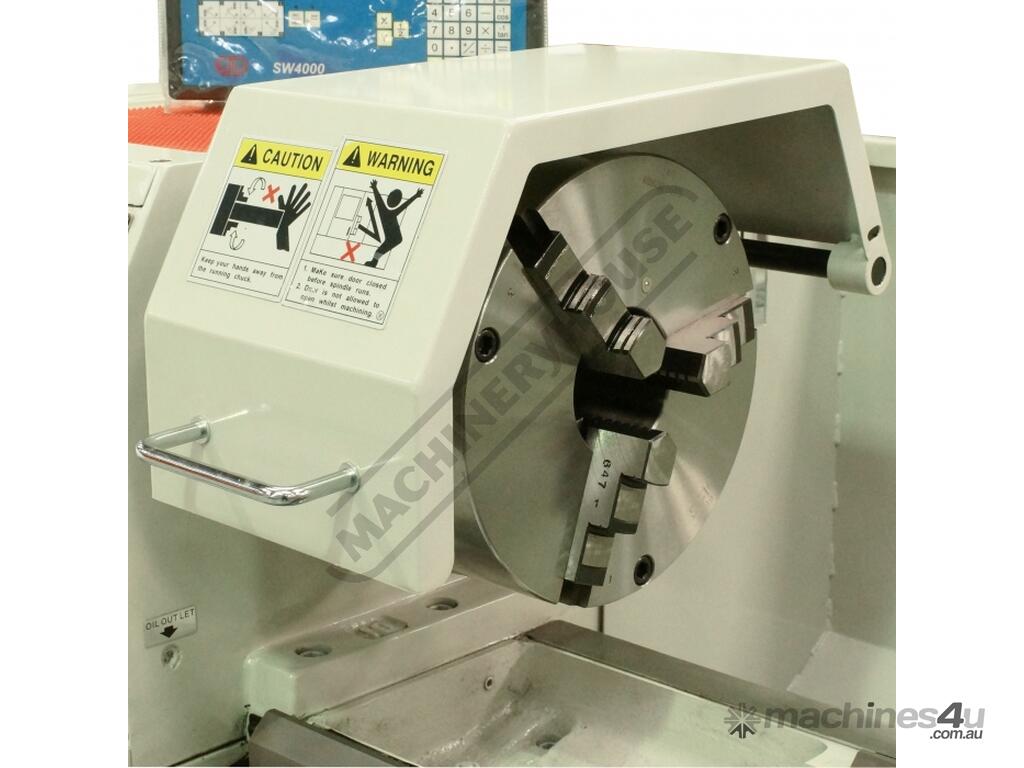

275mm 3-jaw chuck with reverse jaws
320mm 4-jaw chuck
356mm face plate

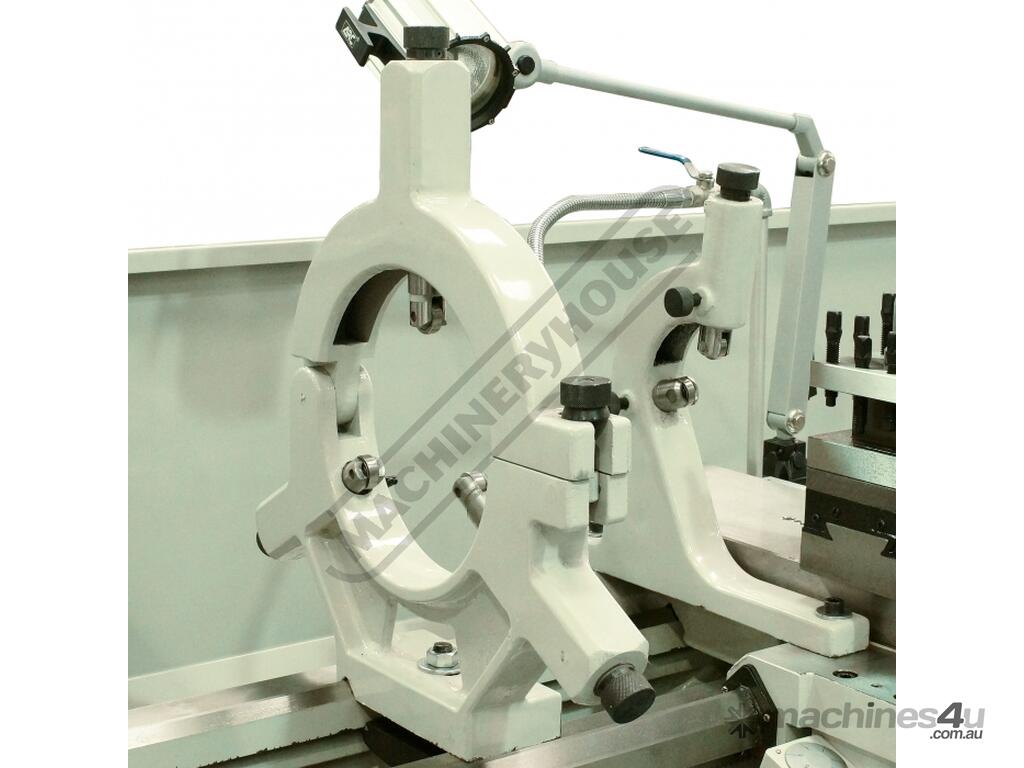

Fixed steady with roller bearings
Travelling steady with roller bearings
4-position knock out feed system
Dead centres

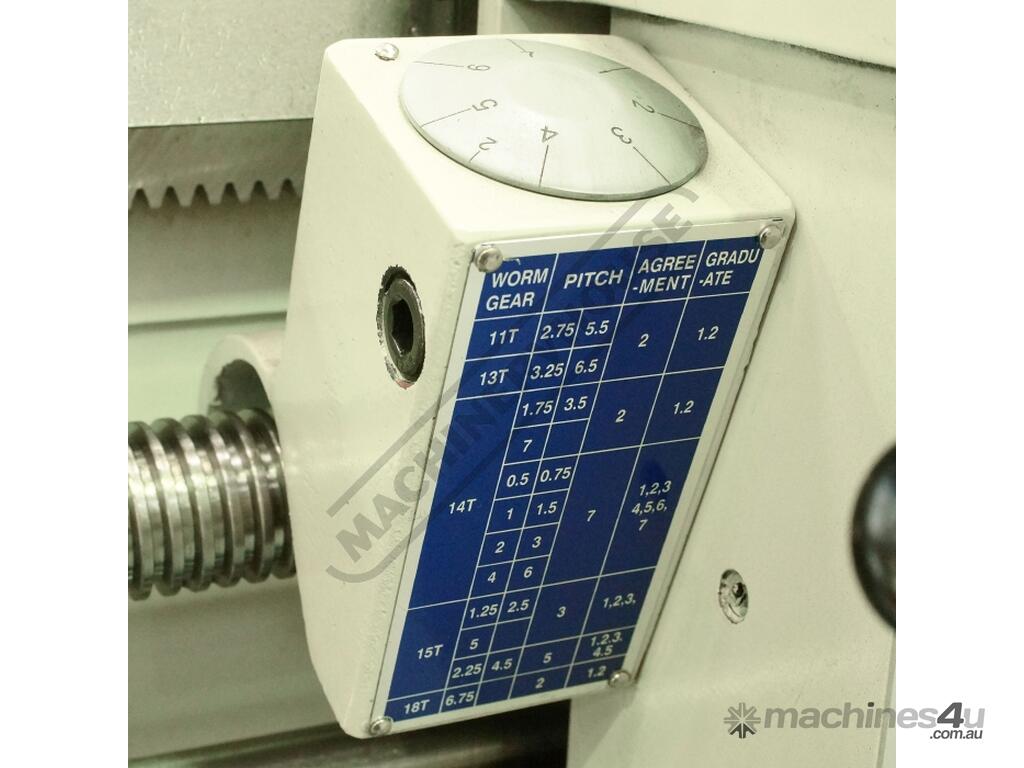

Thread chasing dial
Foot brake
Coolant system
Work light
Rear splash guard
Spindle reducing bush
Instruction booklet

Stock Code: L634D

All Prices and specifications subject to change
