SHAW - HP-20PP Workshop Hydraulic Press 20 Tonne Sliding Cylinder Ram

Suited to any workshop or garage for general use.

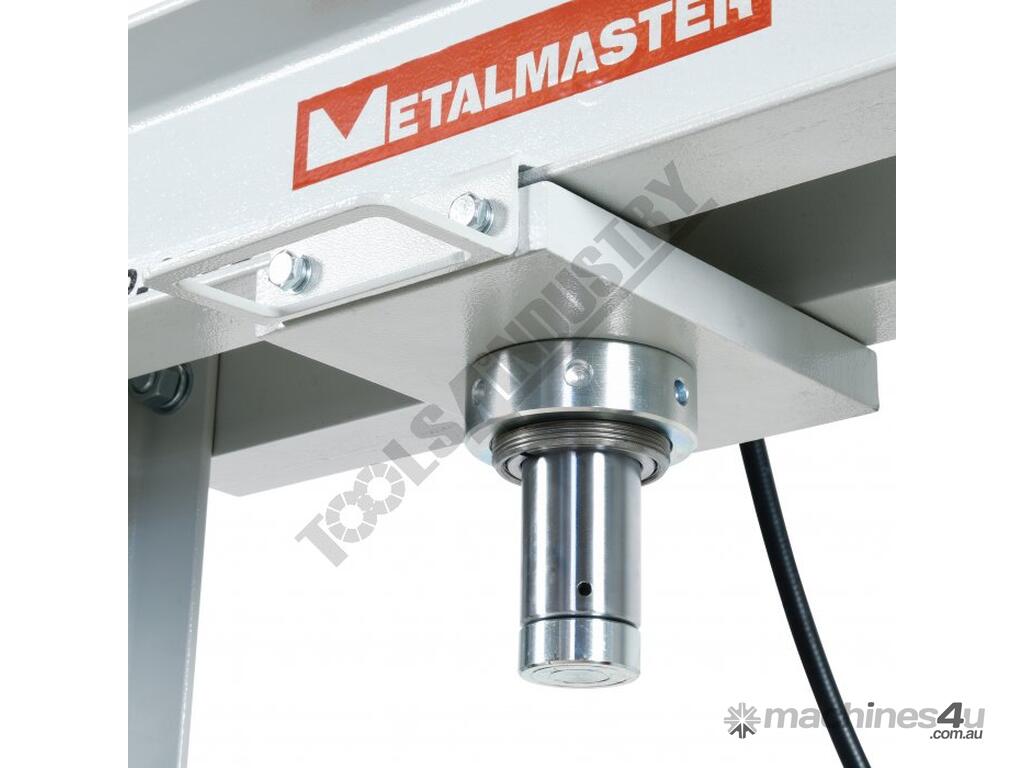

The Metalmaster HP-20PP 20 tonne garage press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HP-20PP also has the added feature of a sliding head with an easy to use handle. The ram can be moved to the side allowing for those offset pressing jobs. The 20 tonne hydraulic ram and pump unit are also easily removed for use on other pressing jobs outside your workshop such as straightening or bending. The press is supplied with a pressure gauge, two heavy duty pressing plates and is constructed from industrial grade C channel making it ideal for mechanics or the serious home workshop.

Features:
Ideal for removing and installing - Bushing Ball-joints Bearings Gears Pulleys etc
Heavy duty construction with headtable and uprights all made from heavy C channel steel
Hydraulics assembled in a temperature controlled clean room for maximum quality
Hydraulics individually factory tested prior to shipping.
Adjustable sliding head up to 395mm travel between the vertical post

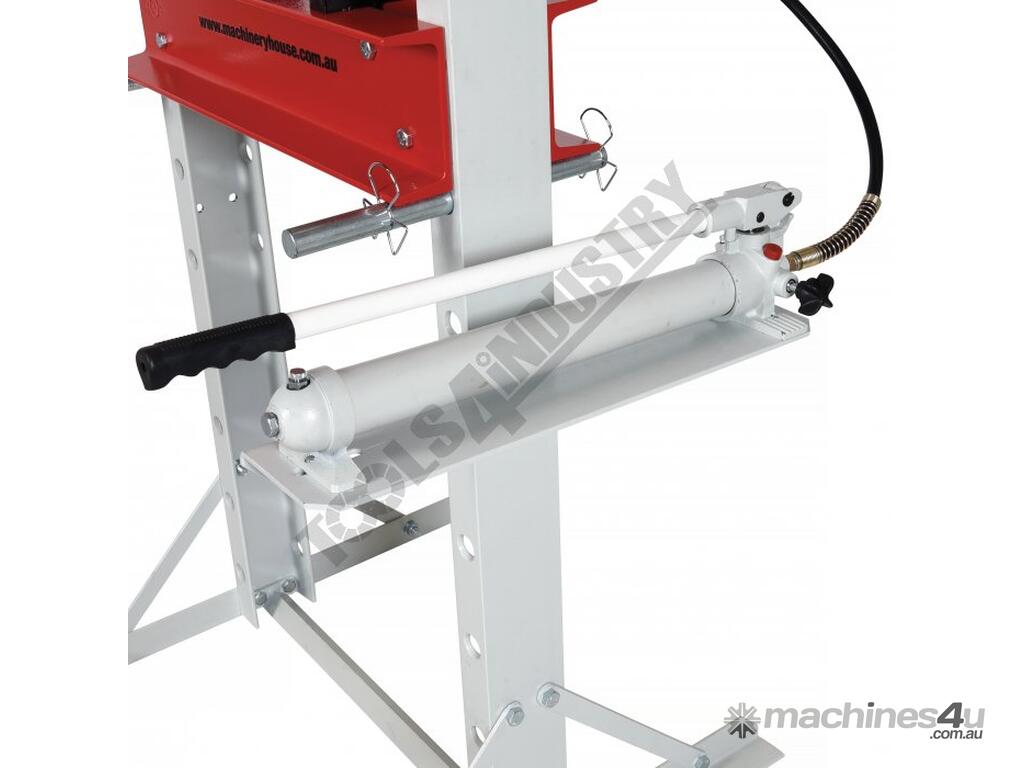

20 tonne hydraulic ram and hand pump easily removed for use on other pressing jobs

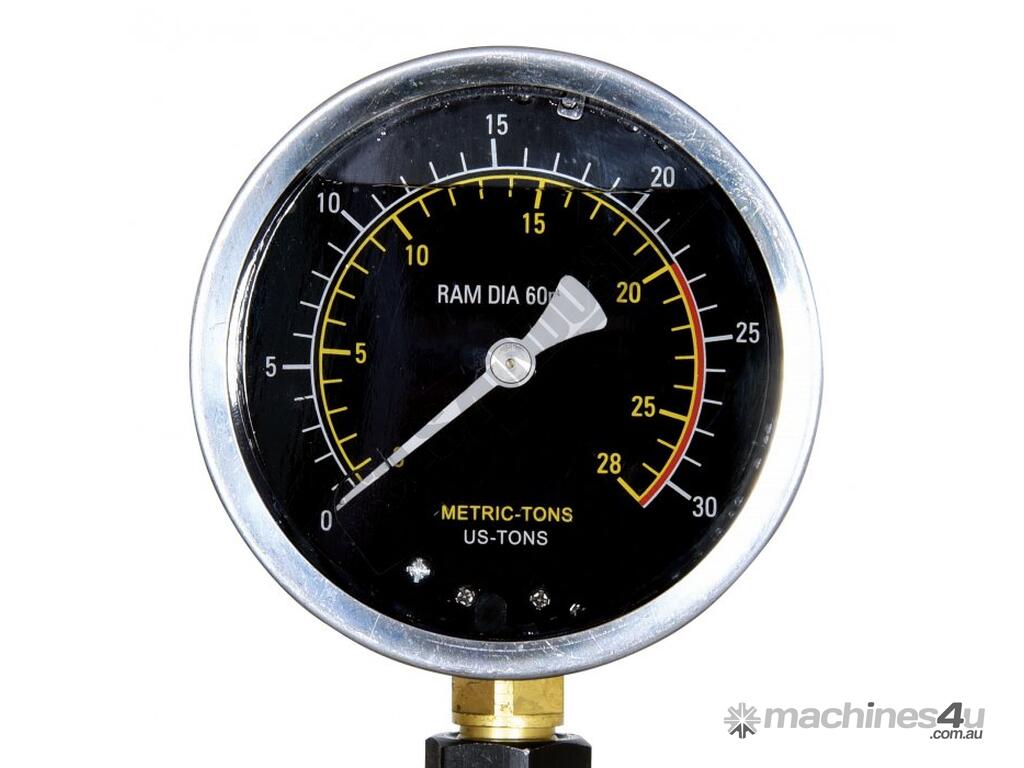

Metric / imperial pressure gauge included

Includes:

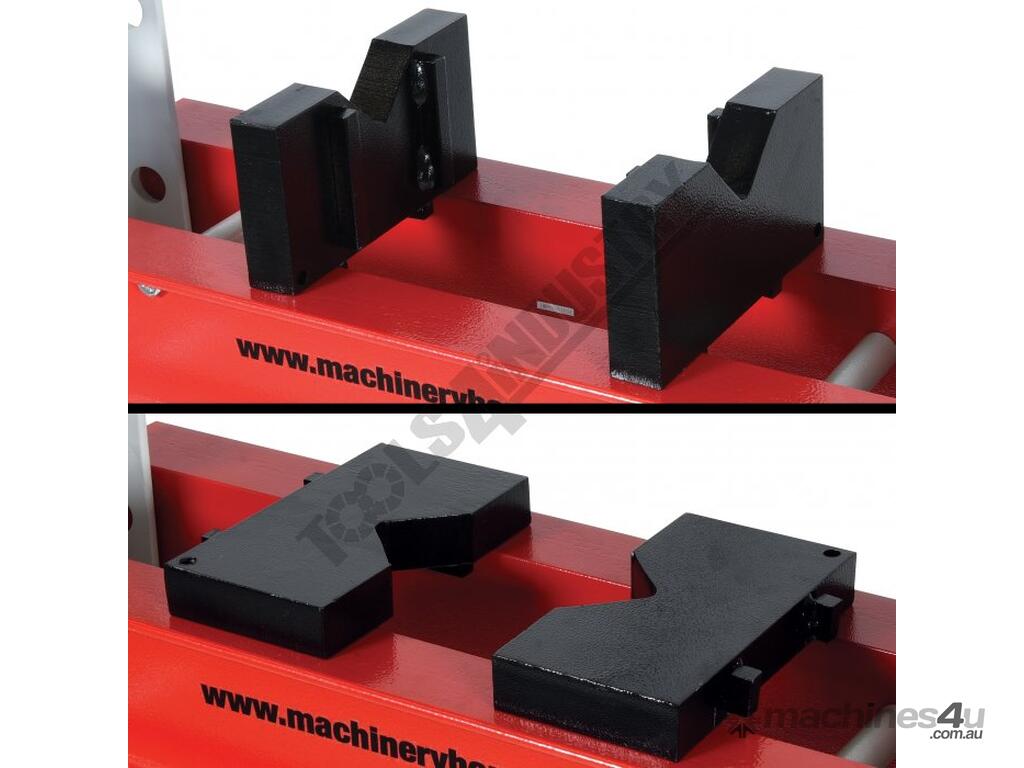

- Complete with bending plates

Specifications:
ORDER CODE: P142
MODEL: HP-20PP
Pressing Capacity (Tonne): 20
Hydraulic Ram Operation (Type): Manual / Hydraulic
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 542
Width Between Side Posts (mm): 85
Table Top Opening - (Front to Back) (mm): 105
Ram To Table (Max.) (mm): 980
Piston Ram Stroke (mm): 185
Ram Diameter (mm): Ø48
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 1100 x 800 x 1780
Shipping Dimensions (L x W x H) (mm): 1560 x 300 x 210
Nett Weight (kg): 114.5

All Prices and Specifications, can be subject to change.
