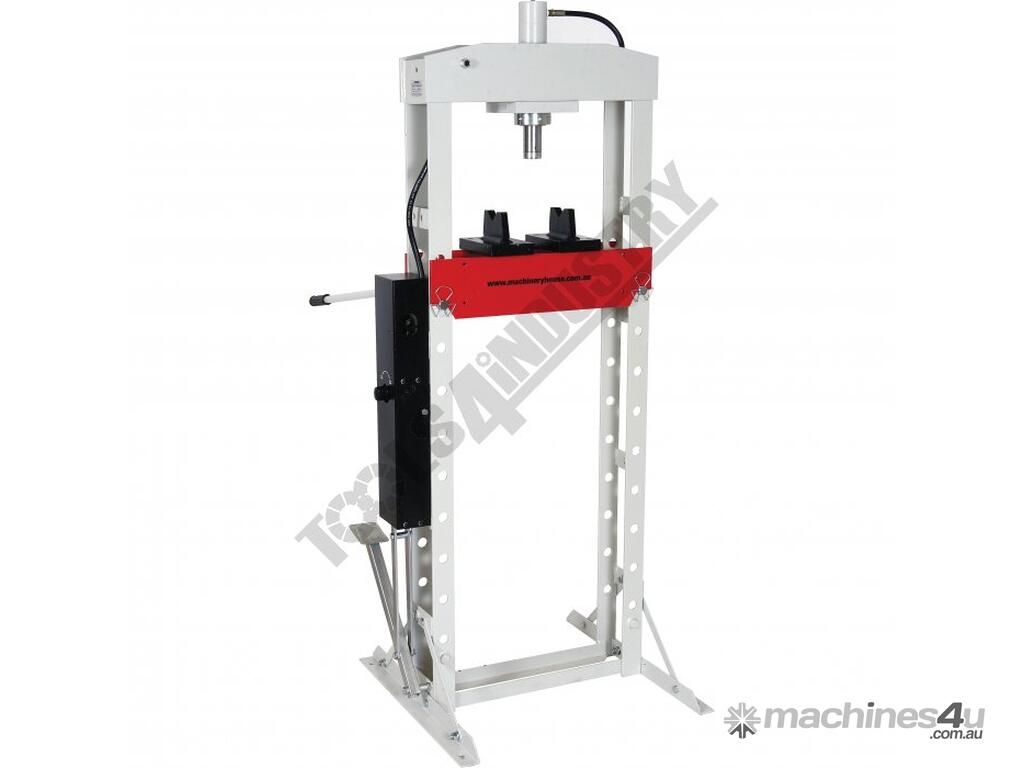

SHAW - HPF-20 Heavy Duty Trade Hydraulic Press 20 Tonne Sliding Cylinder Ram

Suited to any professional workshop or garage for many pressing applications

The Metalmaster HPF-20 20 tonne press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HPF-20 is hand or foot operated for easy of use and also has the added feature of a sliding head allowing for those offset pressing jobs. This press has the unique feature of two speed hydraulics allowing for rapid speed to get close to your work piece then switch into a slower working speed for increased productivity. This 20 tonne press has a fully CNC welded frame for the highest quality, accuracy and extra rigidity. The press is supplied with a pressure gauge, two heavy duty pressing plates, and is fitted with a foot pedal, making it ideal for mechanics or the serious home workshop.

Features:
Ideal for removing and installing - Bushing Ball-joints Bearings Gears Pulleys etc

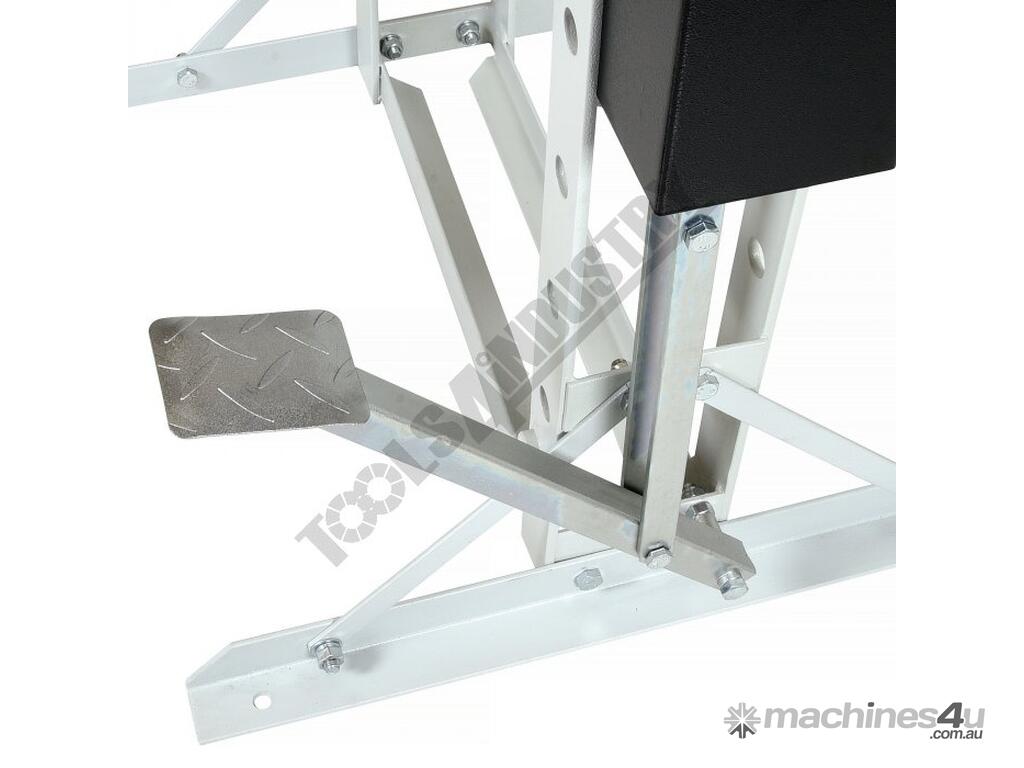

Hand or foot operation
Heavy duty steel construction with CNC fully welded frame

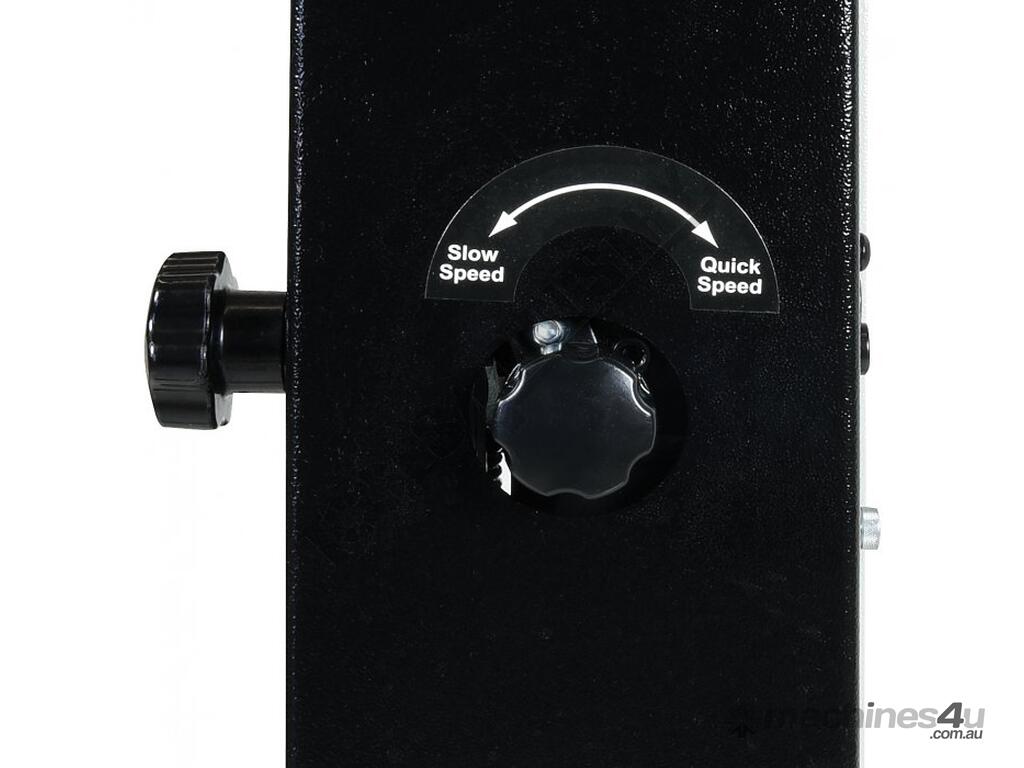

Two speed hydraulic ram system
Hydraulics assembled in a temperature controlled clean room for maximum quality
Hydraulics individually factory tested prior to shipping.
Adjustable sliding head up to 145mm travel between the vertical post

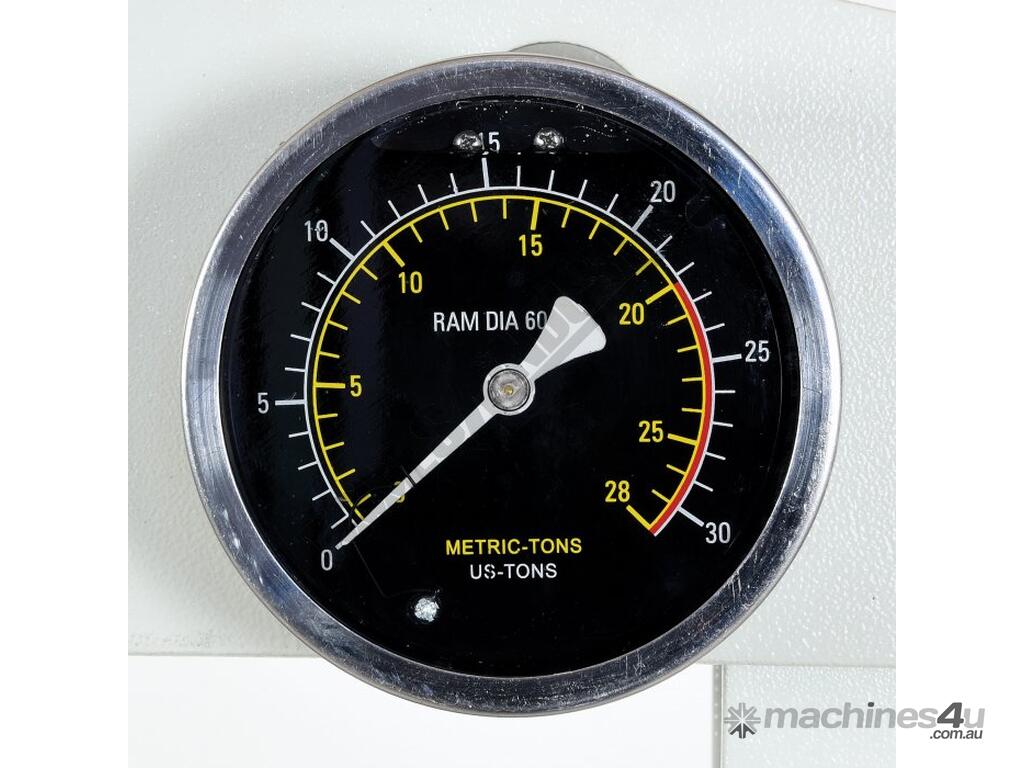

Metric / imperial pressure gauge included

Includes:
- Complete with vee blocks

Specifications:
ORDER CODE: P150
MODEL: HPF-20
Pressing Capacity (Tonne): 20
Hydraulic Ram Operation (Type): Hydraulic
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 510
Width Between Side Posts (mm): 132
Table Top Opening - (Front to Back) (mm): 152
Ram To Table (Max.) (mm): 1118
Piston Ram Stroke (mm): 150
Ram Diameter (mm): Ø48
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 1000 x 800 x 1830
Shipping Dimensions (L x W x H) (mm): 1940 x 705 x 310
Nett Weight (kg): 147


Please Note: All Prices and Specifications can be subject to change.
