SHAW - HPT-30P Workshop Hydraulic & Pneumatic Press 30 Tonne Sliding Cylinder Ram

METALMASTER HPT-30P Workshop Hydraulic & Pneumatic Press 30 Tonne Sliding Cylinder Ram

Suited to any workshop or garage for general use.

The Metalmaster HP-30P 30 tonne garage press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HP-30P is pneumatically or hand operated for easy of use and also has the added feature of a sliding head. The ram can be moved to the side allowing for those offset pressing jobs. This 30 tonne press is manufactured from heavy duty C channel steel with a CNC welded frame for the highest quality and accuracy. The press is supplied with a pressure gauge, two heavy duty pressing plates, and can be fitted with an optional pneumatic foot pedal, making it ideal for mechanics or the serious home workshop.

Features:
Ideal for removing and installing - Bushing Ball-joints Bearings Gears Pulleys etc

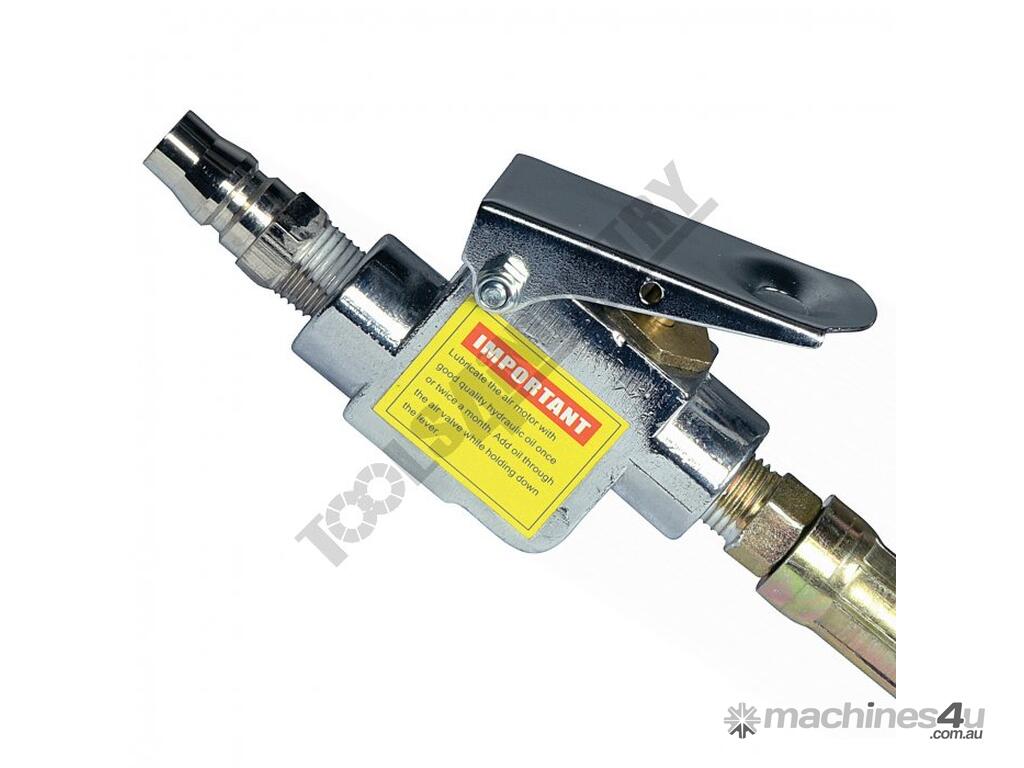

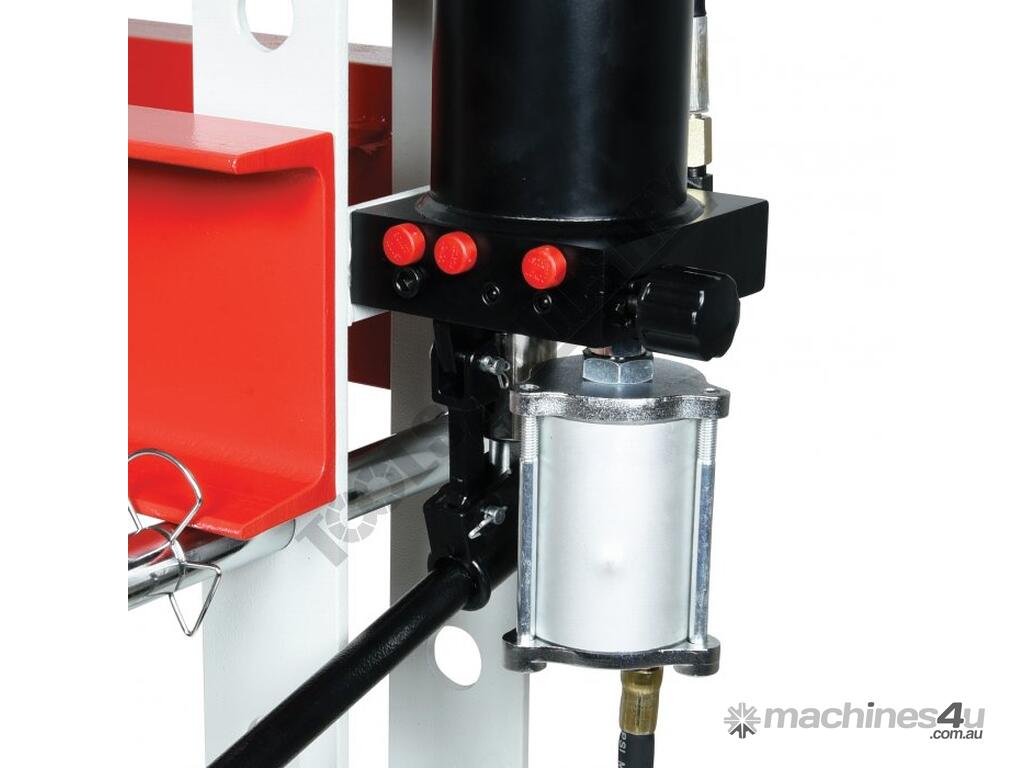

Pneumatic or hand operation
Heavy duty construction with head and table all made from heavy C channel steel with CNC welded frame
Hydraulics assembled in a temperature controlled clean room for maximum quality
Hydraulics individually factory tested prior to shipping.

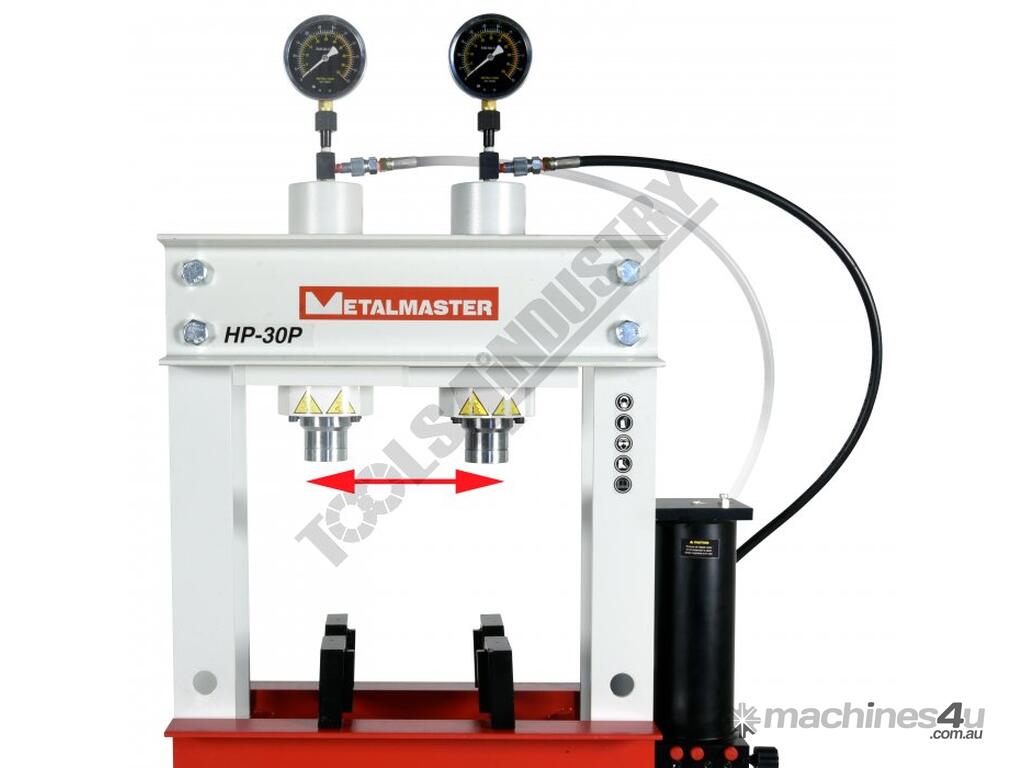

Adjustable sliding head up to 190mm travel between the vertical post
Metric / imperial pressure gauge included

Includes:
- Complete with vee bending plates

Specifications:
ORDER CODE: P145
MODEL: HP-30P
Pressing Capacity (Tonne): 30
Hydraulic Ram Operation (Type): Pneumatic / Hydraulic
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 460
Width Between Side Posts (mm): 135
Table Top Opening - (Front to Back) (mm): 155
Ram To Table (Max.) (mm): 1095
Piston Ram Stroke (mm): 165
Ram Diameter (mm): Ø70
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 1000 x 800 x 1950
Shipping Dimensions (L x W x H) (mm): 1700 x 510 x 270
Nett Weight (kg): 180

Please note: All Prices and specifications, can be subject to change
