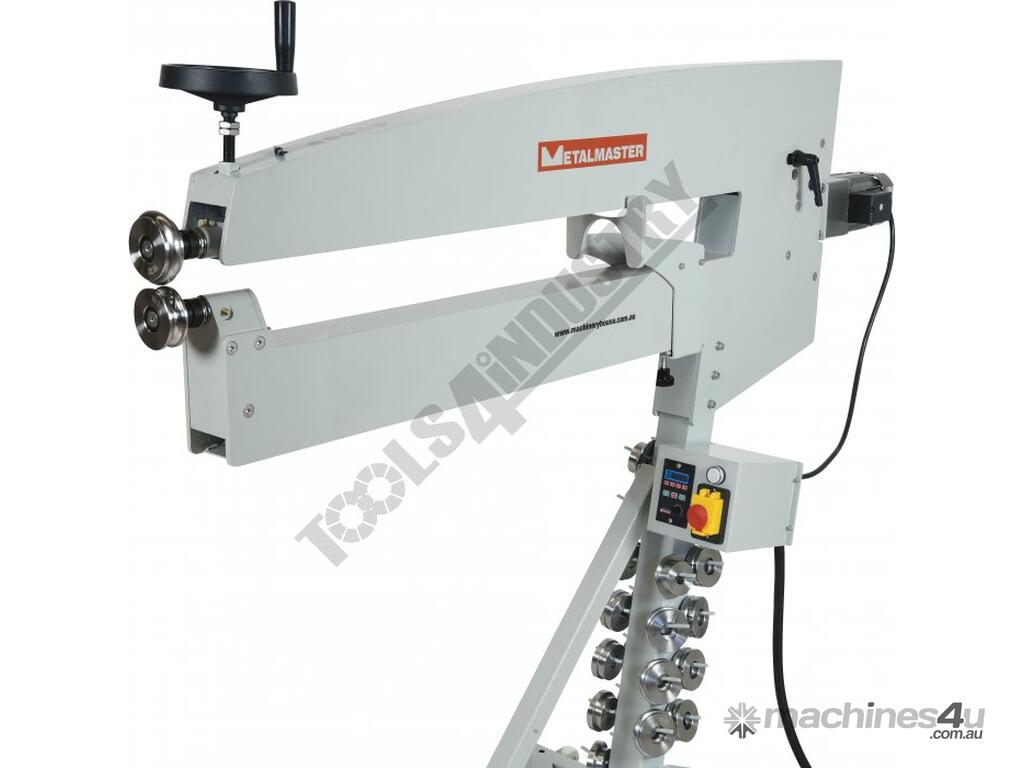

SHAW - Motorised Bead Roller 1.2 mild steel & 1070 Throat

Features:
1.2mm mild steel capacity with 1070mm throat

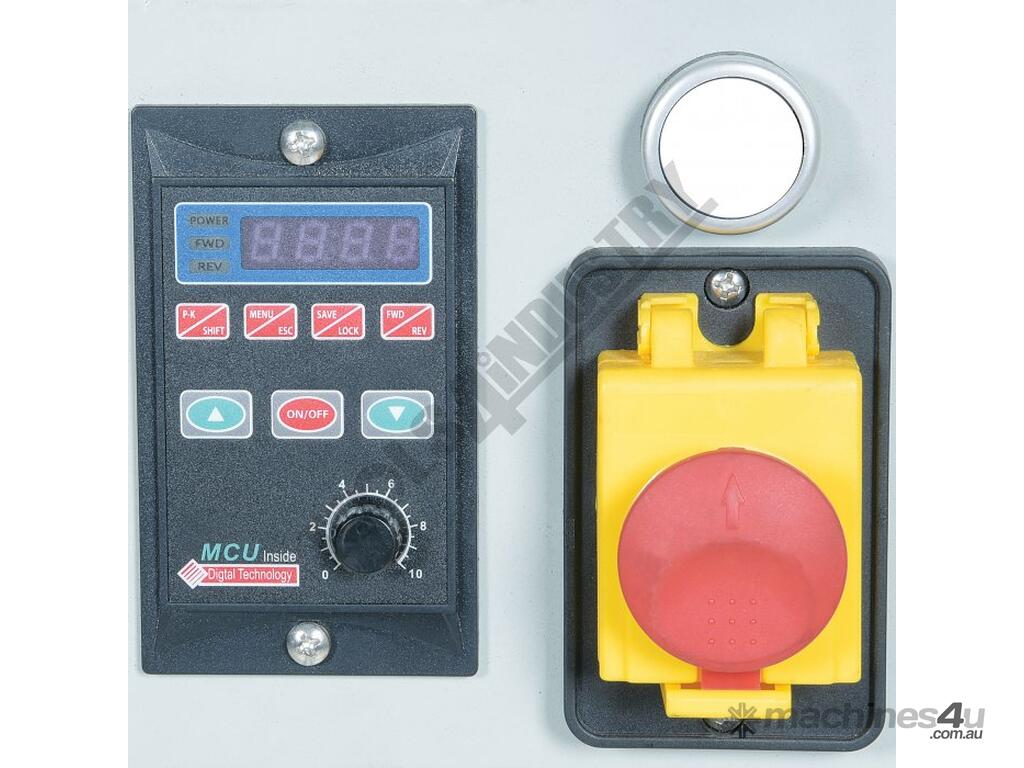

Variable speed dial for superior control on all applications

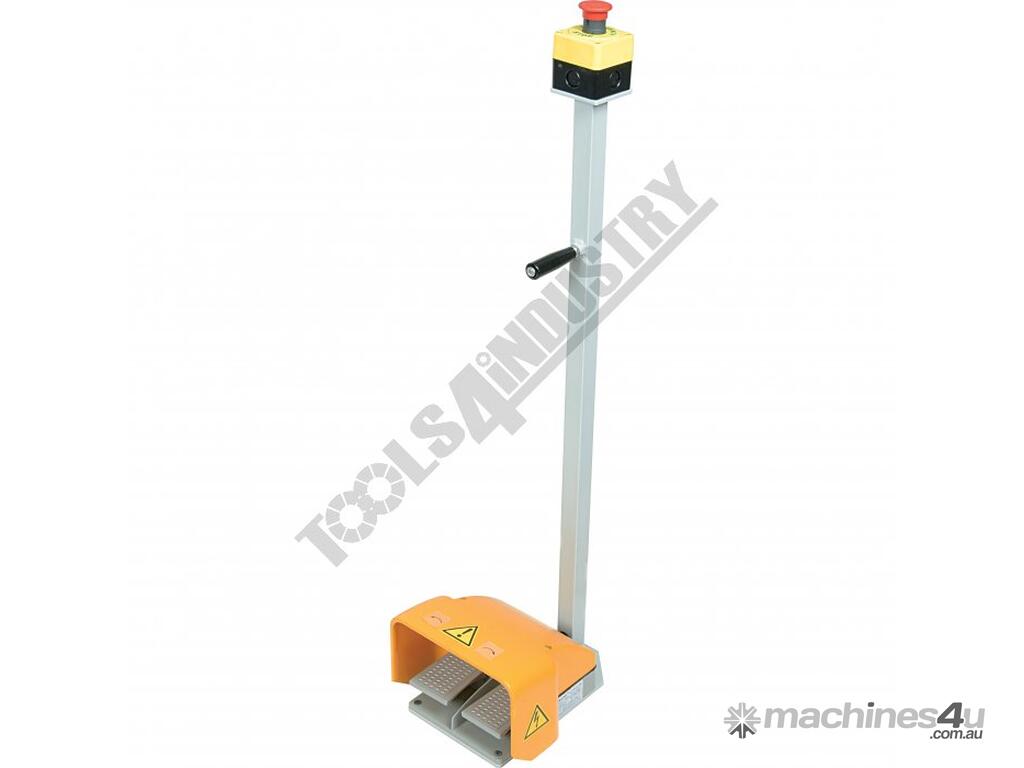

Forward / reverse foot pedal switches with emergency stop

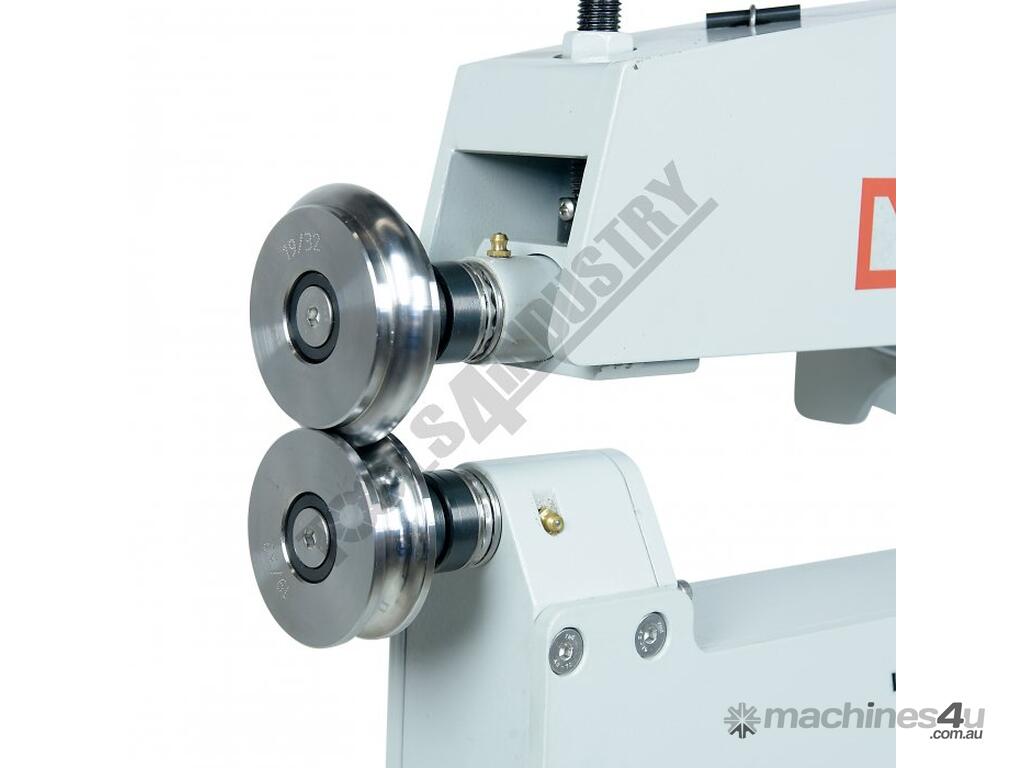

Ø70mm hardened & keyed rollers for positive drive
105mm gap height between roller support arms
Allows clearance of up to 80mm on 90º return bends
Heavy duty steel plate construction for increased rigidity
Top & bottom roller shafts are geared & electrically driven
Adjustable top roller with 38mm of vertical travel
Top shaft adjusts horizontally to easily & accurately align dies
Ø25mm drive shafts with grease-able bronze bushes Ø20mm spigot for mounting rollers
Adjustable material depth guide
0.25kW / 0.33hp 240V variable speed motor with reduction gearbox

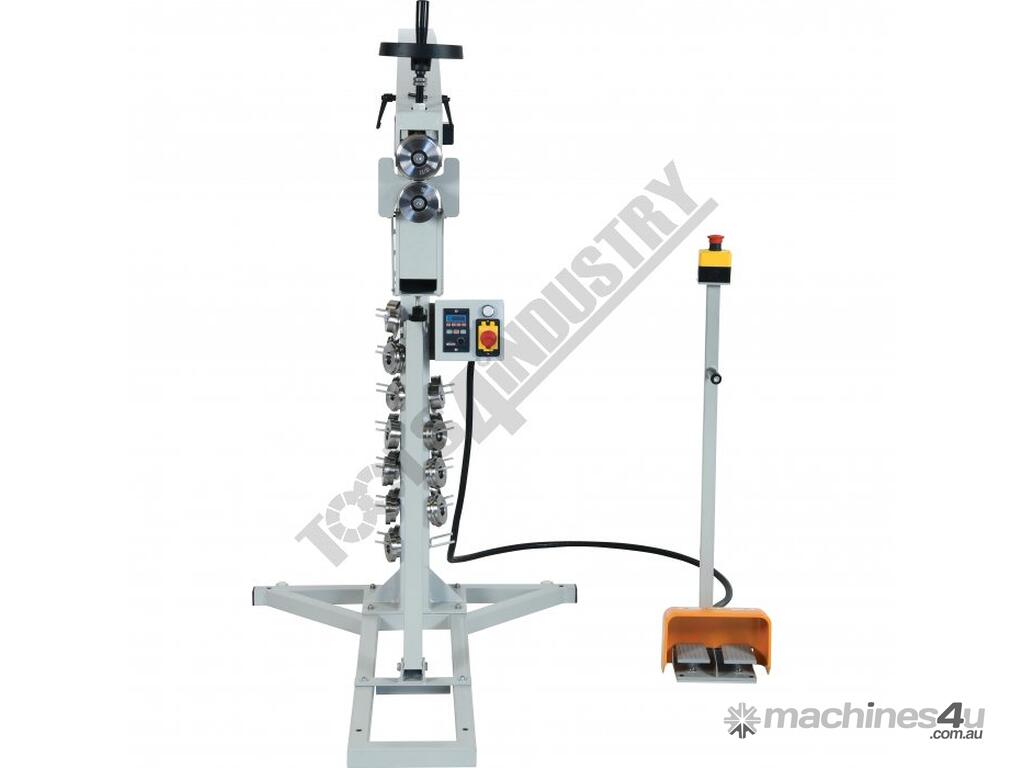

Fitted with two rear wheels to allow easy mobility

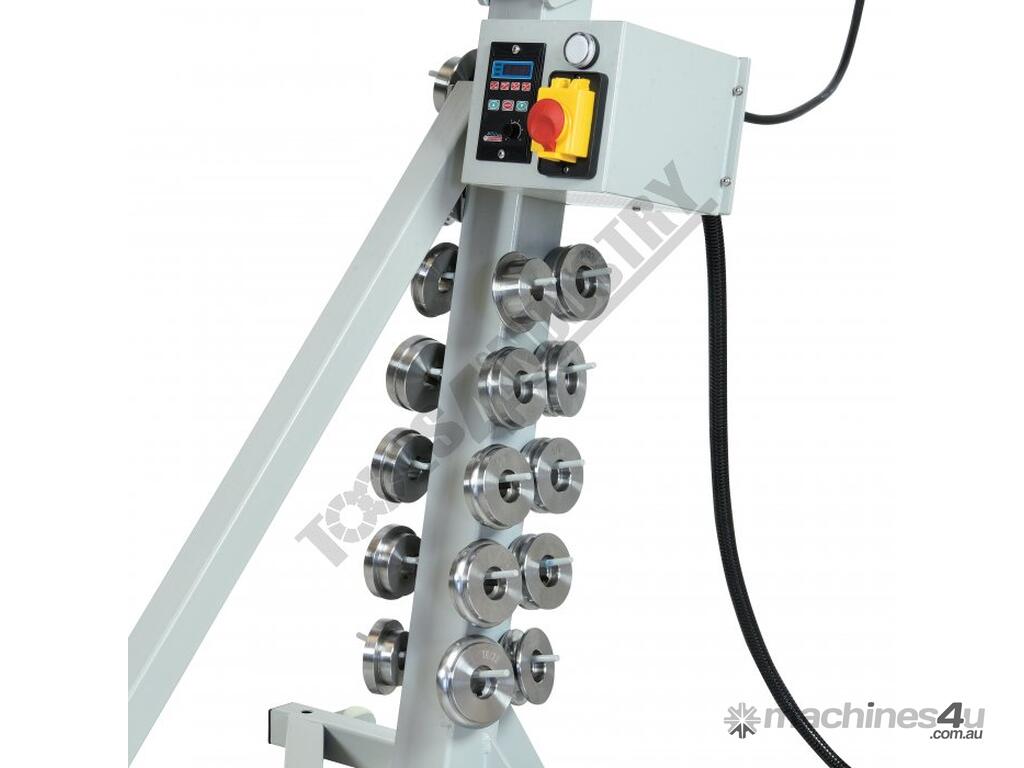

Includes a comprehensive range of rolls supplied as standard

Includes:

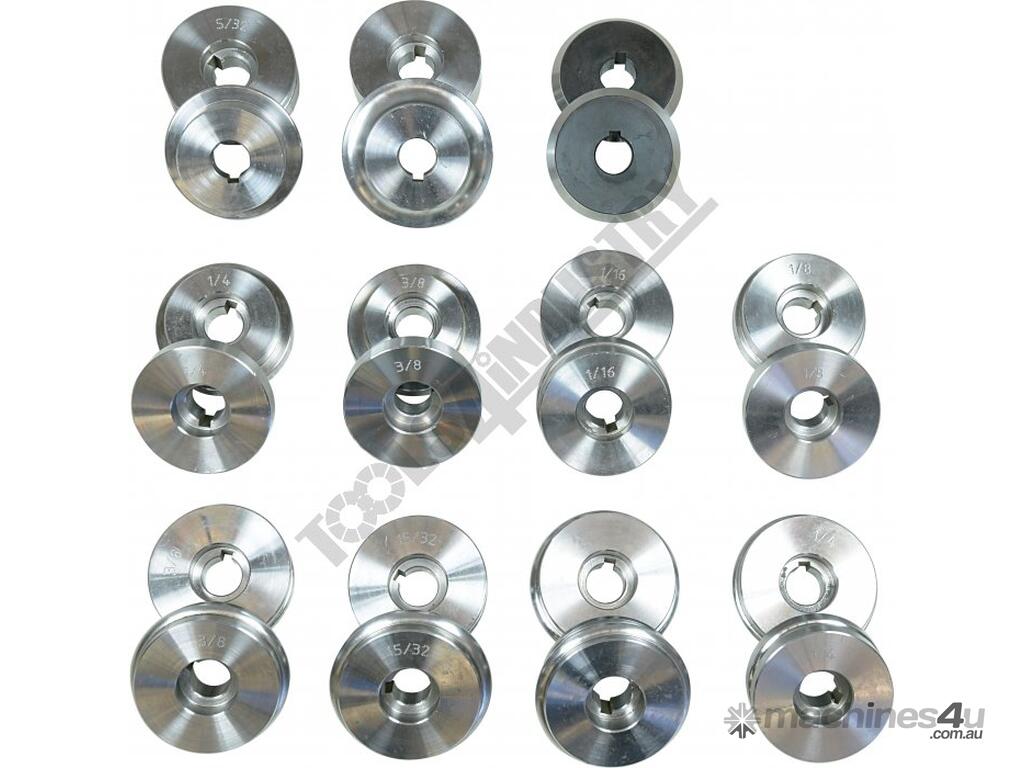

- 12 sets of hardened rolls (Ø20mm Bore):
- 5/32`` (4mm) beading dies
- 1/4`` (6.35mm) beading dies
- 3/8`` (9.5mm) beading dies
- 15/32`` (12mm) beading dies
- 19/32`` (15mm) beading dies
- 1/16`` (1.6mm) flanging dies
- 1/8`` (3mm) flanging dies
- 1/4`` (6.35mm) flanging dies
- 3/8`` (9.5mm) flanging dies
- Ogee beading dies
- Wiring dies
- Shearing dies

Specifications:
ORDER CODE: S634
MODEL: MBR-1070
Machine (Type): Bead Roller
Mild Steel - Thickness Capacity (mm / Gauge): 1.2 / 18
Aluminium - Thickness Capacity (mm / Gauge): ~
Throat Depth Maximum (mm): 1070
Roll Diameter (mm): 70
Output Drive Speed (rpm): 0 - 18
Motor Power (kW / hp): 0.25 / 0.33
Voltage / Amperage (V / amp): 240 / 10
Shipping Dimensions (L x W x H) (cm): 170 x 95 x 40
Nett Weight (kg): 150


Please Note: All prices and specifications, can be subject to change.
