SHAW - OPTIMUM TU-1503V Bench Lathe

OPTIMUM TU-1503V Bench Lathe - Mini 150 x 300mm Electronic Variable Speeds

ADD THIS ASSET TO YOUR WORKSHOP
``CALL FOR OUR BEST PRICE``

Ideal for the model maker machining miniature parts
Small in size but packed full of features, this miniature lathe could provide the perfect introduction to those wanting to start metal turning for the first time.

The machine is small enough to fit into the corner of the workshop and light enough to be truly portable. The construction is predominantly from cast iron and steel and the capacities, 150mm diameter and 300mm between centres, are surprisingly large for a machine of this overall size.

Features such as the electric variable speed control, manual or powered leadscrew feed and an extensive range of accessories. The lathe comes supplied with 80mm diameter three jaw self-centring chuck, tailstock centre and service tools.

Features:
Electronic infinitely variable speed 160-3000rpm
Ribbed prism bed made of grey cast iron
Inductively hardened and ground bed guideways
Spindle nose accuracy 0.015mm
3 Jaw chuck running accuracy 0.05mm

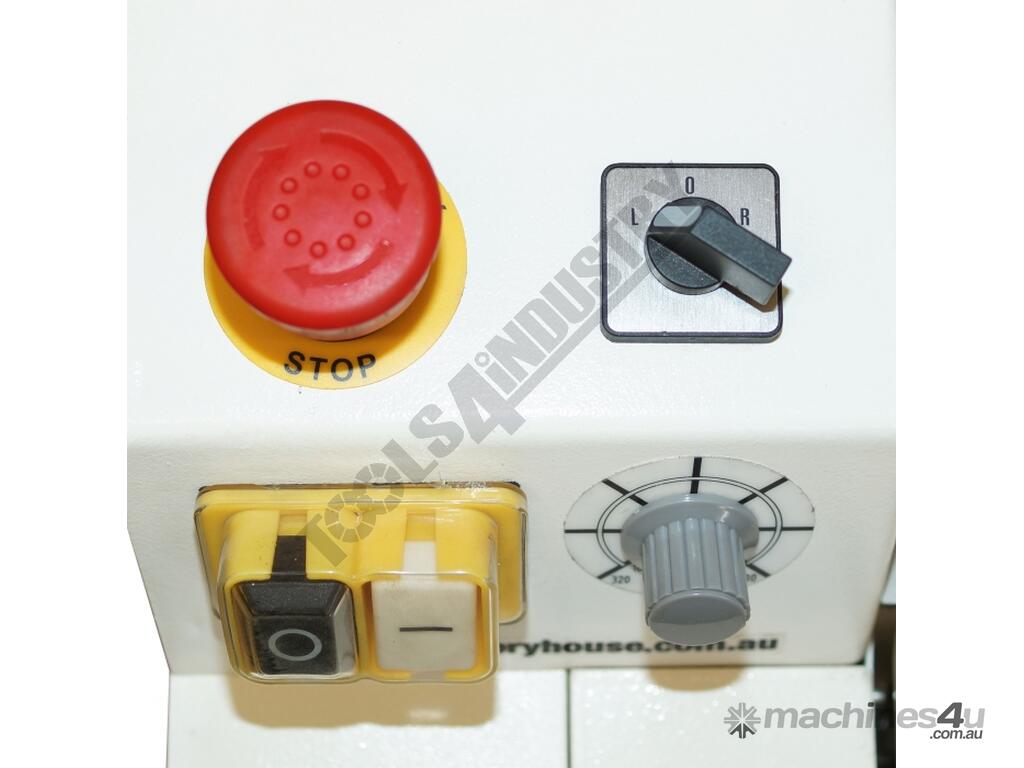

Forward & reverse spindle direction switch
Automatic longitudinal feed
2 stepped V-belt drive pulley
Conveniently mounted safety emergency stop switch
Includes a set of change gears for metric thread cutting

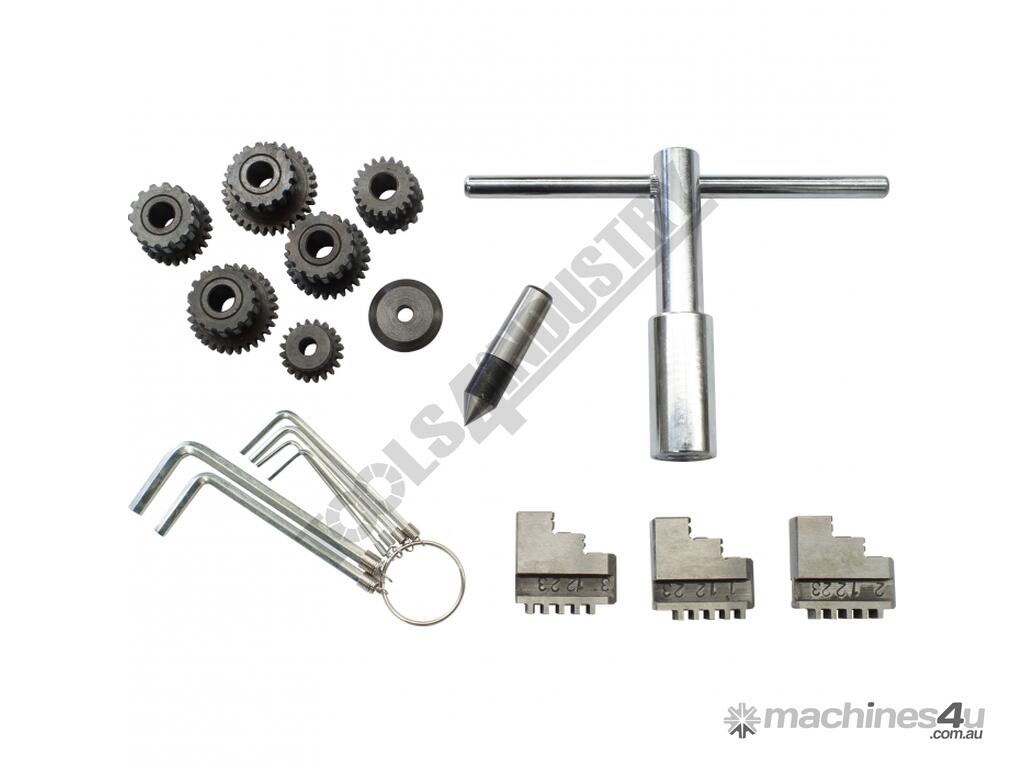

Includes:
- Change gears for metric thread cutting
- Chuck guard

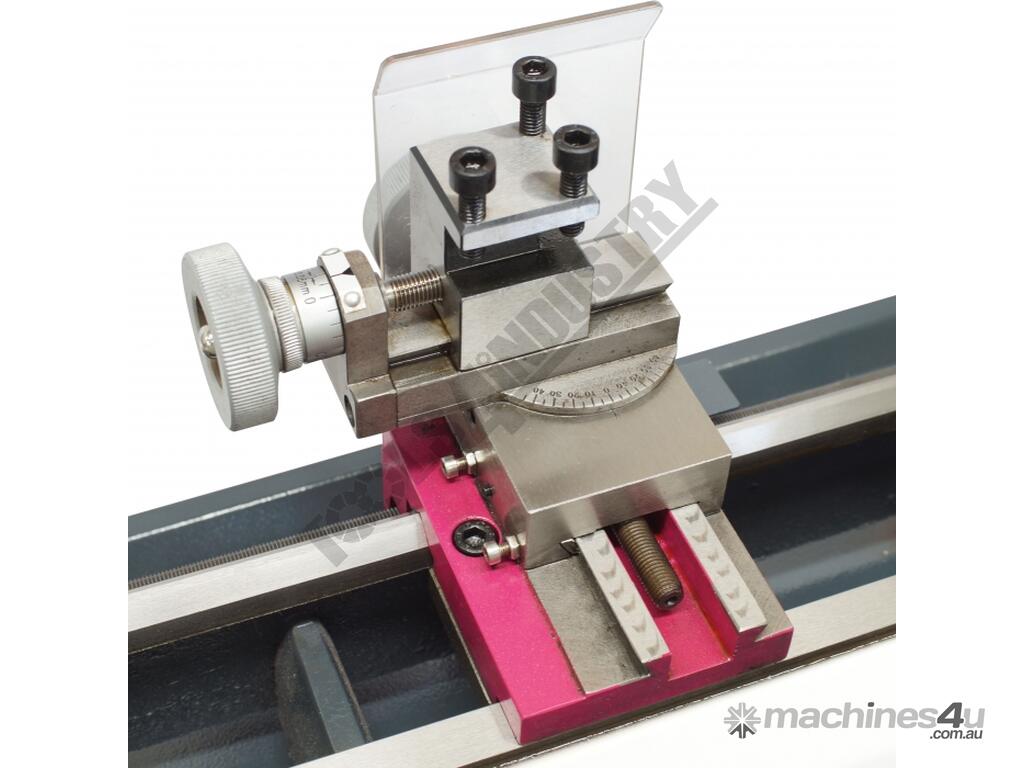

- Toolpost guard
- Dead Centre
- 3-jaw chuck with reversible jaws
- Swarf tray
- Rear splash guard

Specifications:
ORDER CODE: L685
Model: TU-1503V
Digital Readout System Fitted: Optional
Quick Change Toolpost Fitted: Optional
Tool Height To Suit: 8mm
Distance Between Centres: 300mm
Swing Over Bed: 150mm
Swing Over Cross-slide: 82mm
Centre Height: 75mm
Spindle Bore: 11mm
Spindle Nose Size or Type: Fixed
Bed Width: 70mm
Headstock Spindle Taper: 1MT

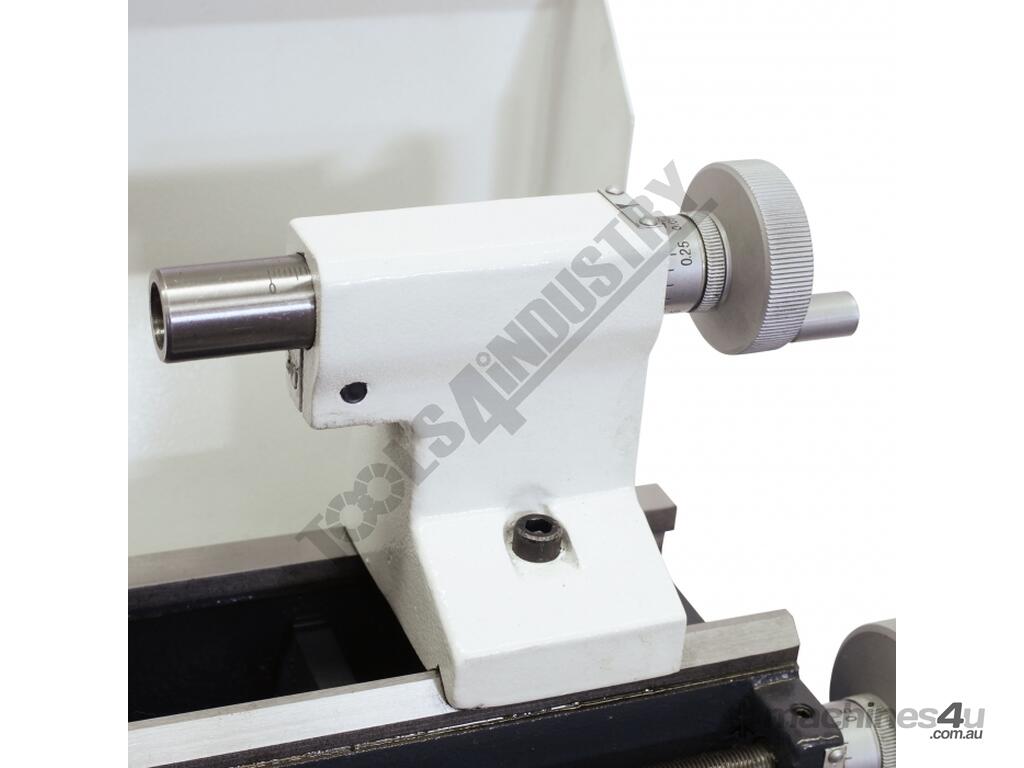

Tailstock Taper: 1MT

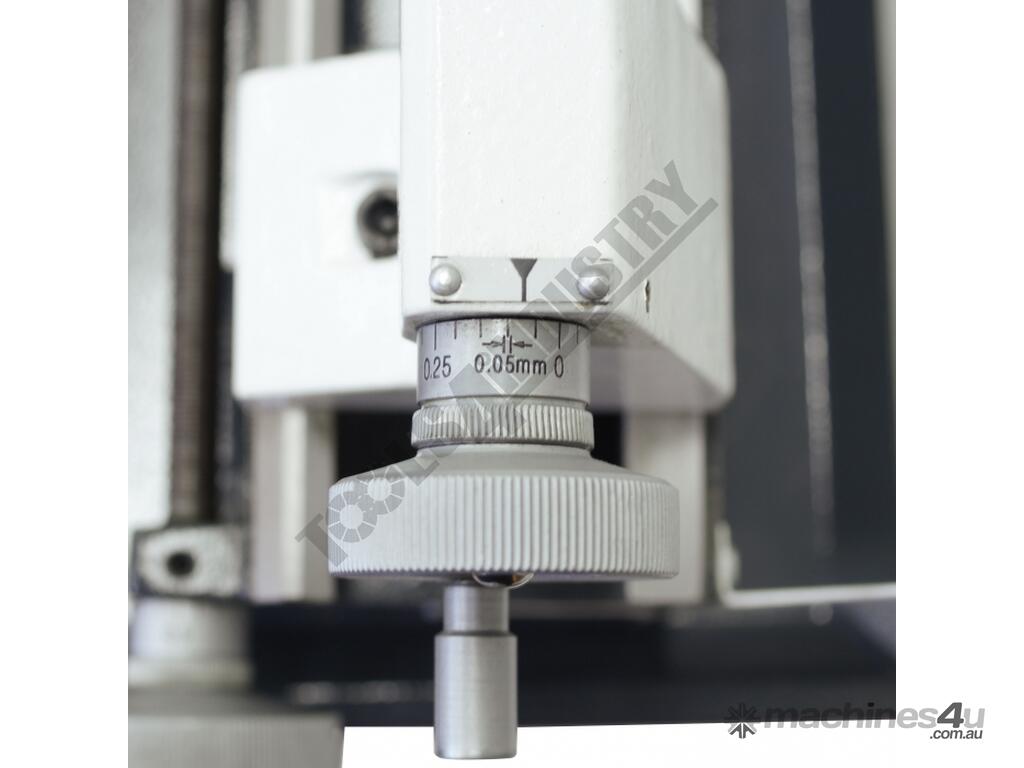

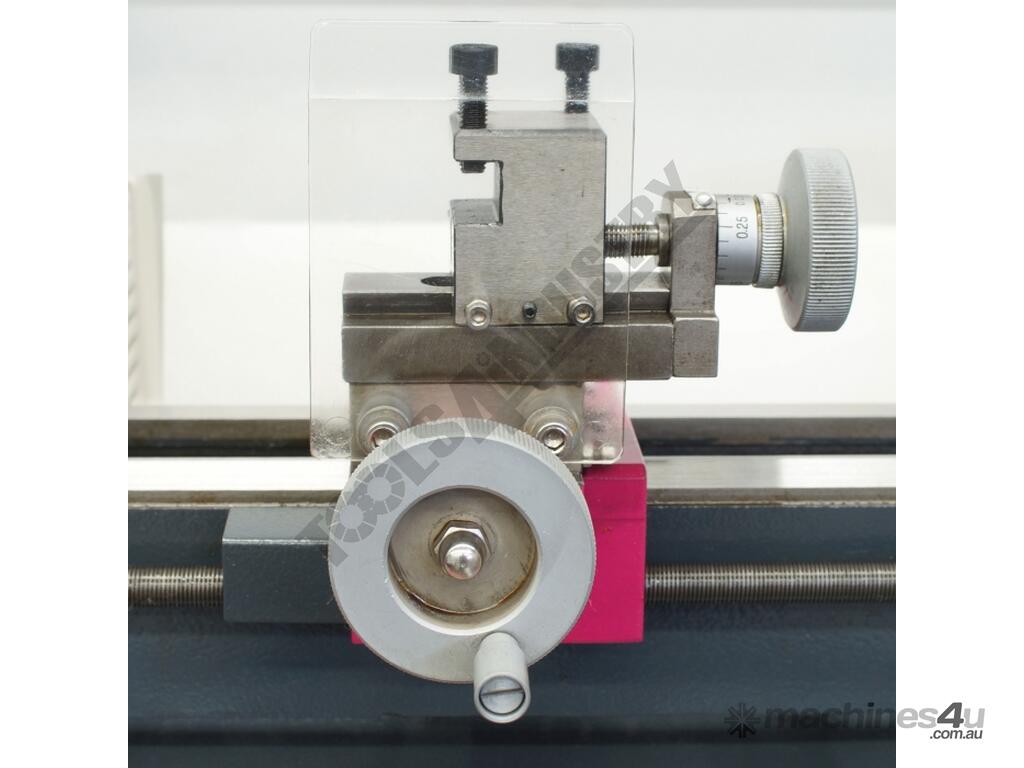

Cross Slide Travel: 55mm
Compound Slide Travel: 40mm
Leadscrew: Metric
Longitudinal Feed Range (Z-Axis): 0.05 - 0.1mm/rev
Metric Thread Steps & Pitch Range: 8 (0.5 - 1.5mm)
3 Jaw Chuck Diameter: 80mm
4 Jaw Chuck Diameter: Optional
Spindle Steps / Speed Range: Variable (160 - 3000 rpm)
Motor Power: 0.45kW / 0.6hp
Voltage: 240V
Weight (nett): 24kg

All Prices and Specifications are subject to change.
