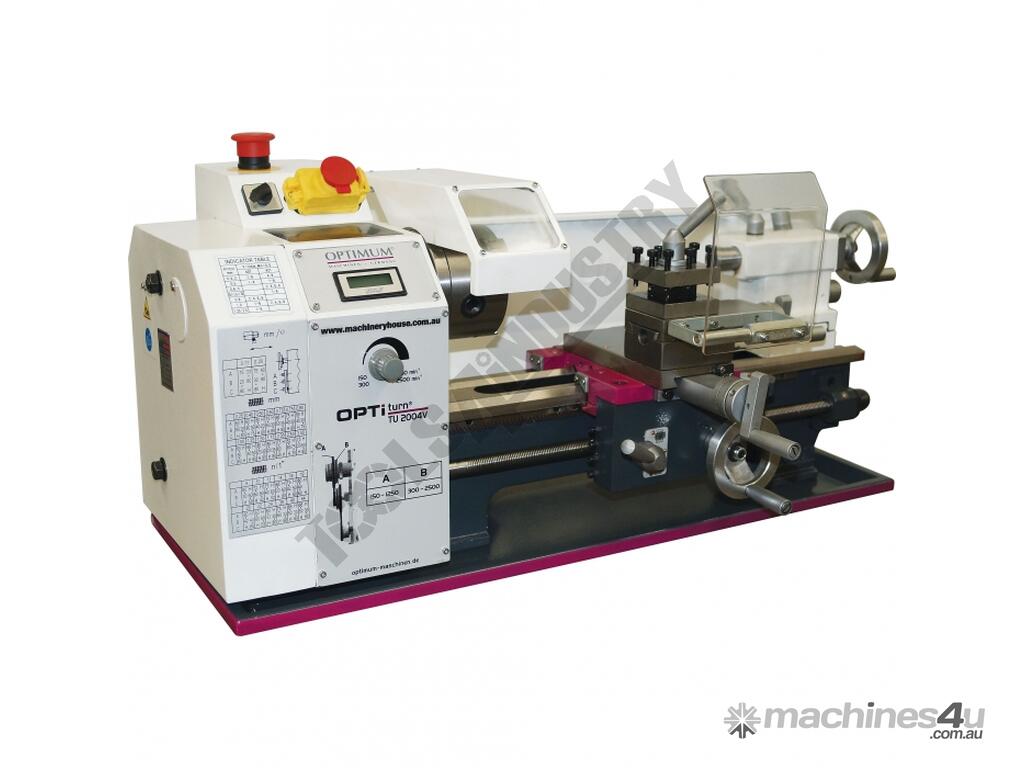

SHAW - OPTIMUM TU-2004V Bench Lathe

OPTIMUM TU-2004V Bench Lathe 200 x 300mm Electronic Variable Speeds

ADD THIS ASSET TO YOUR WORKSHOP

``CALL FOR OUR BEST PRICE``

Ideal for the model maker machining miniature parts
Small in size but packed full of features, this miniature lathe could provide the perfect introduction to those wanting to start metal turning for the first time.

The machine is small enough to fit into the corner of the workshop and with a weight of 75kg the bed is constructed form cast iron for true rigidity. This model turning capacities is 200mm diameter and 300mm between centres and with a 21mm spindle bore its surprisingly large for a machine of this overall size.

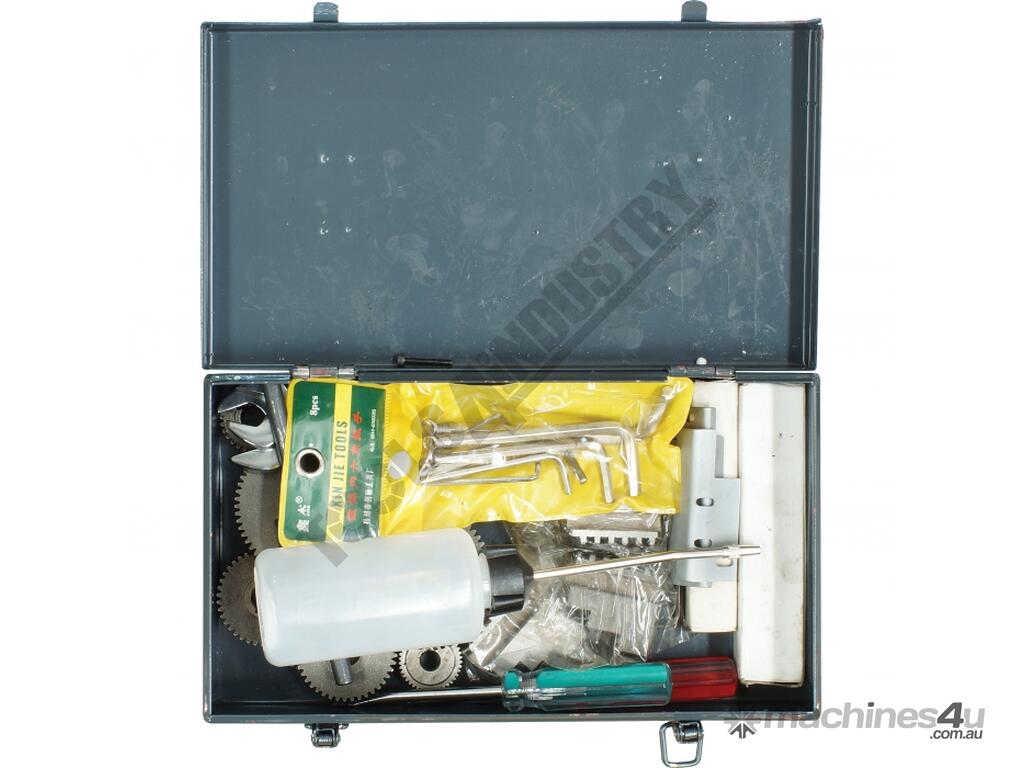

Features such as the electric variable speed control, manual or powered leadscrew feed, metric & imperial thread cutting and an extensive range of accessories. The lathe comes supplied with 100mm diameter three jaw self-centring chuck, tailstock centre and service tools.

Features:

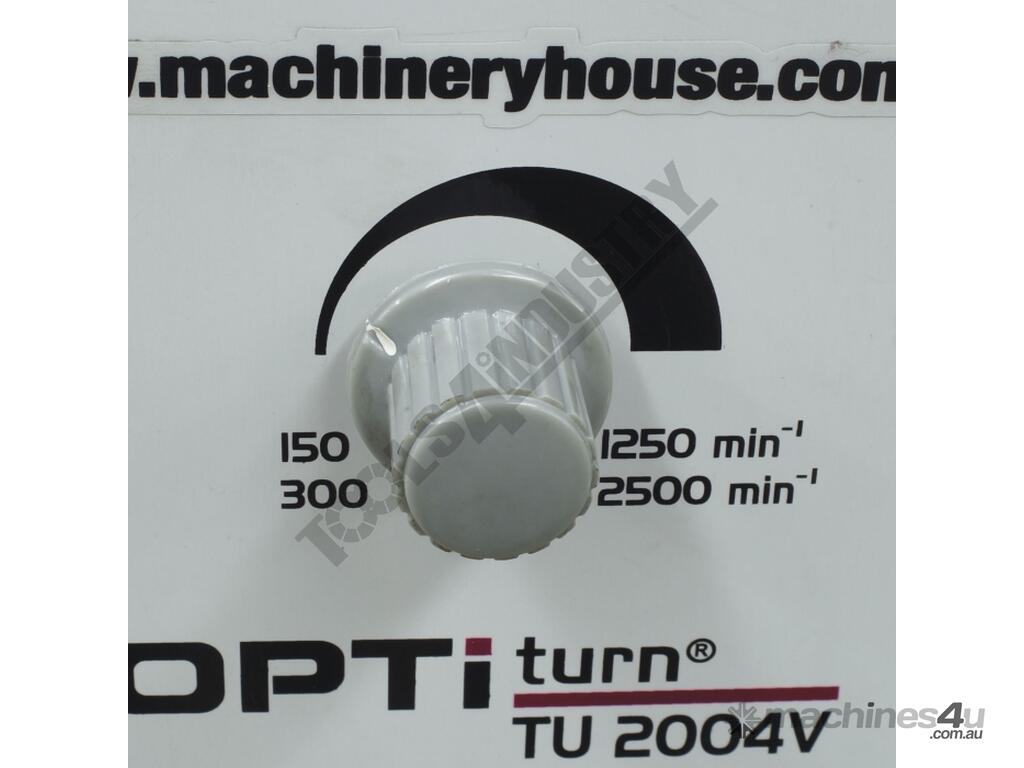

Electronic infinitely variable speed 150-2500rpm

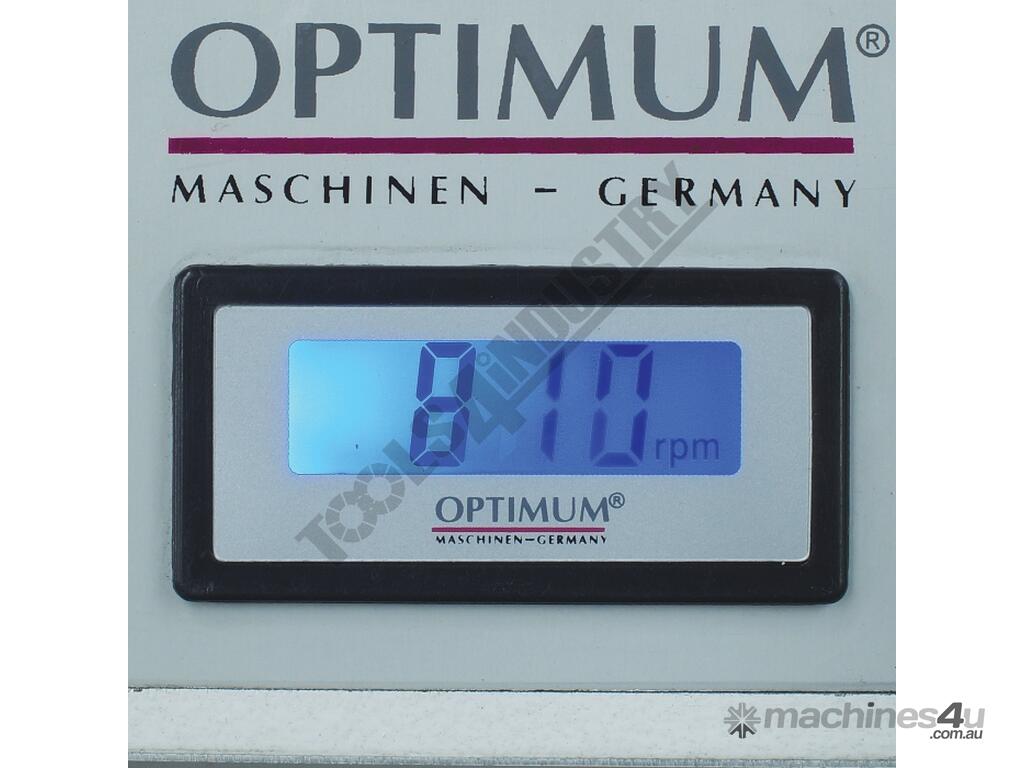

Easy to read digital readout speed display
Ribbed prism bed made of grey cast iron
Inductively hardened and ground bed guideways
Spindle nose accuracy 0.009mm
3 Jaw chuck running accuracy 0.04mm

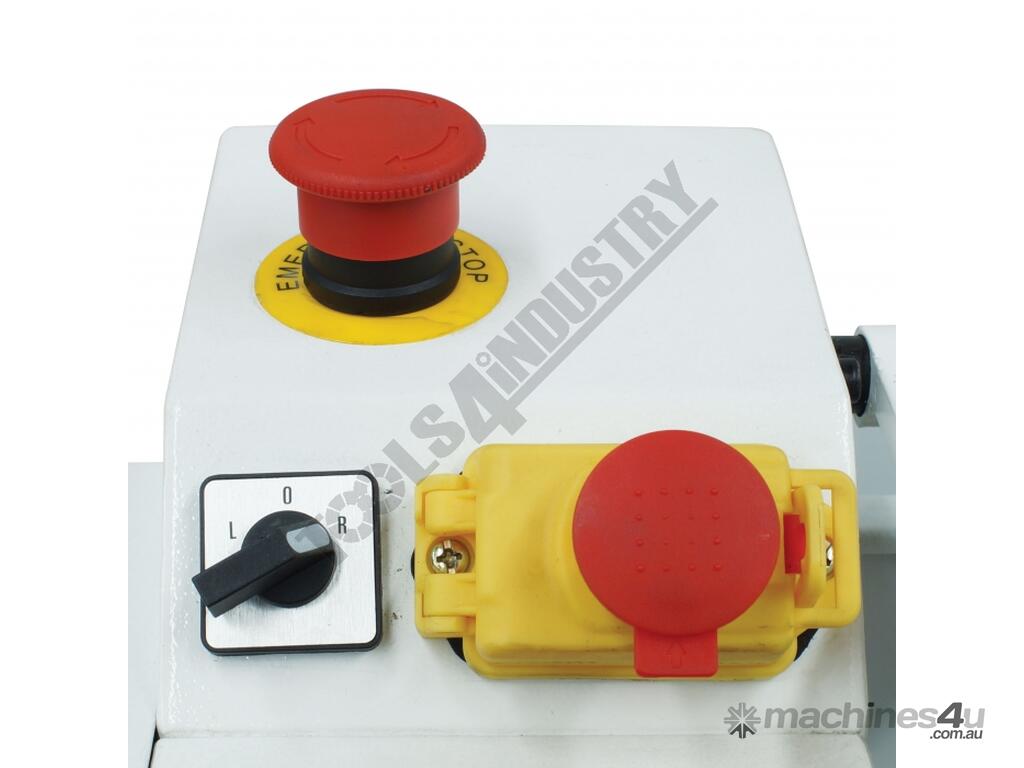

Forward & reverse spindle direction switch

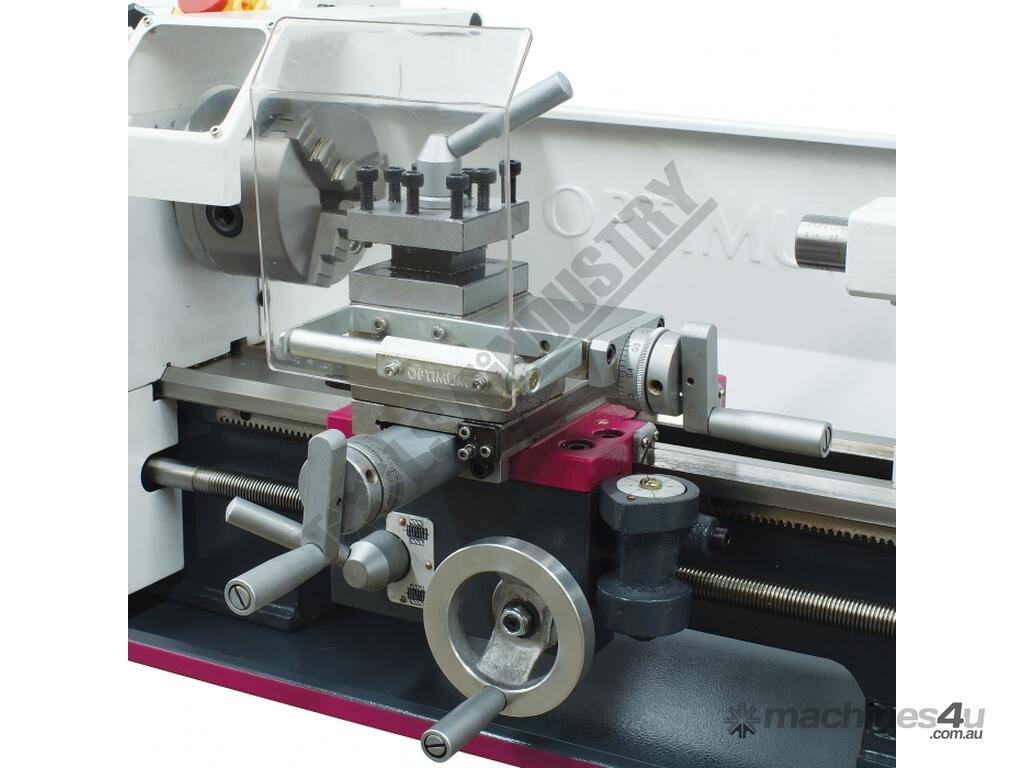

Automatic longitudinal feed

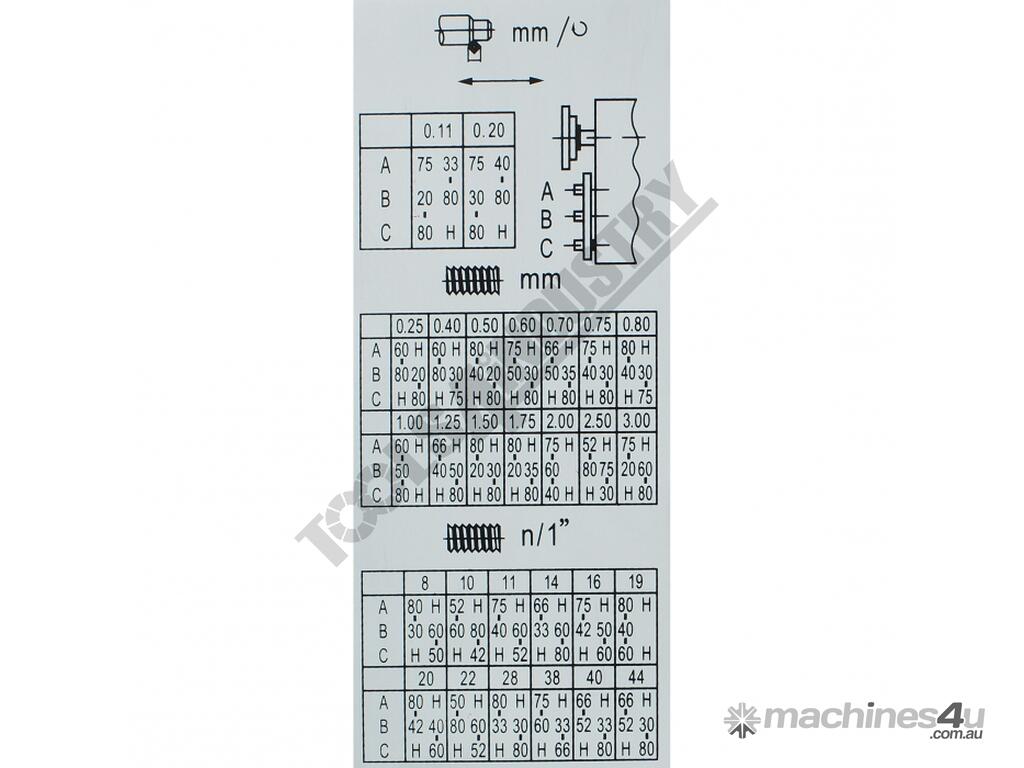

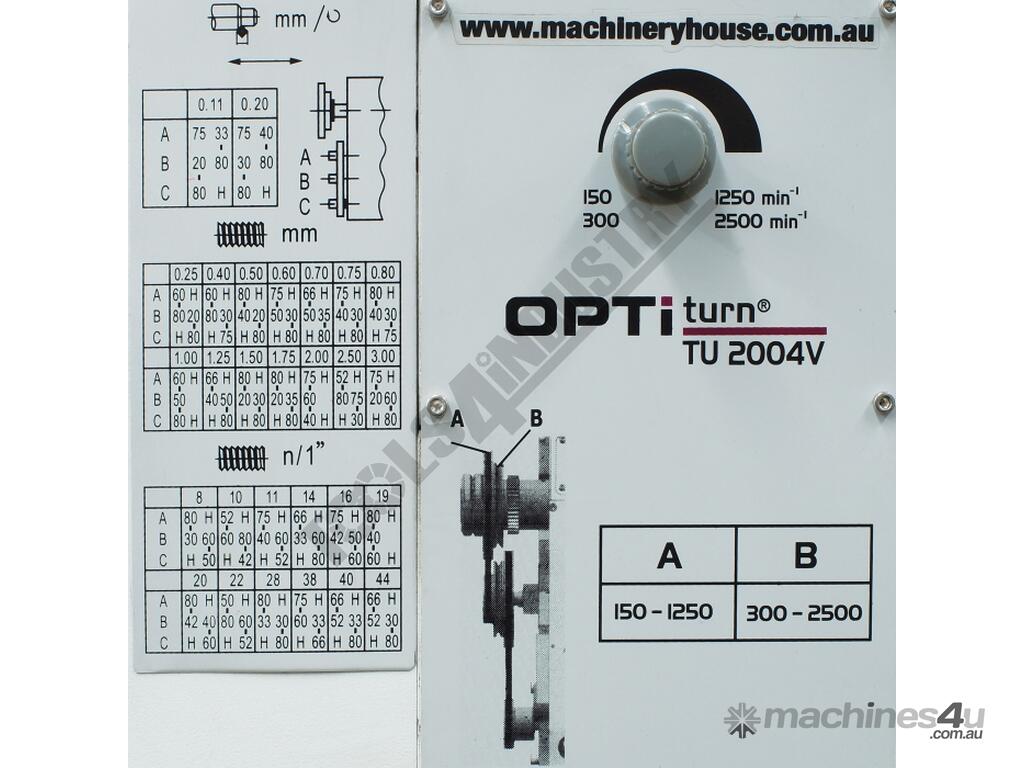

Metric & Imperial thread cutting

Includes:
- Change gears for metric & imperial thread cutting

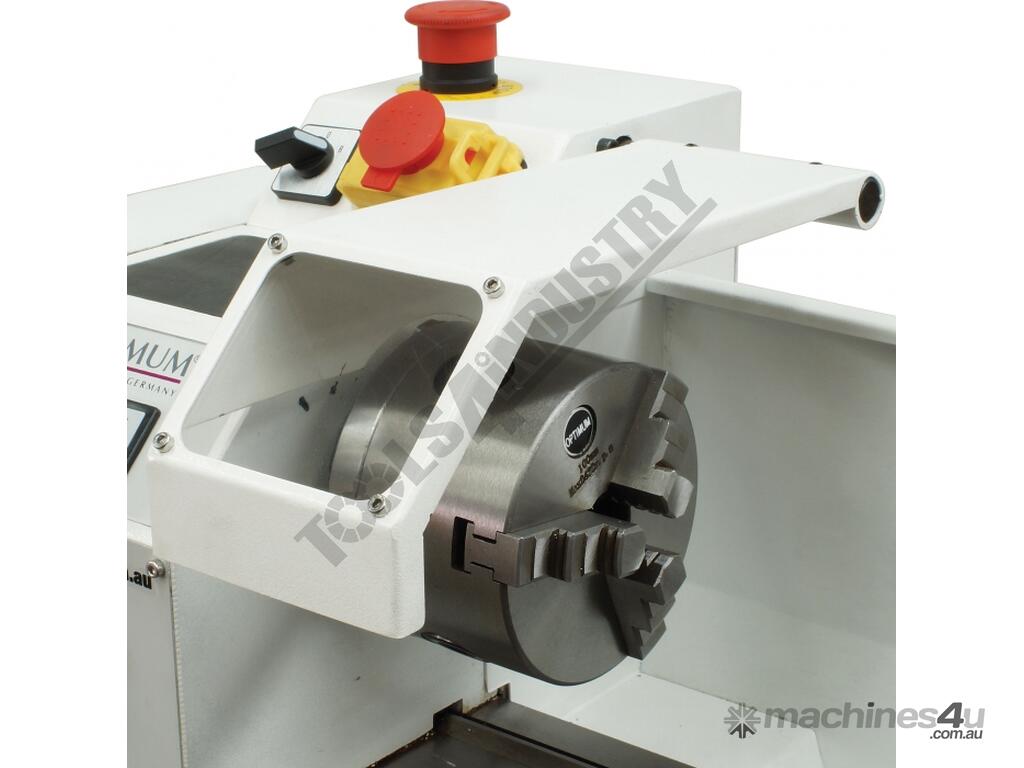

- Chuck guard

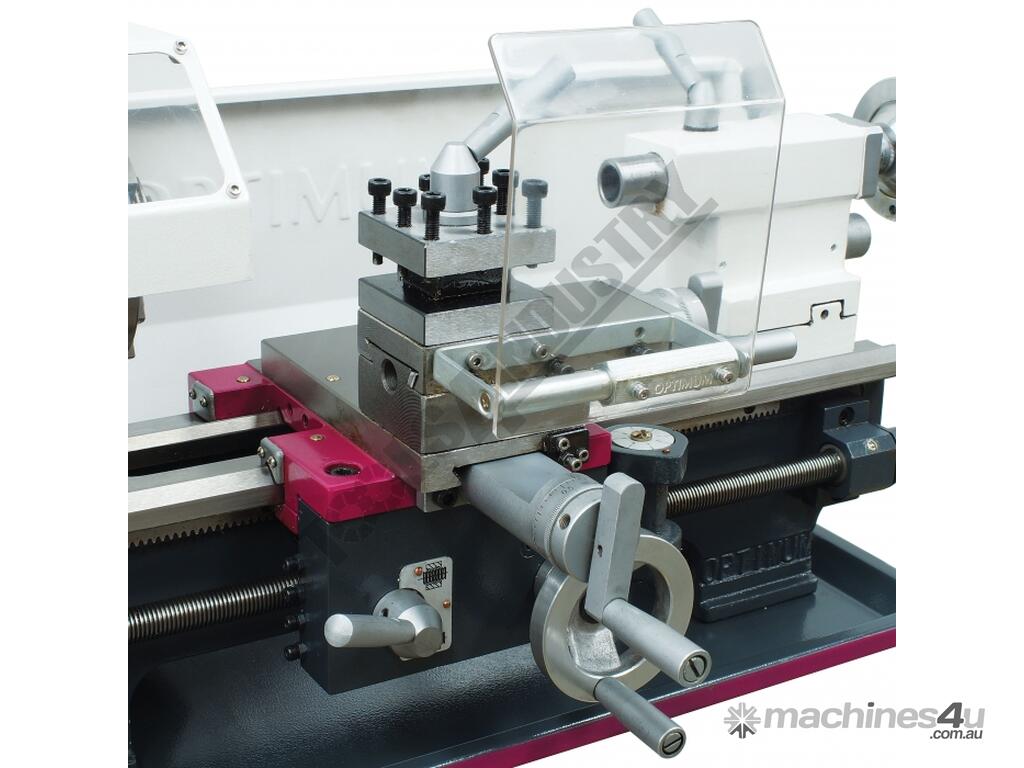

- Toolpost guard
- Dead Centre
- 3-jaw chuck with reversible jaws
- Swarf tray
- Rear splash guard



Specifications:
ORDER CODE: L687
Model: TU-2004V
Digital Readout System Fitted: Optional
Quick Change Toolpost Fitted: Optional
Tool Height To Suit: 10mm
Distance Between Centres: 300mm
Swing Over Bed: 200mm
Swing Over Cross-slide: 140mm
Centre Height: 100mm
Spindle Bore: 21mm
Spindle Nose Size or Type: Fixed
Bed Width: 100mm
Headstock Spindle Taper: 3MT
Tailstock Taper: 2MT
Cross Slide Travel: 75mm
Compound Slide Travel: 55mm
Leadscrew: Metric
Longitudinal Feed Range (Z-Axis): 0.1 - 0.2mm/rev
Metric Thread Steps & Pitch Range: 11 (0.5 - 3mm)
Imperial Thread Steps & TPI Range: 8 (10 - 44``)
3 Jaw Chuck Diameter: 100mm
4 Jaw Chuck Diameter: Optional
Spindle Steps / Speed Range: Variable (150 - 2500 rpm)
Motor Power: 0.6kW / 0.8hp
Voltage: 240V
Weight (nett): 75kg

ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE
