SHAW - PR-204A Motorised Plate Curving Rolls 2000 x 4mm Mild Steel Capacity

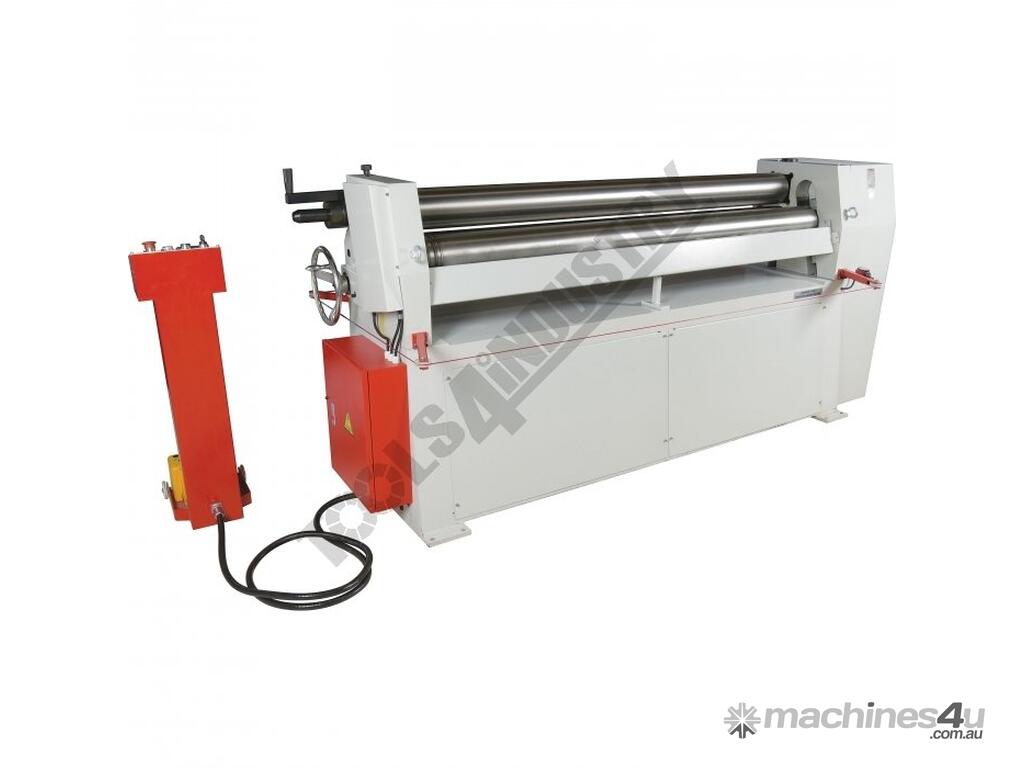

METALMASTER PR-204A Motorised Plate Curving Rolls 2000 x 4mm Mild Steel Capacity Motorised Up/Down Rear Roll, DRO Control Panel & Initial Pinch Design
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S805

Call for our Best Price

Features:
Initial pinch rolls with pre-bending
Motorised up & down rear curving roll enables quick & easy pre-bending
Digital readout display on rear curving roll position

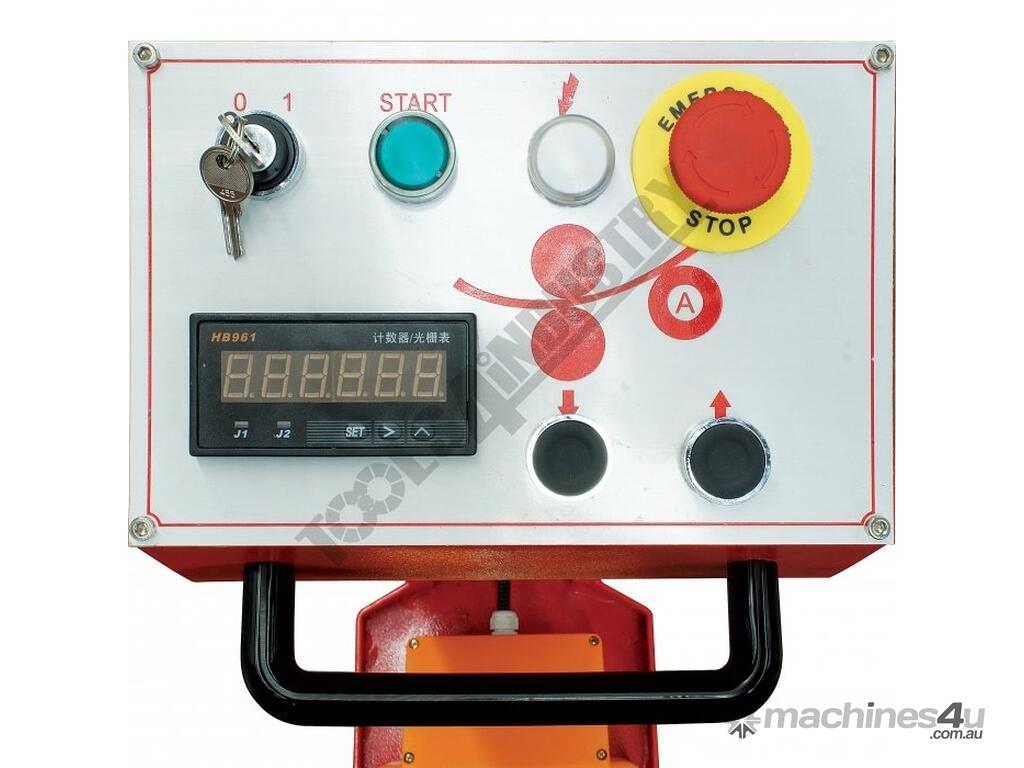

Mobile foot pedal control with digital readout display
Two rolls are powered by reduction gearbox drive system

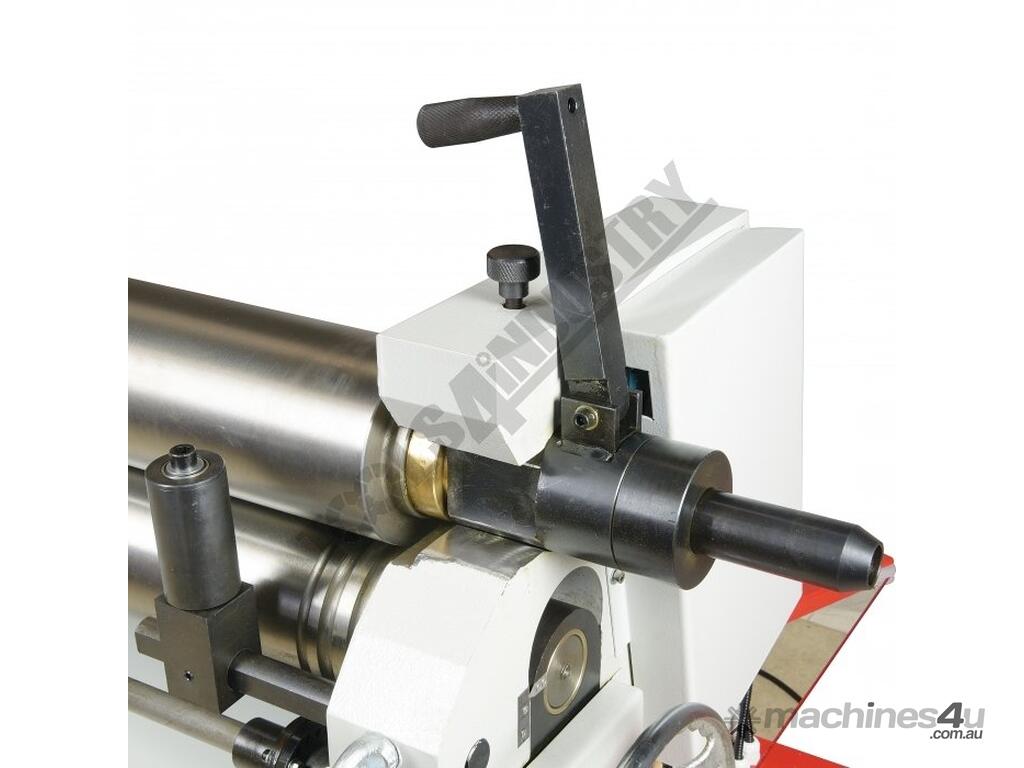

Swing out top roller enables cone or cylinder to be removed

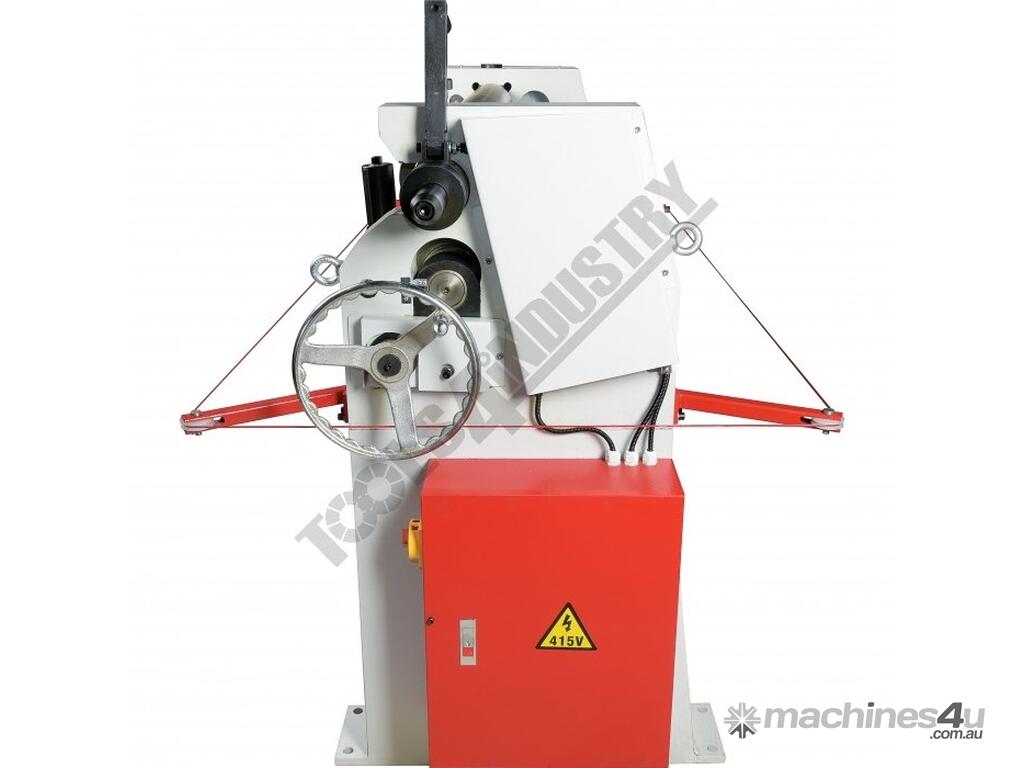

Safety wire interlock system with emergency shut-off

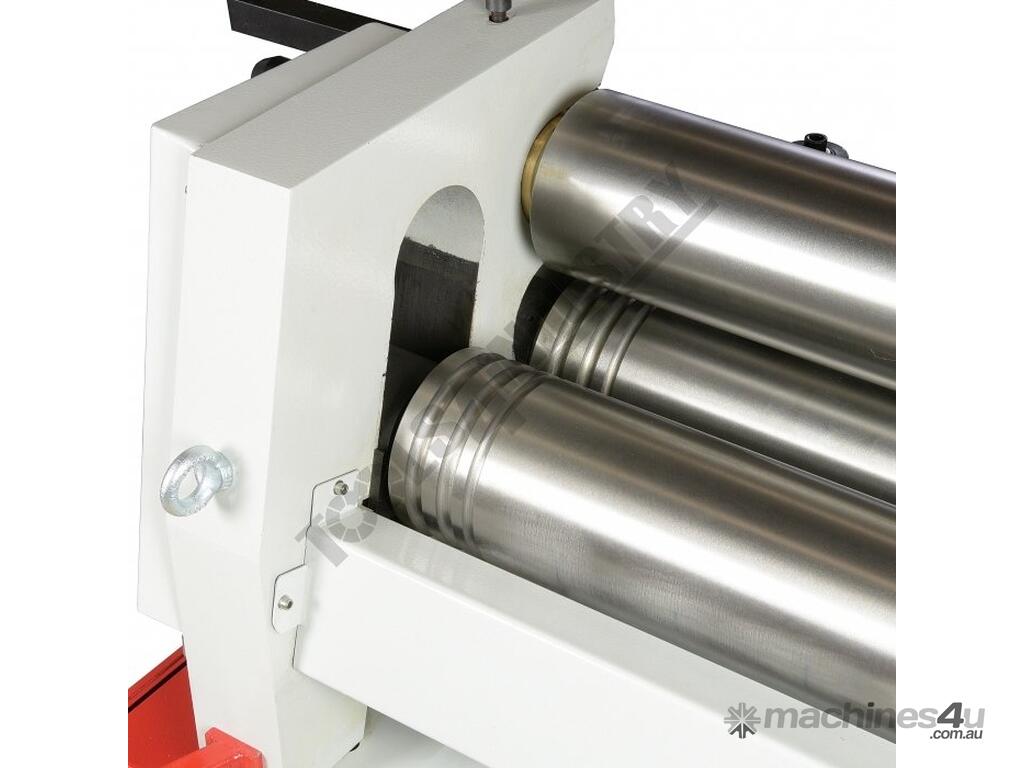

Rolls include wiring grooves
Includes a conical bending guide roller

Mild steel capacity is rated on hot rolled material with 250MPA


Specifications:
ORDER CODE: S805
MODEL: PR-204A
Curving System Type: Initial Pinch
Curving Material Length (mm): 2000
Curving Plate Thickness - Mild Steel (mm): 4
Minimum Rolling Diameter (mm): 225
Roll Diameter (mm): 150
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 415
Dimensions (LxWxH) (mm): 2530 x 740 x 1200
Shipping Dimensions (L x W x H) (cm): 253 x 74 x 120
Nett Weight (kg): 1620

Please note: prices and specifications can be subject to change
