SHAW - SAHINLER Ring Rolling Machine HPK-50/3

HPK-5/30 Ring Rolling Machine

CALL FOR OUR BEST PRICE

FEATURES FOR HPK-50/3
Rolls are hardened & made from high quality steel
Drive shafts are hardened and ground with double taper roller bearing support
Machine can be set up in horizontal or vertical working position

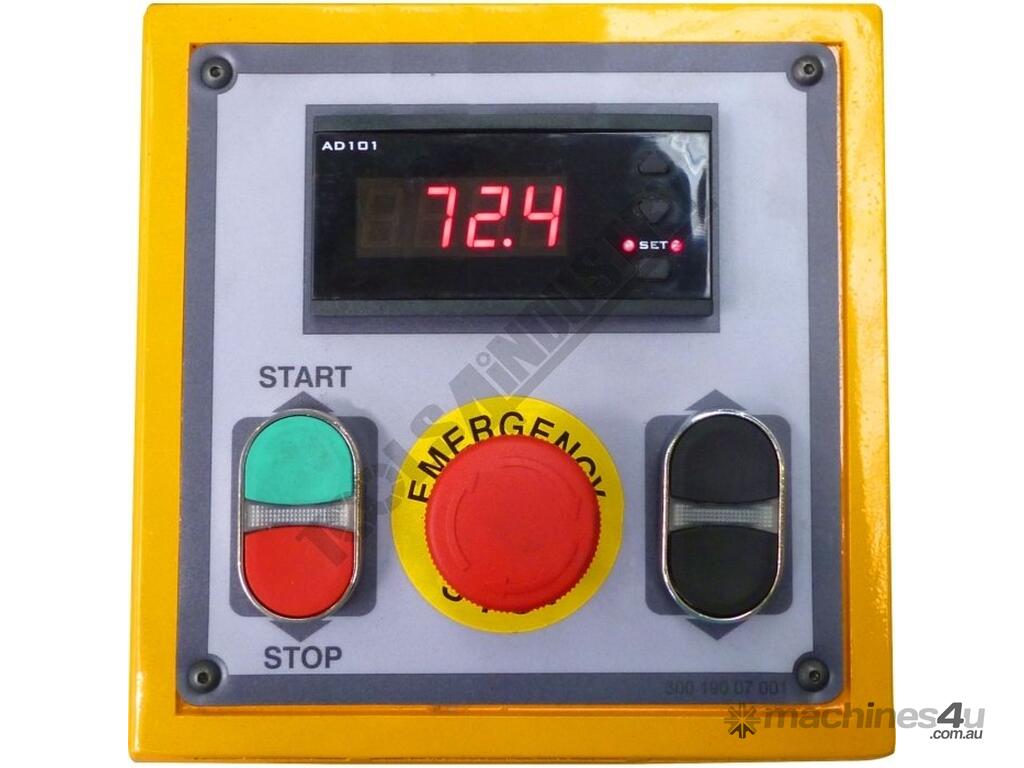

Roving foot pedal control with emergency stop
European quality
Standard rolls and guide rolls are included
Can be used in both vertical and horizontal position

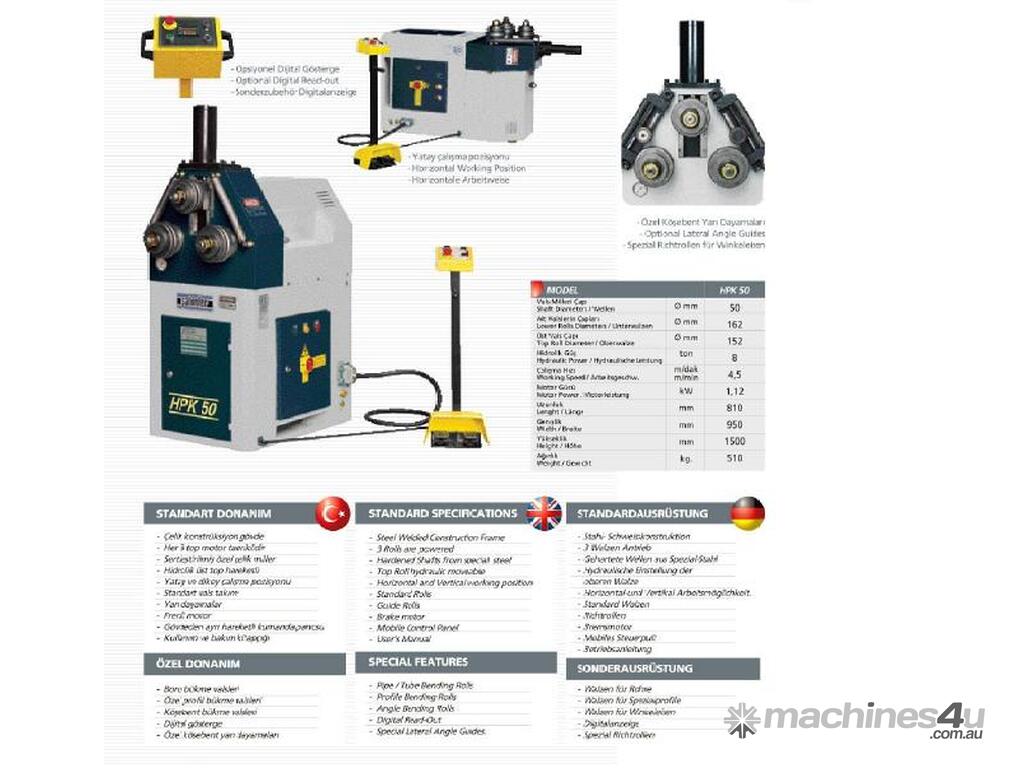

Specifications:
CODE:S750
MODEL:PK-50/3
Flat Bar on Edge: 60 x 10mm 600mm Radius
Flat Bar: 100 x 15mm 600mm Radius
Square Bar Solid: 35 x 35mm 600mm Radius
Square Tube: 50x50x3mm 1600mm Radius
Round Bar Solid: Ø35mm 600mm Radius*
Round Tube: Ø70 x 2mm 1200mm Radius*
Round Pipe: Ø2``x2.9mm 1000mm Radius*
Angle: 50x50x6mm 600mm Radius
Motor Power: 1.1kW / 1.5hp
Voltage: 415V
Dimensions: 1020 x 750 x 1520mm (L x W x H)
Weight (Nett): 510kg
Note: * = Requires Additional Tooling: *

All prices and specifications are subject to change
