SHAW - SAHINLER Ring Rolling Machine HPK-80

SAHINLER Ring Rolling Machine HPK-80

CALL FOR OUR BEST PRICE

Order Code: S756
HPK-80 - Section & Pipe Rolling Machine (415V)
80 x 80 x 8mm

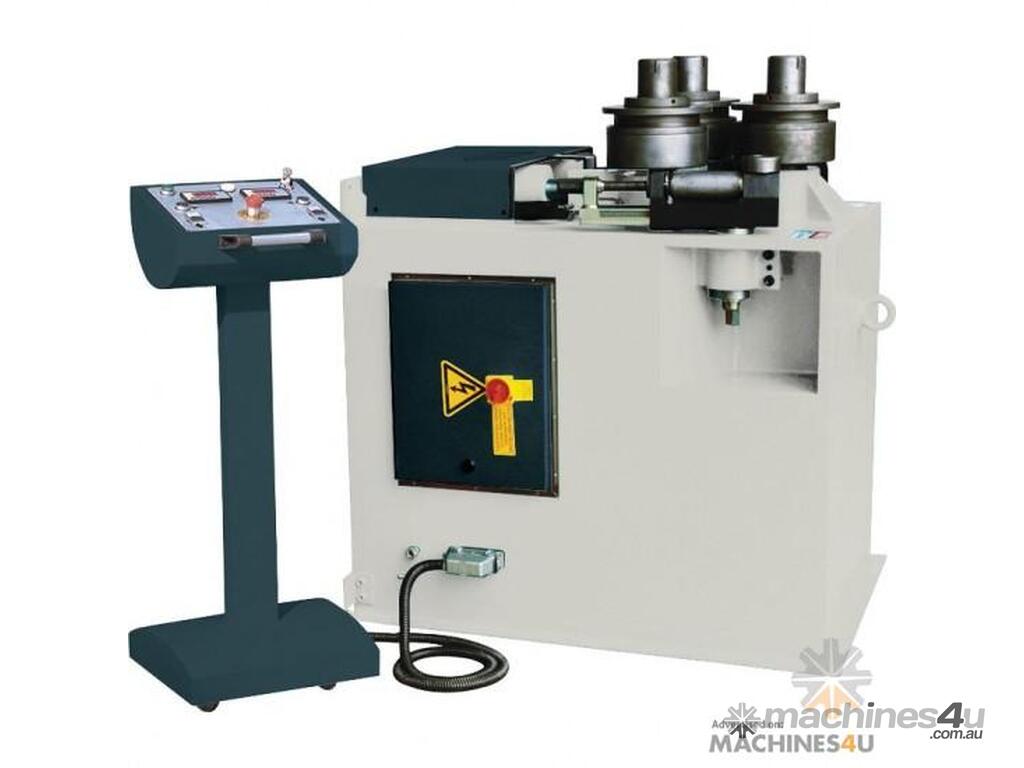

HPK-80 Ring Rolling Machine

FEATURES FOR HPK-80
Rolls are hardened & made from high quality steel
Drive shafts are hardened and ground with double taper roller bearing support
Machine can be set up in horizontal or vertical working position
Roving foot pedal control with emergency stop
Three rollers are powered
European quality
Can be used in both vertical and horizontal position

Includes:
Includes standard rolls and guide rolls
Independently adjustable hydraulic bottom rollers for pre-bend
Two digital readout display
3-Axis mechanical lateral angle guide rollers

Specifications:
ORDER CODE:S756
MODEL:HPK-80
Flat Bar on Edge: 80 x 15mm 700mm Radius
Flat Bar: 125 x 25mm 600mm Radius
Square Bar Solid: 45 x 45mm 500mm Radius
Square Tube: 70x70x3mm 1300mm Radius
Round Bar Solid: Ø50mm 500mm Radius*
Round Tube: Ø100 x 2.5mm 1200mm Radius*
Round Pipe: Ø3``x5.48mm 800mm Radius*
Angle: 80x80x8mm 800mm Radius
Motor Power: 4kW / 5hp
Voltage: 415V
Dimensions: 1500 x 1010 x 1700mm (L x W x H)
Weight (Nett): 1700kg
Note: * = Requires Additional Tooling: *

all prices and specifications are subject to change
