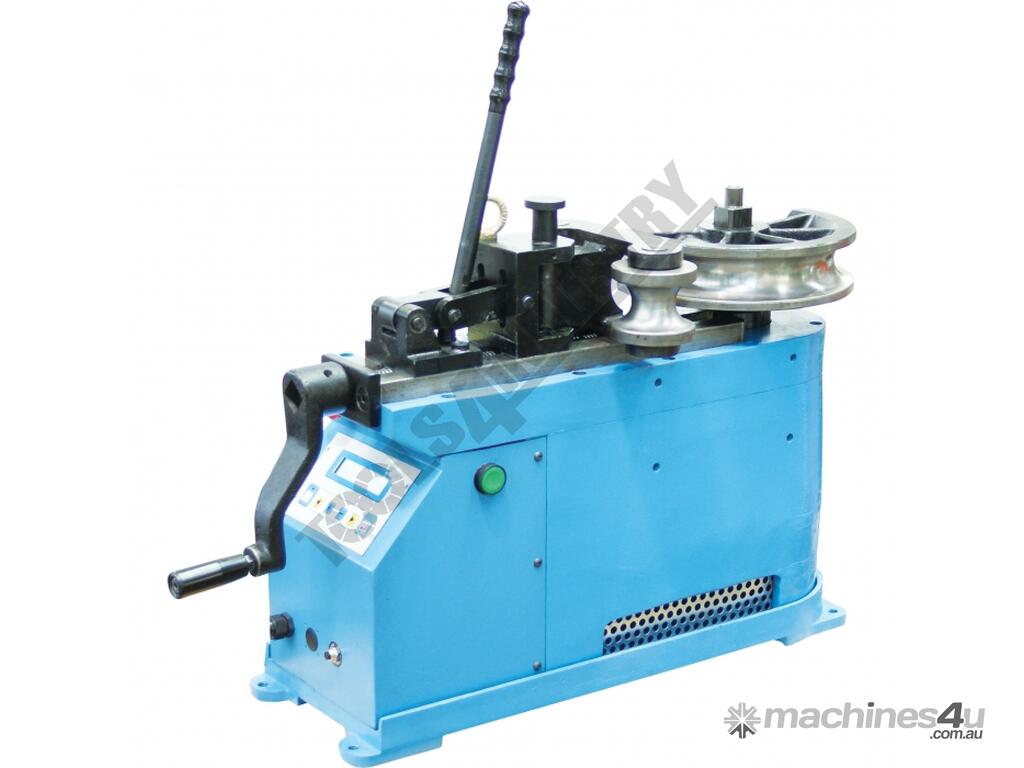

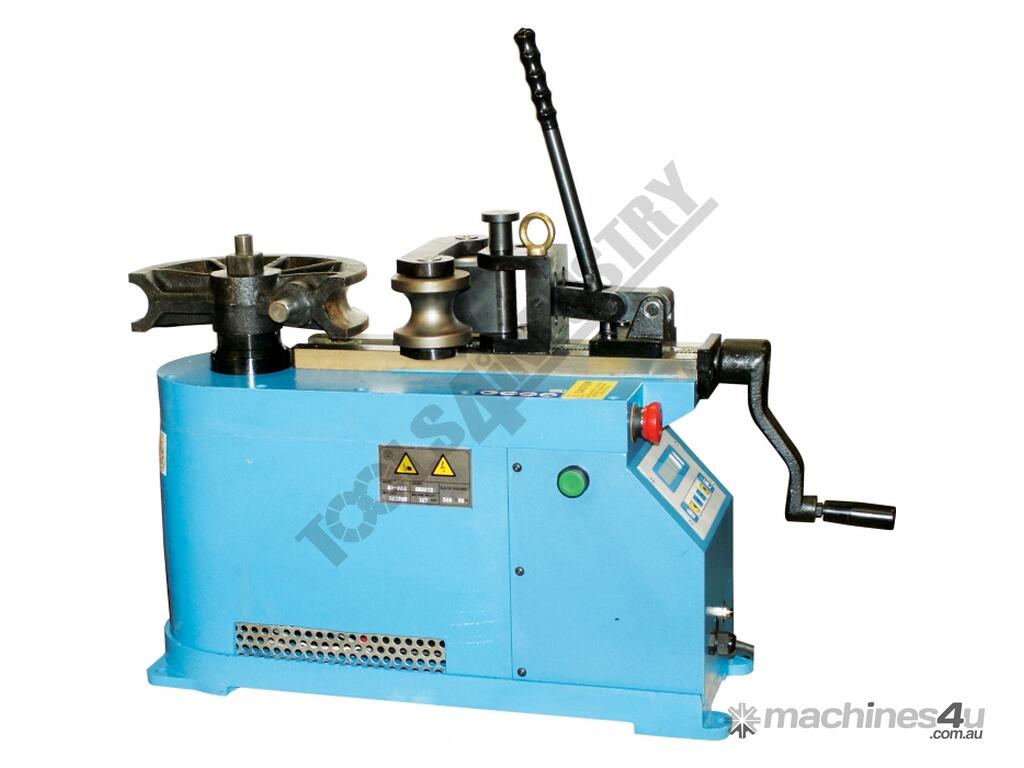

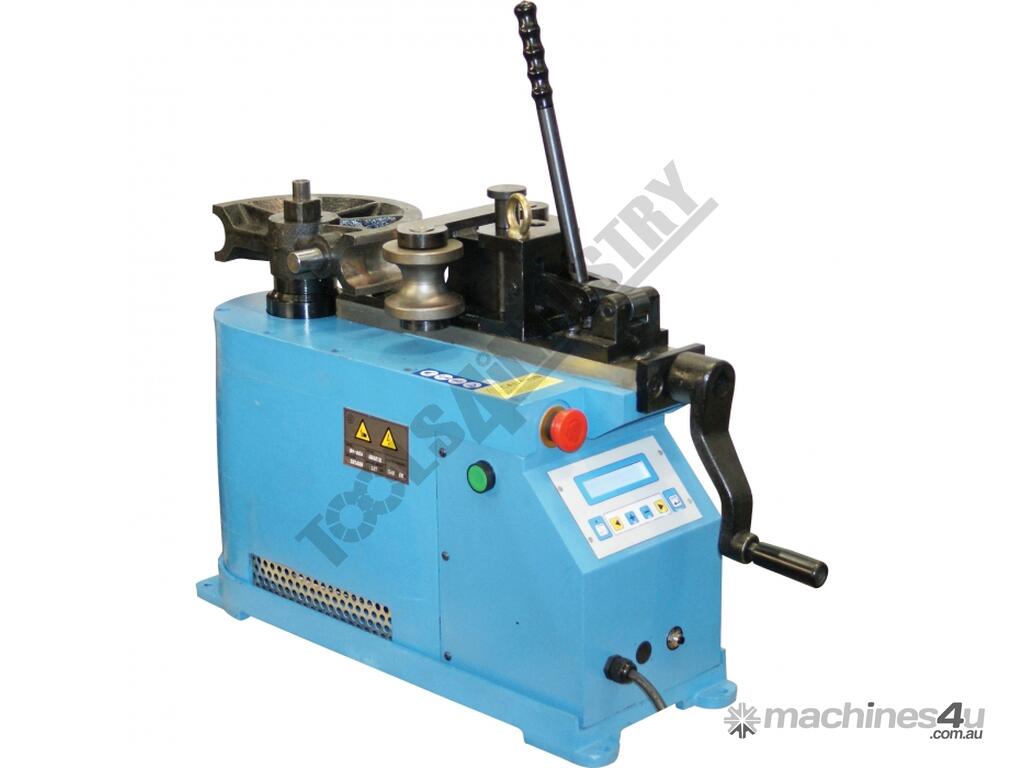

TB-60 electric, is an accurate and powerful bending machine able to bend large diameters as well as thin and delicate pipes with optimum and constant bending radii and without any pipe deformation. This compact & versatile pipe and tube bending unit represents great value for a minimal investment
Features
Cast iron body tube bender
1.1kW 240V motor

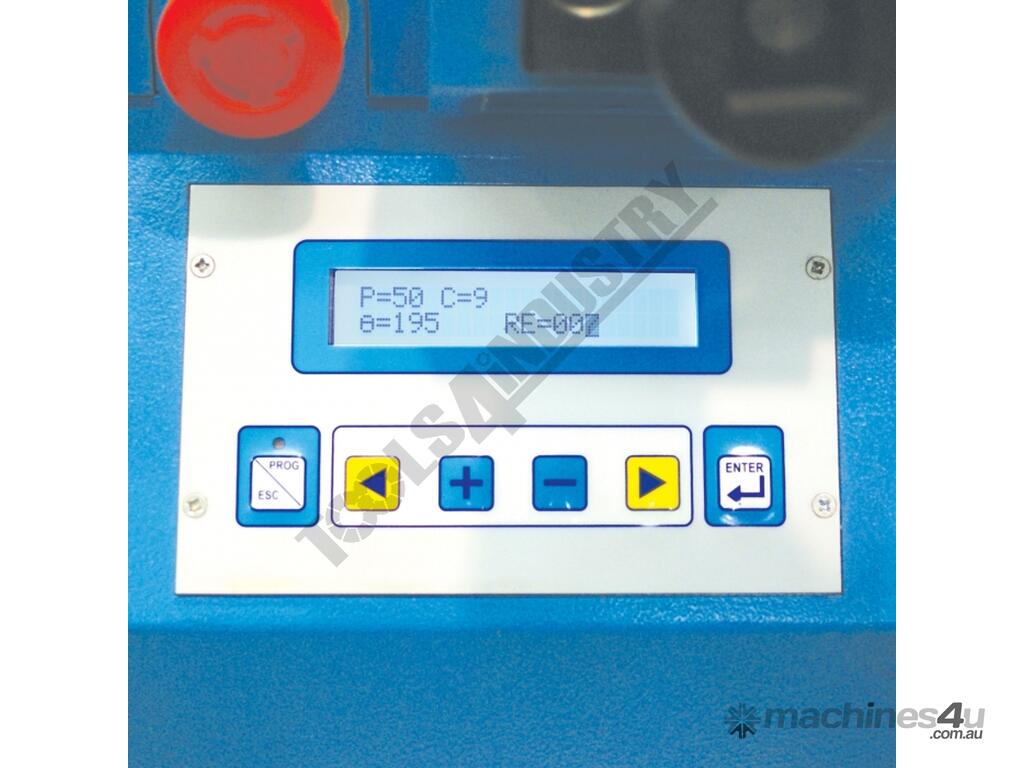

User friendly digital control panel with microprocessor, allowing users to set the required bending angles.
Capable of storing 50 programs with 9 bends per program
Electric brake and automatic return to stop
Designed to bend tube and pipe with constant bending radius without deformation

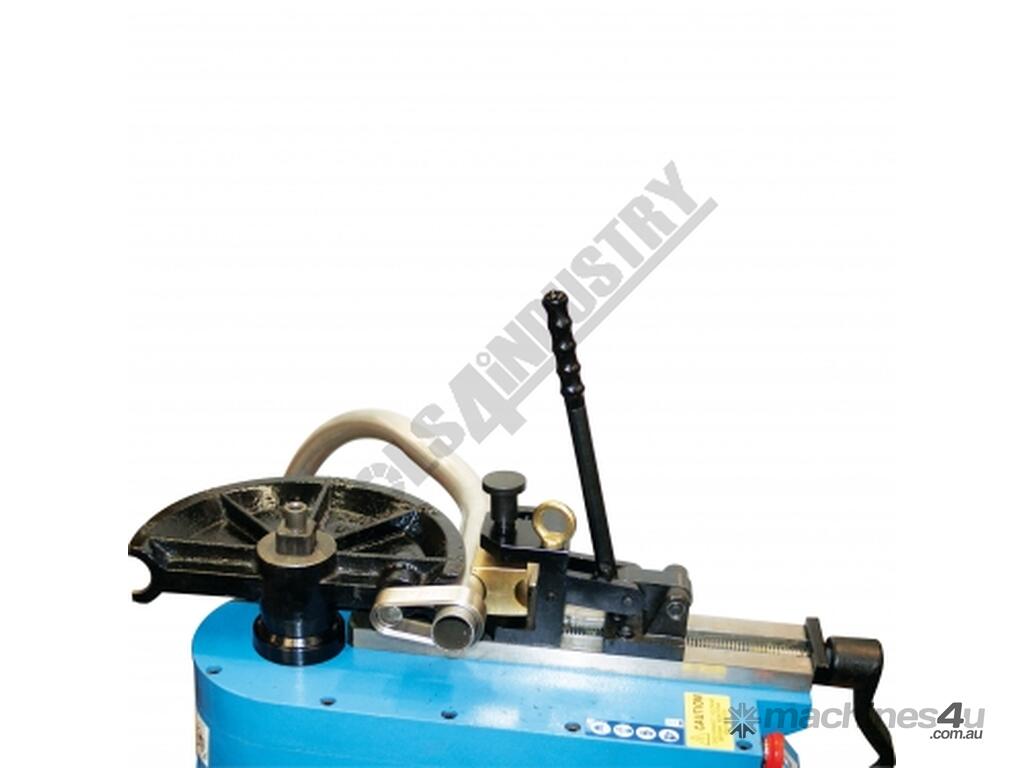

Each pipe former consists of a die former and a follow rollers to suit each size
210º maximum bending angle

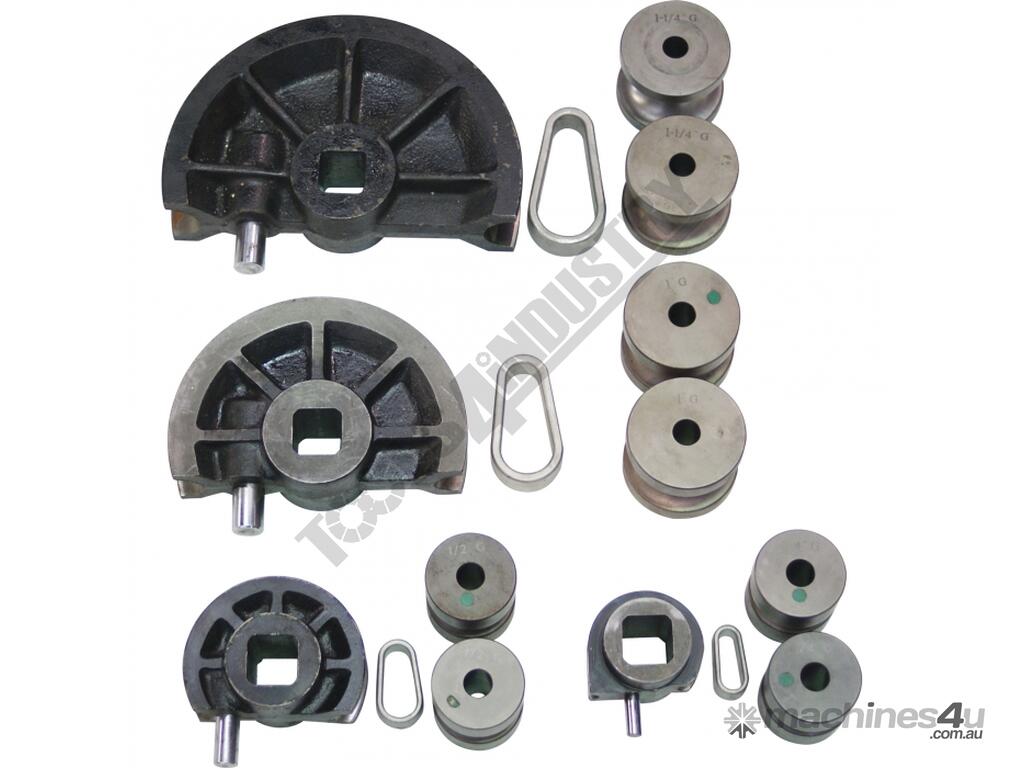

Includes formers: (1/2``, 3/4``, 1``, 1 1/4`` NB Pipe)
Includes
Pipe Formers (1/2``, 3/4``, 1``, 1 1/4`` NB Pipe)
Optional Accessories

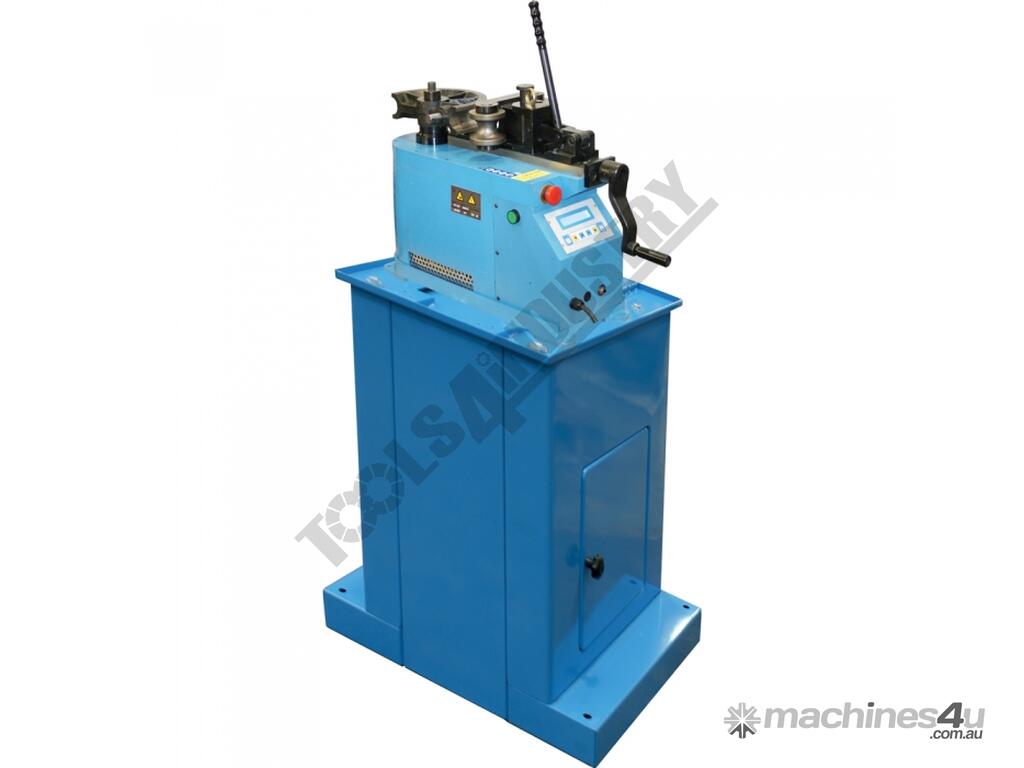

Optional stand to suit (T603)
Specifications:
CODE: T606
Model: TB-60
Steel Tube (OD): 51 x 2mm
Copper & Annealed Brass Tube (OD): 51 x 2mm
Stainless Steel Tube (OD): 38 x 1.6mm
Aluminium Tube (OD): 51 x 3mm
Steel Pipe - Medium (OD): 1-1/4`` x 1/8``
Centre Line Bending Radius: 3 - 4 x Diameter
Motor Power: 1.1kW
Dimensions: 600 x 220 x 470mm
Weight (Nett): 107Kg
ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE
