SHAW - TM - 1740G CENTRE LATHE 430mm x 1000mm

NEW TM-1740G - Centre Lathe (415V)

CALL FOR OUR BEST PRICE

430 x 1000mm - 78mm Bore
Includes Digital Readout

Description
Manufactured in Taiwan
Features

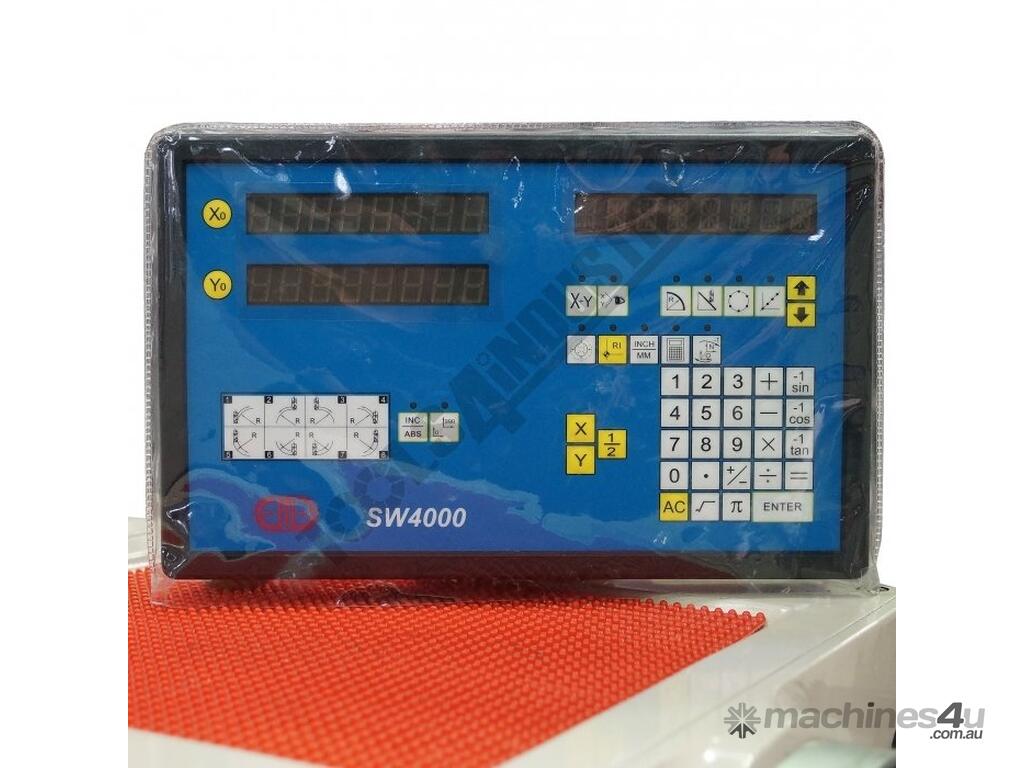

•2 axis digital readout system
•Triple bearings supporting headstock spindle
•Adjustable taper roller bearings providing spindle accuracy
•Precision 'V'-beds & headstock gears are all hardened & ground
•High quality one-piece Meehanite cast base increases rigidity
•Overload protection on drive motor and coolant system

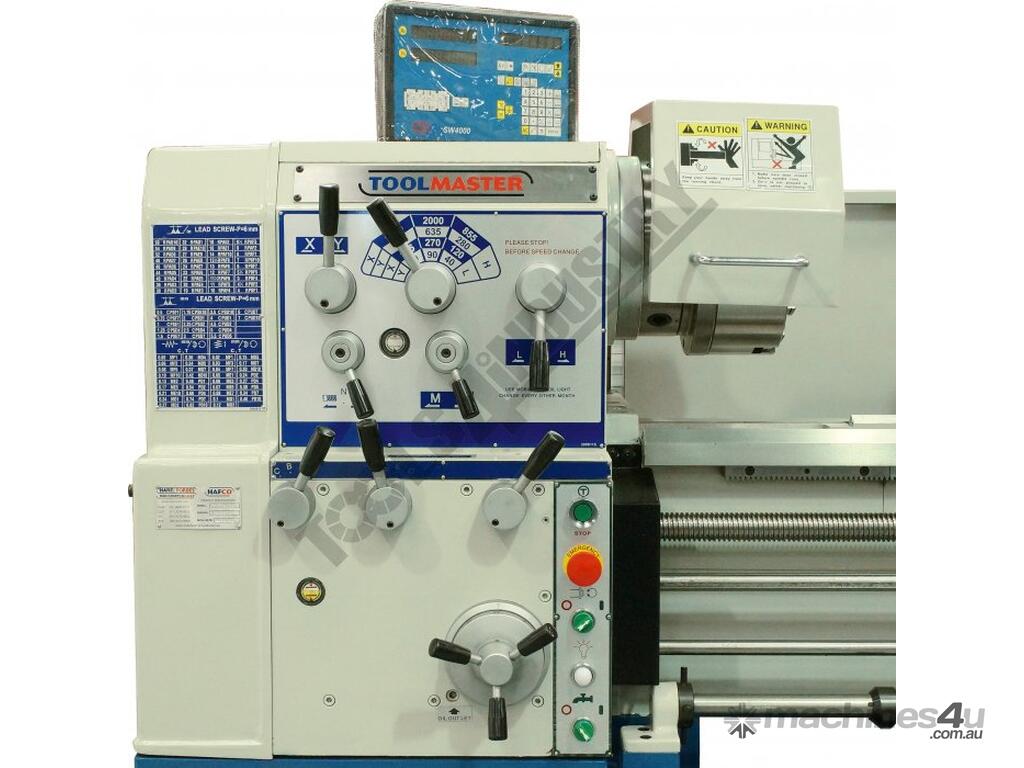

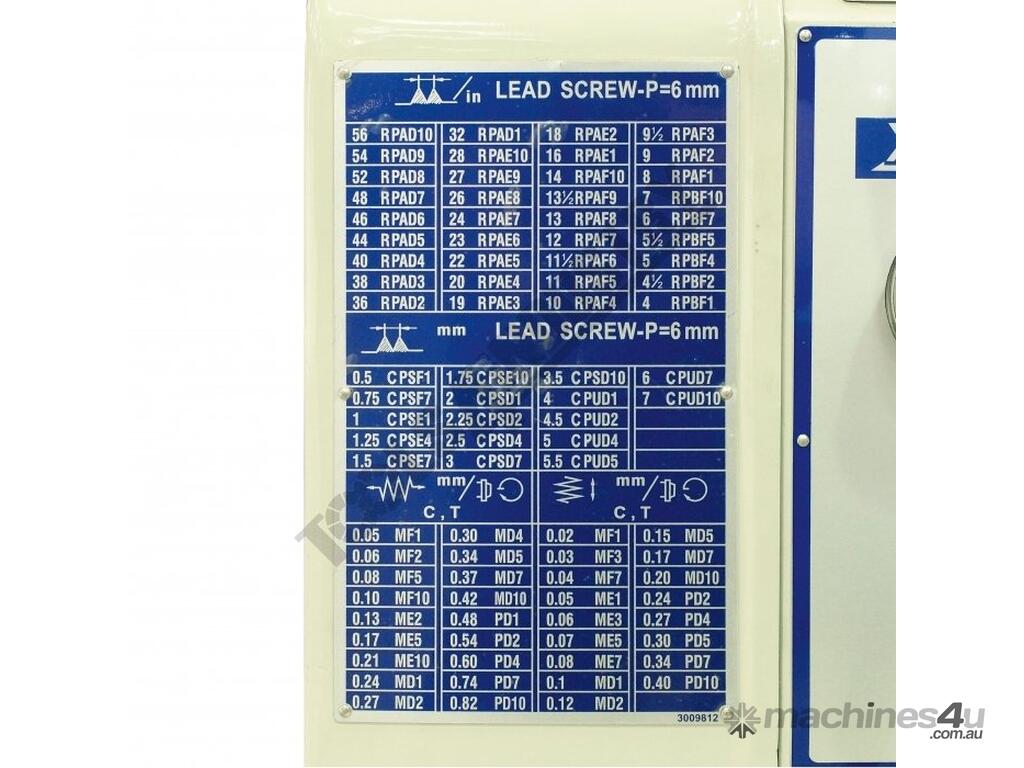

•Universal enclosed gearbox incorporating metric & imperial thread capabilities

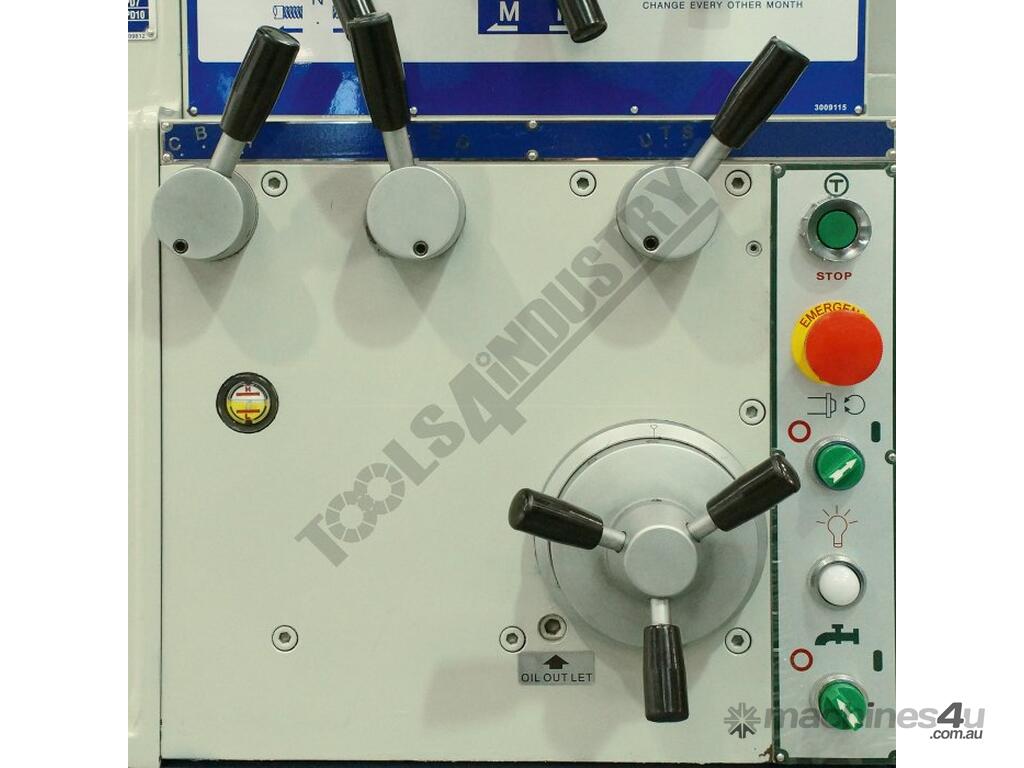

•Inching button incorporated on the control panel for convenient spindle speed selection
•Foot operated spindle brake with safety cut out switch
•300mm Wide induction hardened heavy duty cast iron bed
•Removable gap bed allowing work piece to swing up to 650mm

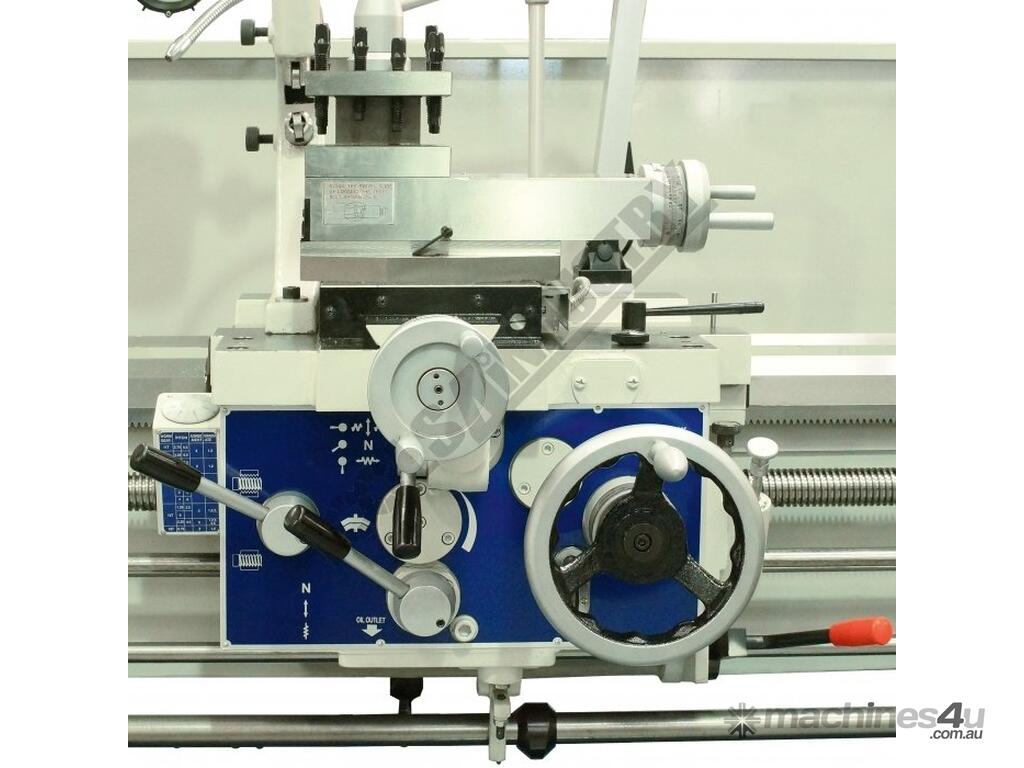

•Powered longitudinal and cross feeds

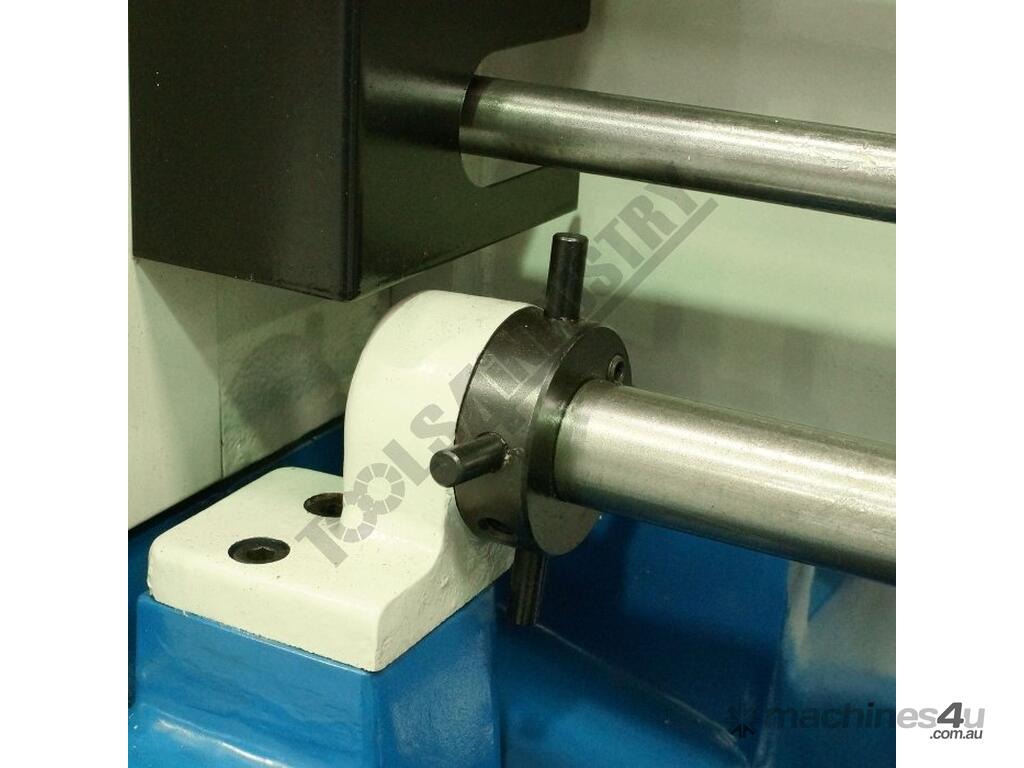

•Adjustable 4 position length-stop mechanism for accurate repetitive operation

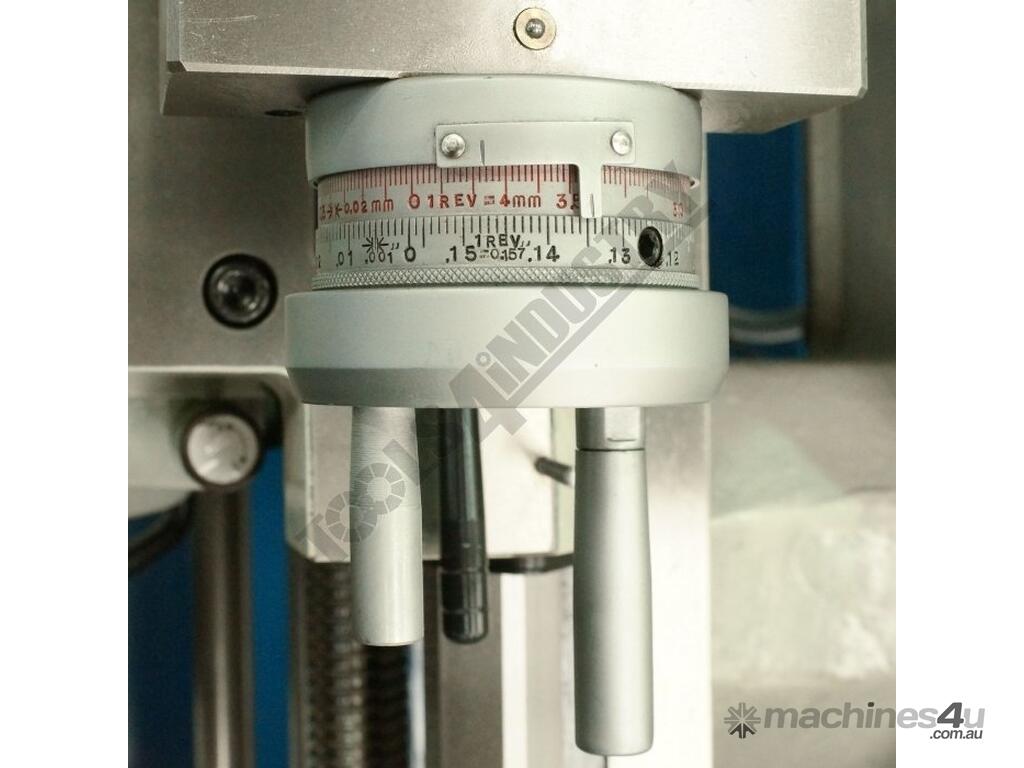

•Dual calibrated dials incorporating metric & imperial graduations
•Coolant system with flexible hose enabling operator to manipulate flow direction
•Oil sight glass for head stock, gearbox and apron
•Low voltage halogen work light
•Lubrication pump on saddle oiling slides
•D1-8 camlock spindle for quick chuck removal
•12 Spindle speeds from 40 - 2000rpm
•Large 78mm spindle bore
•5.5kW / 7.5HP 415V main motor
Includes
•2 Axis digital readout system

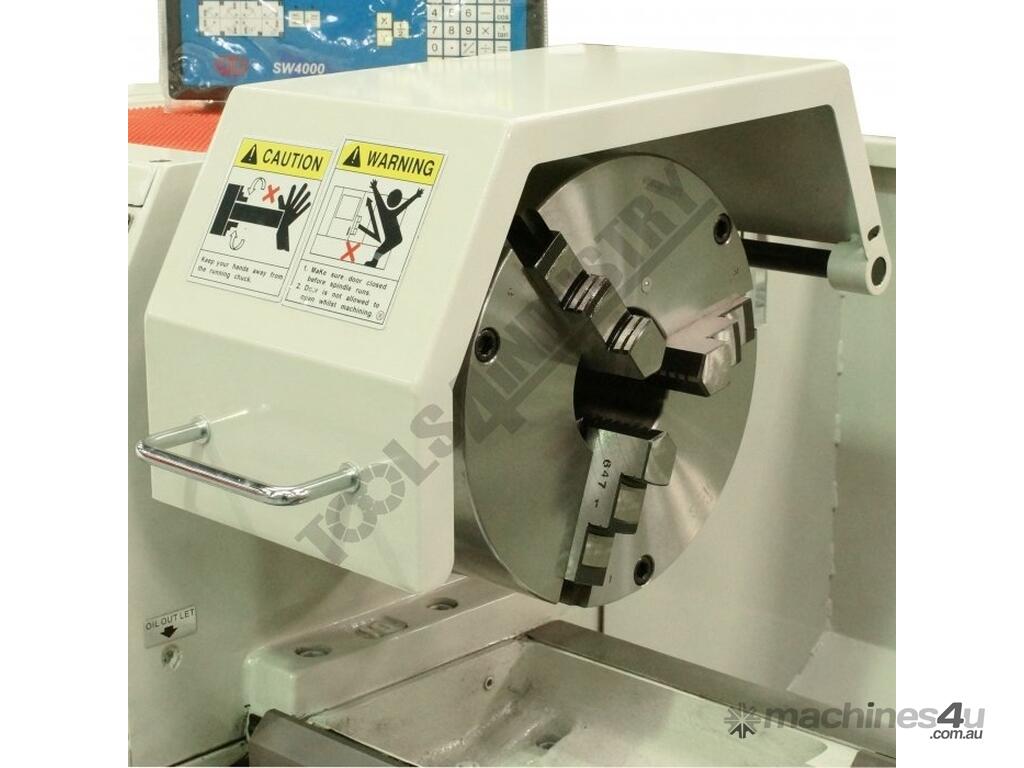

•275mm 3-jaw chuck with reverse jaws
•320mm 4-jaw chuck
•356mm face plate

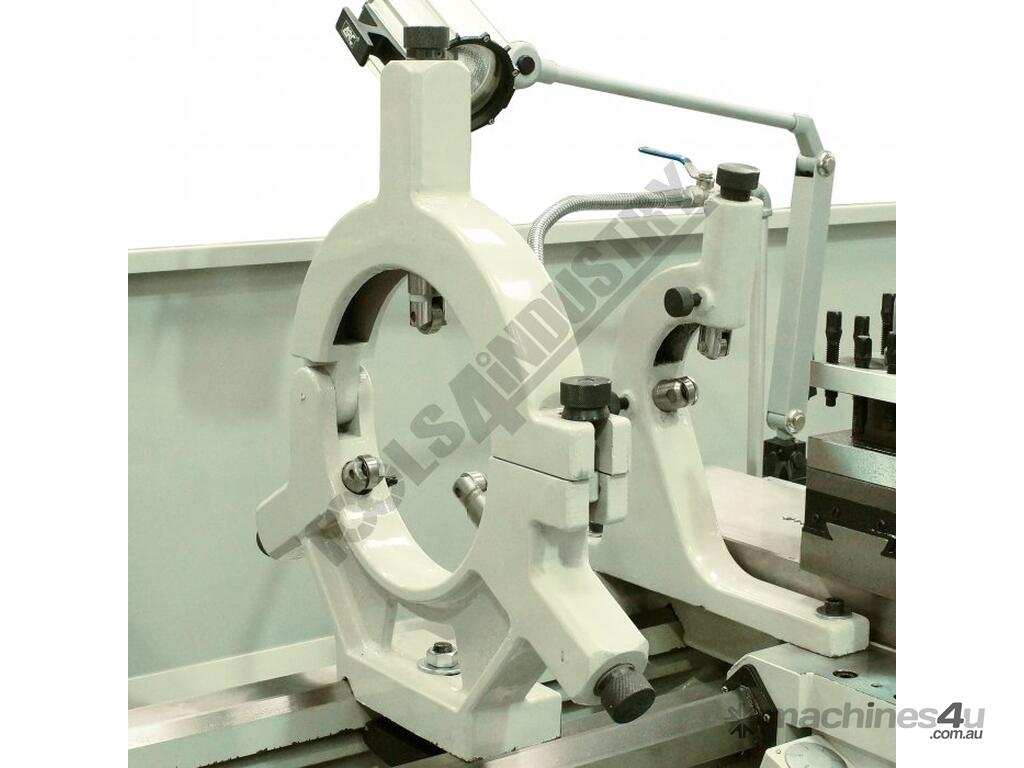

•Fixed Steady with roller bearings
•Travelling steady with roller bearings
•4-position knock out feed system
•Dead centres

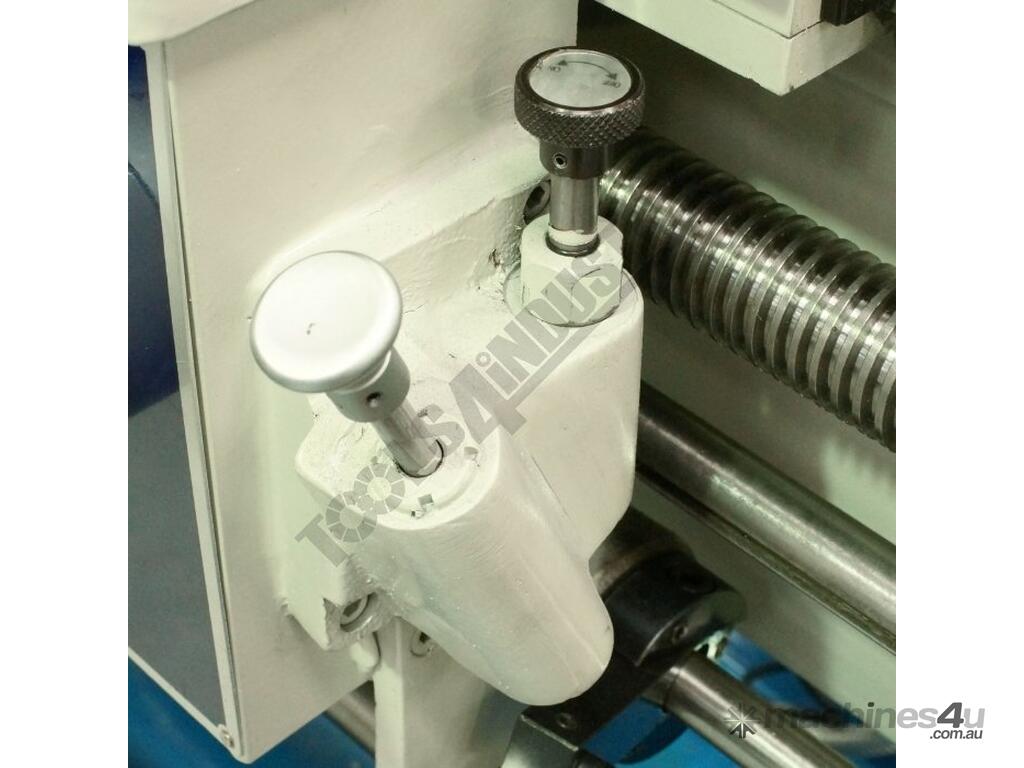

•Thread chasing dial
•Foot brake
•Coolant system
•Work light
•Rear splash guard
•Spindle reducing bush
•Instruction bookleT

ALL PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE
