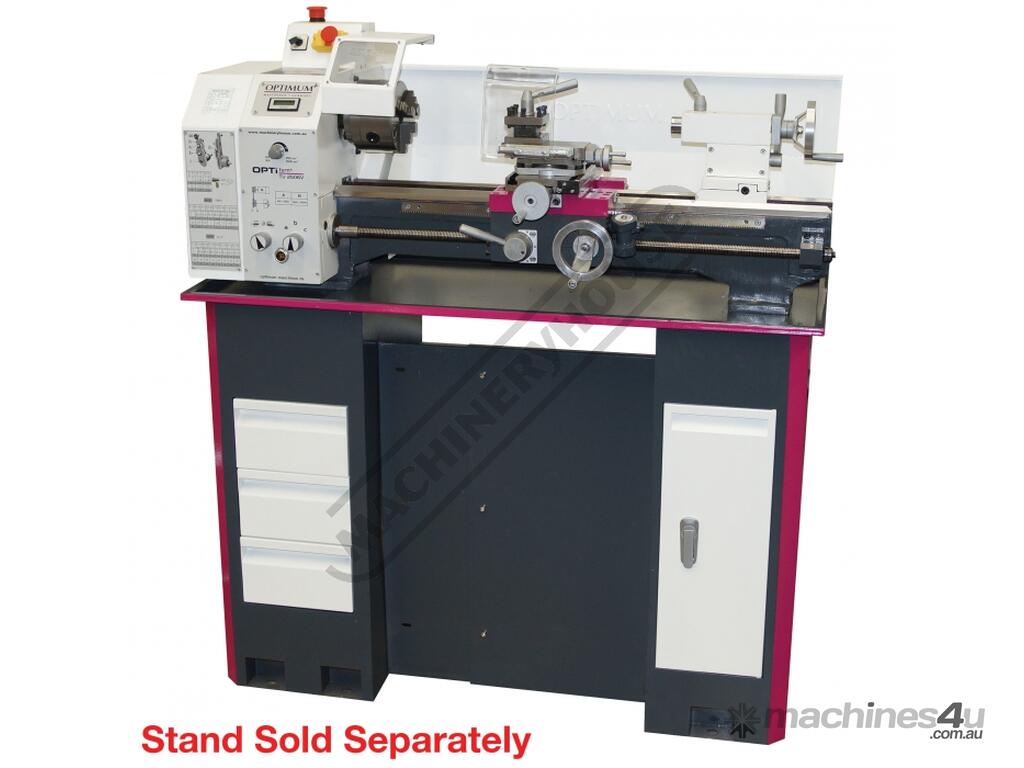

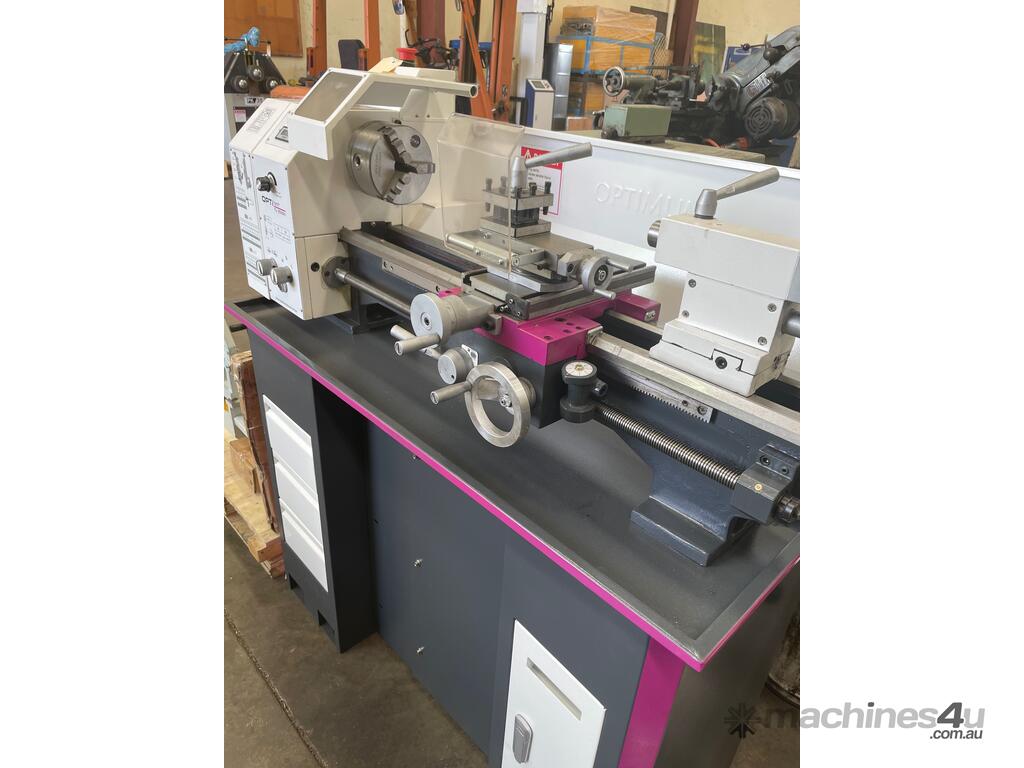

TU-2506V - Bench Lathe (240V)
250 x 550mm Turning Capacity
Electronic Variable Speeds
Description
This compact lathe of very modern design has many convenient facilities ideal for the enthusiastic model engineer for small component manufacturer. A very rigid induction hardened cast iron bed with ground sideways gives a high level of precision turning. The lathe capacity is 550mm between the centers and 250mm swing over the bed. This model has a 1200W brush less DC high power motor providing smooth running. A standard feature is the full electronic speed control dial with digital read-out display for the spindle speed.

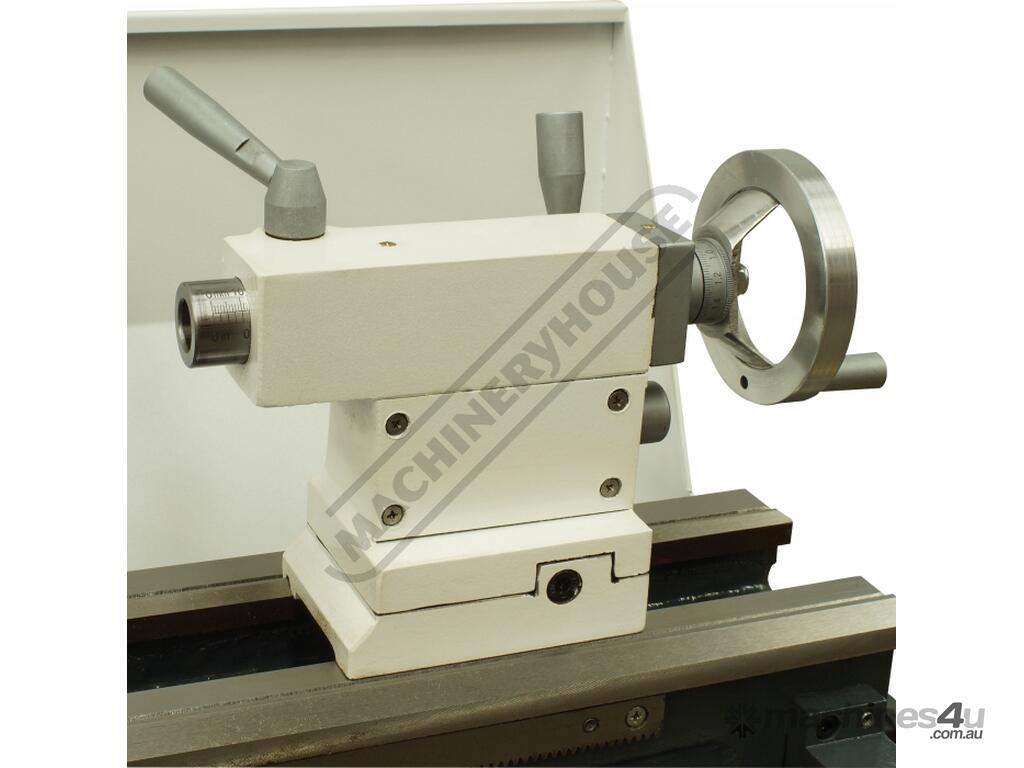

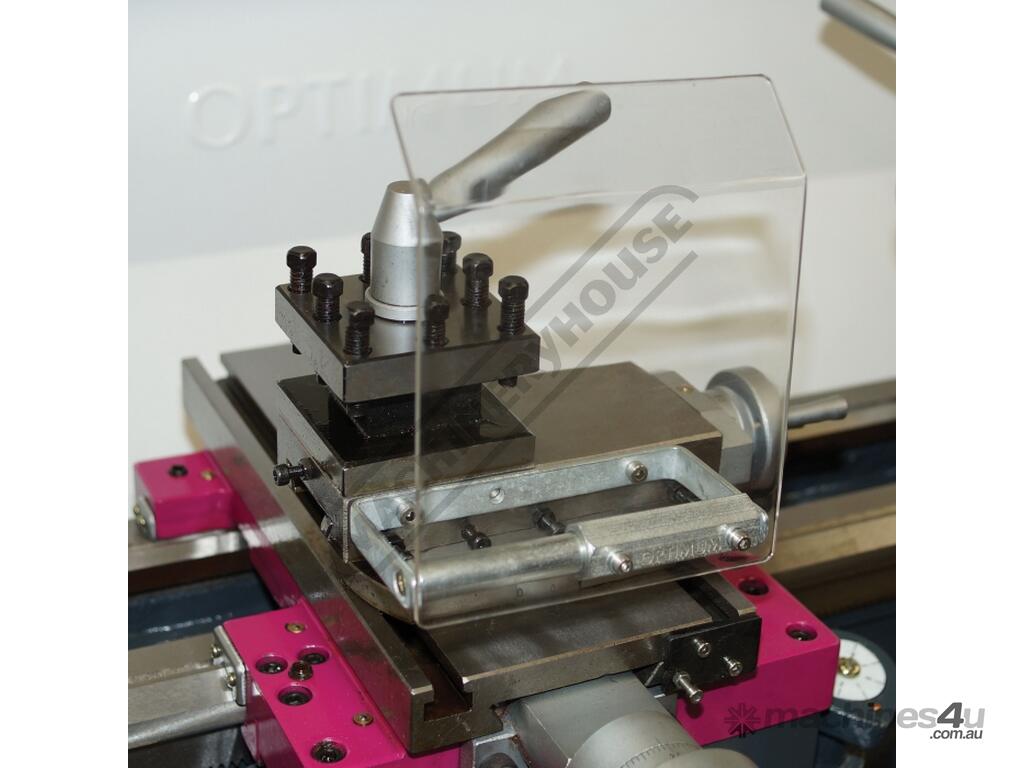

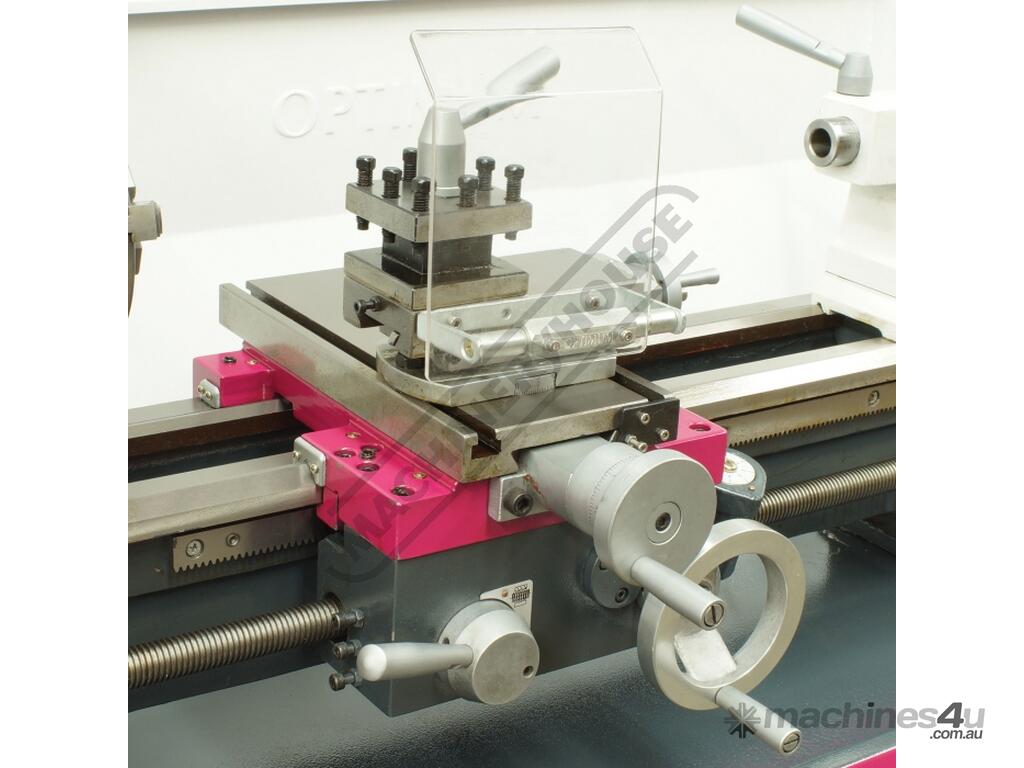

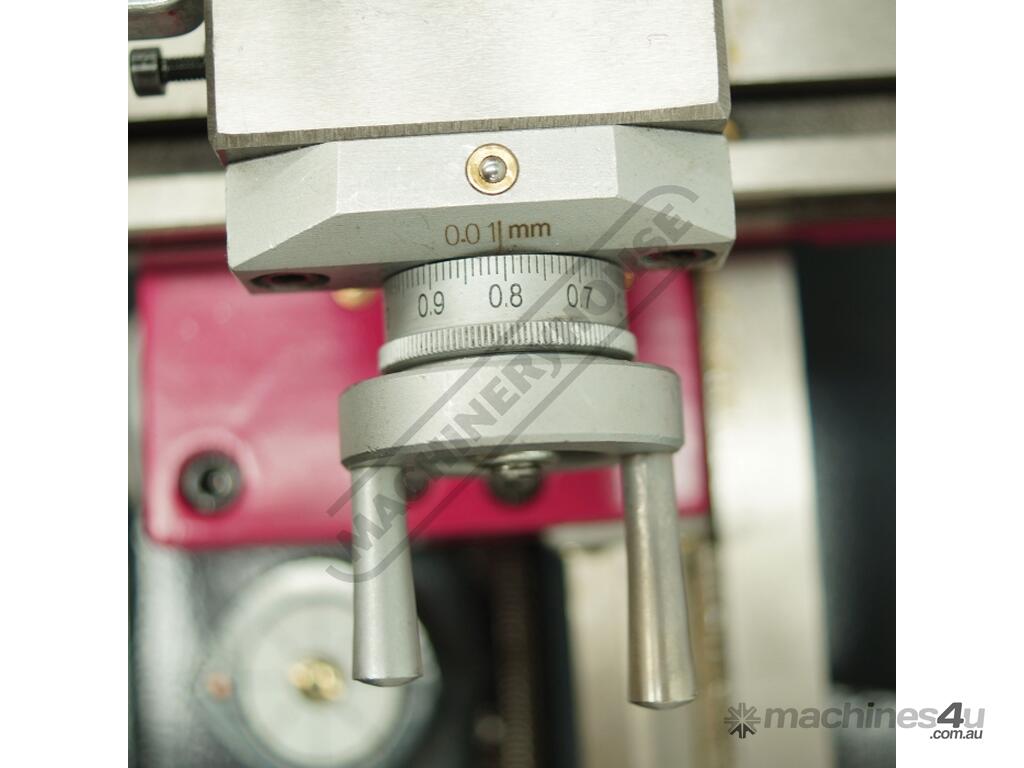

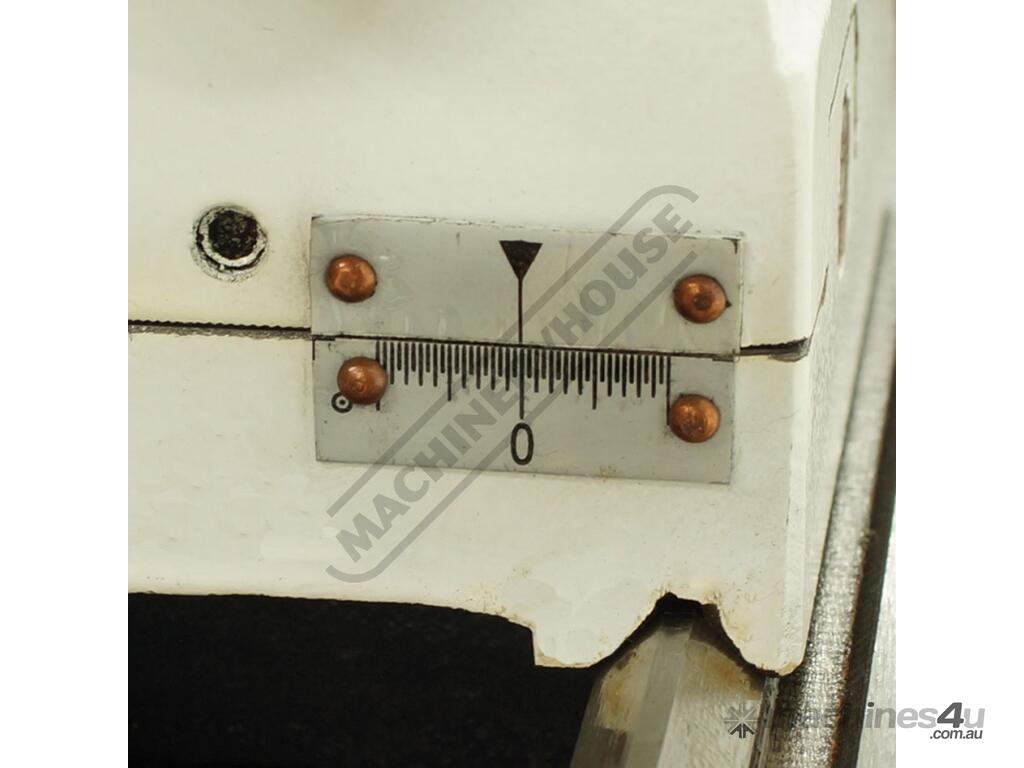

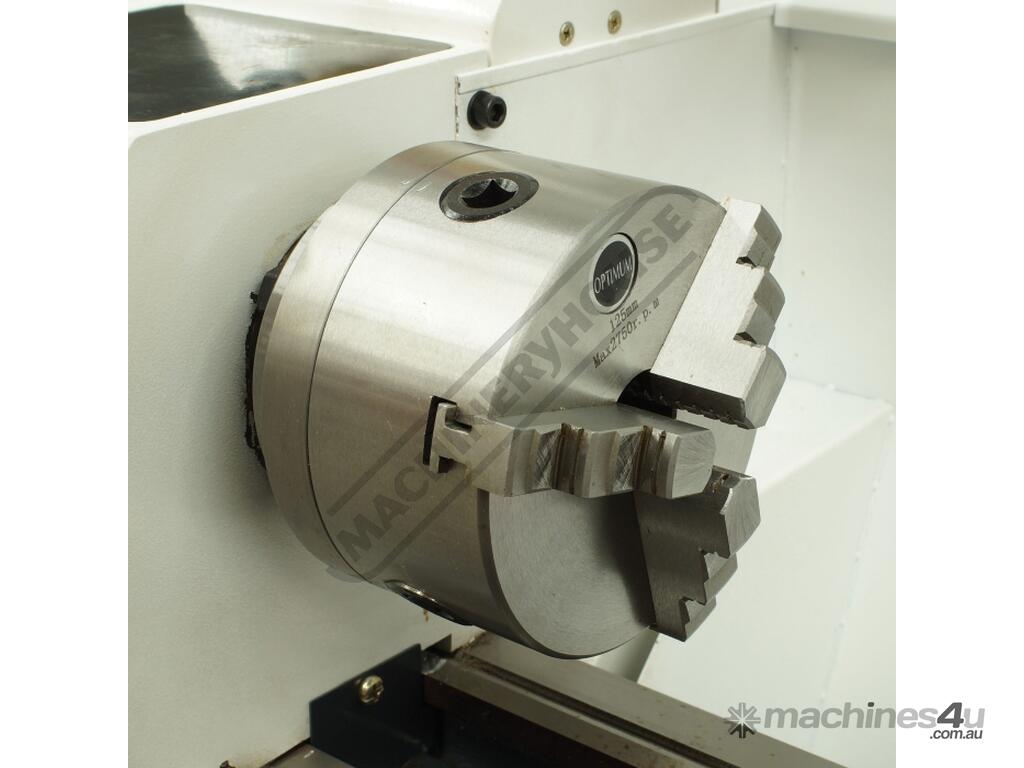

Other very useful features included are longitudinal power feed, quick lock tailstock and both metric and imperial thread cutting, ranging from 8-56 tpi or 0.2-4mm. Also included are a 4-way indexing tool post with 12mm tool shank capacity, fine adjustment on the tailstock for taper turning and the rear splash guard. A 125mm 3-jaw chuck with reverse jaws is also supplied, the headstock spindle being through bored to 26mm diameter. There are many additional options available including a milling head (BF-16AV) or (BF-20AV) to turn this machine into a very capable all round machining centre.
Features

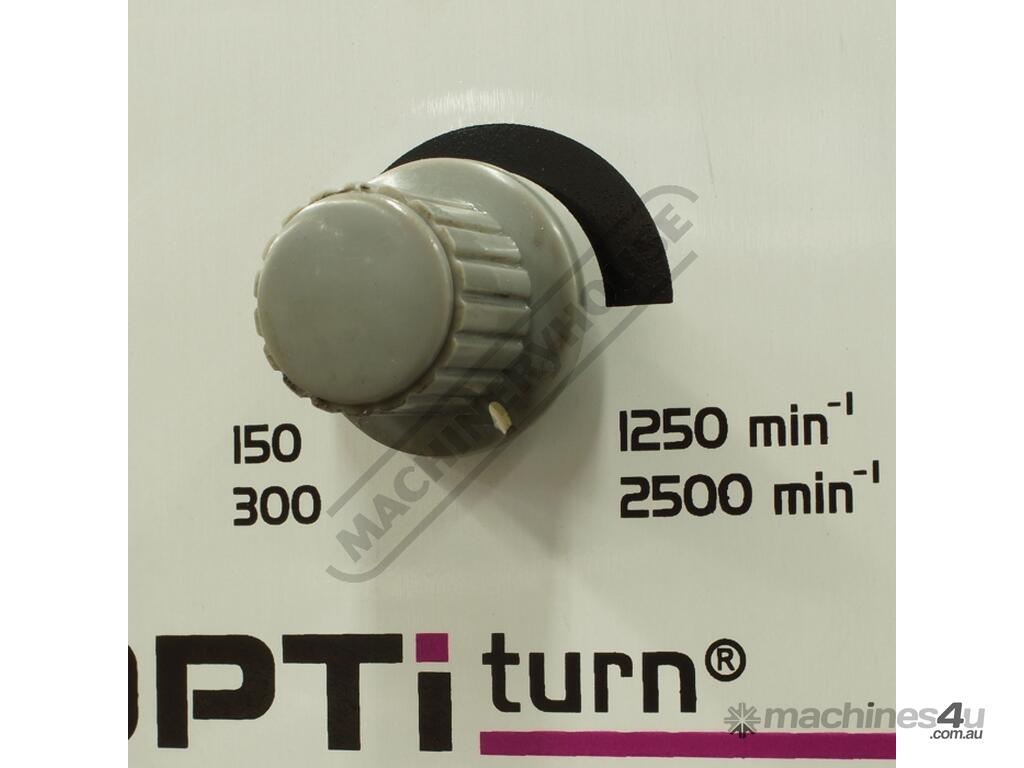

Electronic infinitely variable speed 150-2500rpm

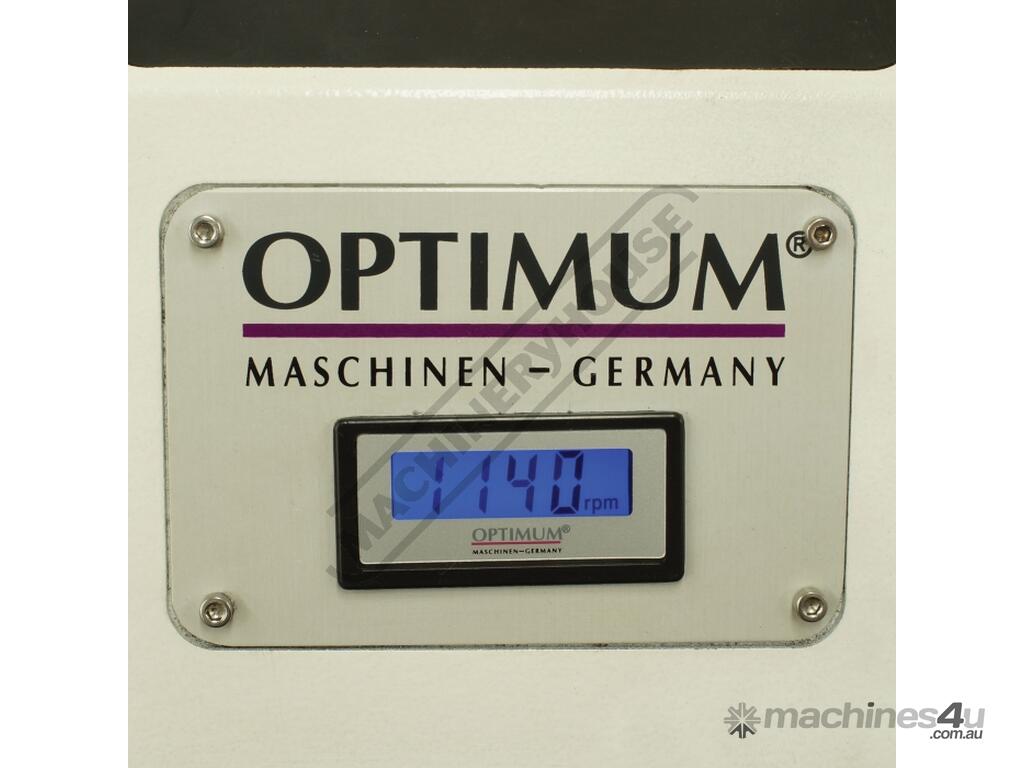

Easy to read digital readout speed display
Ribbed prism bed made of grey cast iron
Inductively hardened and ground bed guideways
Spindle nose accuracy 0.009mm
3 Jaw chuck running accuracy 0.04mm
Forward & reverse spindle direction switch

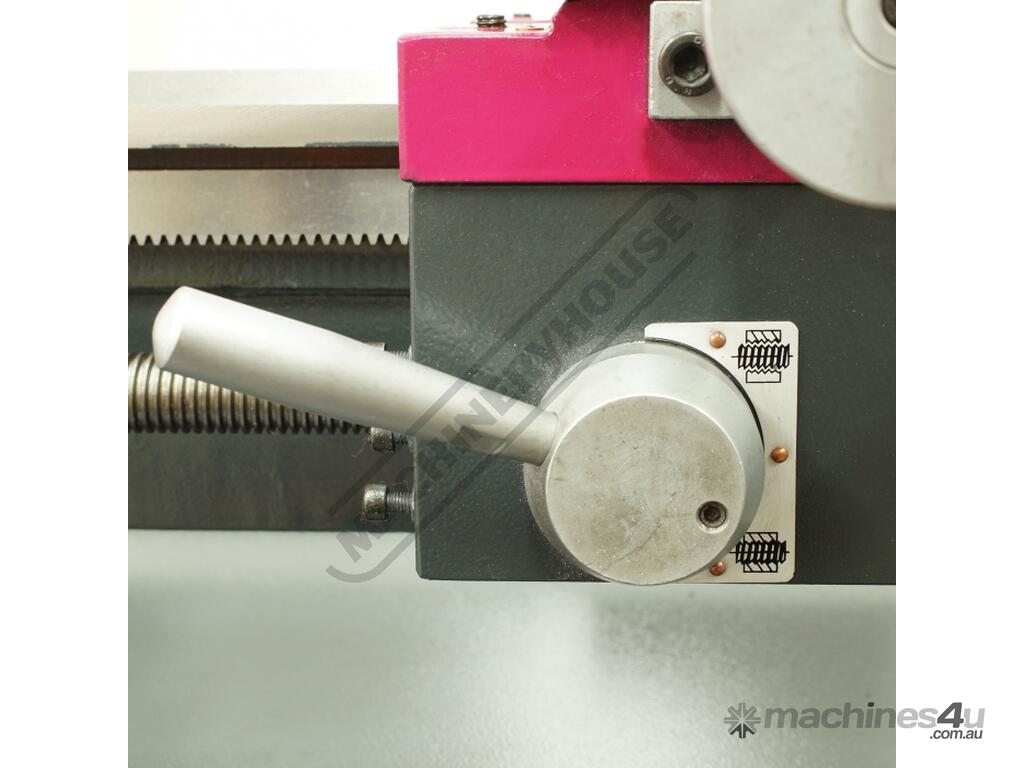

Automatic longitudinal feed
Metric & Imperial thread cutting

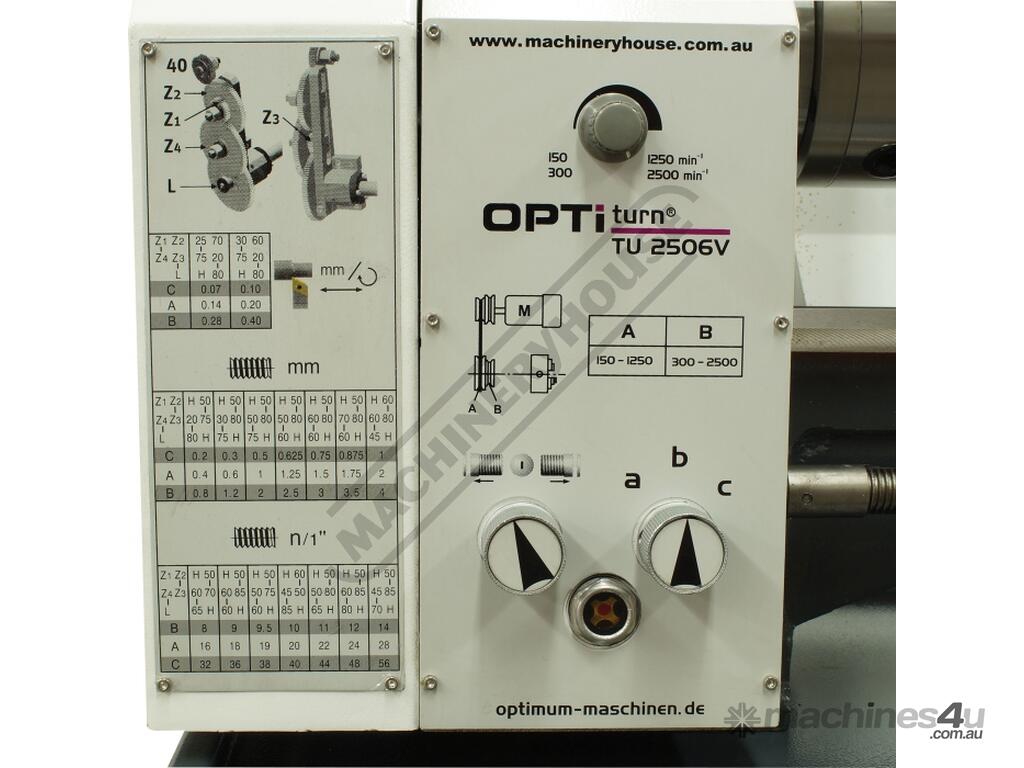

Enclosed feed and threading gearbox
Includes
Change gears for metric & Imperial thread cutting

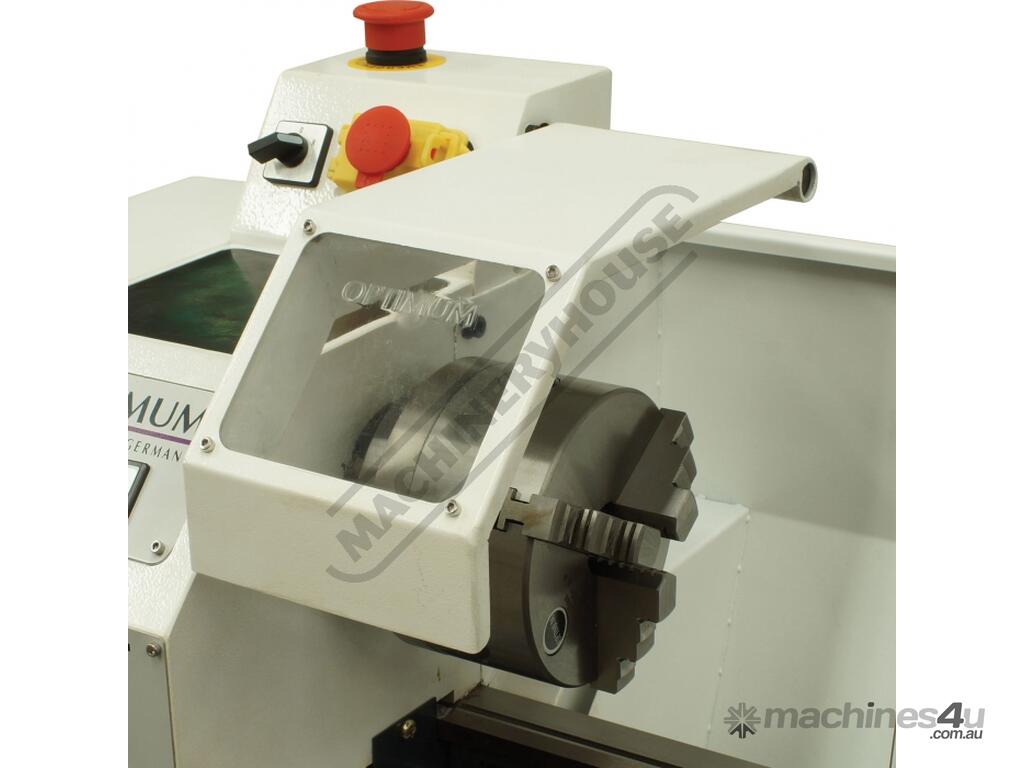

Chuck guard
Toolpost guard

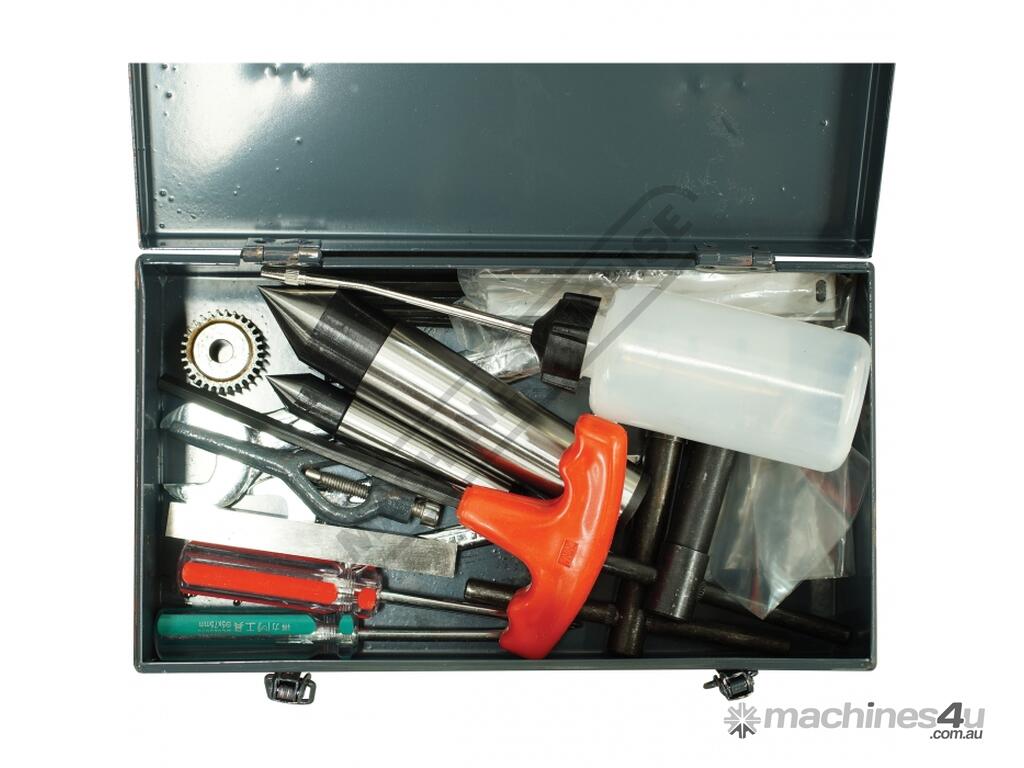

Dead Centre
3-jaw chuck with reversible jaws
Swarf tray
Rear splash guard
Stock code: L689
All prices and specifications are subject to change
