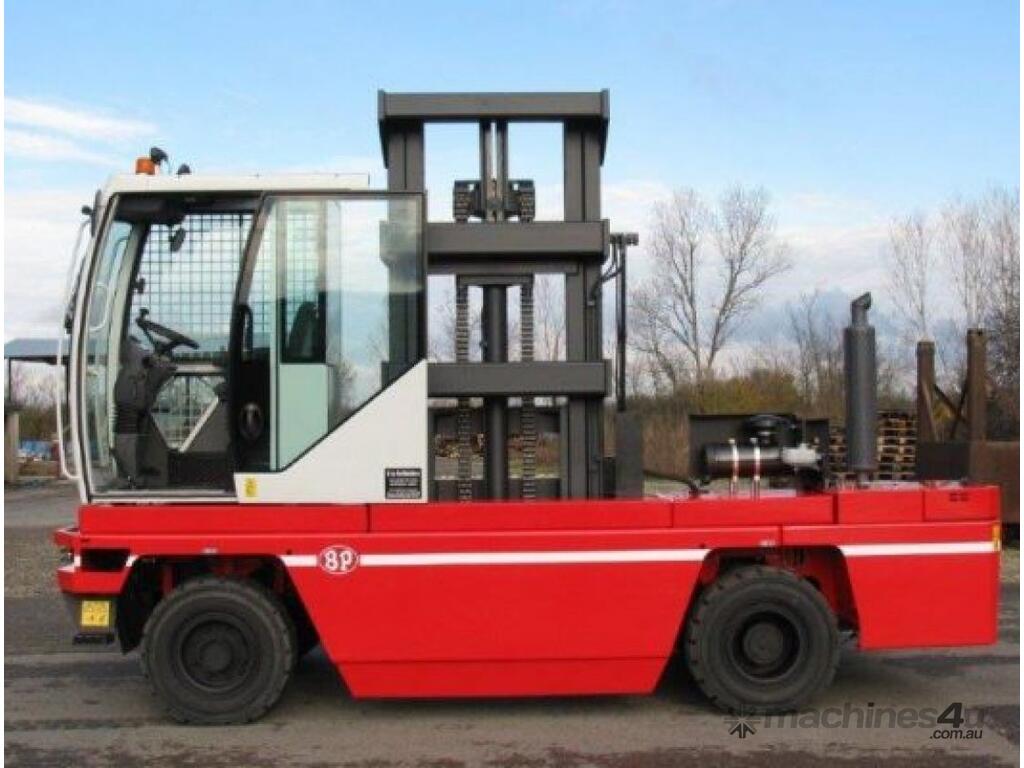

SHD70 - Side Loader - Hire

BP Side Loaders – Diesel & LPG

Side Loader with turbo diesel engine and pneumatic tires suitable to operate indoor and outdoor over all types of grounds and under all weather conditions. Strong and fast the SHD70 is well suited to handle heavy and bulky loads at high speed in complete safety.


Technical specifications:

Turbo diesel engine (also LPG version):
Pneumatic tires
Traction is Electronic Hydrostatic with a variable Capacity: pump and motor. The Electronic Hydrostatic Transmission has a microprocessor located in the cab that controls the inching function, the starting of the machine and the acceleration curve. The control of few parameters provides for a very high number of possible settings. This simple but very flexible program can customise the machine for all operation conditions to obtain best speed performances (forwards and backwards): and a perfectly safe transport of the load
The gear lever in the cabin controls allows the operator to change from high speed to low speed to overcome steep gradients easily
Two front steering wheels with power steering (servo assisted):

FEATURES & BENEFITS

Working with BP SHD70 is easy and safe. The cabin is ergonomic with wide view enhanced in the rear by a low bonnet (the engine is mounted inside the chassis):. The gear lever in the cabin controls allows the operator to change from high speed to low speed and to overcome steep gradients easily.


The SHD70 is designed to minimize the maintenance requirements and at the same time to allow for a safe and comfortable access to all the installed components and subsystems.


An efficient diagnostic system for hydrostatic transmission enables easy identification and resolution of potential faults. The benefits are to reduce the maintenance costs and to minimize the machine downtime.

SPECIFICATIONS

Capacity: (kg):
7000
Fork Length (mm):
1400/1600/1800/2000
Load Center (mm):
700/800
Tyres:
Pneumatic 32-12.1×15
Engine:
Perkins 1104D-44T, 75kW
LPG Version:
GM IMPCO 4.3L-L6, 115 HP
Transmission:
Hydrostatic Rexroth (electronic control):
Tilting:
Chassis
