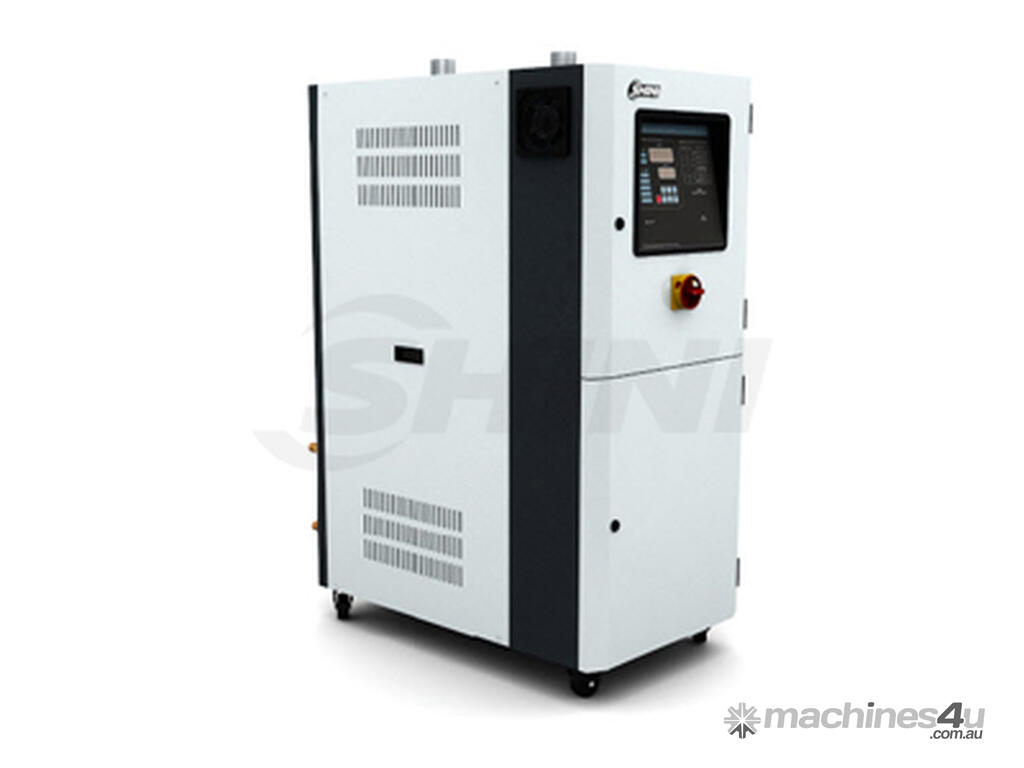

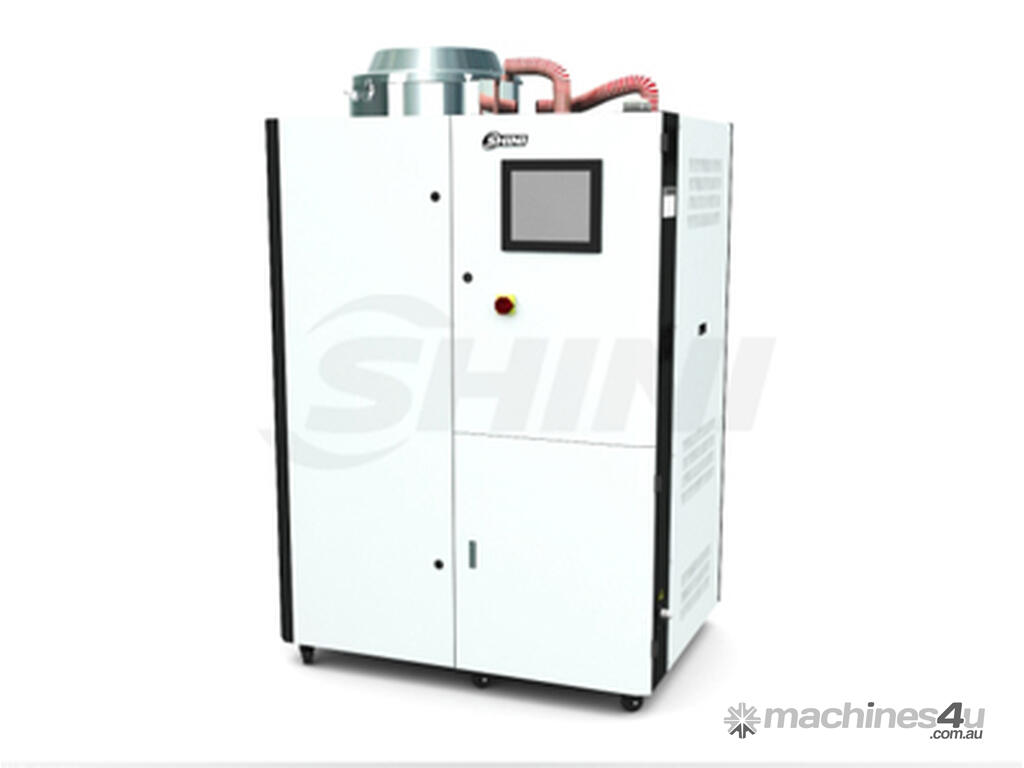

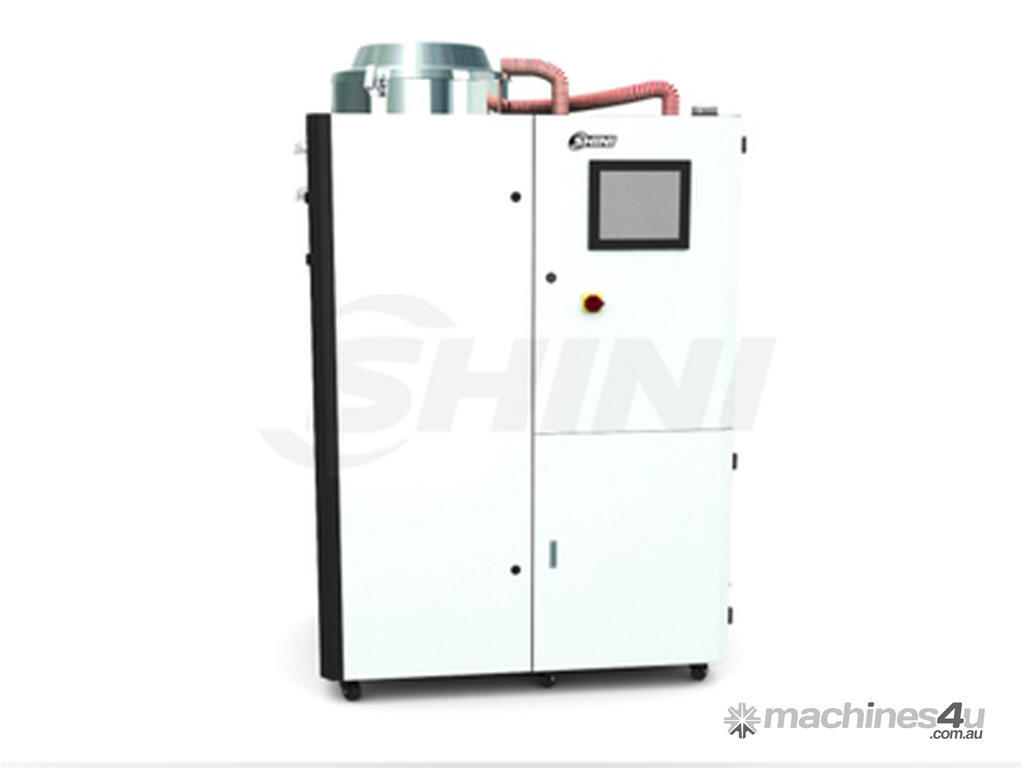

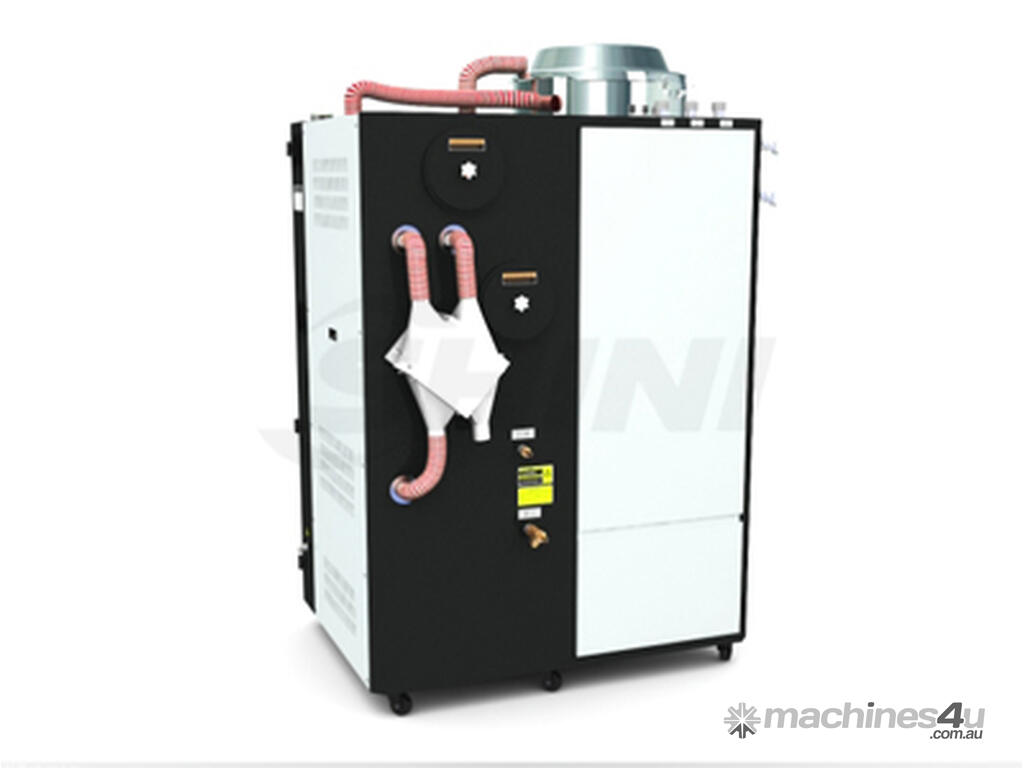

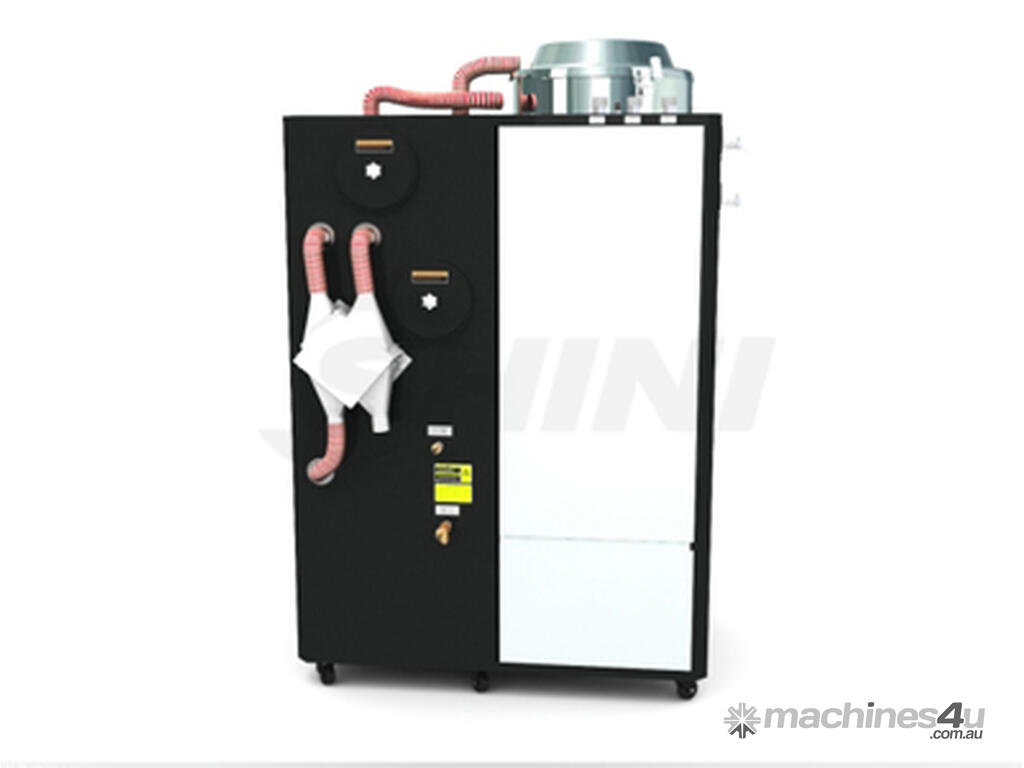

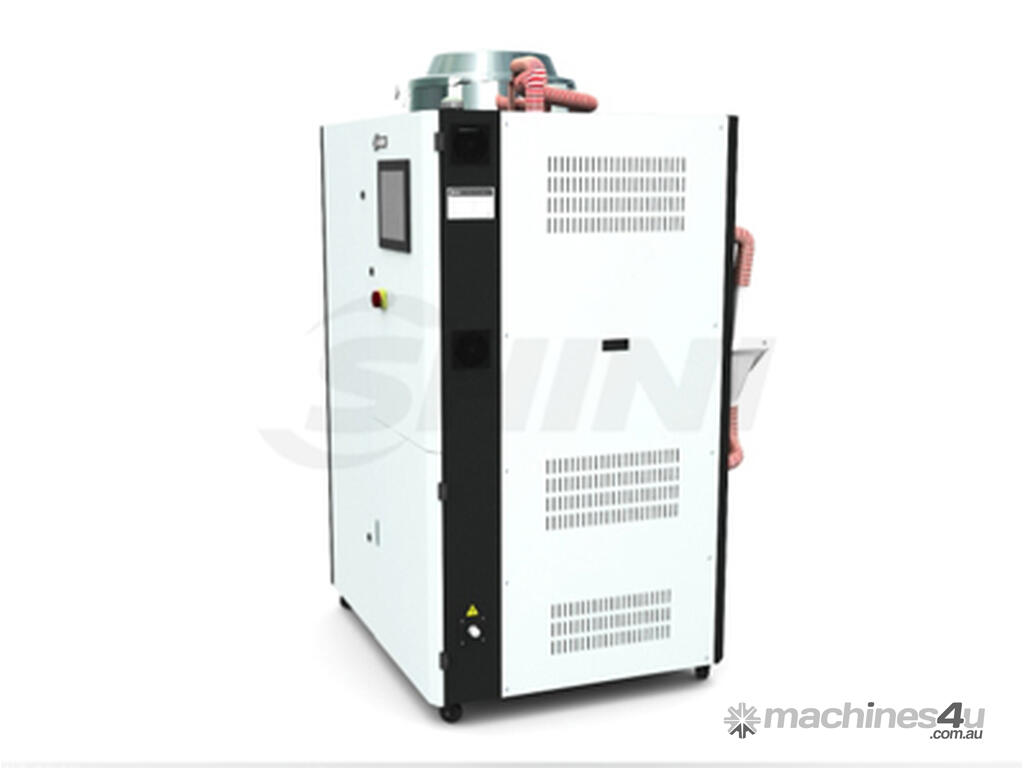

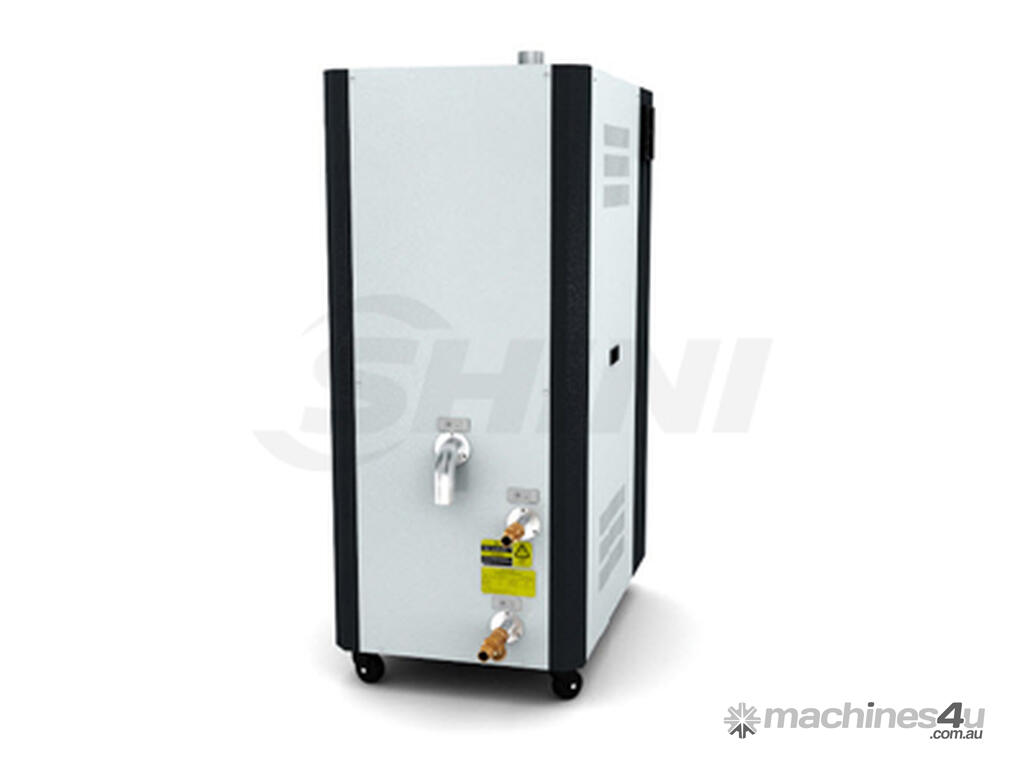

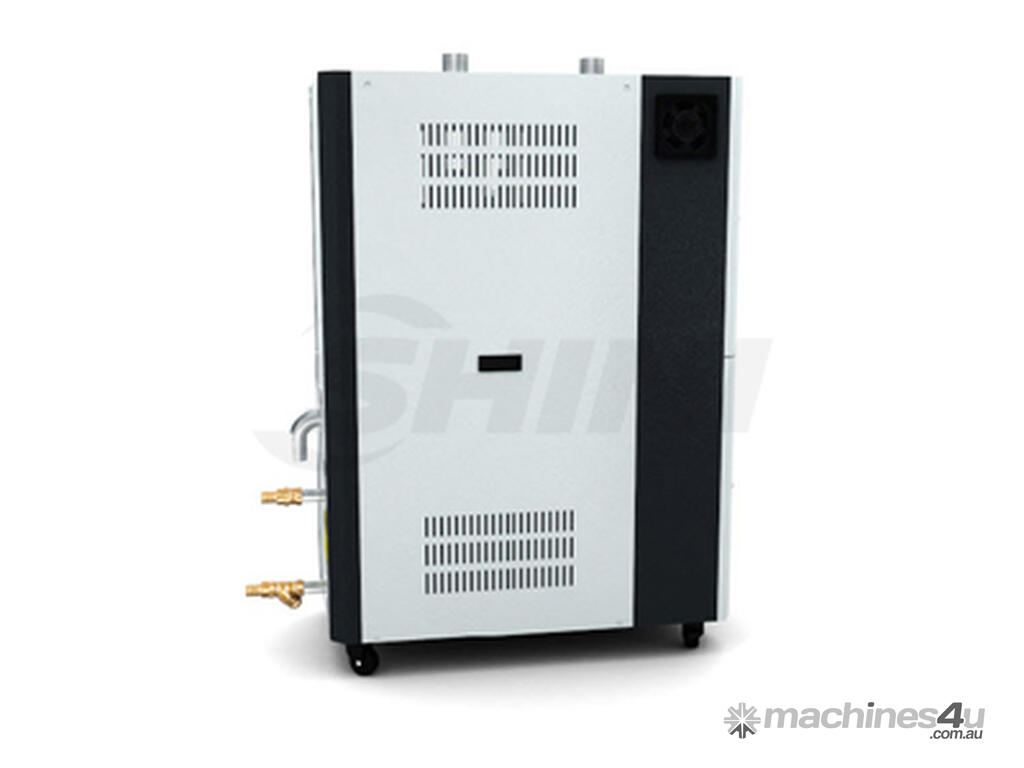

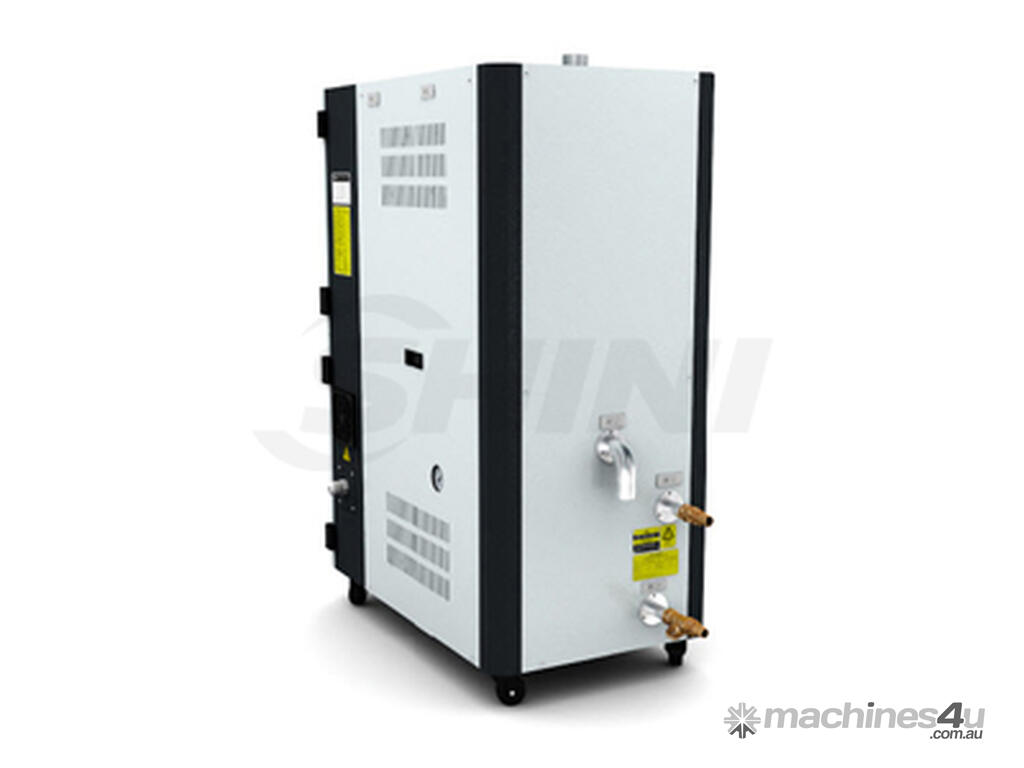

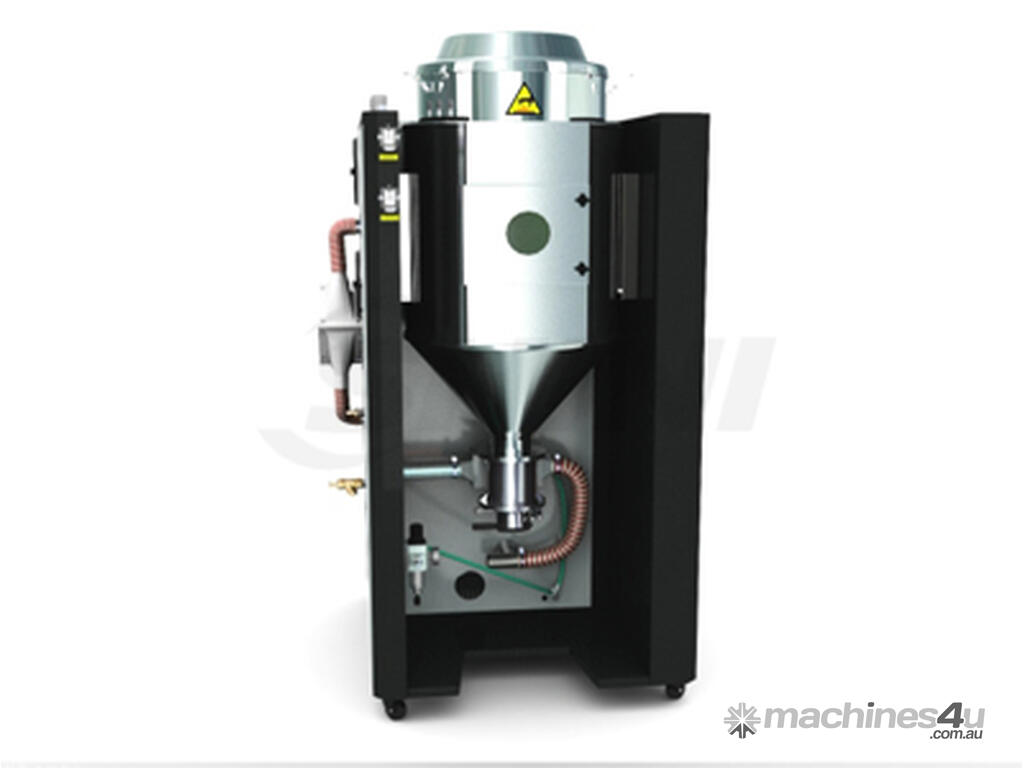

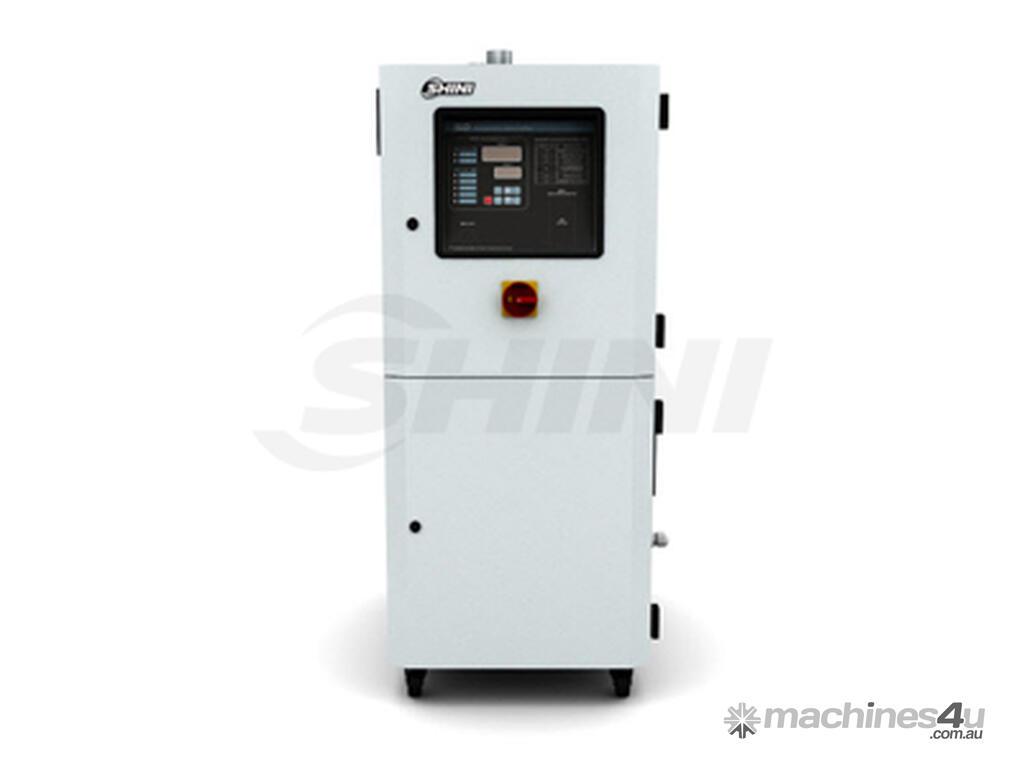

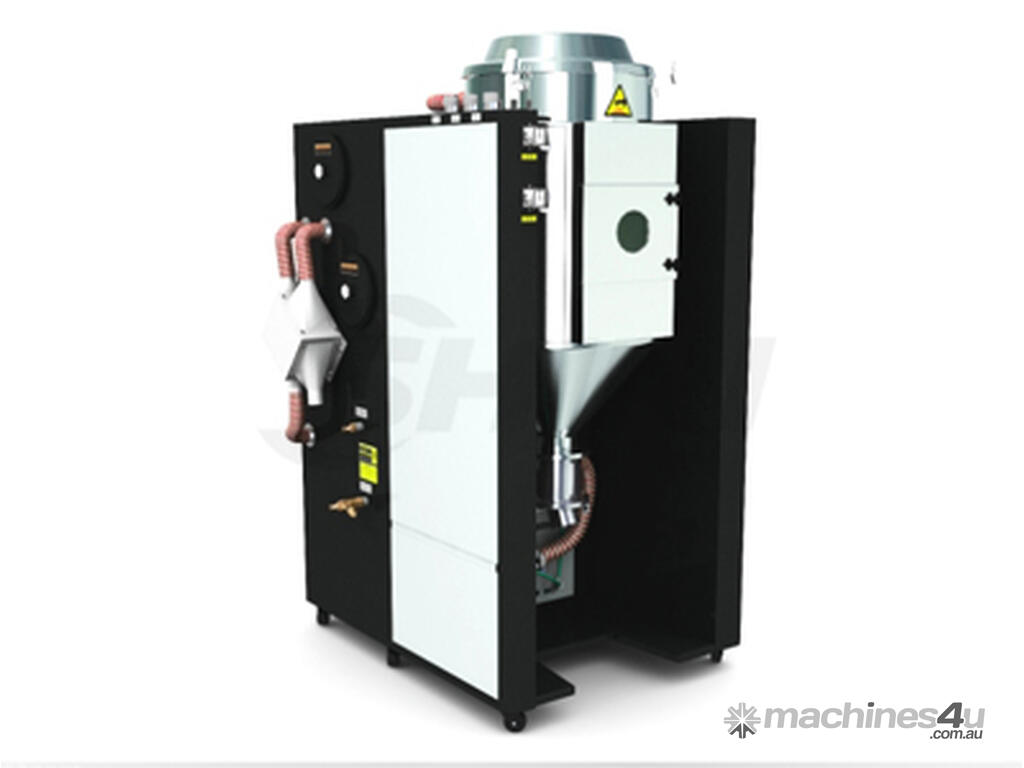

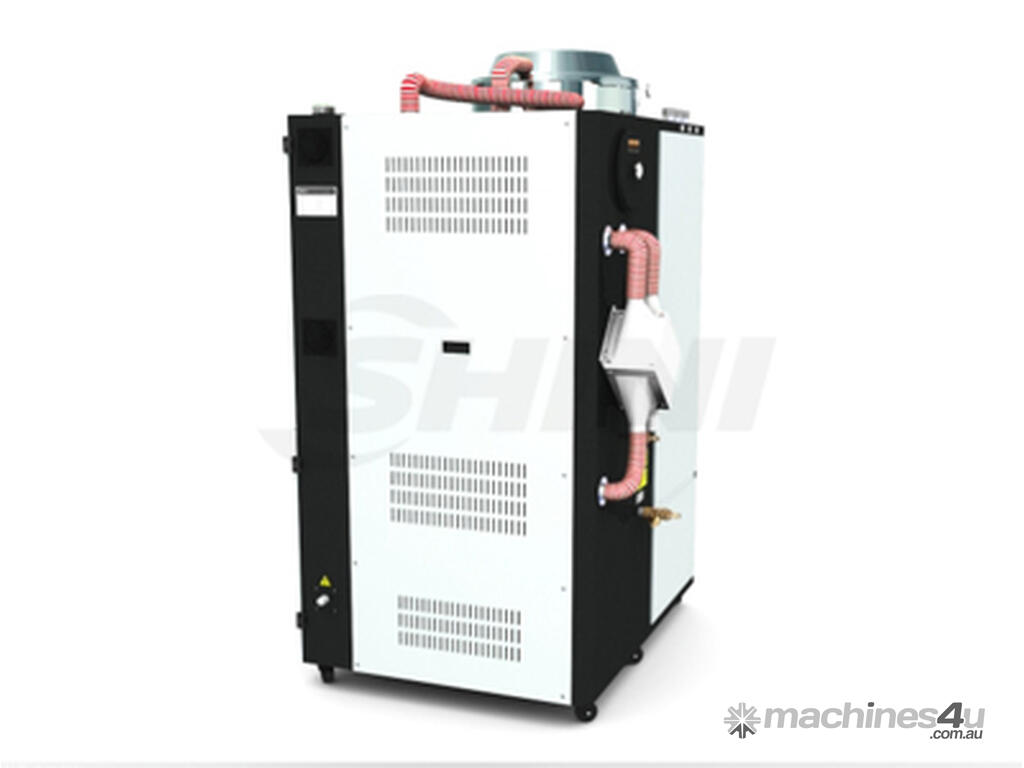

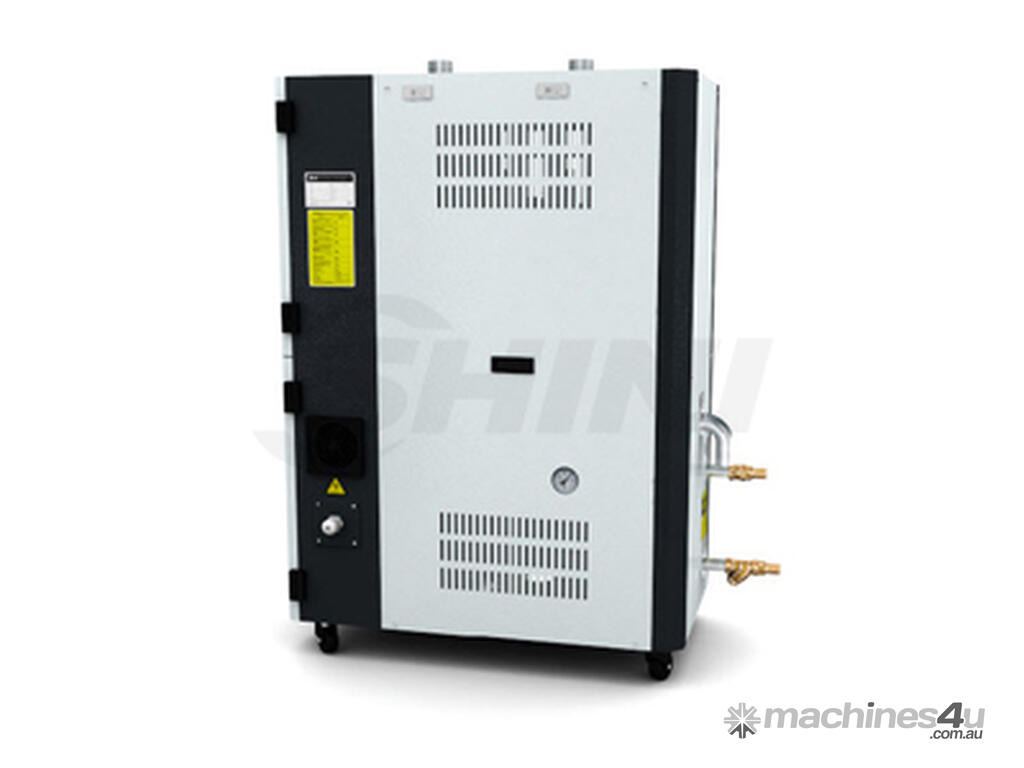

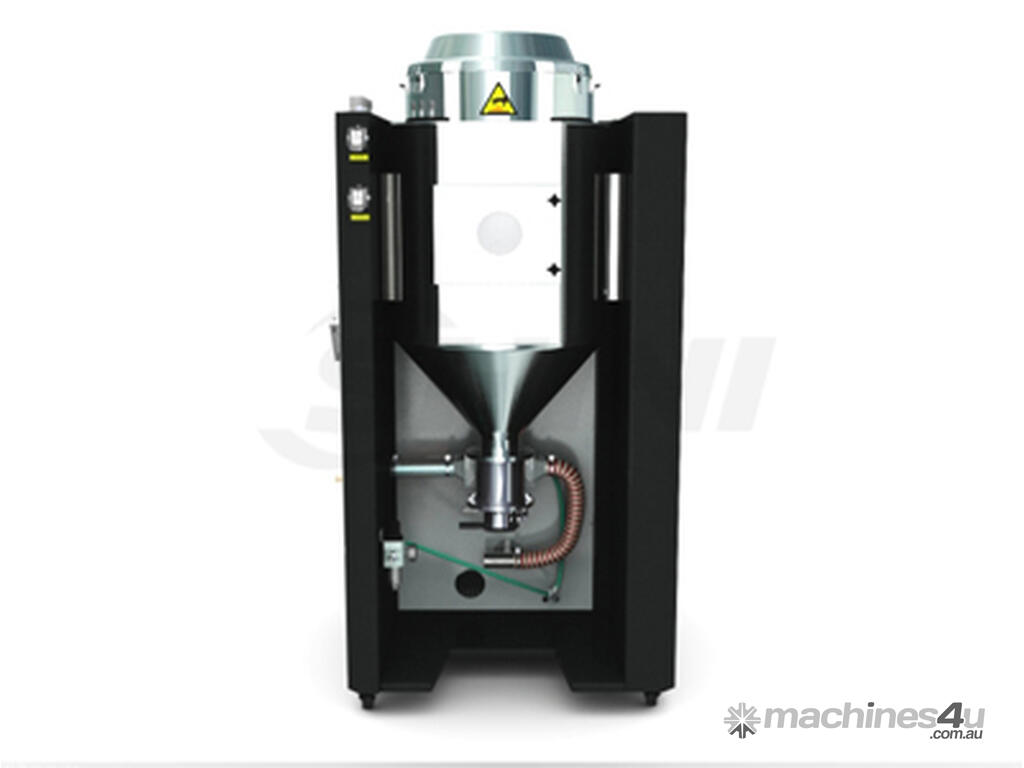

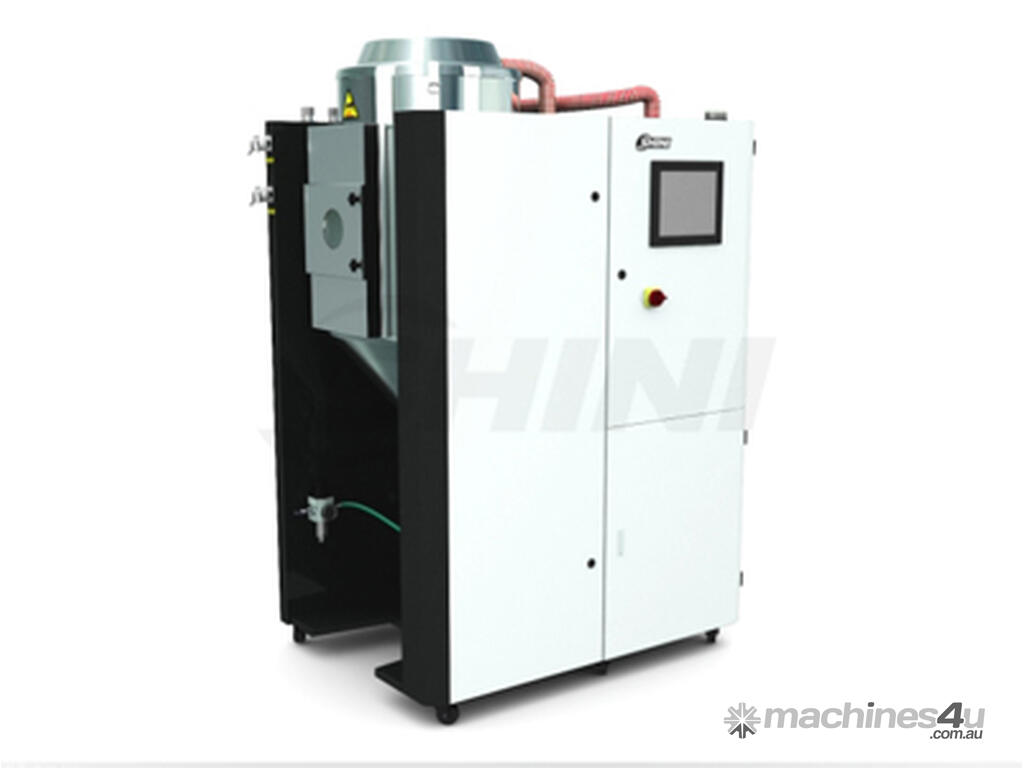

SD-H series honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics. A honeycomb-rotor is used to offer effective drying, which under ideal conditions, can supply dehumidified dry air with a dew-point lower than -40?.This series comprises 15 models of honeycomb dehumidifiers, the largest of which can provide dry air up to a quantity of 4,000 m3/hr.
Features
Adopts P.I.D. temperature controller to accurately control regenerative temperature.
The dehumidifying system of the SD-H series features two coolers to ensure a low return air temperature and low dew-point.
Return air filter is mounted inside to ensure no contamination to the honeycomb.
Adopt silica gel absorption honeycomb, with low regenerative temperature of 150?, which can save more energy compared with molecular sieve structure with regenerative temperature of 200? above.
Centralized automatic control can be realized by optionally selected PLC touch screen controller.
Optionally select dew-point monitor to realize dew-point real-time monitoring.
Optionally select drying heater and its temp. controller to work with drying hopper for material dehumidifying and drying.
Optional heat-resistant air pipe, cyclone dust separator with floor stand, oil filter are available.
Molecular sieve honeycomb rotor is optional to reach -50? dew-point.
