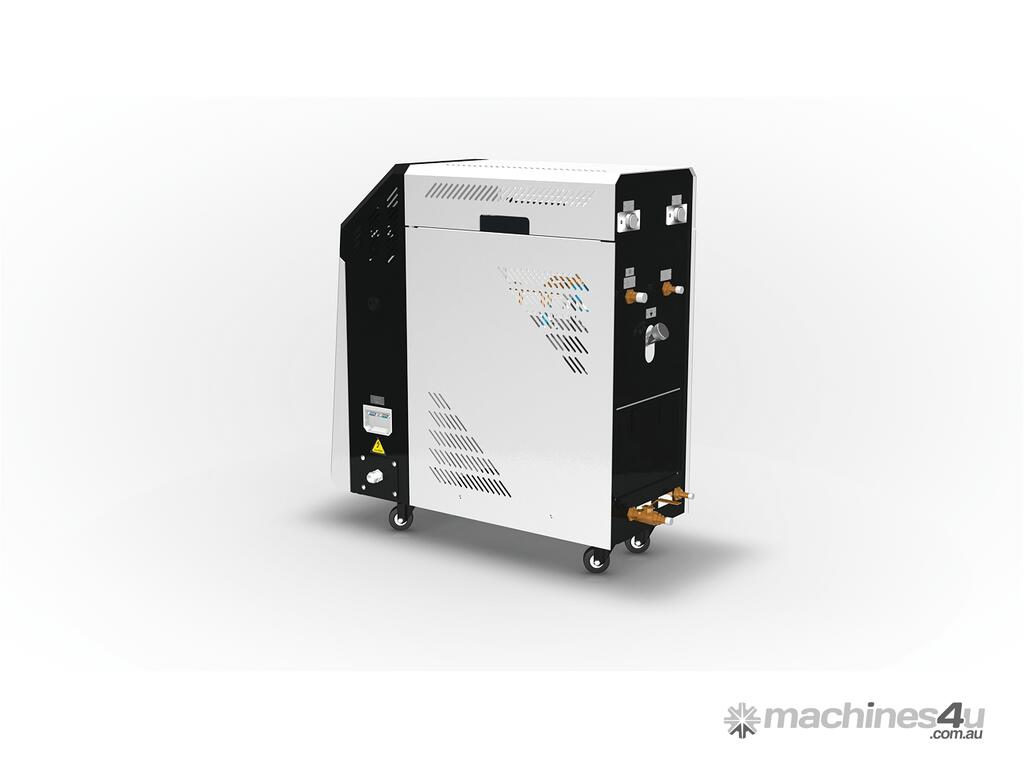

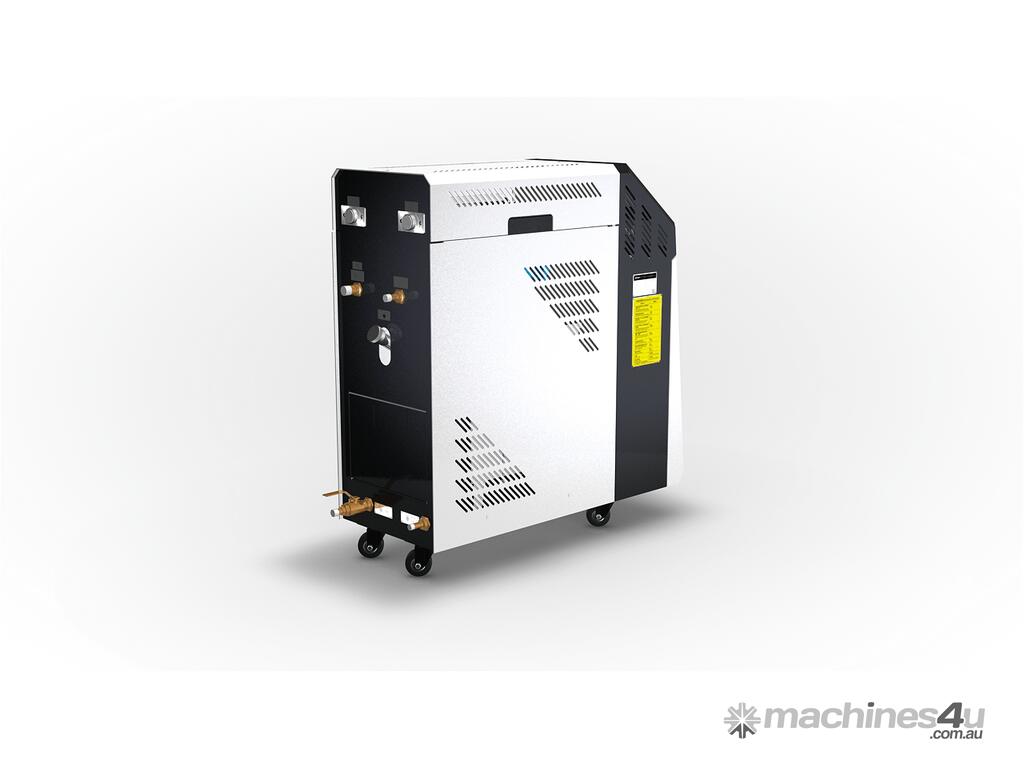

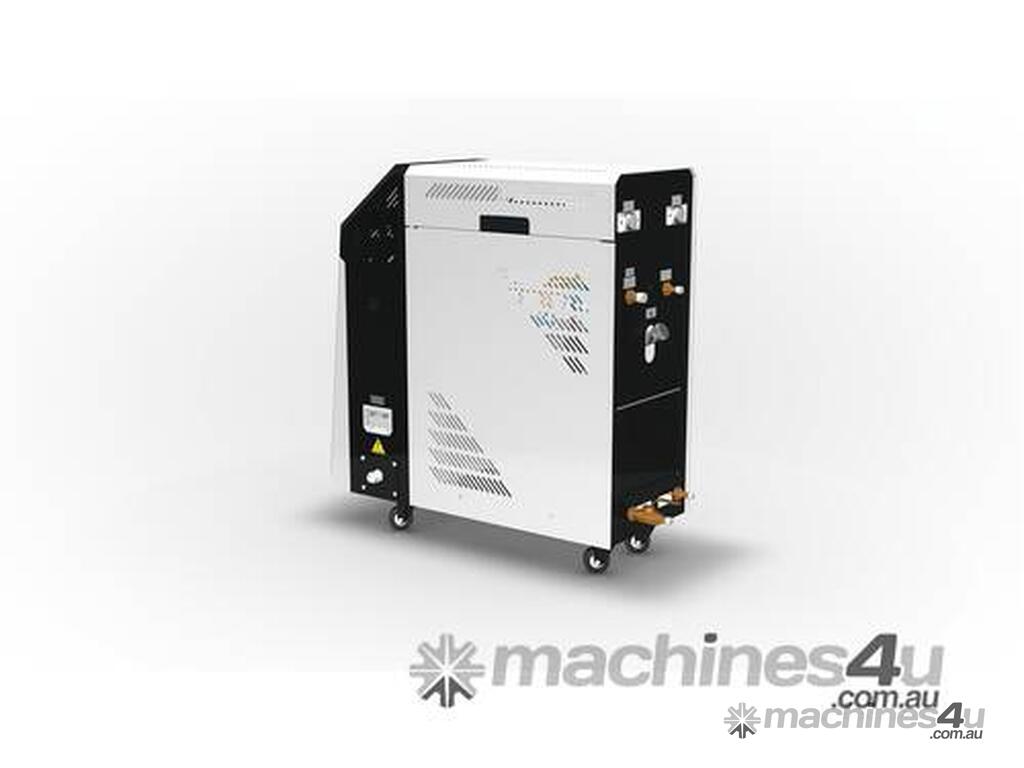

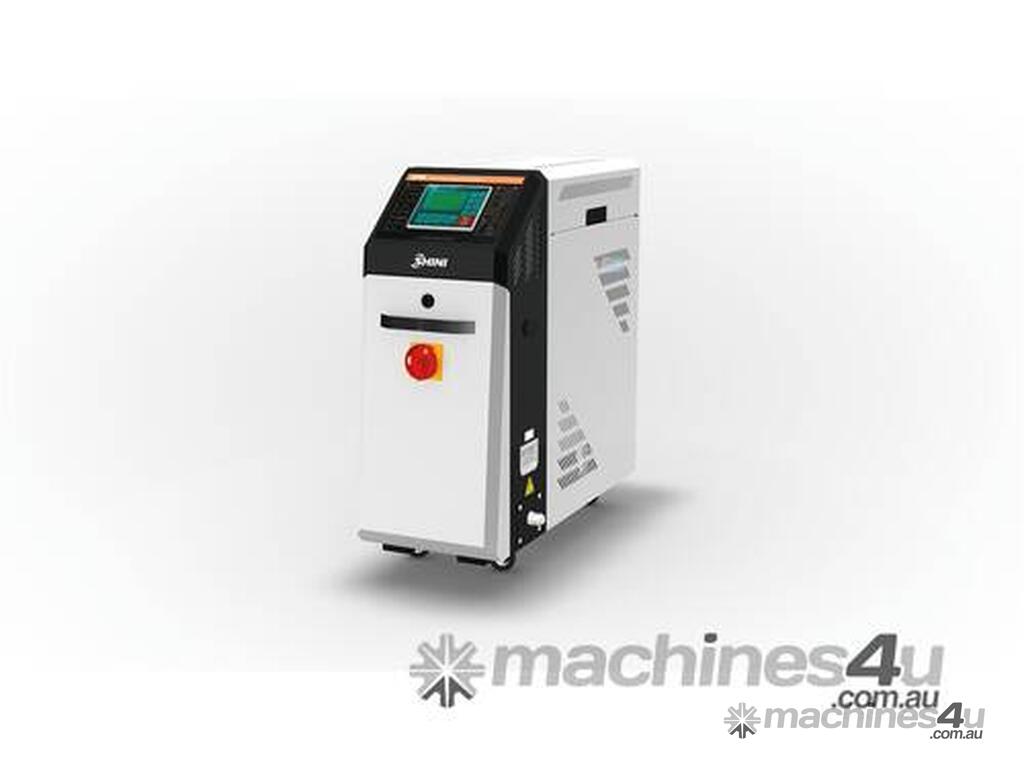

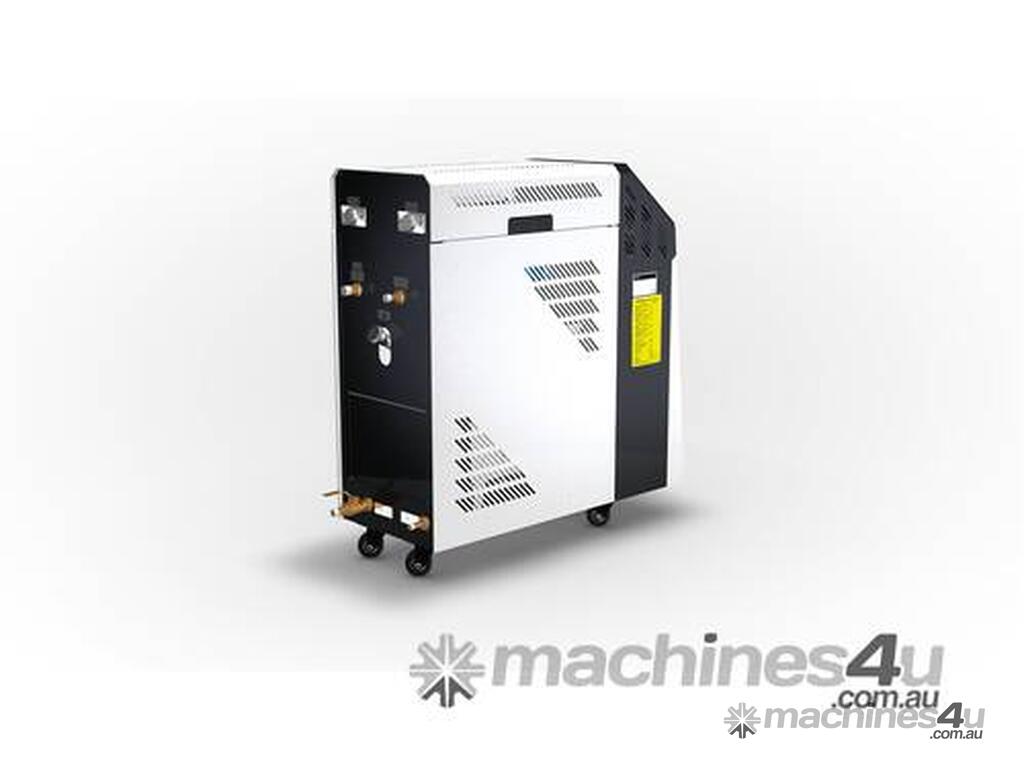

SHINI WATER / OIL HEATER – MOULD TEMPERATURE CONTROLLER

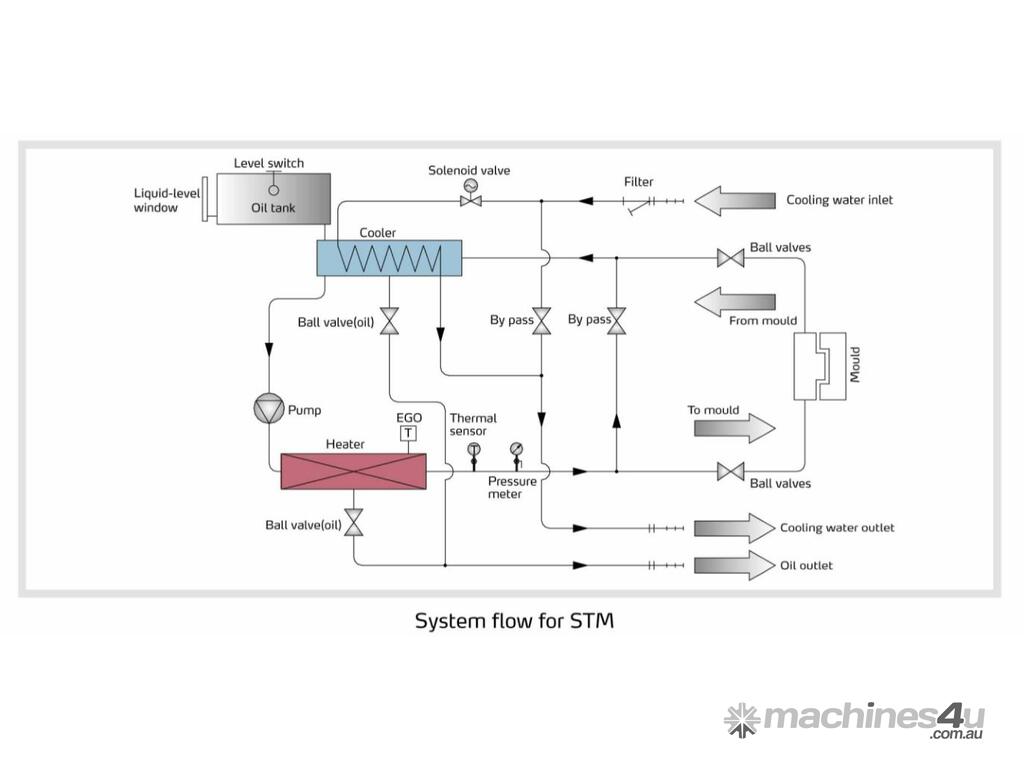

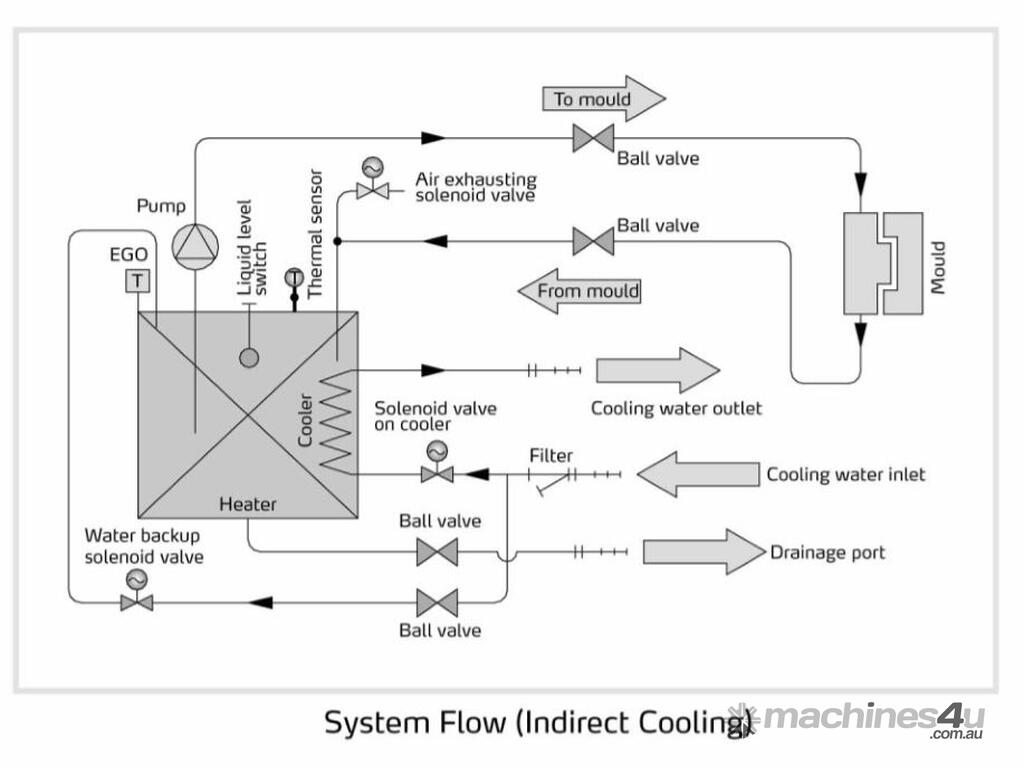

STM series oil heaters, water heaters or dual-purpose oil/water heaters have both the standard and high temperature models, which are used to heat up the mould and maintain temperature, although they can be used in other similar applications. High temperature oil or water from the mould is returned to the cooling tank and cooled by indirect cooling. It is then pressurised by the high-pressure pump, sent to the heating tank and finally to the mould with a constant temperature. With our optimised design, It can reach a maximum of 200 degrees C and the HANYOUNG temperature controller can maintain an accuracy of ±1?.

FEATURES

- Adopt water or oil as heating medium, the maximum temperature can reach: water 95?/203? and oil is 160 degrees C/320 degrees F.

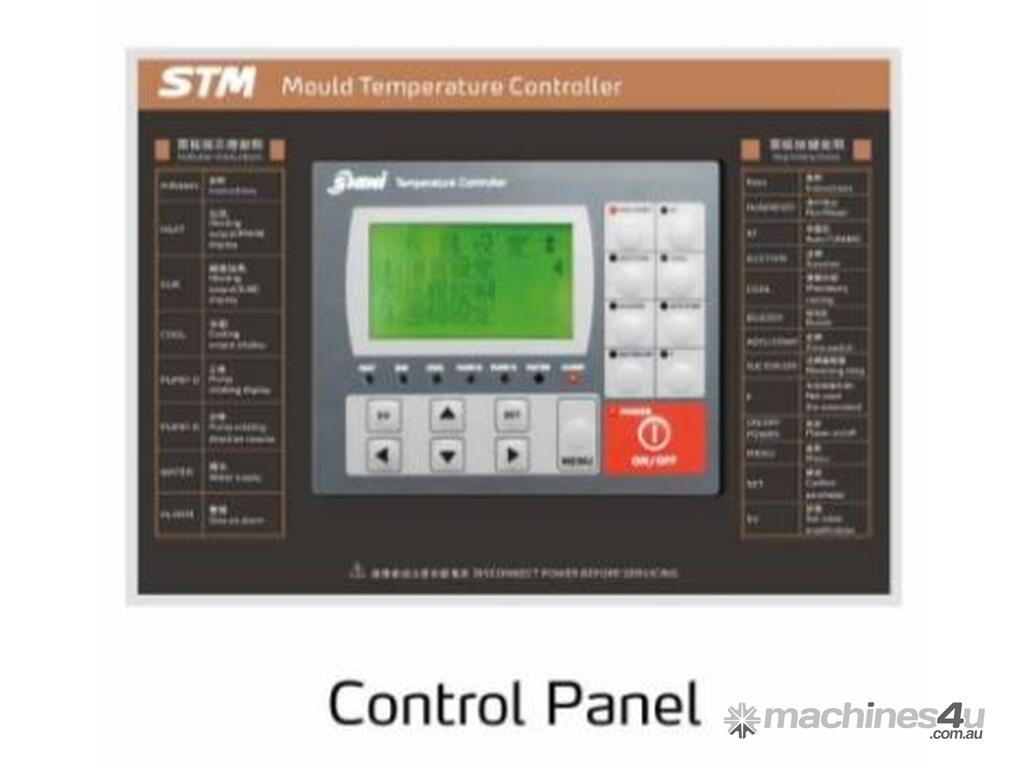

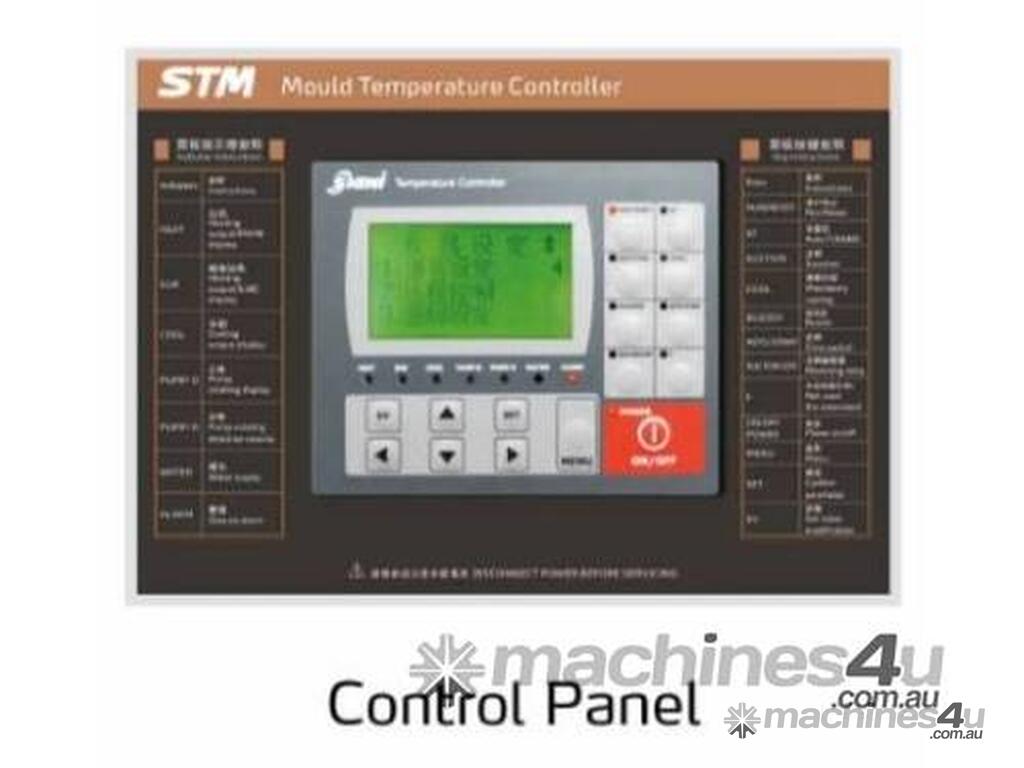

- Controller adopts 3.2" LCD for easy operation.
- In build weekly timer with degrees C/degrees F unit conversion.
- P.I.D controller with 3.2" LCD with a user-friendly interface.
- The multi-stage controller can maintain stable mould temperature with a precision of +/- 0.5 degrees C/0.9 degrees F.
- Adopt high efficiency, vertical dual-purpose of water/oil high temperature.
- In built multiple safety with display and alarm buzzer, such as reverse phase, pump overload, overheat, and low oil level alarm.
- Equipped with pump reversion evacuation, automatic water supplying and negative pressure operation.
- Modbus RTU data communication via RS485.
