New SCM Panel Saw for sale - SI 5 L'invincibile

The advantages of an exclusive choice.
Buying a "L'invincibile " machine means you get a customized solution, thanks to experience, technical research and Italian creativity.

Advantages:

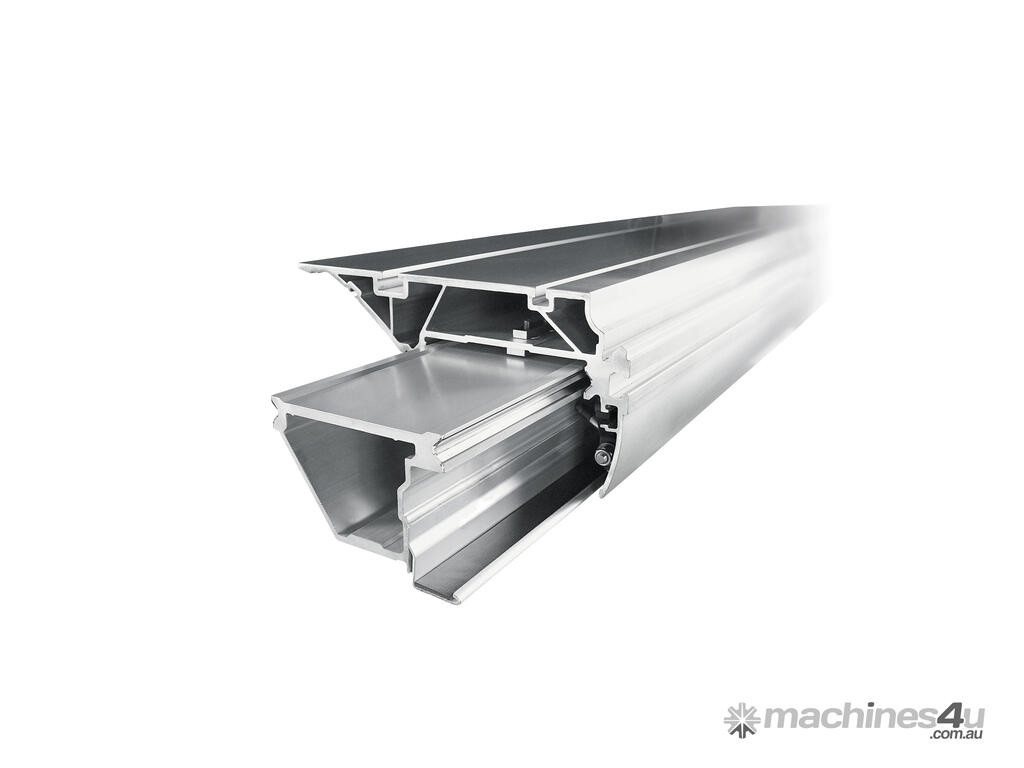

Very high cutting quality thanks to the sliding table structure with special ground-arch steel guides (Scm patented solution).

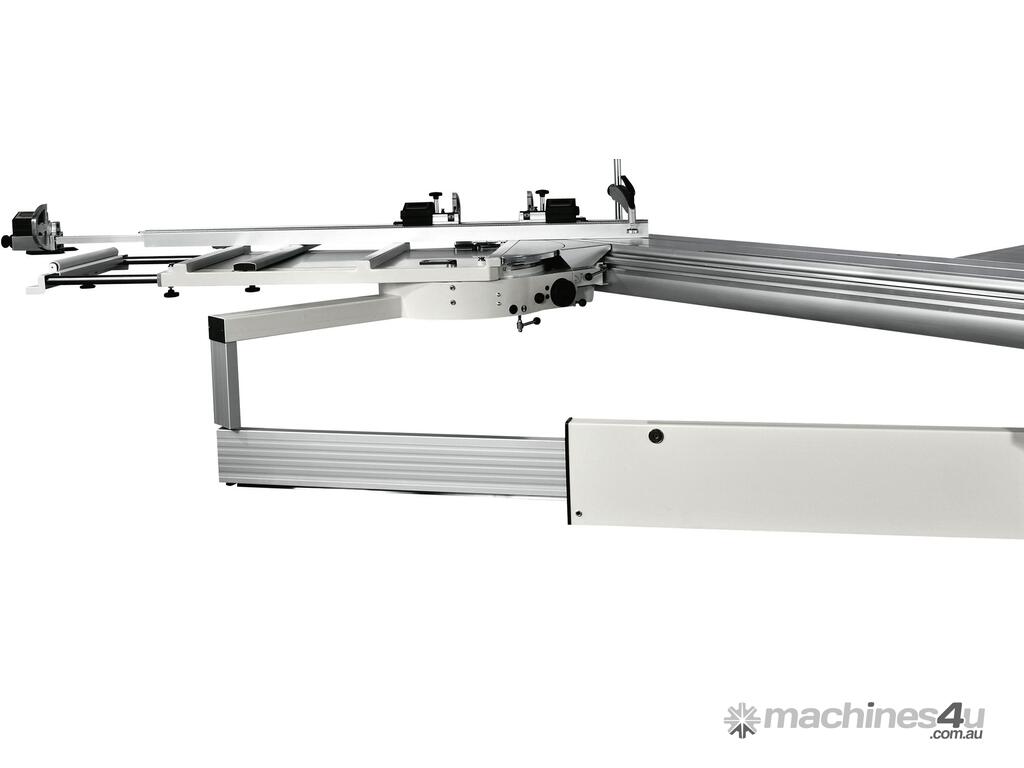

Maximum fluidity of movementthanks to the telescopic swinging arm made of a large dimensioned extrusion and linear guide on recirculating ball bearings.

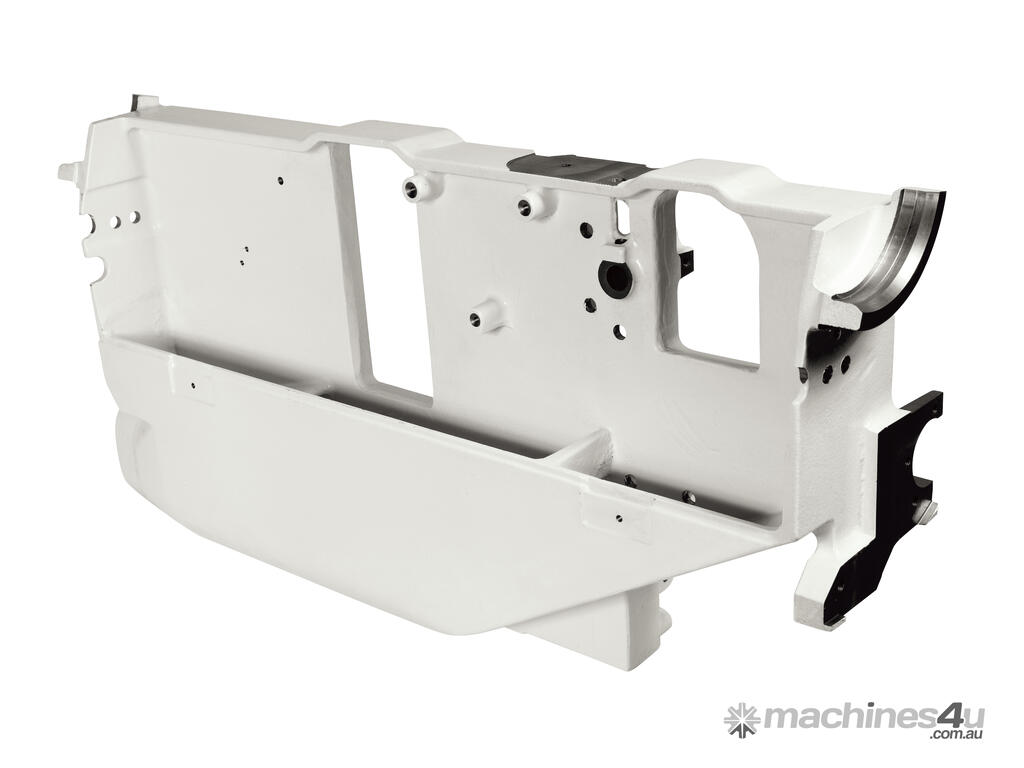

Torsional rigidity and total absence of vibrationthrough the closed loop structure of the saw unit which ensures perfect alignment of the blades.

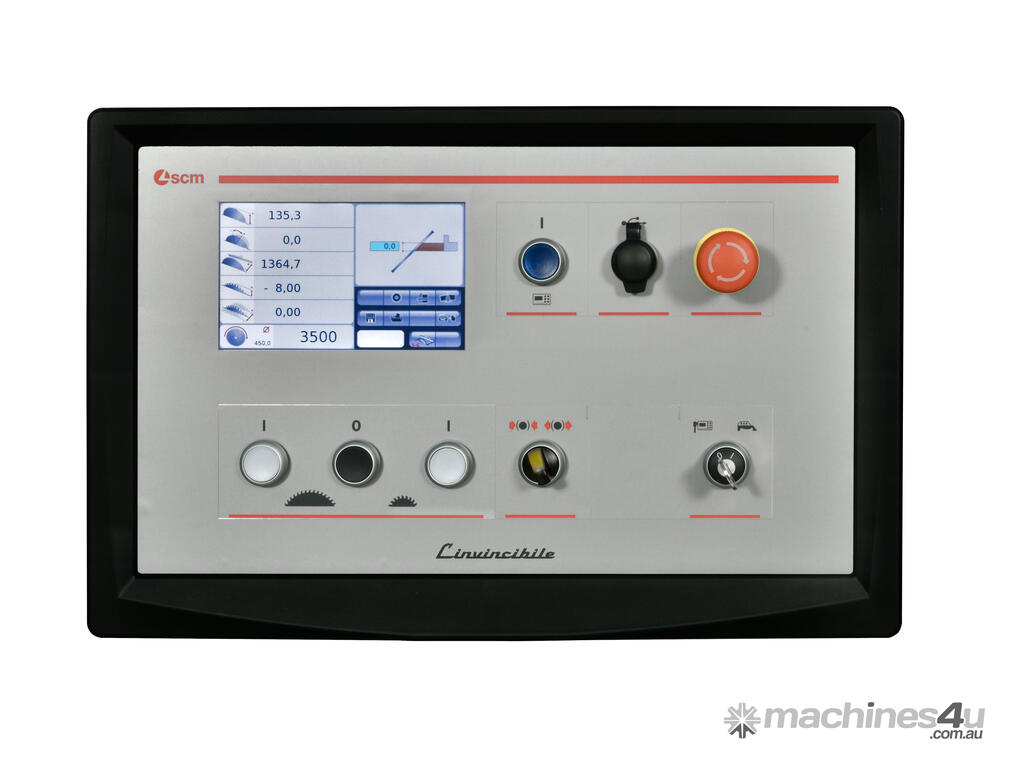

"Easy": the operating advantage for easy assistance. Integrated and fast control of all dedicated functions. These features translate into immediate improvements in productivity and guarantees the capability of the full potential of the machine.

Technical data:
L'invincibile si 5
Machine type electronic programmed
Squaring capacity with carriage
and extended stop mm 3200x3200
Blade tilting 46°
Main blade rotating speed rpm
Scoring blade rotating speed rpm 8500
Cutting height at 90°/45°
with 450 mm scoring blade mm 149/94
Cutting height at 90°/45°
without 550 mm scoring blade mm 200/130
Main blade motor power Hz 50 kW (HP) 7 (9,5)
Scoring blade motor power Hz 50 kW (HP) 0,9 (1,2)
