SIC E-MARK wireless dot peen marking system, Marking window 60x25mm

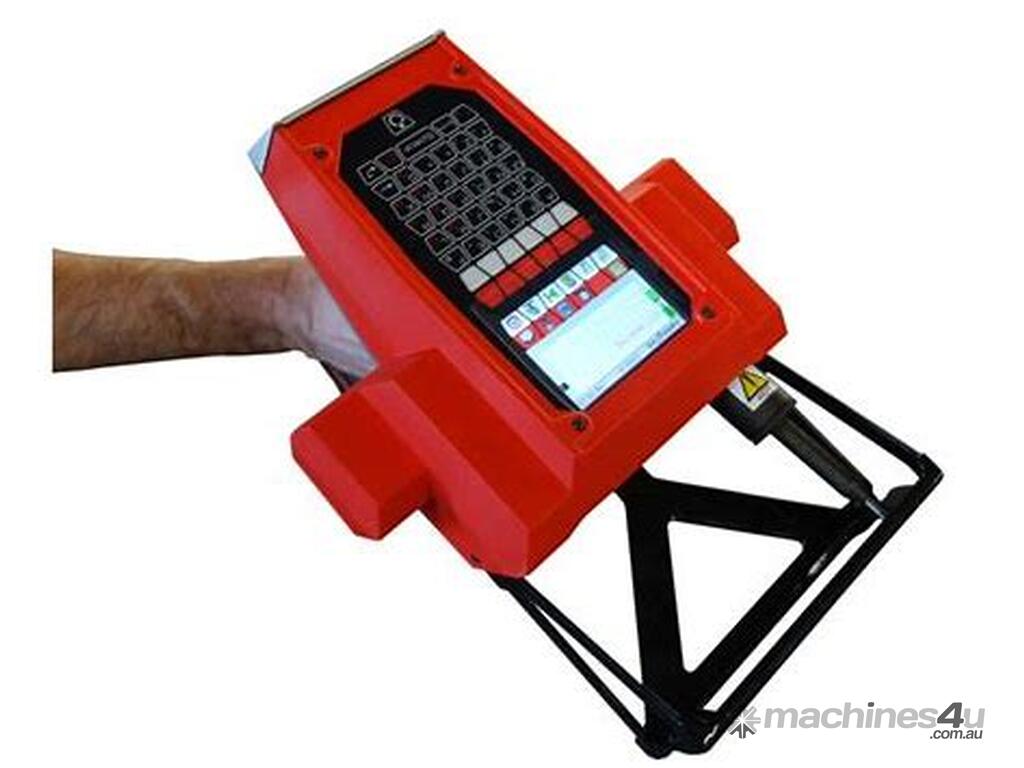

The E-MARK is a PORTABLE CORDLESS DOT PEEN marking machine that can mark all types of material, from plastic to treated steel with a hardness of up to 62 HRC.

It can operate for long periods on its INTEGRAL BATTERY.
This mobile and portable marking machine is fully autonomous due to its integral 18V Li-Ion battery, giving up to 4 HOURS OF CONTINUOUS USE.
The E-MARK dot peen marking device comes with two batteries and a fast charger, in a convenient carrying case, which allows you to continue working with one battery while the other is being charged.

The robust E-MARK design is based on an aluminum alloy casting, which makes it
particularly suitable for severe INDUSTRIAL ENVIRONMENTS.

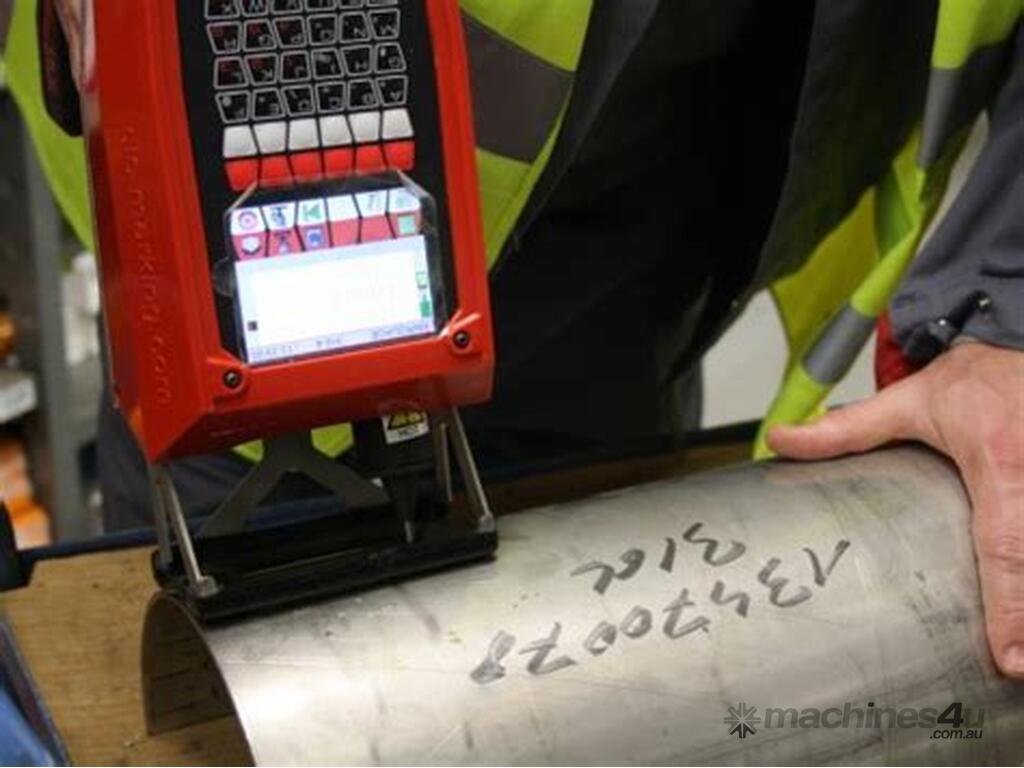

Its high striking force makes it especially suitable for marking heavy or very large parts.

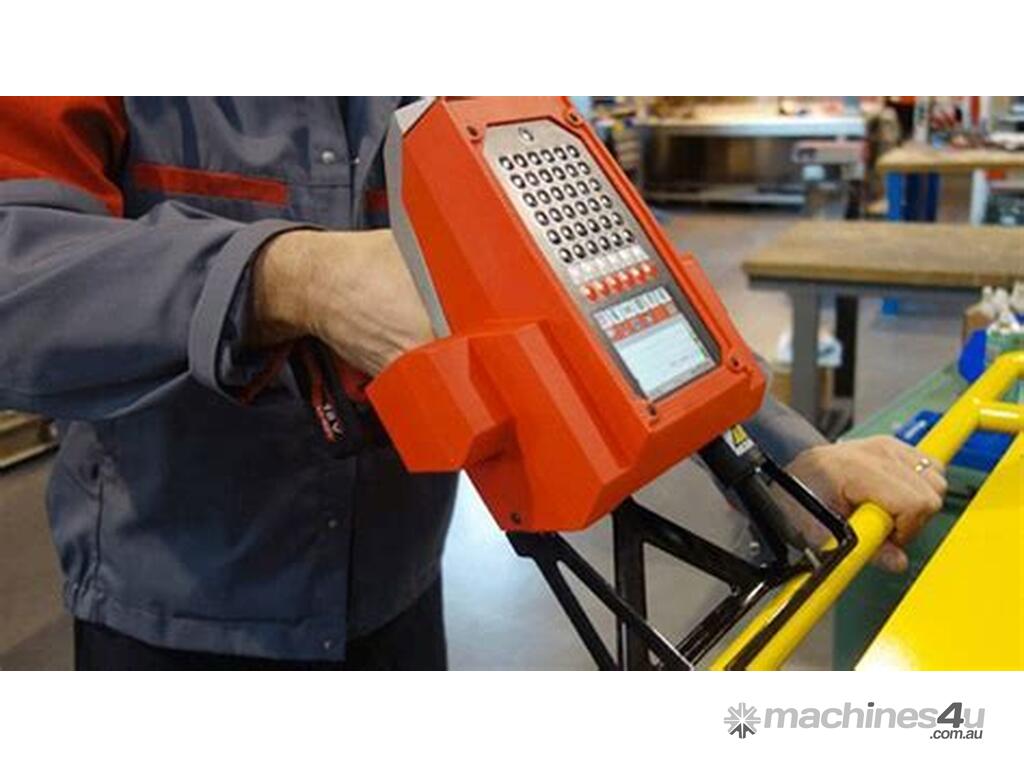

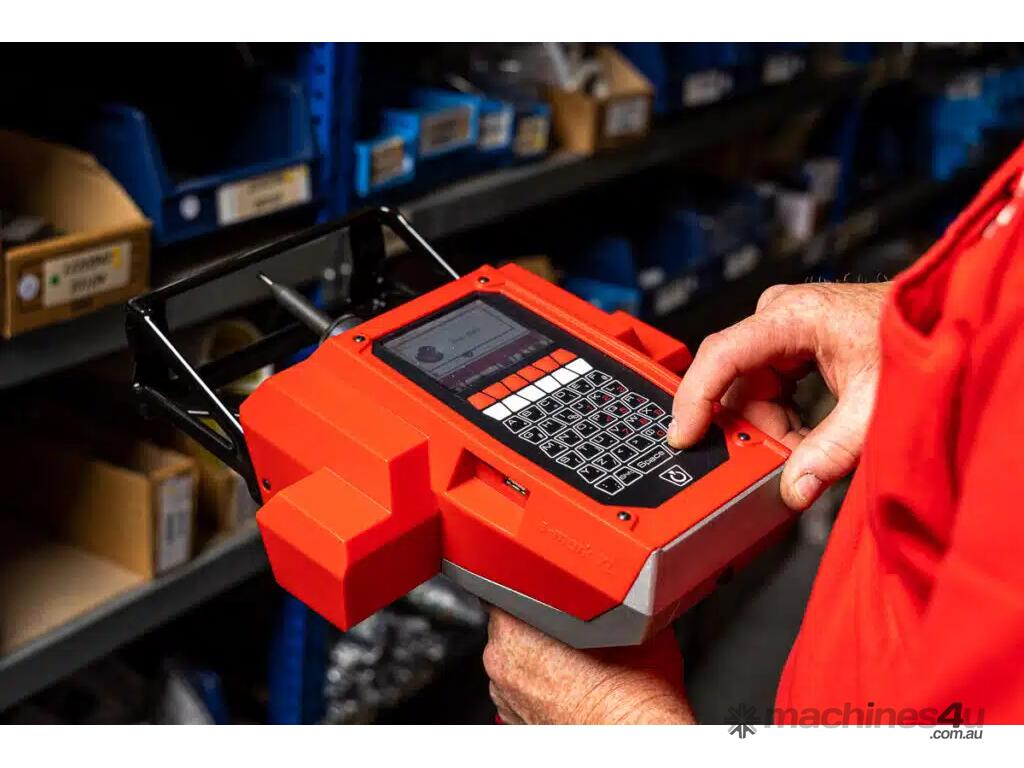

The E-MARK is also extremely ergonomic and EASY TO USE.
For example, the stylus/piece distance is very simple to adjust using the adjustment knob under the marking head.

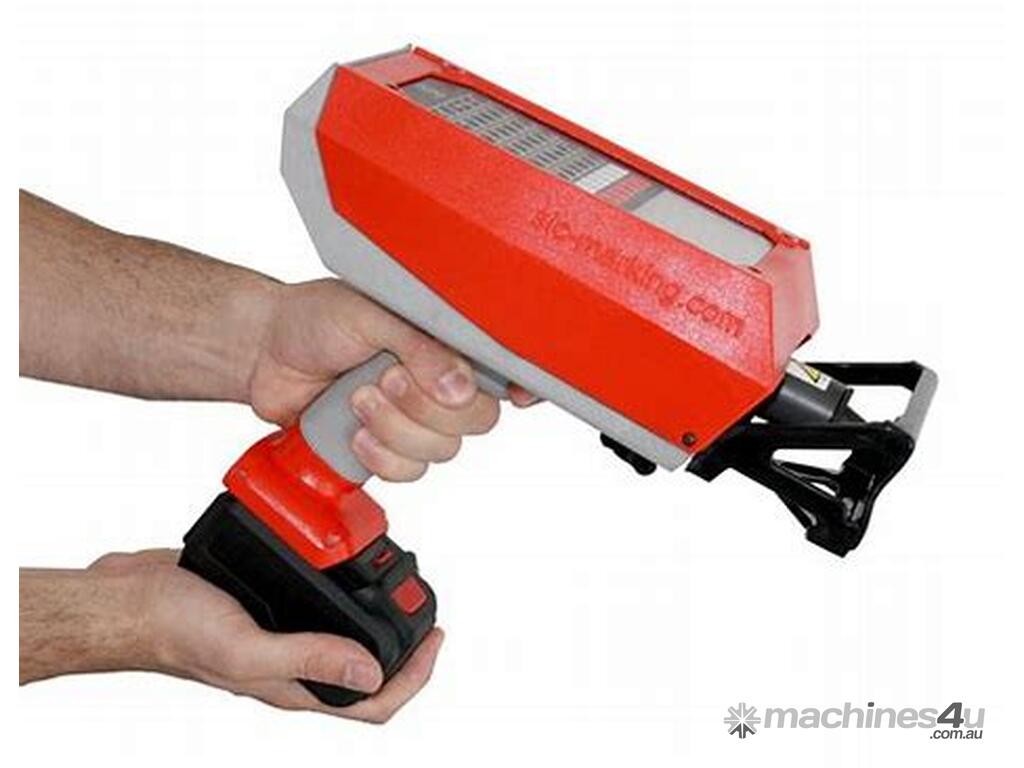

The E-MARK is also a very light marking gun (3.2 kg), in spite of its basic metal structure.

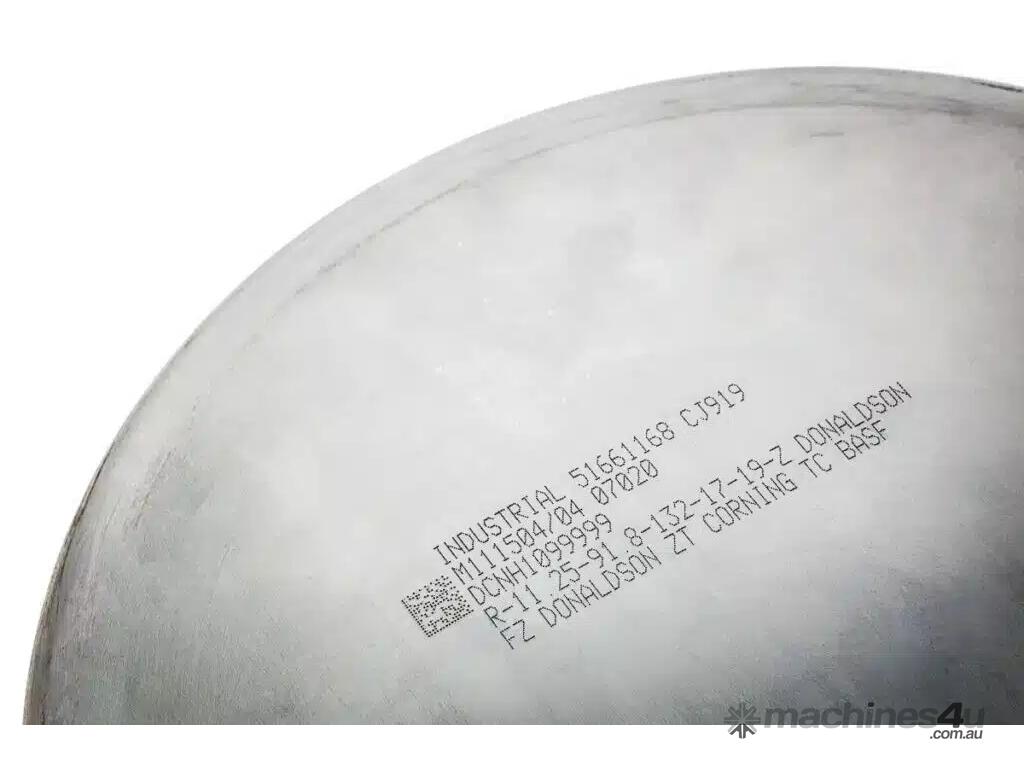

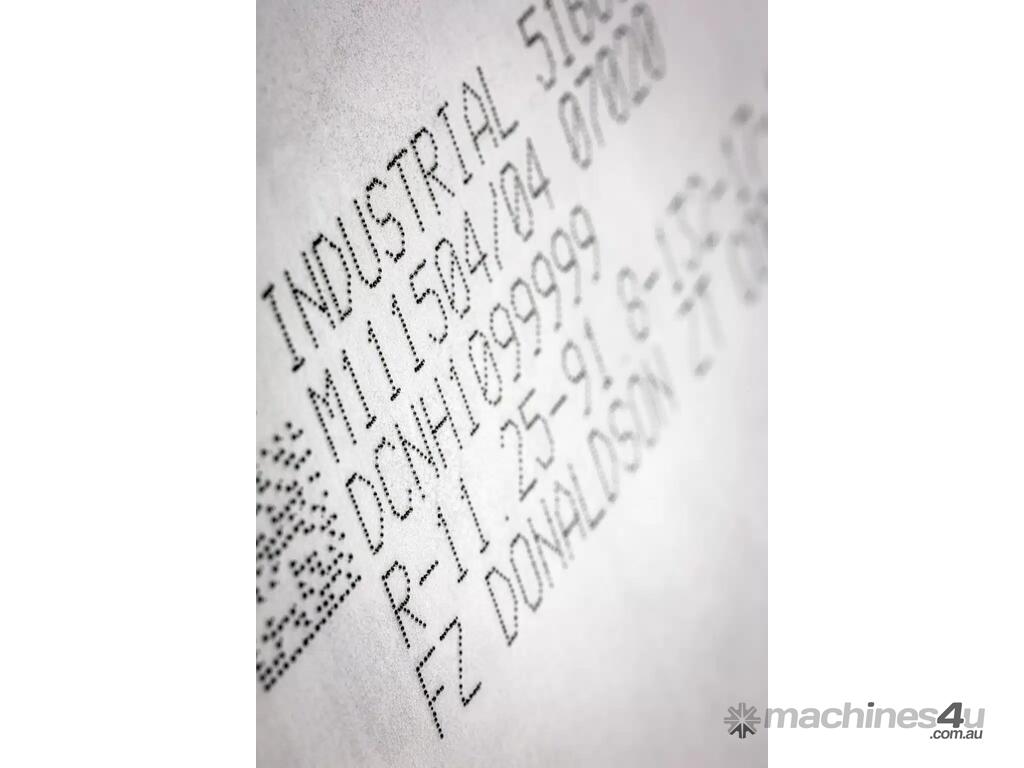

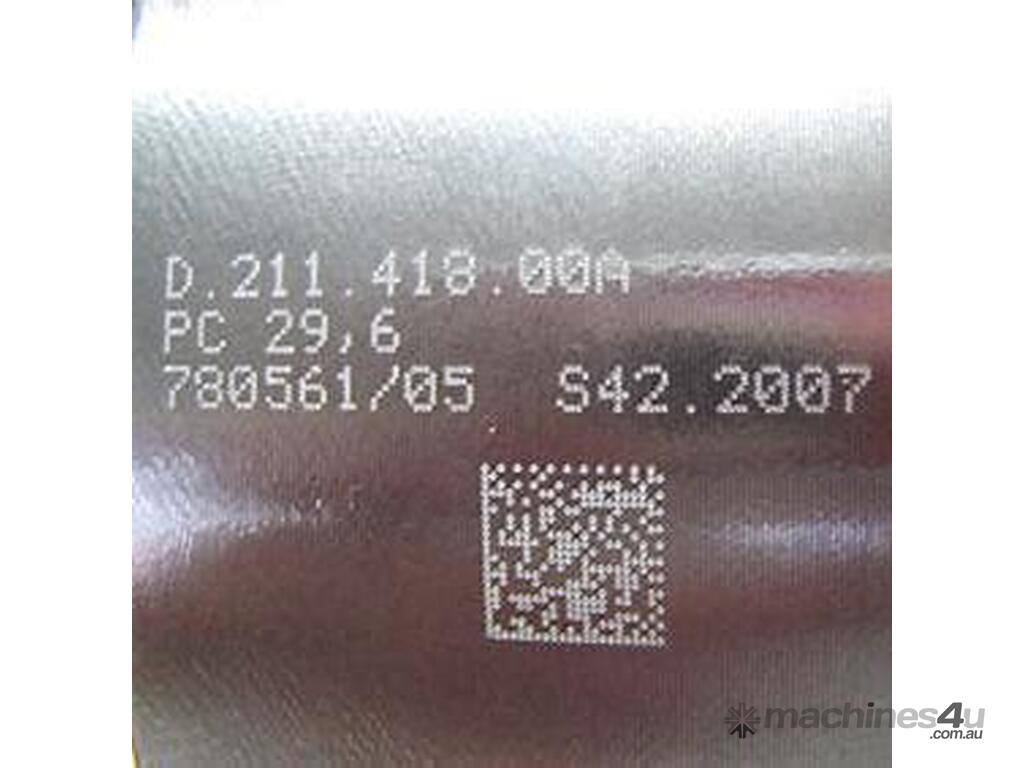

The E-MARK can mark ALPHANUMERIC TEXT, LOGOS, or 2D DATAMATRIX CODES.

The dot peen technology provides RELIABLE AND PERMANENT MARKING in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate

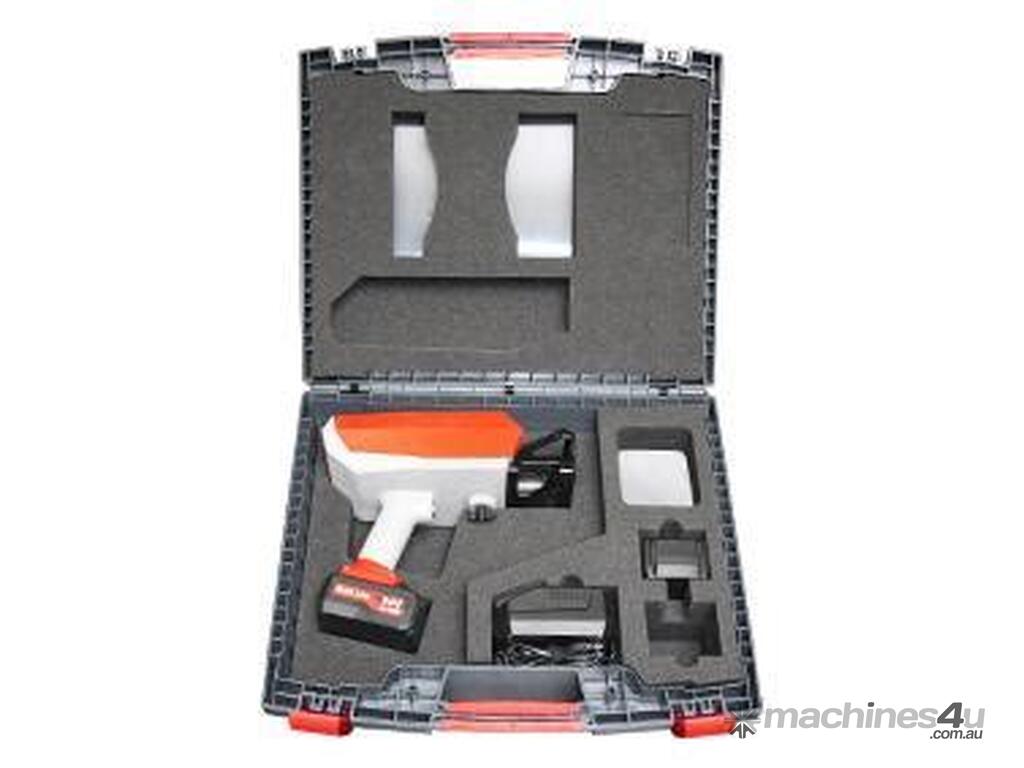

Complete package includes:
• Transport case
• E1 controller
• PC software
• Two batteries 18V Li-ion + Charger
• Maintenance kit
• Accessories and operating instructions

Mechanical specifications:
Dimensions
288 x 271 x 135 mm
Marking window
60 x 25 mm
Weight
3.2 kg

Electronic specifications:
Memory
100 MB

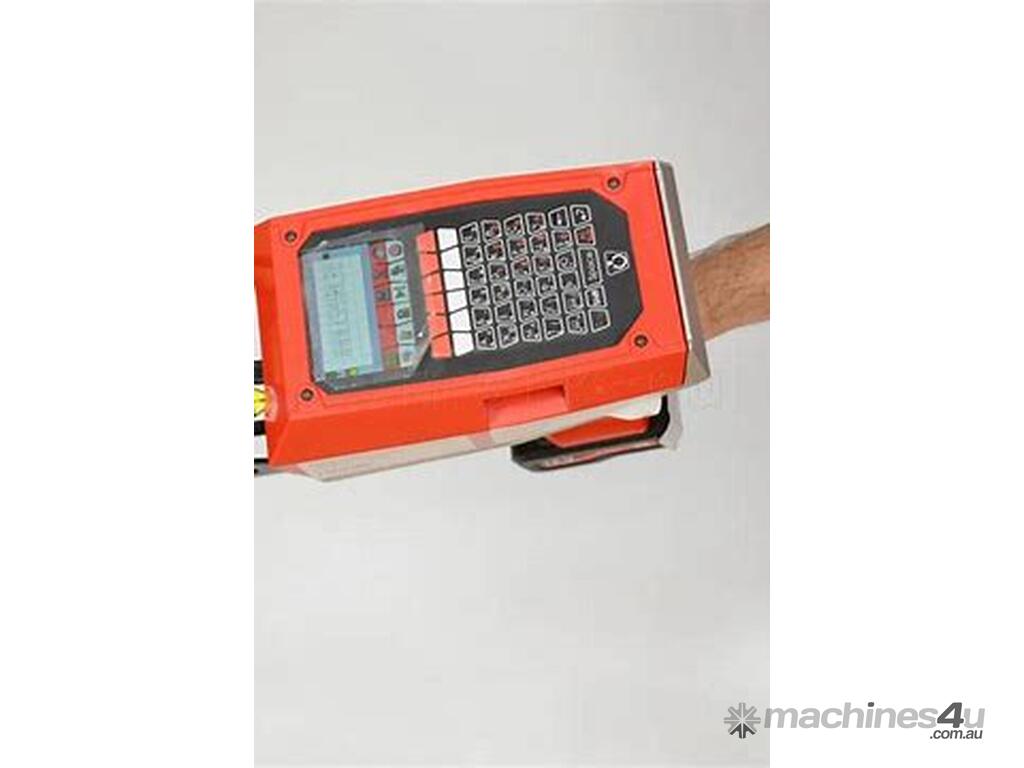

Color LCD screen
320 x 240 pixels
Keyboard
49 keys, with protection membrane
Power
100W
Battery
Li-ion 18V (4 hours normal operation)

Control software:
Marking
Alphanumeric, serial numbering or text, Datamatrix code, logo
Marking file capacity
Transfer through USB memory stick
Fonts
4×6, Arial, Courier, OCR, OCR-A, OCR_BOLD, Comic and Comic_B
Edit or create files
Access to all parameters
Impact force
1 to 9
Marking depth
0.3 mm depending on material
Dot spacing resolution
0.05 mm
