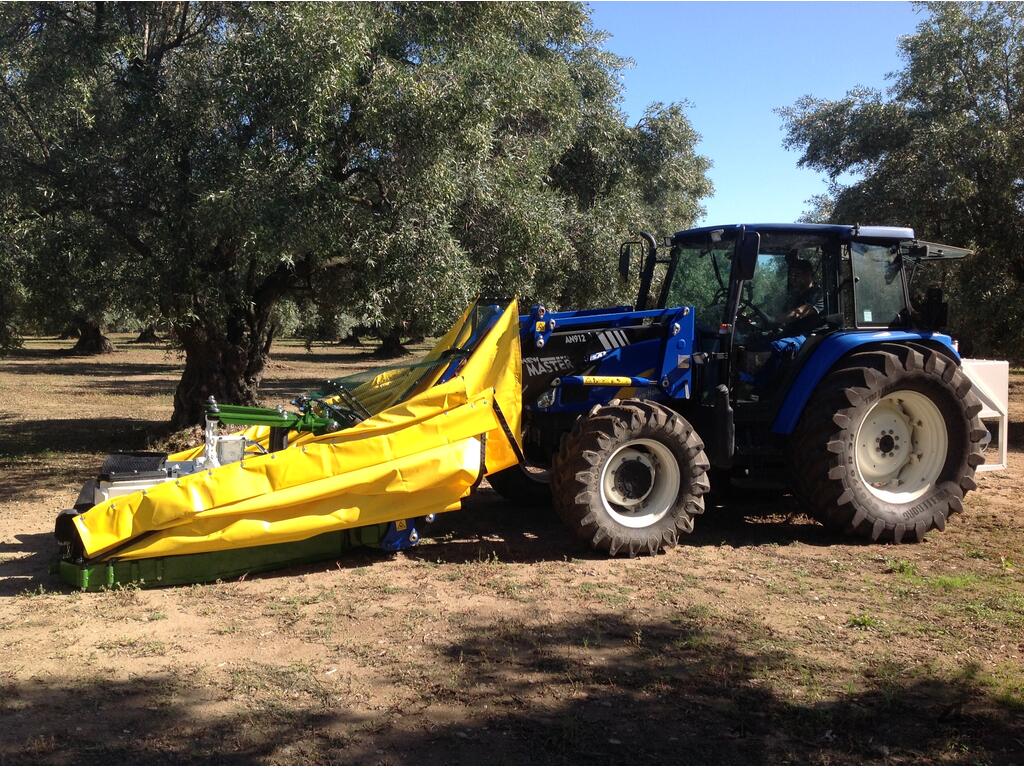

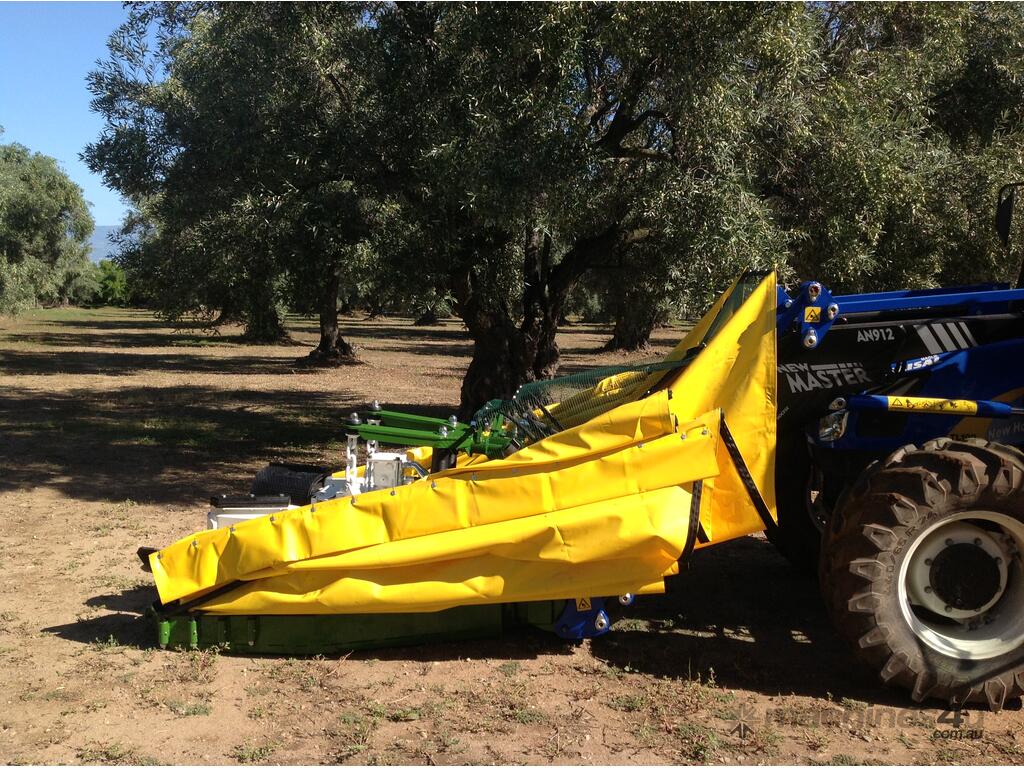

The most advanced technology for harvesting olives and other hanging fruits. This solution permits a single operator to harvest the fruits in a reduced time and unload them into bin or trailers. This harvesting system considerably reduces the production costs. The vibration system at high frequency increases the percentage of fruit fall off from the tree, reducing the harvesting time.
Reduced size and weight make this application the smallest machinery among our wide range of harvesters. The case of the version equipped with reverse umbrella can contain up 100 kg of harvested fruits while the vibrating head can shake trees up to 48 cm of trunk diameter.
Technical Specifications:

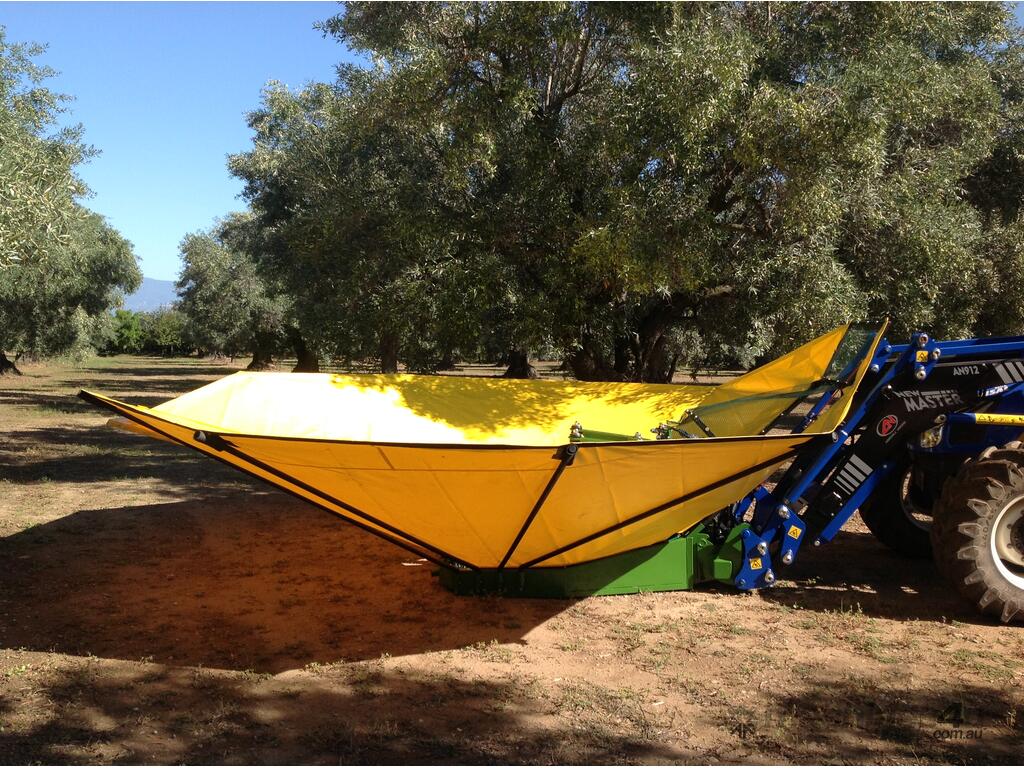

Reverse umbrella diameter: 5 or 6 m

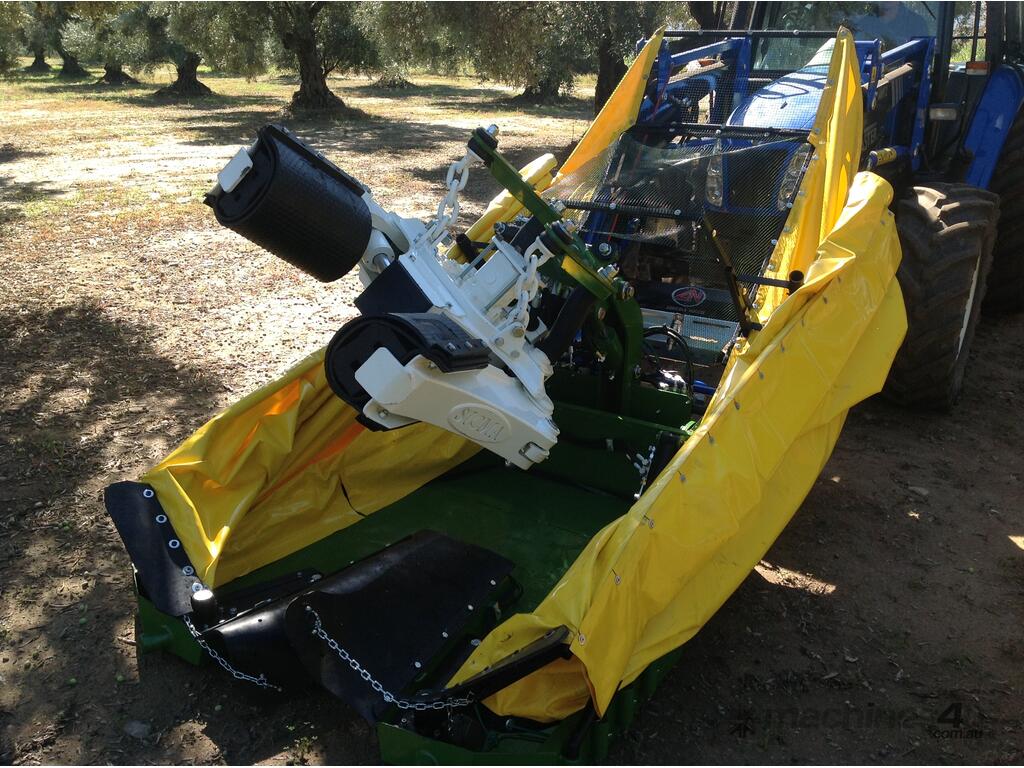

New generation type TF vibrating head at high vibration frequency whit self-breaking and auto-centering double jaws. The jaws open up to 48 cm.
Total weight 750 kg
The case contains up to 100 kg of olives

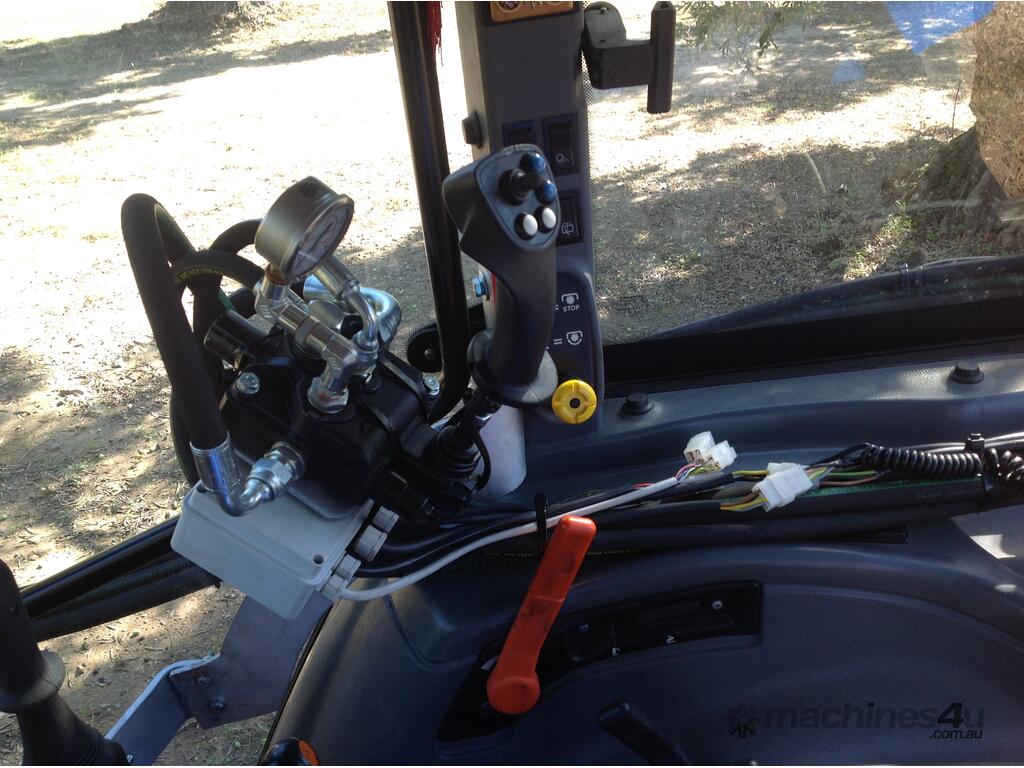

Hydraulically controller by Joystick
Quick release of the umbrella and possibility to operate by only the vibrating head
Quick release of the entire machinery
