SIEG 360X1000 CENTRE LATHE
Features:
2-axis digital readout system
Coolant system with nozzle
LED light
Leadscrew cover
Foot brake
Heavy duty precision ground V bed, induction hardened

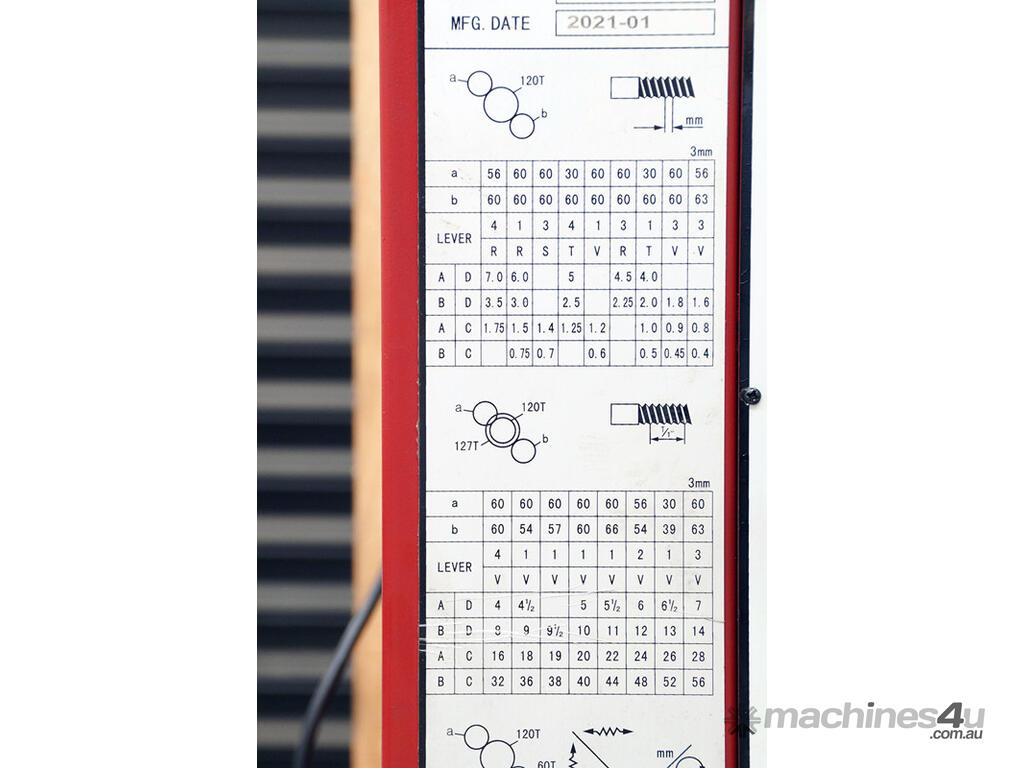

Metric and Imperial thread cutting
Oil bathed gear box with oil sight glass

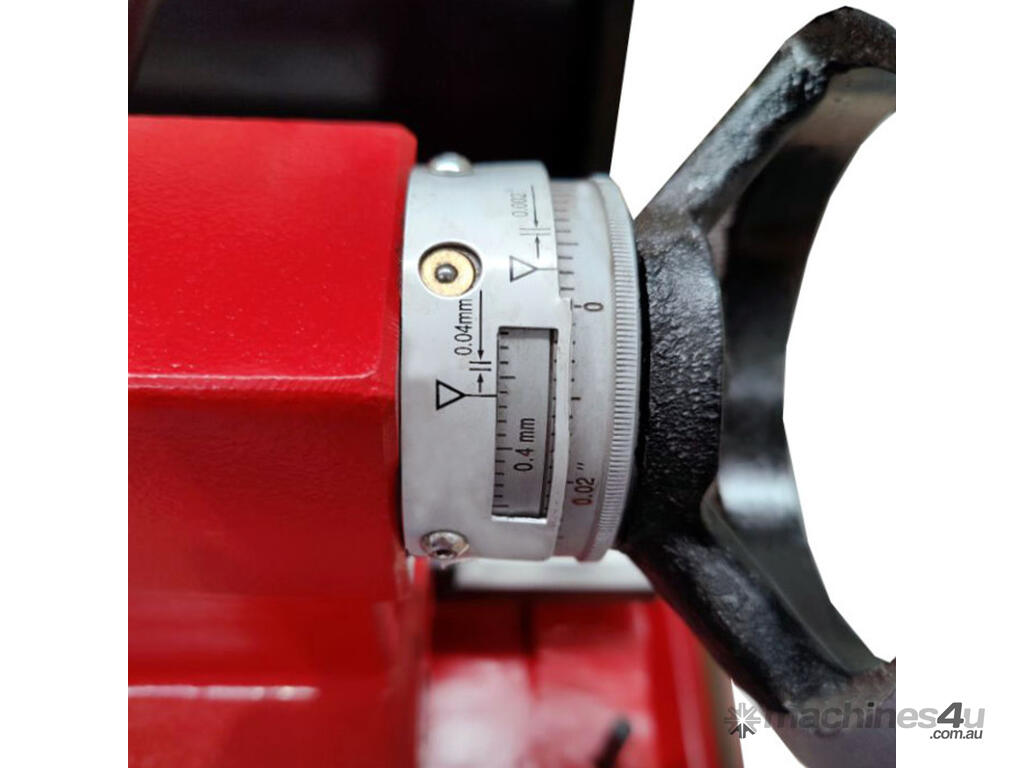

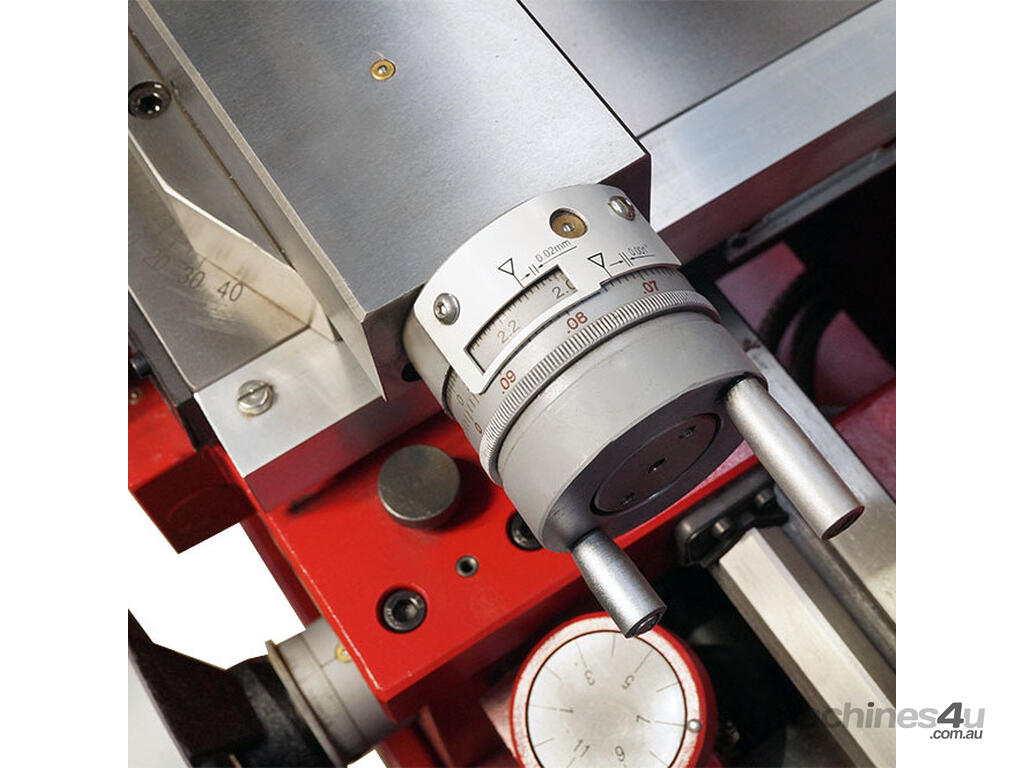

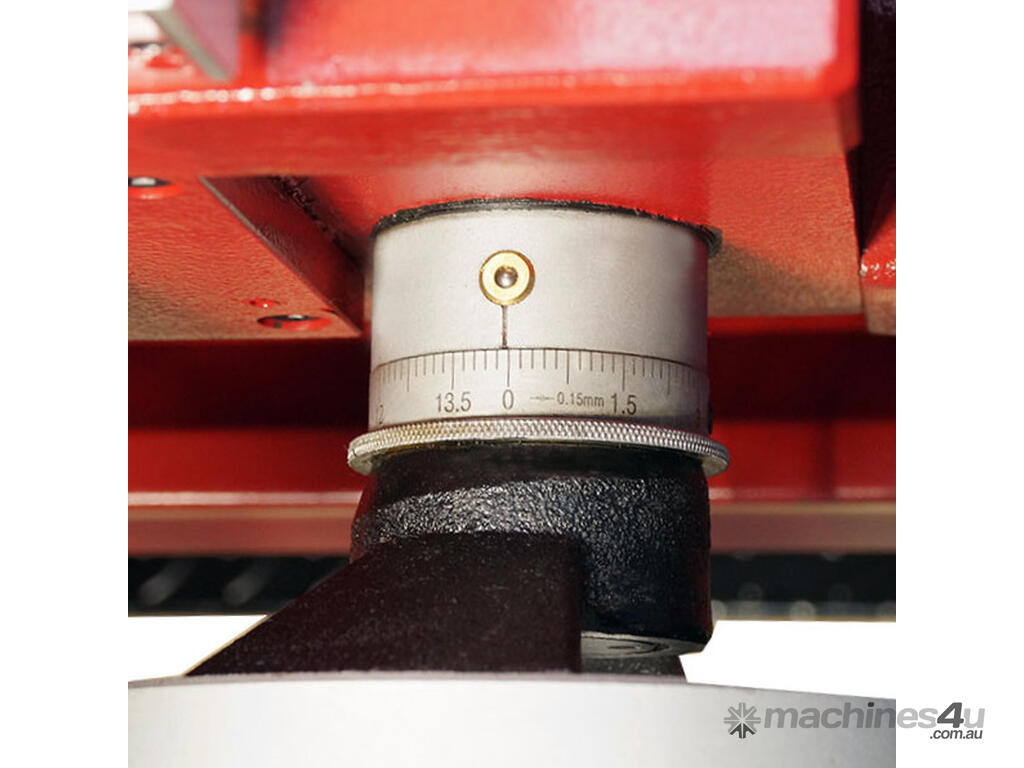

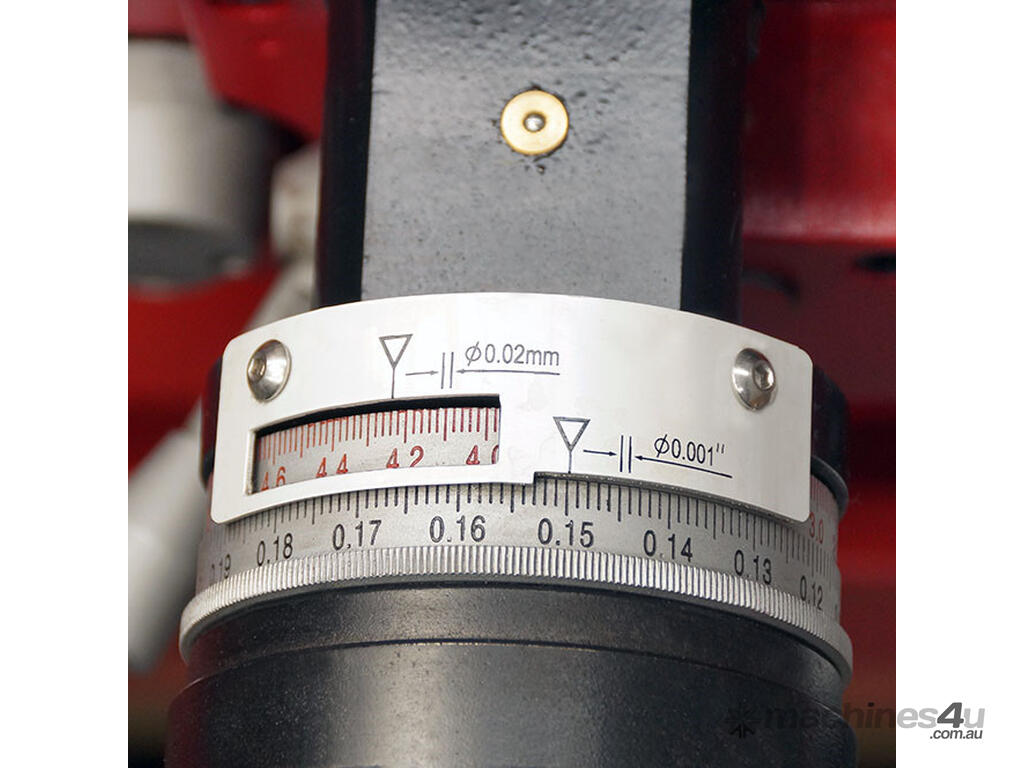

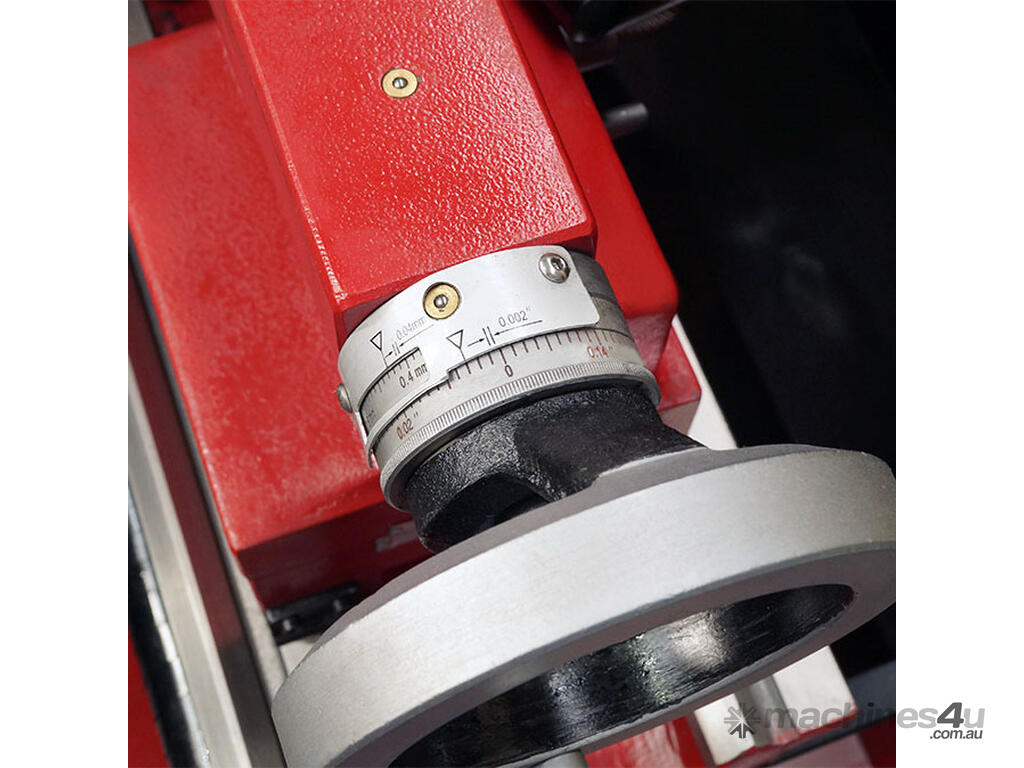

Dual calibrated dial on cross slide, compound slide and tailstock
Chuck guard and gear box guard with micro switch for safety
Swing Over Bed 360mm
Swing Over Cross Slide 215mm
Center Height 180mm
Distance Between Centres 1000mm
Bed Width 205mm
Spindle Bore 41mm
Cam-lock Spindle Type D1-4
Spindle Taper MT5
Tailstock Taper MT4
Spindle Speed (step/rpm) 8 steps / 70-2000rpm
Cross Slide Width 140mm
Cross Slide Travel 208mm
Compound Slide Width 82mm
Leadscrew Type Full Metric
Tool Size 16x16mm
Metric Thread Range 26 (0.4-7mm)
Imperial Thread Range 34 (4-56TPI)
Cross Feed Rate (X) 0.014-0.380mm/rev
Longitudinal Feed Rate (Z) 0.052-1.392mm/rev

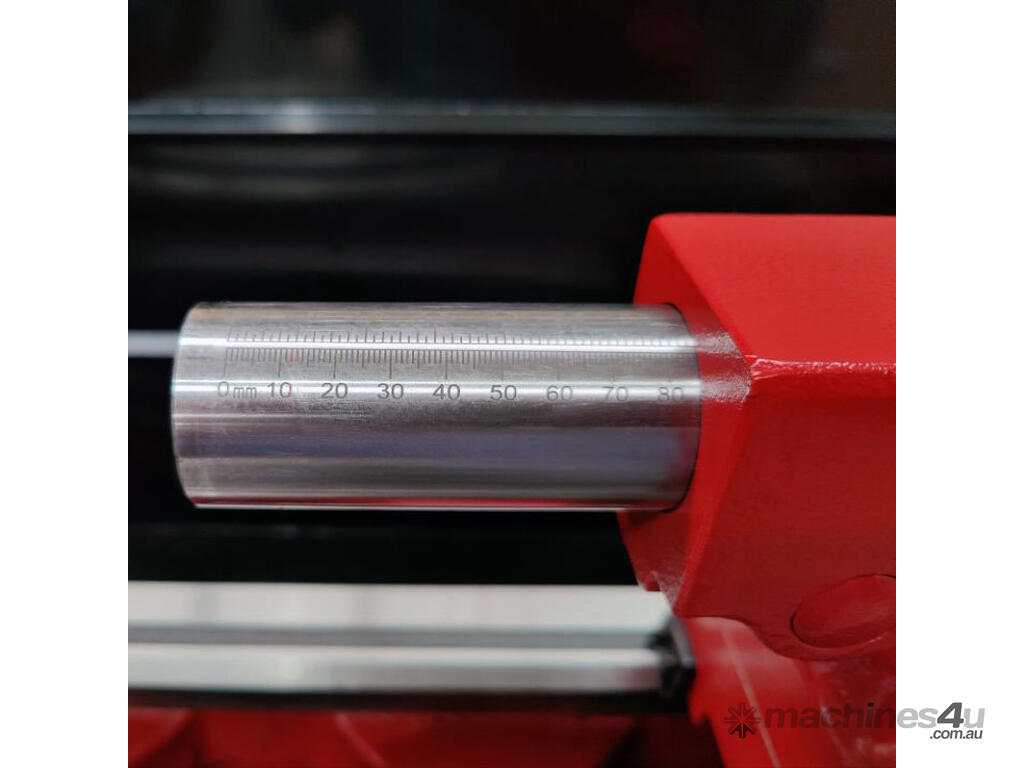

Tailstock Sleeve Dia. 42mm
Tailstock Sleeve Travel 114mm
Motor Output 2.25KW / 3HP
Voltage 415V, 3 Phase
Machine Size 1930x800x1258mm
Shipping Size 1940x1270x1500mm
Weight (Net/Gross) 625 / 725kg
Standard Inclusions:

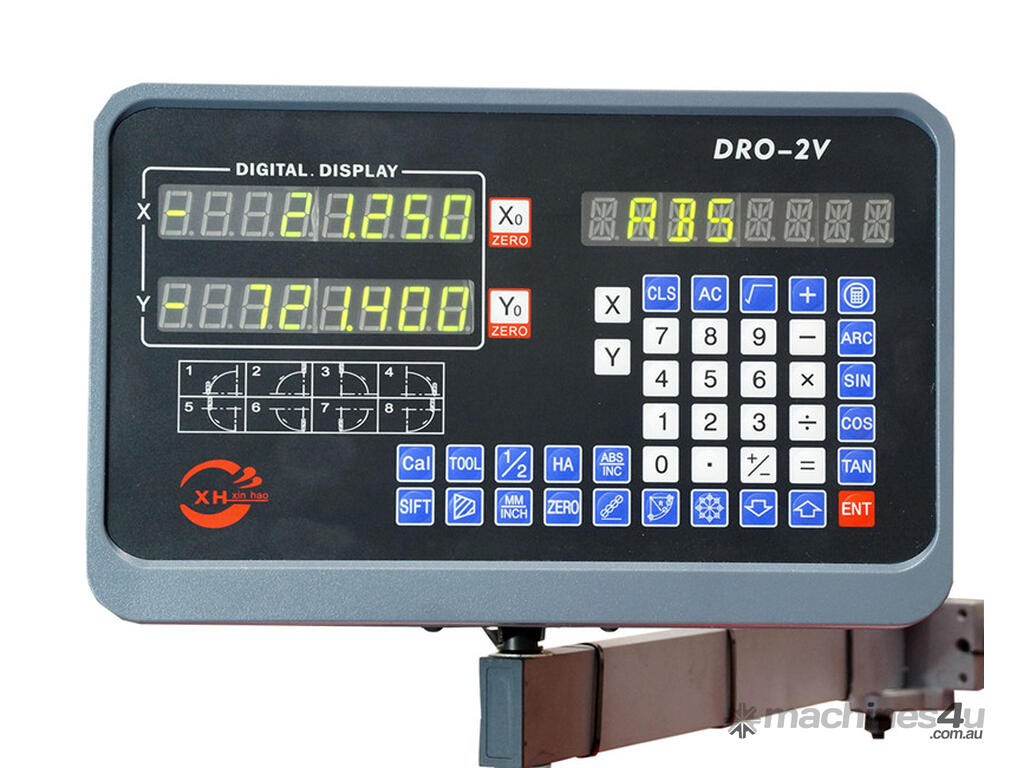

Industrial grade 2-axis digital readout

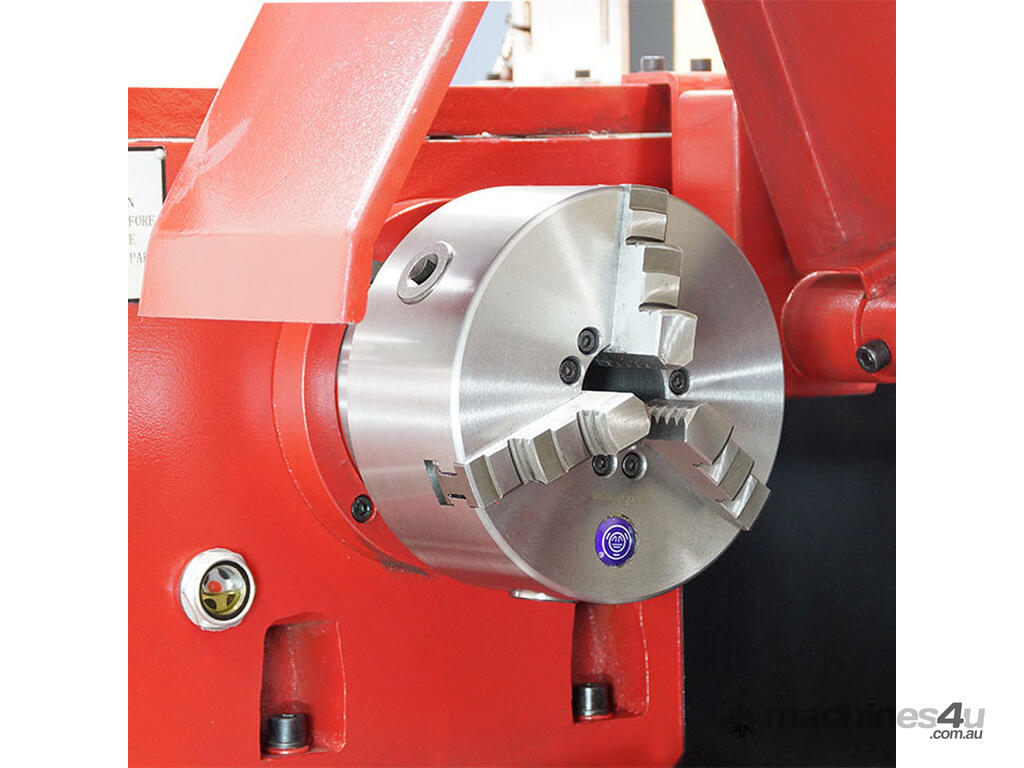

200mm 3-jaw self-centering chuck

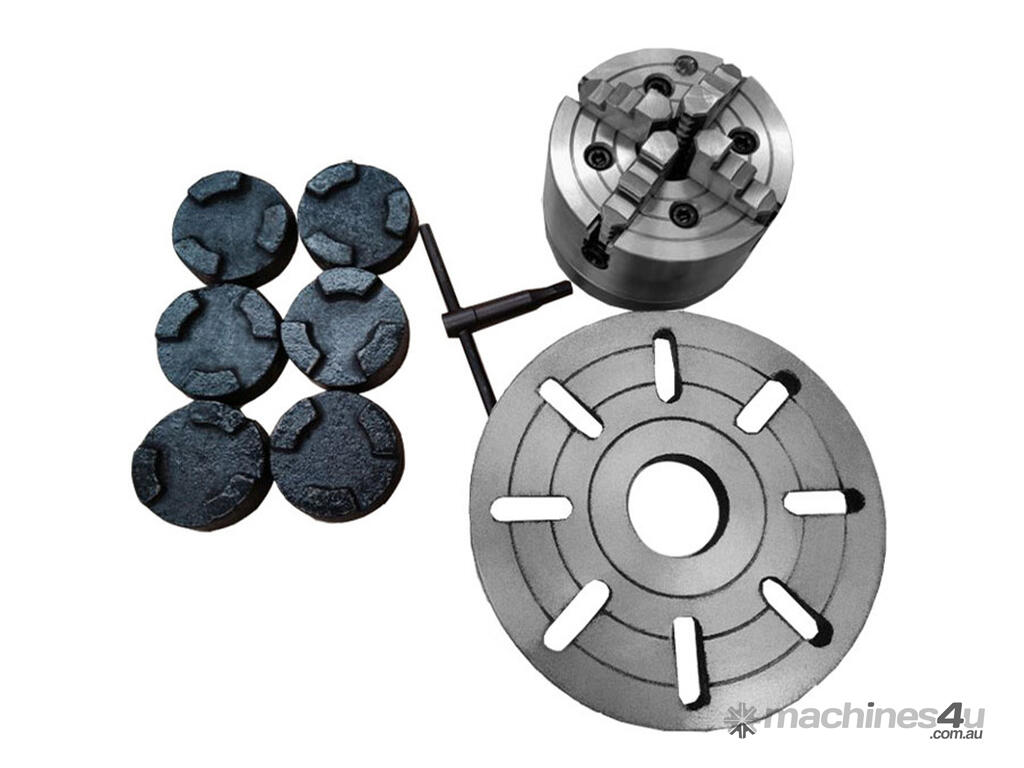

200mm 4-jaw independent chuck
Leadscrew cover
Foot brake
Face plate

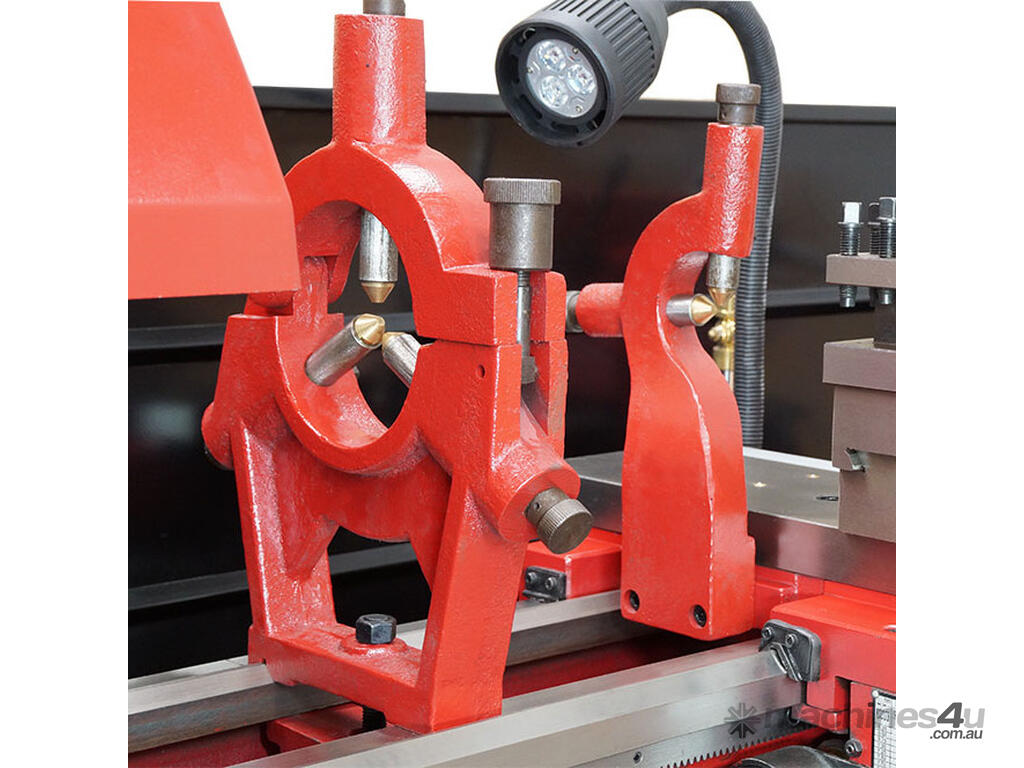

Fixed and travelling steady
Change gear set (built-in)

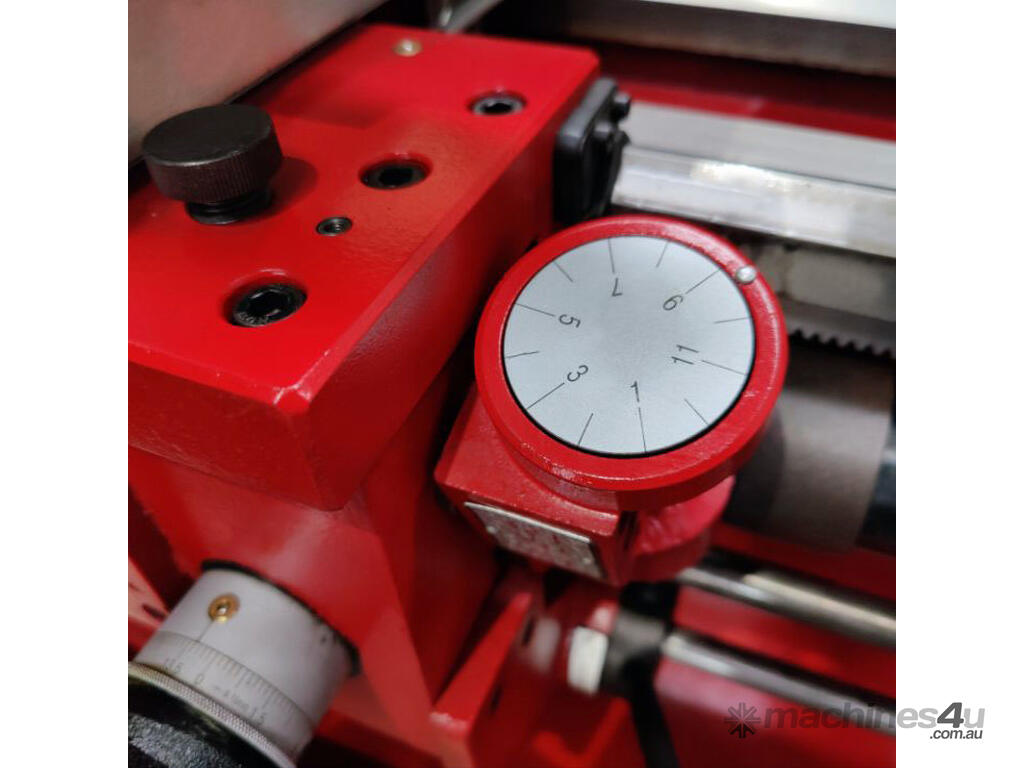

Thread chasing dial
LED light
Splash guard and drip tray
Tool box with tools for maintenance
