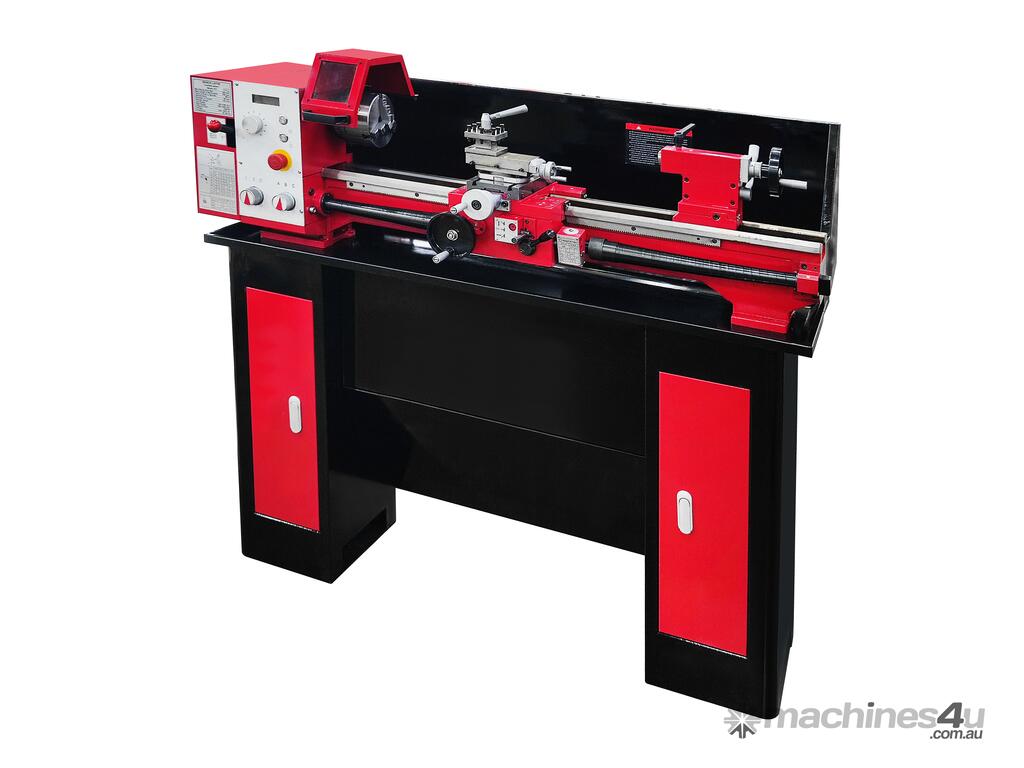

SIEG C7 Gear Head Bench Lathe

Introducing the C7 Variable Speed Lathe—the next-generation gear head variable speed lathe from SIEG. Designed for industrial-grade precision, this lathe represents a significant upgrade from any bench lathe currently on the market.
Key features include a precision-ground and induction-hardened V-bed, an oil-bathed gearbox, a quick-change tool post, a cam-lock tailstock, powered longitudinal and cross feeds, and a large 26mm spindle bore.
Compared to its predecessor, the C6, this new C7 boasts a wider bed for improved rigidity and stability, with an additional 30kg in total weight. The new in-house SIEG lathe-specific DC variable speed motor delivers greater usable torque across the entire RPM range. Additionally, the oil-bathed gearbox supports both metric and imperial thread cutting.

Features:

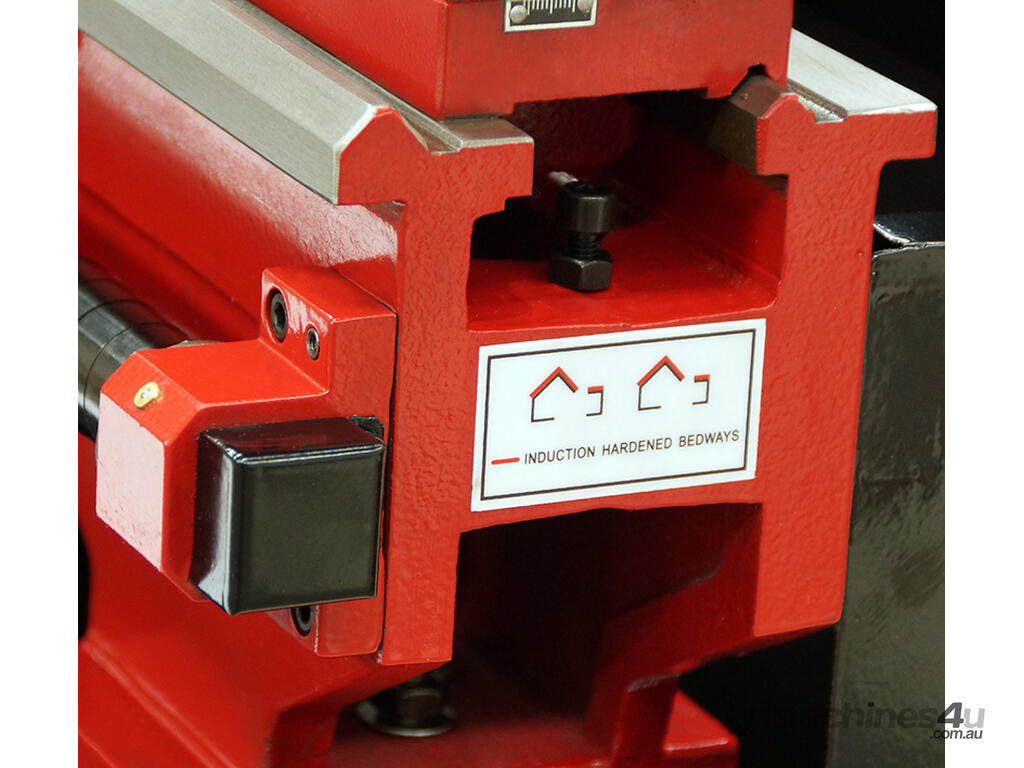

Induction Hardened, Wider V-Bed

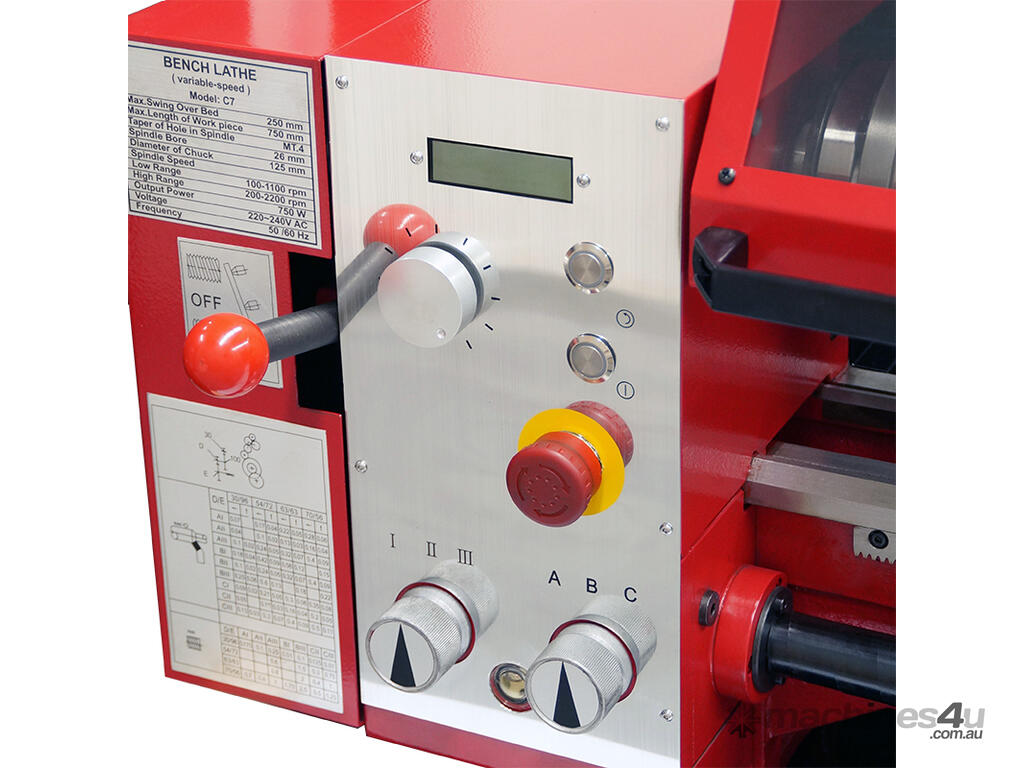

Variable Speed Lathe Specific DC Motor
26mm Large Spindle Bore

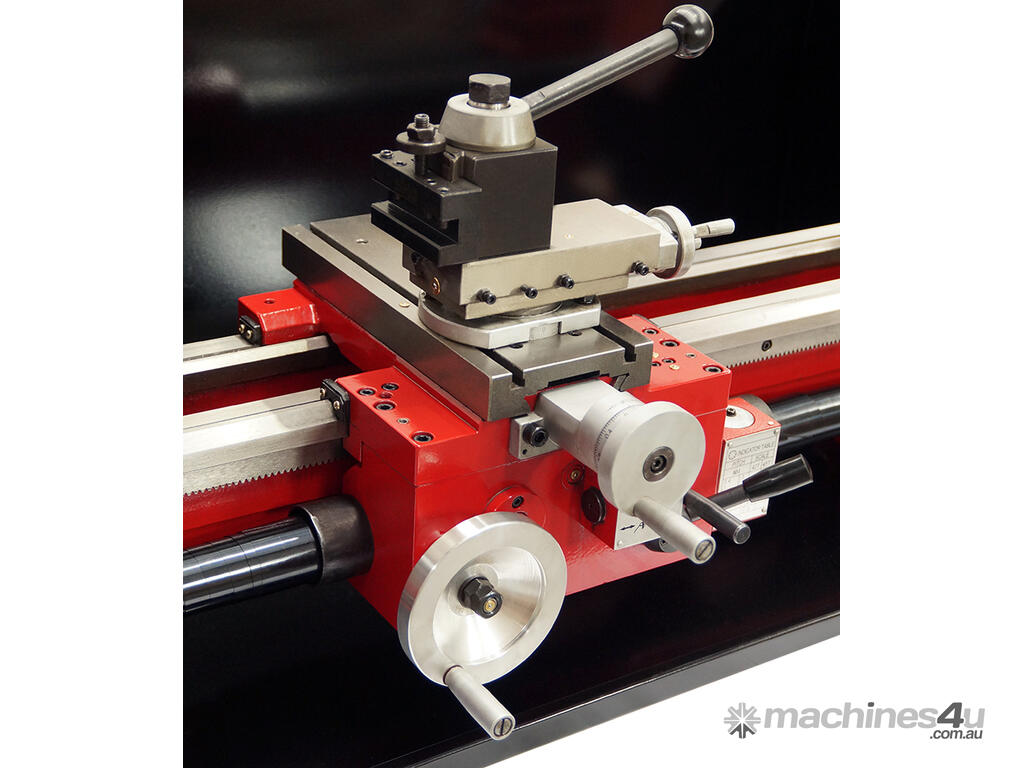

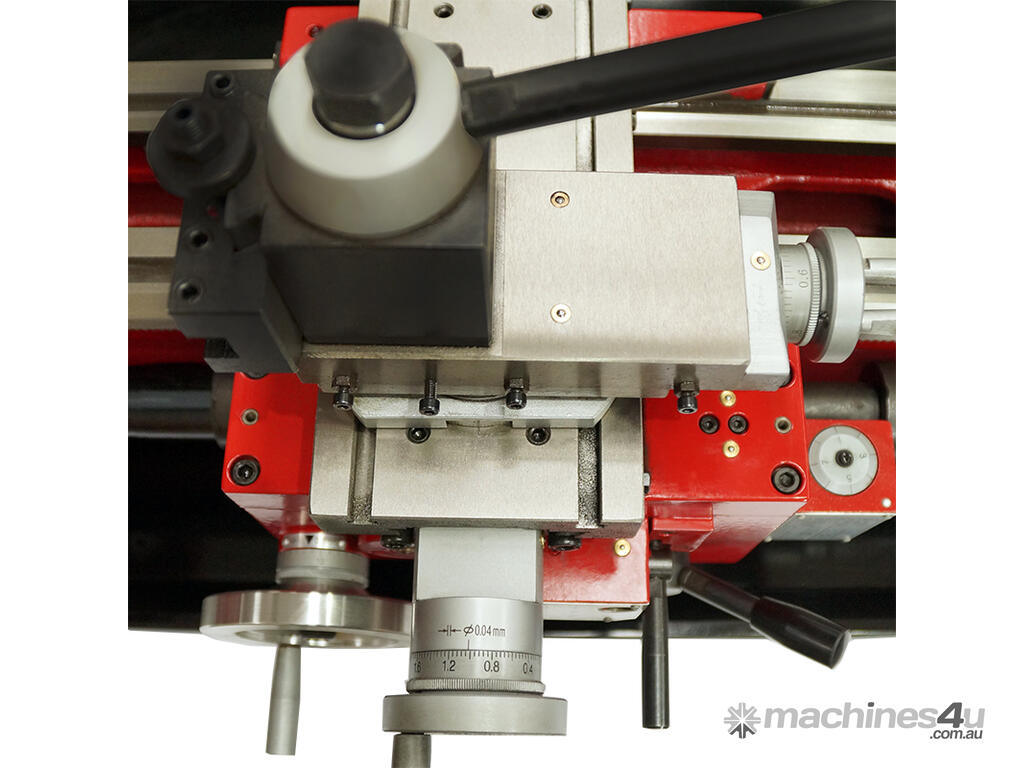

Quick Change Tool Post with 4 Holders
Longitudinal & Cross Powered Feed

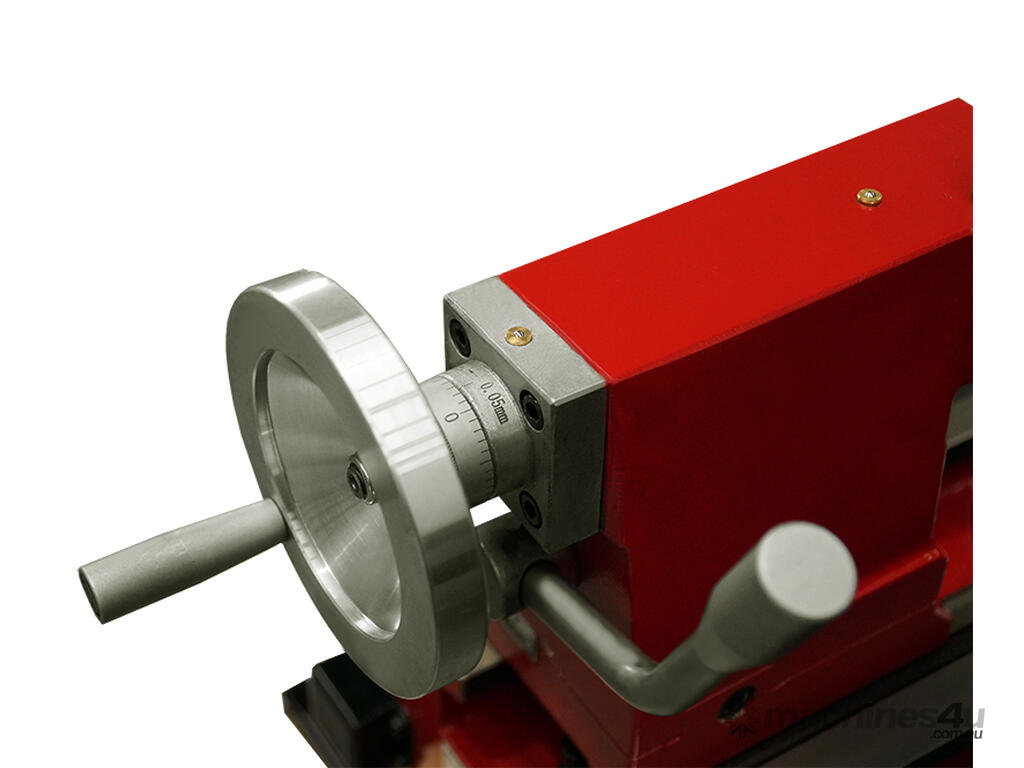

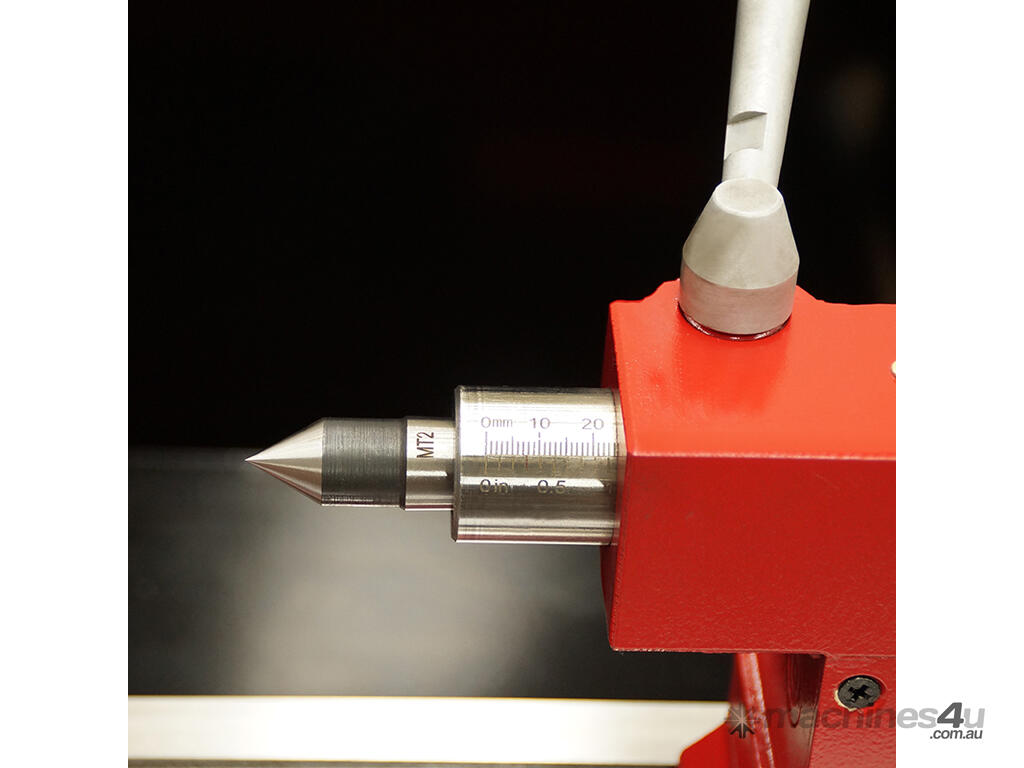

Cam-lock Tailstock
Oil-Bathed Gear Box

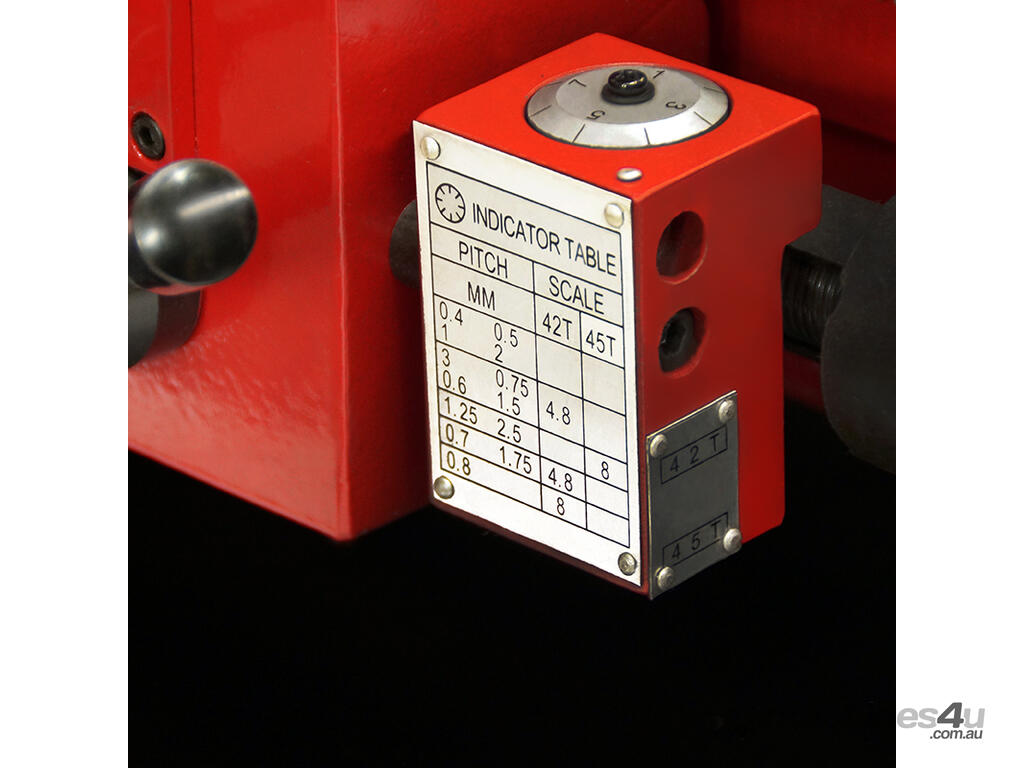

Cut Metric & Imperial Threads
Metal Gear
Switched Chuck Guard for Safety
Lead-screw Guard

Specifications:
Swing Over Bed: 250mm
Distance Between Centres: 750mm
Spindle Bore: 26mm
Spindle Taper: MT4
Tailstock Taper: MT2
Swing Over Cross Slide: 142mm
Carriage Travel: 600mm
Cross Slide Travel: 115mm
Compound Travel: 70mm
Tailstock Quill Travel: 64mm
Bed Width: 135mm
Leadscrew Thread: M20 x 2.00mm
Longitudinal Feed: 0.09-0.46mm
Imperial Thread Range: 8-56TPI (27)
Metric Thread Range: 0.4-3.0mm (15)
Motor Output: 750w DC
Overall Dimensions: 1350x630x410mm
Packing Size: 140x690x650mm
Shipping Weight: 209kg

MACHINE STAND SOLD SEPARATELY
