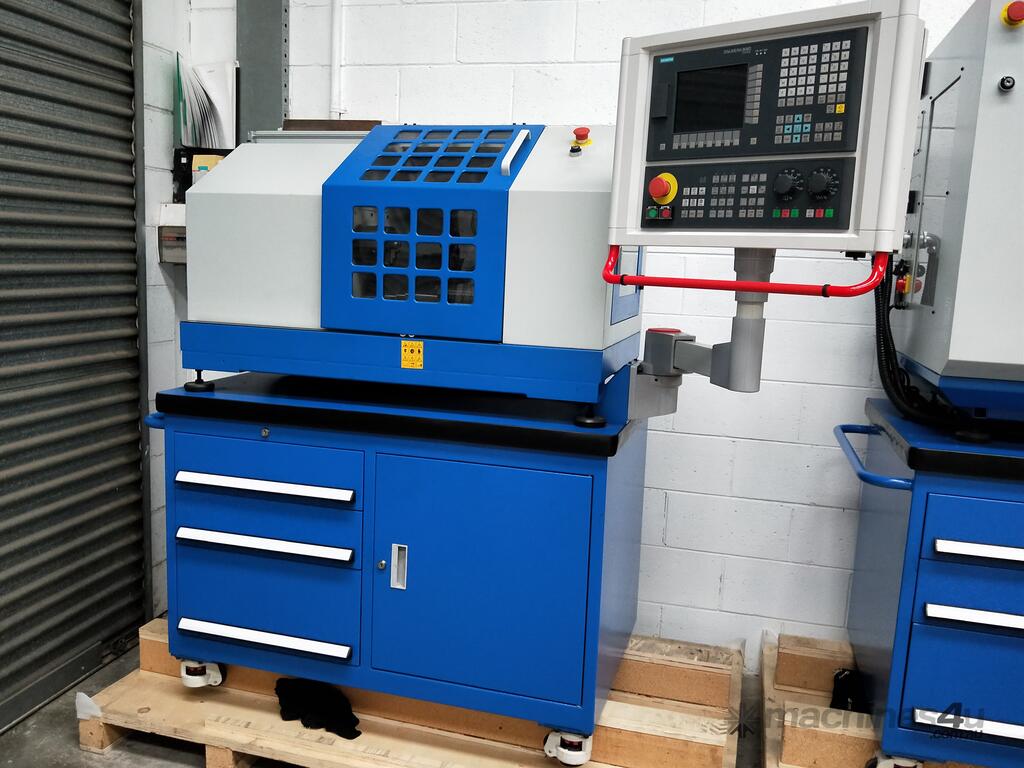

SIEG CompactTurn SUPER CNC Turning Centre, CNC Lathe

SIEG CompactTurn SUPER CNC Turning Centre. CNC Lathe - SIEMENS 808D

Feature:
Slant bed
8 position tool automatic changer
SIEMENS 808D control system
Hybrid servo motor
Linear guideway
One-shot lubrication pump
Portable on castor wheels (with brake)

Specifications:

Woring area:
Swing over bed: 200mm
Distance between centres: 280mm

Spindle:
Chuck size: 100mm
Spindle taper: MT3
Spindle speed: 100-3000rpm
Spindle bore: 20mm
Spindle motor power: 1000W

Travel:
X travel: 100mm
Z travel: 175mm

Drive motor & feed fate:
X & Y-axis motor type: Hybrid Servo
X & Y-axis motor torque: 3Nm
Rapid feed rate: 3000mm/min

Accuracy:
Positioning accuracy: 0.01mm
Repeatability: 0.005mm

Tool changer:
No. of tools: 8
Tool size: 4 x regular tools, 8x8mm
4 x round shank tools, ø12mm

Power requirements: 230V, 50Hz
Weight (N.W./G.W.): 210kg/250kg
Overall dimension: 1360x750x1500mm
