SIEG PREMIUM SX3.5ZDP HiTorque Brushless Mill

Introducing the first ever SX3.5ZDP. A milling machine comes with everything you craving for. The SX3.5ZDP is by far the most feature rich model SIEG has ever built.

Feature:
SIEG in-house 1000W HiTorque Brushless Motor with Advanced Torque Control

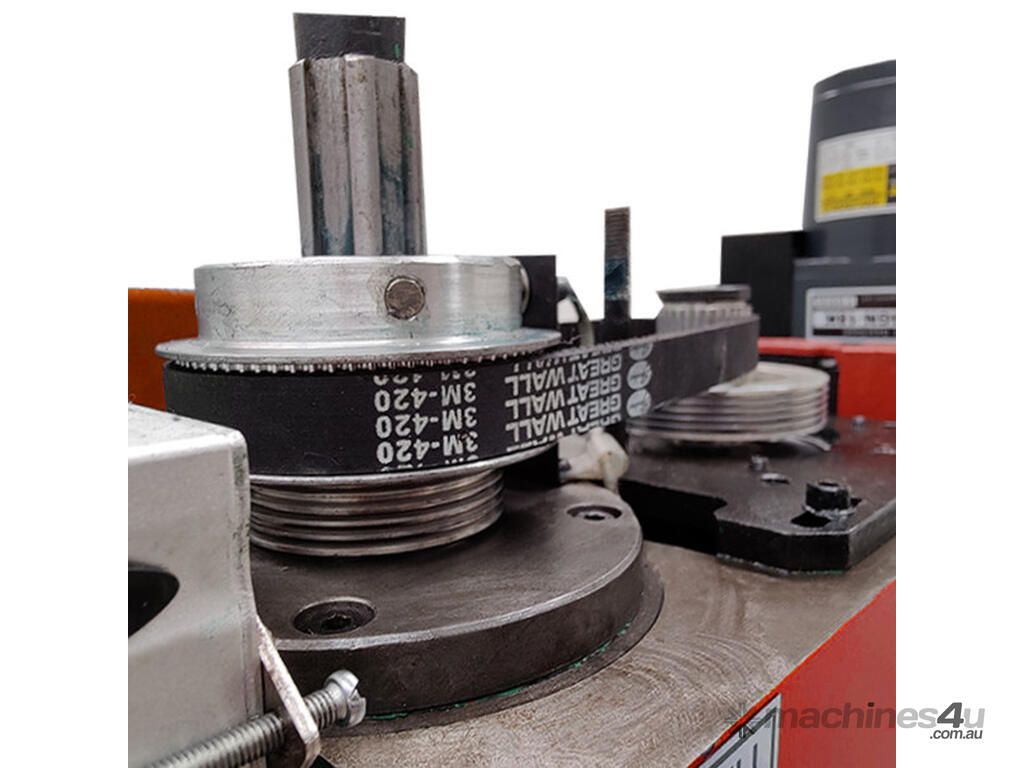

Super Quiet Direct Belt Drive with 2 Speed Range
Max. 5000rpm Spindle Speed

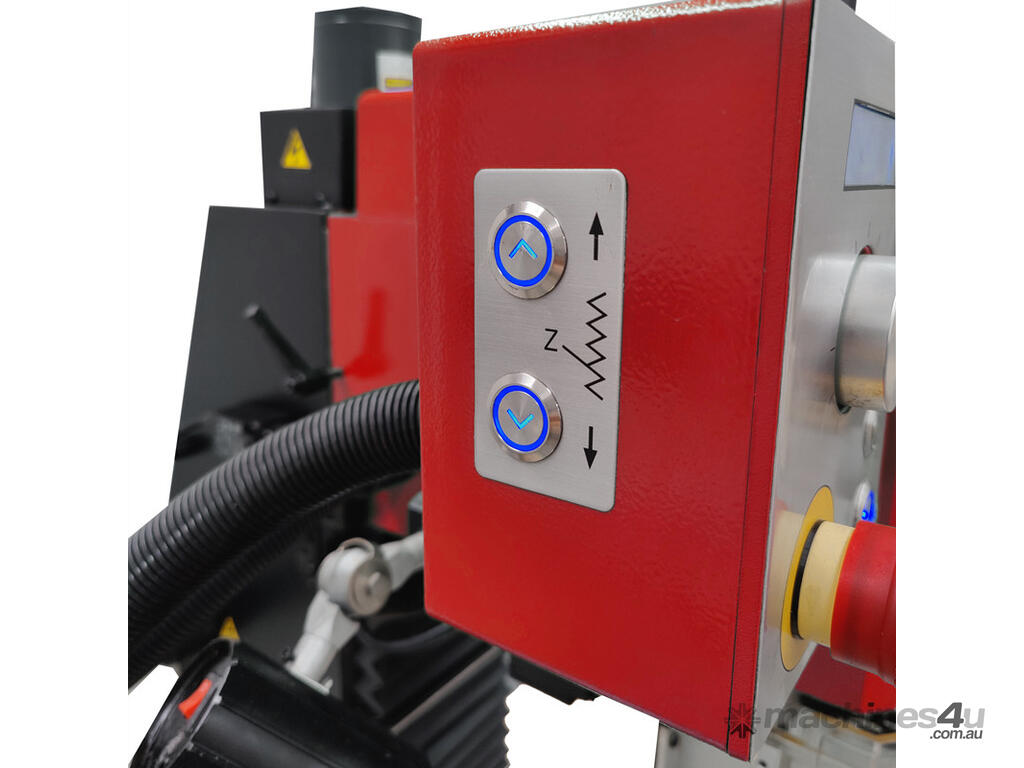

Z-axis Power Feed

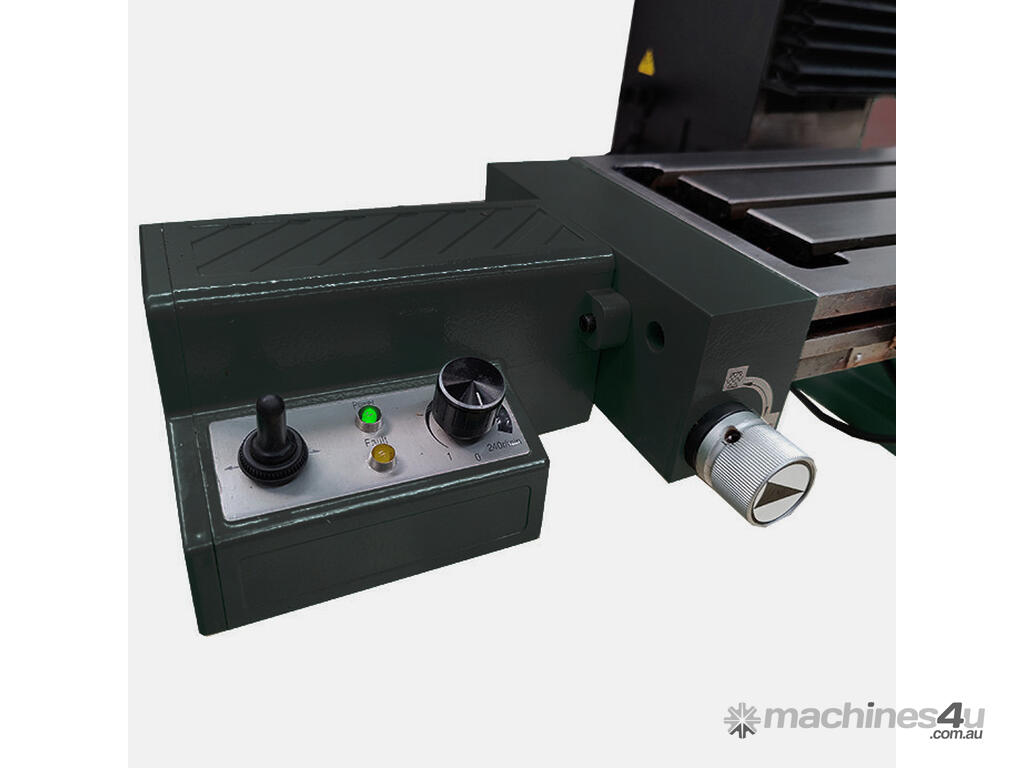

X-axis Power Feed with Clutch

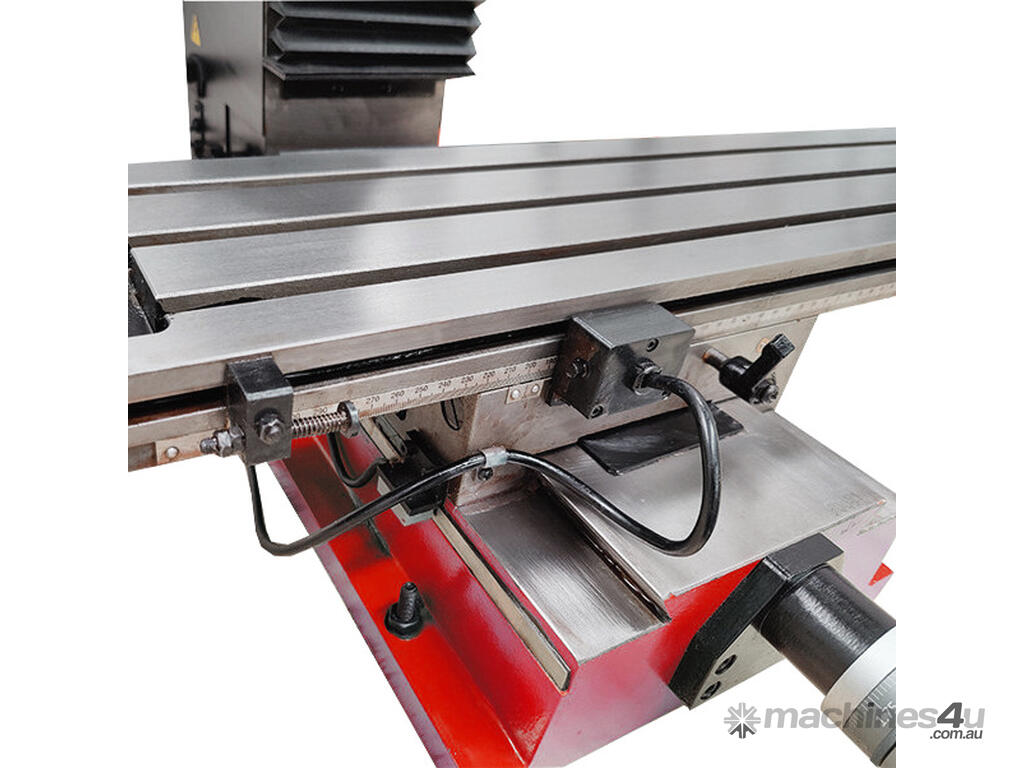

Digital Readout for X, Y and Z Axis with Built-in Display Unit

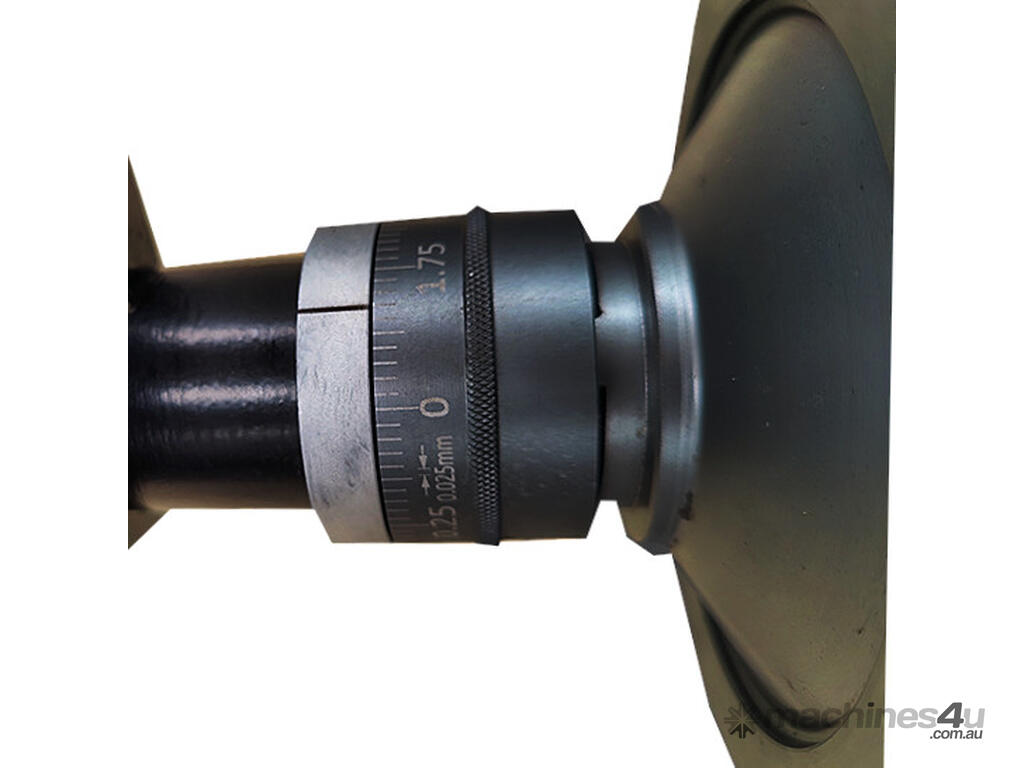

Fine Feed with Digital Readout for Precise Control of Cutting/Drilling Depth
Backlit Spindle Speed Display
2x USB Sockets ( for power supply only)

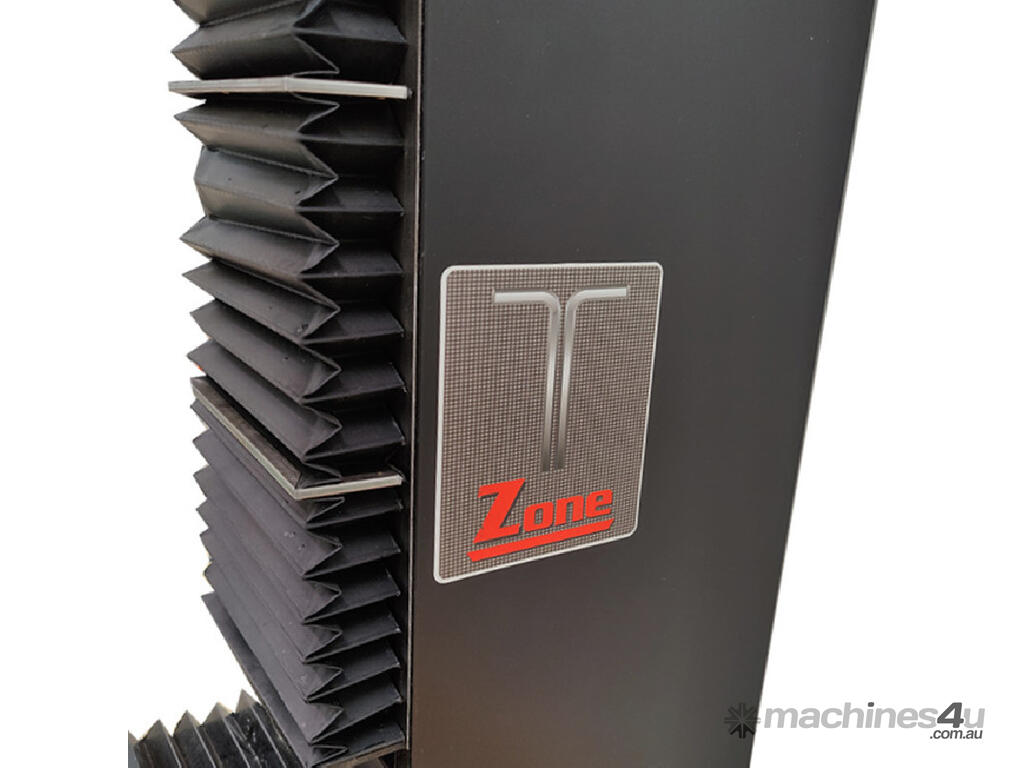

Magnetic Zone for Holding Tools
Tapping Mode w. Forward / Reverse Button

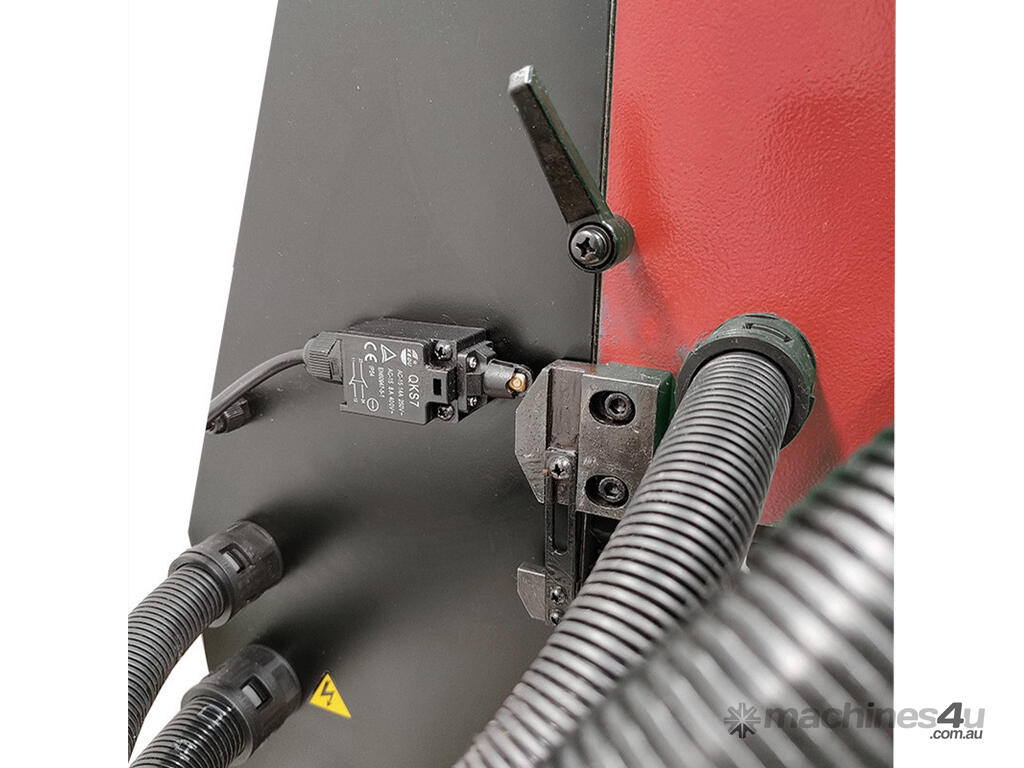

Chuck Guard with Safety Switch
740x180mm Extra Long Worktable
Metal Handwheels with
Heavy Duty Cast Iron Base


Specifications:
Drilling Capacity: 30mm
End Mill Capacity: 25mm
Face Mill Capacity: 63mm
Tapping Capacity: 12mm
Thoat: 230mm
Spindle Stroke: 75mm
Table Travel: 500 x 210mm ( X, Y )
Head Travel: 250mm ( with guard )
Spindle Taper: MT3 / R8
Max. Spindle to Table: 340mm
Effectiv Table Size: 740x180mm
T-Slot Size: 12mm
Motor Output: 1000W DC Brushless
Spindle Speed Low Range: 800-1800rpm
Spindle Speed Low Range: 280-5000rpm
Overall Dimension: 1140x765x925mm
Weight ? Net/Gross ): 151 / 186kg

Standard Accessories:
Drill Chuck with Arbor
Drawbar
Wrench Set
