SIEG SC10/305x700 HiTorque Gear Head Lathe

SIEG SC10 HiTorque Gear Head Lathe

Features:
Brushless Motor with Torque Control

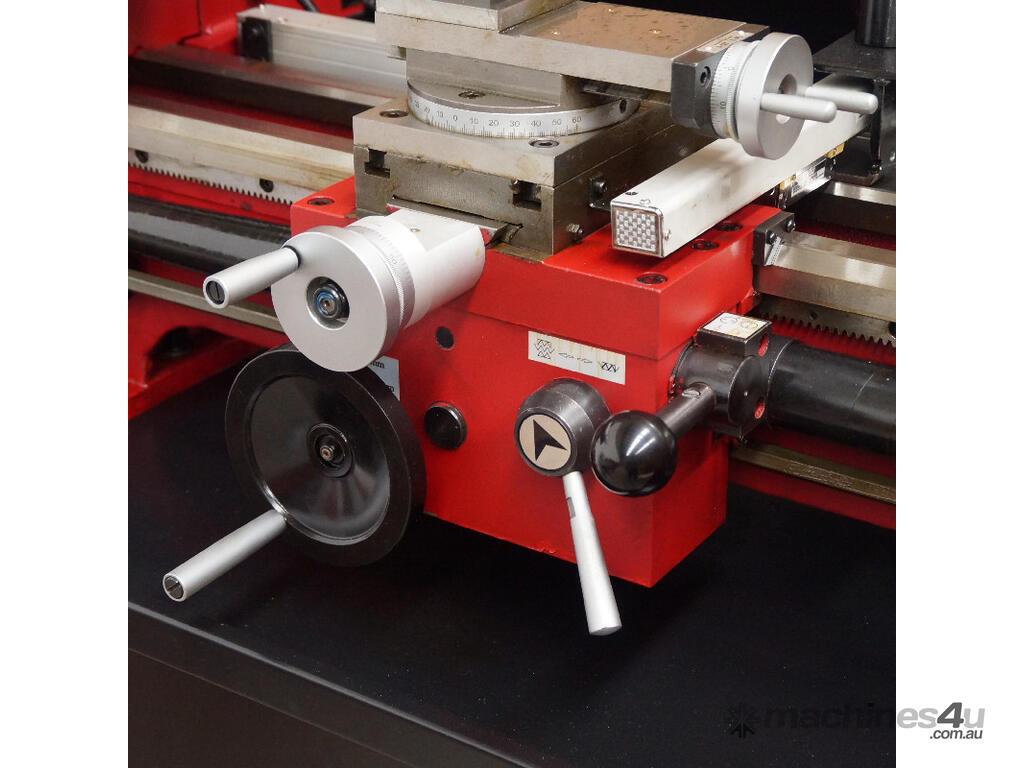

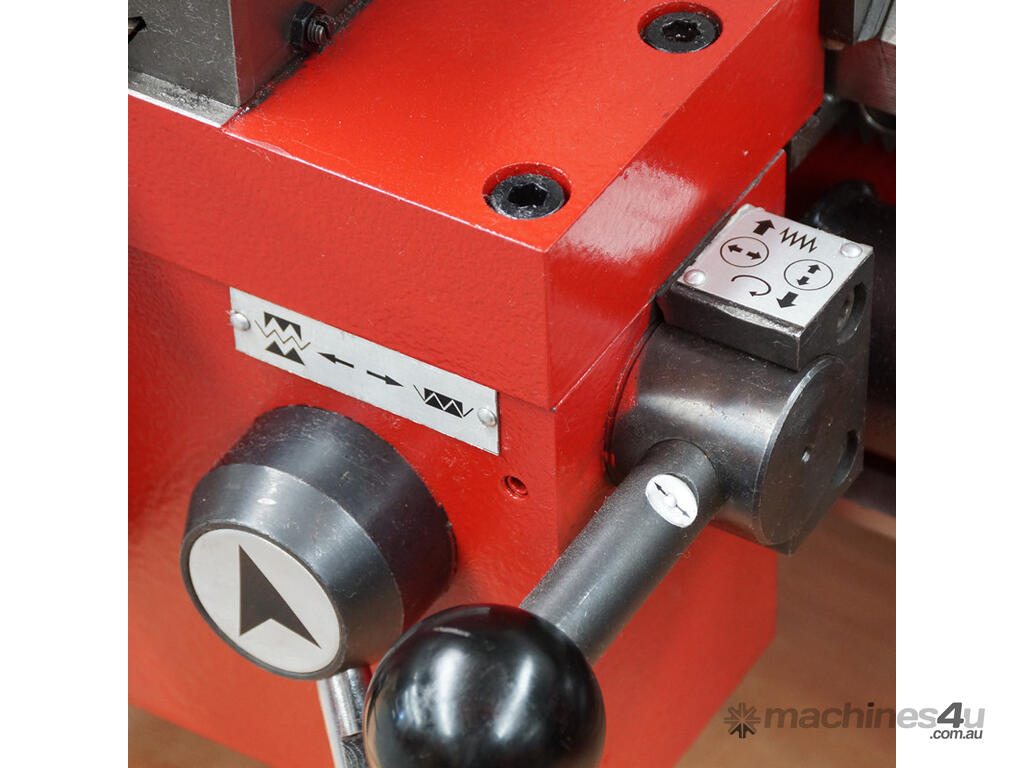

Cross & Longitudinal Power Feed
In-Built Oil Bathed Gear Box

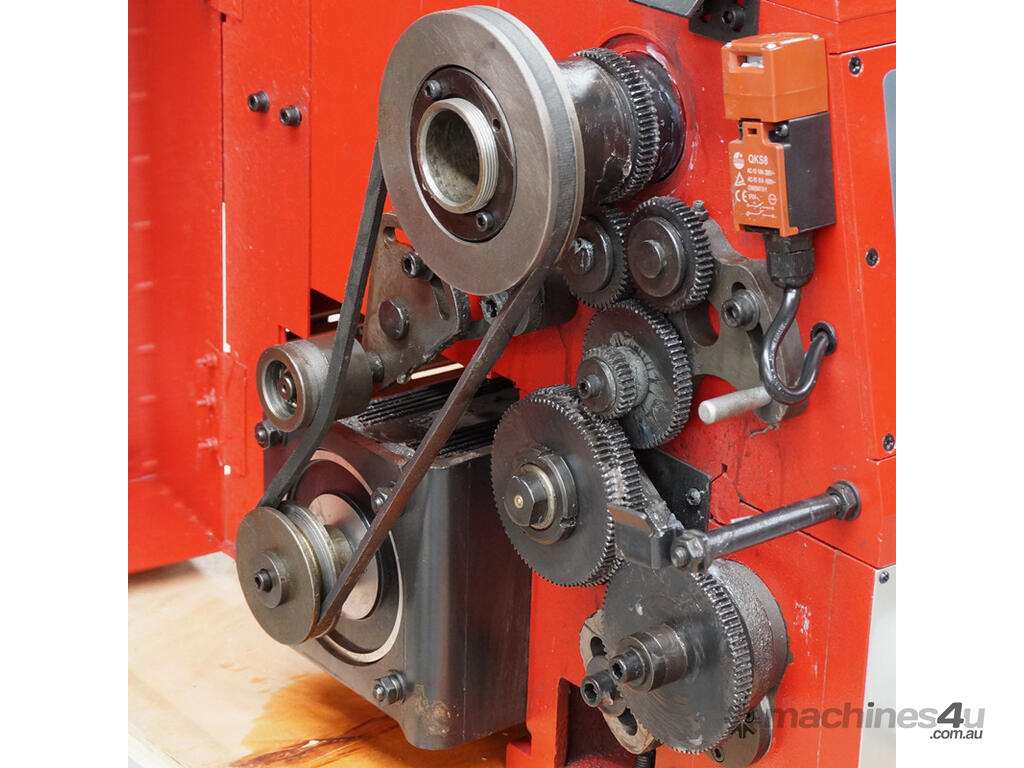

Belt Drive for Quieter Operation

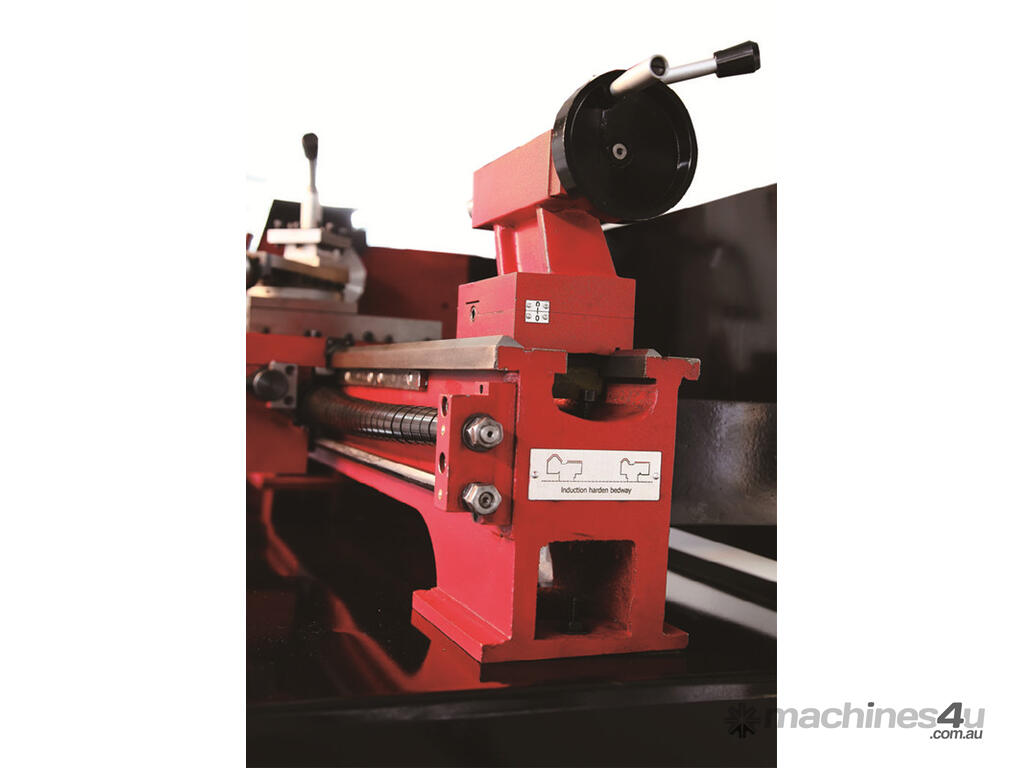

Cam-Lock Tailstock
Metal Gears
T-Slots on Cross Slide
38mm Bore
Switched Chuck Guard

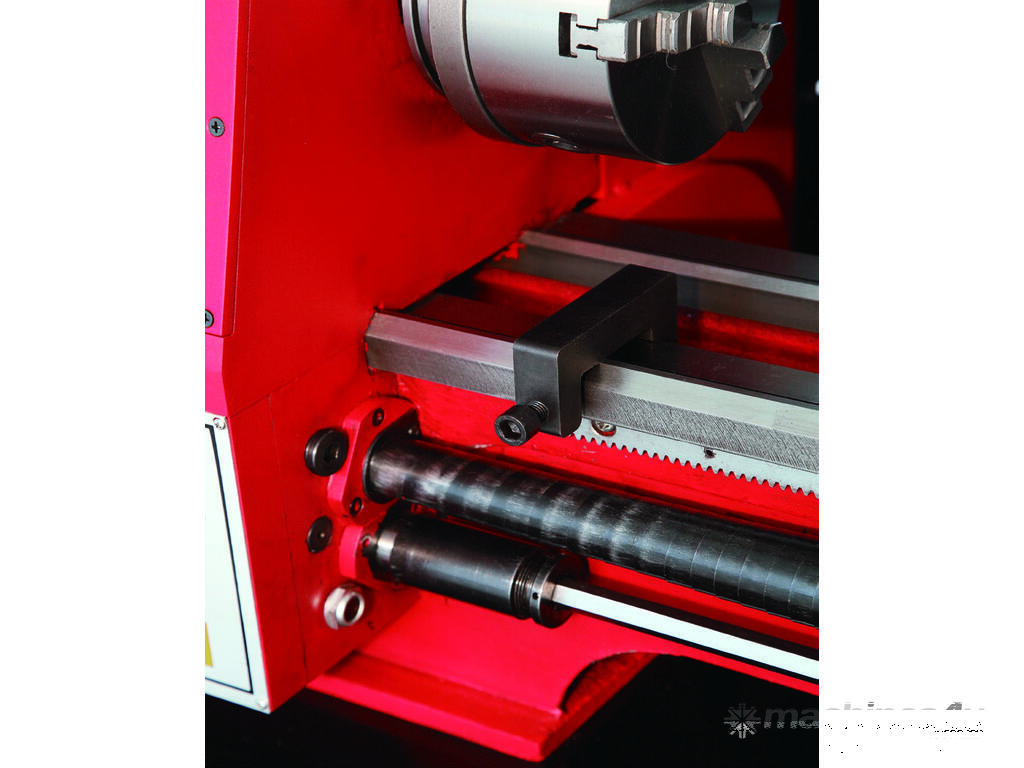

Leadscrew Guard
Leadscrew Overload Clutch
Metric & Imperial Threads
Emergency Stop Button
Heavy Duty Induction Hardened Cast Iron Bed

Specifications:
Swing Over Bed: 305mm
Distance Between Centres: 700mm
Spindle Bore: 38mm

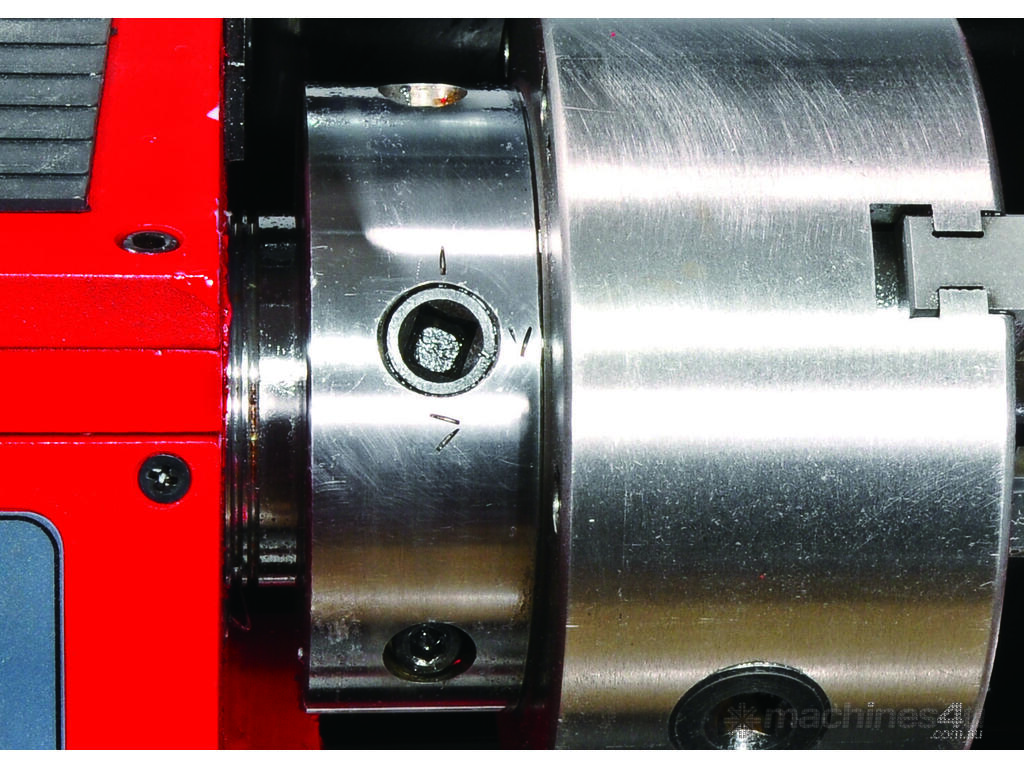

Camlock Spindle: D1- 4
Spindle Taper: MT5
Tailstock Taper: MT3
Cross Slide Travel: 155mm
Compound Travel: 80mm
Power Rating: 1810W
Output: 1500W
Range of Threads ( Metric ): 0.25-2.5mm ( 14 Thread Pitches )
Range of Threads ( Imperial ): 12-96 TPI ( 9 Thread Pitches )
Spindle Speed: 100-2000rpm
Overall Dimension ( mm ): 1500x750x730mm
Weight ( Net / Gross ): 215 / 255kg

Standard Accessories:
160mm D-Jaw Self-Centering Chuck
MT5 Spindle Centre
MT3 Dead Centre
Fixed & Travelling Steady
Face Plate
Wrench Set
