SIEG SC10-PRO / 305x700mm HiTorque Gear Head Lathe
Features:
2-axis DRO
Coolant System
LED Worklight
Machine Stand
Brushless Motor with Torque Control

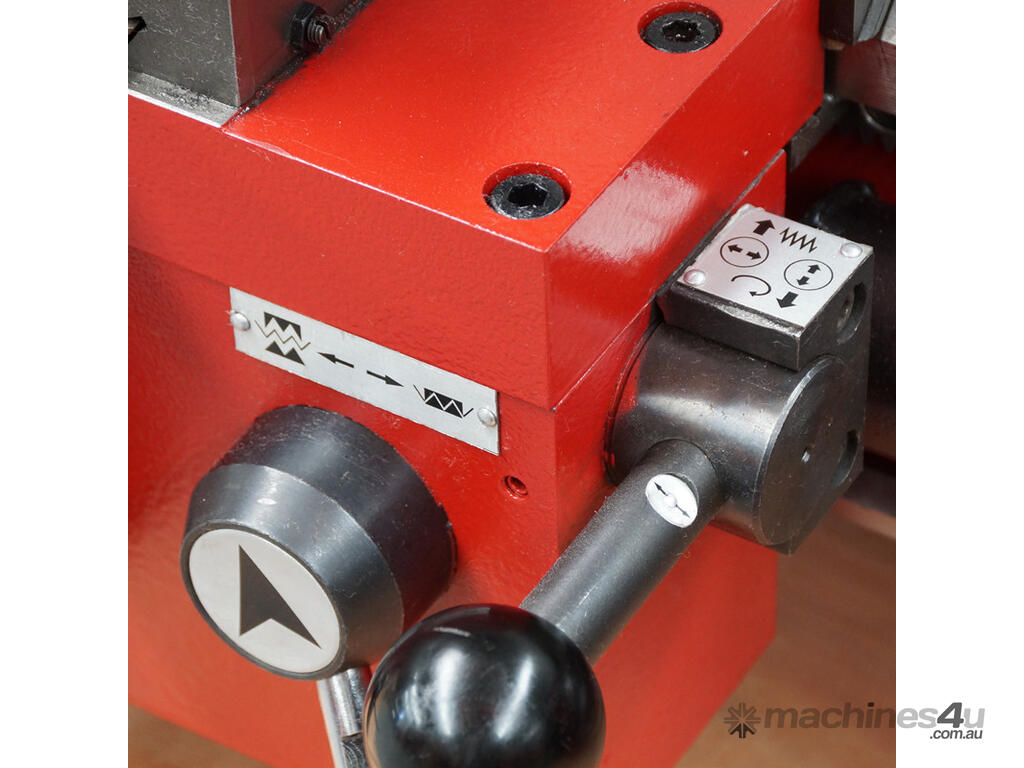

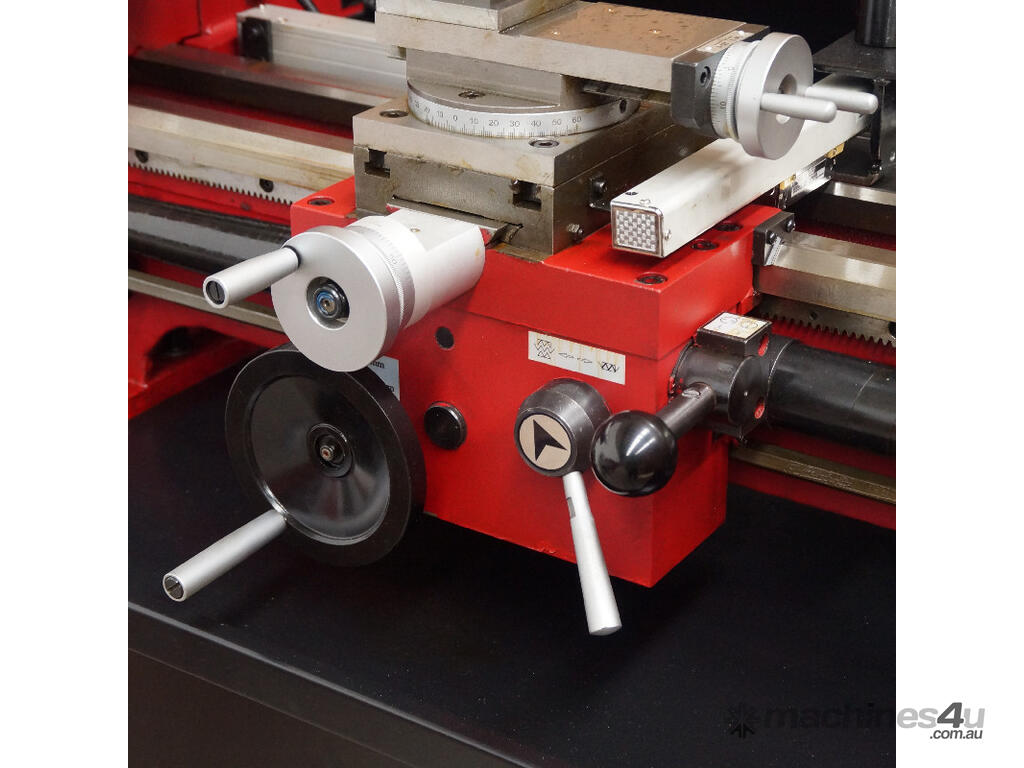

Cross & Longitudinal Power Feed
In-Built Oil Bathed Gear Box
Belt Drive for Quieter Operation
Cam-Lock Tailstock

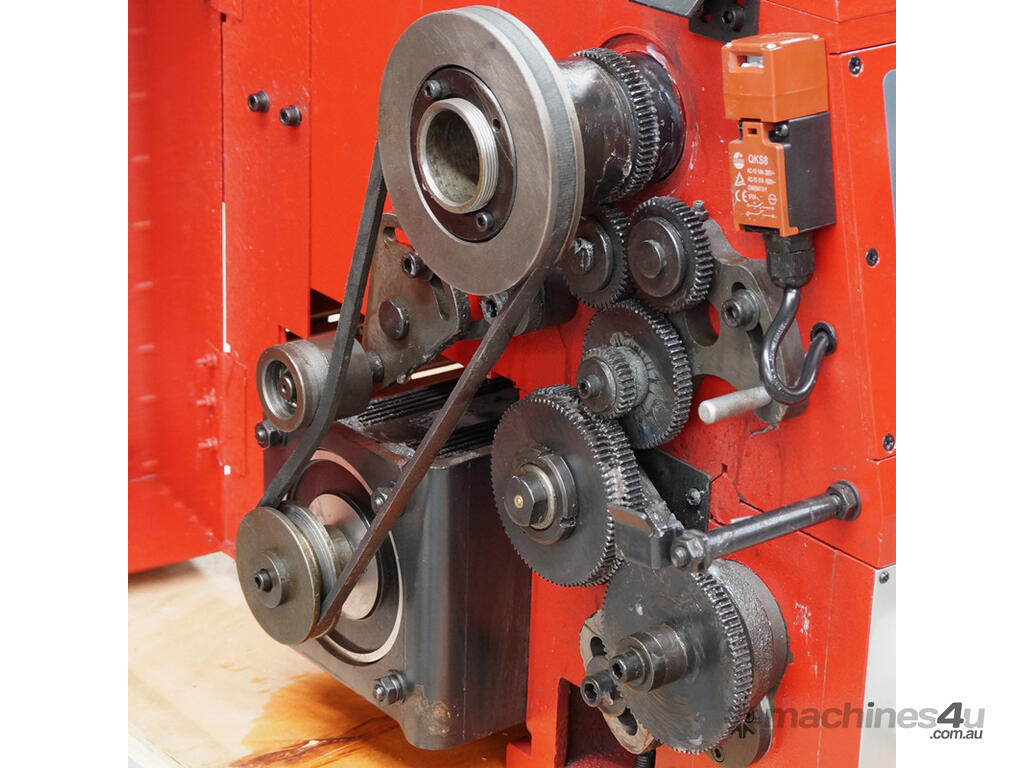

Metal Gears
T-Slots on Cross Slide
38mm Bore
Switched Chuck Guard

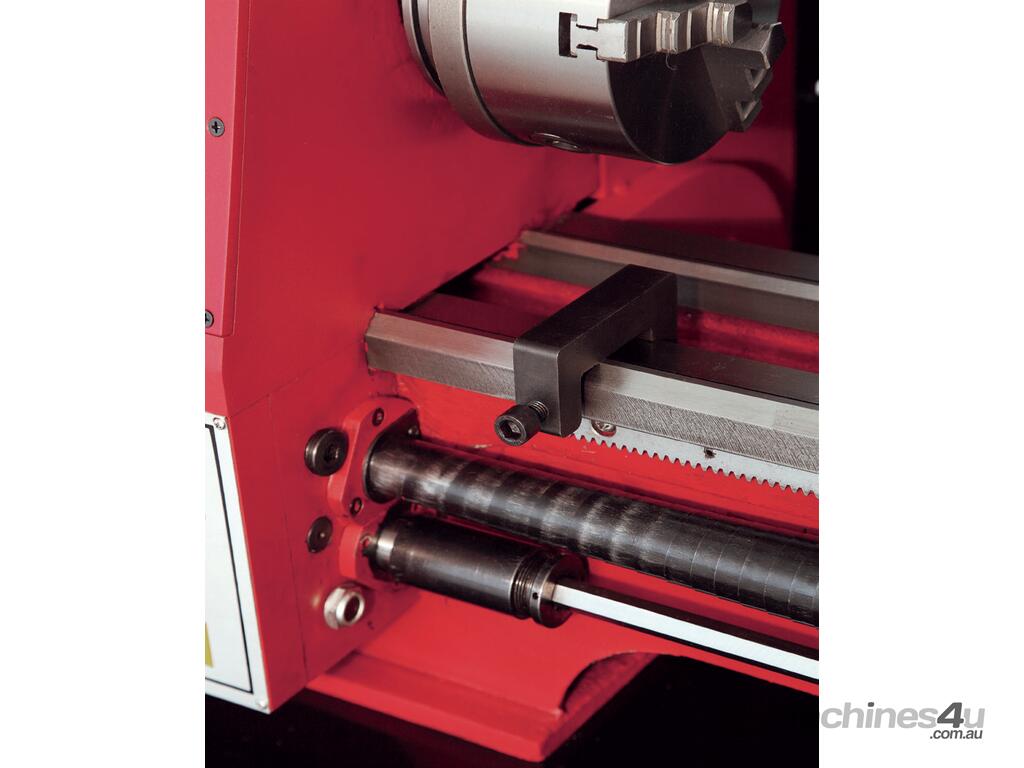

Leadscrew Guard
Leadscrew Overload Clutch
Metric & Imperial Threads
Emergency Stop Button

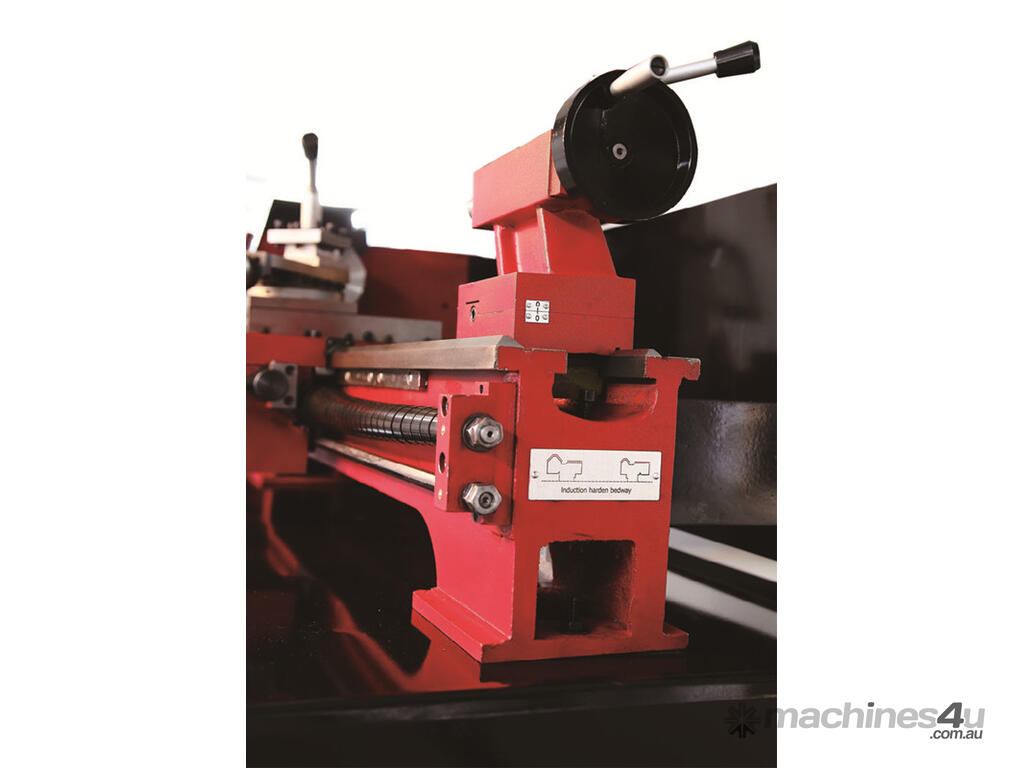

Heavy Duty Induction Hardened Cast Iron Bed
Specifications:
Swing Over Bed: 305mm
Distance Between Centres: 700mm
Spindle Bore: 38mm

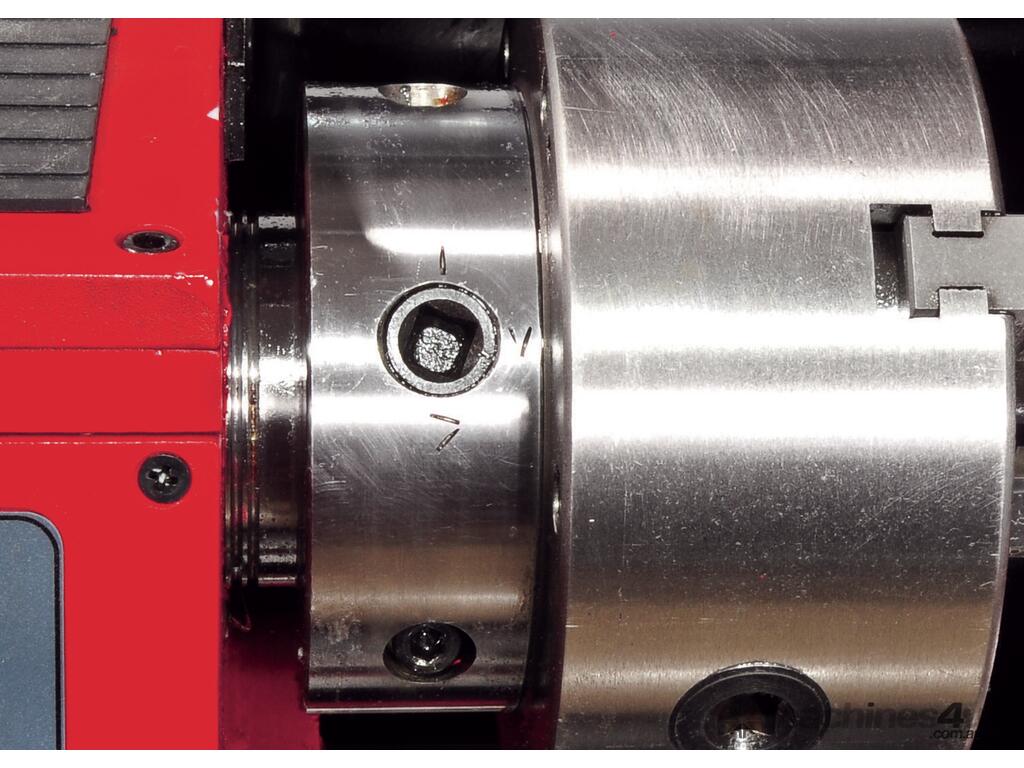

Camlock Spindle: D1- 4
Spindle Taper: MT5
Tailstock Taper: MT3

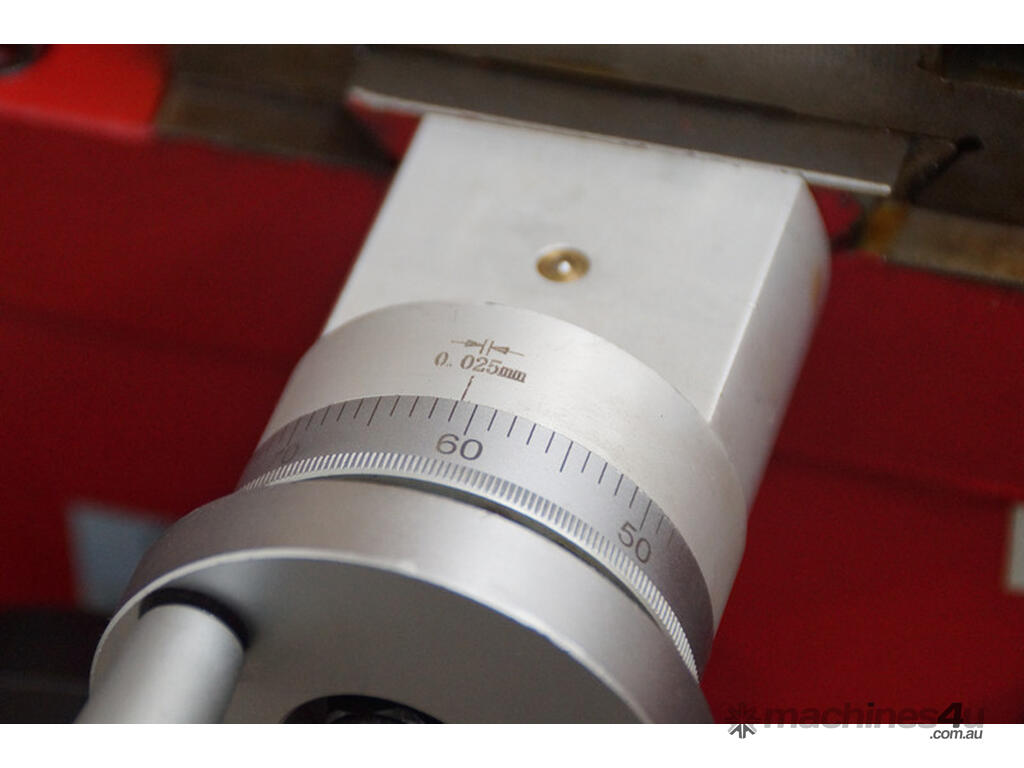

Cross Slide Travel: 155mm
Compound Travel: 80mm
Power Rating: 1810W
Output: 1500W
Range of Threads ( Metric ): 0.25-2.5mm ( 14 Thread Pitches )
Range of Threads ( Imperial ): 12-96 TPI ( 9 Thread Pitches )
Spindle Speed: 100-2000rpm
Overall Dimension ( mm ): 1500x750x730mm
Weight ( Net / Gross ): 215 / 255kg
Standard Accessories:
160mm D-Jaw Self-Centering Chuck
MT5 Spindle Centre
MT3 Dead Centre
Fixed & Travelling Steady
Face Plate
Wrench Set
