Introducing the SC70 HiTorque Gear Head Lathe—the next-generation gear head variable speed lathe from SIEG. Engineered for industrial-grade precision, this lathe represents a substantial upgrade over any bench lathe currently on the market.

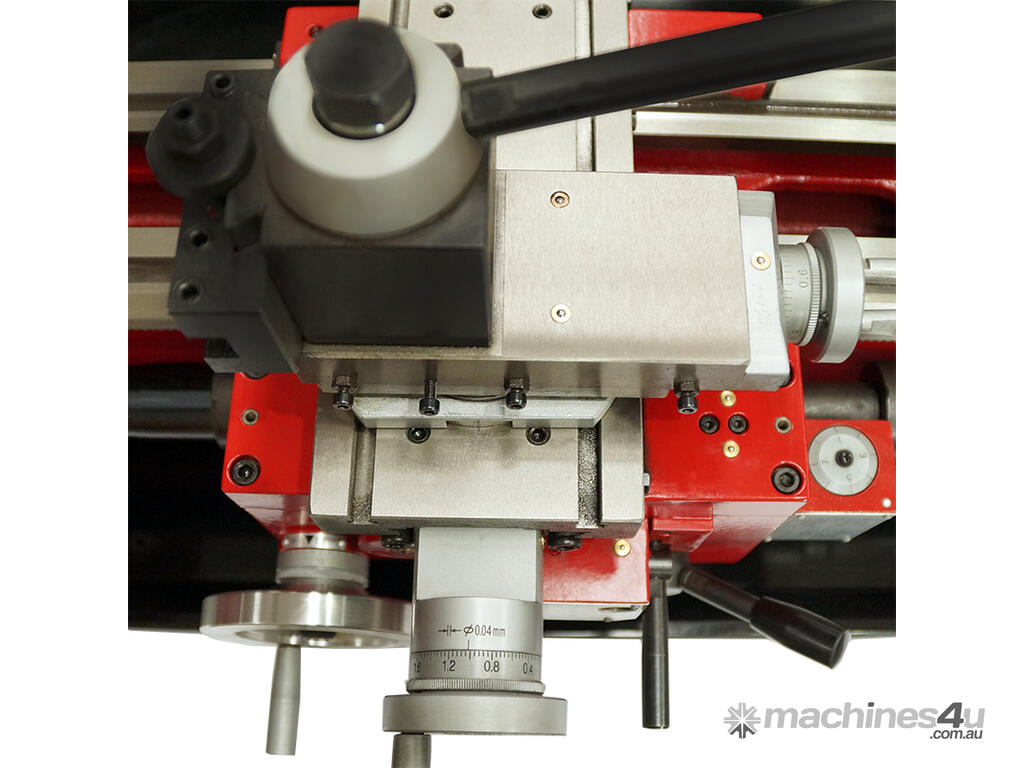

Key features include a 1kw HiTorque brushless motor with a torque controller, a precision-ground and induction-hardened V-bed, an oil-bathed gearbox, a quick-change tool post, a cam-lock tailstock, powered longitudinal and cross feeds, and a large 26mm spindle bore.
Compared to its predecessor, the C6, the new SC70 features a wider bed for enhanced rigidity and stability, along with an additional 30kg in total weight. Equipped with SIEG’s advanced HiTorque brushless motor, it offers exceptional performance and greater usable torque across the entire RPM range. Furthermore, the oil-bathed gearbox enables the cutting of both metric and imperial threads.
Features:

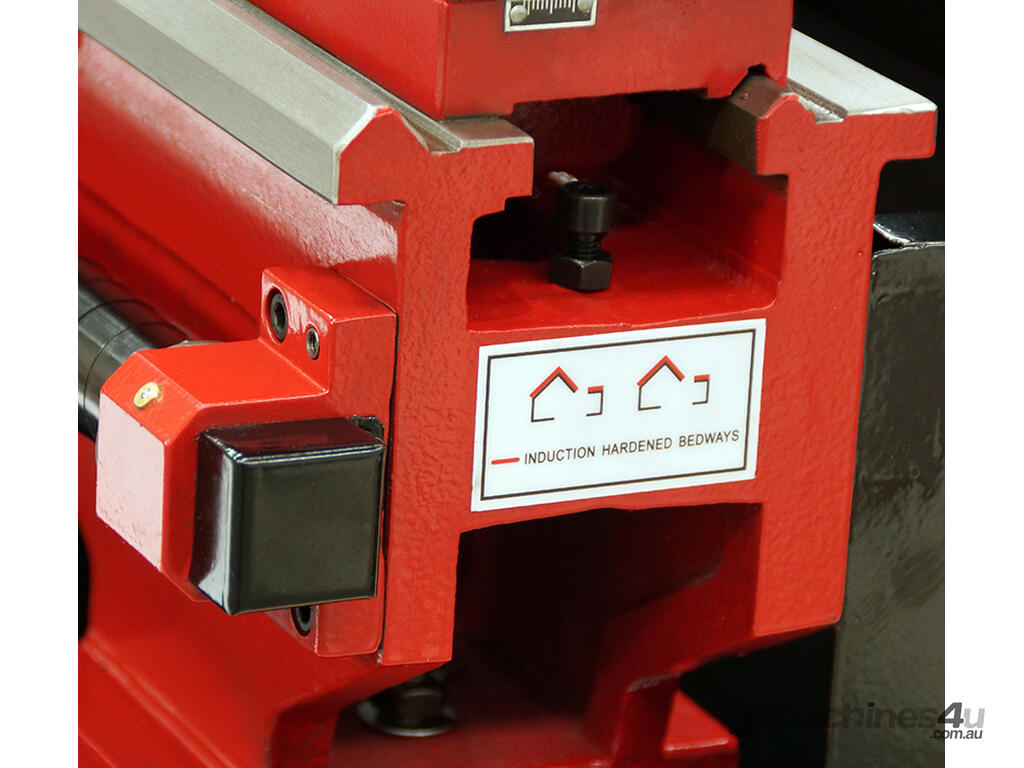

Induction Hardened, Wider V-Bed

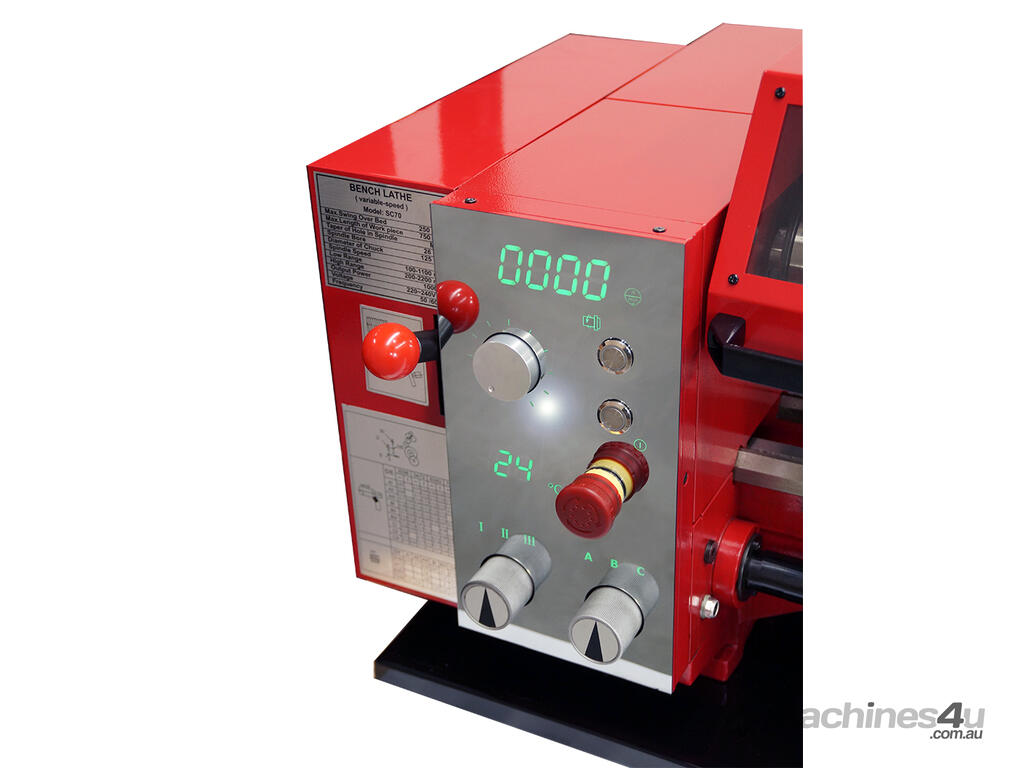

SIEG in-house Brushless HiTorque Motor with Torque Controller
26mm Large Spindle Bore

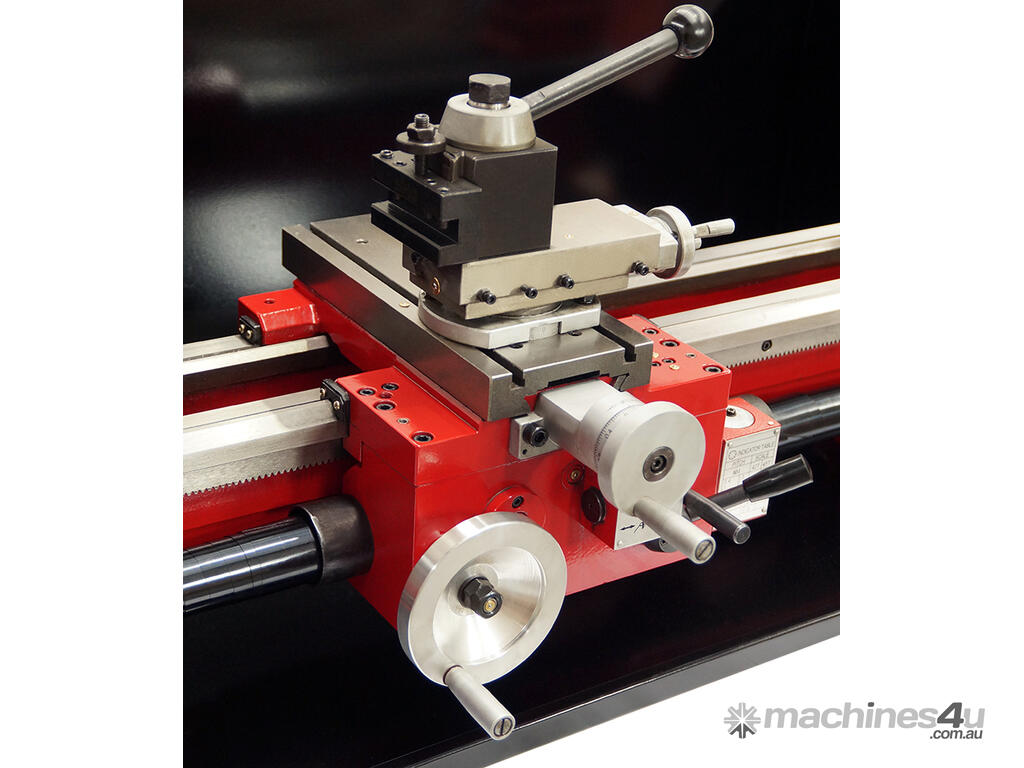

Longitudinal & Cross Powered Feed

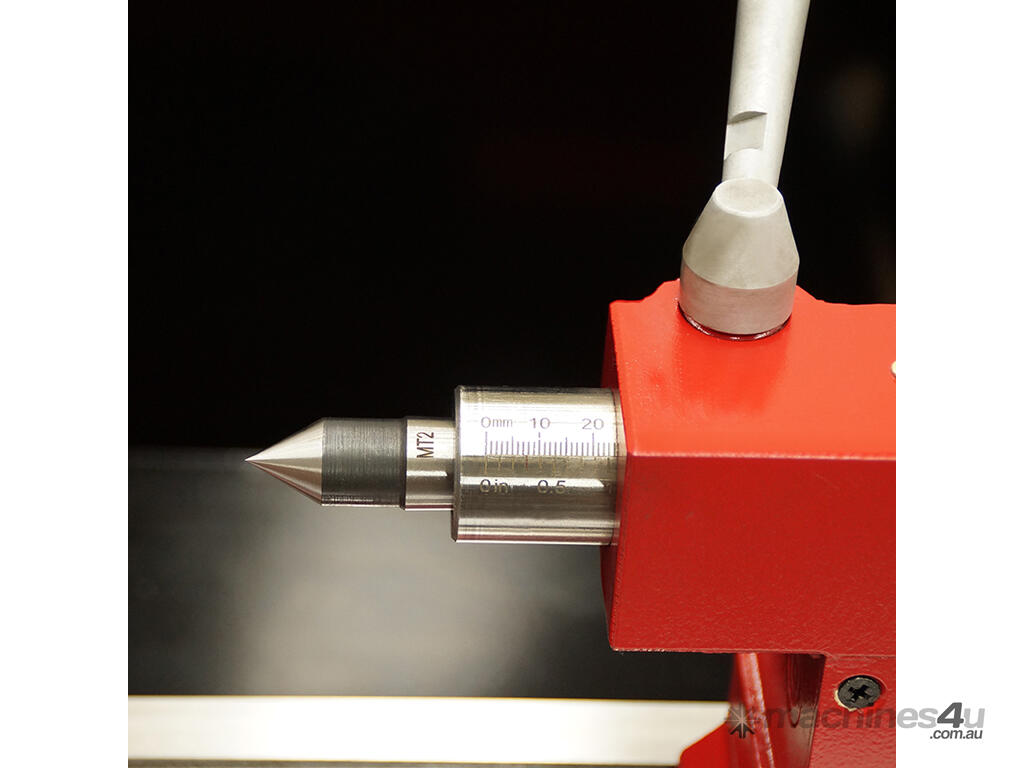

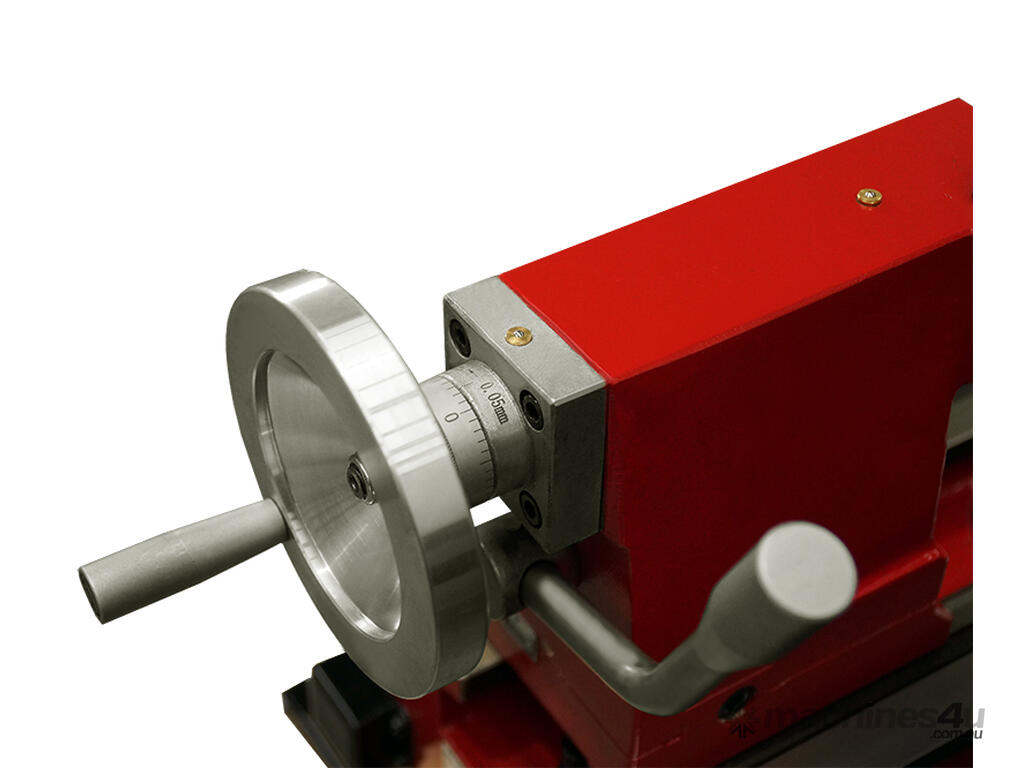

Cam-lock Tailstock
Oil-Bathed Gear Box

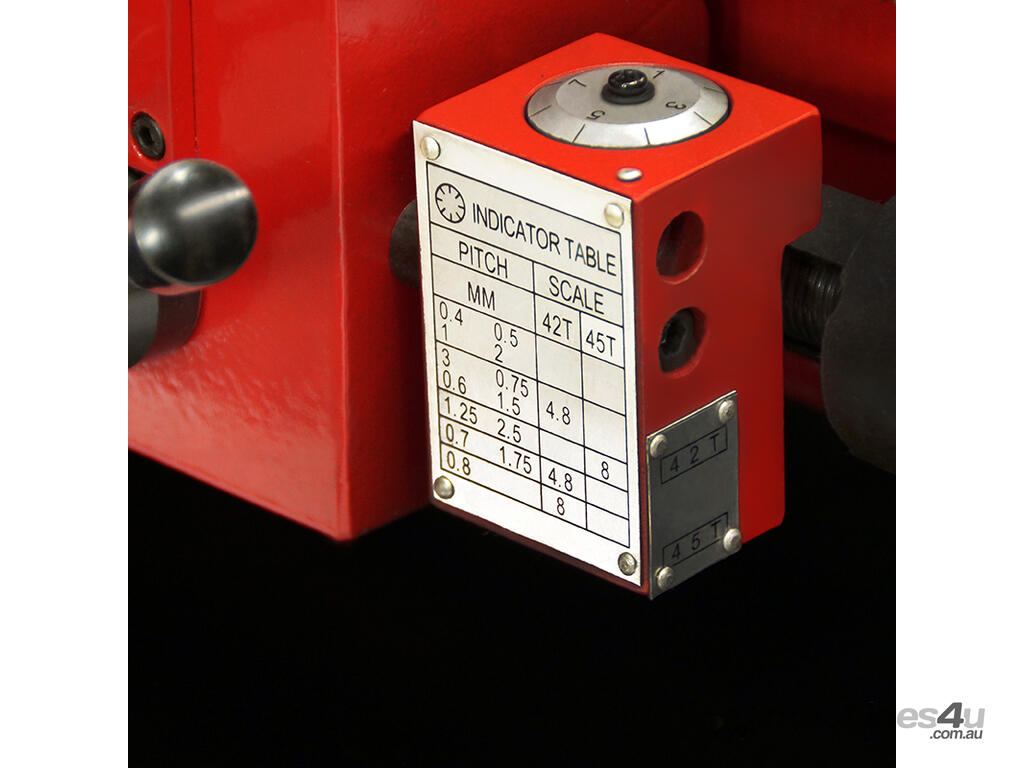

Cut Metric & Imperial Threads
Metal Gear
Switched Chuck Guard for Safety
Lead-screw Guard

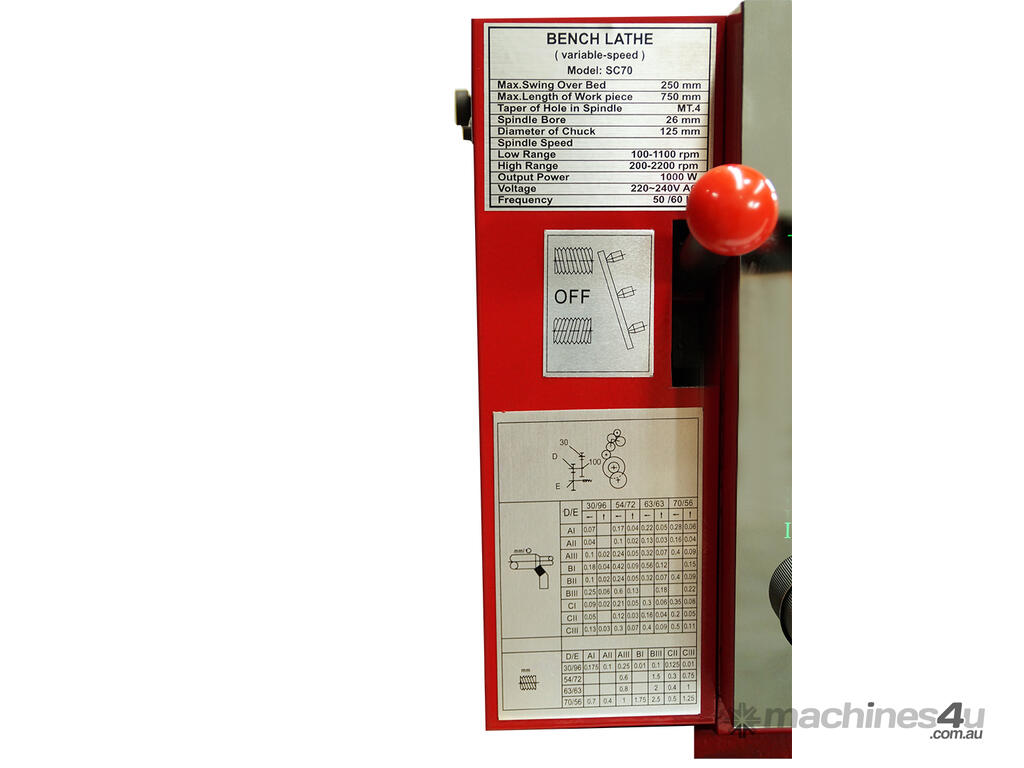

Specifications:
Swing Over Bed: 250mm
Distance Between Centres: 750mm
Spindle Bore: 26mm
Spindle Taper: MT4
Tailstock Taper: MT2
Swing Over Cross Slide: 142mm
Carriage Travel: 600mm
Cross Slide Travel: 115mm
Compound Travel: 70mm
Tailstock Quill Travel: 64mm
Bed Width: 135mm
Leadscrew Thread: M20 x 2.00mm
Longitudinal Feed: 0.09-0.46mm
Imperial Thread Range: 8-56TPI (27)
Metric Thread Range: 0.4-3.0mm (15)
Motor Output: 1000W Brushless with Torque Management
Overall Dimensions: 1350x630x410mm
Packing Size: 140x690x650mm
Shipping Weight: 209kg
