SIEG SX3L HiTorque Mill 1000W Brushless Motor

SIEG SX3L HiTorque Mill

Feature:
1. 1000W High Torque Brushless DC Motor with advance electronic speed & torque controller combined with Direct belt drive from motor to spindle resulting in a far quieter machine with loads of torque even at low rev.
2. Variable speed
3. Large spindle speed display with blue backlight
4. Extra Long Table 700x160mm ( this feature is exclusive to Ausee in Australia )
5. Tapping function
6. Forward / Reverse swtich

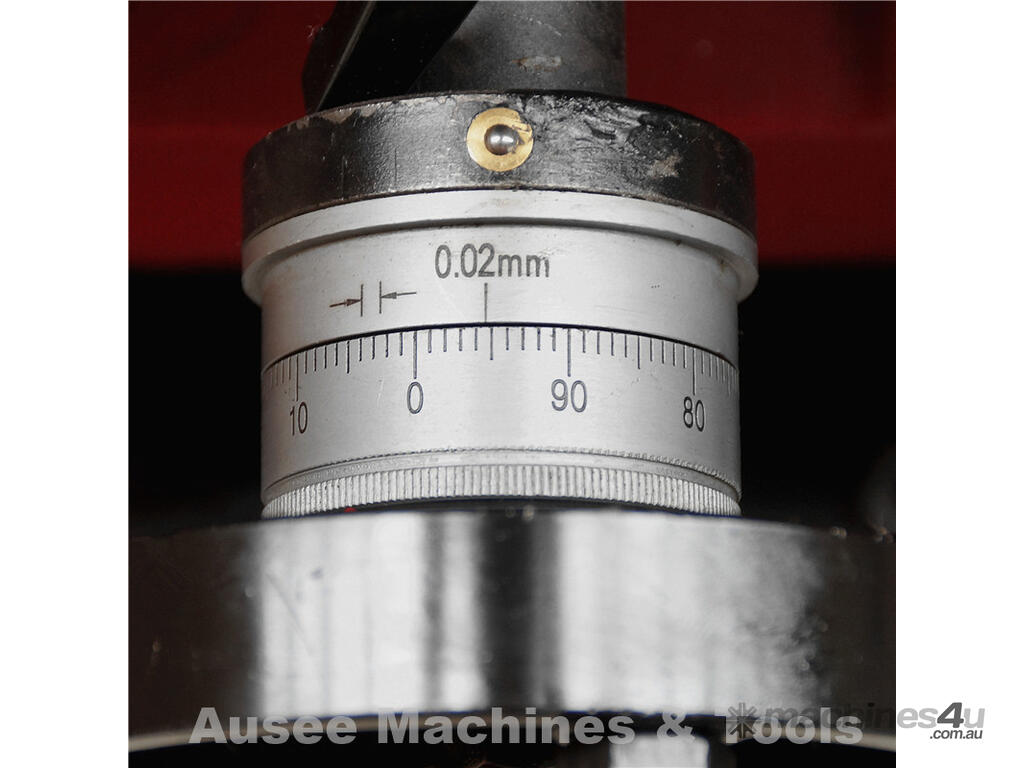

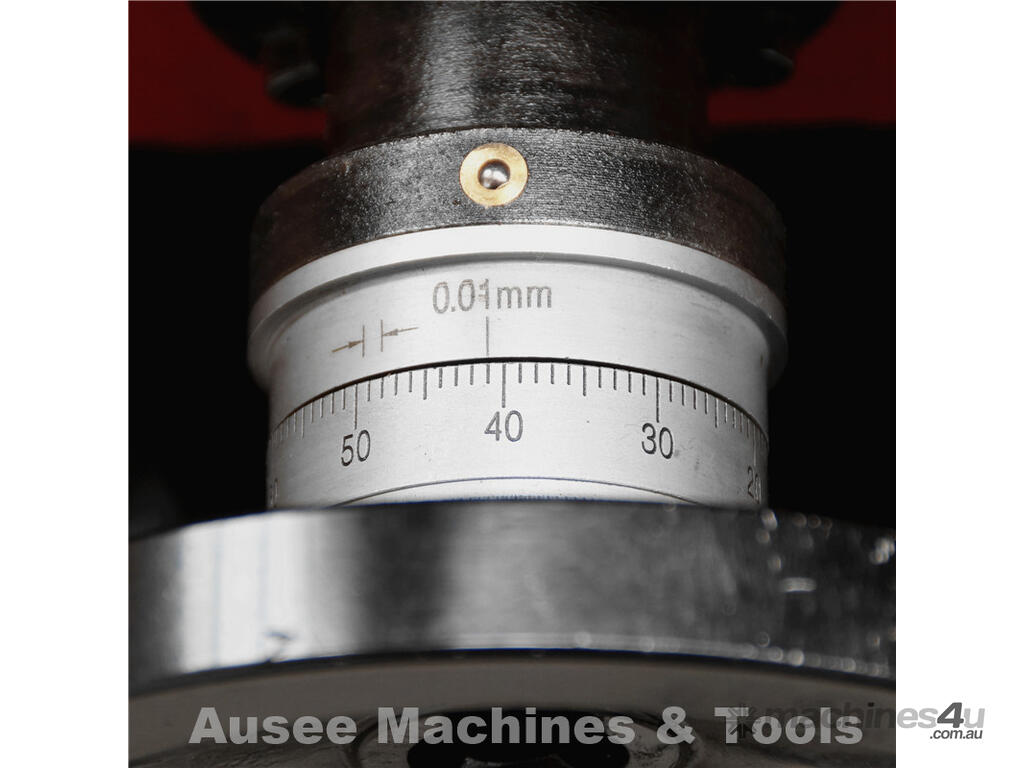

7. Fine Feed

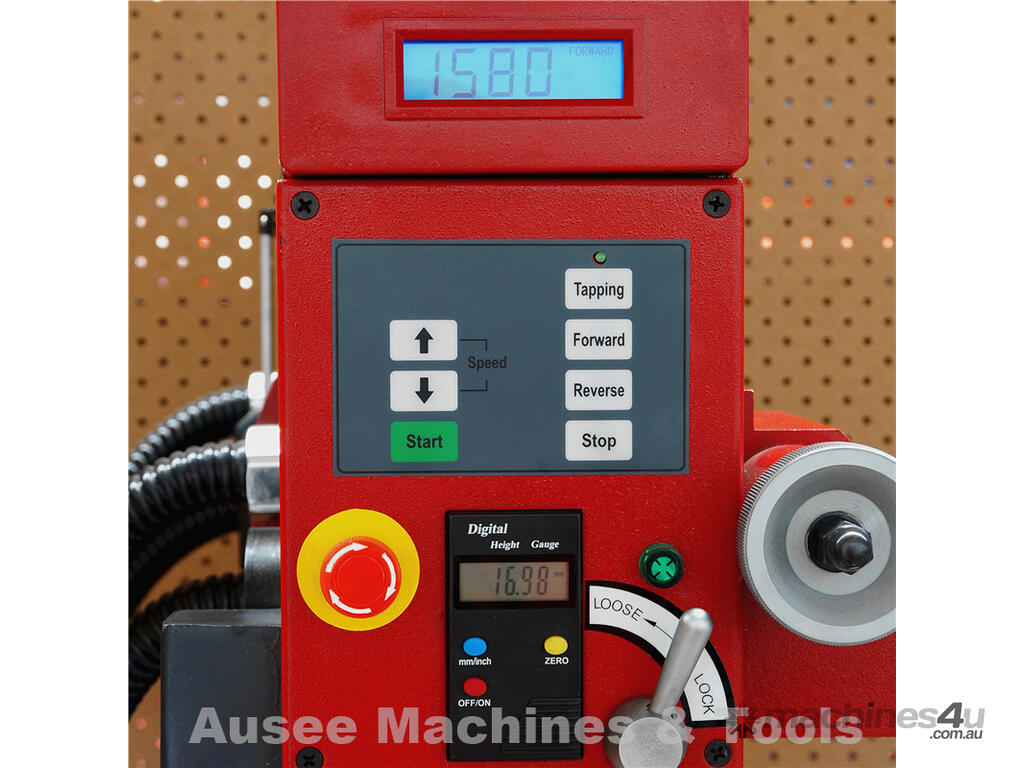

8. Modern touch panel control
9. Cutting depth digital display with zero and in/mm switch
10. Chuck Guard with micro-switch for your safety

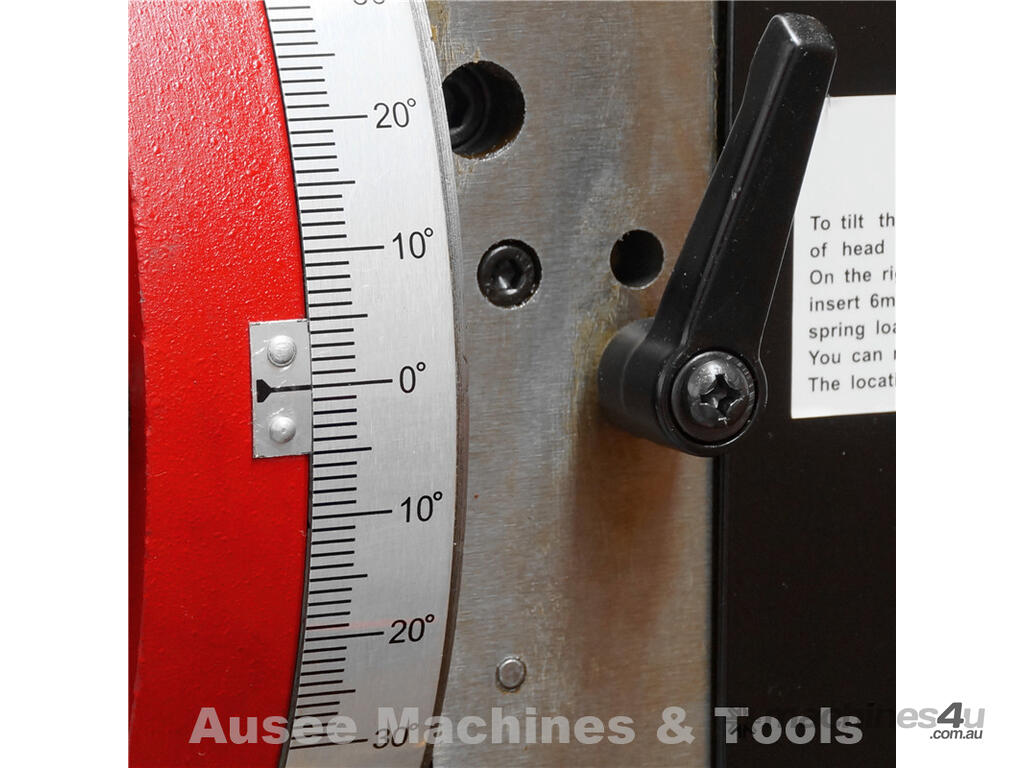

11. Head Tilting

Specifications:
- Drilling Capacity: 25 mm
- End Mill Capacity: 25 mm
- Face Mill Capacity: 50 mm
- Tapping Capacity: 12 mm
- Spindle Stroke: 72 mm
- Table Cross Travel: 145 mm
- Table Longitudinal Travel: 510 mm
- Headstock Travel: 300 mm
- Spindle Taper: MT3 or R8
- Throat: 230 mm
- Spindle to Table Distance: 380 mm
- Table Size: 700x160 mm ( Extra long )
- Table Effective Size: 625x204 mm
- T-Slot size: 12 mm
- Head Tilt: 90°
- Column Type: Fixed
- Motor Output: 1000W Brushless High Torque Motor
- Spindle Speed: 0 - 1800 rpm
- Overall Dimension: 915x76x990 mm
- Weight (Net/Gross): 162/184kg
Auto Feeder Available for this mill
