SIEG SX3L HiTorque Mill with R8 Spindle

Name: SIEG SX3L HiTorque Mill with R8 Spindle
Brand: Sieg
SKU: 080-020-38001
Price: 2700 AUD
Availability: InStock

CRANBOURNE WEST, VIC

$2,700 AUD($2,970 Inc. GST)
Confirm with seller if additional costs apply

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Vertical Mills

Make:

SIEG

Model:

SX3L

No. in Stock

Year:

2014

Type of Sale:

Hot Deals

Member Since: Mar 2014

Gold Member

Listings: 46

Sellers stock ID:

080-020-38001

Description

Feature:
1000W HiTorque Brushless Motor
700x160mm Extra Long Worktable

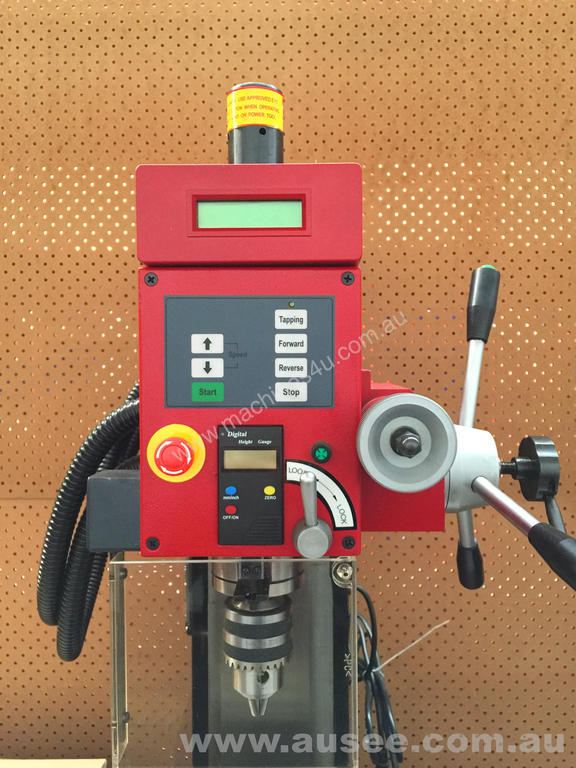

Backlit Spindle Speed Diksplay
Forward / Reverse Button

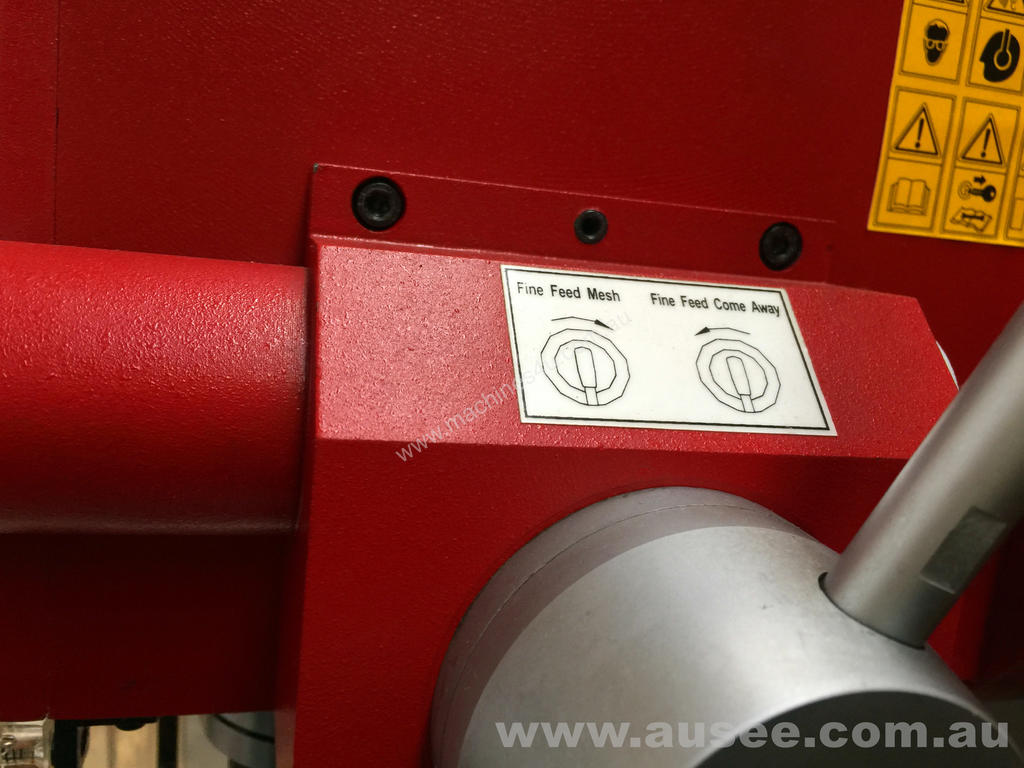

Fine Feed
Suitable for light industrial use
Super Quiet Toothed Belt Drive
Digital Readout for Drilling Depth
Tapping Mode
Chuck Guard with Safety Switch
Heavy Duty Cast Iron Base

Specifications:
Drilling Capacity: 25mm
End Mill Capacity: 25mm
Face Mill Capacity: 50mm
Tapping Capacity: 12mm
Spindle Stroke: 72mm

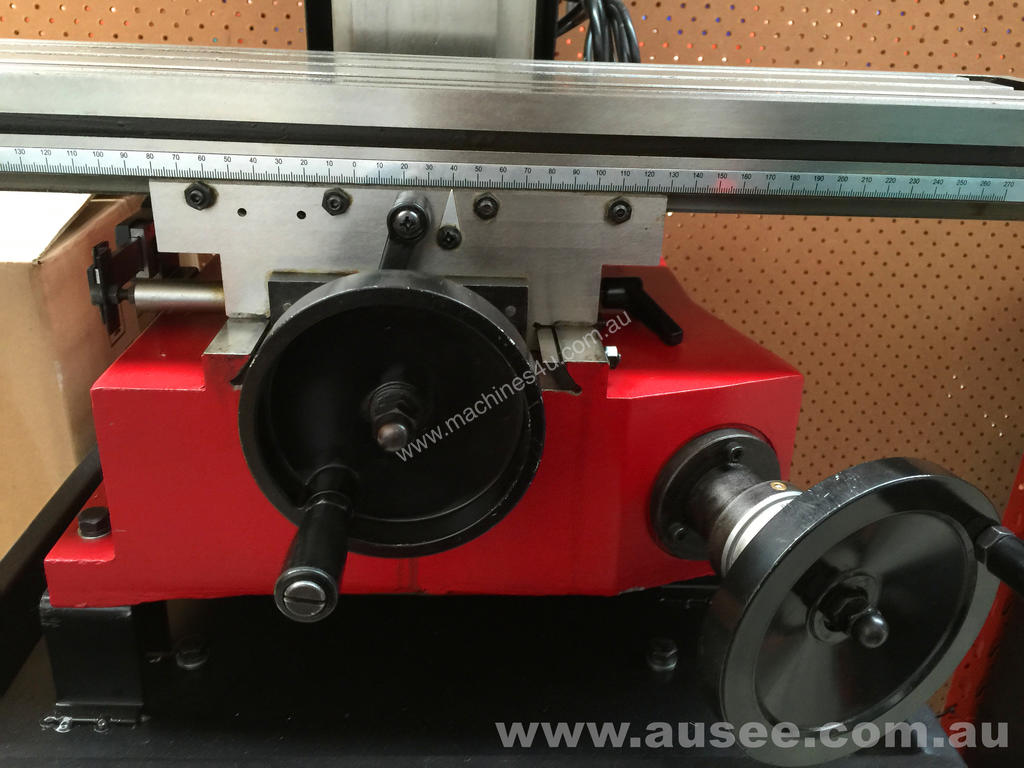

Table Travel: 510x145mm ( X, Y )
Head Stock Travel: 300mm
Spindle Taper: MT3 or R8
Thoat: 230mm
Max. Spindle to Table: 380mm
Table Size: 700x160mm
Table Effective Size: 625x204mm
T-Slot Size: 12mm

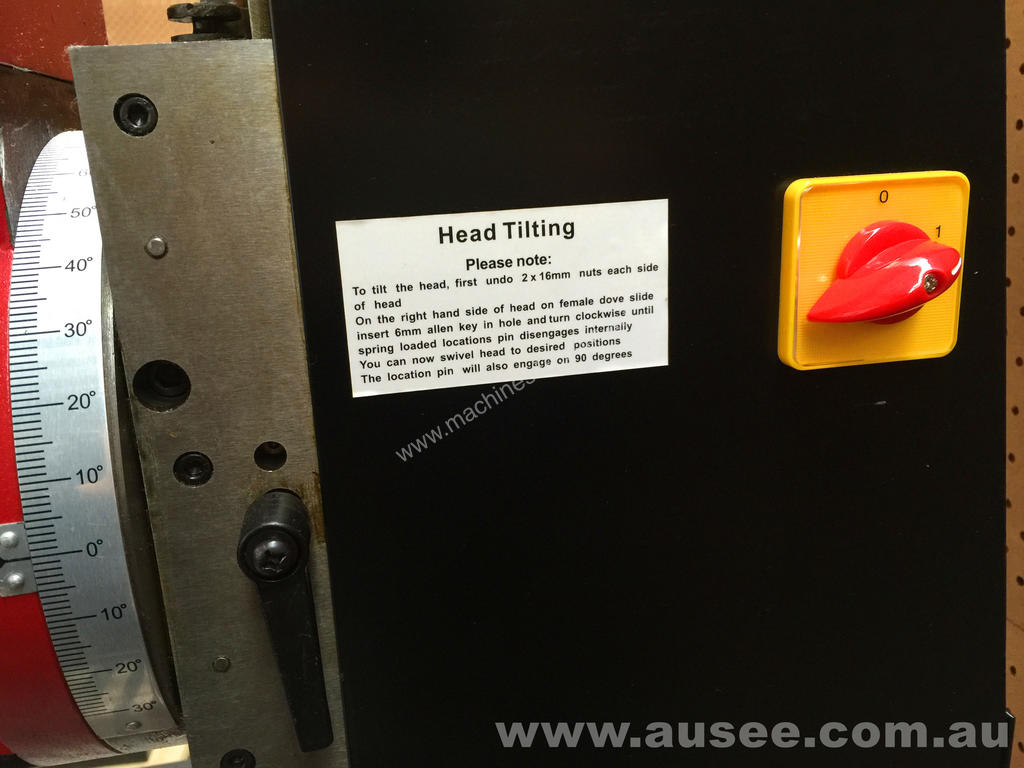

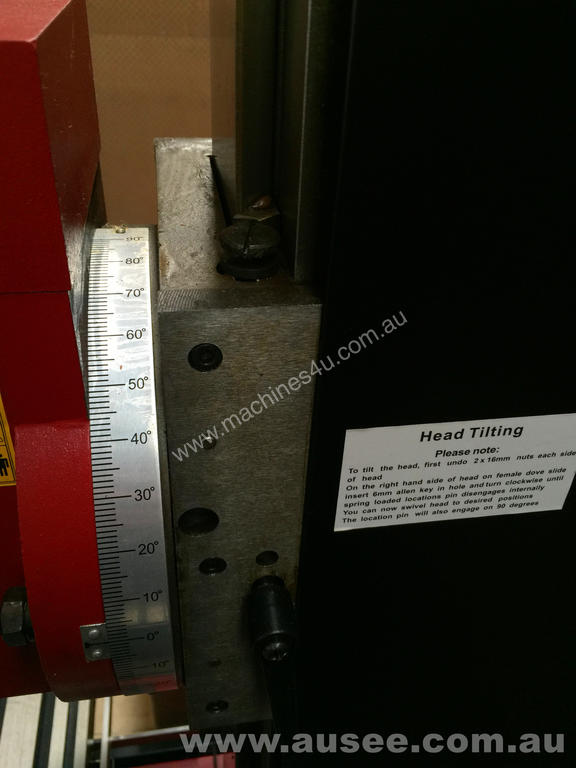

Headstock Tilt: 90°
Motor Output: 1000W DC ( HiTorque Brushless Motor )
Spindle Speed: 100-1800rpm
Overall Dimension: 915x760x990
Weight Net/Gross ): 162 / 184kg

Standard Accessories:
Drill Chuck with Arbor
Drawbar
Wrench Set
