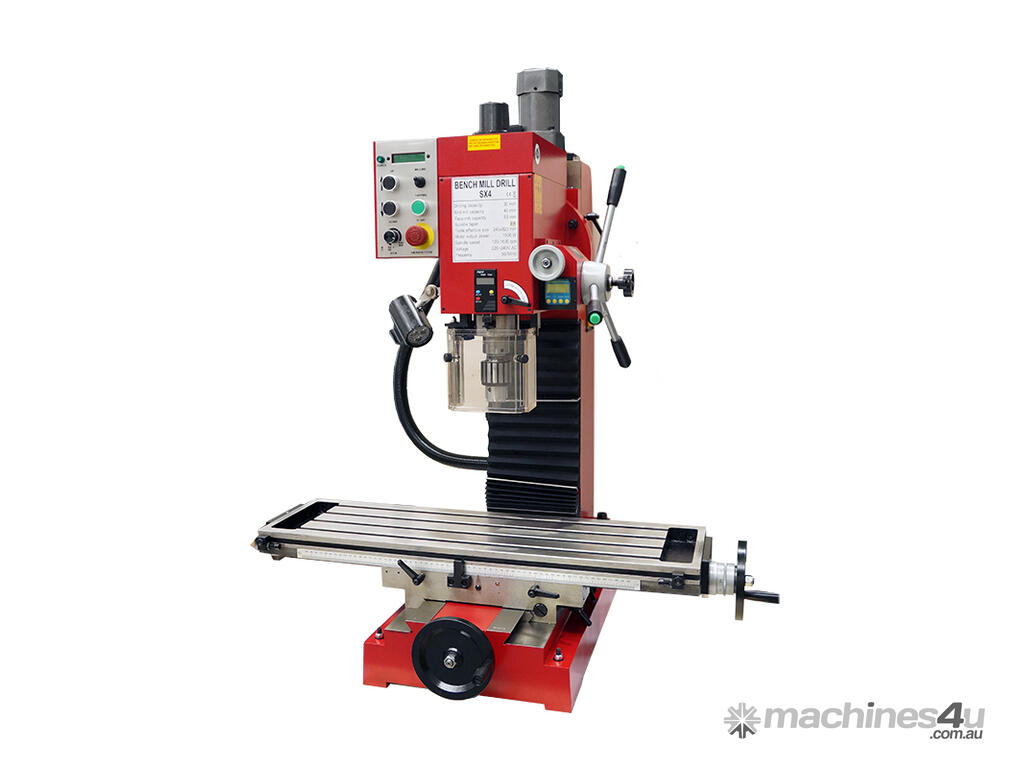

SIEG SX4 HiTorque Mill
( check our for latest price and promotions )
Feature:
1. 1500W High Torque Brushless DC Motor with advance electronic speed & torque controller combined with Direct belt drive from motor to spindle resulting in a far quieter machine with loads of torque even at low rev.

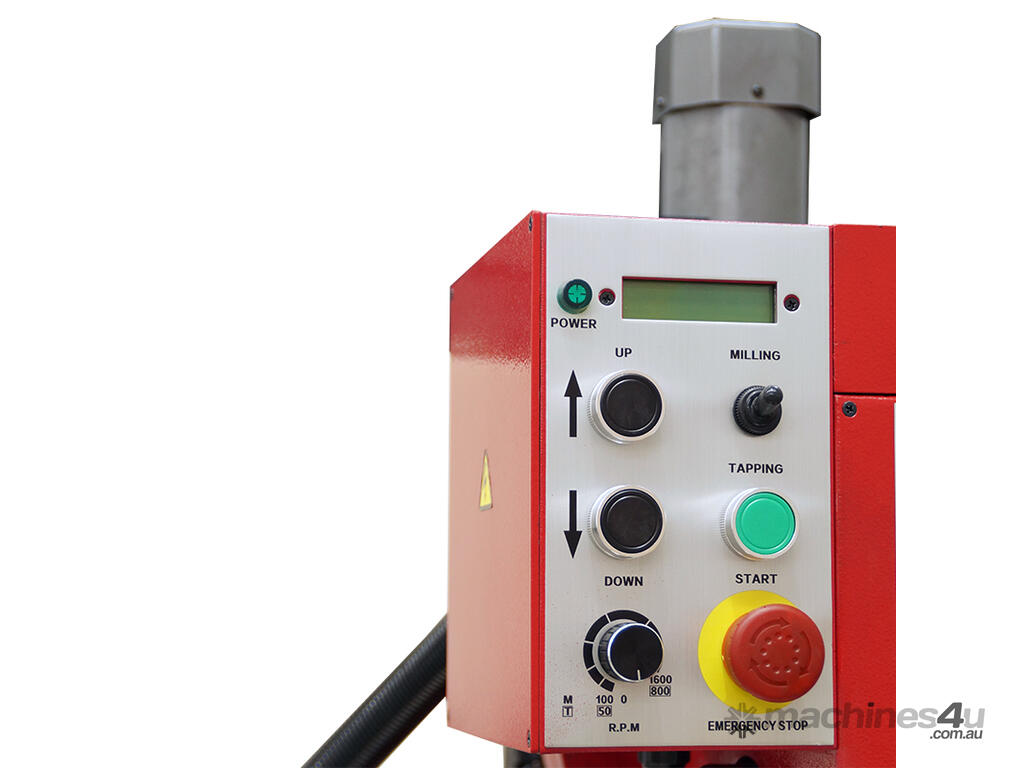

2. Variable speed
3. Large spindle speed display with blue backlight
4. Extra Long Table 700x160mm ( this feature is exclusive to Ausee in Australia )
5. Tapping function
6. Forward / Reverse swtich
7. Powered Z axis travel
8. Fine Feed

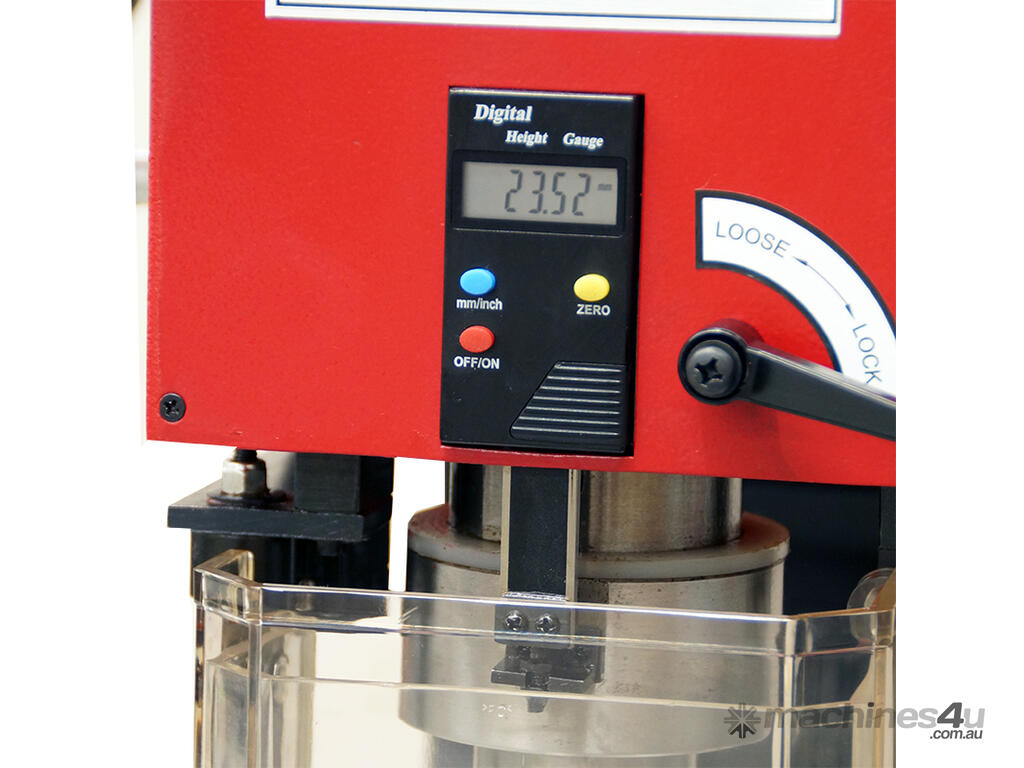

9. Cutting depth digital display with zero and in/mm switch

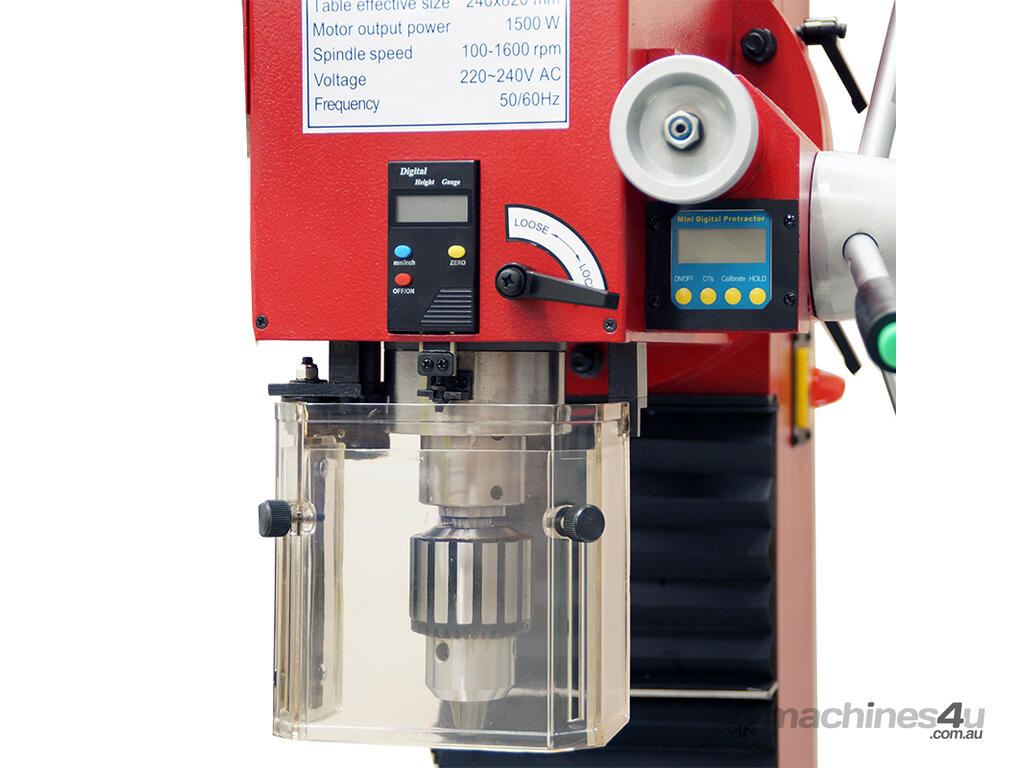

10. Chuck Guard with micro-switch for your safety

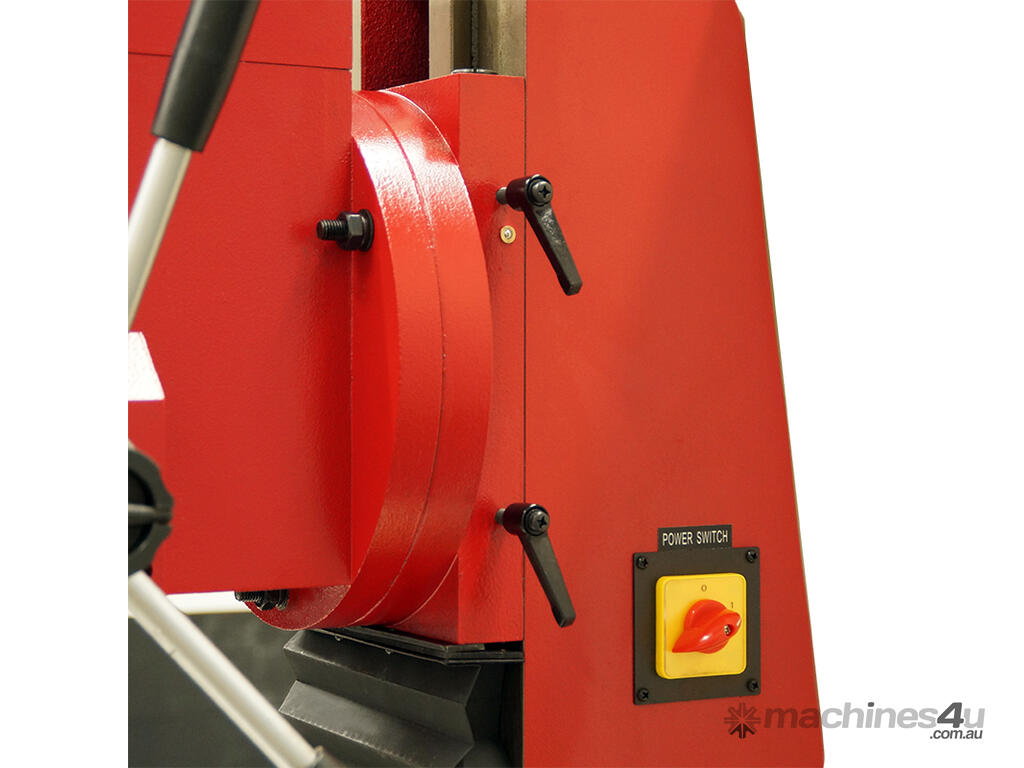

11. Head Tilt with Digital Tilting Angle Digital Display

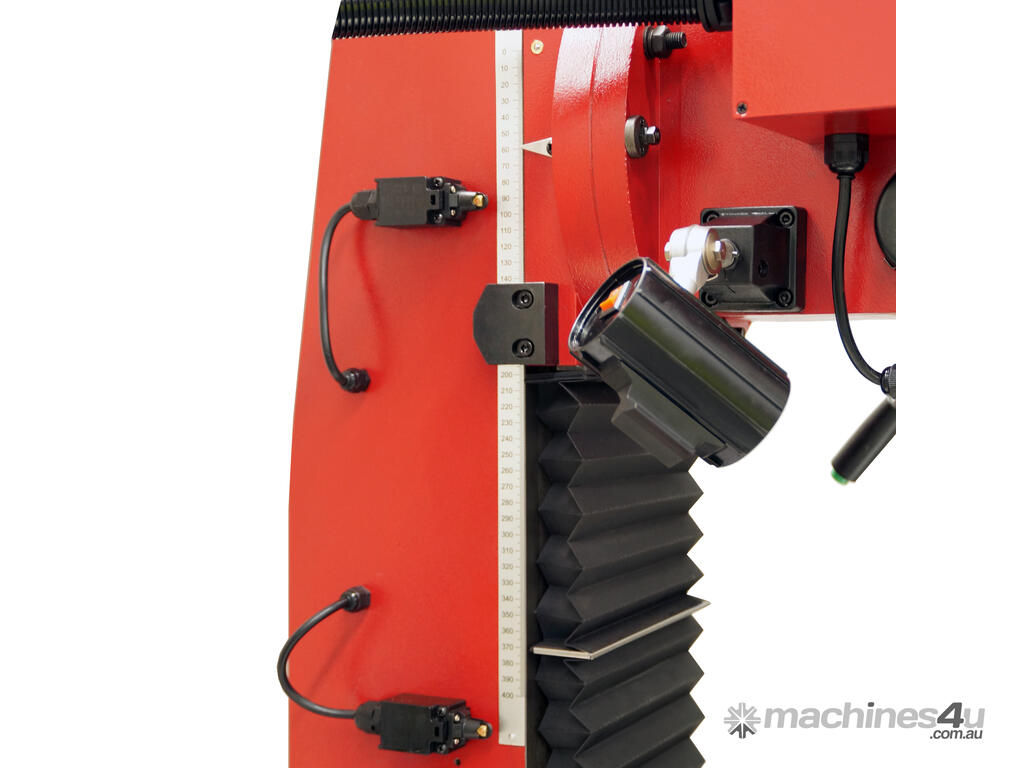

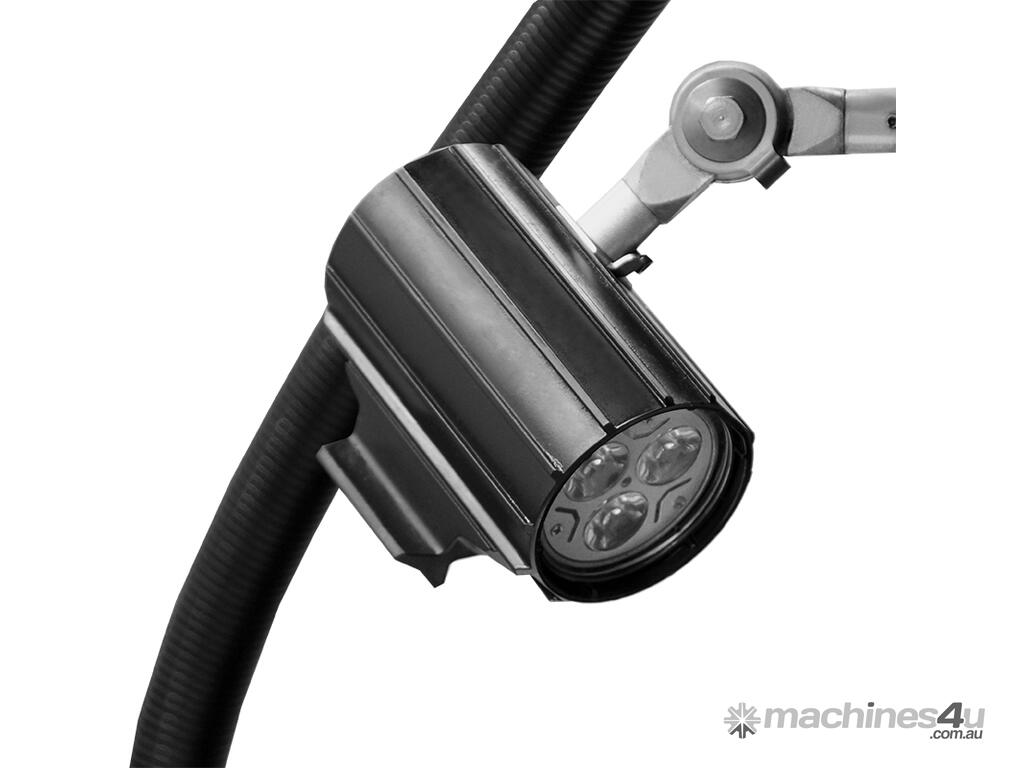

12. LED Worklight
Specifications:
- Drilling Capacity: 30 mm
- End Mill Capacity: 40 mm
- Face Mill Capacity: 55 mm
- Tapping Capacity: 16 mm
- Spindle Stroke: 80 mm
- Table Cross Travel: 245 mm
- Table Longitudinal Travel: 450 mm
- Headstock Travel: 335 mm ( powered )
- Spindle Taper: MT3 or R8
- Throat: 245 mm
- Spindle to Table Distance: 430 mm
- Table Size: 820x240mm
- Table Effective Size: 820x240mm
- T-Slot size: 14 mm
- Head Tilt: ?45°
- Column Type: Fixed
- Motor Output: 1500W Brushless High Torque Motor
- Spindle Speed: 0 - 1600 rpm
- Overall Dimension: 1060x840x1160
- Weight (Net/Gross): 310/340kg
Optionals
Power Feeder available for this mill
SX4-Pro Version availalbe and includes below features
a. Machine Stand
b. Power Feeder ( X-Axis )
c. 3-Axis DRO system ( Fibre Glass Type )
d. Collet Holder
( call us for more info )
