SJ-24DK Bead Roller - Motorised Variable Speed 1.2mm Mild Steel Thickness Capacity & 460mm Throat De

METALMASTER SJ-24DK Bead Roller - Motorised Variable Speed 1.2mm Mild Steel Thickness Capacity & 460mm Throat Depth Includes 7 Sets Of Rolls, Now Includes Shearing Rolls
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: K140

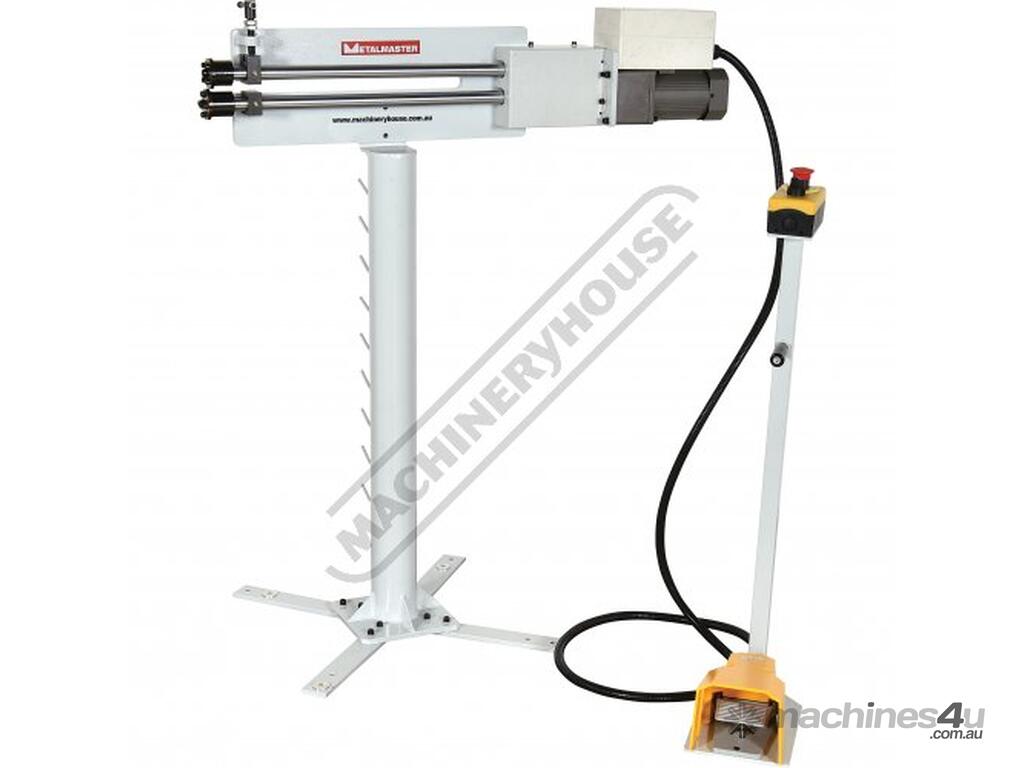

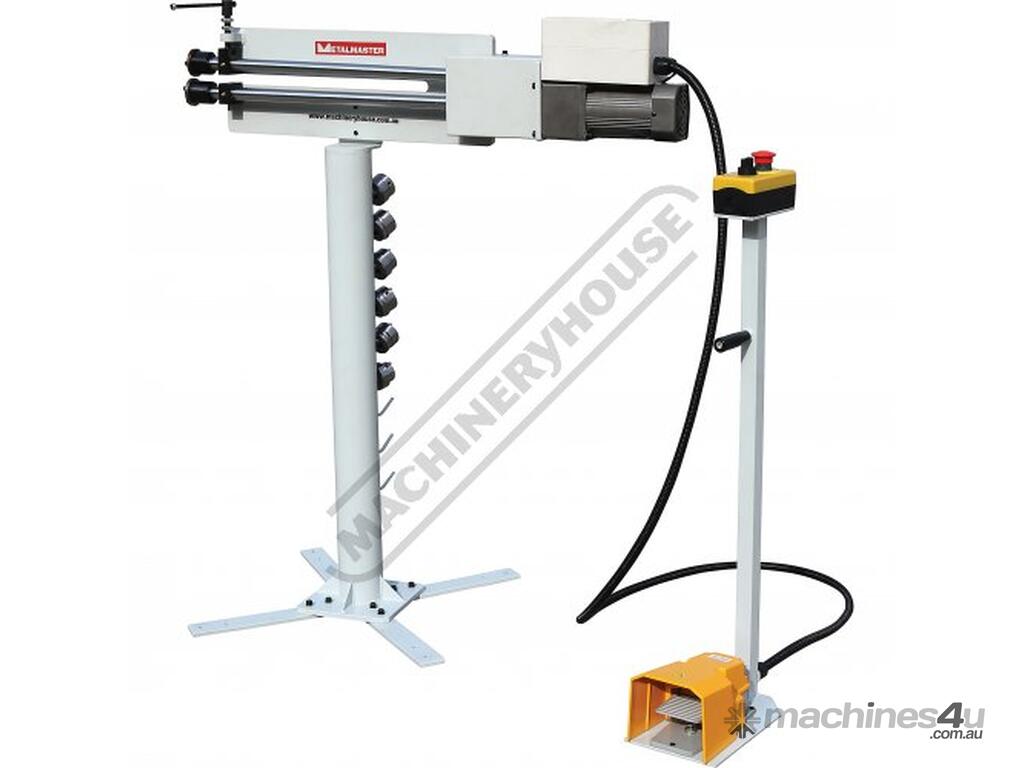

The Metalmaster SJ-24DK Motorised Variable Speed Bead Roller Package Deal is perfect for the automotive enthusiast starting out in repairing or reproducing car panels, or for anyone wanting to strengthen automotive body panels, roofs, seals or even guards. Constructed from heavy-duty plate steel.

The SJ-24DK Bead Roller kit can handle up to 1.2mm mild steel sheet metal at a generous 460mm throat depth and the 0 -20rpm output variable speed roller is controlled via the foot control pedal and the speed can be changed simply by the pressure you apply with your foot.

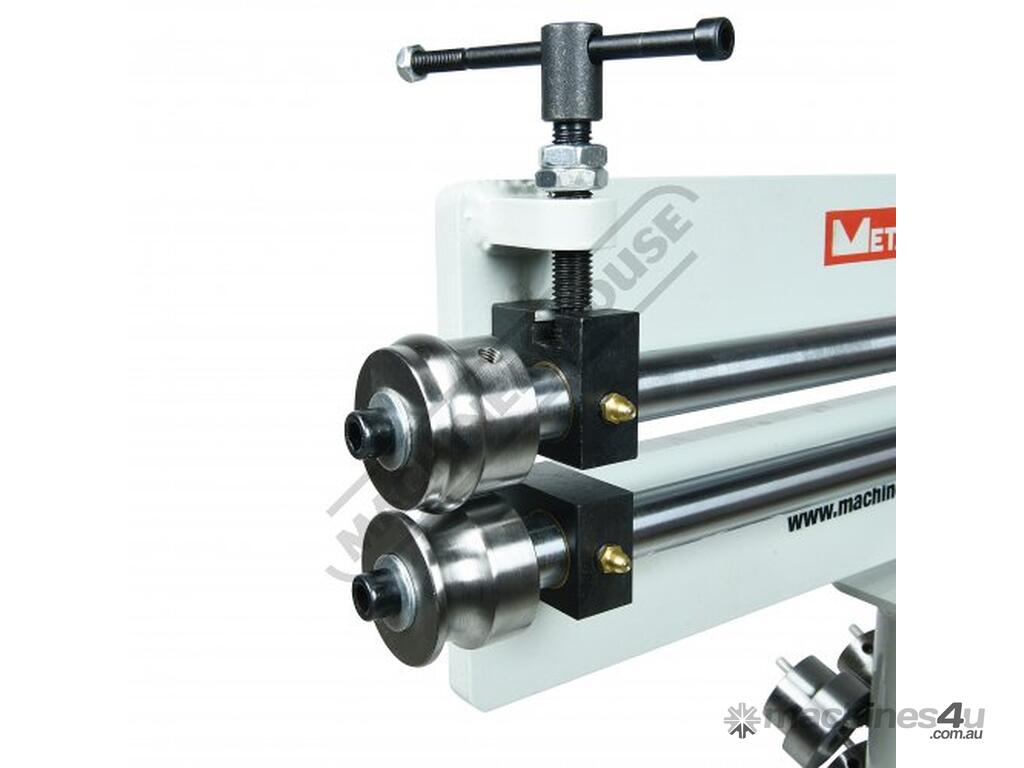

The 25mm drive-shafts are supported in quality bronze bearing bushes that incorporates greasing nipples to ensure smooth rolling operation for many years of use.

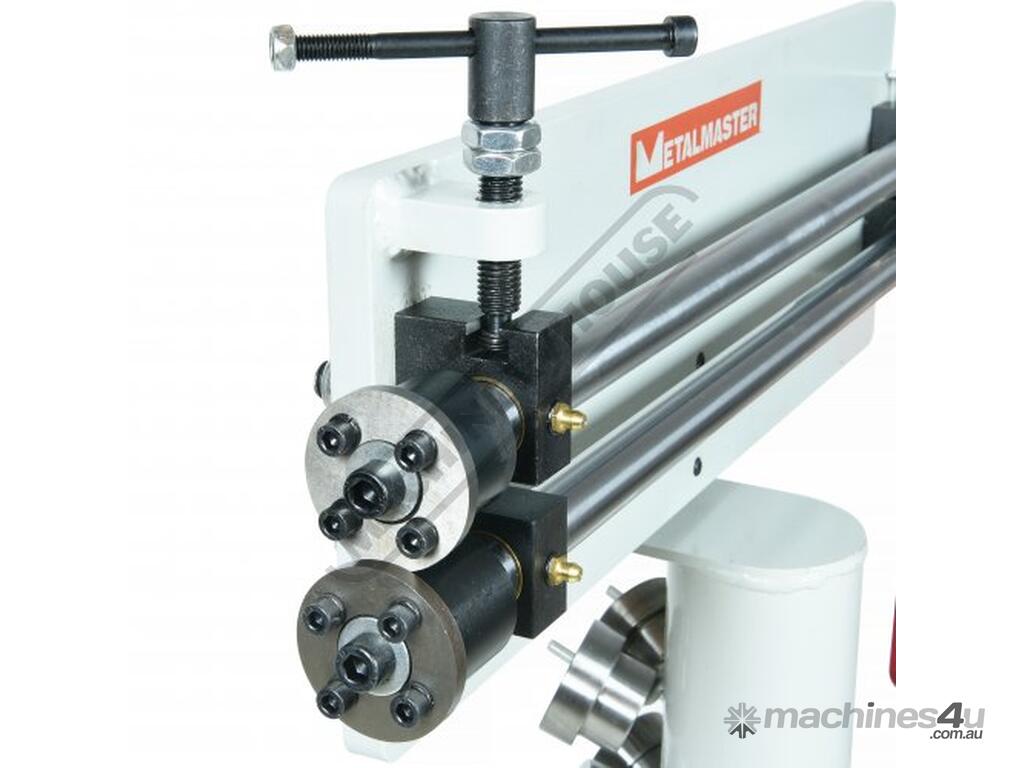

The SJ-24DK also includes 7 sets of the most commonly used rollers required by any metal forming automotive enthusiast or professional - 1/4”, 3/8", 1/2" bead rolls, 1/2", 1/16", 1/8" flange rolls and a shearing roll set.

Features:
SJ-24D - Bead Roller:
1.2mm mild steel capacity for bead & flange rolls
1.0mm mild steel capacity for shearing rolls
Heavy duty steel construction

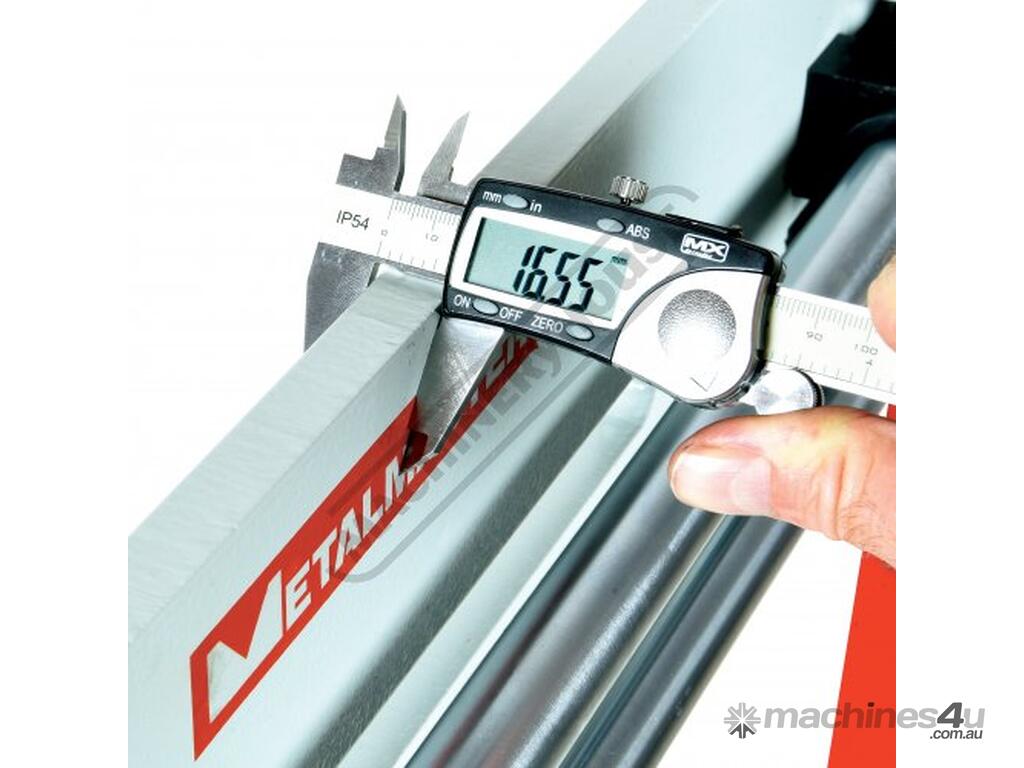

Strengthened frame with 16mm steel
Strengthened stand with 88mm steel pipe

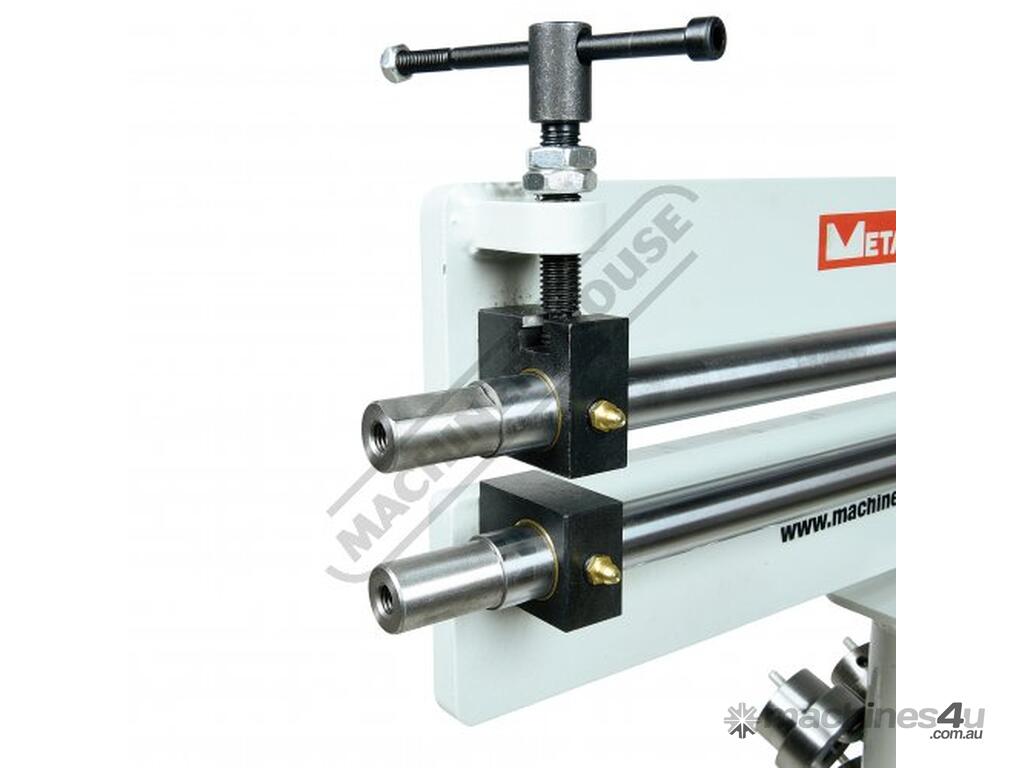

Ø25mm drive shafts
Ø22mm spigot for mounting rollers
Ø54mm bead rollers

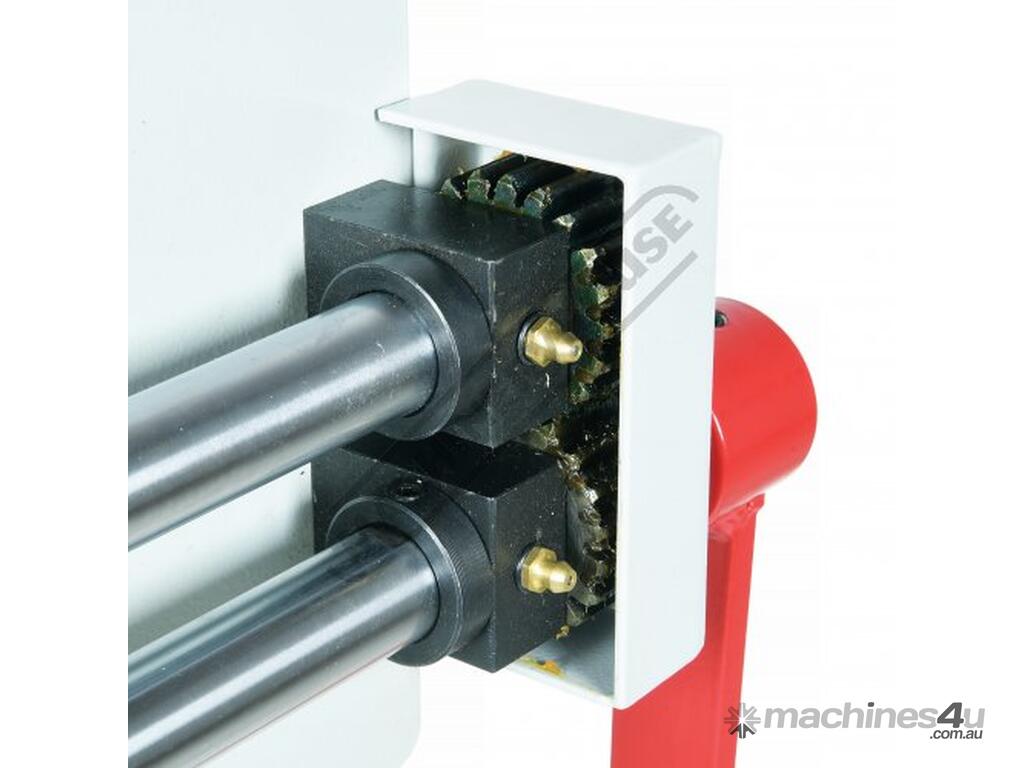

Gear driven system

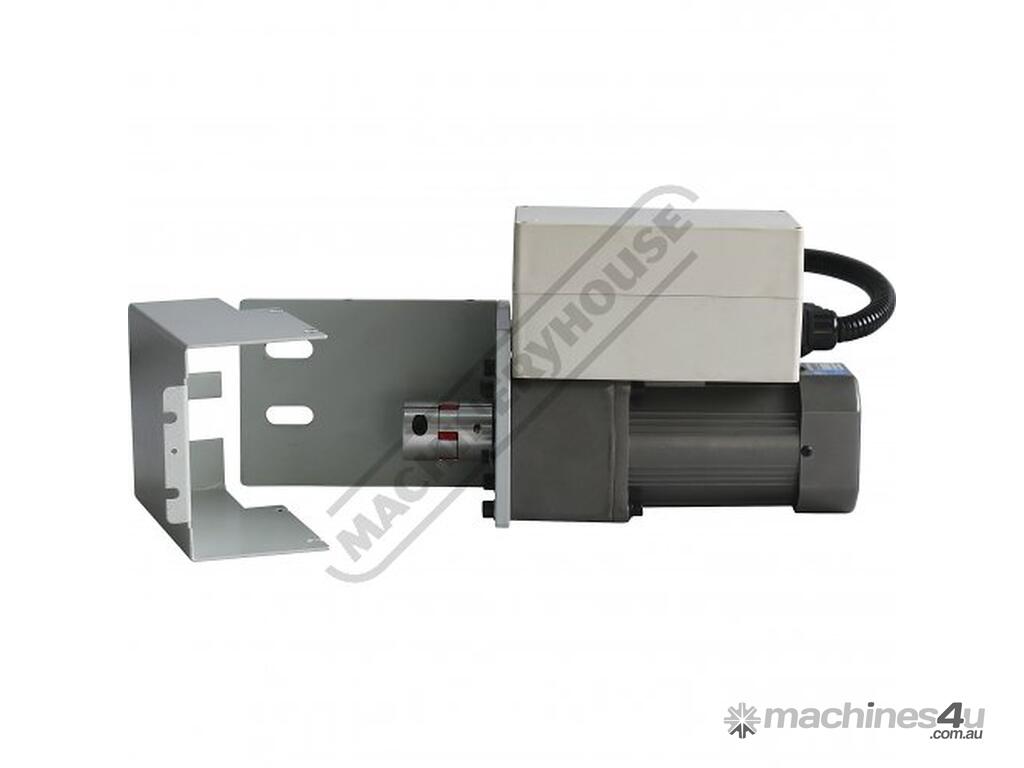

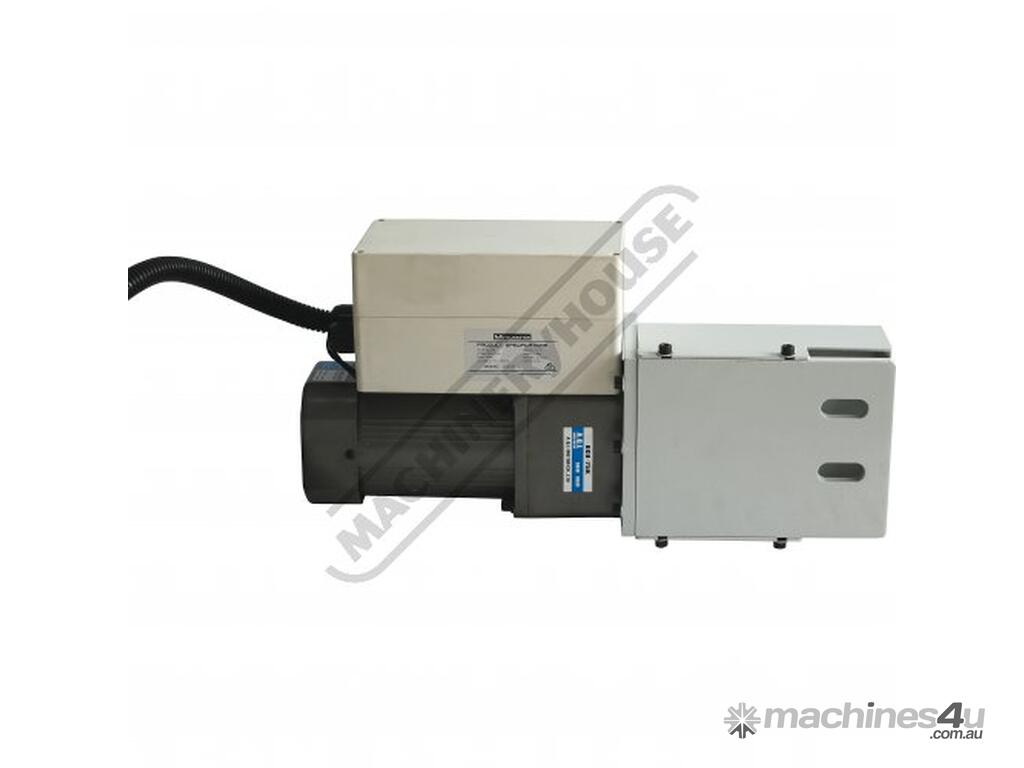

SJ-24MK - Bead Roller Motor Kit:
200W / 240V variable speed drive motor
Forward & reverse motor switch

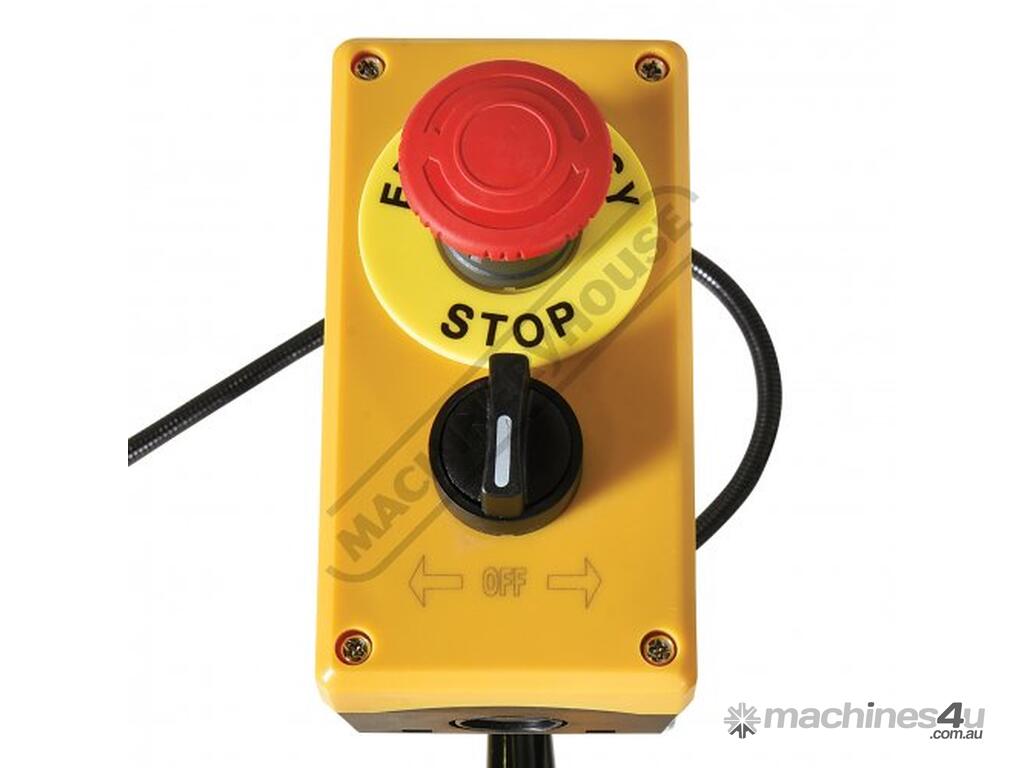

Includes mounting bracket & foot pedal with emergency stop

Please Note: Some assembly is required to fit motor to Bead Roller

Includes:

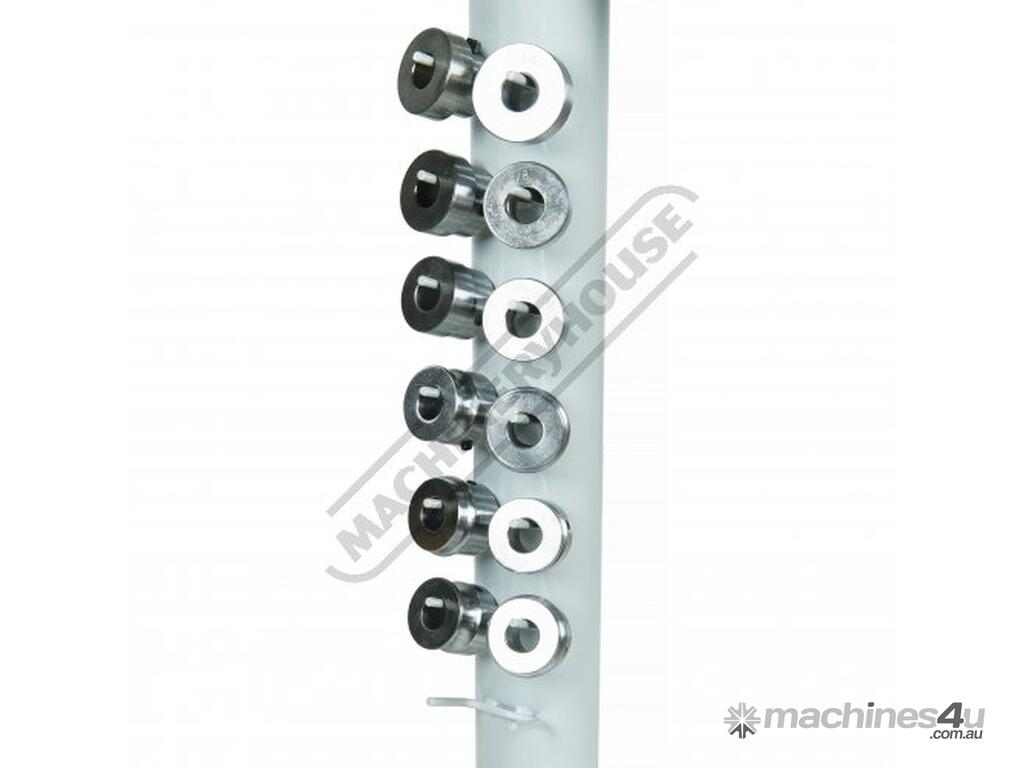

- 7 Sets of rolls with Ø22mm bore:

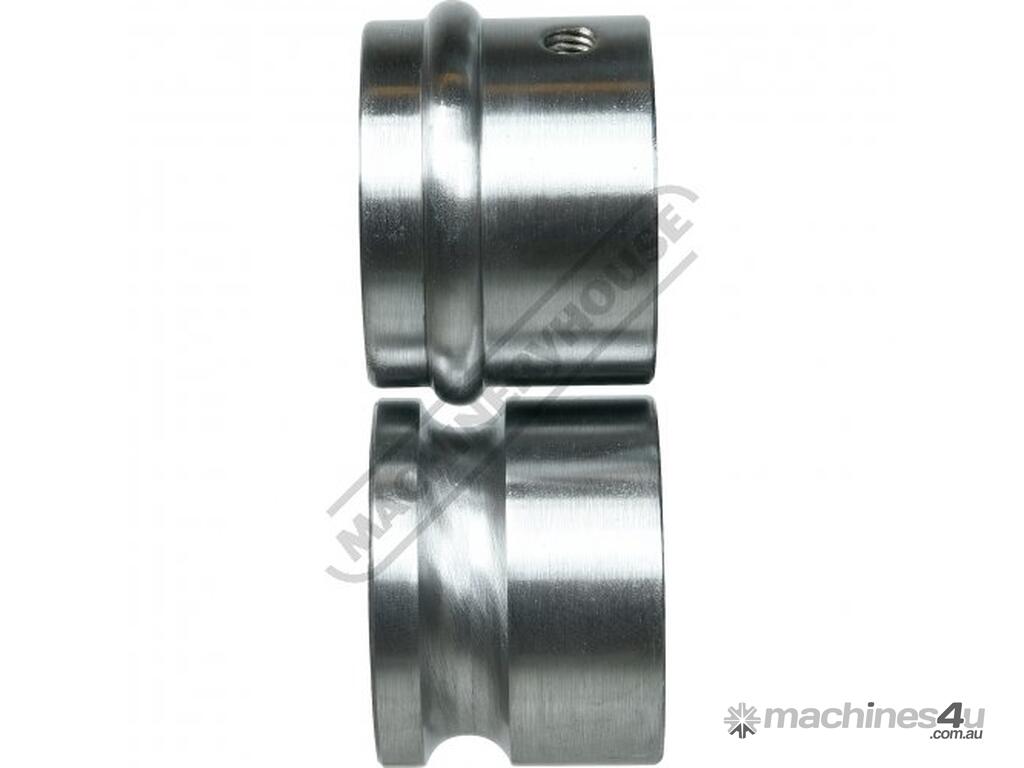

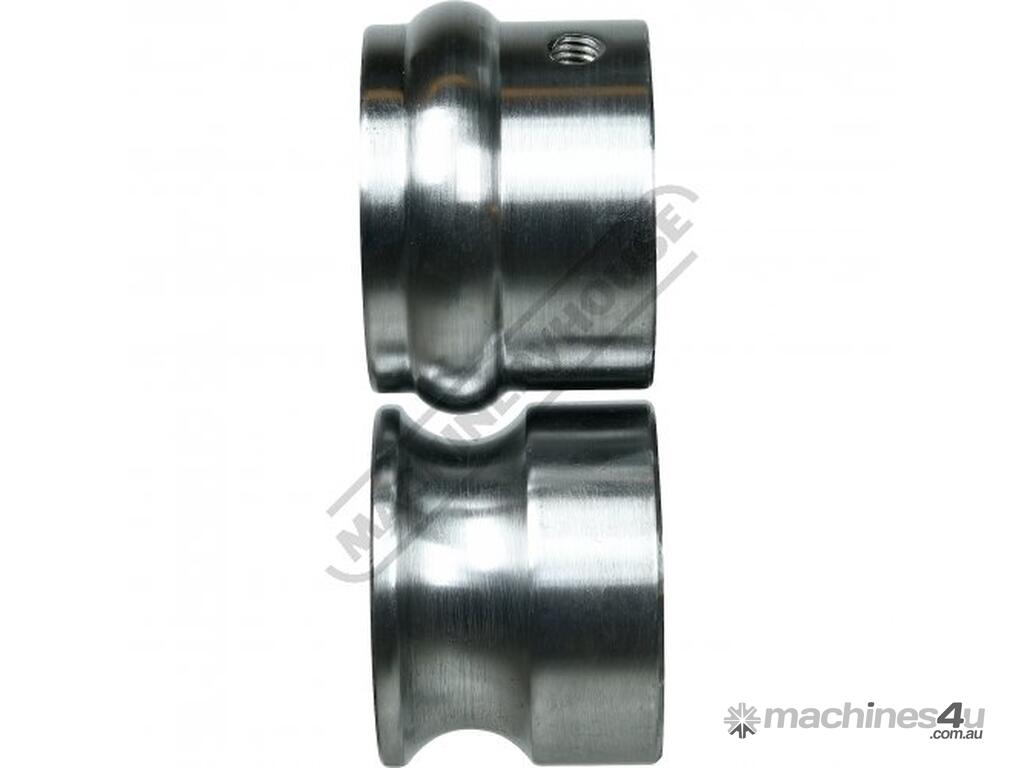

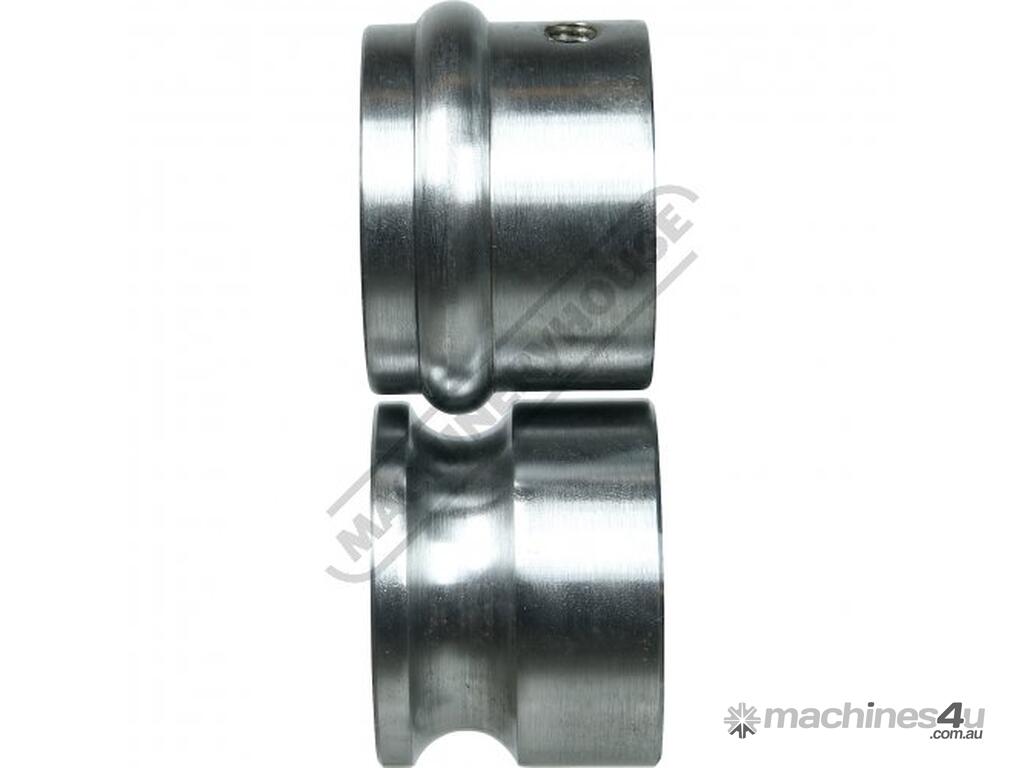

- 1/4" (6.35mm) single bead roll set
- 3/8" (9.5mm) single bead roll set
- 1/2" (12.7mm) single bead roll set

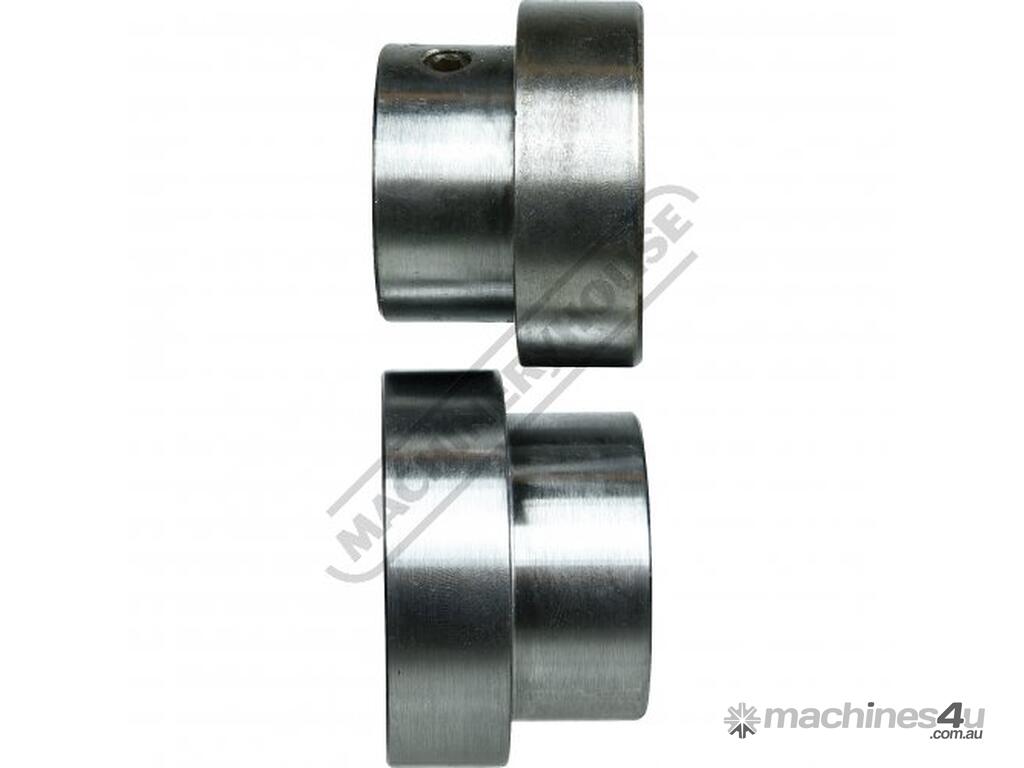

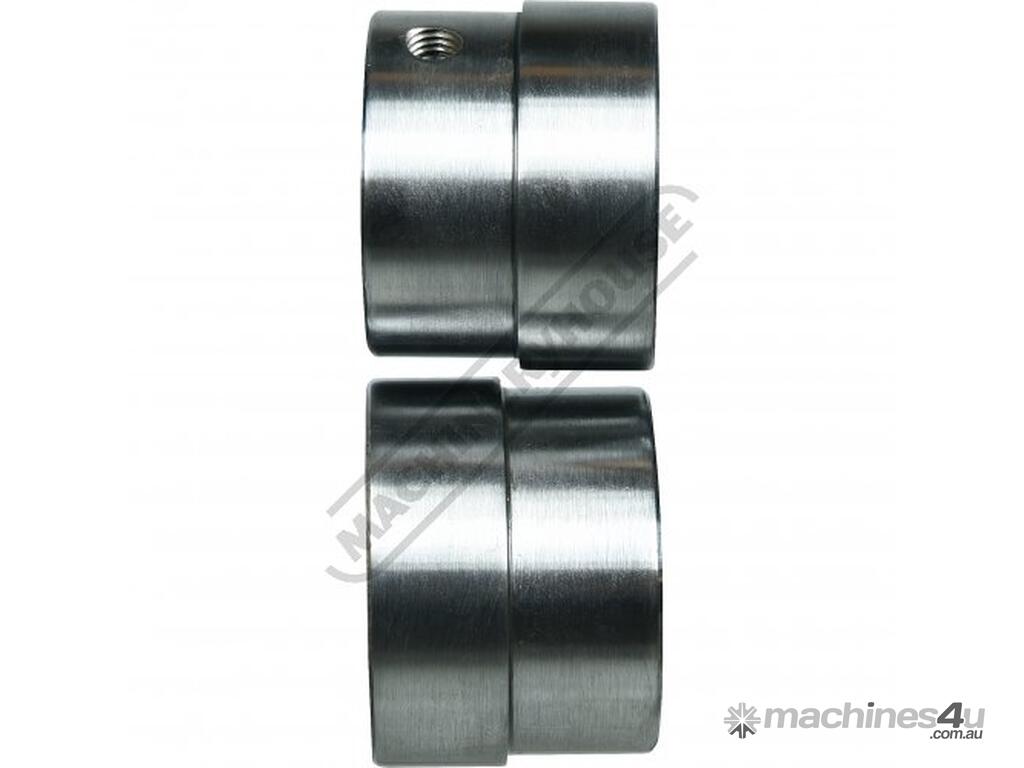

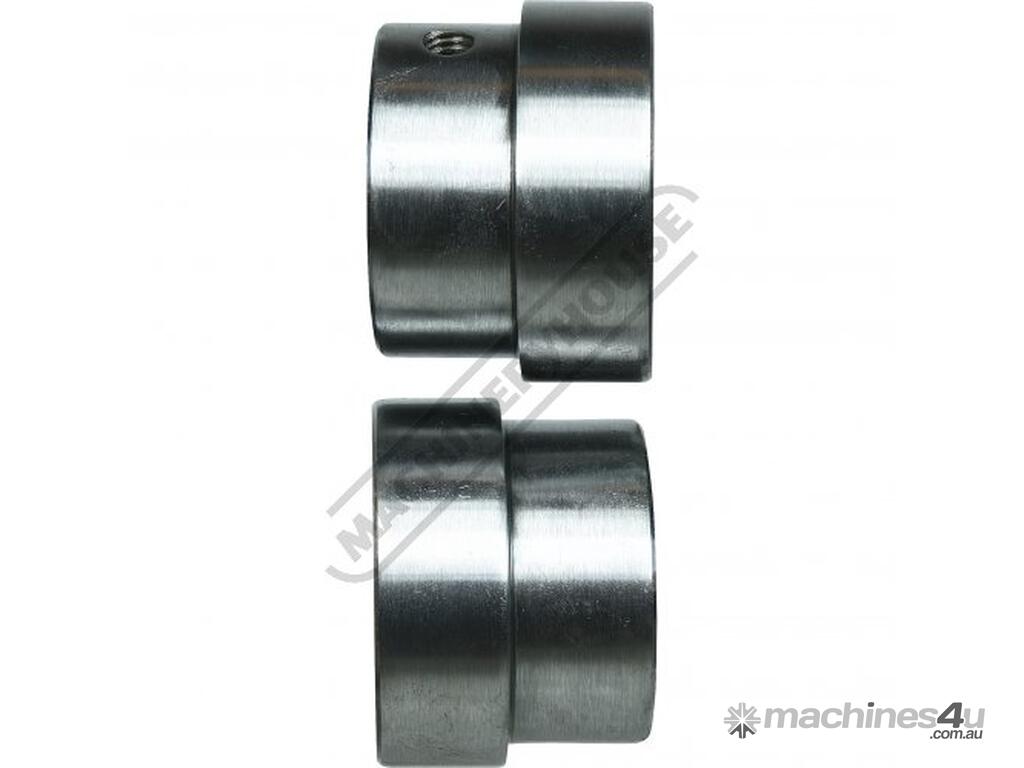

- 1/16" (1.6mm) flange roll set
- 1/8" (3.2mm) flange roll set
- 1/4" (6.35mm) flange roll set

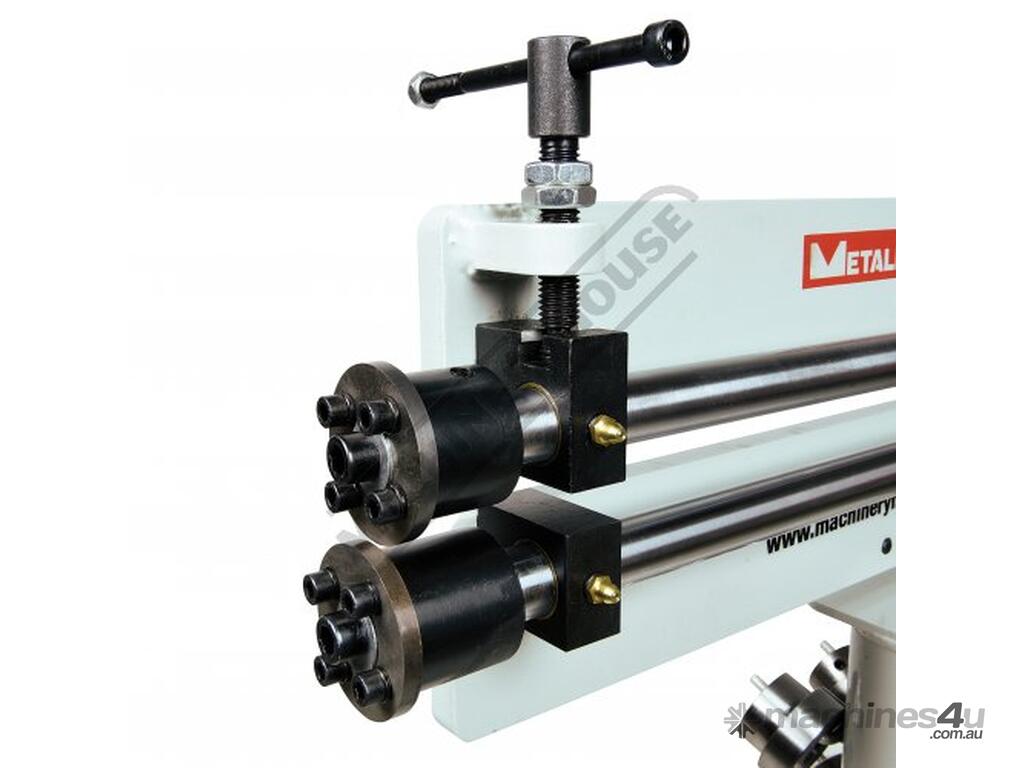

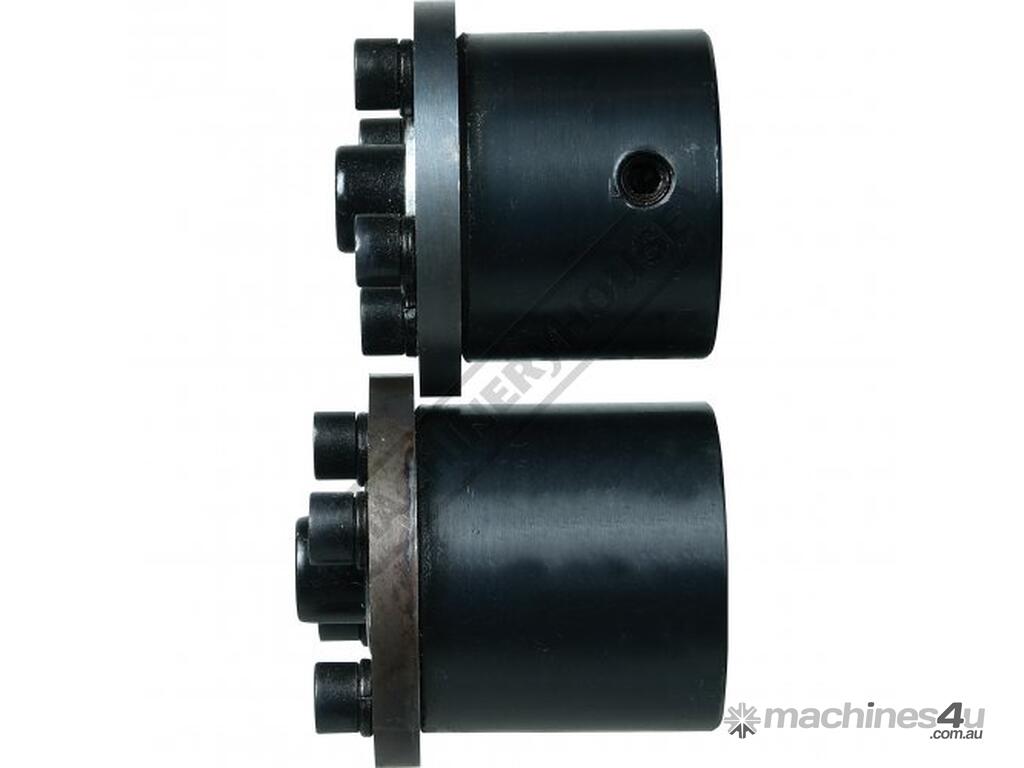

- Shearing roll set



Specifications:
ORDER CODE: K140
MODEL: SJ-24DK
Machine (Type): Bead Roller - Motrised
Mild Steel - Thickness Capacity (mm / Gauge): 1.2 / 18
Aluminium - Thickness Capacity (mm / Gauge): 1.6 / 16
Throat Depth Maximum (mm): 460
Throat Height (mm): 20
Roll Diameter (mm): 52
Output Drive Speed (rpm): 0 - 20
Motor Power (kW / hp): 0.2 / 0.27
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 61
