SKALA - SKALA - TEUTON Z60 600HP Universal Shredder 120t/h

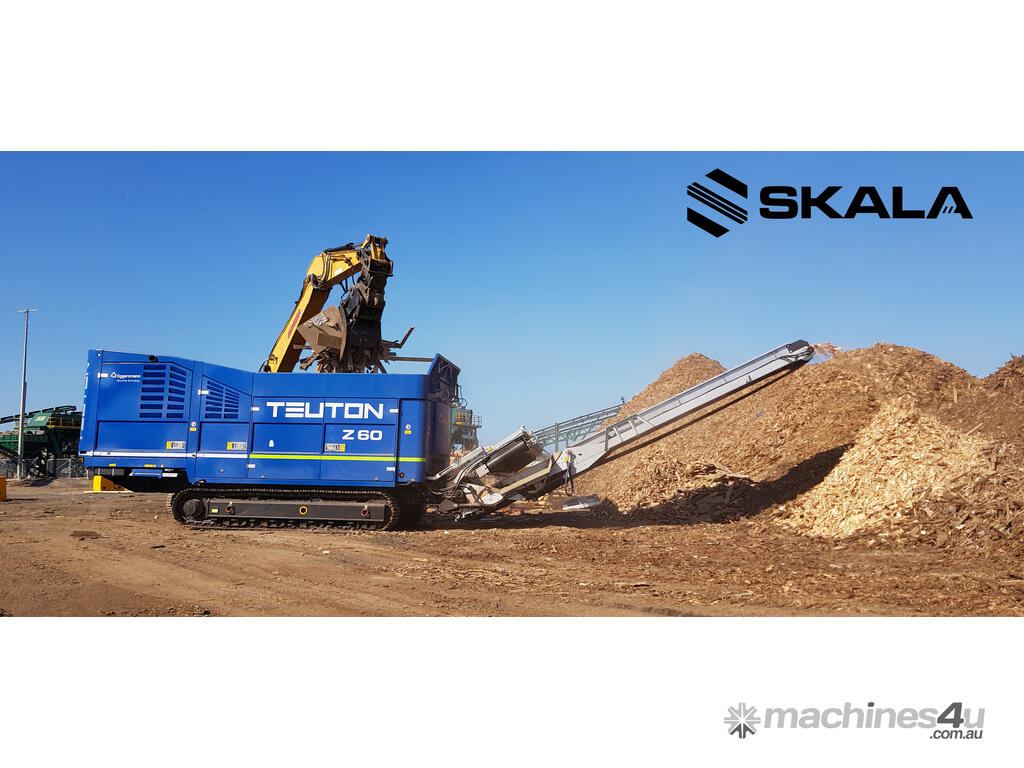

The German engineered TEUTON Z 60 Slow-Speed Universal Shredder handles pre-crushing to the final product with just one machine.

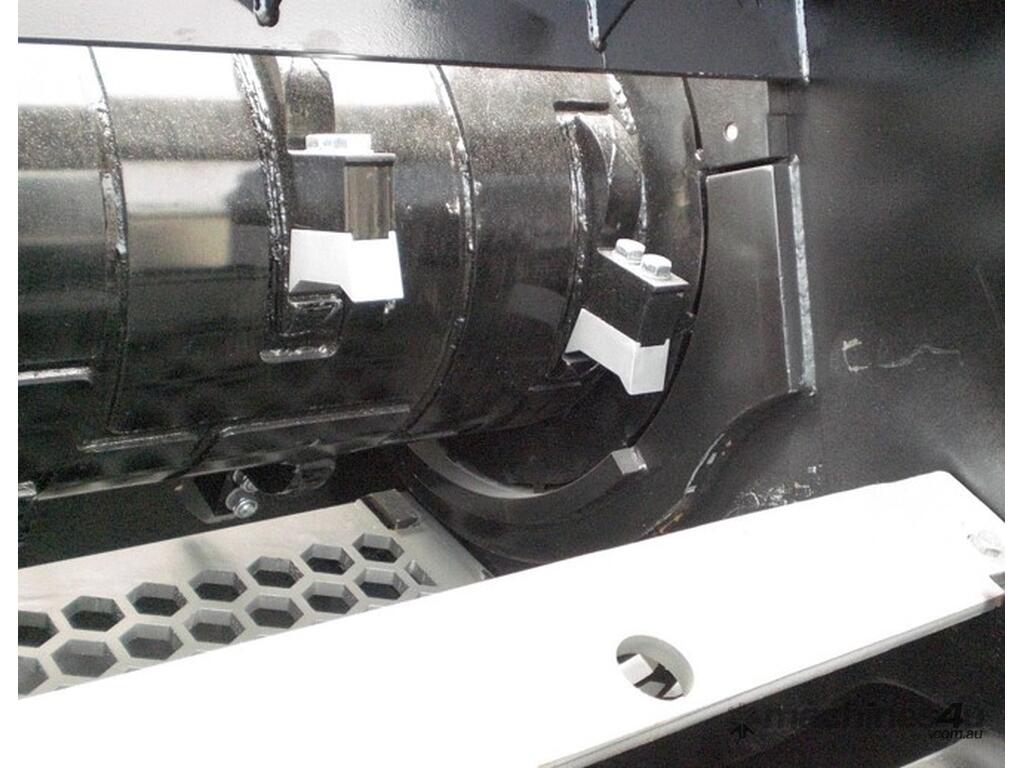

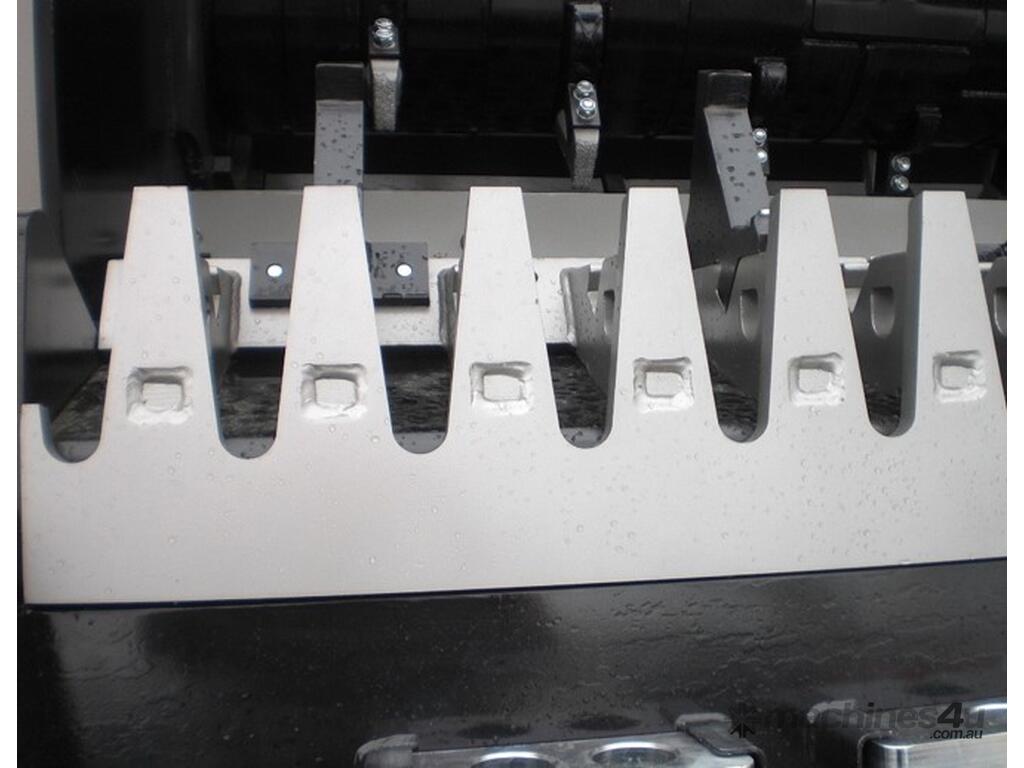

30 tools are mounted to the 3m-long shredding rotor, and the counter comb is equipped with 19 teeth. Its simple and sturdy design enables a quick and flexible variation of the distances between the rotor tools and the counter comb tools. Depending on the requirements, different setting options are available to react to the desired size of the finished product.

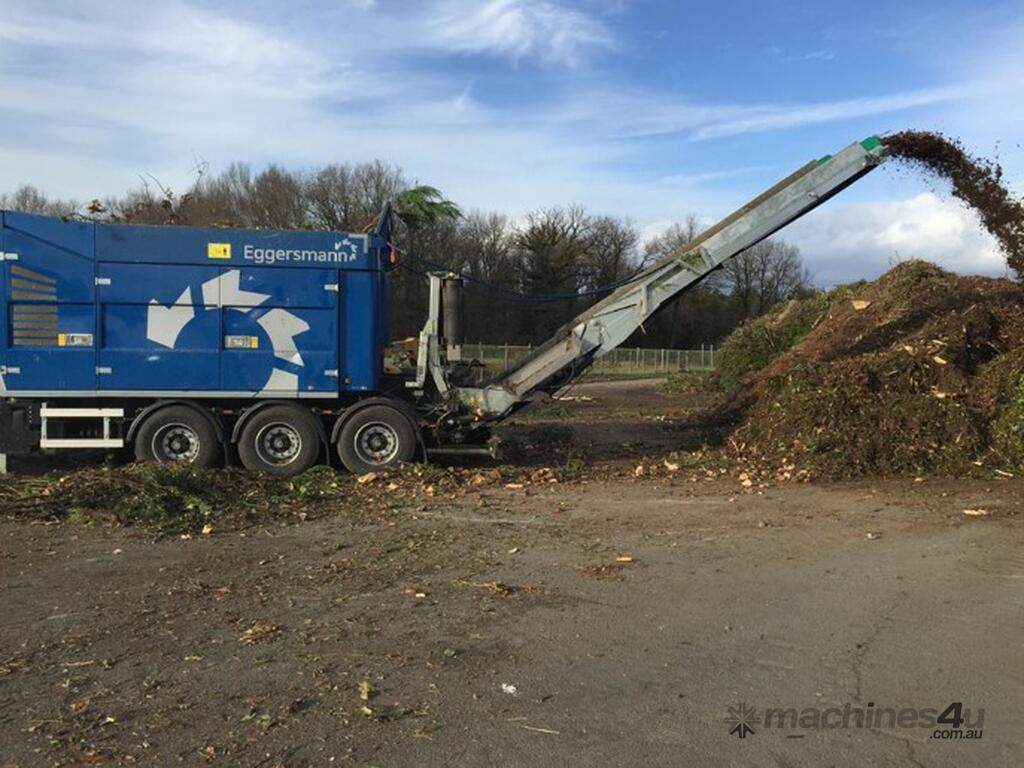

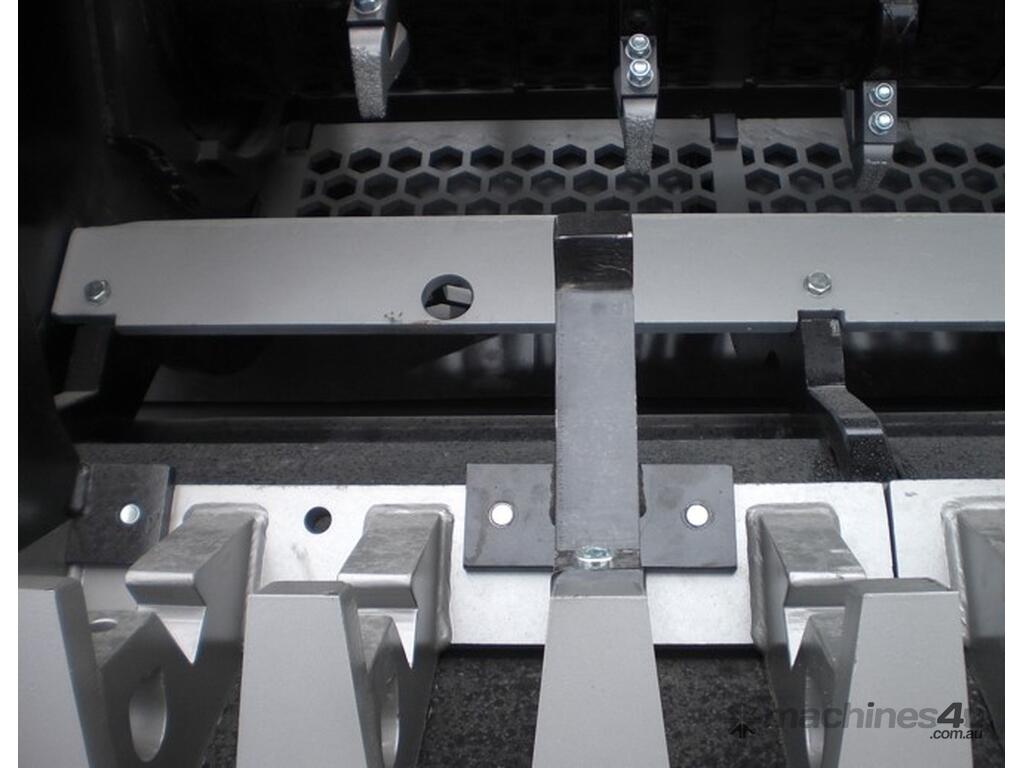

After passing the counter comb, the material falls onto the discharge conveyor. As an option, the machine can be equipped with a screen basket. In that case, the shredded material first falls onto this screen basket, which encloses the lower half of the rotor. The size of the finished product can additionally be adjusted with the screen basket.

Features of the TEUTON Z 60 include:

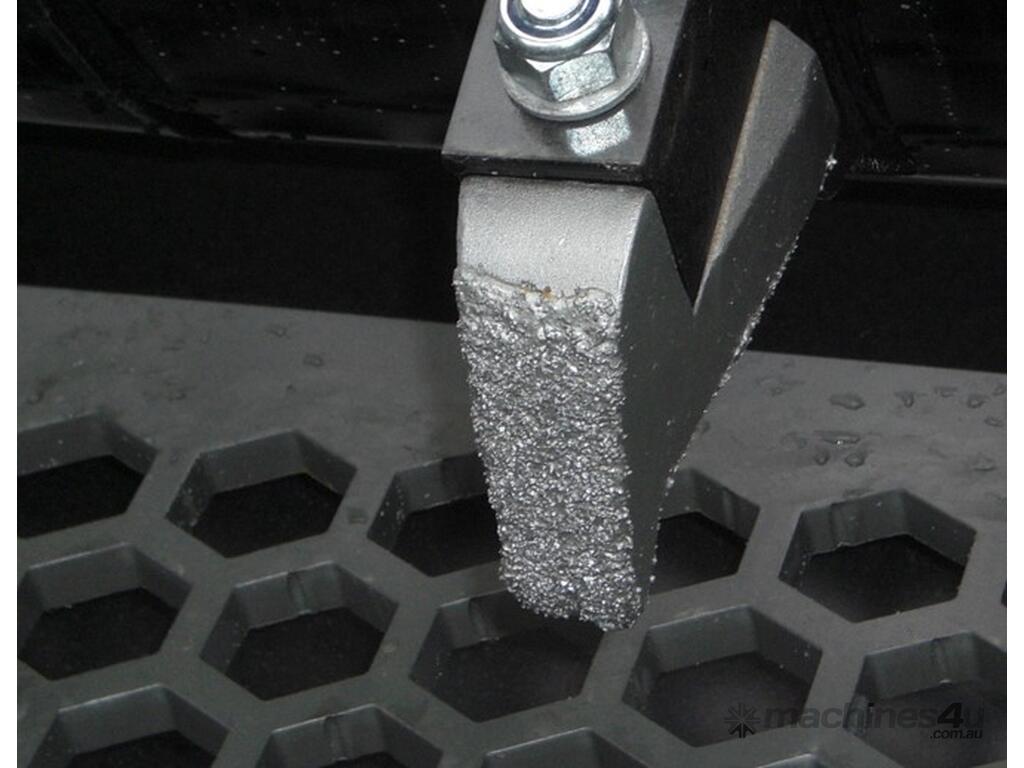

-The rotor with spiral shaped, exchangeable tools tears the material through a counter comb which is adjustable in 10 steps
-30 interchangeable shredding teeth in three rows distributed over the shredding rotor surface
-Eco-friendly with the latest motor technology and lowest emissions
-6 cylinder Diesel engine Cummins X15, generous cooling system with reversible fan

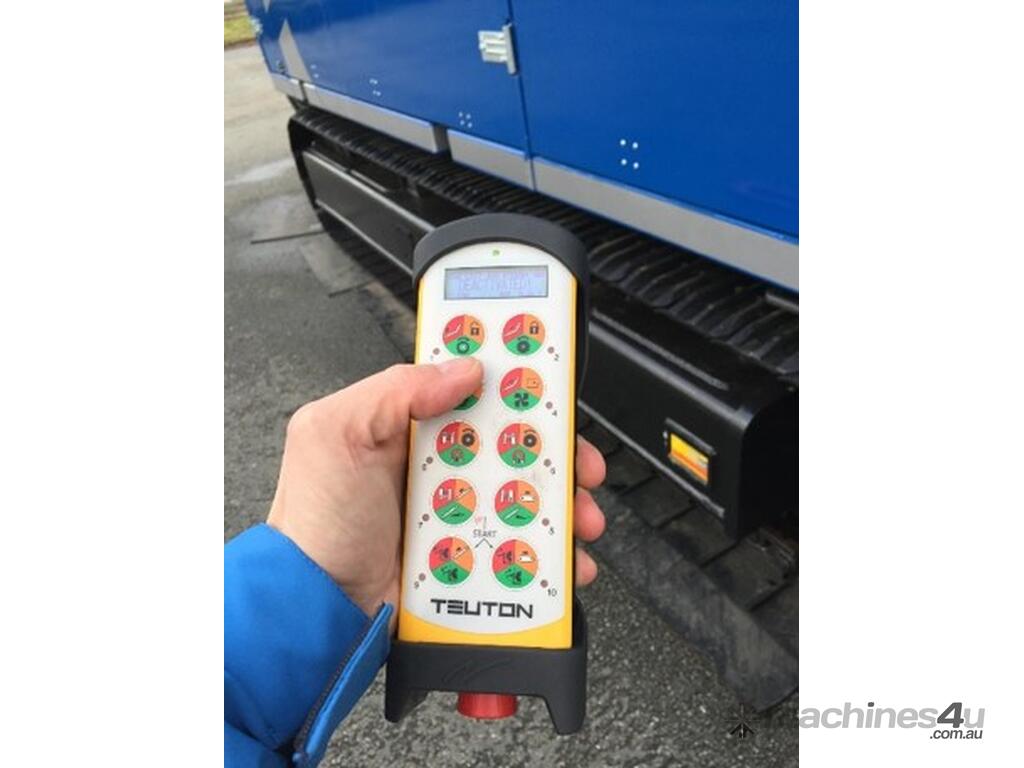

-IFM 7 “ touch control panel and remote control with screen.


Throughput: Up to 120 t/h

Total weight max. 32 t
Displacement 15 l
Emission standard (Euro-standard) Stage V
Power 447 kW (600 HP)
Tank volume 700 l
Rotor length 3,000 mm
Rotor speed (variabel) max. 40 U/min
Rotor drive Hydromechanically
Rotor diameter max. 1,050 mm


Exclusively distributed in Australia by SKALA.
