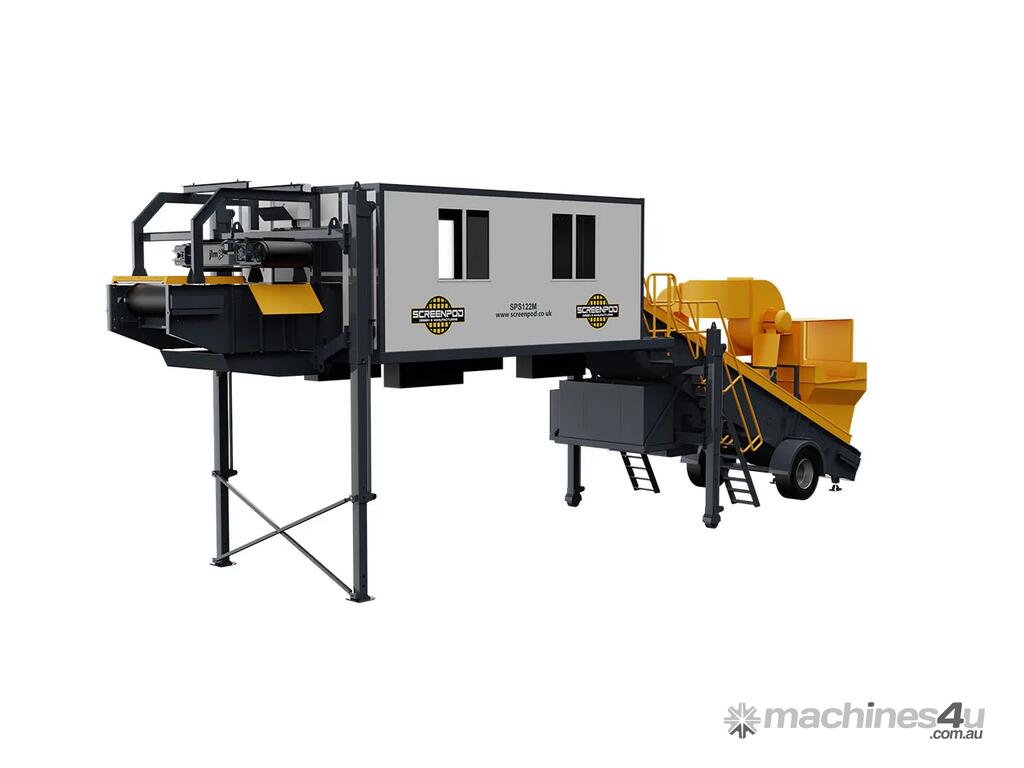

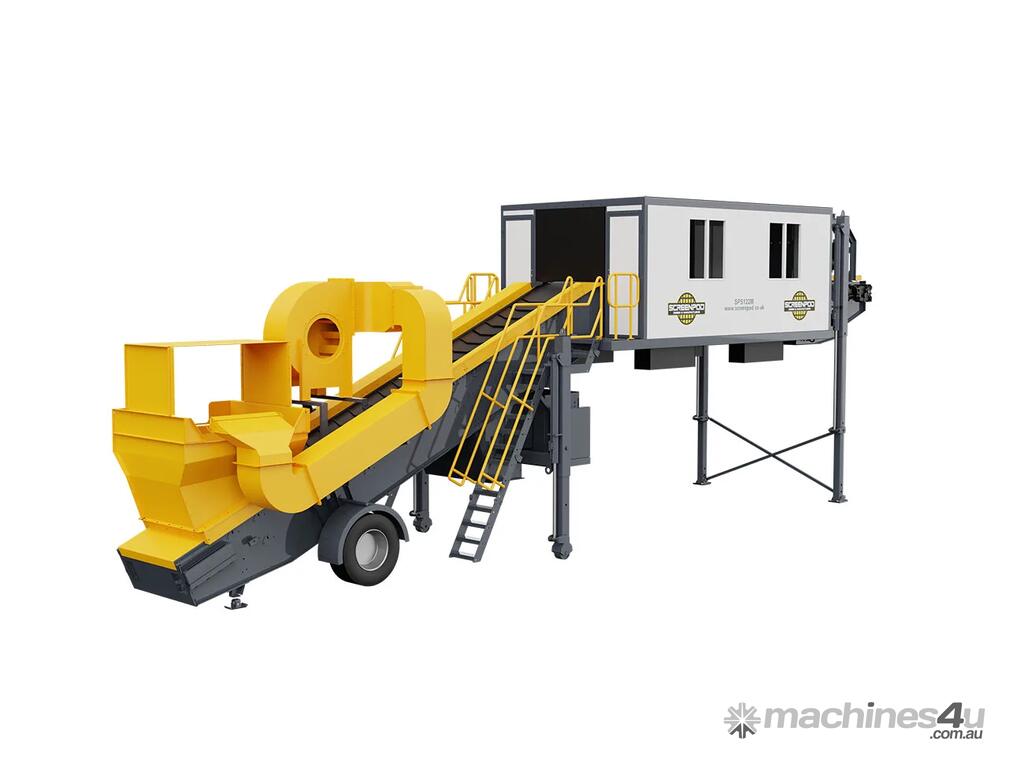

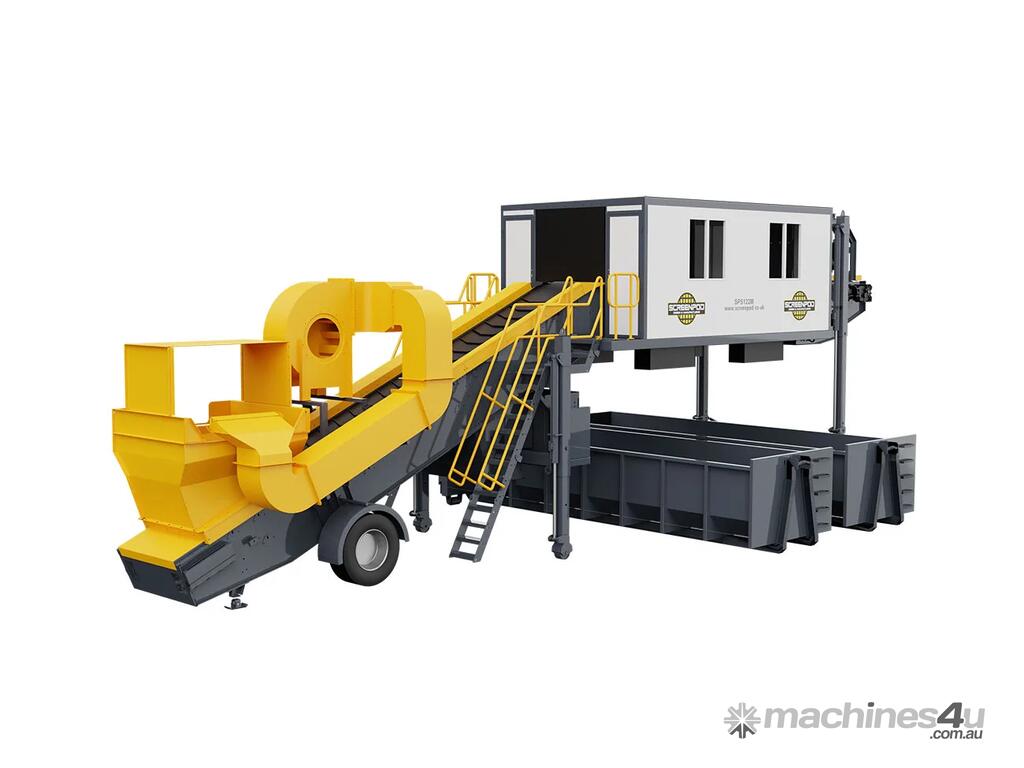

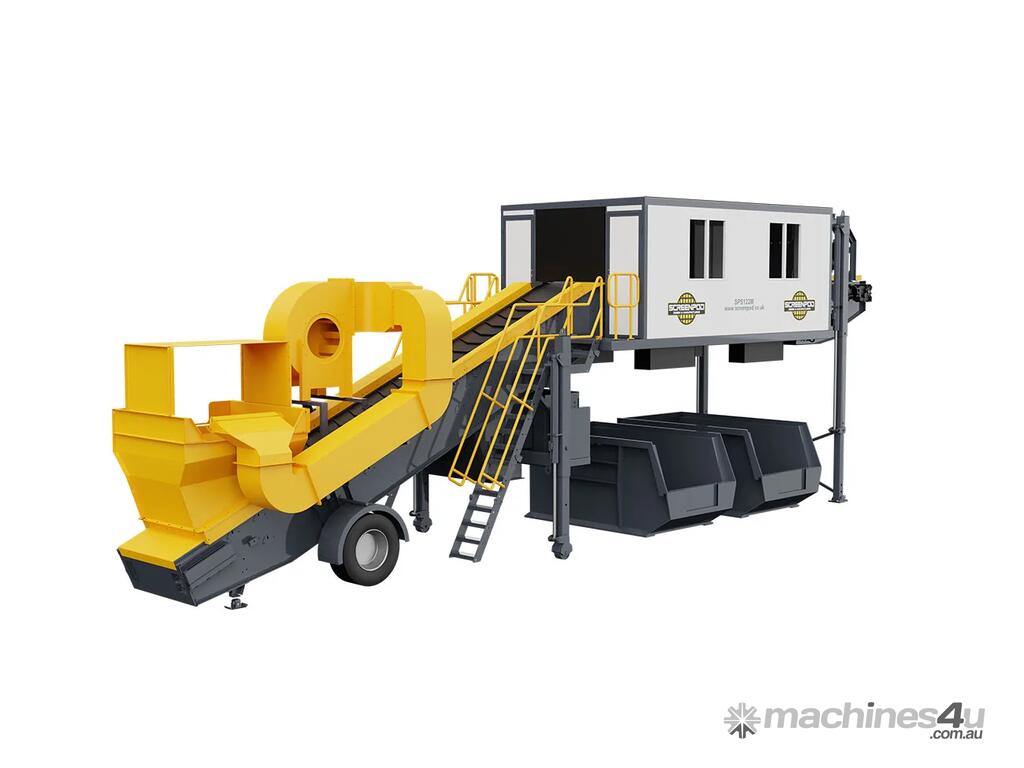

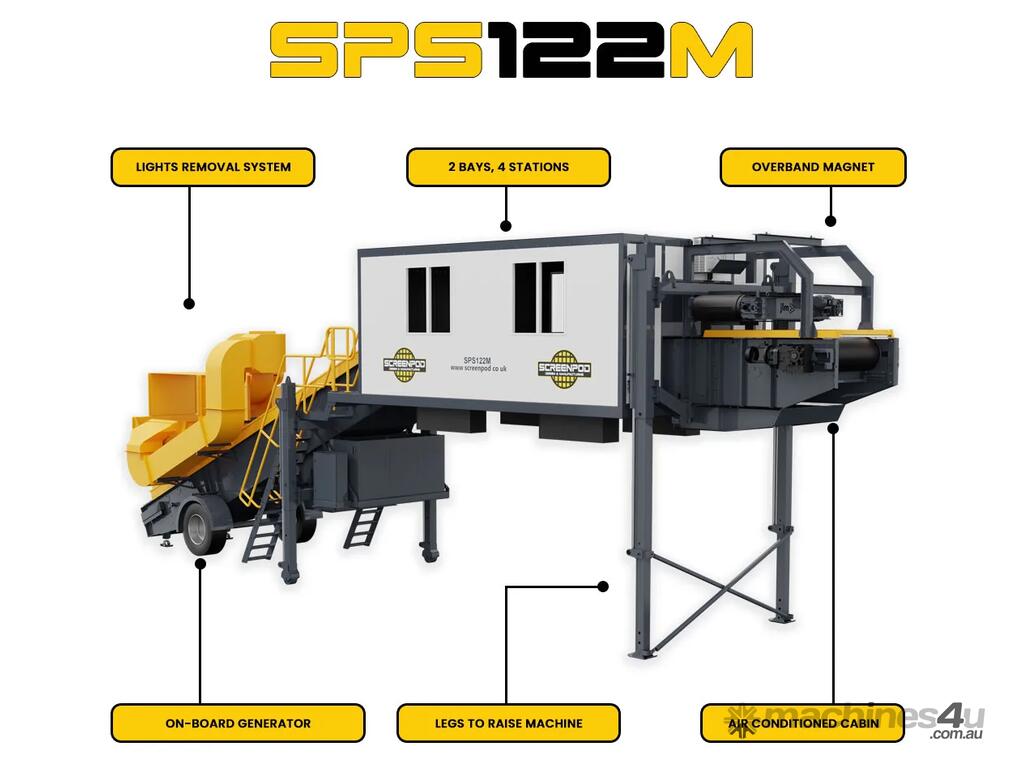

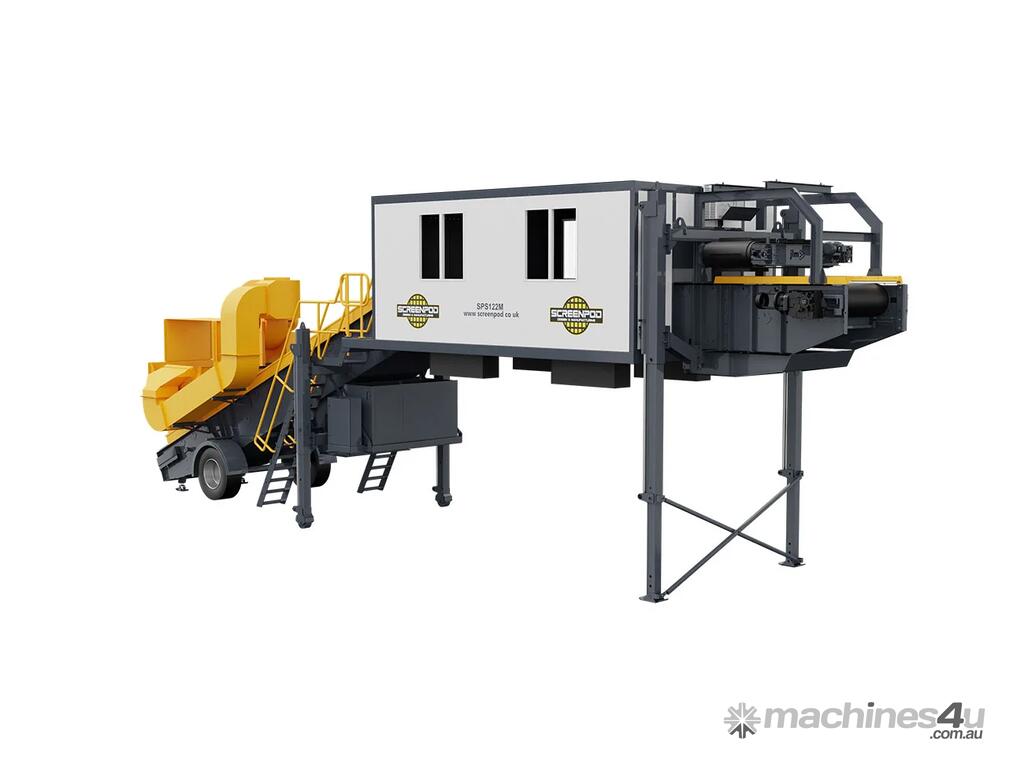

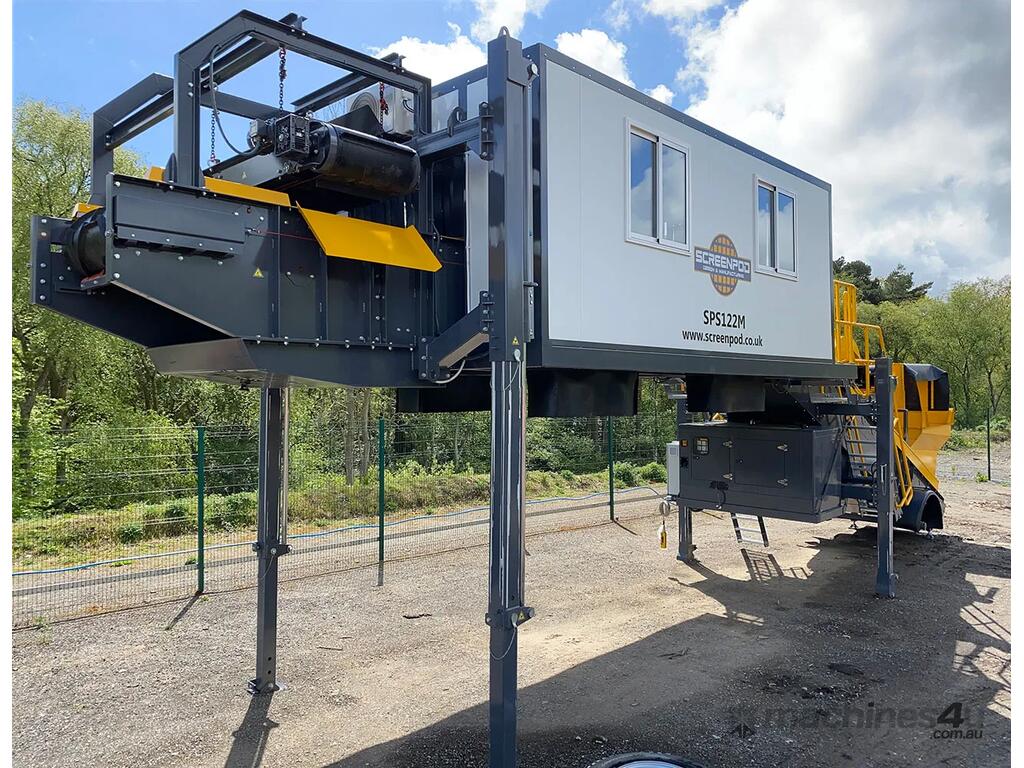

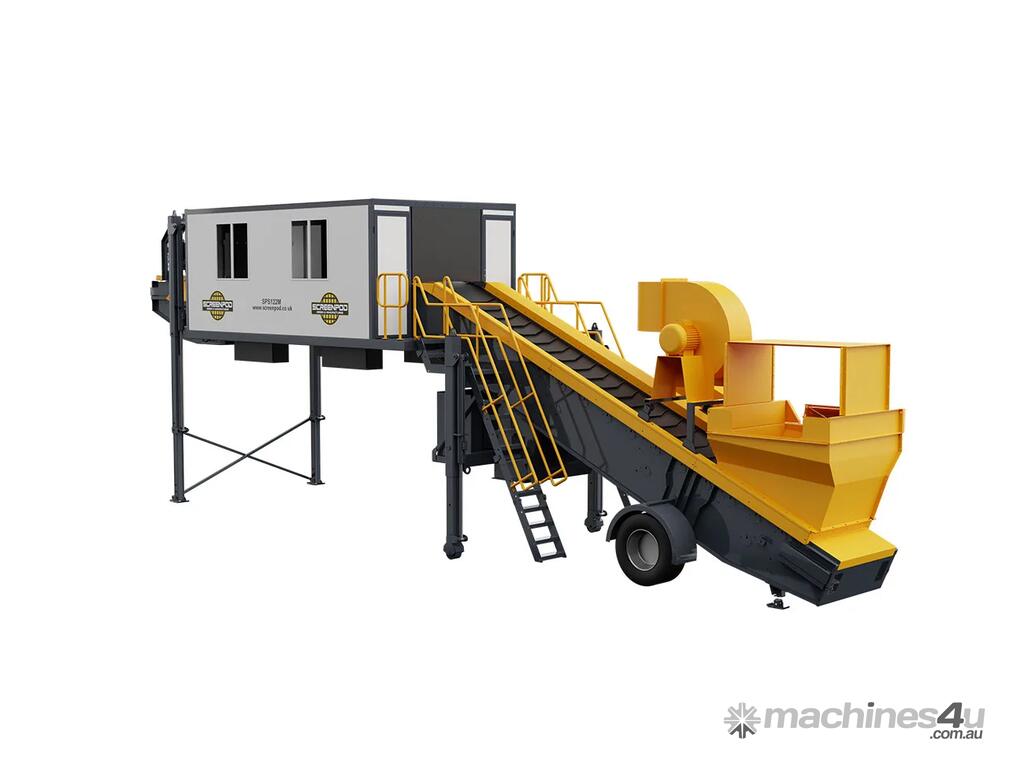

SPS122M Static Picking Station
Offering an incredibly flexible solution from which a huge range of different materials can be processed, the Screenpod SPS122M static picking station provides an all-encompassing platform from which numerous different types of waste can be extracted from a given material waste stream, around any number of sites across a vast range of applications, all from the safety of the on-board, air-conditioned cabin.
PICKING PLATFORM
- Cabin with four picking stations
- Overall cabin dimensions: 5.45 x 3.26 x 2.45m
- 4 x sliding windows and 2 off access doors
- Dimensions Picking bins: 1100 x 500mm (foldable)
- Heating and lighting
- 2 off access steps with handrails
- 1200mm wide and 16500mm long picking belt
- Belt spec: EP400/3 3 + 2 ribbed 32/880 mm
- Motor 1400 rpm B5 IE2 230/400V 50 Hz P: 5.5 kw
- 2 x 215/75 R17.5 wheeled axle c/w 5th Wheel coupling for on-site movement
OVERBAND MAGNET (OPI65/2.1 MODEL)
- 2100mm long (between centres) 650mm wide belt
- 950 x 630 x 250mm permanent magnet
- Maximum clearance height of 250mm for 400 gauss
- Motor 1400 rpm B5 IE2 230/400V 50 Hz P: 2.2 kw
BLOWER UNIT (CAM 1000 MODEL)
- 1 x 11kw (15hp) Blower unit ( 950rpm)
- Maximum exit flow of 34,500m3/h
- Discharge chute
HYDRAULIC ELEVATION OF PLATFORM
- 4 hydraulic jacking rams incorporating a no return system
- Motor 1400 rpm B5 IE2 230/400V 50Hz P:4 kw
ELECTRIC CONTROL PANEL
- Full electric control panel to control all the components of the plant
- Push button control
GENERATOR
- 1 x 44 kVA electric generator including fuel pump
Screenpod mobile picking station also make great Organics Picking Stations
SKALA Australasia is a leader in providing advanced environmental and industrial process equipment across Australia and New Zealand. Specializing in recycling, mining, and industrial solutions, SKALA offers a comprehensive range of products, including screening, shredding, and processing machinery from world-renowned brands. They are experts in designing and supporting custom turnkey recycling plants that maximize efficiency and profitability. Their services extend from initial equipment procurement to installation, commissioning, and ongoing maintenance, ensuring optimal performance and minimal downtime. SKALA’s dedicated team of professionals is committed to delivering innovative solutions tailored to meet the unique needs of each client, making them a trusted partner in the industry?.
Go to the SKALA showroom on Machines4u to see the range of machines that are available for delivery, send SKALA a message or give SKALA a call to discuss the machine that you are interested in, we are more than happy to answer any of your questions and provide a solution for business needs.
* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
