SKALA - ScreenPod SPS122C+ Static Picking Station - Extended Two Bay Picking Station

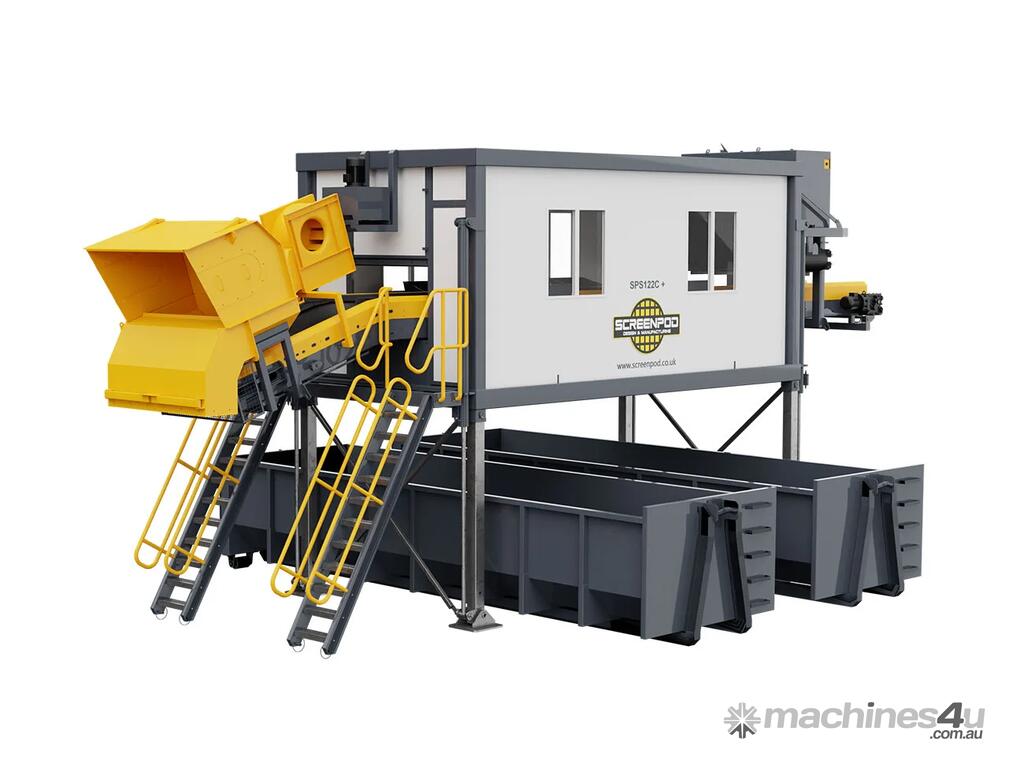

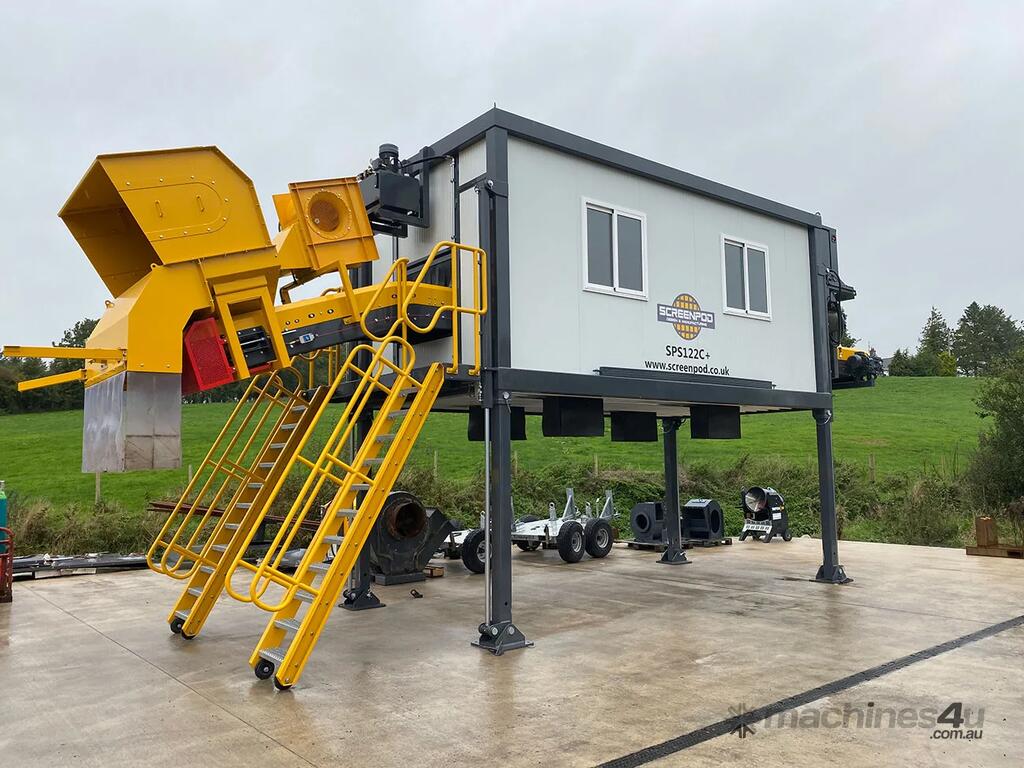

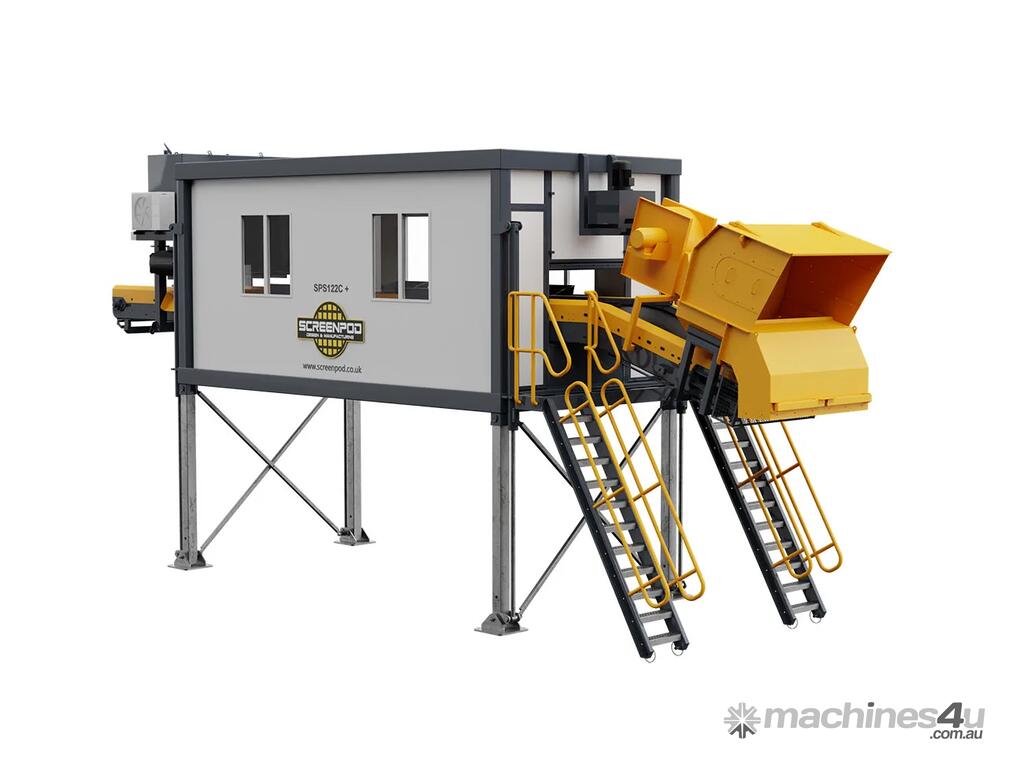

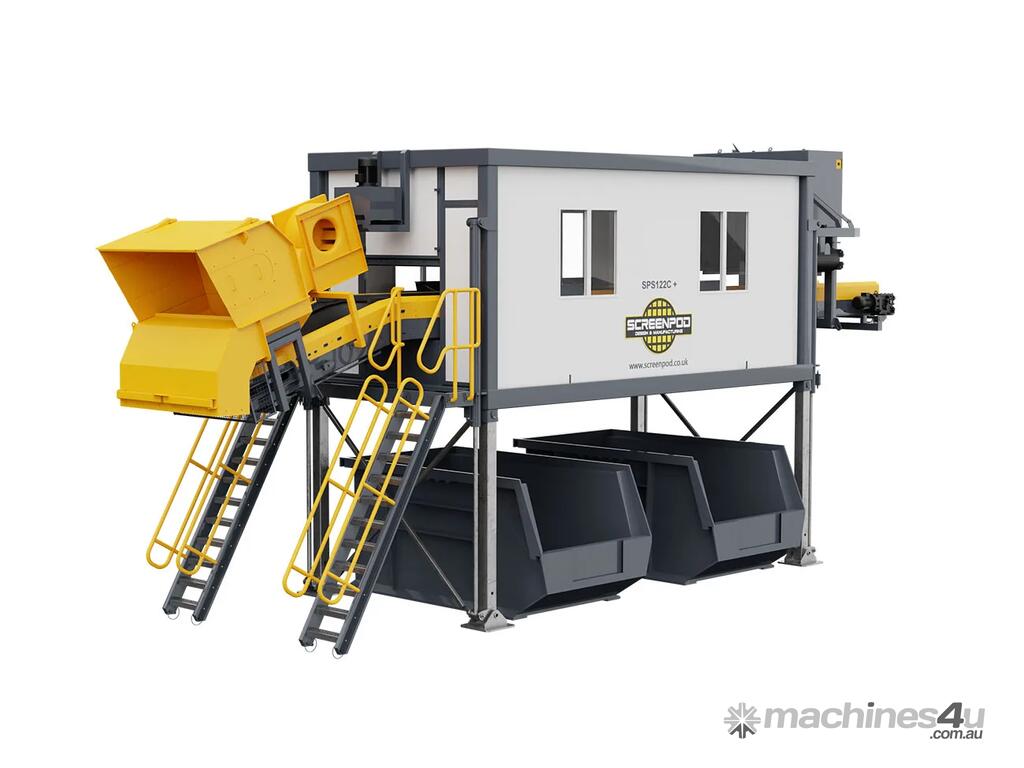

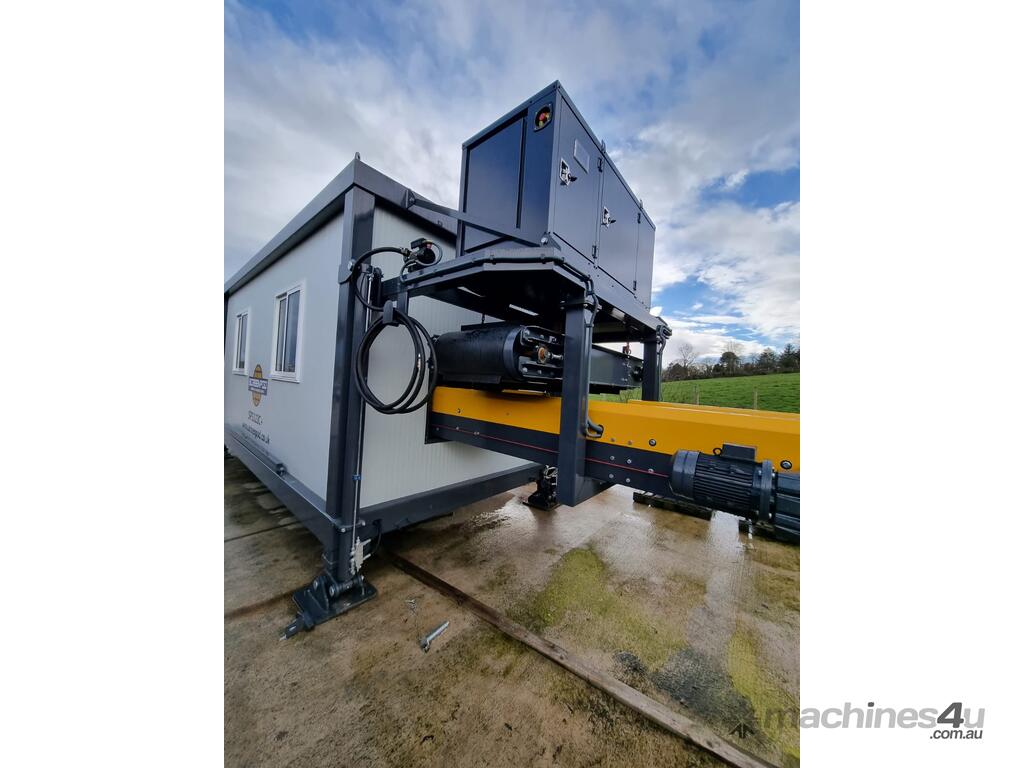

SPS122C+ Static Picking Station
Offering an incredibly flexible solution from which a huge range of different materials can be processed, the Screenpod SPS122C+ static picking station provides an all-encompassing platform from which numerous different types of waste can be extracted from a given material waste stream, around any number of sites across a vast range of applications, all from the safety of the on-board, air-conditioned cabin.

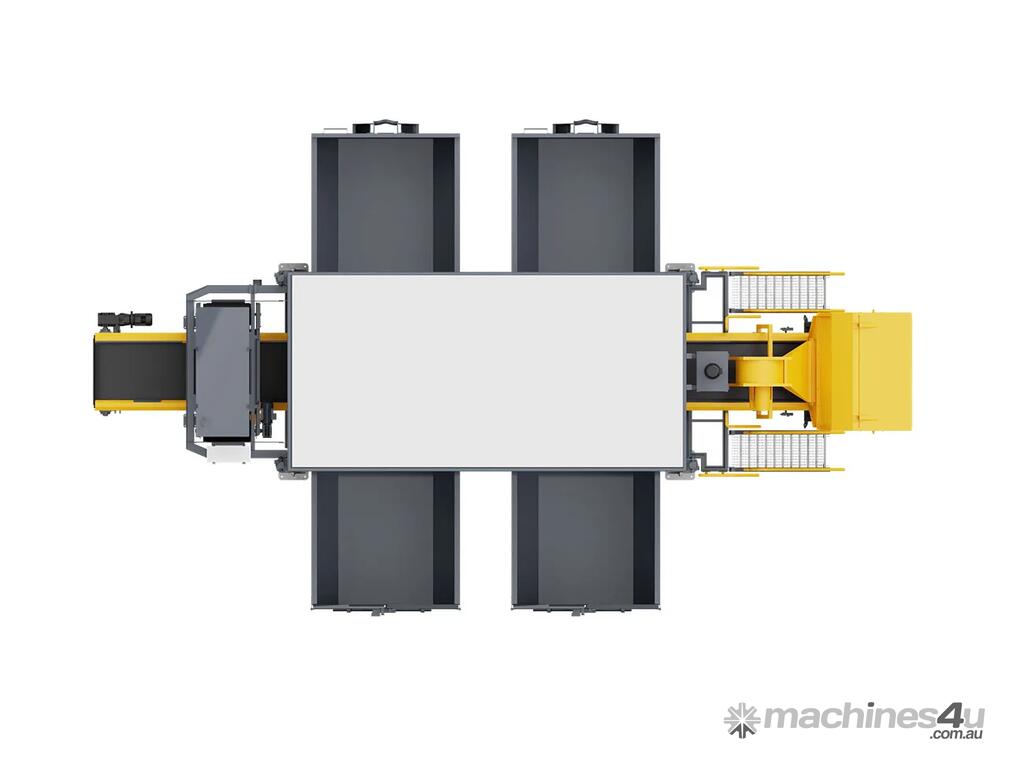

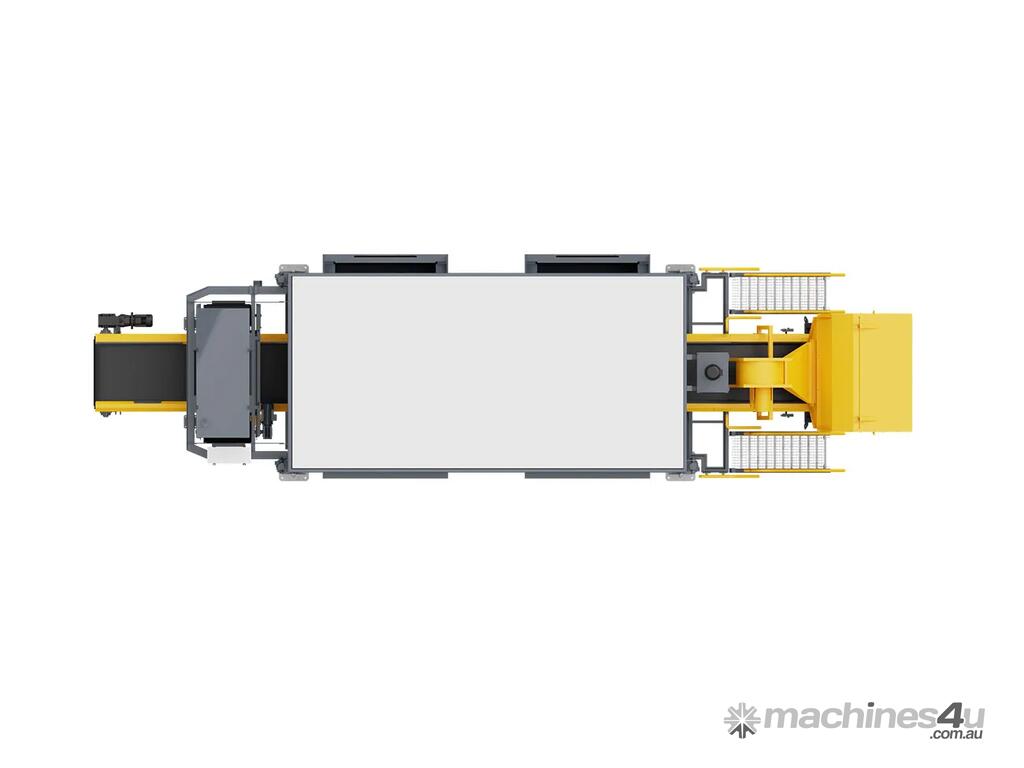

PICKING PLATFORM
- Cabin with four picking stations
- Overall cabin dimensions: 6.0 x 3.0 x 2.85 m
- 4 x sliding windows and 2 off access doors
- Dimensions Picking bins: 700 x 510mm (foldable)
- Heating and lighting
- 2 off access steps with handrails

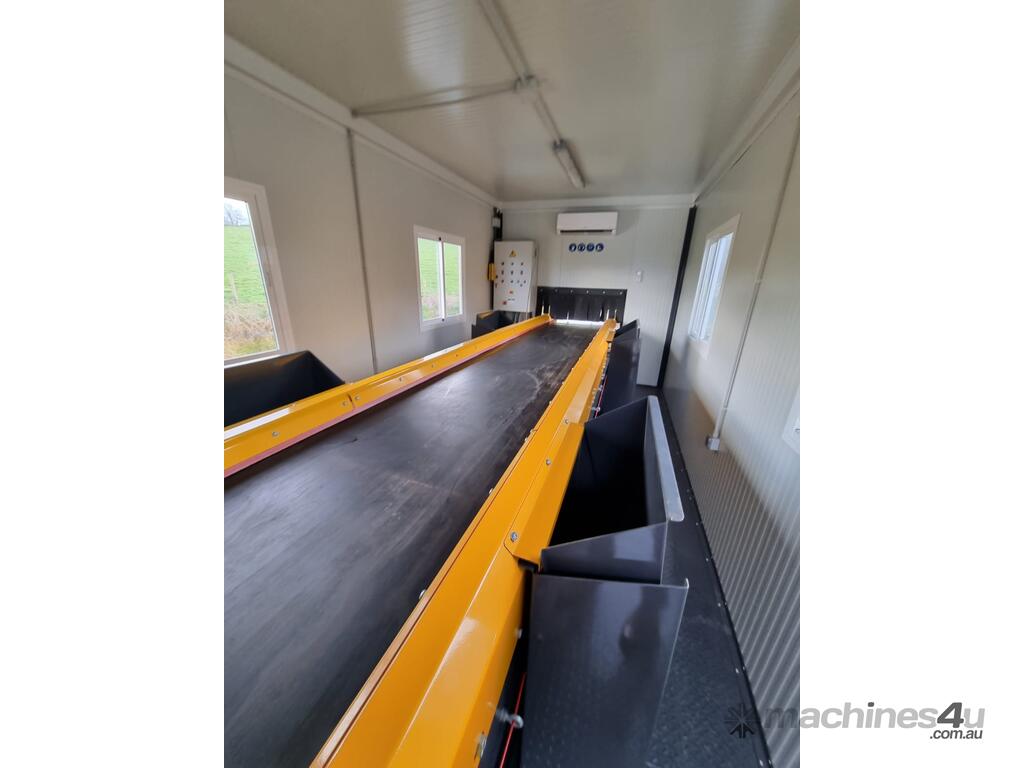

- 1000mm wide and 11650mm long picking belt
- Belt spec: EP400/3 3 + 0
- Motor 1400 rpm B5 IE2 230/400V 50Hz P:4 kw

OVERBAND MAGNET (OPI65/2.1 MODEL)
- 2100mm long (between centres) 650mm wide belt
- 950 x 630 x 250mm permanent magnet
- Maximum clearance height of 250mm for 400 gauss
- Motor 1400 rpm B5 IE2 230/400V 50 Hz P:2.2 kw

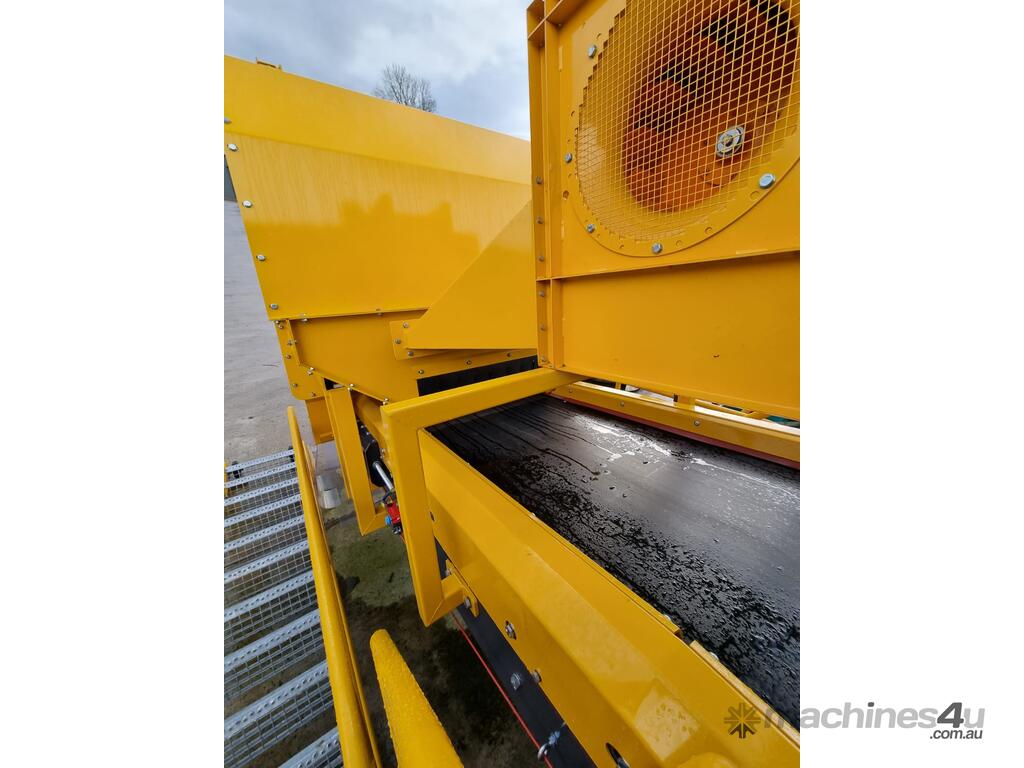

BLOWER UNIT (CAM 750 MODEL)
- 1 x 7.5 kw (15hp) Blower unit
- Maximum exit flow of 16,500 m3/h
- Discharge chute

HYDRAULIC ELEVATION OF PLATFORM
- 4 hydraulic jacking rams incorporating a no return system
- Motor 1400 rpm B5 IE2 230/400V 50Hz P:4 kw

ELECTRIC CONTROL PANEL
- Full electric control panel to control all the components of the plant
- Push button control

GENERATOR
- 1 x 32,5 kVA electric generator including fuel pump

Screenpod mobile picking station also make great Organics Picking Stations
