SKALA - Screenpod AirVac AV52 1.6t Single Head Diesel Vacuum

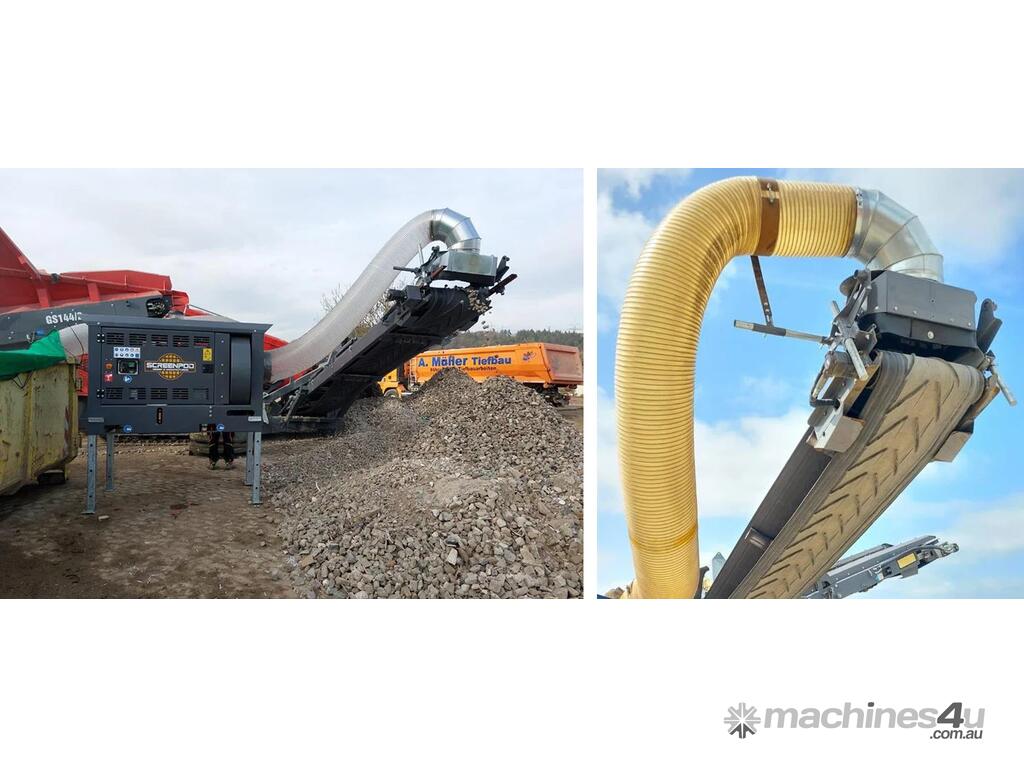

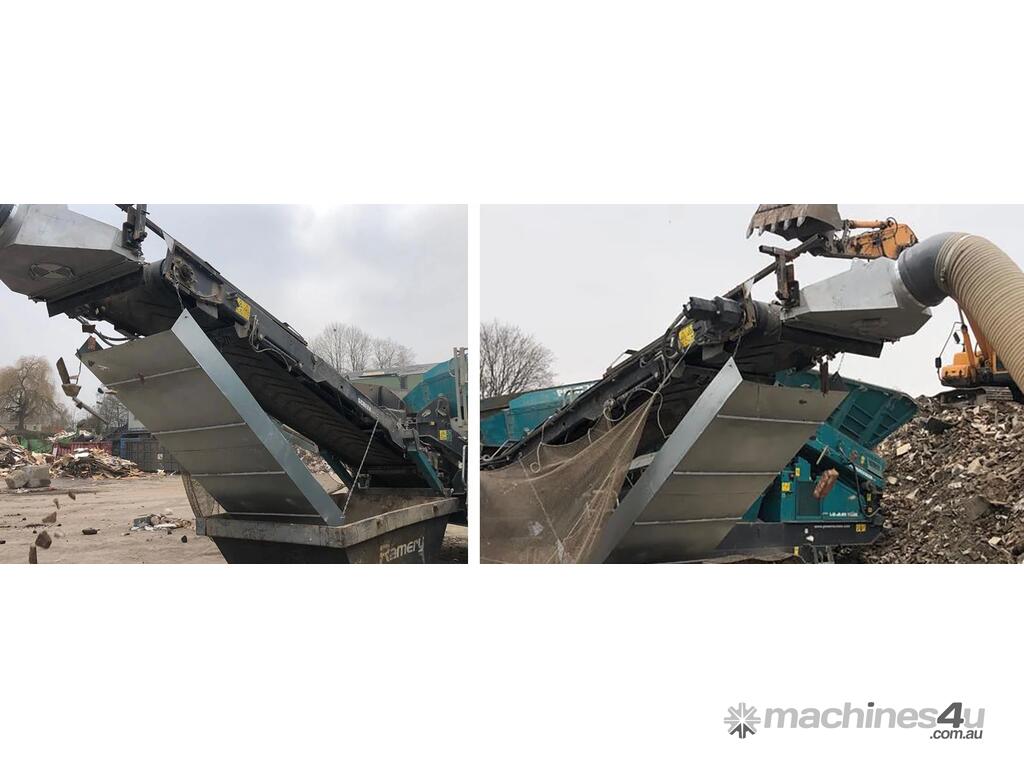

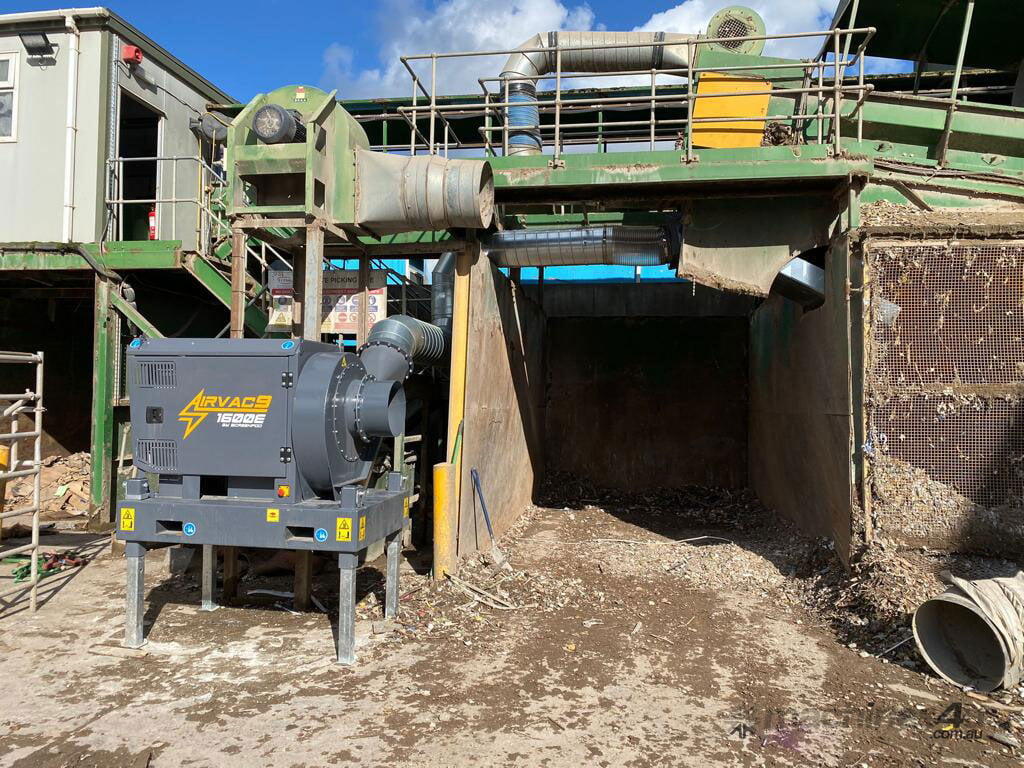

Offering outstanding separation of lights and heavies from conveyed material waste streams, the Screenpod AirVac Range is easily implemented into any materials processing operation, across a wide variety of applications. Available in both diesel and electric drive variants, the machines are adaptable to both blower and suction functionality, providing high throughput and low operating costs, with minimal maintenance requirements and a fast setup time, from a compact and easily transported package, all controlled from a clear and user-friendly interface.

DESCRIPTION:

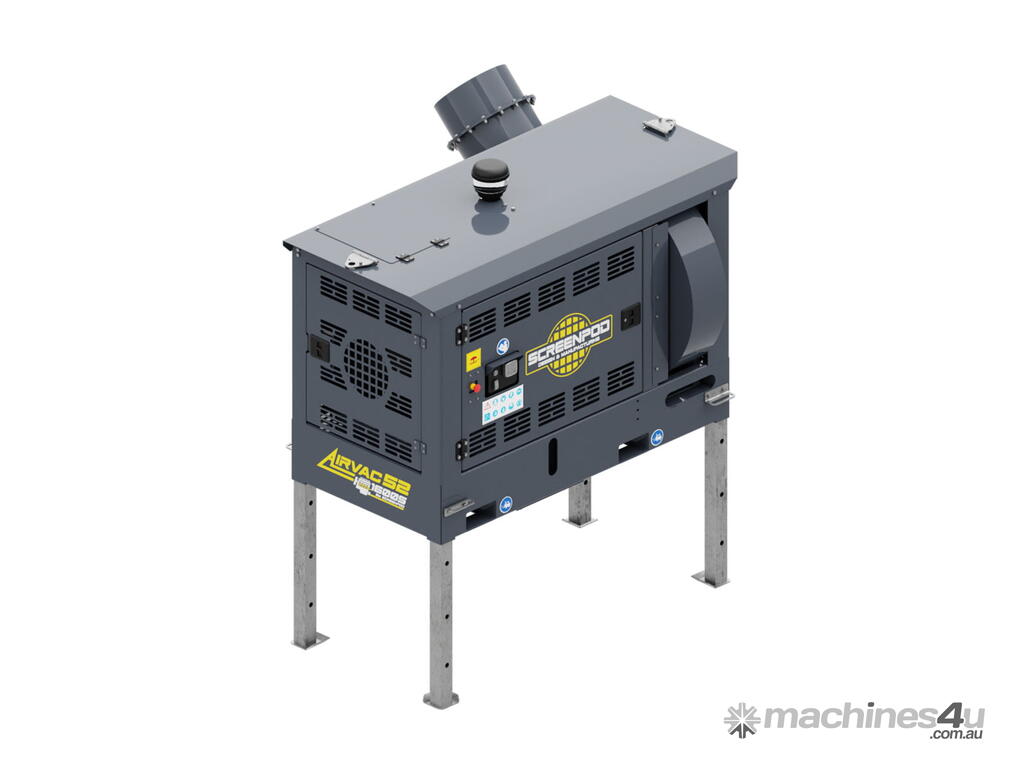

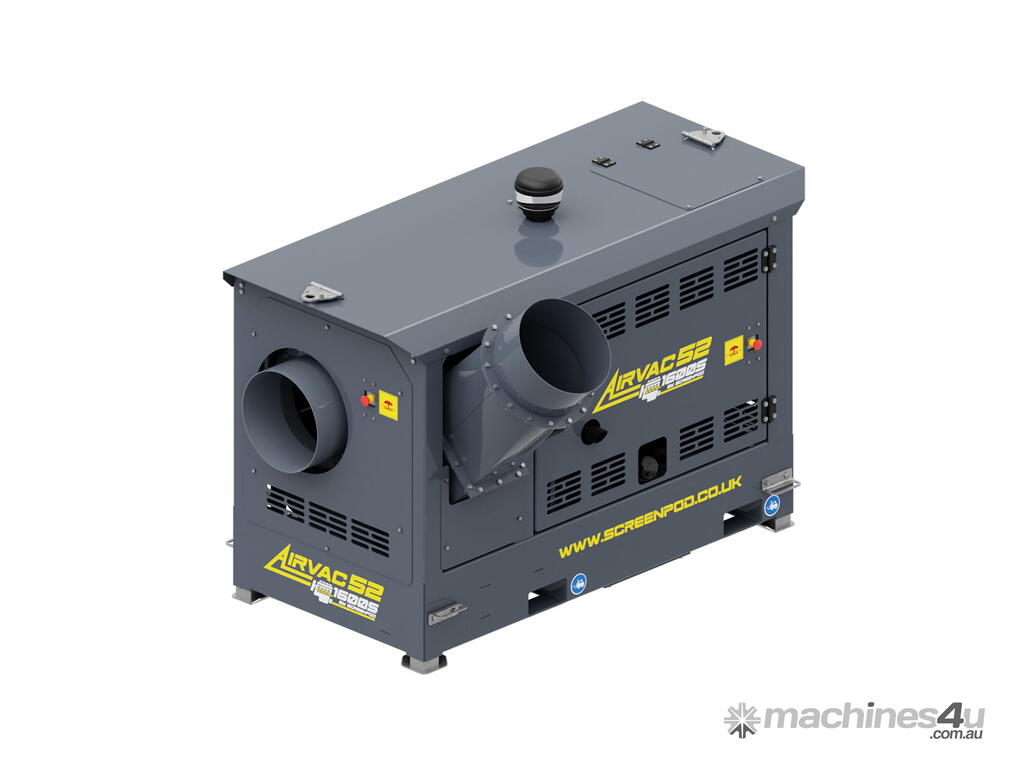

AirVac - AV52 1600S (Single):

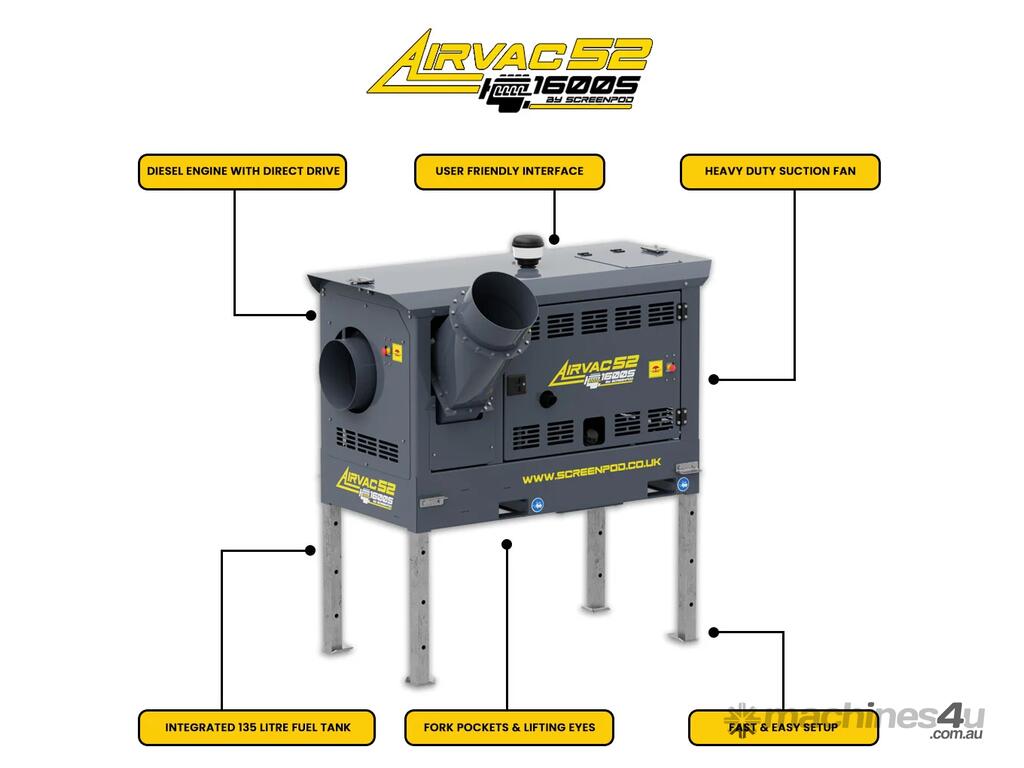

Innovative, compact and low-cost ‘lights’ separator with the following features:
• 112m3/min. (3950CFM) Impeller-type suction fan
• 42.4 – 51.7kW (70bhp max) Yanmar Tier 4 Final Diesel Engine
• Robust frame with fork lift manoeuvrability
• Lifting hooks built into the frame

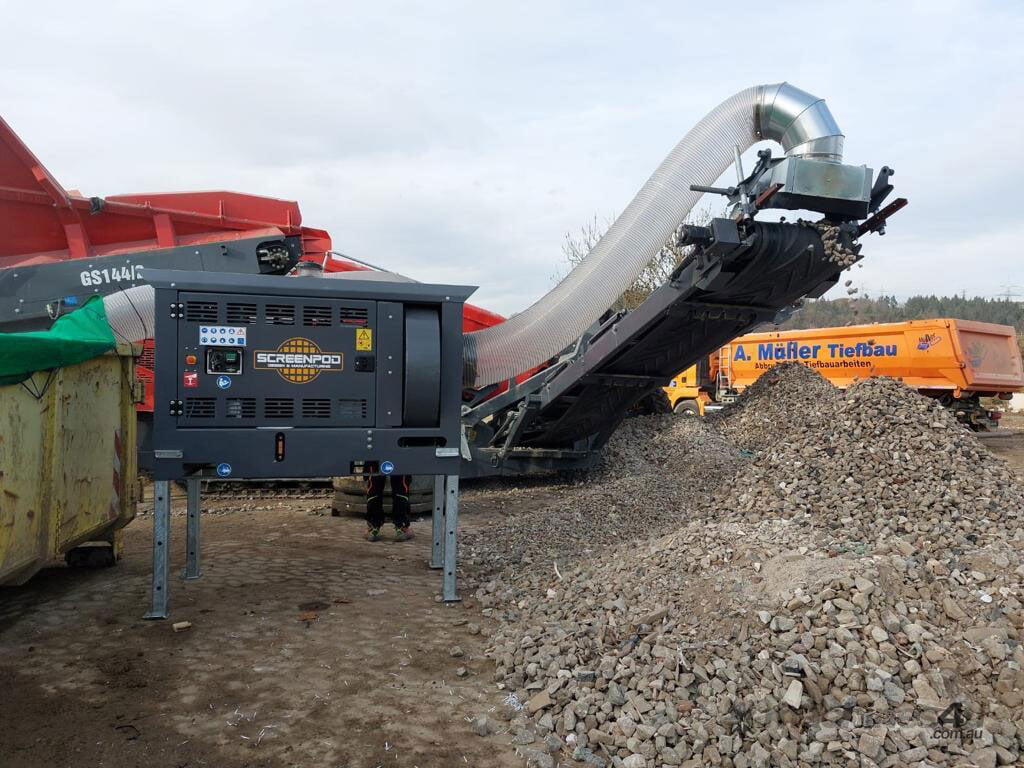

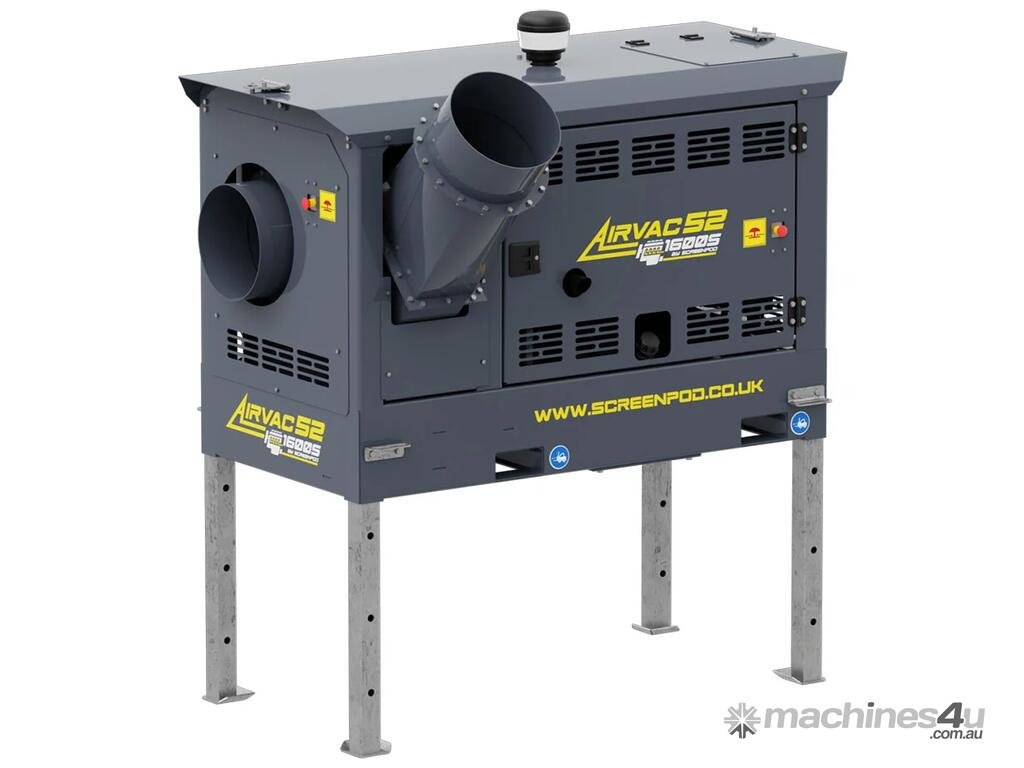

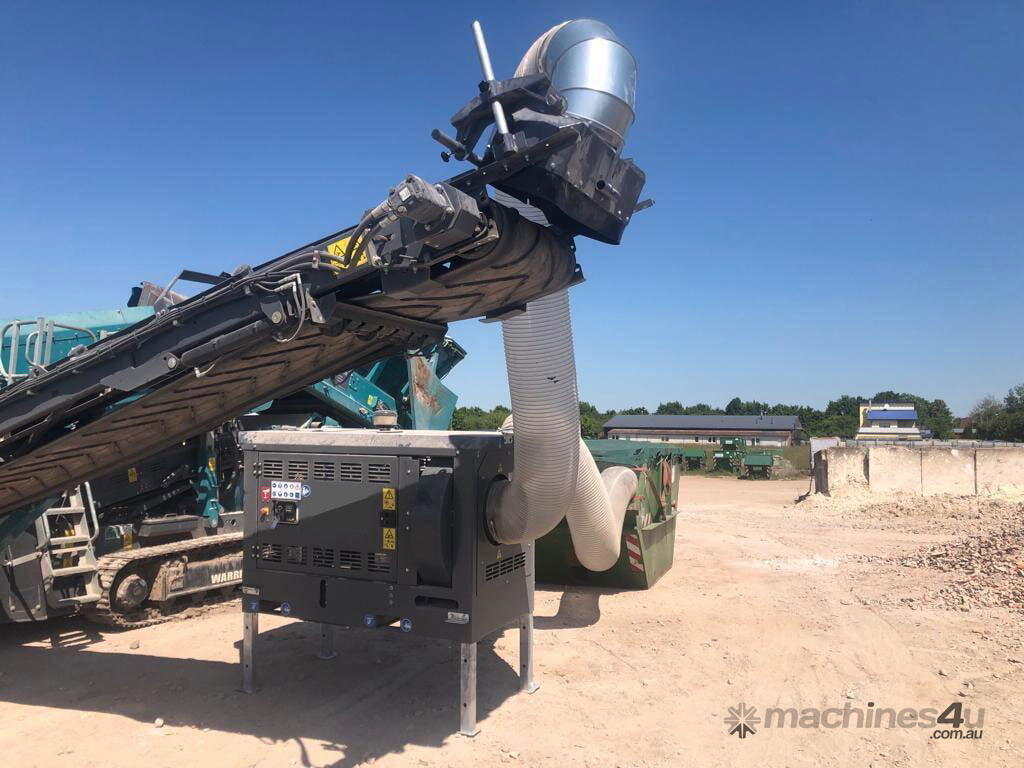

• Integral telescopic legs within the chassis to adjust the height of the AirVac to the conveyor
belt it is working on. This allows a shorter length of hose to be used & optimises the
machines performance.
• Low maintenance vee-belt drive design
• Yanmar fingertip engine controls with automatic engine protection
• Oversized radiator with blower fan to reduce dust intake
• Pre-cleaner fitted as standard to the air intake
• Large doors for easy service & maintenance

DIMENSIONS AND WEIGHT:
• Length: 2.180m (7’ – 2”)
• Width: 1.700m (5’ – 7”)
• Height (transport): 1.550m (4’ – 12”)
• Height (working): 2.400m (7’ – 10”)
• Weight: 1610 Kg (3,550lbs)

CAPACITIES:
• Diesel tank capacity: 135L (35.6 US gal)
• Impeller Speed (max): 2100 rpm
• Fan Displacement (max): 112m³/min (3950CFM)




SKALA Australasia is a leader in providing advanced environmental and industrial process equipment across Australia and New Zealand. Specializing in recycling, mining, and industrial solutions, SKALA offers a comprehensive range of products, including screening, shredding, and processing machinery from world-renowned brands. They are experts in designing and supporting custom turnkey recycling plants that maximize efficiency and profitability. Their services extend from initial equipment procurement to installation, commissioning, and ongoing maintenance, ensuring optimal performance and minimal downtime. SKALA’s dedicated team of professionals is committed to delivering innovative solutions tailored to meet the unique needs of each client, making them a trusted partner in the industry?.

Go to the SKALA showroom on Machines4u to see the range of machines that are available for delivery, send SKALA a message or give SKALA a call to discuss the machine that you are interested in, we are more than happy to answer any of your questions and provide a solution for business needs.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
