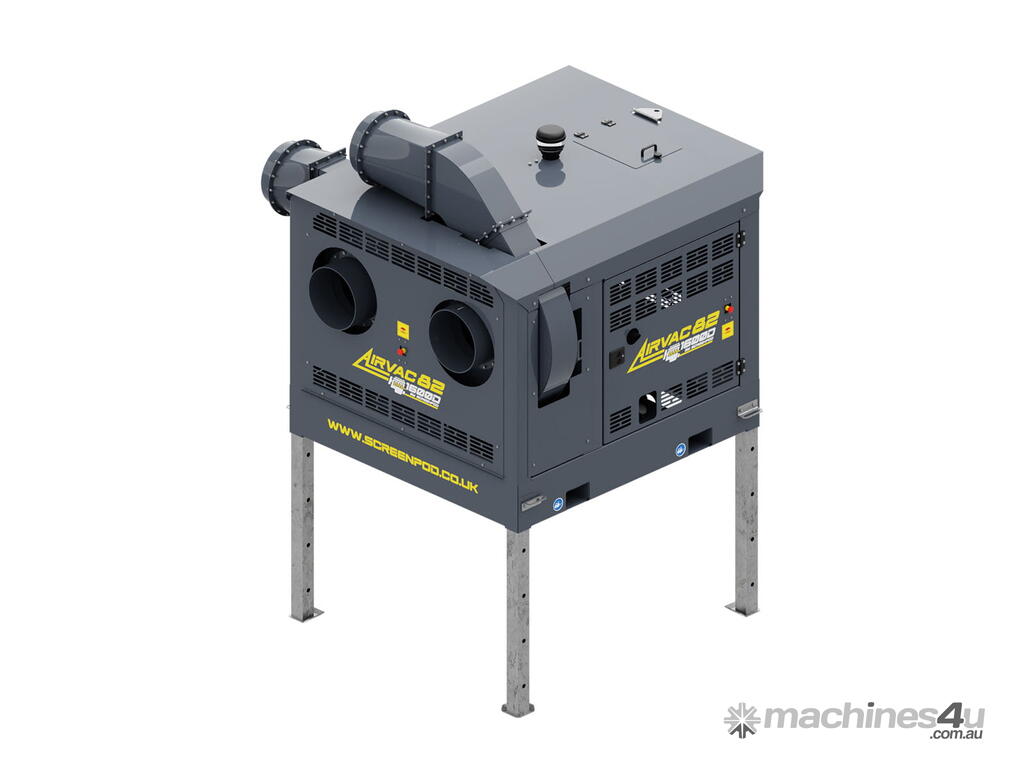

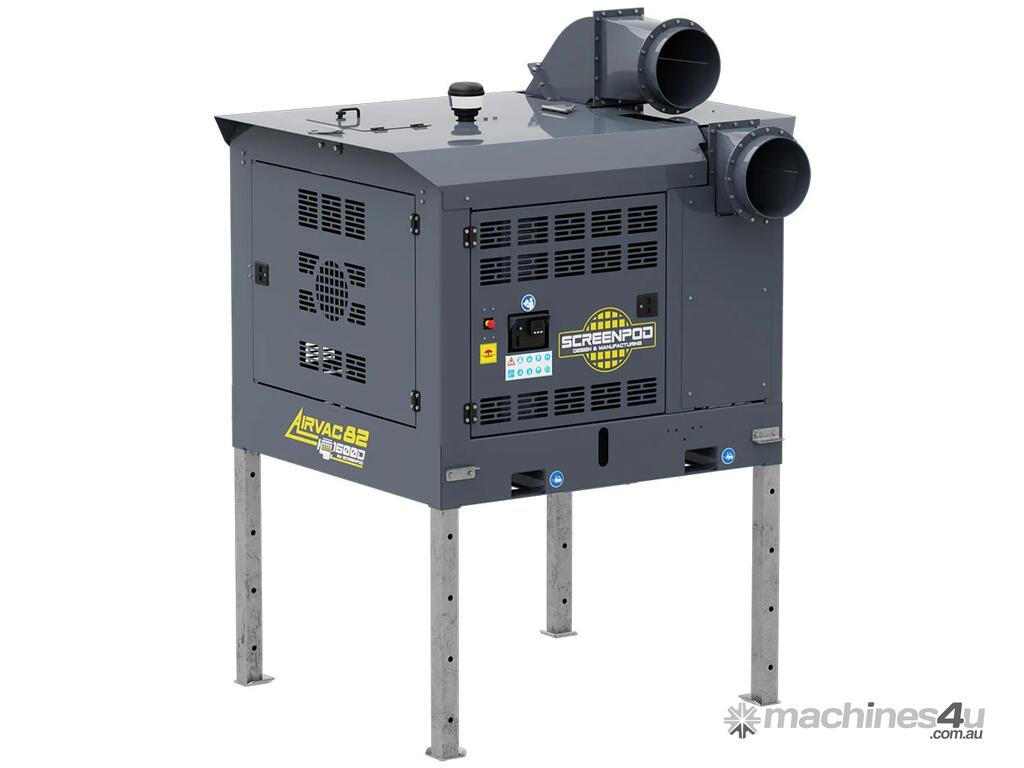

SKALA - Screenpod AirVac AV82 3t Dual Head Diesel Vacuum

Offering outstanding separation of lights and heavies from conveyed material waste streams, the Screenpod AirVac Range is easily implemented into any materials processing operation, across a wide variety of applications. Available in both diesel and electric drive variants, the machines are adaptable to both blower and suction functionality, providing high throughput and low operating costs, with minimal maintenance requirements and a fast setup time, from a compact and easily transported package, all controlled from a clear and user-friendly interface.

DESCRIPTION:

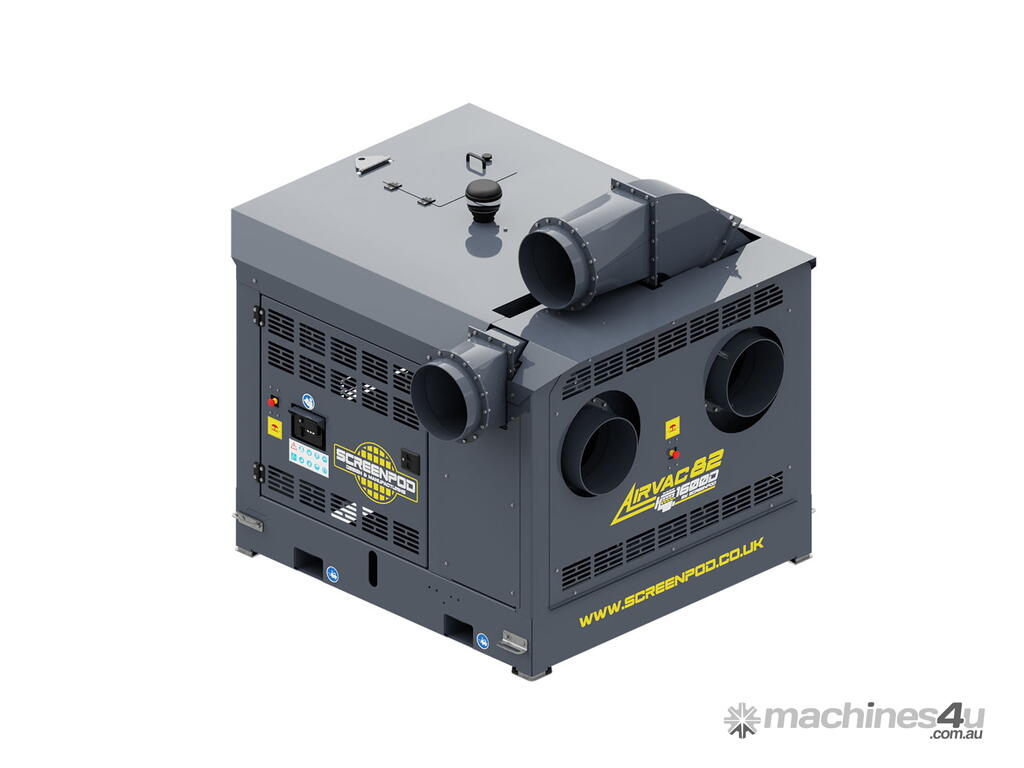

AirVac AV1600DUAL/AV82 (dual fan):
Innovative, compact and low-cost Lights Separator with the following features:
• 2 off 112m3/min. (3950CFM) Impeller-type suction fans
• 51.6 – 53.7kW (72bhp max) Yanmar Tier 4 Final Diesel Engine
• Robust frame with fork lift manoeuvrability
• Lifting hooks built into the frame

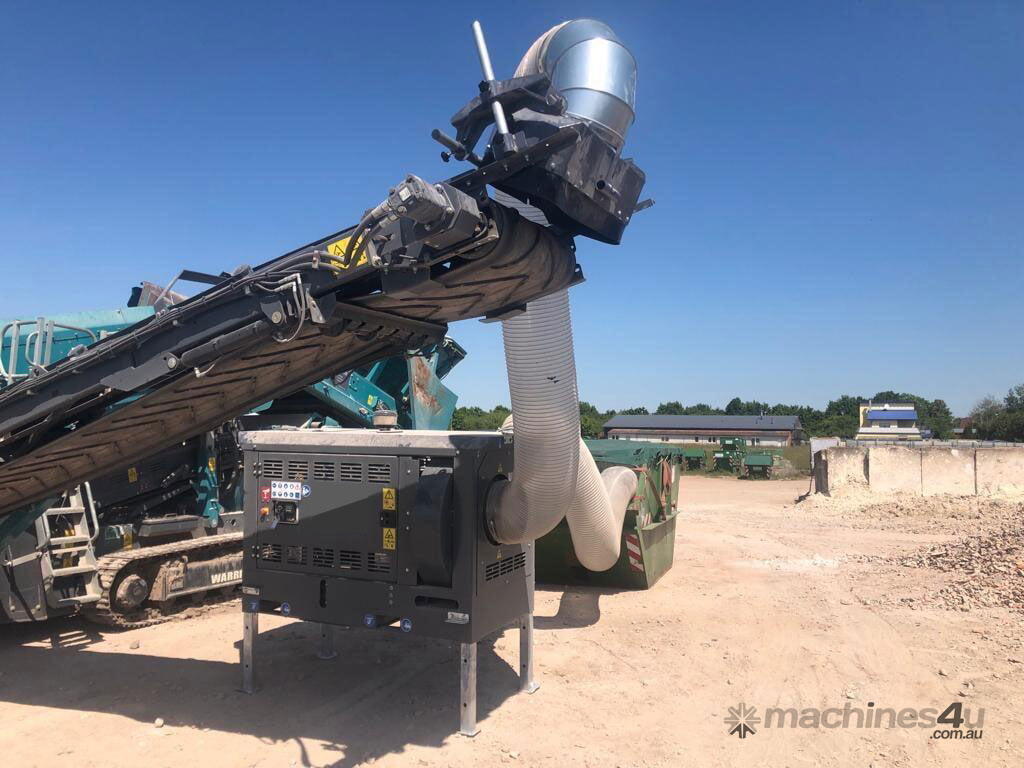

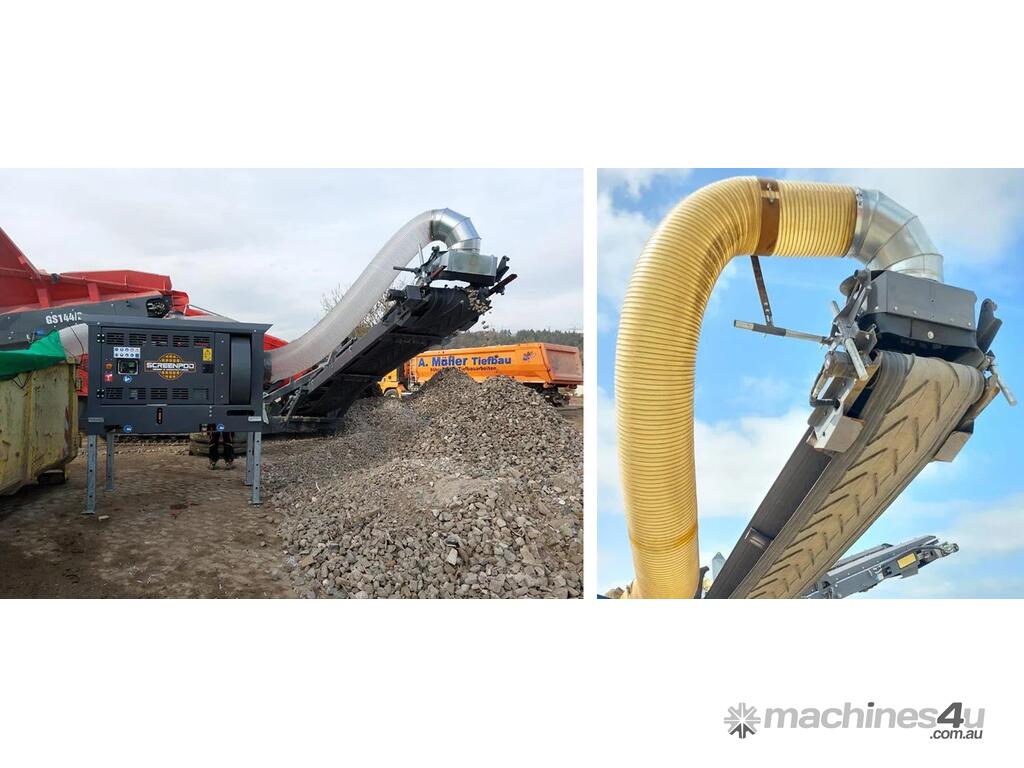

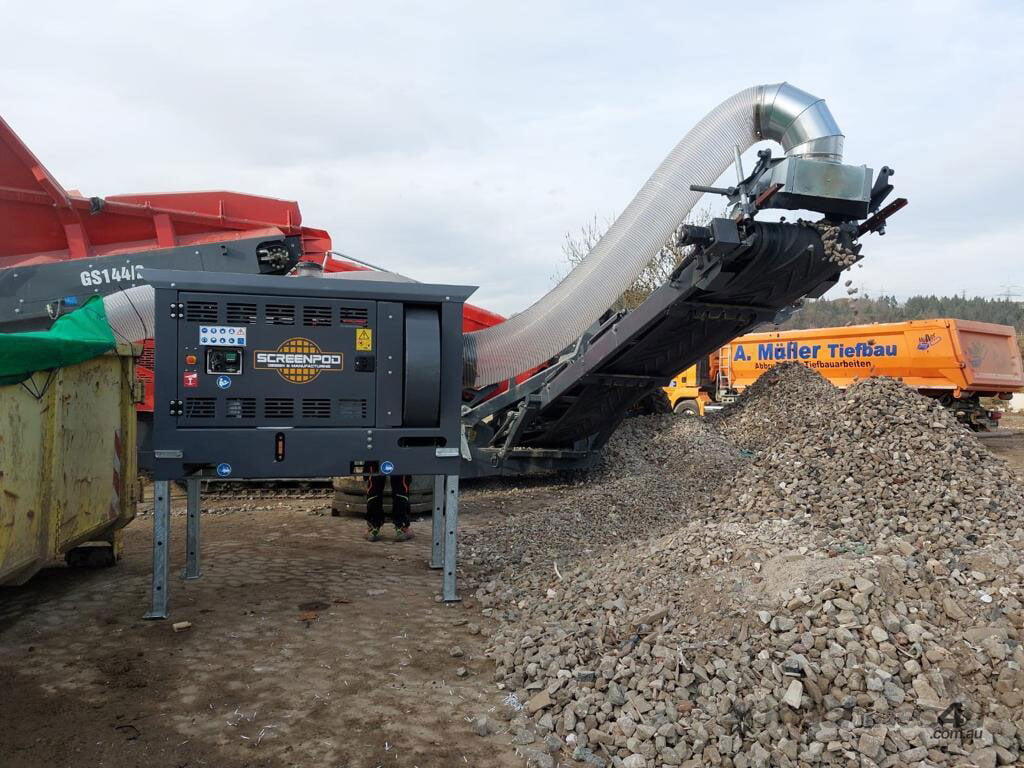

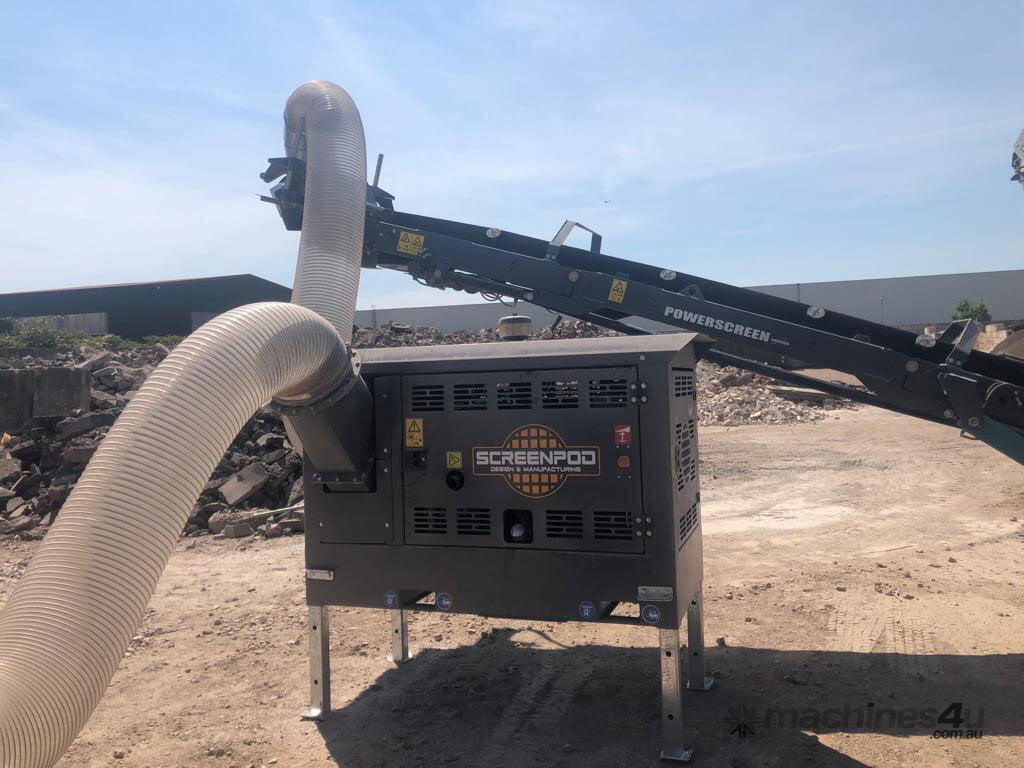

• Integral telescopic legs within the chassis to adjust the height of the AirVac to the conveyor
belt it is working on. This allows a shorter length of hose to be used & optimises the
machines performance.
• Low maintenance vee-belt drive design

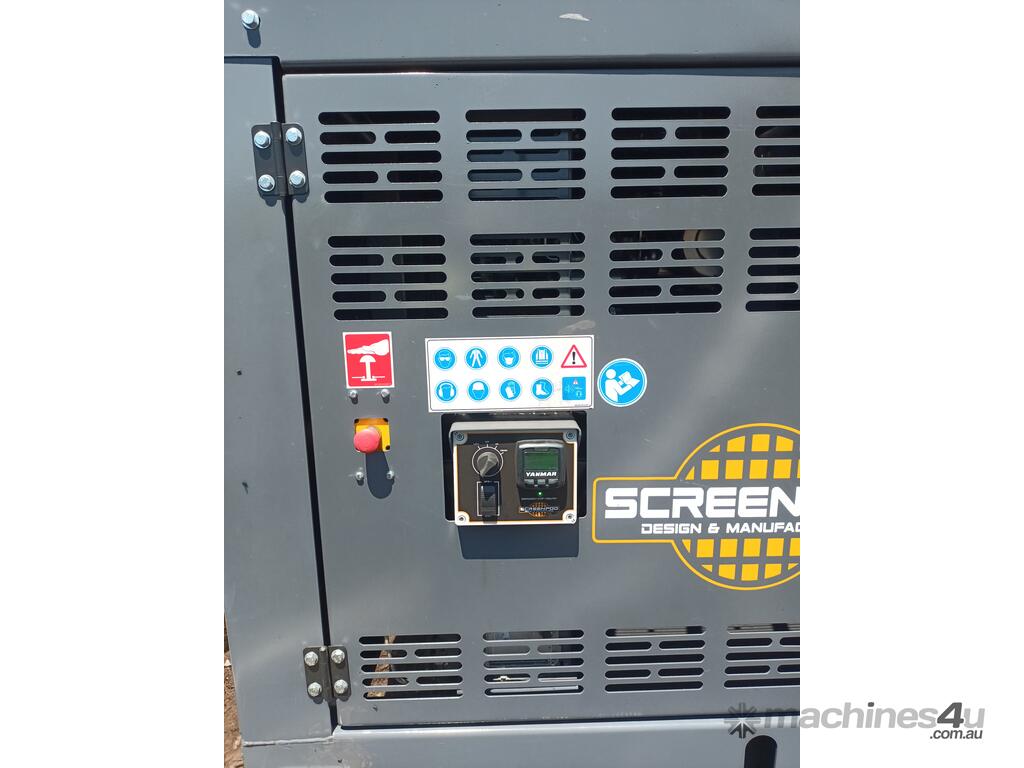

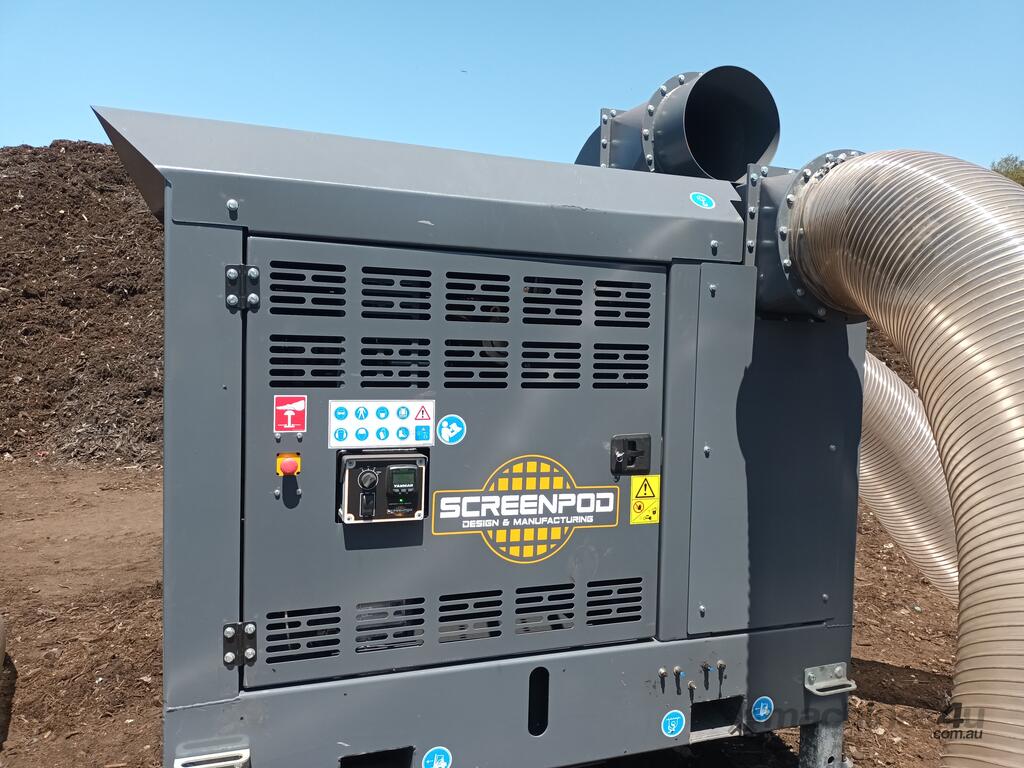

• Yanmar fingertip controls with automatic engine protection
• Oversized radiator with blower fan to reduce dust intake
• Pre-cleaner fitted as standard to the air intake
• Large doors for easy service & maintenance

DIMENSIONS AND WEIGHT:
• Length: 2.386m (7’ – 10”)
• Width: 2.361m (7’ – 9”)
• Height (transport): 2.224m (7’ – 3”)
• Height (working): 3.427m (11’ – 3”)
• Weight: 2,900Kg (6,393lbs)

CAPACITIES:
• Diesel tank capacity: 225L (59.4 US gal)
• Impeller Speed (max): 2100 rpm
• Fan Displacement (max): 112m³/min (3950CFM) X2

ADDITIONAL/SAFETY FEATURES:
• External belt adjustment points
• Electronic engine speed adjustment
• Engine safety shutdown systems
• Full safety guarding for nip points
• CE & Tier 4 compliant
• Independent balance valves on each fan

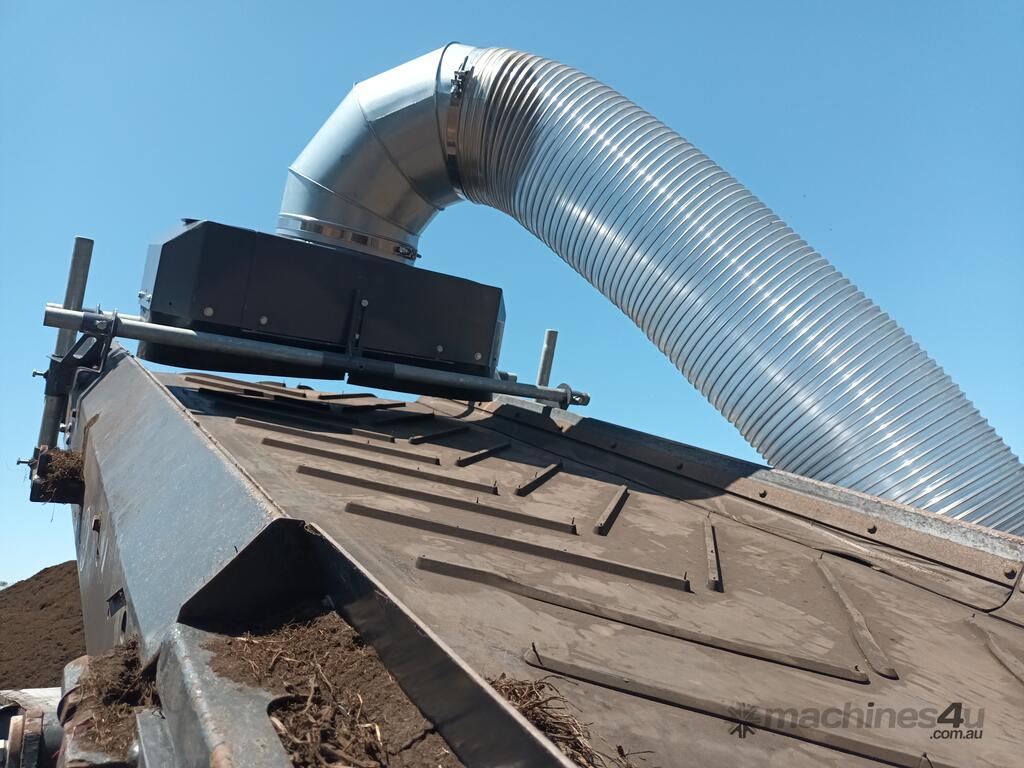

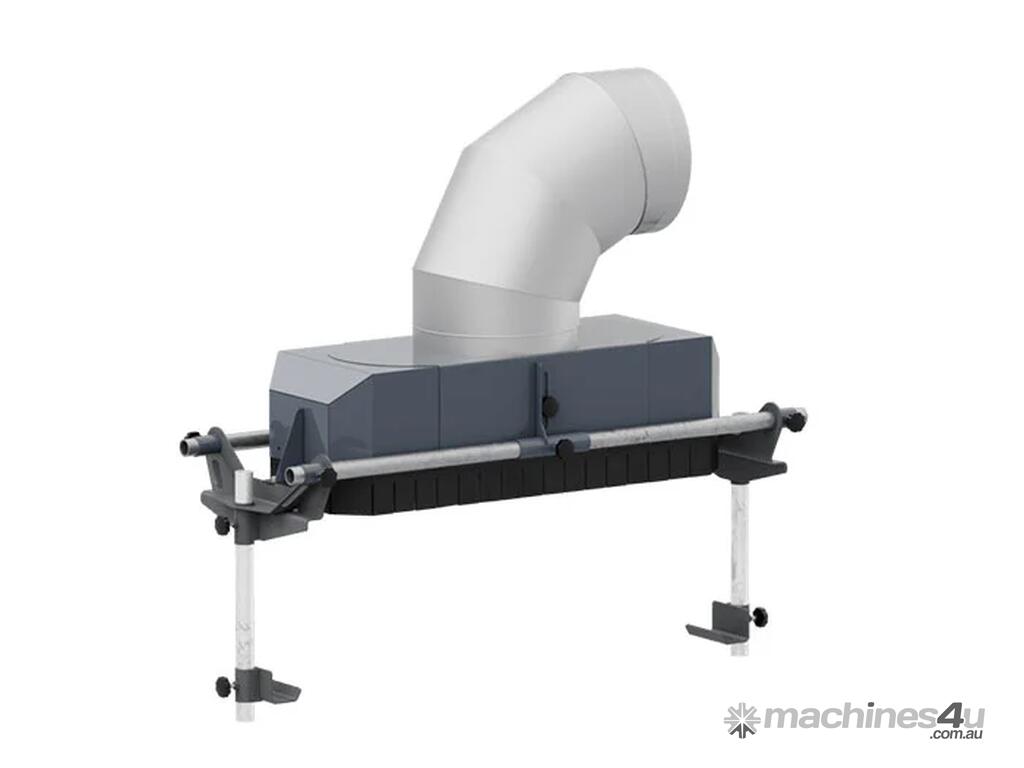

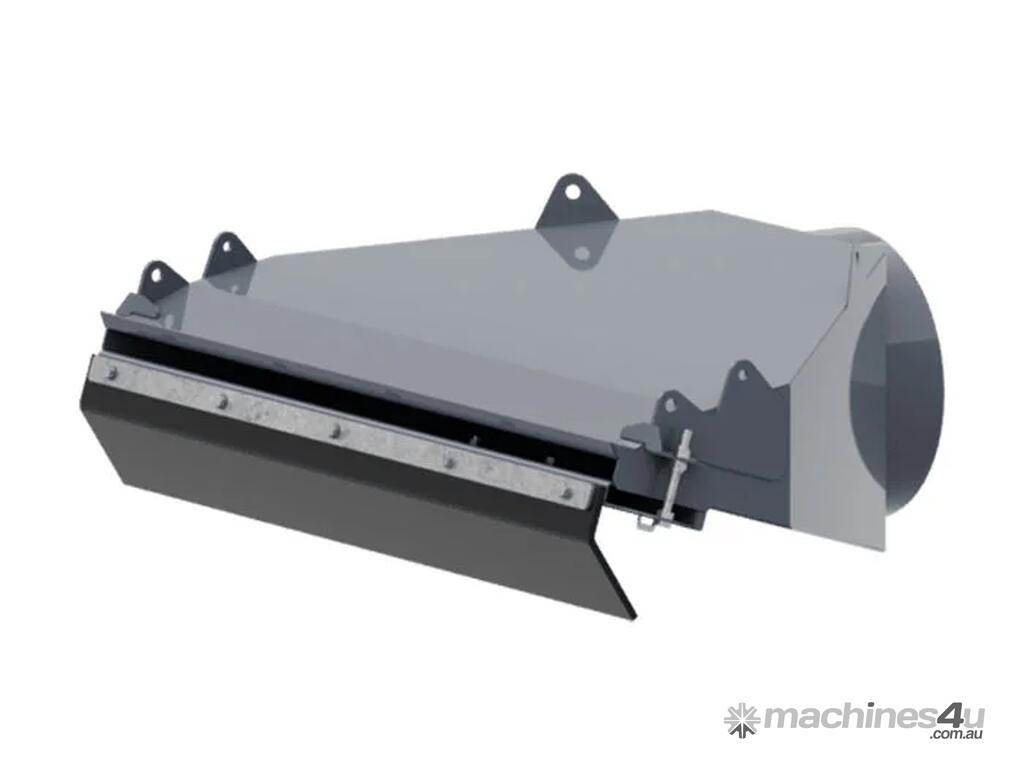

• Full range of adjustable vacuum heads to suit all applications
