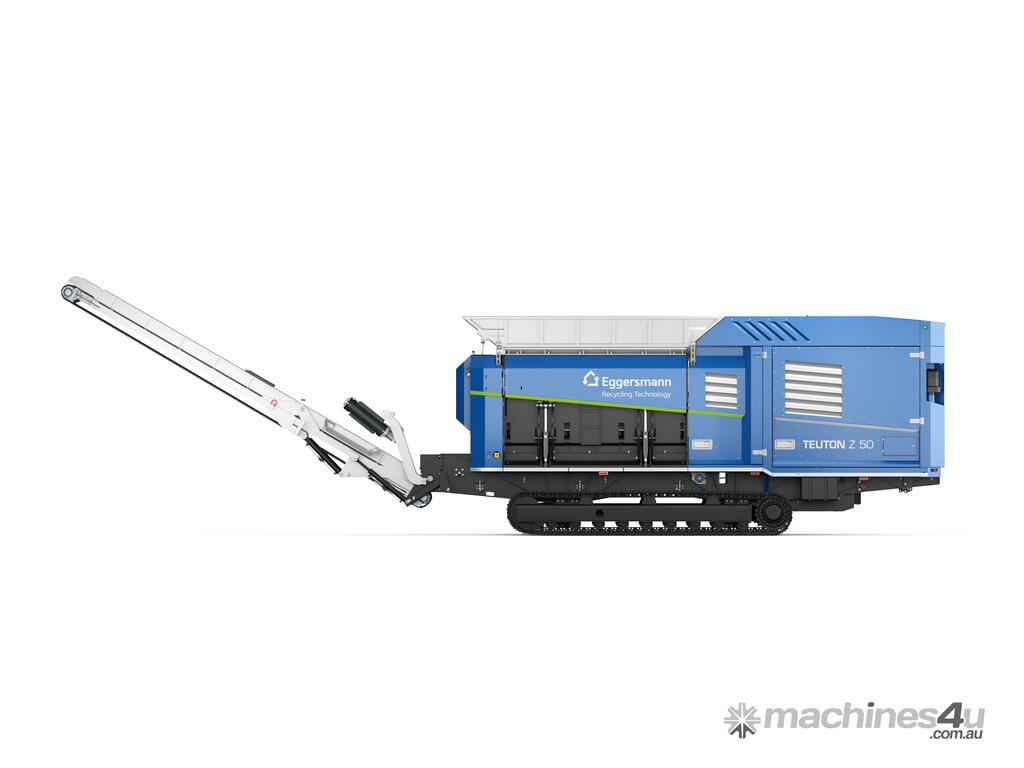

SKALA - TEUTON Z50 Universal Shredder - Tracked

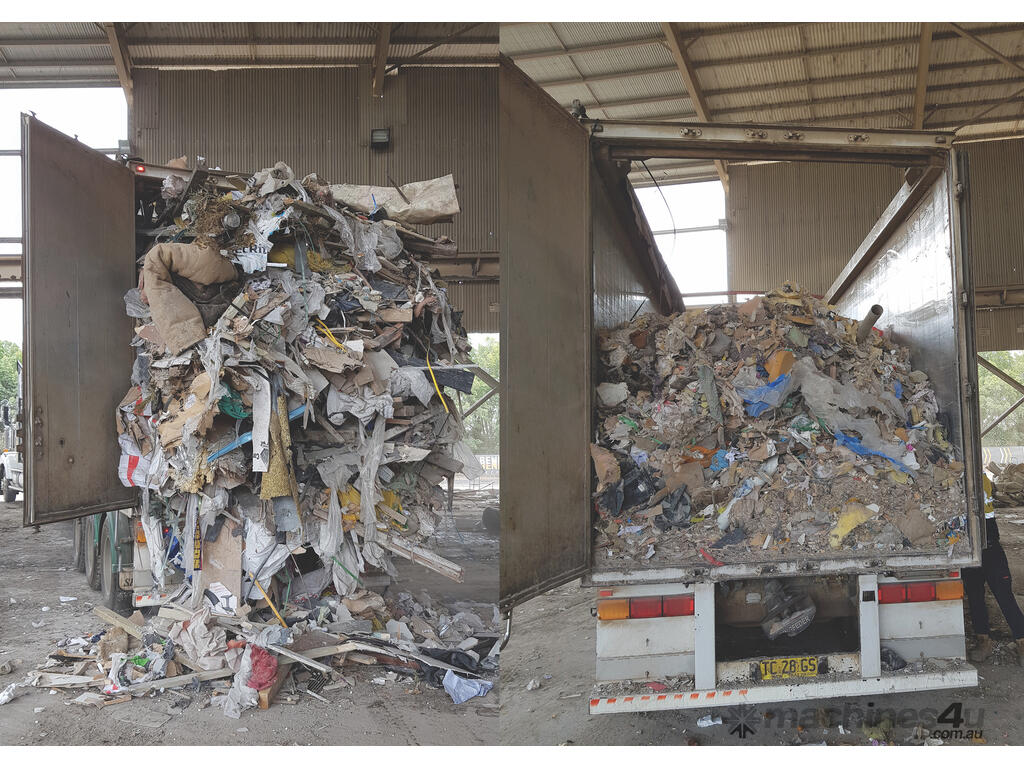

The wide range of applications with the new generation of Eggersmann TEUTON universal shredders is impressive and virtually inexhaustible. The TEUTON series of machines are just as efficient at shredding recycled wood, roots, green waste or bulky household refuse as they are at shredding tyres, plastics, mattresses or batches of special and mono-material.

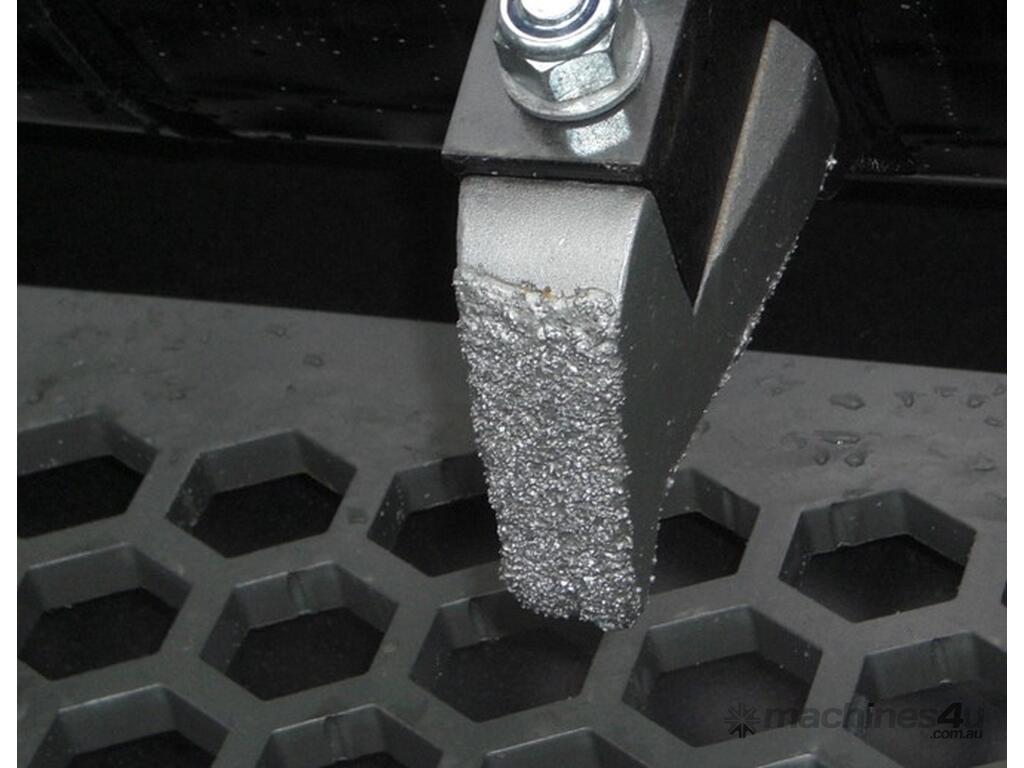

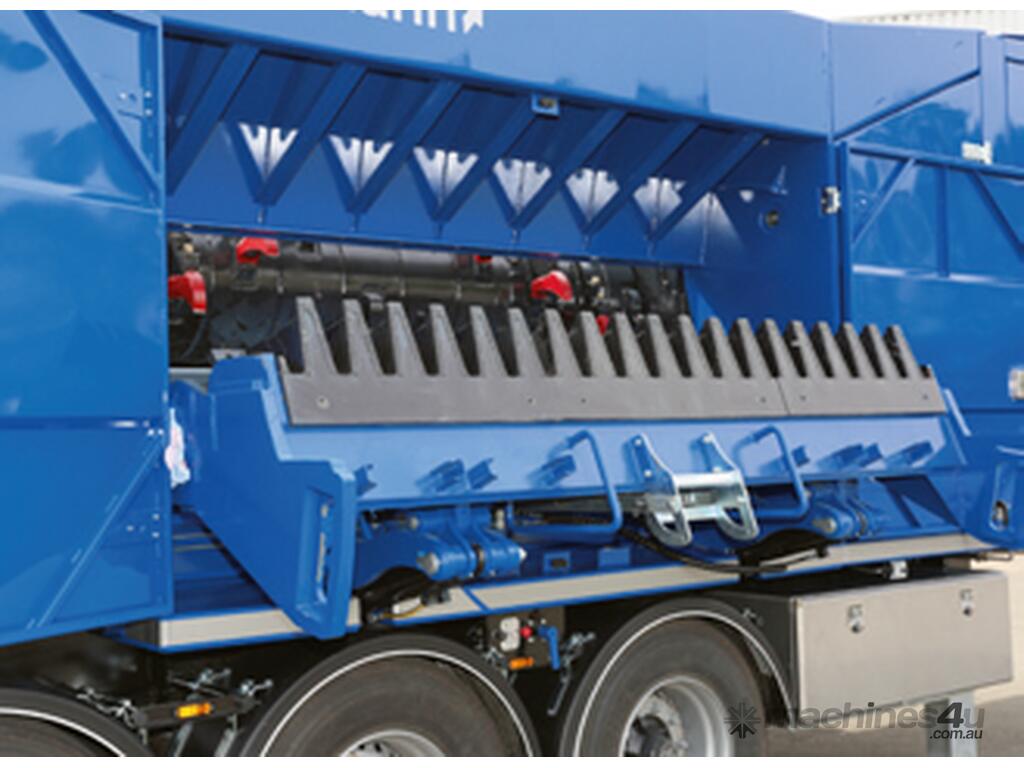

Like the other TEUTON shredders, the TEUTON Z 50 also has replaceable shredding tools. Where necessary, depending on the type of application, these can be selected and easily changed within a very short space of time. The (standard) Multi-Grip tool is intended for use with green waste, recycled wood, bulky household and commercial waste, plastics and even sleepers, while the Root-Grip tool can be used to further increase output with materials such as roots or shrubs.

Another prominent feature of the machine is the large and wide conveyor belts, which enable material discharge, free from clogging, with all applications. The material discharge height is up to 5 metres. The conveyor belt speed is continuously variable.

Features and standard equipment of the TEUTON Z 50 include:

Hydraulic hopper extensions, fold out on three sides
Rear conveyor belt with infinitely adjustable height
Minimal maintenance requirement due to MMS

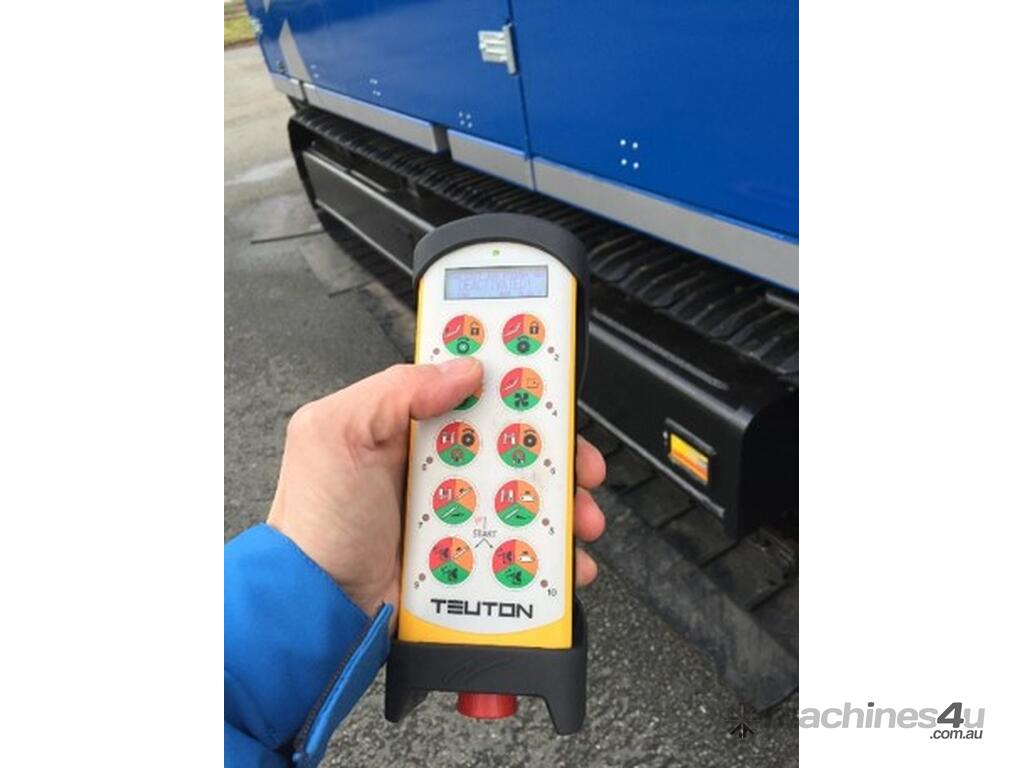

IFM 7” touch control panel and radio system with display
6 cylinder Cummins X12 diesel engine; large capacity combination cooling system with stepless, reversible fan

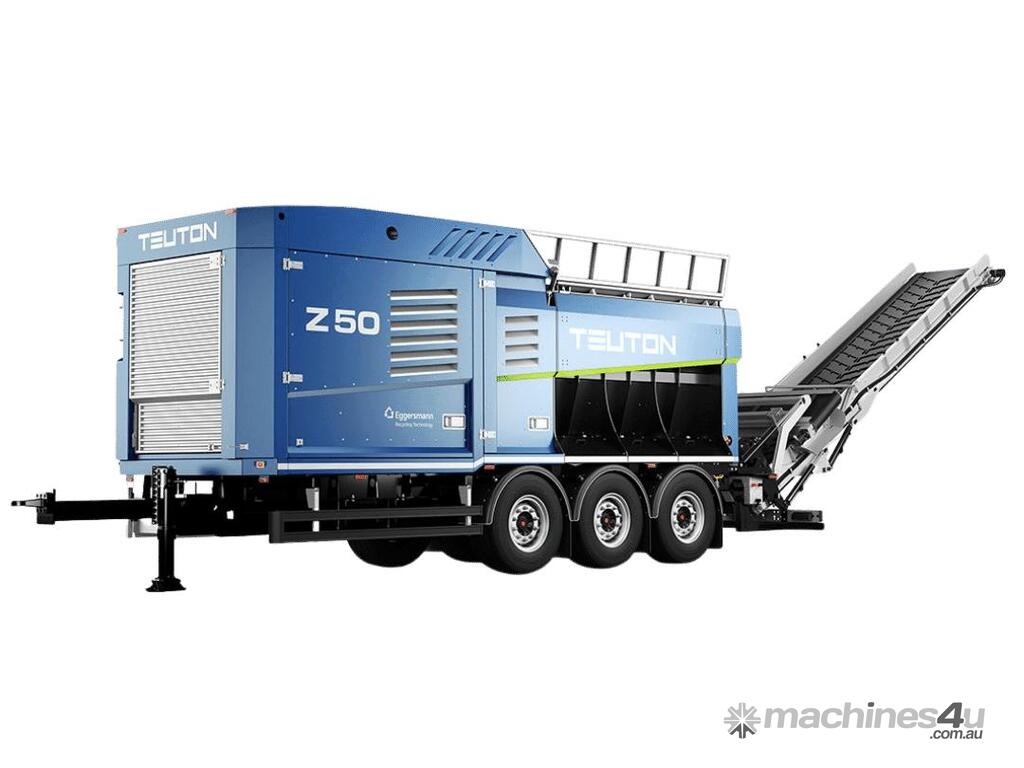

25 t total maximum weight (3-axle chassis central axle chassis trailer)
Minimum possible maintenance requirement with long maintenance intervals (max. 500 hours)
Heavy-duty design and construction makes it impervious to foreign bodies
Neodymium magnetic separator enables recovery of ferrous metal , discharging to either side
Hydro-mechanical drive, continuously variable control of rotor speed
Maximum rotor diameter: 1,050 mm Ø
Length of rotor: 3,000 mm.

Optional features include:

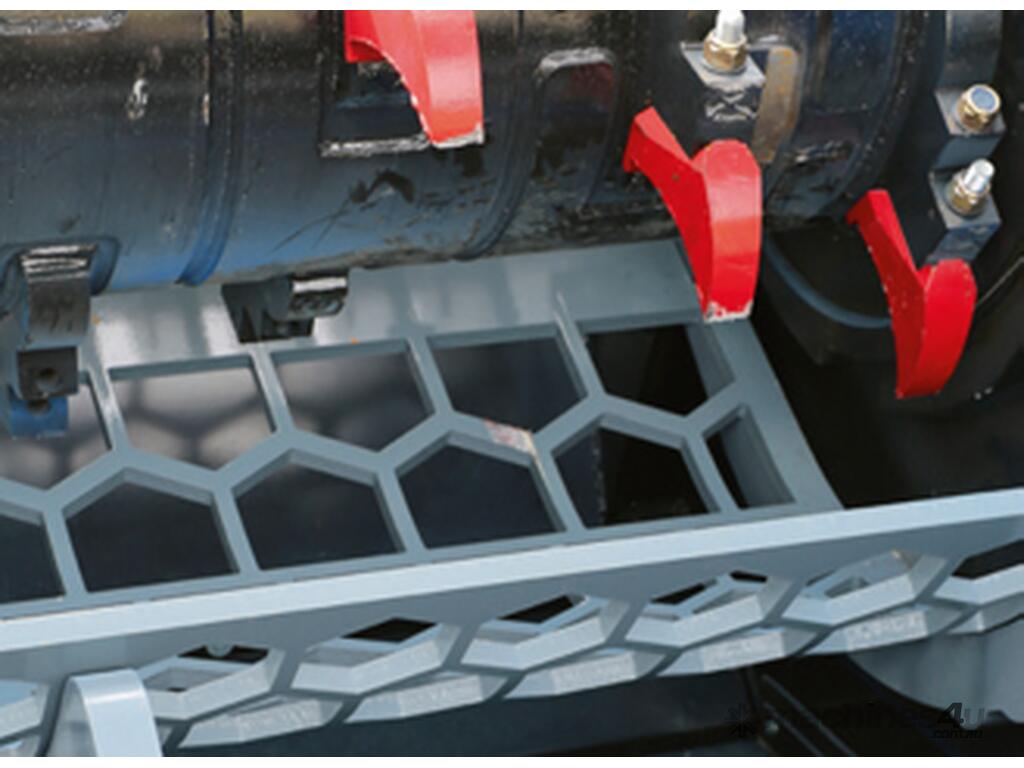

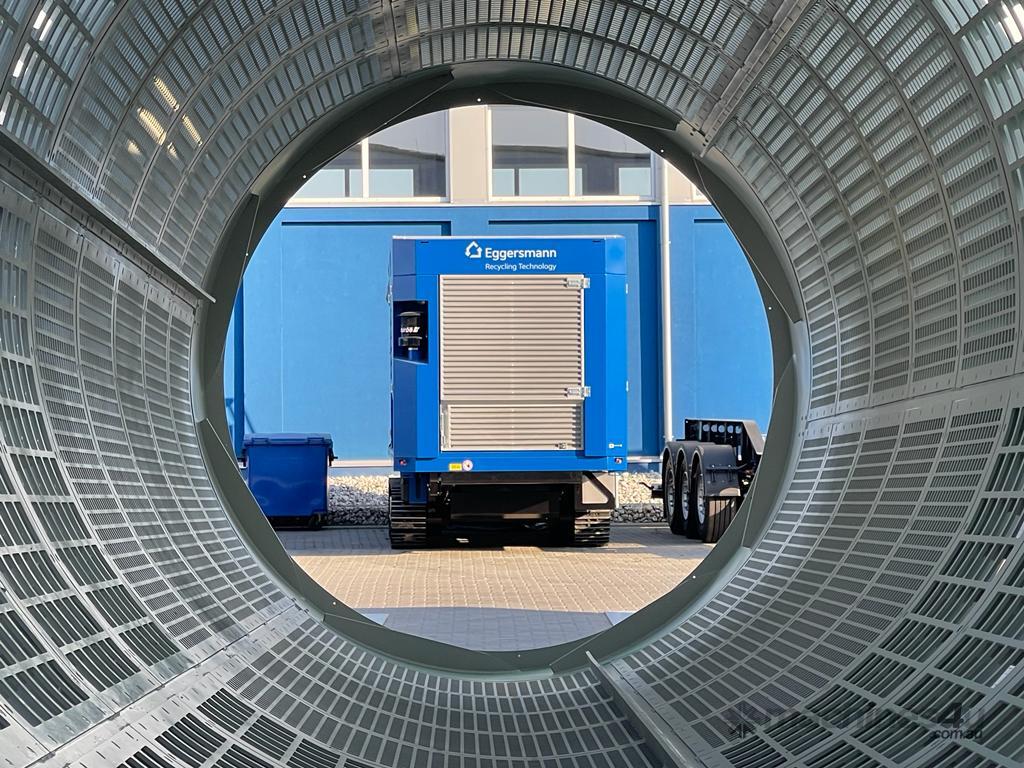

- Screen basket system enables production of finished product in one operation
- Marathon shredding rotor (double rotor life)
- Neodymium, hydraulically height-adjustable, over-belt magnet, with expulsion of ferrous materials on both sides
- Ecospray humidifier (Can be used for microbe injection for greenwaste/ FOGO composting)
- Custom paint finish
- Eggersmann Protect Telematics System

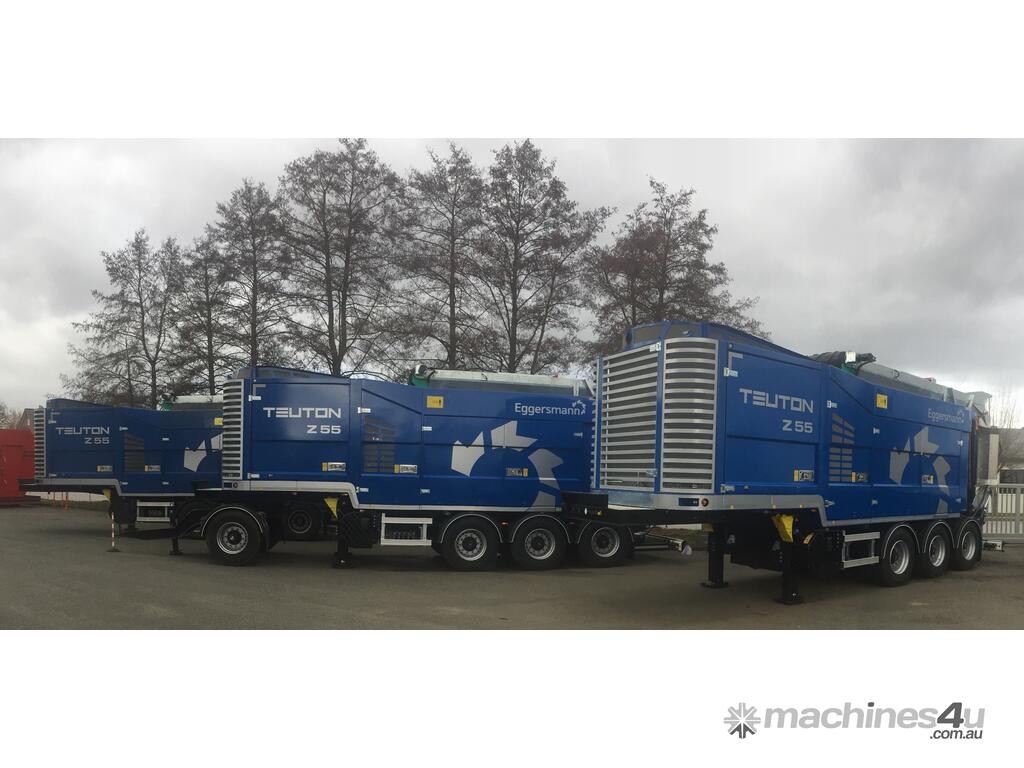

Also available in a Wheeled Version.
