*All of our products are made with care and covered for 1 year warranty!
*Installation and Operator Training FREE

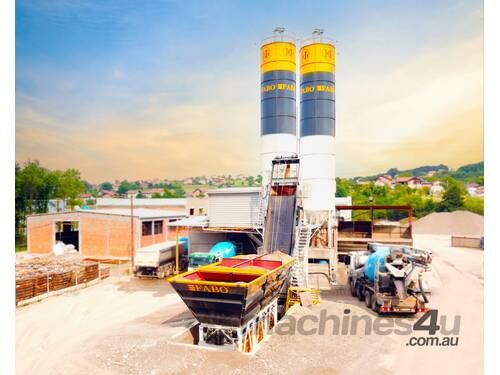

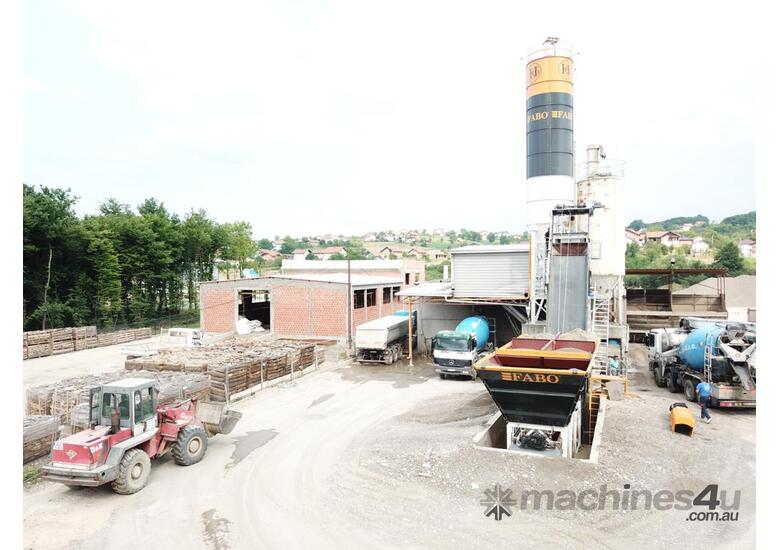

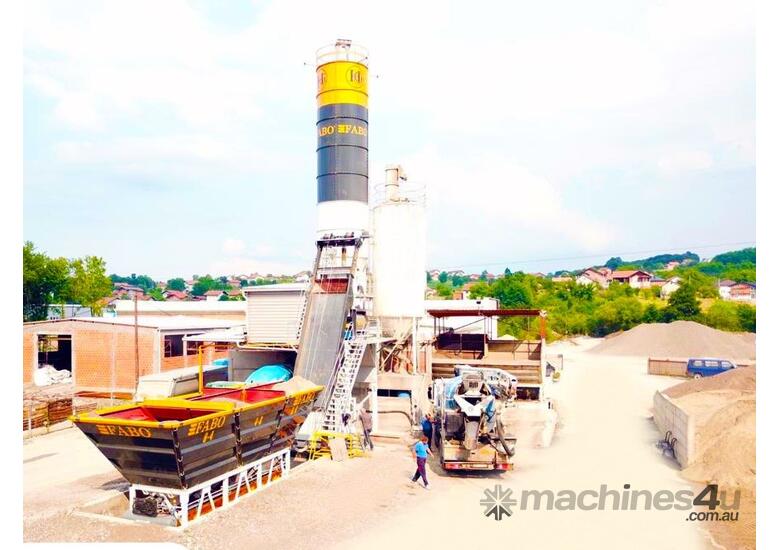

FABOMIX COMPACT series Stationary Concrete Batching Plants provide satisfaction of all levels need with practical and effective solutions. Stationary concrete batching plants can easily and efficiently reach high capacity production of homogeneous concrete mixture.
FABOMIX COMPACT series have easy operating system and lowest investment costs. In addition, the plant provides the use of enterprise resources accurately, so that gaining time-saving will transform to more earnings.
TECHNICAL SPECIFICATIONS:
Model: FABOMIX COMPACT 60
Production capacity: 60 m3
Mixer type: Twinshaft mixer 1 m3
Cement weighing: 600 kg
Additives weighing: 30 kg
Water weighing: 250 kg
Cement silo is optional.
FABOMIX COMPACT-60 consists of:
• Aggregate Storage Bunker
• Aggregate Weighing Hopper
• Aggregate Weighing Conveyor
• Aggregate Transfer Conveyor or Bucket System
• Twinshaft Mixer
• Mixer Chassis, Walking Platforms, Ladder
• Water Weighing Hopper
• Cement Weighing Hopper
• Admixture Weighing Hopper
• Air Compressor
• Cement Screw Conveyor
• Bolted Cement Silo
• Top Filter, Safety Valve and Accessories
• Control Cabinnet with Air Conditioner
• PC and Automation System
• Control and Power Panel
