BP Side Loaders – Electric

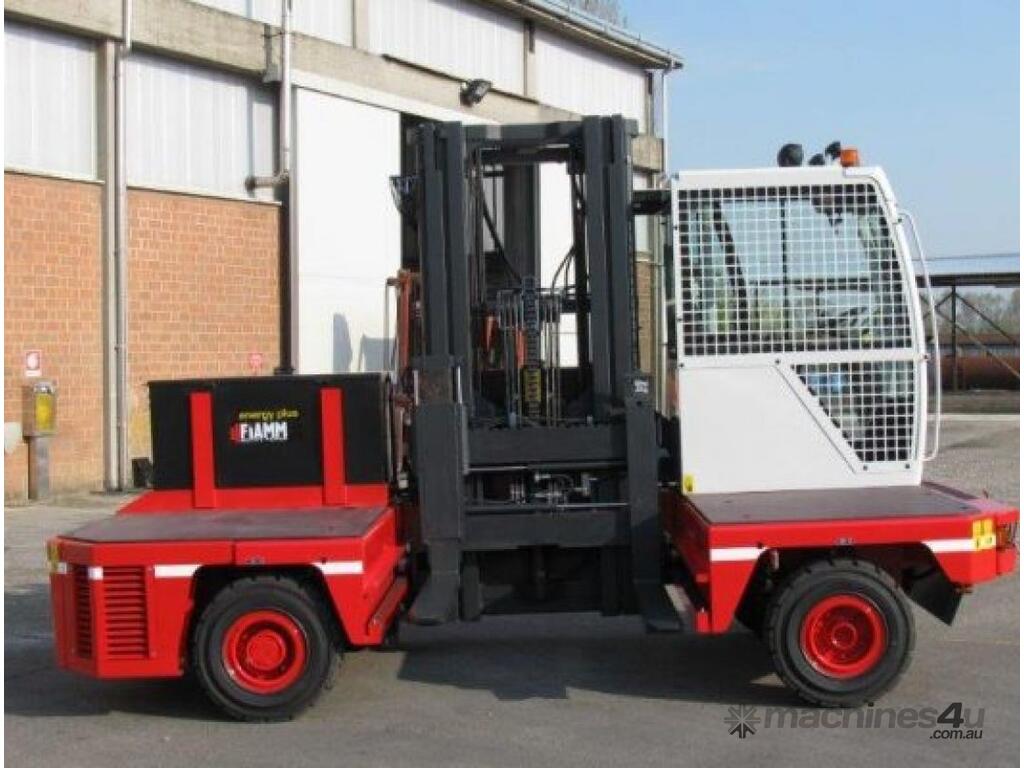

The electronic side loader model SLE40 is equipped with superelastic tires for driving and handling materials indoor and also outdoor in yards over even and uneven grounds. Thanks to the speed, strength and reduced dimensions in relation to the lifting Capacity: the SLE40 can be utilized both in outside operating areas or in inside storage warehouses.
Technical specifications:
About eight hours continuous operation
Two front steering wheels with power steering (servo assisted): and one traction AC motor plugged into the differential system providing for maximum power reliably transmitted to the rear axle and steering system
AC multi programmable system
Regenerative release braking with energy regeneration
Special steel profiles on lifting mast with traverse guide rollers mounted on high resistance bearings
Front steering axle is one single-cylinder with power steering
In-out crossed cylinders mast for fast and high precision motion, granting maximum safety at extreme load conditions at the same time
Equipped with all mandatory Safety Devices and Systems as specified by EU directive 2006/42/EC (Machinery Directive):, 2004/108/EC (Electromagnetic Compatibility): and 2006/95/EC (Low Voltage Directive):
Supplied with Usage and Maintenance Instruction Book, Spare Parts Catalogue and Certificate of Conformity to EU directive 2006/42/EC (Machinery Directive):, 2004/108/EC (Electromagnetic Compatibility): and 2006/95/EC (Low Voltage Directive):
FEATURES & BENEFITS
Working with BP SLE40 is easy and safe. The cabin is designed to enable the operator to reach all the controls easily and to have a wide visibility. The power steering and the joystick/lever position are ergonomically designed so that the control of the traction, the steering and the execution of the hydraulic movement is very simple and comfortable.
The SLE40 is designed to minimize the maintenance requirements and at the same time to allow for a safe and comfortable access to all the installed components and subsystems. Check control display is available in the dashboard to alert in case of faults. The absence of brushes in the motors reduces the required maintenance.
SPECIFICATIONS
Capacity: (kg):
4000
Fork Length (mm):
1200/1400/1600/1800
Load Center (mm):
600/700/800/900
Voltage:
80 Volts
Power Supply
AC
Tyres:
Pneumatic 27×10-12
Electric Motors:
2 x 12 kW (Traction): – 22 kW (Pump):
Tilting:
Chassis
