SM-FHPB2506NC1. Panbrake Folder. Full Hydraulic. 2500mmx5mm with NC1 Programmable Angle Controller Hardened & Ground Fingers, Backguage with 4 Adjustable Fingers, Safety Guards, Australian Designed
Description
Our Australian designed & engineered Full hydraulic Panbrake will blow the competition away.
Quality and ease of operation, our NC1 machine offers a smart 99 station programmable angle setting for quick and accurate folding of all applications.
This can be used both in the single "enter angle and fold" mode, or used in a multi fold programmable folding sequence.
Produced exclusively for Asset by Australian Engineers.
Structural & Operating Features
?hydraulically operated bending and clamping beam for efficient heavy duty operation
?high structural rigidity from heavy plate steel box construction with continuous welded seams

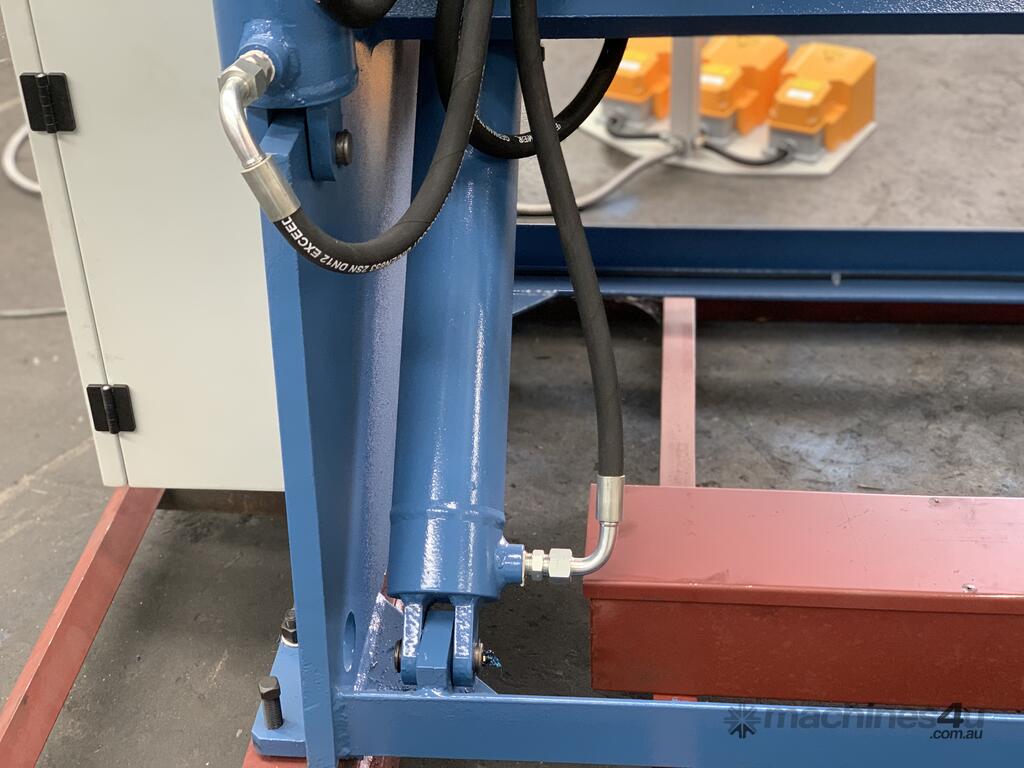

?bending beam powered by dual hydraulic cylinders
?fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature
?high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings
?precise electric / hydraulic controls with manual inching of bending beam
?utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
?comprehensive equipment protection from electric and hydraulic overload systems
Hydraulic System
?high quality componentry ensures reliable performance for years of continuous operation

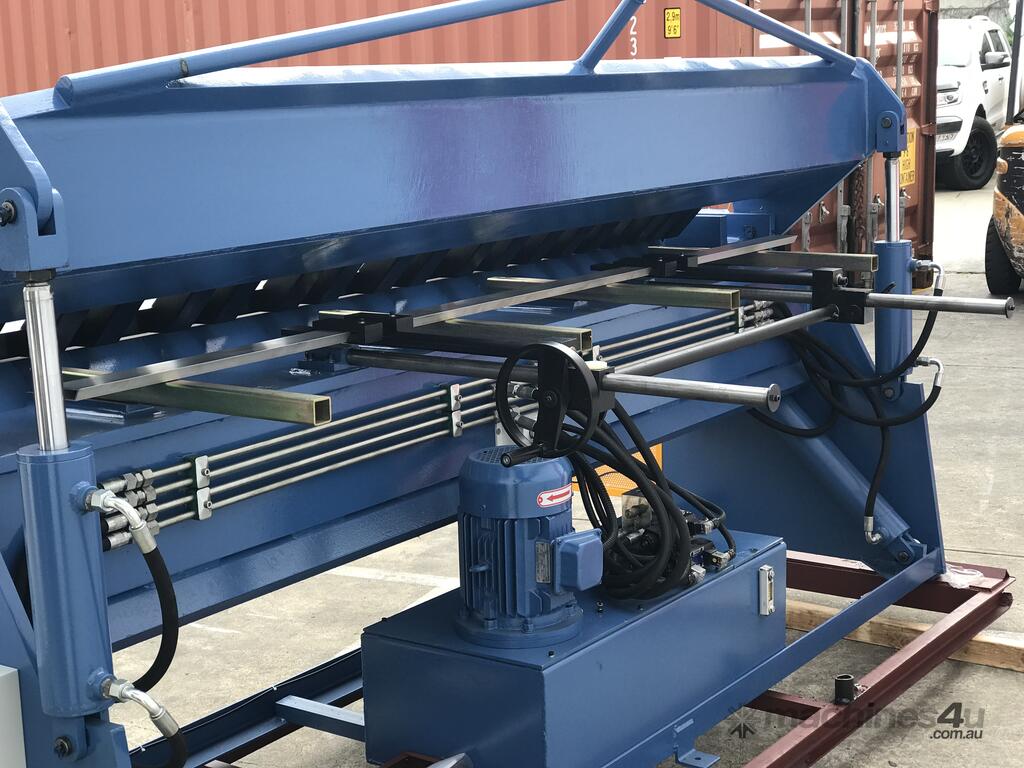

?powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
?unique electric / hydraulic control ensures safe and simple operation
Specifications
?high bending angle of 0-125°
?greatest depth of box bent 165 mm
?powerful motor
?200 mm of clamping beam
?hydraulically operated bending and clamping beam for efficient heavy duty operation
?24 volt control wiring
?bending fingers made from hardened material, maximizing life

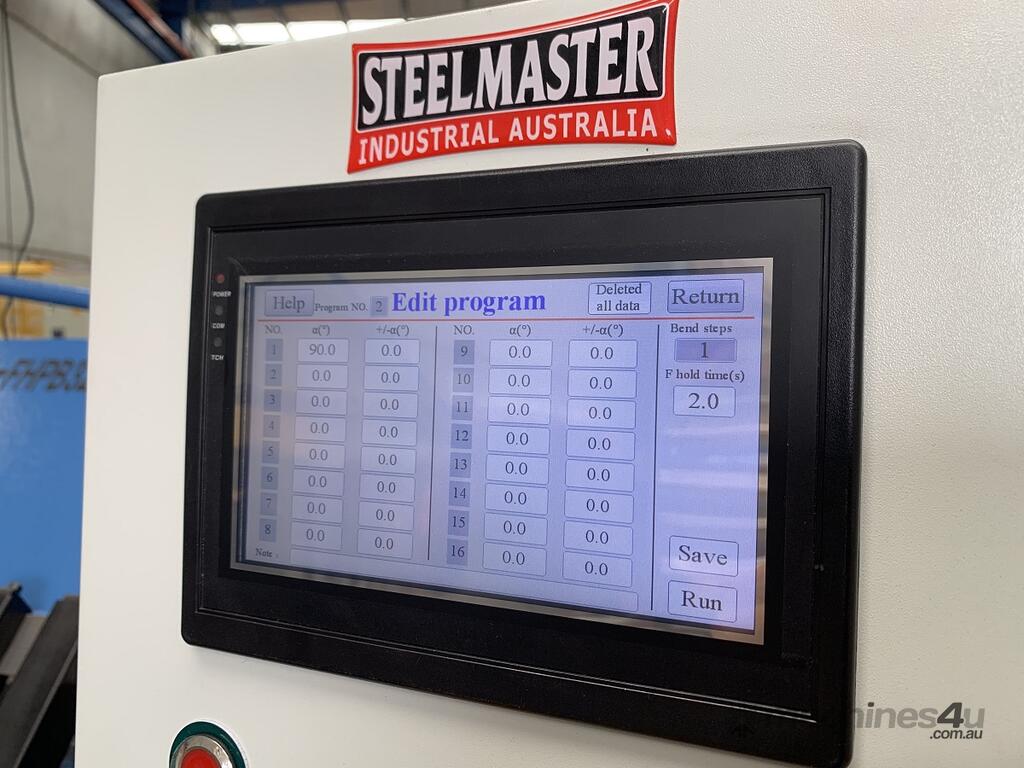

NC1 eBend Programmable Controller
?offering programmable control controlling bending & manual calibrated backgauge
?eBend touch screen programmable setting operating in, manual, automatic and repeat modes
?eBend offering powerful 45 programs each with 16 bend steps
?designed to control a 4 ram folder with up, down, clamp and release functionality
Technical Data Snap-Shot
?2500mm x 5.0mm mild steel bending capacity
?2500mm x 3.0mm stainless bending capacity
?eBend 45 program touch screen programmable controller
?o ~ 125 bending range
?shipping dimensions - 3050mm x 1000mm x 1600mm
?power - 5.5Kw
?approx weight: 4500kg
