SM-FHPB3204 3200mm X 4mm CNC2 E Bend

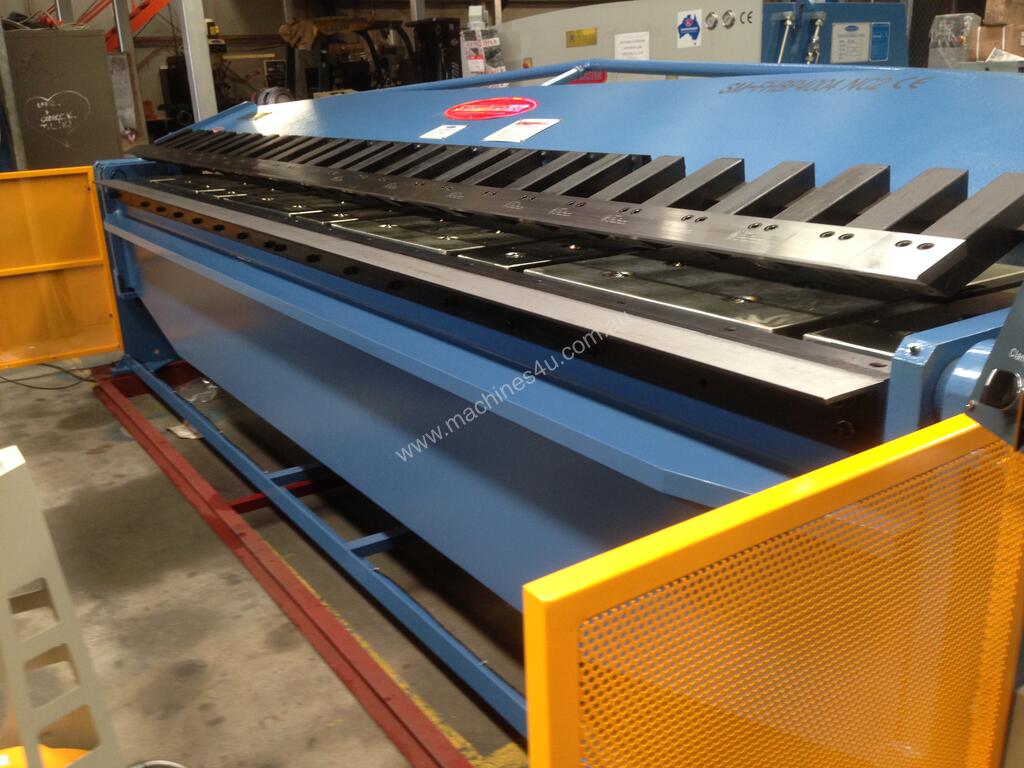

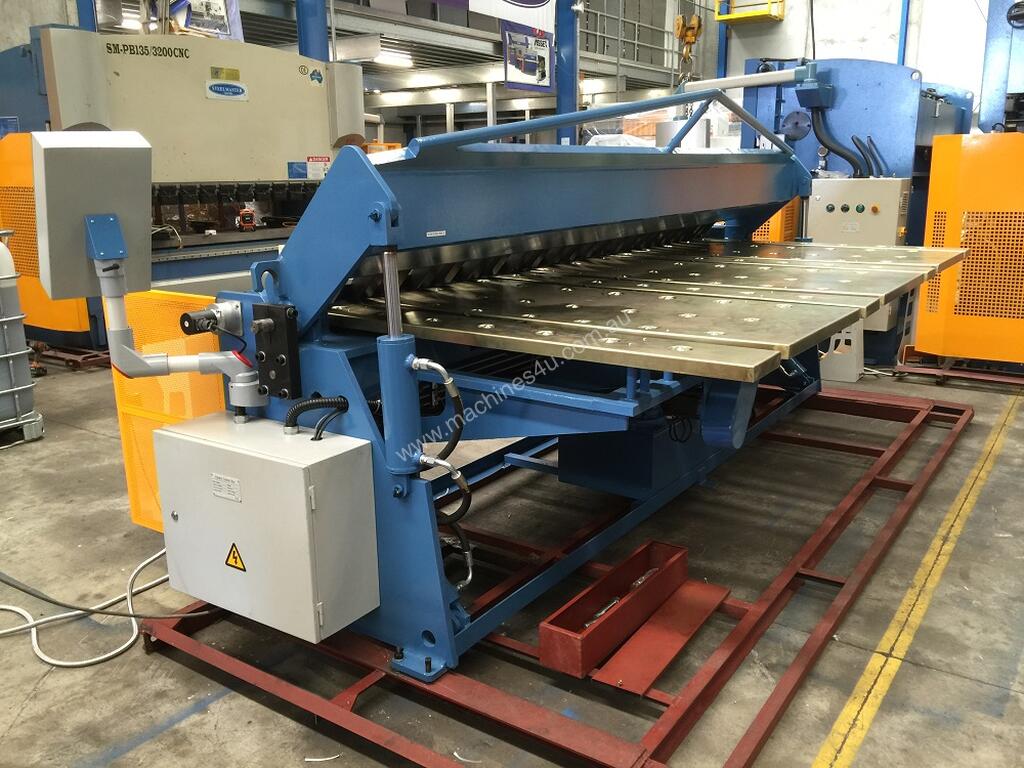

SM-FHPB3204CNC2. Panbrake Folder. Full Hydraulic. 3200mm x 4mm, Foldmaster 2 Axis CNC Graphical Ballscrew Programmable Backgauge, Hardened & Ground Fingers, Safety Guards, Australian Designed

Description
At last, a 2 Axis CNC graphical full hydraulic panbrake folder - controlling bending angle and backgauge position!
Our Australian designed & engineered Full hydraulic Panbrake will blow the competition away.
Working smarter, not harder with our CNC Foldmaster machine. Offering a smart full graphical CNC Foldmaster controller. Full CNC programming functions.
This can be used both in the single "enter angle and fold" mode, or used in a multi sequence folding and backgauge operation - Watch the video and see how easy this is.
We offer a 600mm precision ballscrew back gauge as standard however, if you require longer, we can provide these on request.

Features

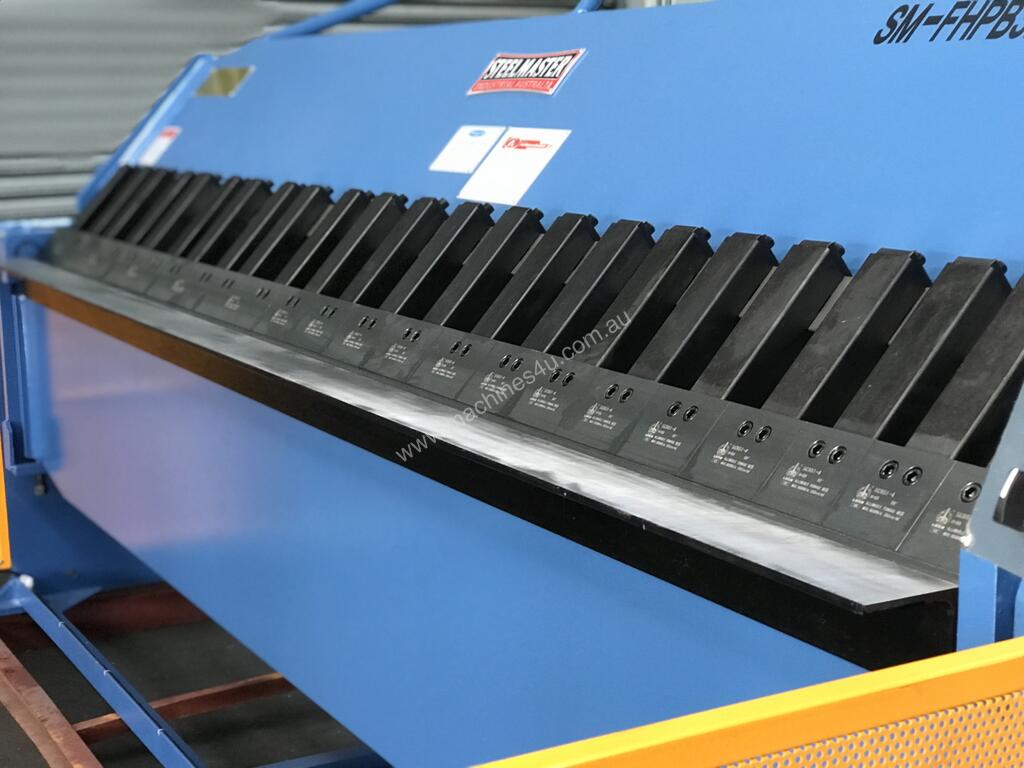

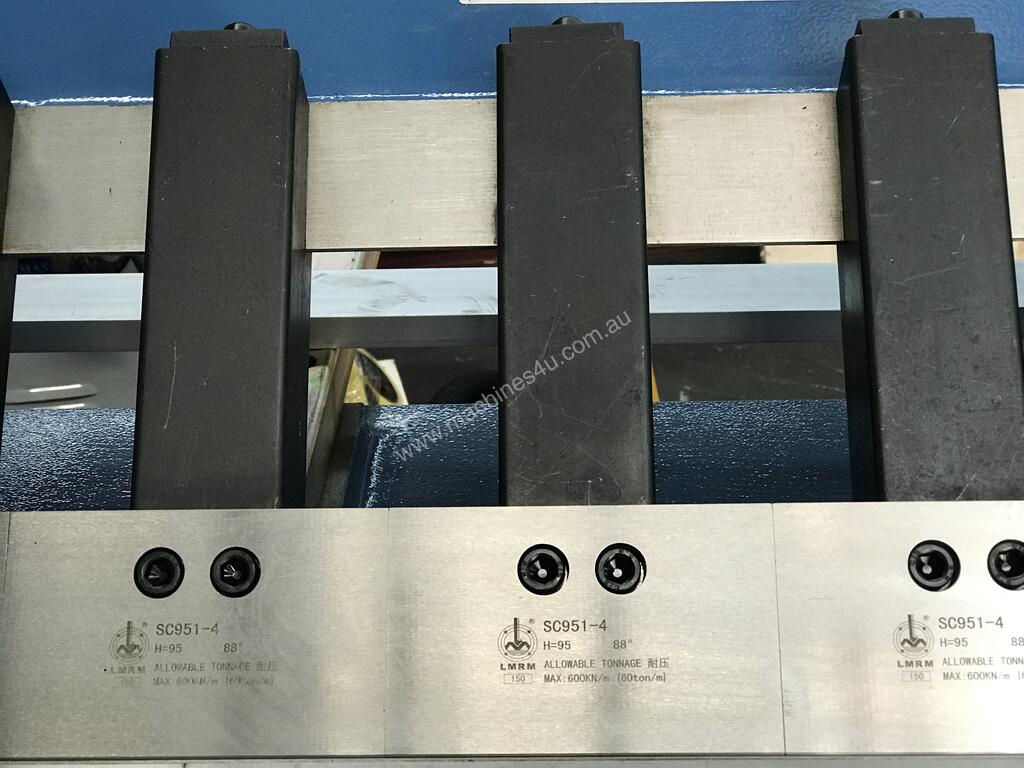

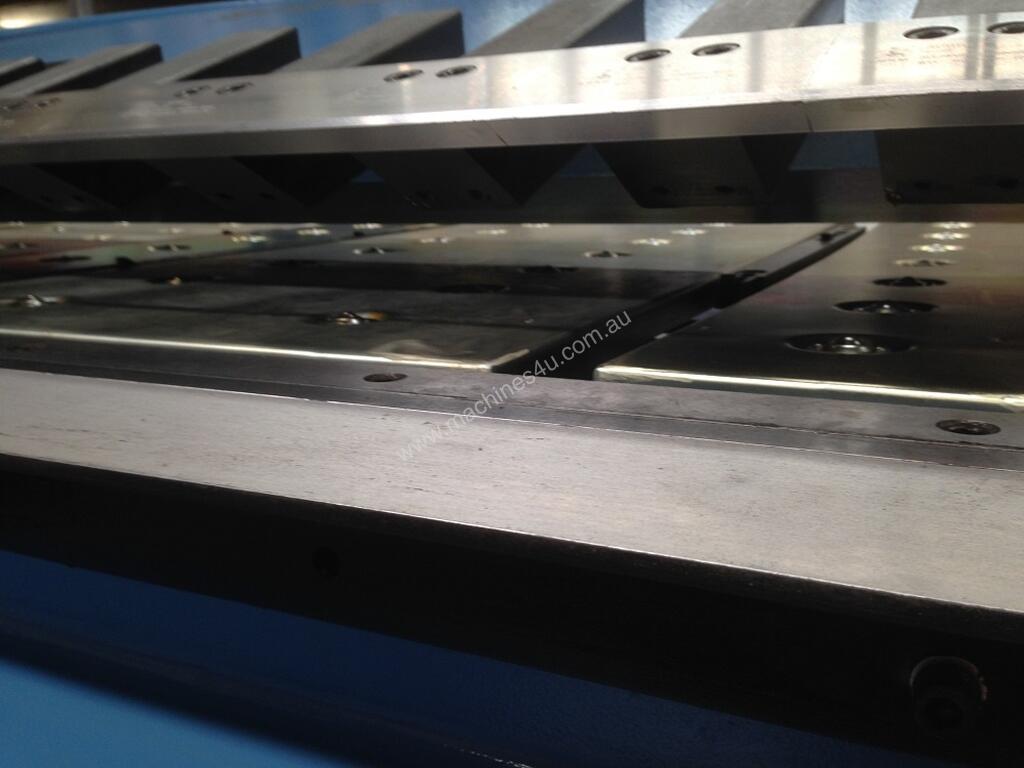

?hardened and ground fingers, perfect for all bending applications
?hydraulically operated bending and clamping beam for efficient heavy duty operation
?high structural rigidity from heavy plate steel box construction with continuous welded seams

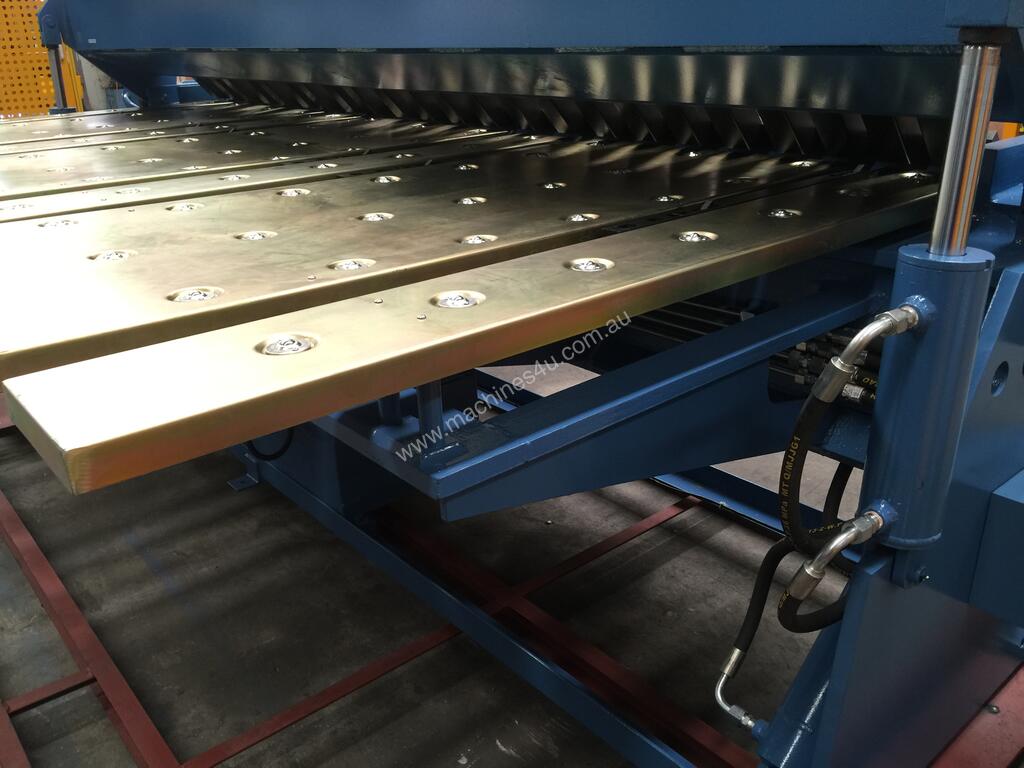

?bending beam powered by dual hydraulic cylinders

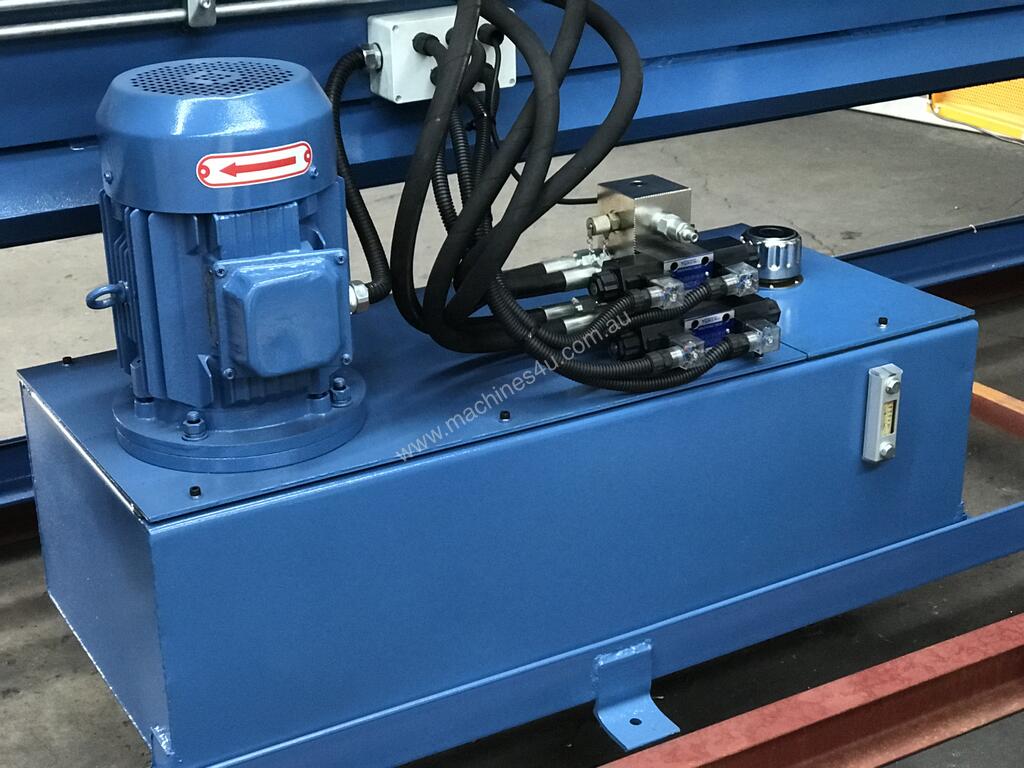

?fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature

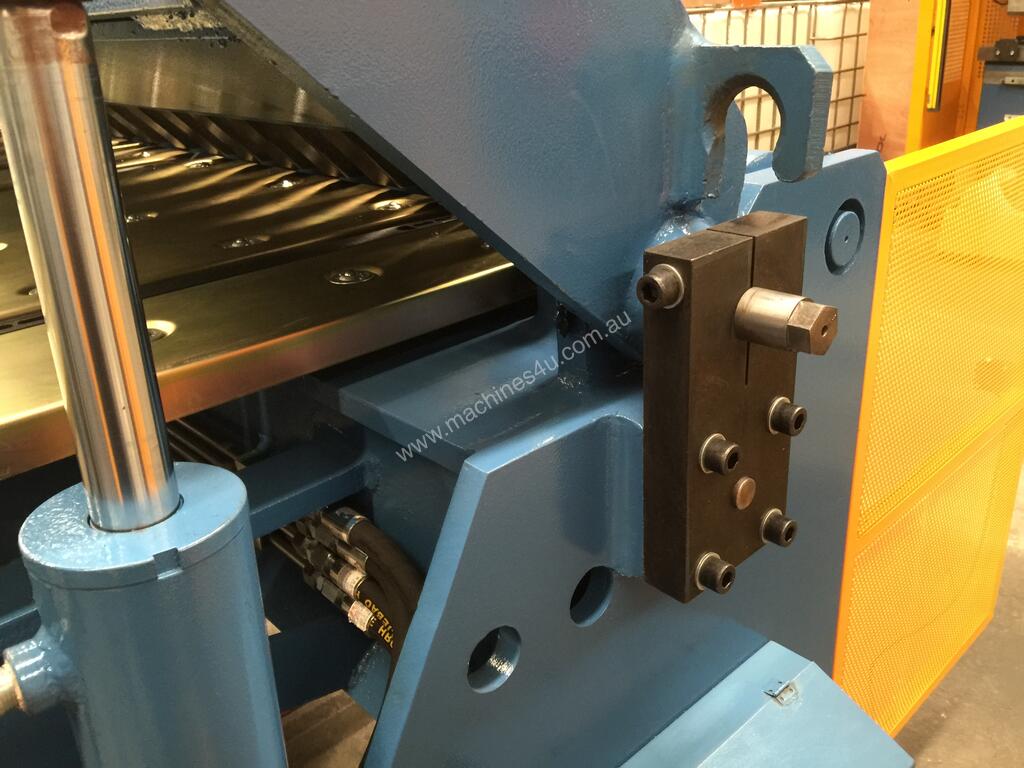

?high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings
?precise electric / hydraulic controls with manual inching of bending beam
?utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
?comprehensive equipment protection from electric and hydraulic overload systems

Hydraulic System
?high quality componentry ensures reliable performance for years of continuous operation
?powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
?unique electric / hydraulic control ensures safe and simple operation

Foldmaster Features
?can be fitted to most press brakes, pan brakes & slitter folders.

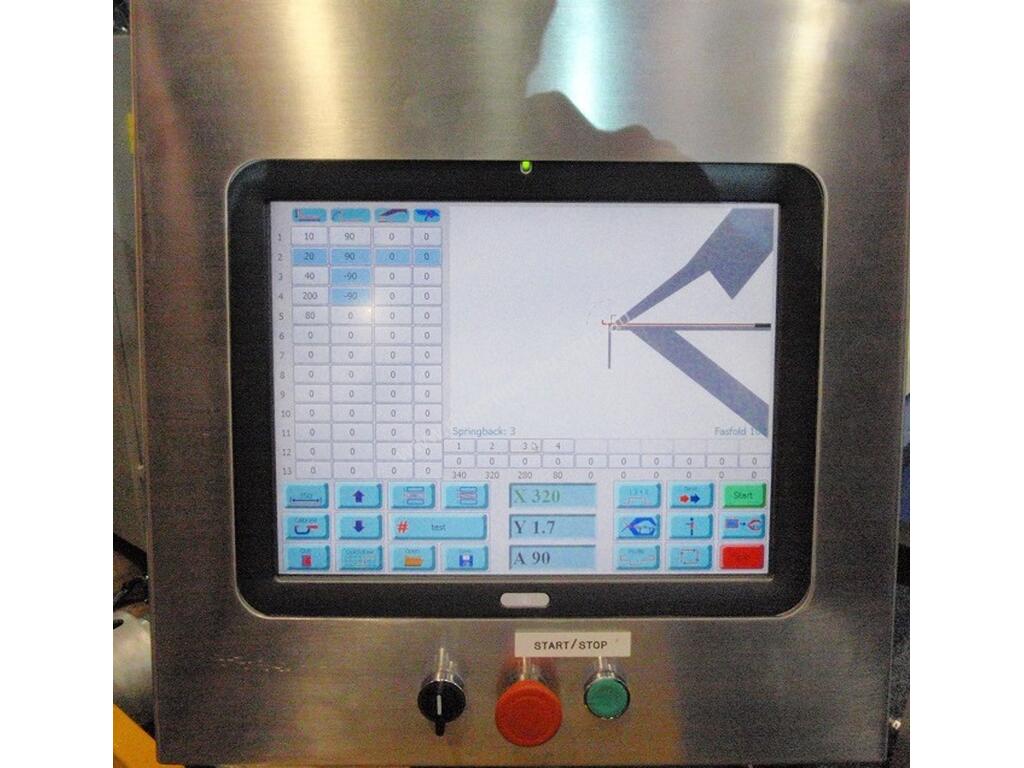

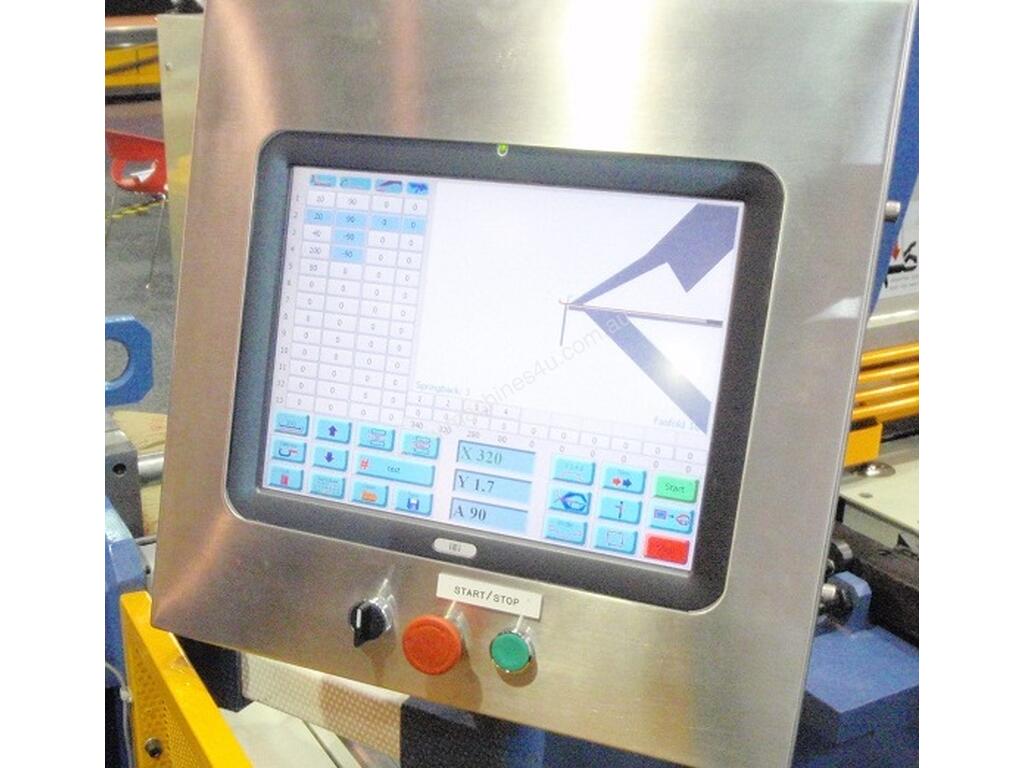

?large 15" Touch screen
?easy Job Selection
?select existing jobs from the library
?jobs can be named and saved for future use. A virtually unlimited number of jobs can be saved
?jobs open with all relevant data like bend sequence, angle corrections, which bends were done from front or rear etc. This saves lots of set-up time.
?jobs can be linked to fold boxes easily
?each operator can have his own password with his own job library.

Foldmaster – 5 Easy steps to put you in production in no time!

Step 1. MASTERDRAW: How easy is this!.....

Simply touch the corners on the grid to draw the box
Press OK to return to the main screen

Step 2. Simply touch on the dimension or angle of the profile on the right to edit the value on the popup keypad

Step 3. How good is this!........ See the profile on the left for easy editing….. and the folding simulation
• View the actual folding sequence simulation on the graphic of a Panbrake as you fold in real time or animation mode.
• Change folds from front to rear to optimise production.
• Step through the whole sequence without wasting time or material.
• This process can be used in minutes to assist in doing new quotes accurately
• Touch the “Automatic fold sequence” button or set the fold sequence manually simply by entering the sequence ( 3 4 for the example on the left).
Step 4. Enter material thickness and width.

Step 5. Start production


Technical Data Snap-Shot
?3200mm x 4.0mm bending capacity
?o ~ 135 bending range
?backgauge travel length - 900mm. Position A & B
?optional backgauge travel length to 1200mm available on request. Position A, B & C
?shipping dimensions - 3800mm x 1650mm x 1650mm
?power - V 4.0Kw
?approx weight: 4100kg

********************************************
Need more details? Can't find what you are looking for?
********************************************

We have many more items available than listed here.

Steelmaster Metalworking Hydraulic Panbrake Folders.
When looking for a quality Metalworking Hydraulic Panbrake Folder, look no further than Steelmaster Industrial. Australian Designed & Engineered our Steelmaster Industrial Metalworking Hydraulic Panbrake Folders offer the Sheetmetal worker a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 20 models of Metalworking Hydraulic Panbrake Folders in stock at all times for quick shipments. Steelmaster Industrial's ever growing line of Metalworking Hydraulic Panbrake Folders consist of our manual operated machines, our Standard Simple Angle Model, our NC1 Programmable Angle Fold model, to our full CNC2 model offering 2 Axis control with our powerful Foldmaster CNC programming system along with a large range of tooling & accessories. Depending on your needs we have the model for you, starting with our cost effective manual panbrake folder to our Foldmaster CNC2 Graphical Models. You won't be disappointed.

Manually Operated Panbrake Folder
With many models to choose from our Manual Operated Panbrake Folders offer the best ``bang for the buck``. The manual model comes standard with a quick action gap setting feature, extra large open height for large box folding, hardened & ground folding fingers and a well balanced clamp & fold weighted system We fully believe that we have packed our Panbrake Folders with as many features that we can think of to assist you with working smarter -- not harder! We offer our Manual Panbrake Folders in sizes from 1270mm ~ 2500mm with larger models available on request.

Standard (STD) Hydraulic Panbrake Folders
We understand that not everybody wants an NC or programmable Hydraulic Panbrake Folder. Some operates just require a simple system that works. Our STD Hydraulic Panbrake Folders offer the KISS factor! ``Keep it simple silly``. Simply set the angle setting on the side of your folder and away you go. Our STD Hydraulic Panbrake Folders offer the same ``high quality`` frame build and fit our as our NC & CNC2 models -- just simple and setting feature! How goods that? Sizes from 1320mm x 4mm ~ 4000mm x 4mm with larger models available on request. Safety Laser Light Guards are fitted standard on all our Hydraulic Panbrake Folders to ensure full safety is met! All this at a very competitive price.

NC1 Operated Hydraulic Panbrake Folders.
With many models to choose from our Hydraulic NC1 Hydraulic Panbrake Folders offer programmable folding features. The NC1 model comes standard with an Etsun fully programmable controller operating the folding axis. We fully believe that we have packed our Hydraulic NC1 Panbrake Folders with as many features that we can think of to assist you with working smarter -- not harder! In addition to the NC1 we have fitted a heavy duty sliding Backguage system running on dovetail guides with panbrake style adjustable fingers. We offer our Hydraulic NC1 Panbrake Folders in sizes from 1300mm ~ 4000mm in length with larger models available on request. Safety Laser Light Guards are fitted standard on all our Hydraulic Panbrake Folders to ensure full safety is met! All this at a very competitive price.

CNC2 Foldmaster Graphical Hydraulic Panbrake Folders

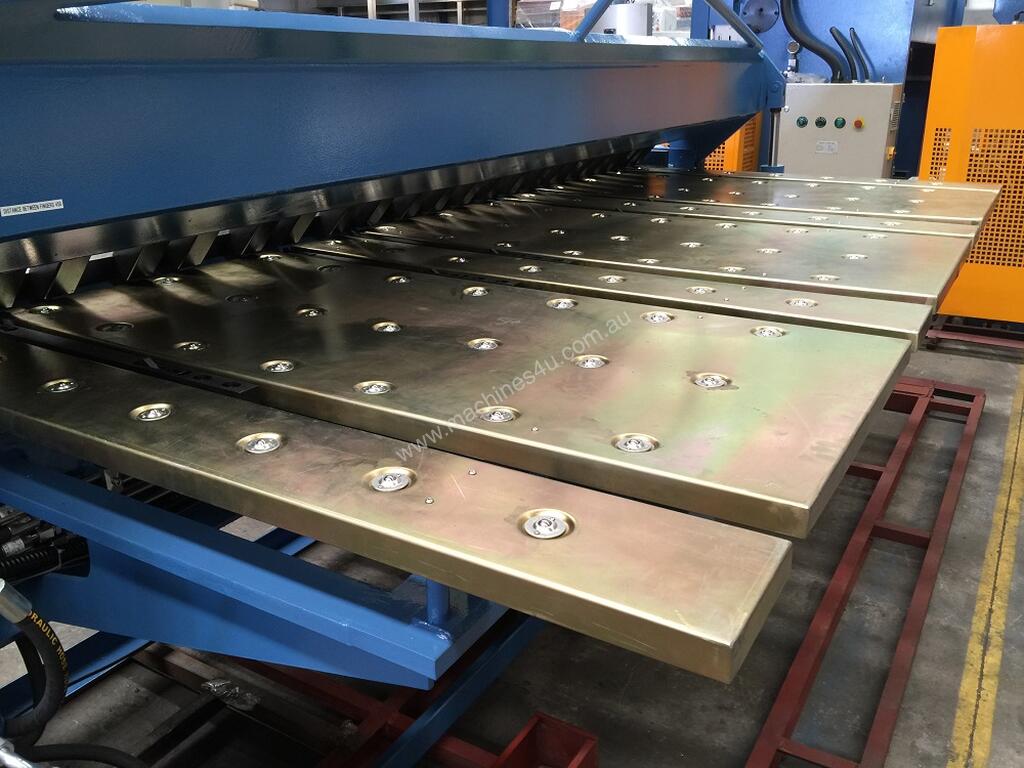

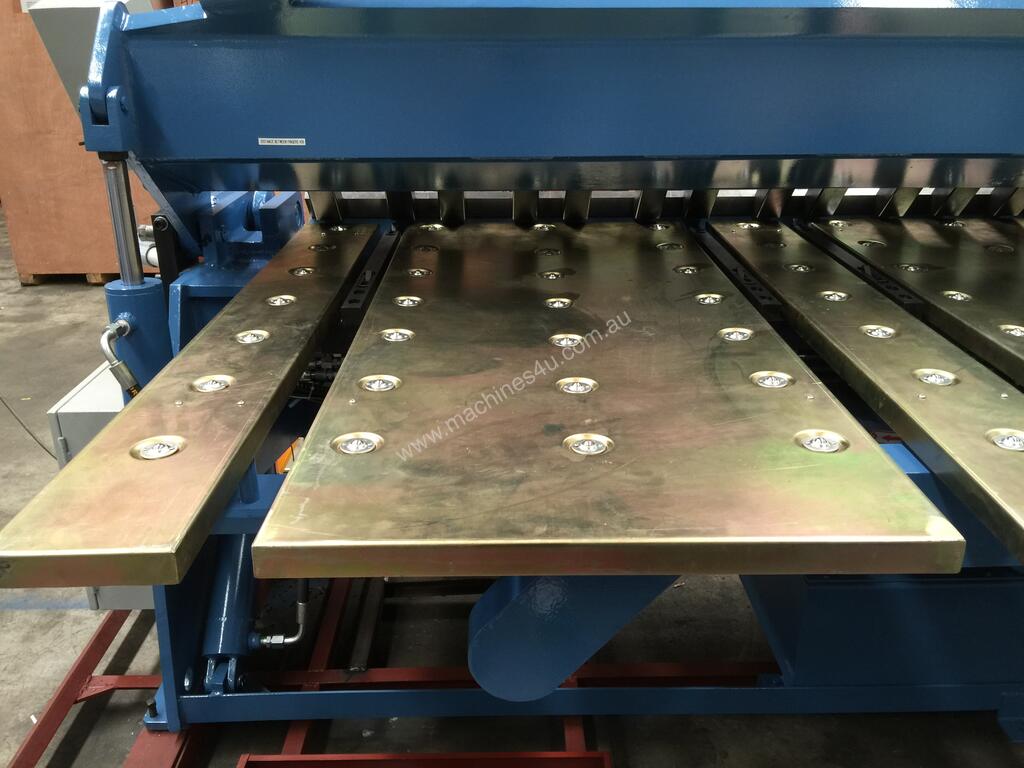

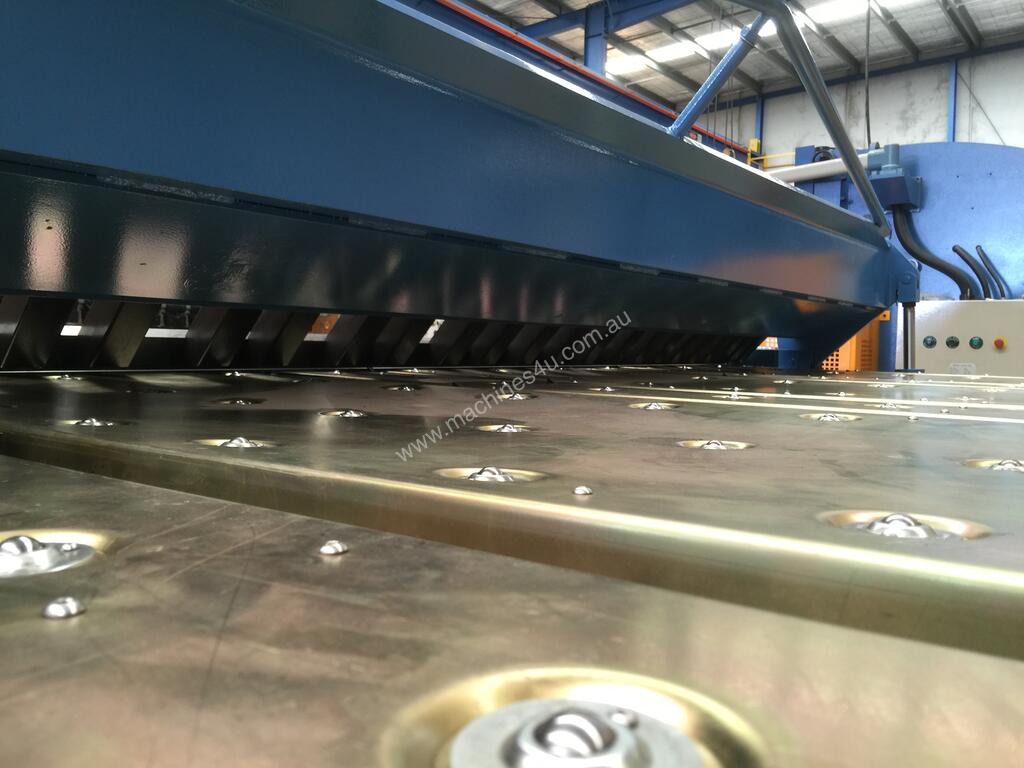

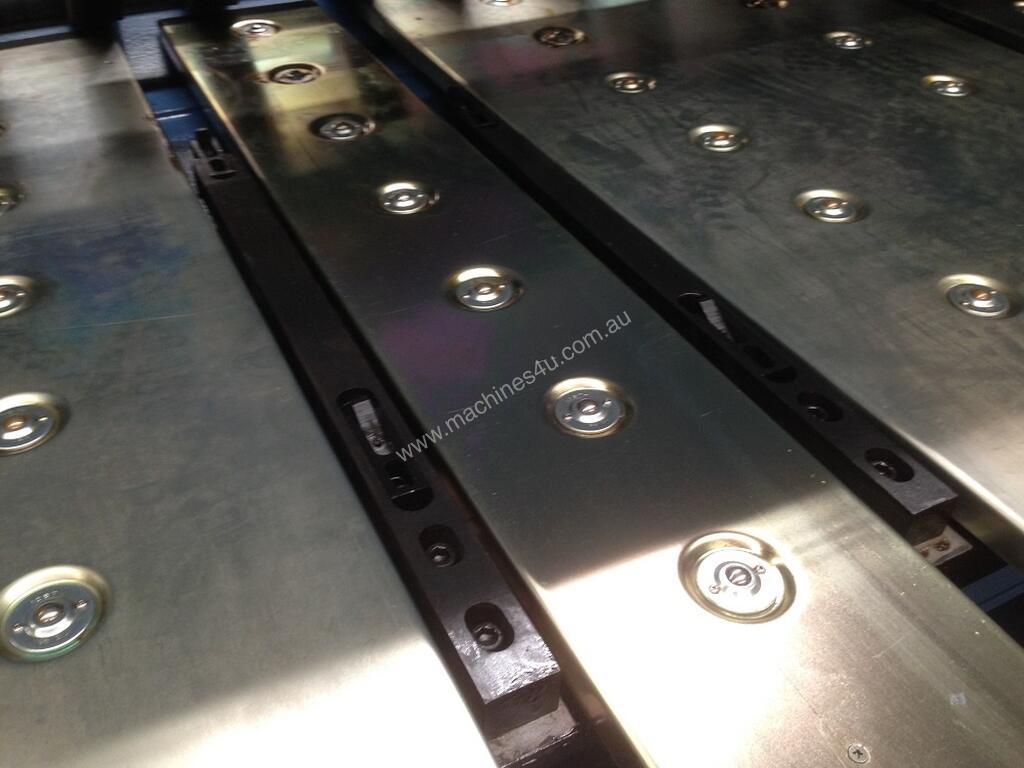

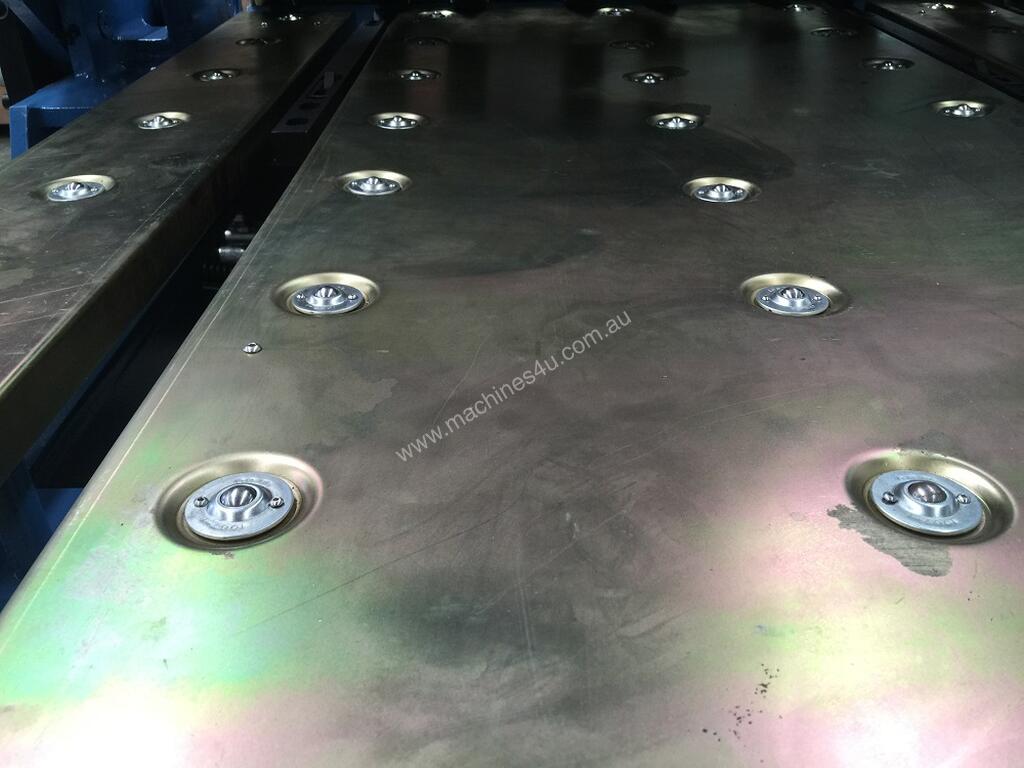

Steelmaster Industrial offers our new Foldmaster CNC Controller on our CNC range. This would have to be the best CNC system on the market for power and ease of operation. Our Hydraulic CNC2 Hydraulic Panbrake Folders have been fitted up to offer you the best selection of features. In addition to the NC models our CNC2 models offer, 2 Axis Programming drive, rear roller ball table, Foldmaster CNC graphical controller, quality imported precision backgauge system and fingers & safety light laser guards are included!!!
