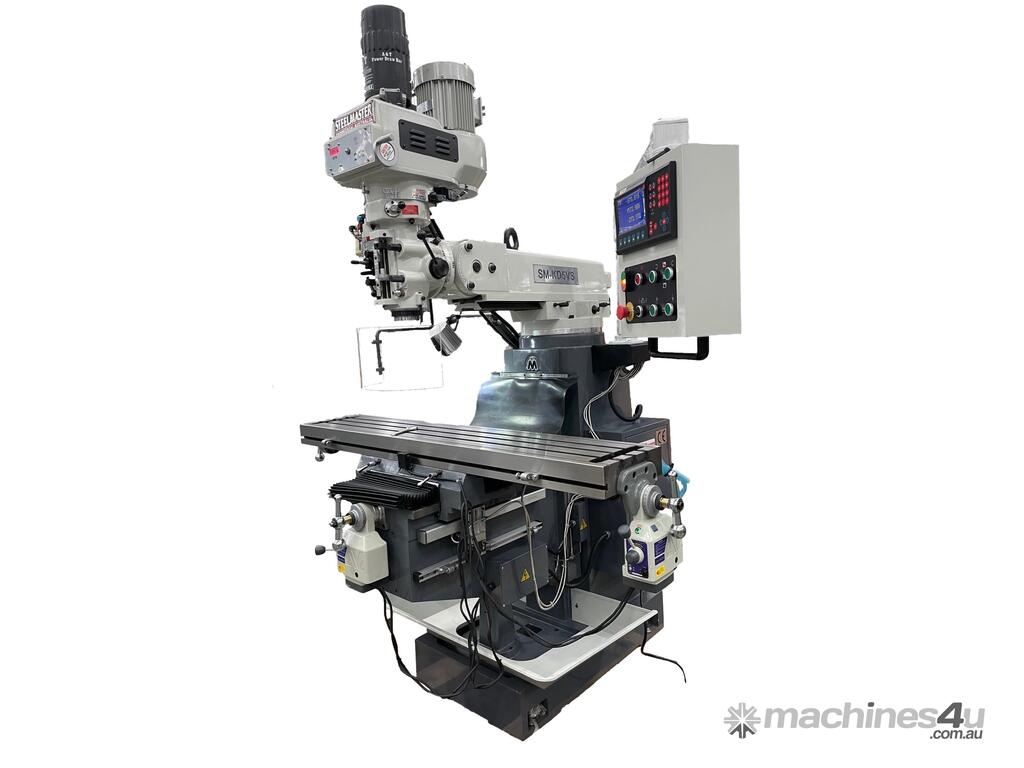

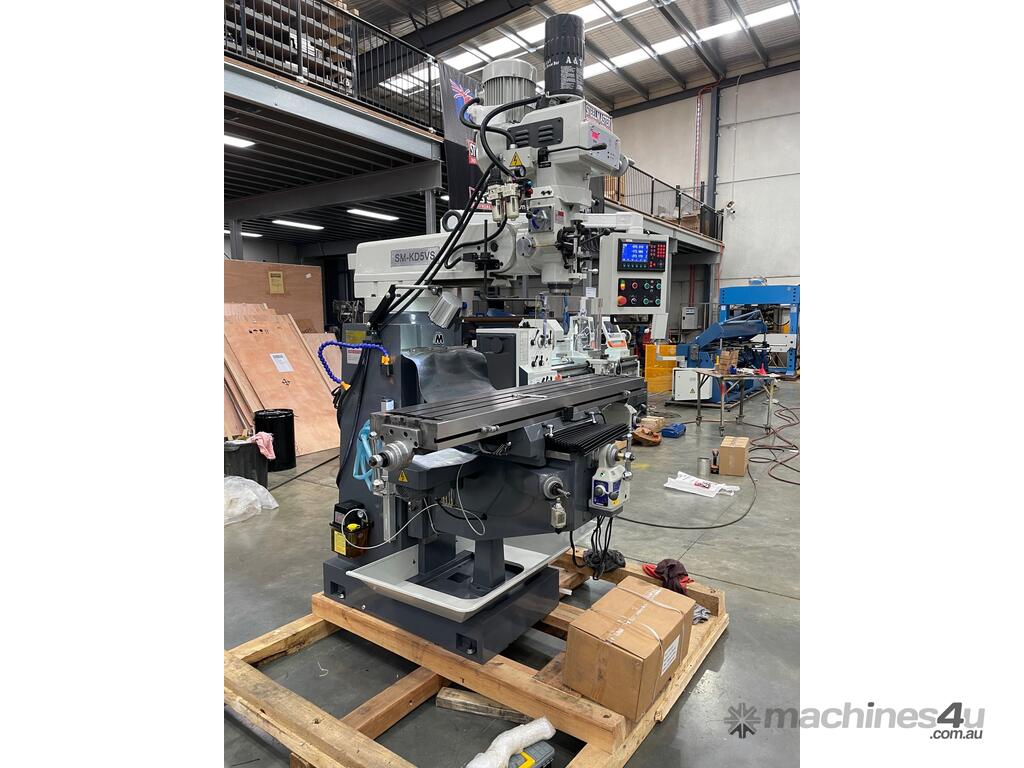

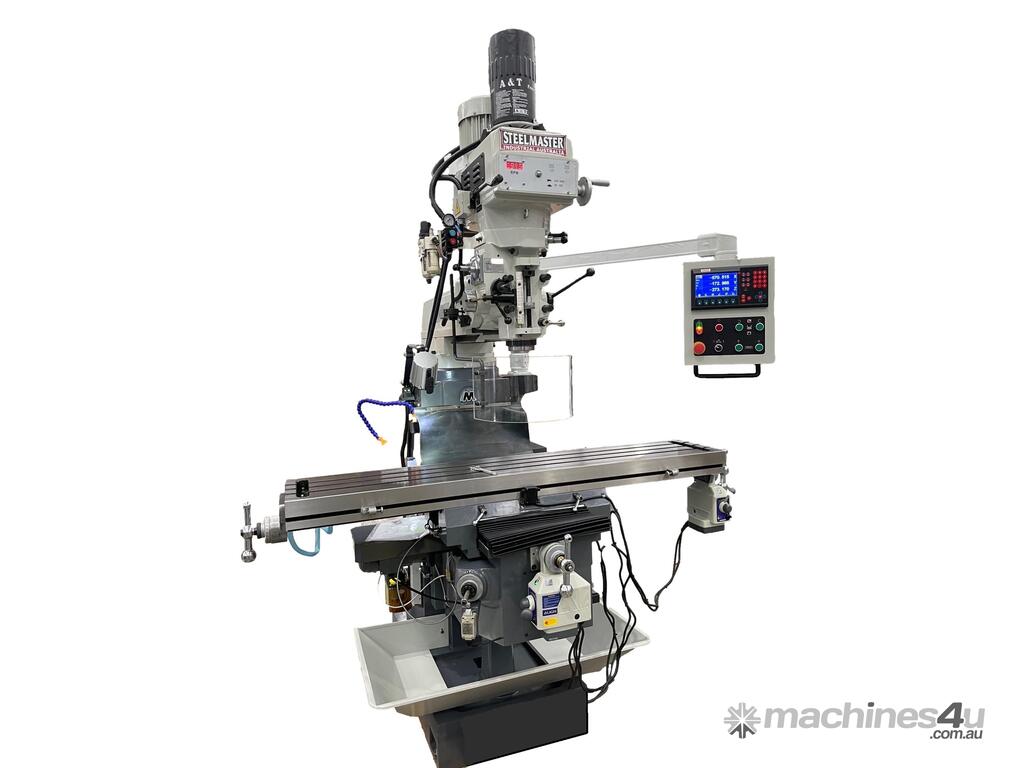

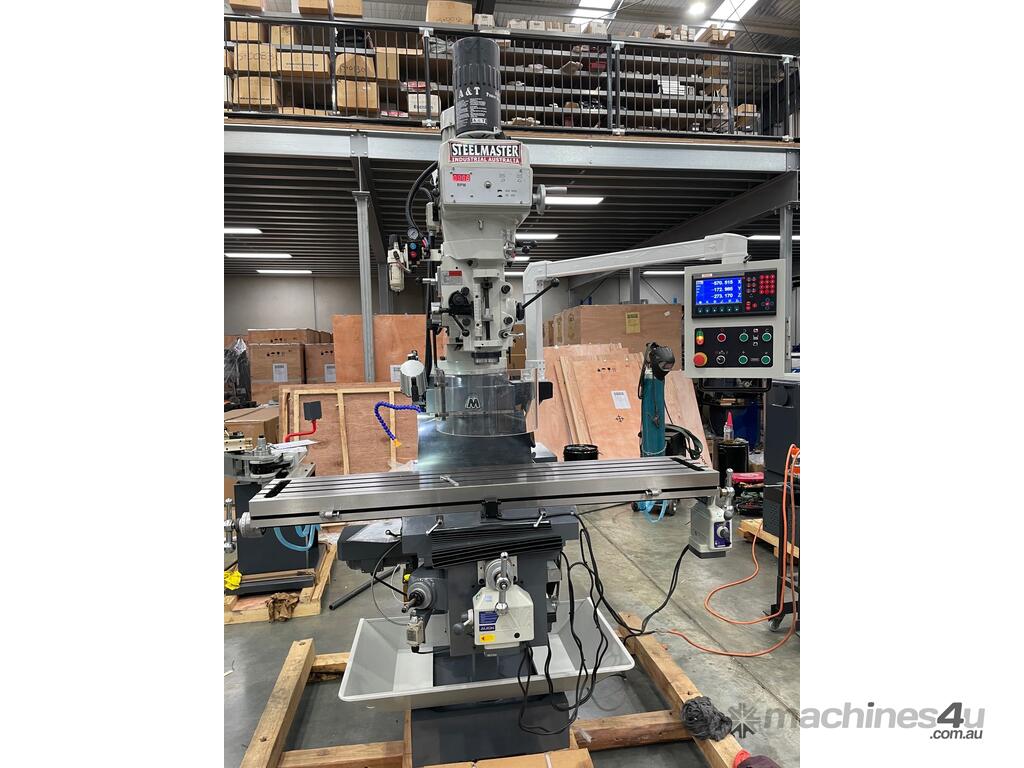

SM-KD5VS - 1580mm x 310mm Table - ISO 40 - Heavy Duty Turret With Power Draw Bar

**CURRENLTY AVAILABLE ON SALE AT $22,850.00 + GST WHILE STOCKS LAST.

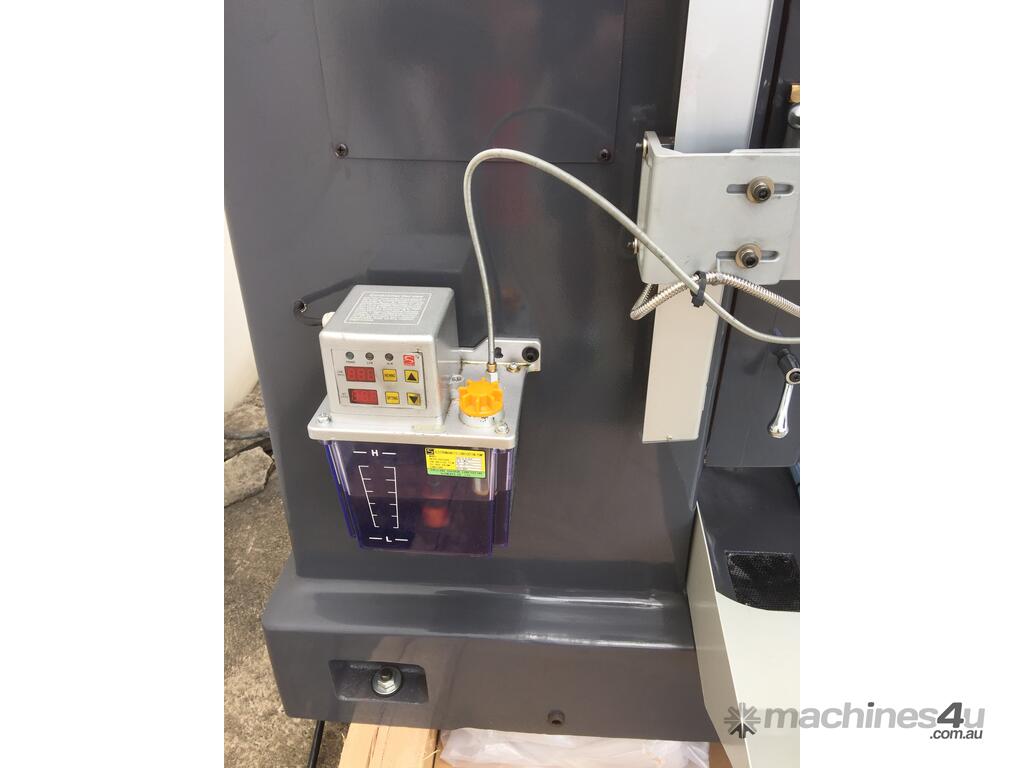

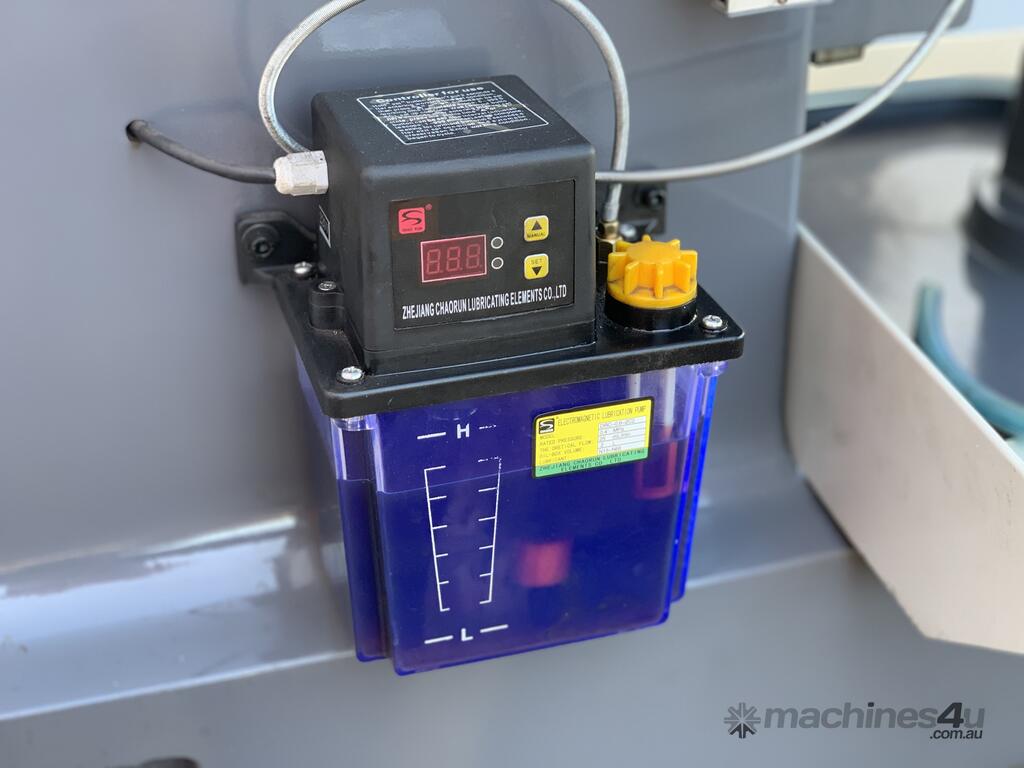

SM-KD5VS. Turret Mill Steelmaster. Pwr Draw Bar, ISO40 Spindle, 2 Axis Power Feed, 3 Axis DRO.1580mm x 310mm Table, 80 ~ 3800 Variable Speed. Coolant, Auto Lube, Splash Tray & Tool Kit. V

Description
This Mill is made with uncompromising quality Hardened and ground table, chromed quill & Turcite coated ways mean built-in durability for years of service. With a large 147mm quill travel standard and power draw bar fitted. Check out the capacities, features & specifications below! This is the machine to have for years of accurate, trouble-free operation. Fitted with Easson 3 axis digital read out. two axis table feed, power knee, variable speed head, quill feed all combine to serve you well.

Features
?power draw bar

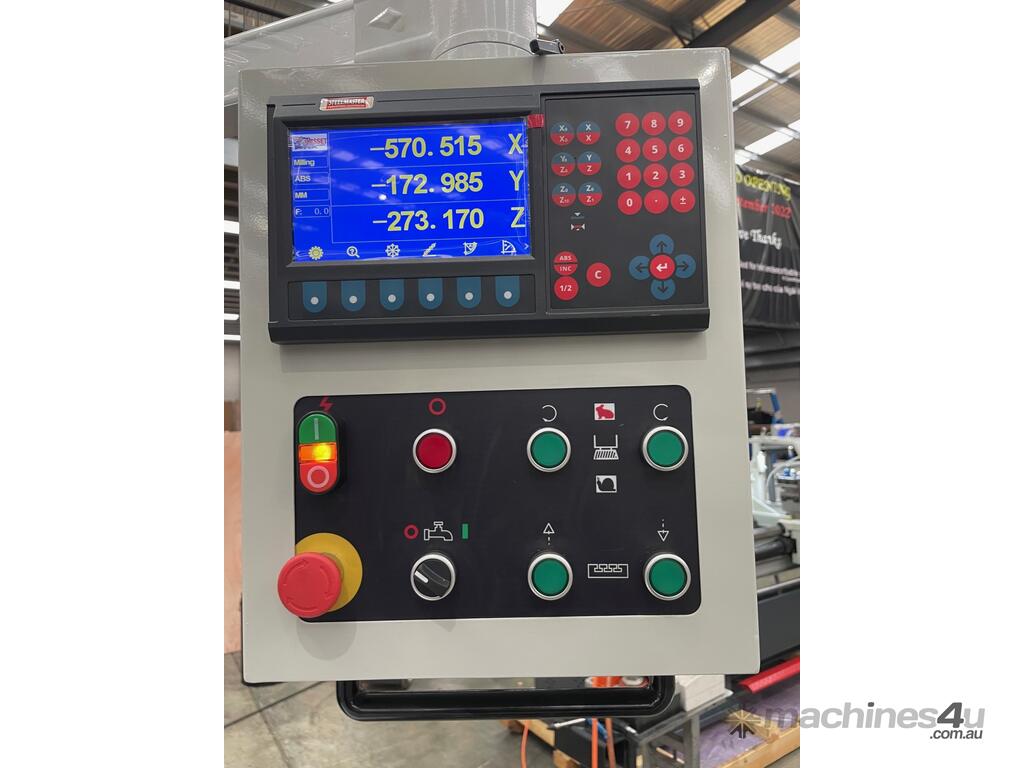

?3 axis DRO fitted standard

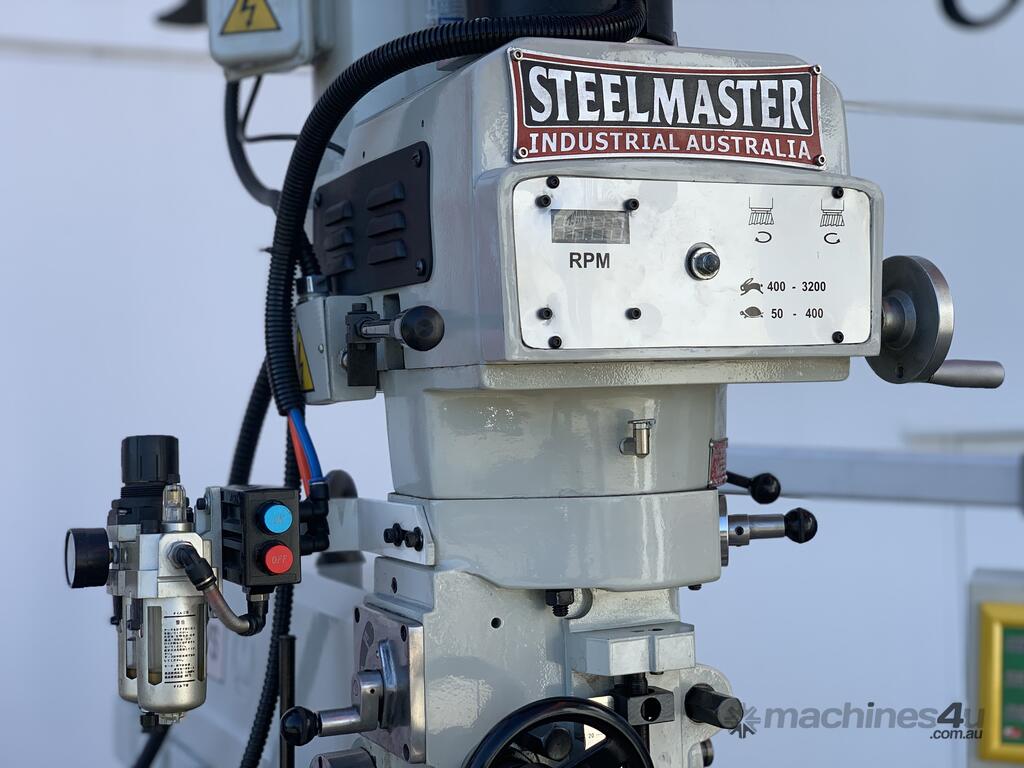

?infinitely variable speed drive head with digital display
?Taiwanese head and quality Meehanite cast frame

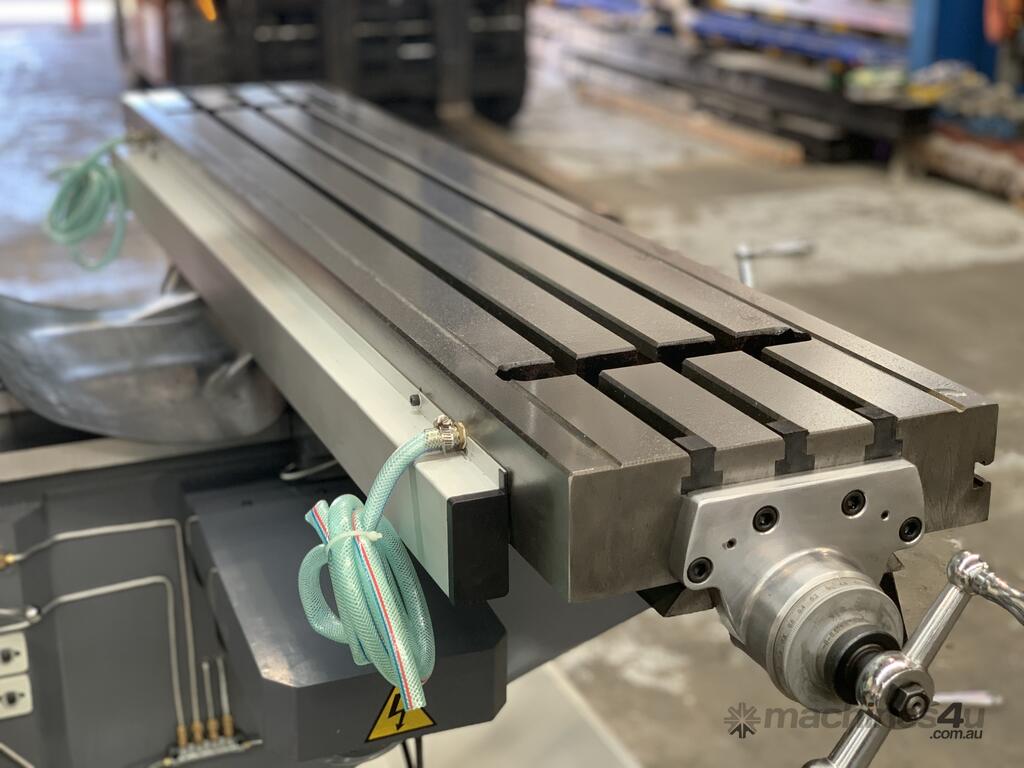

?solid, precise cross table with ground surface

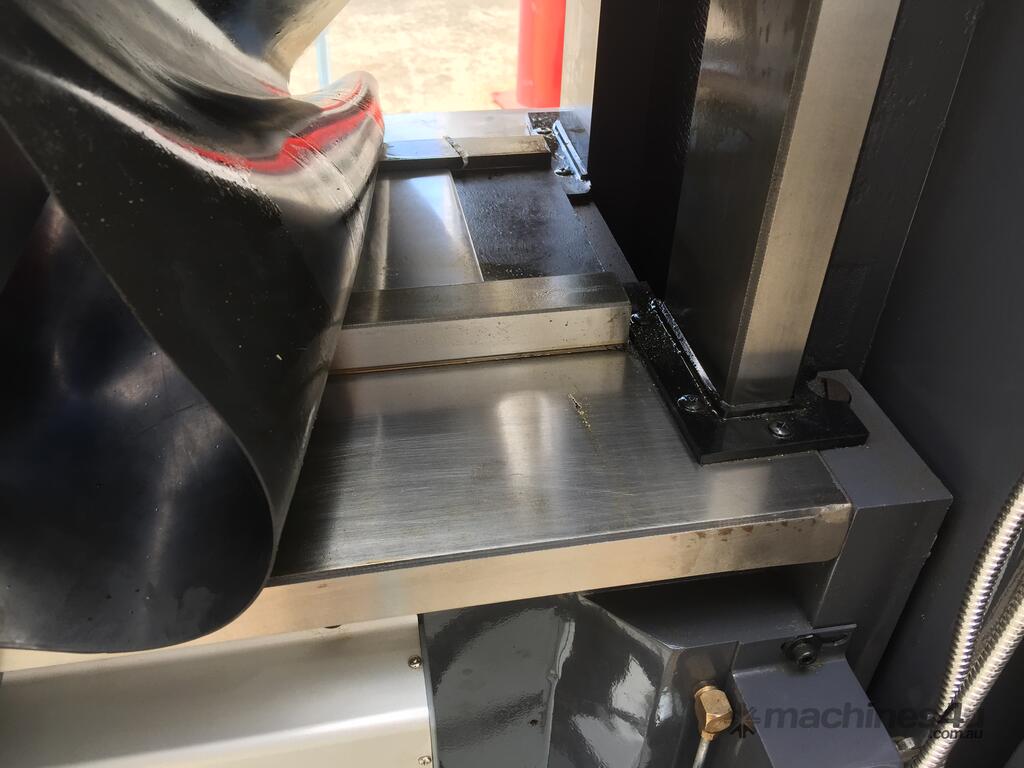

?precisely ground carriage guides with adjustable dovetail guides

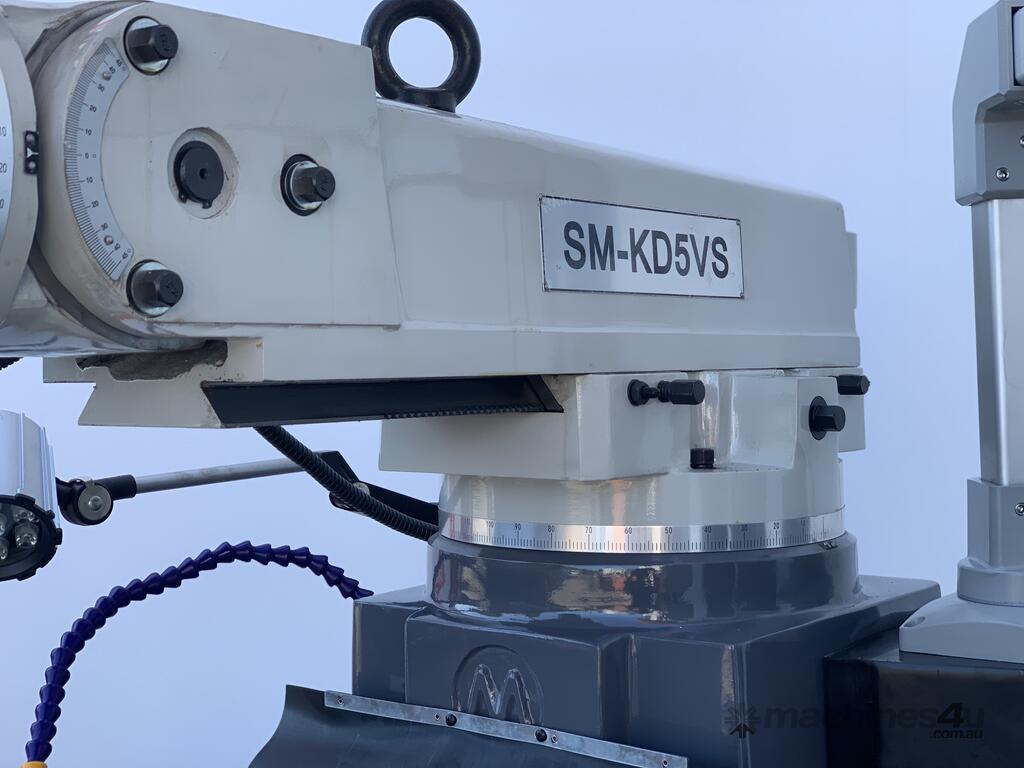

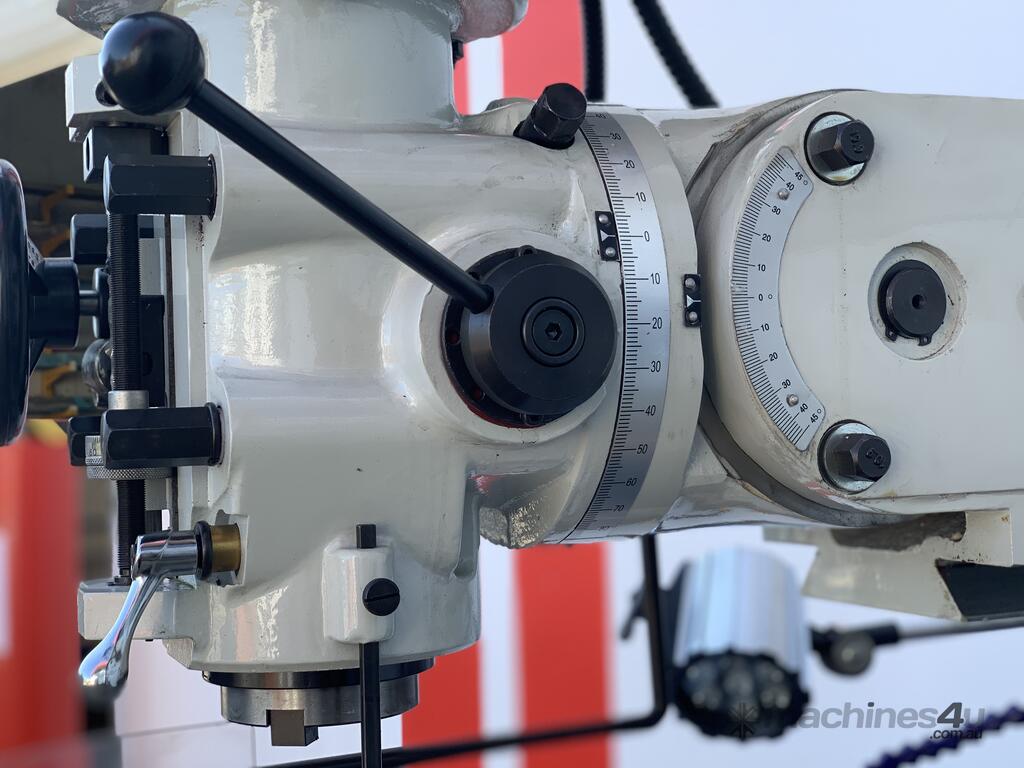

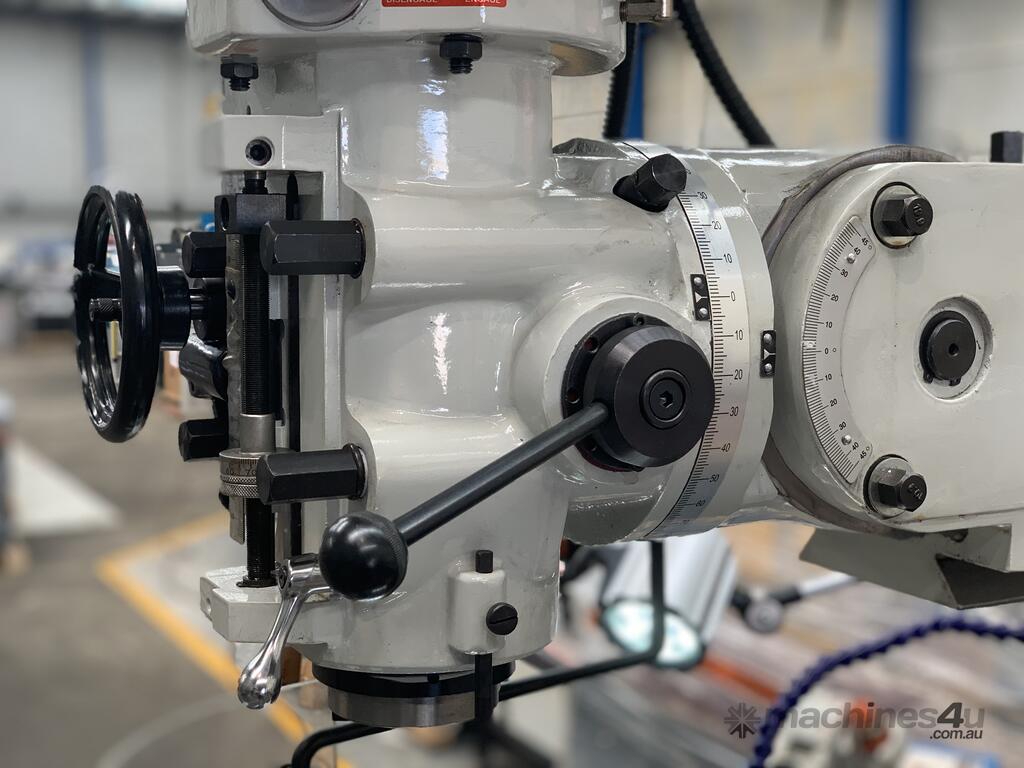

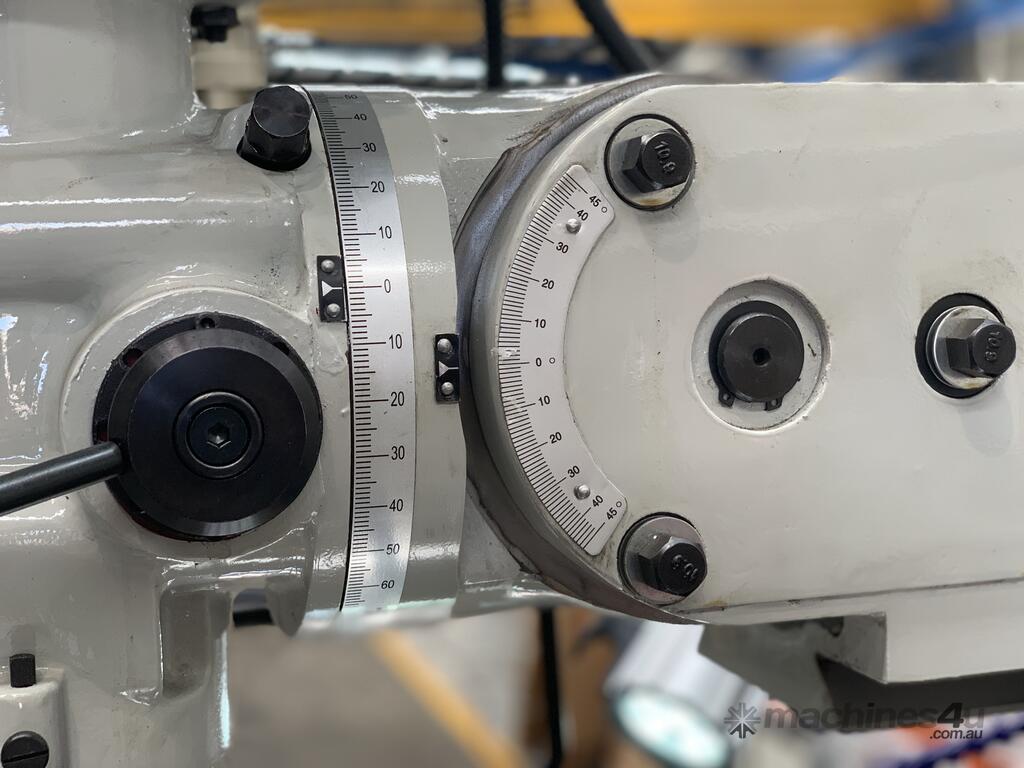

?head swivels to left and to right
?head tilts ±45° front to back

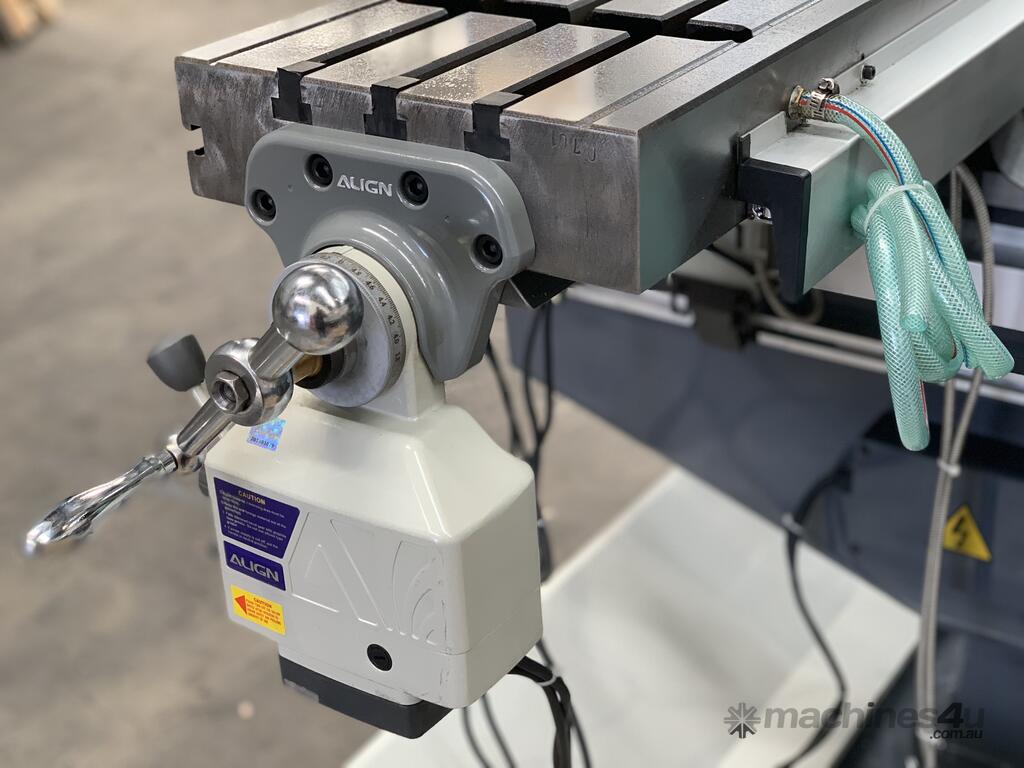

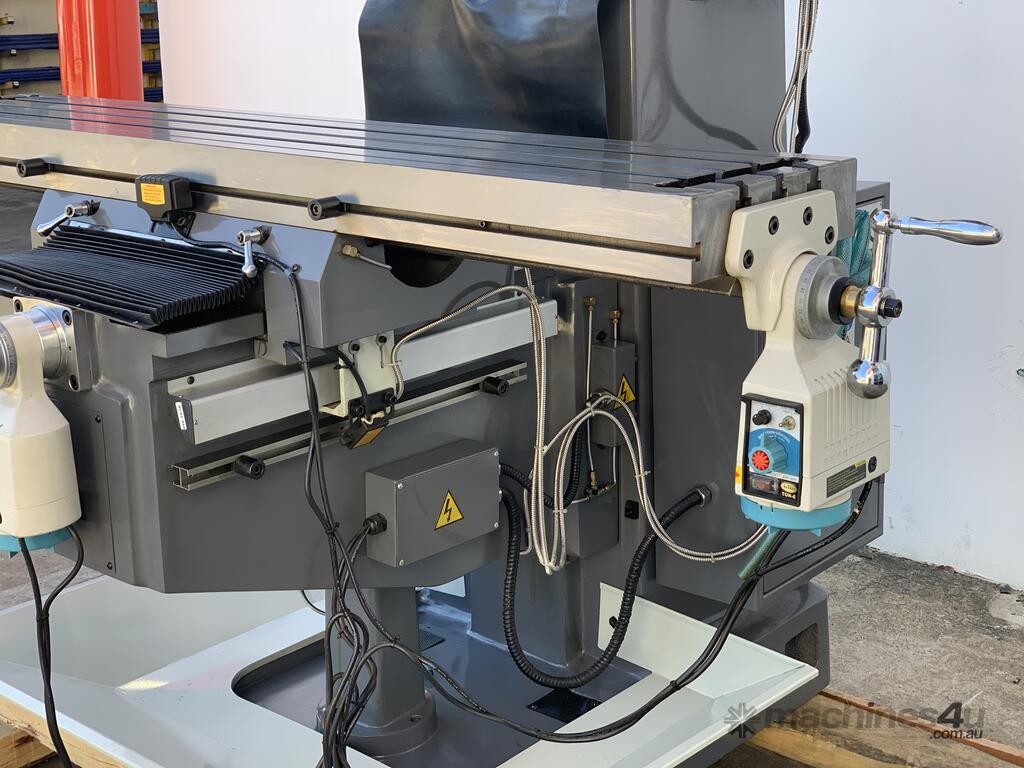

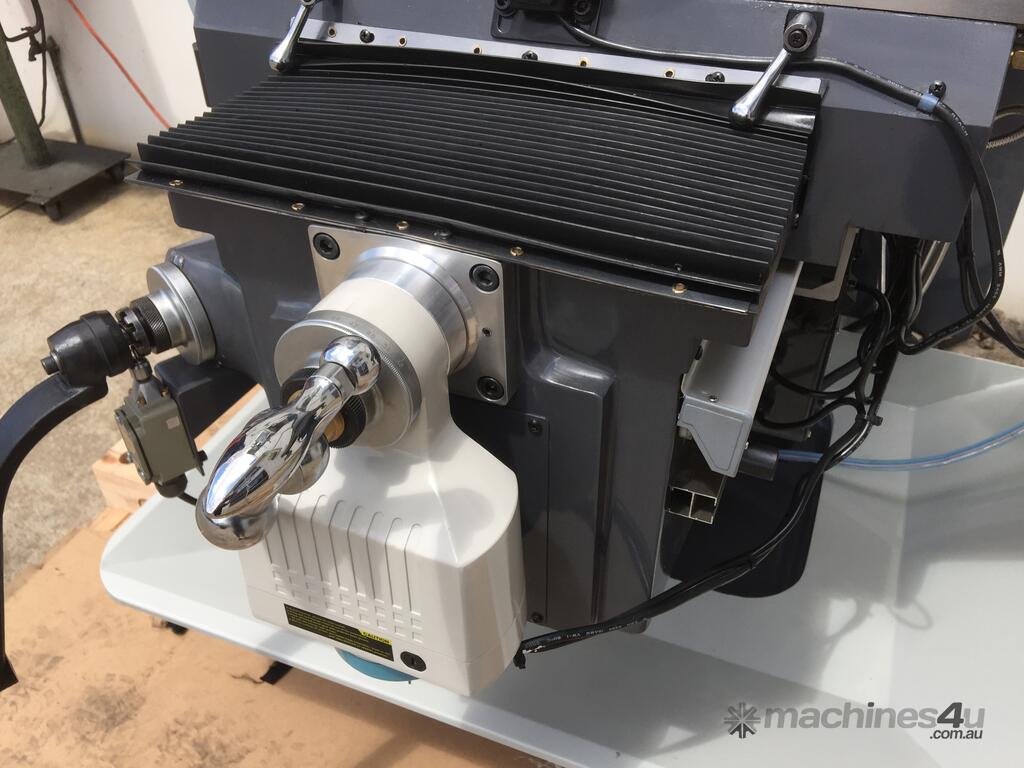

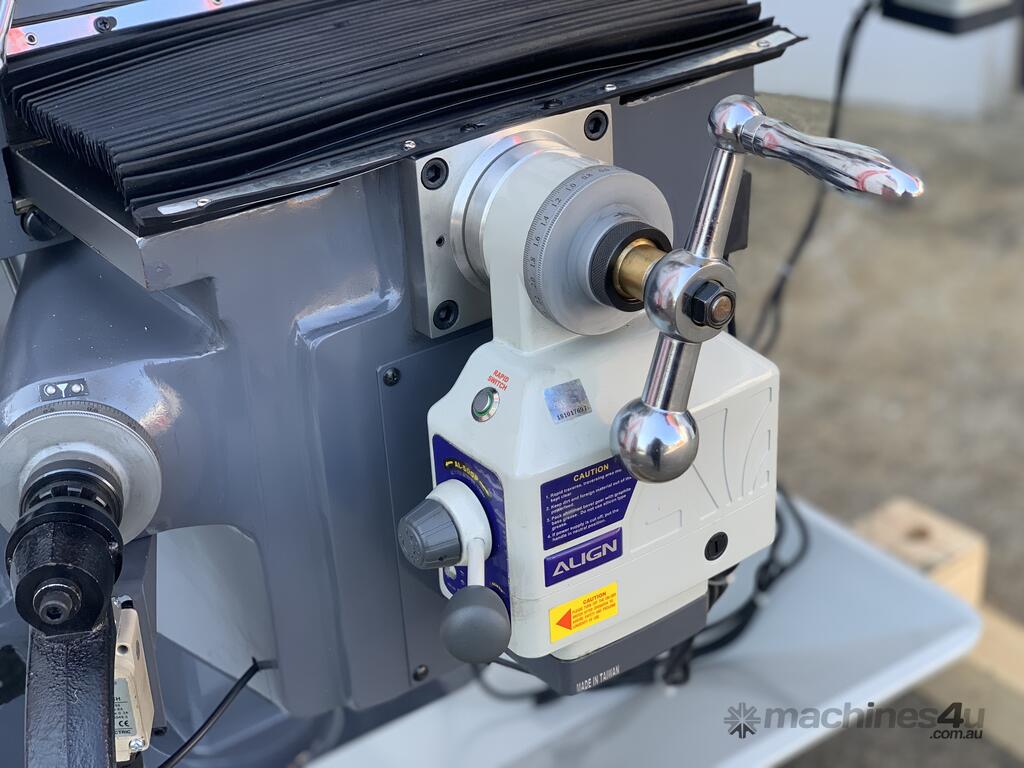

?x & y axis feed standard
?fine feed on spindle
?power raise and lower of knee on SM-KDS4VS & SM-KD5VS models
?147 mm quill travel (SM-KD5VS)
?chrome-plated sleeve with extremely long cutting stroke
?large spindle bearings guarantee stability during milling
?guaranteed true run out on spindle taper 0.01 mm

Automatic sleeve stroke
?spindle with right or left-handed rotation function
?cutter head with reduction gear for high torque
?mechanical spindle brake

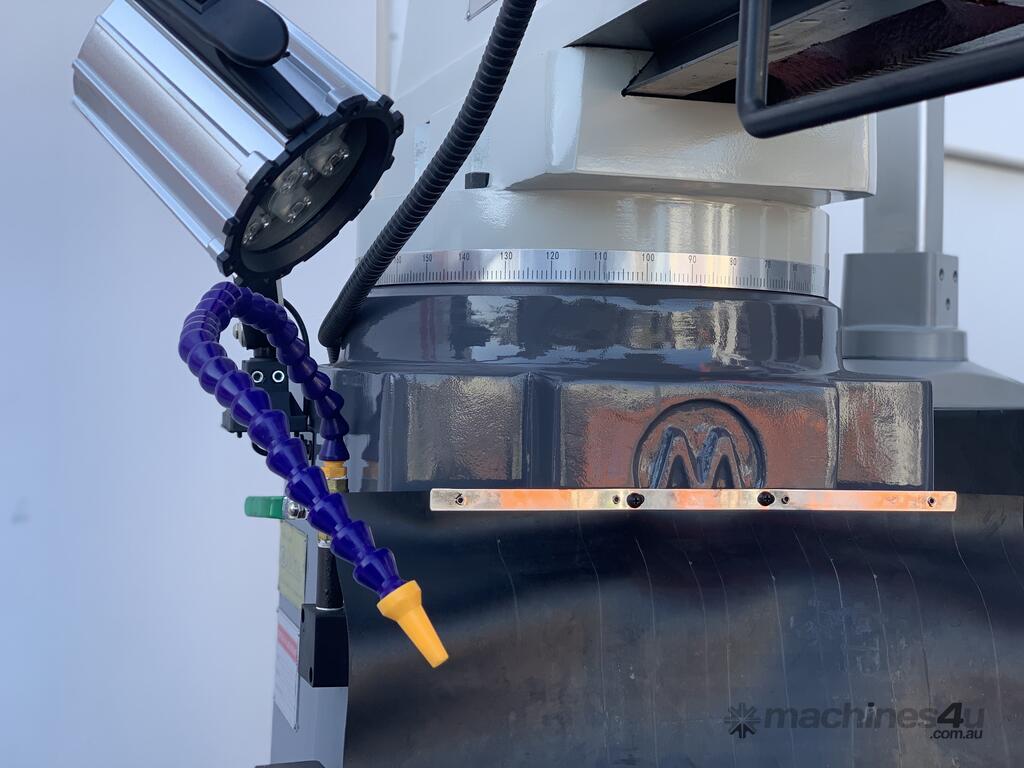

?halogen work light
?safety interlocked spindle guard
?coolant system standard
?drilling and milling guard
?tool box with tools
?operation & service manual

Technical Data - Snap Shot
?table size - 1580mm x 310mm
?X / Y / Z travel - 930mm / 420mm / 420mm
?spindle quill travel - 147mm
?quill diameter - 105mm
?holding fixture - ISO / INT-40
Spinlde to table max - 550mm
?vertical speeds - 80 ~ 4200 - variable
?motor capacity - 3.75Kw x Volt
?shipping dimensions - 2000mm x 2000mm x 2400mm
?approx weight: 1850kg

Includes
? 3 Axis digital readout system
? 2 x Axis power-feed
? safety cutter guard

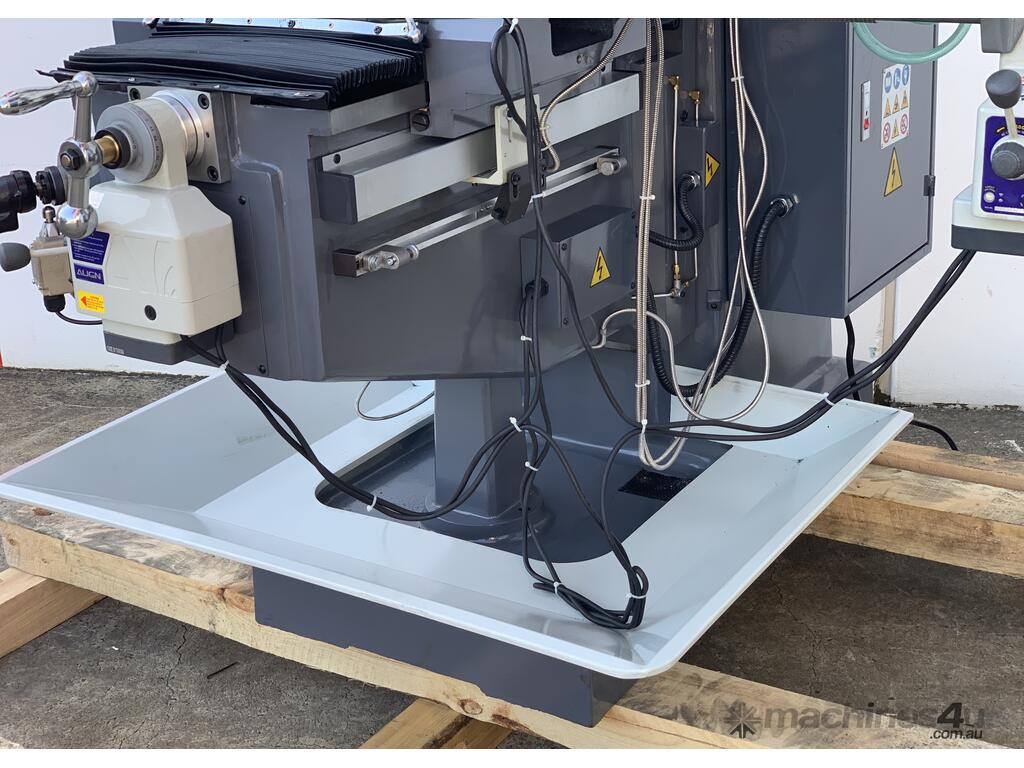

? swarf tray
? coolant system
? halogen lamp
? tool box and operation manual
