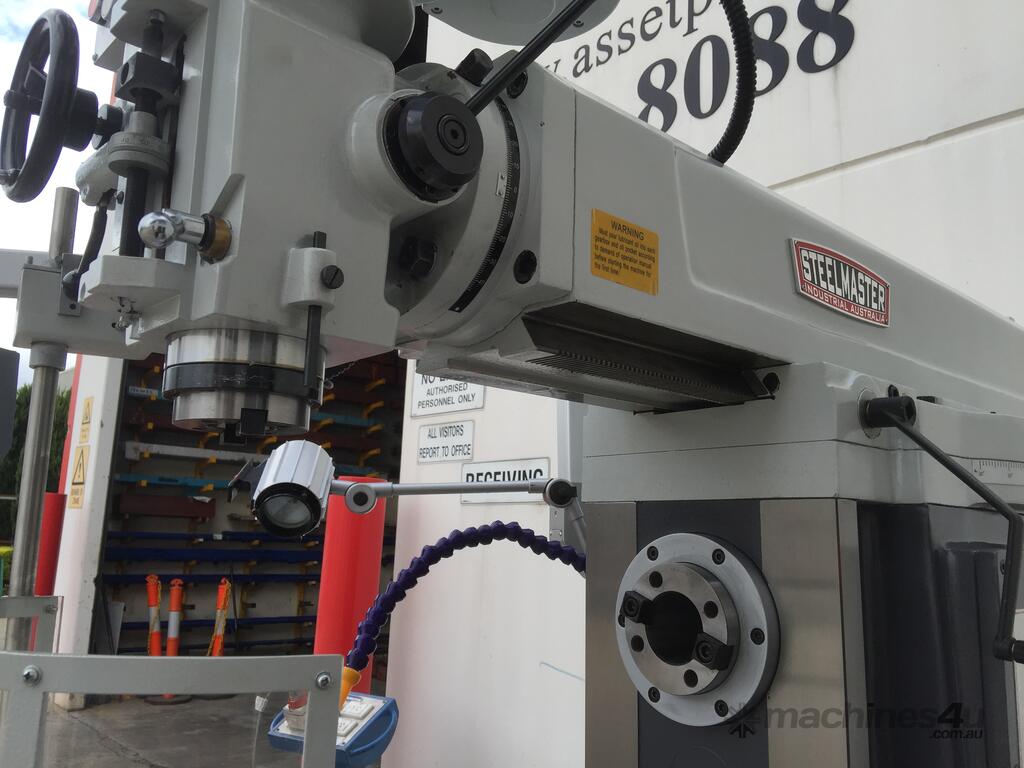

SM-KD6VS Ballscrew Precision, Vertical /Horizontal

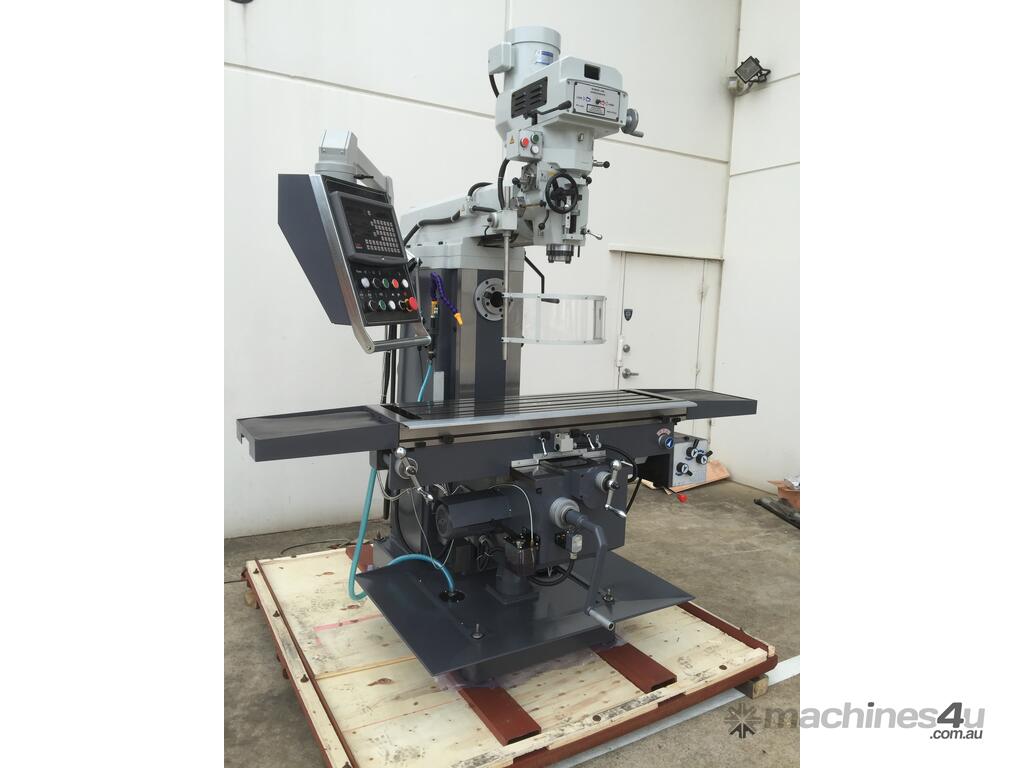

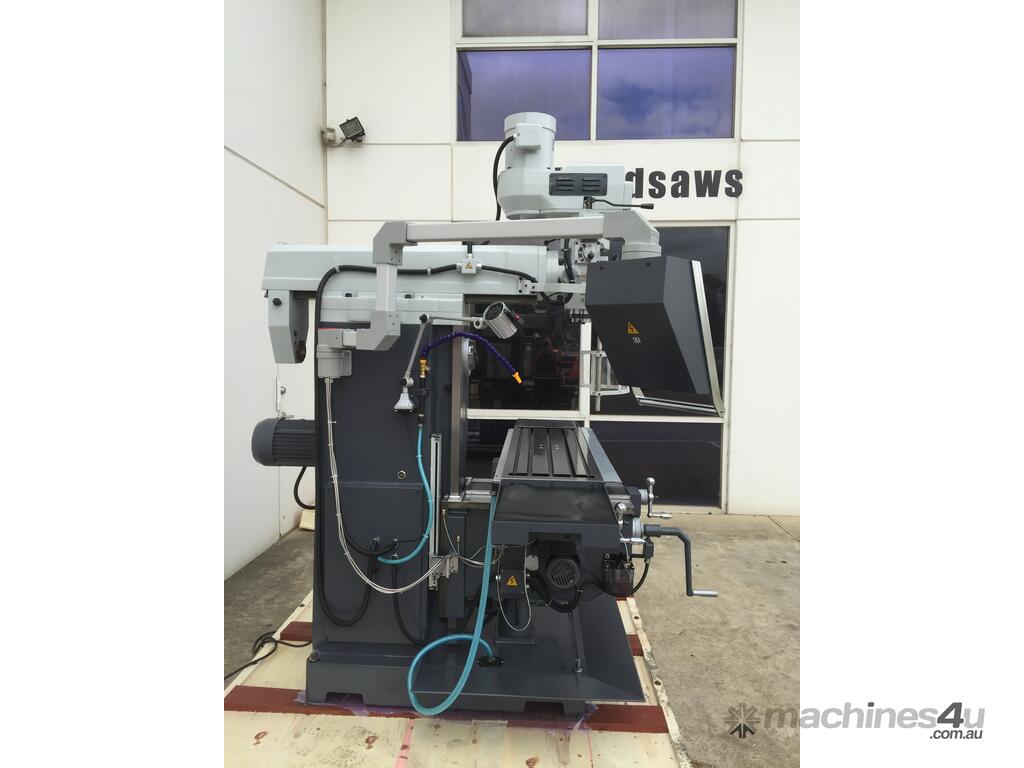

SM-KD6VS Turret Mill Steelmaster. Vertical & Horizontal Spindle, Pwr. Draw Bar, 1320mm x 360mm Table 2 Axis Power Feed, 3 Axis DRO. 76 ~ 3620 Variable Speed. Coolant, Lube System, Splash Tray.

Description
This Mill is made with uncompromising quality Hardened and ground table, chromed quill & Turcite coated ways, ballscrew drive mean built-in durability for years of service. With a large 140mm quill travel standard. Check out the capacities, features & specifications below! This is the machine to have for years of accurate, trouble-free operation. Fitted with Easson 3 axis digital read out. two axis table feed, power knee, variable speed head, quill feed all combine to serve you well.

Features

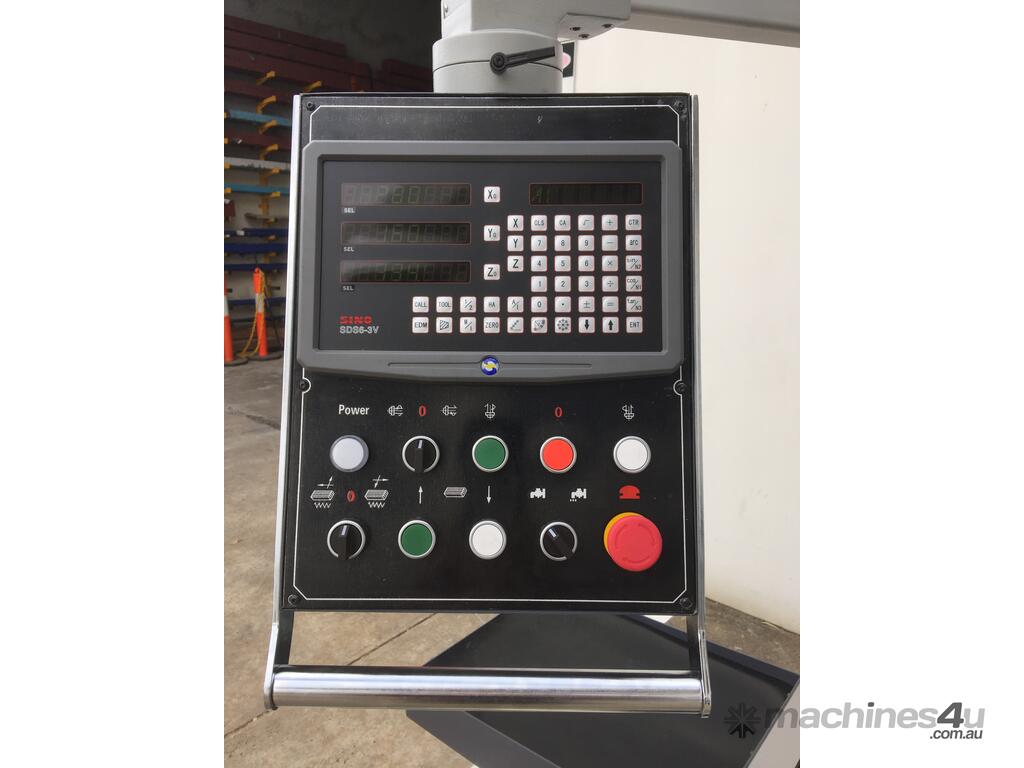

?3 axis DRO fitted standard
?Power draw bar fitted.

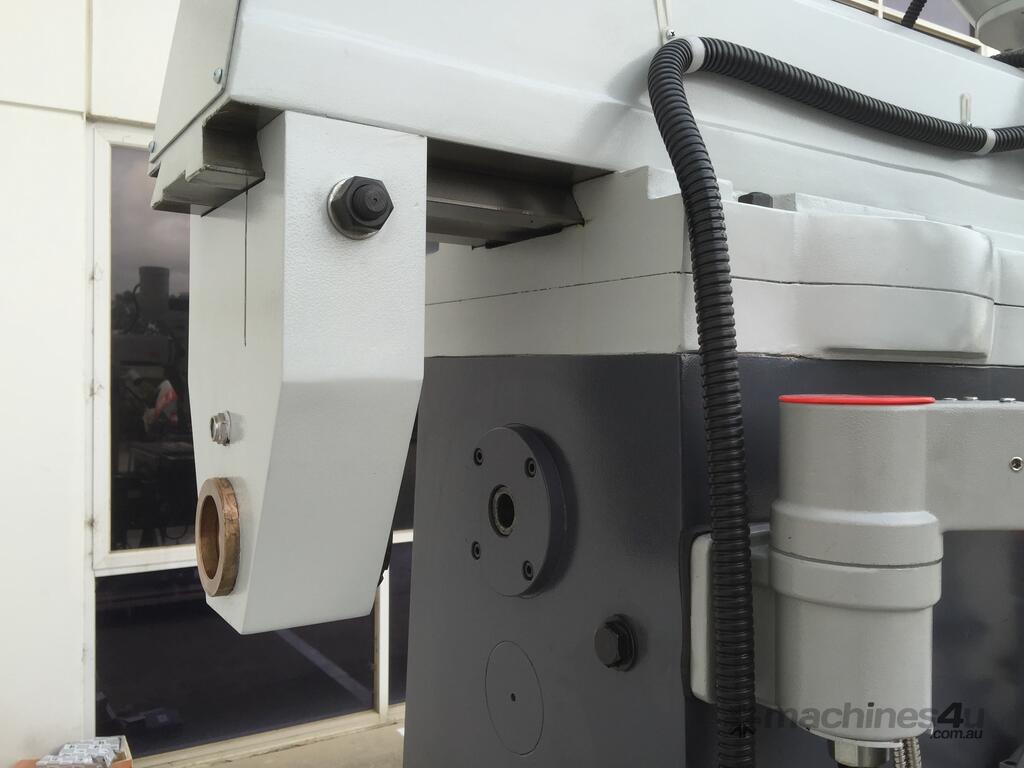

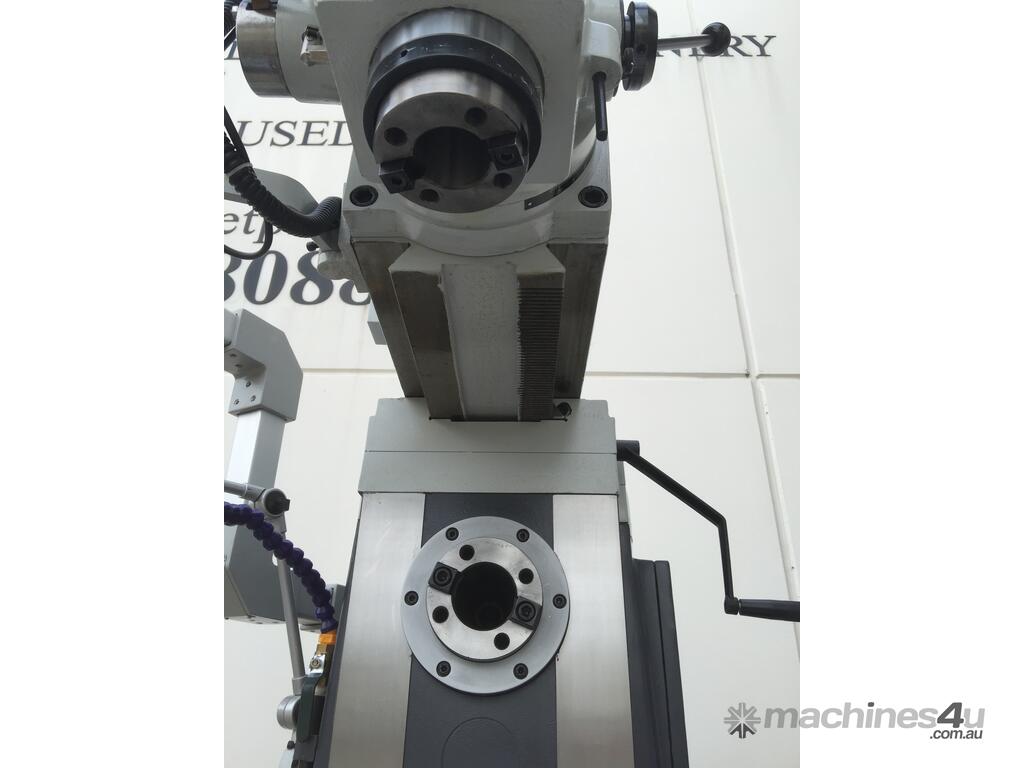

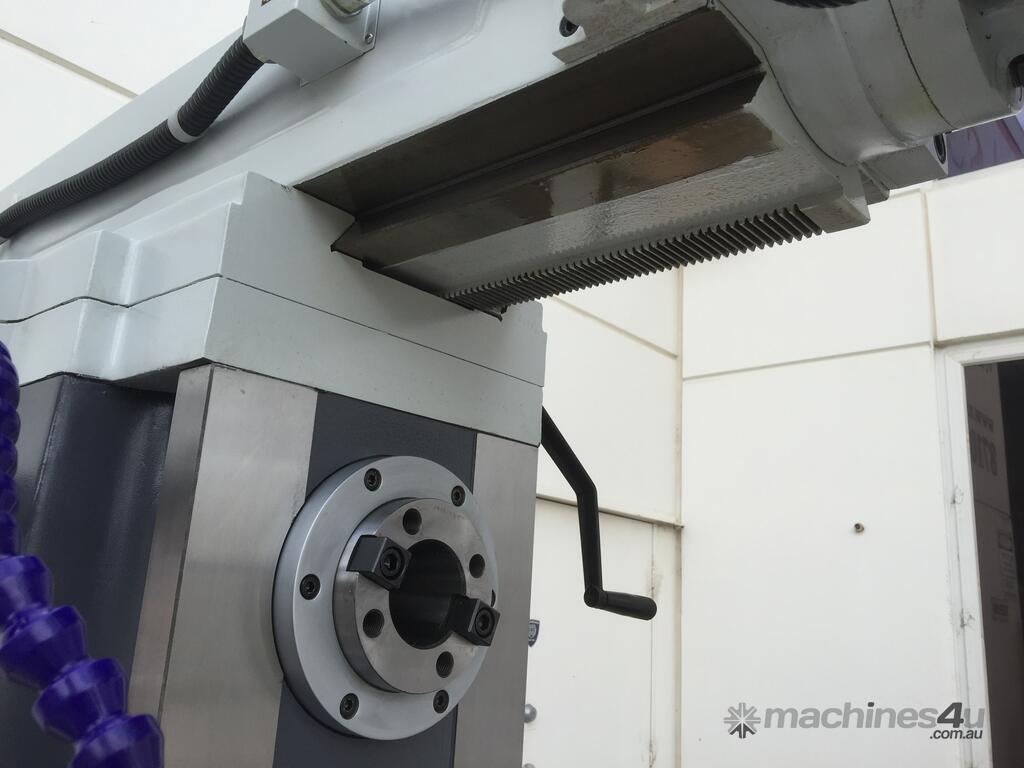

?Horizontal Arbour. Precision Ballscrew Spindles.
?Infinitely variable speed drive head with digital display
?Rapid Feeds in X,Y,Z Axis
?Taiwanese head and quality Meehanite cast frame

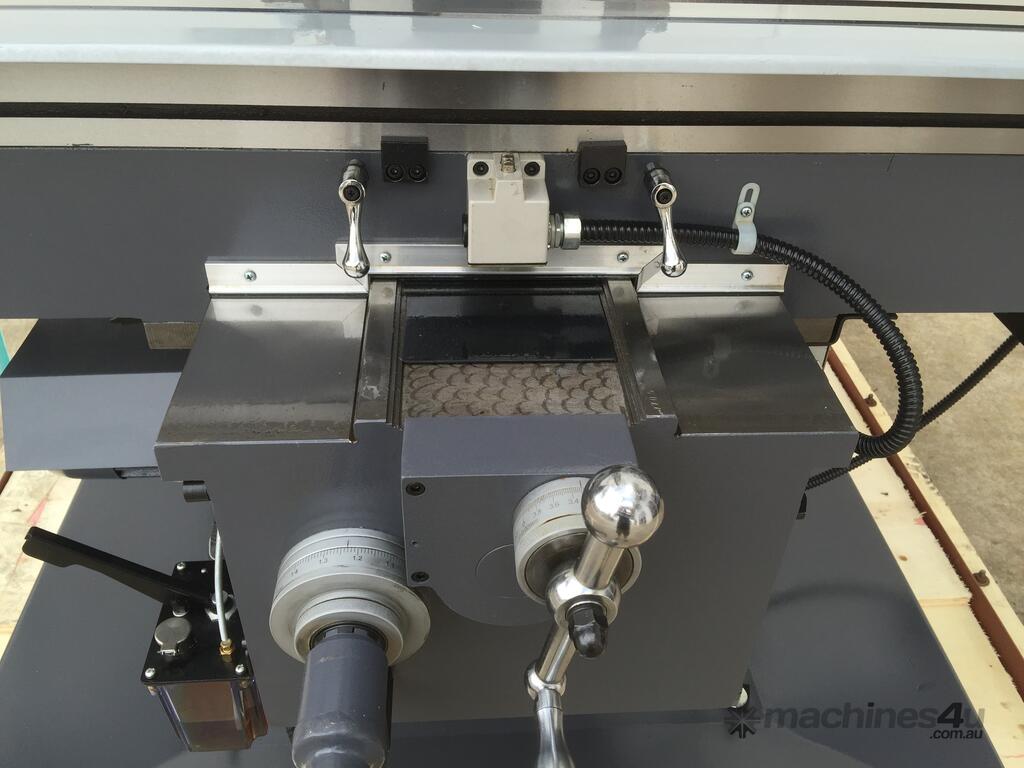

?Solid, precise cross table with ground surface
?Precisely ground carriage guides with adjustable dovetail guides
?Head swivels to left and to right
?Head tilts ±45° front to back
?X & y axis feed standard
?Fine feed on spindle
?Power raise and lower of knee

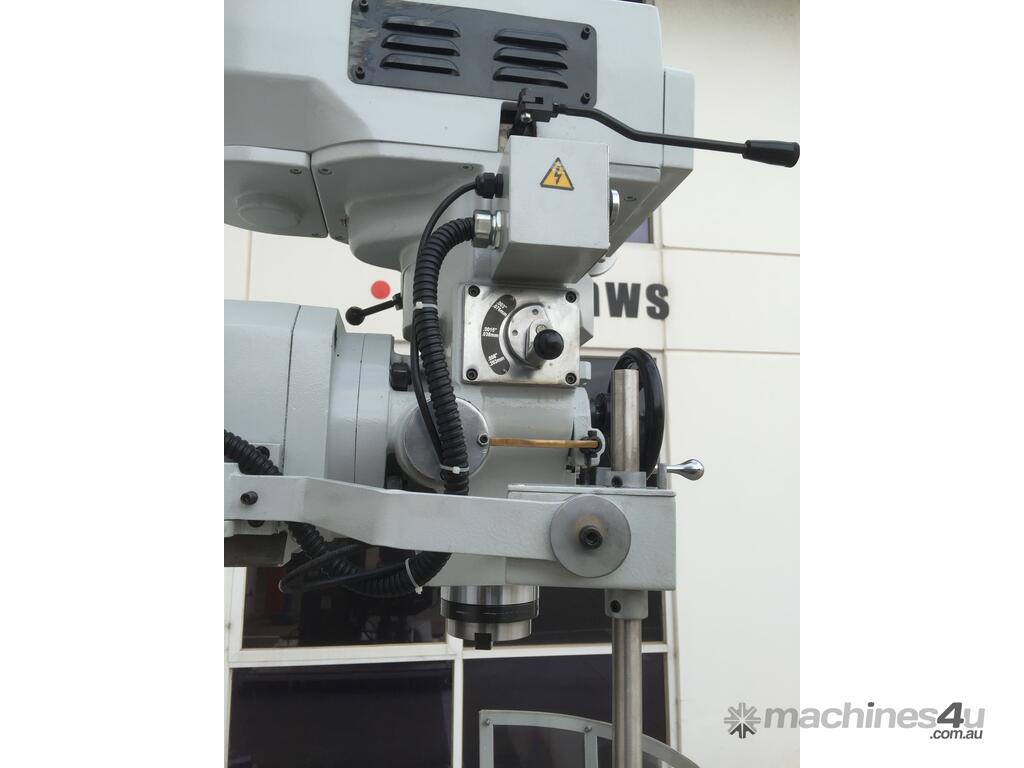

?Cutter head with honed sleeve support
?Chrome-plated sleeve with extremely long cutting stroke
?Large spindle bearings guarantee stability during milling
?Guaranteed true run out on spindle taper 0.01 mm
?Automatic sleeve stroke
?Spindle with right or left-handed rotation function
?Cutter head with reduction gear for high torque
?Mechanical spindle brake
?Halogen work light
?Safety interlocked spindle guard
?Coolant system standard
?Drilling and milling guard
?Tool box with tools
?Operation & service manual

Technical Data - Snap Shot
?table size - 1320mm x 360mm
?T slots – 3 off x 18mm wide
?table load – 300kg
?X / Y / Z travel - 1000mm / 300mm / 450mm
?spindle quill travel - 140mm
?quill diameter - 120mm
?vertical holding fixture - ISO / INT-40
?horizontal holding fixture - ISO / INT-50

?vertical speeds - 76 ~ 3620 - variable

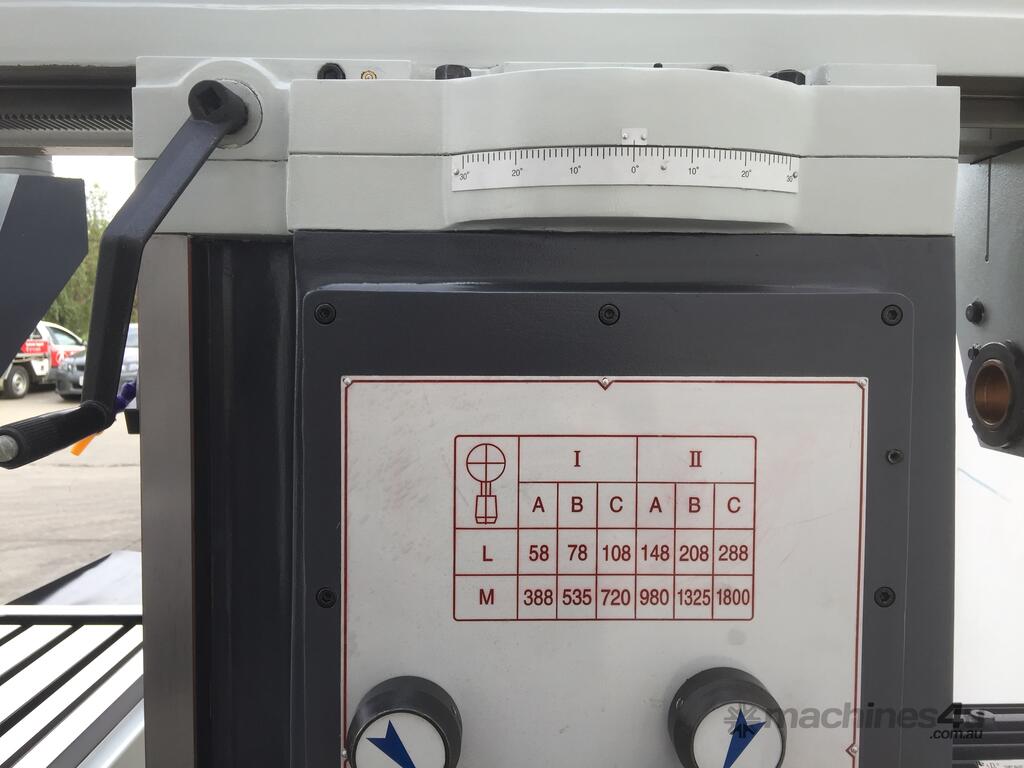

?horizontal speeds - 58 ~ - variable
?motor capacity – 3.7Kw x Volt
?shipping dimensions - 2000mm x 2000mm x 2340mm
?approx weight: 2400kg

Includes

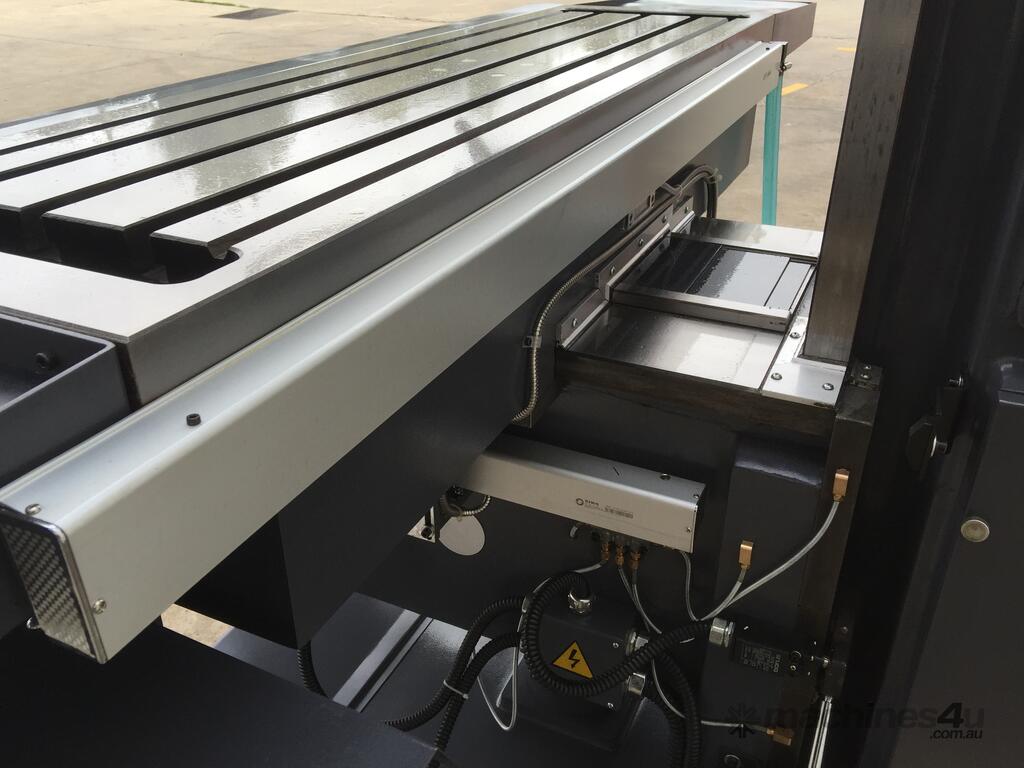

? 3 Axis digital readout system
? 2 x Axis power-feed

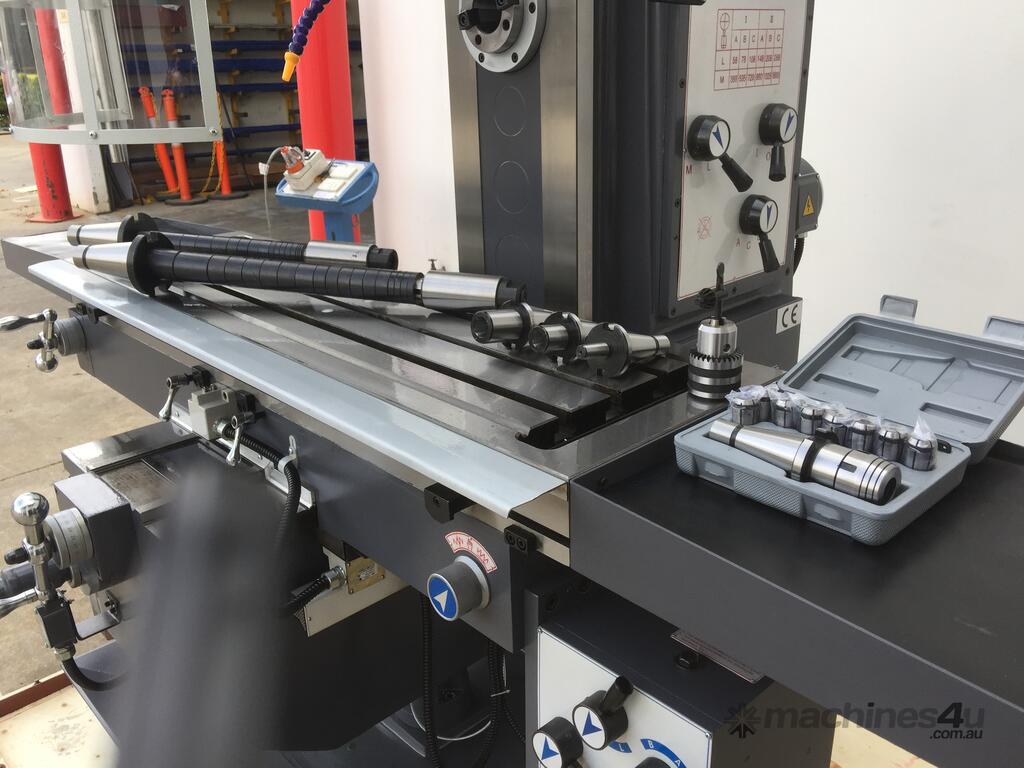

? 2 x horizontal arbors - 1 x 27mm & 1 x 32mm diameter.
? limit switch safety cutter guard

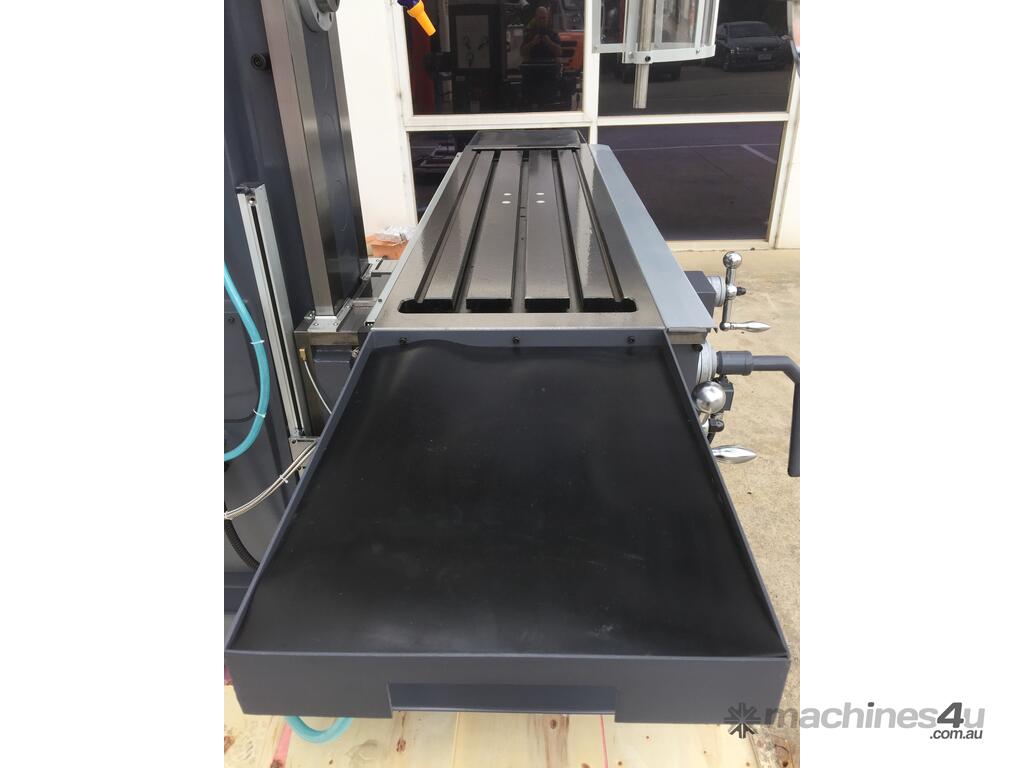

? swarf tray
? coolant system
? work lamp
? tool box and operation manual


MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
