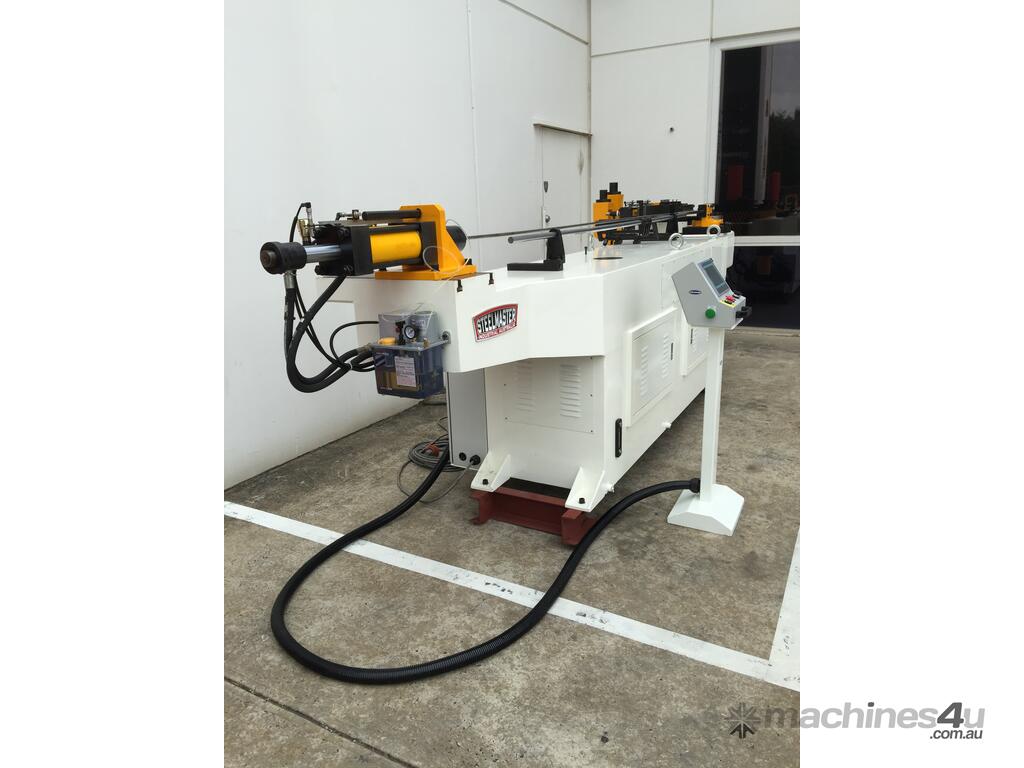

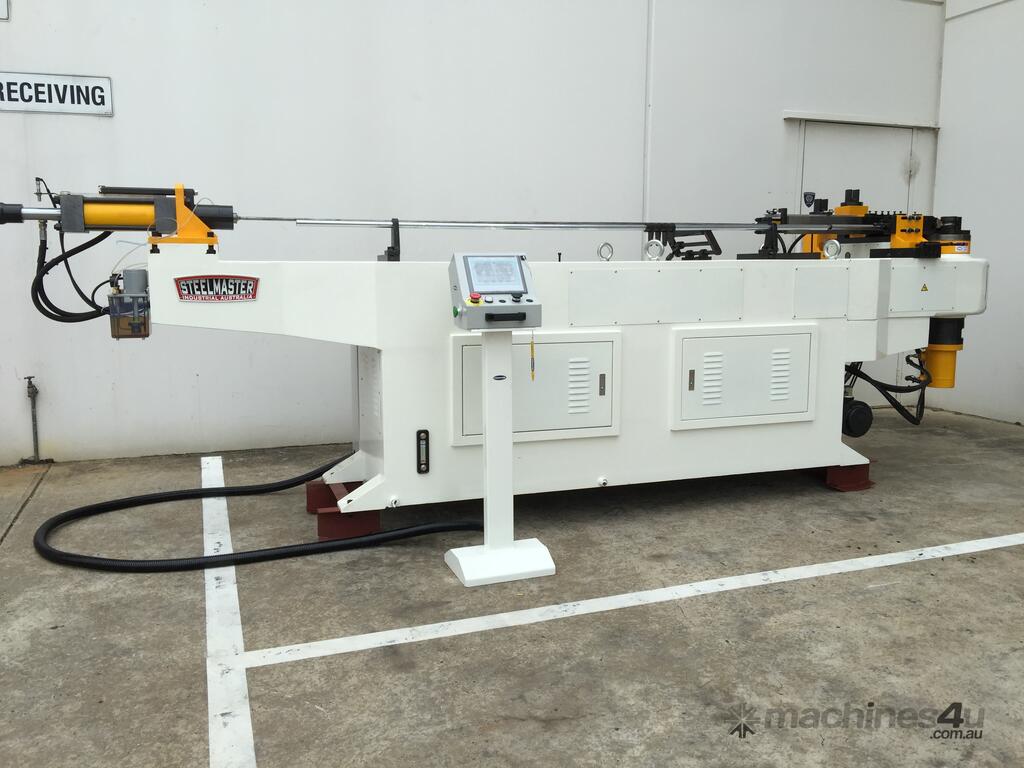

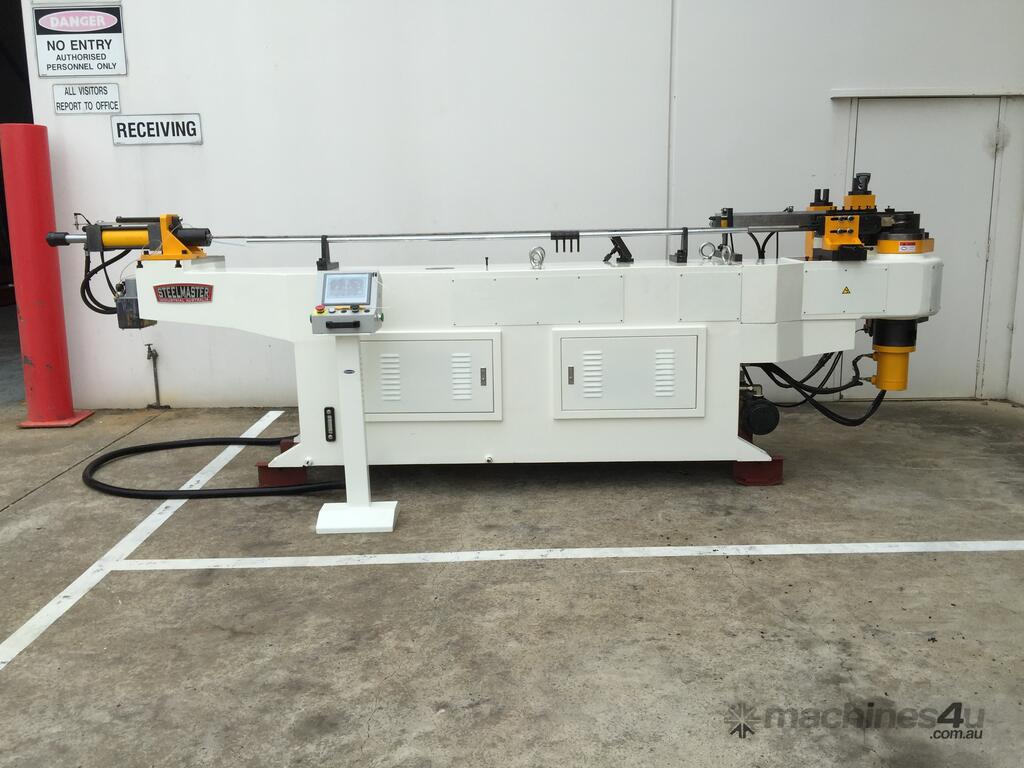

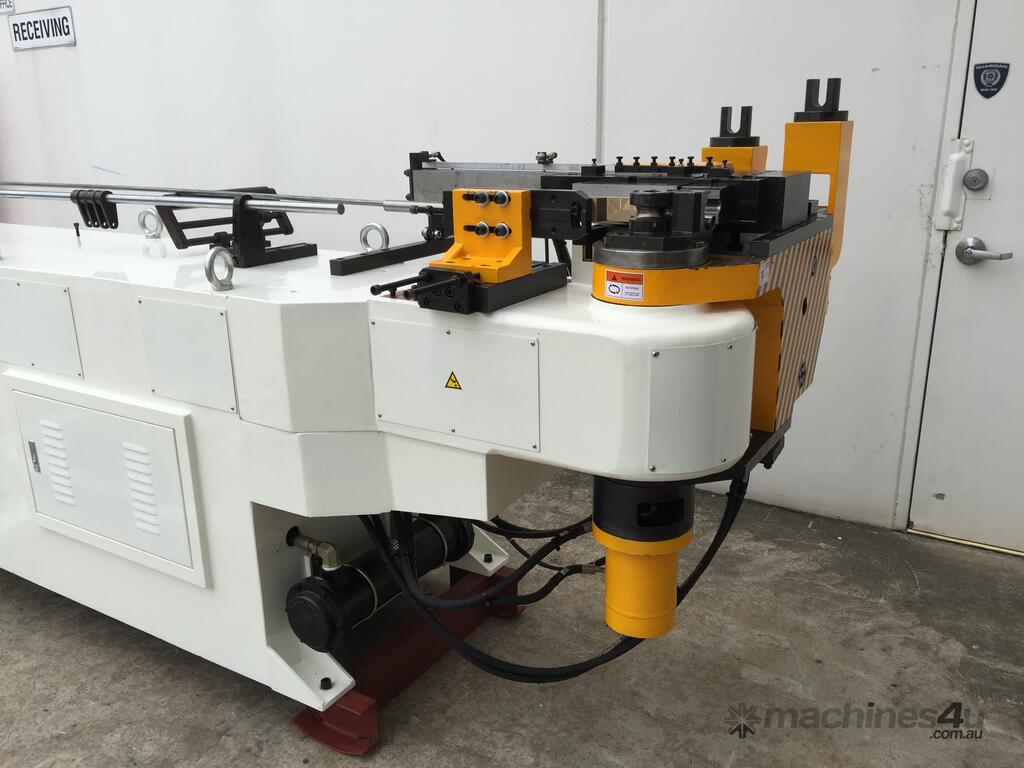

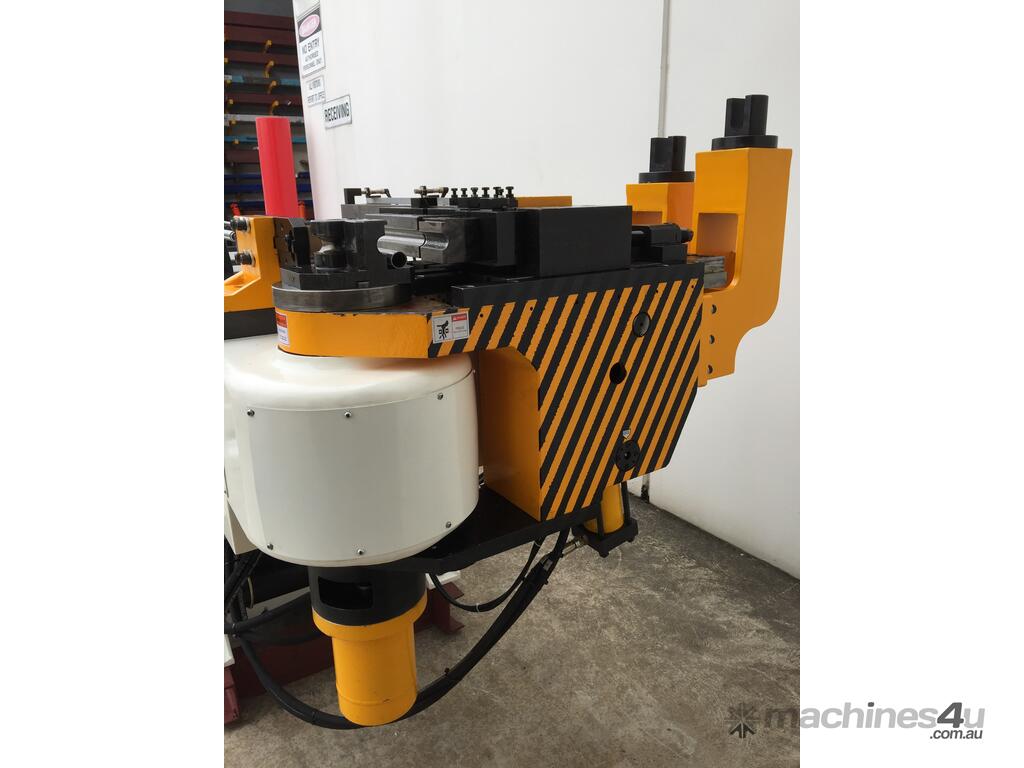

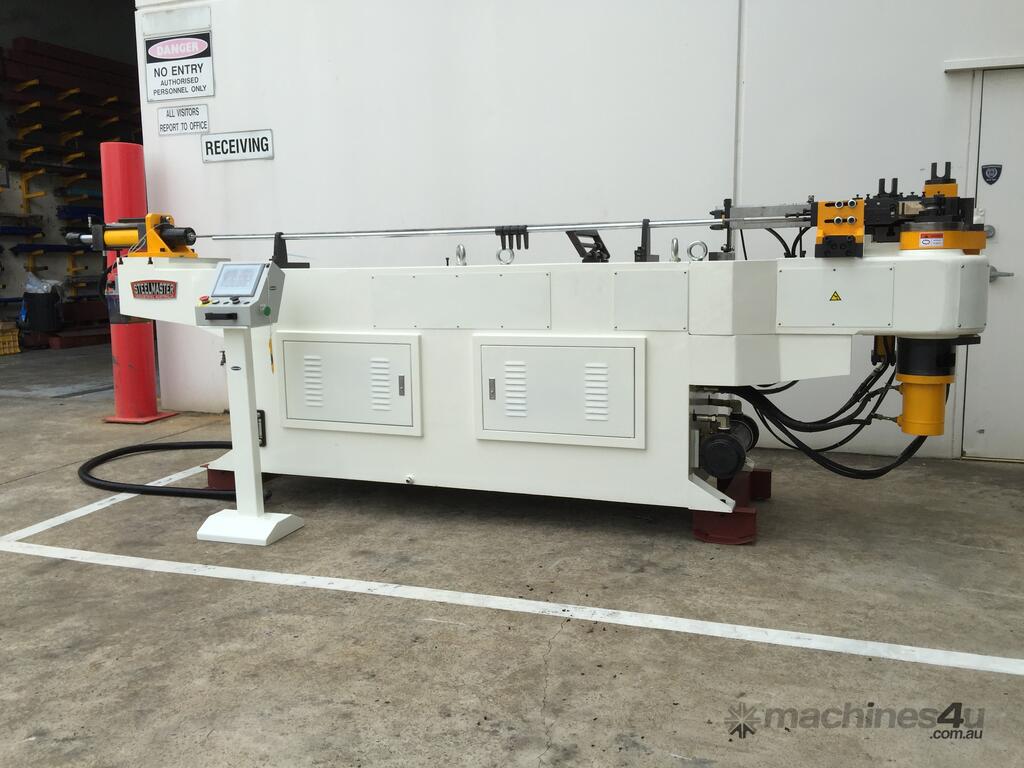

SM-KPB38 - NC1 38mm Mandrel Bender, 1 Set Tooling

Introducing our SM-KPB38NC1 Mandrel Tube & Pipe Bending Machine.

Key Features:
• 38mm Tube Capacity.
• 1 Dimensional NC Control.
• Manual Length, NC Angle.
• Heavy Duty Cast Construction.

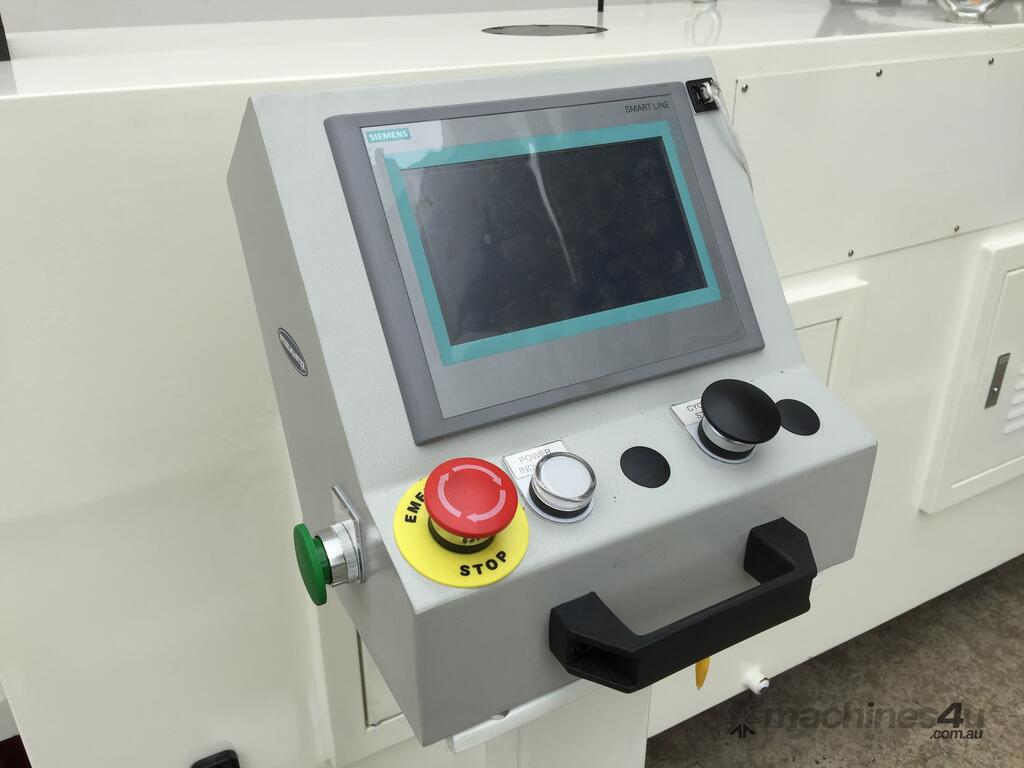

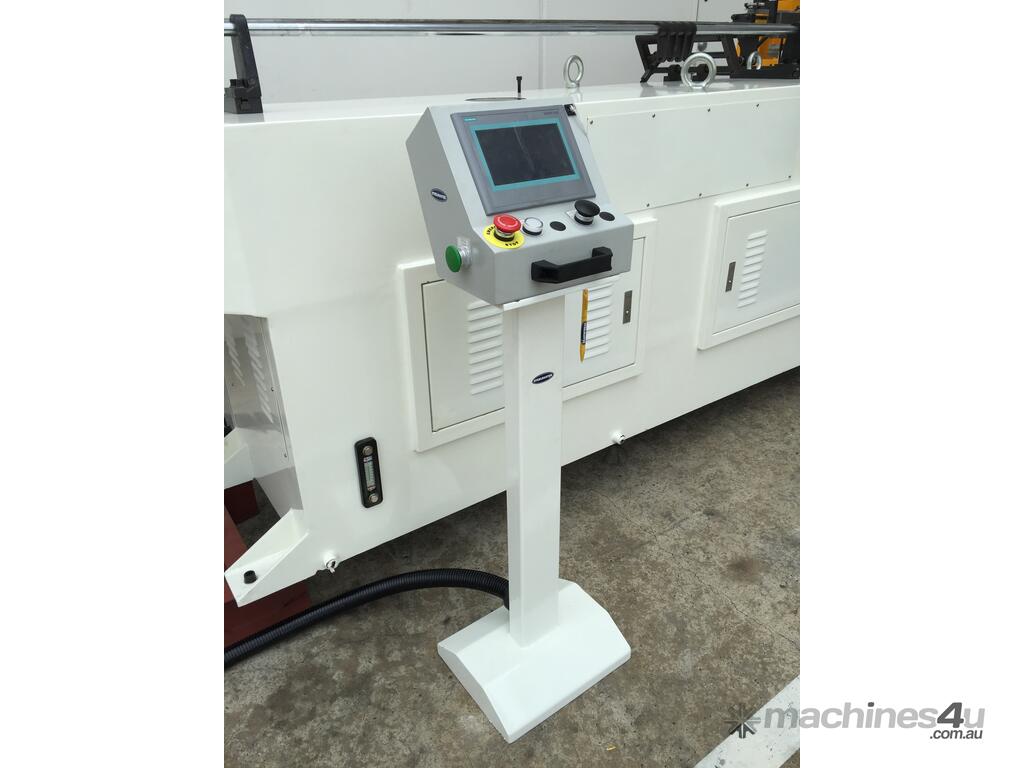

• NC Controller & Drive System.
• Models From 18mm ~ 325mm Available
• Bonus Set Tooling Supplied With Each Machine

Models As Follows On Short Delivery:

Many models available - sample below - Call through with your application.

22-0303NC
SM-BMT38NC – 38mm
SM-BMT38NC. Mandrel Tube Bender. 38mm Capacity. Steelmaster 2 Dimensional CNC Model.
Mitsubishi CNC & Servo Drives, Manual Length Position, Rotation & Bend. One Set Tooling. V


#######################################
Machines Can Be Demonstrated Under Power at 8 Capital Drive Dandenong, Vic.
Or See Videos or online
Otherwise call Us On And We Can Discuss Youe Requirement
Asset Offer Full Sales Service, Parts & Accessories For Your Support!!!
********************************************
Need more details? Can't find what you are looking for?
********************************************

We have many more items available than listed here.

Steelmaster Mandrel Tube & Pipe Bending Machines.
When looking for a quality mandrel tube & pipe bender, look no further than Steelmaster Industrial. Steelmaster Industrial’s mandrel tube & pipe bending machines offer the fabricator a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster offers over 30 models of mandrel tube & pipe bending machines with a selection on display and others available for prompt quick shipments. Steelmaster Industrial’s ever growing line of mandrel tube & pipe bending machines consists of simple NC programmable models, 2D CNC2 Models & 3D CNC3 models along with a large range of tooling & accessories. Depending on your needs we have the machine for you, starting with our cost effective NC programmable models.

NC Programmable Model with Delta Operating System
Model - NC1
NC1 Programmable with Delta NC PLC controller. Manual length setting & rotation, PLC programmable angle bend setting.
One full set of tooling supplied with each model and material type, outside diameter, wall thickness & centre line dimension must be supplied.
Longer machines can also be supplied if you material length is required.

Model: CNC2
2 Dimensional CNC Control with Mitsubishi CNC operating system, however the length measurement is set manually. Accurate and clear linear length stop precision guides are fitted along with cross slide adjustment.
We offer both Mitsubishi Servo Drive Control on the rotation and also bending however on the larger models hydraulic operation on the angle bending offers more power - Servo bending on the smaller models is preferred for faster operation.

Model: CNC3
Same as our CNC2 but has Mitsubishi servo length controller added. As mentioned, we can offer longer machine lengths due to longer material requirements.

We suggest up to 28mm capacity machines operate bending via servo due to speed.
Steelmaster offer our Mandrel Tube & Pipe Benders up to 325mm capacity.

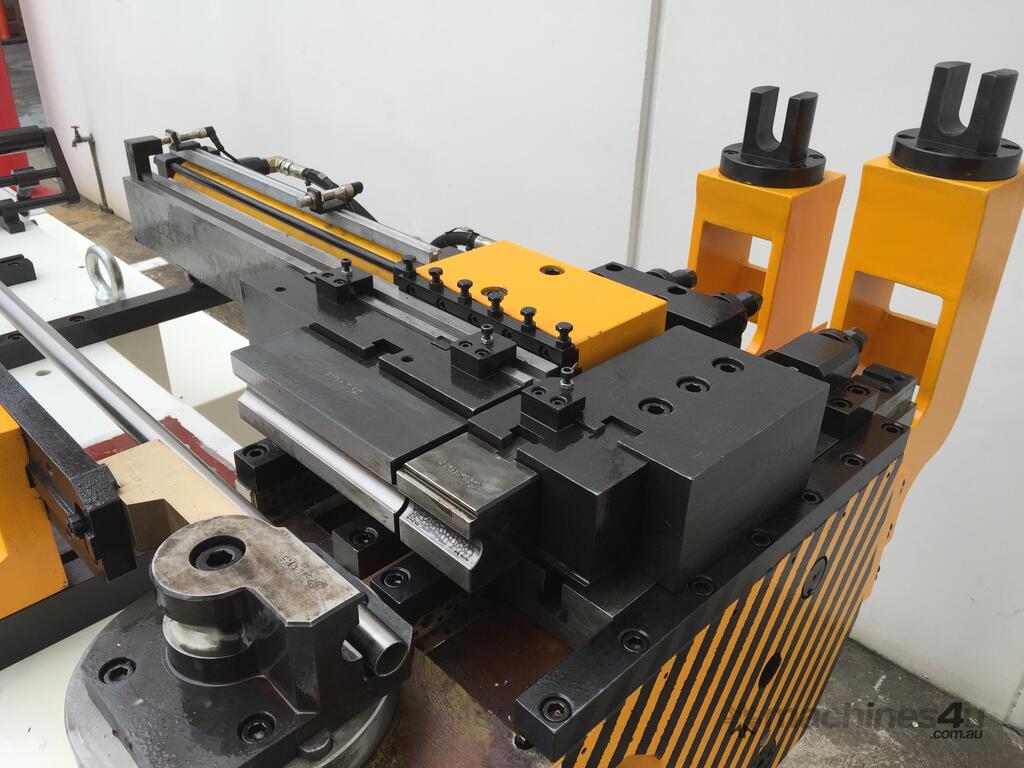

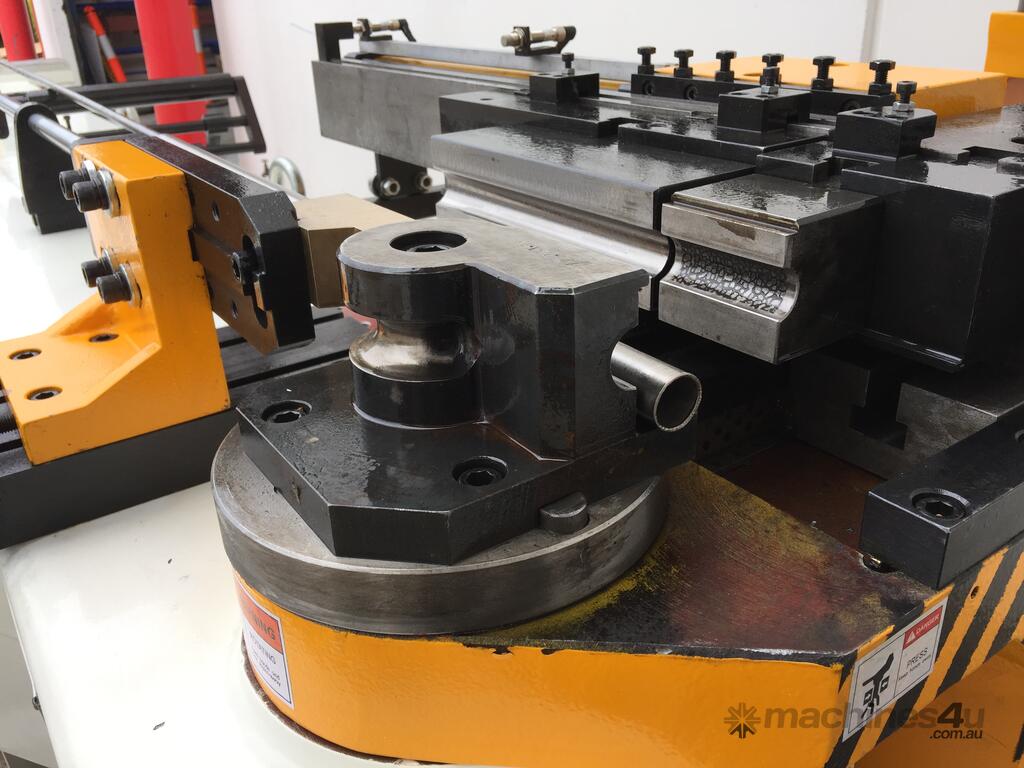

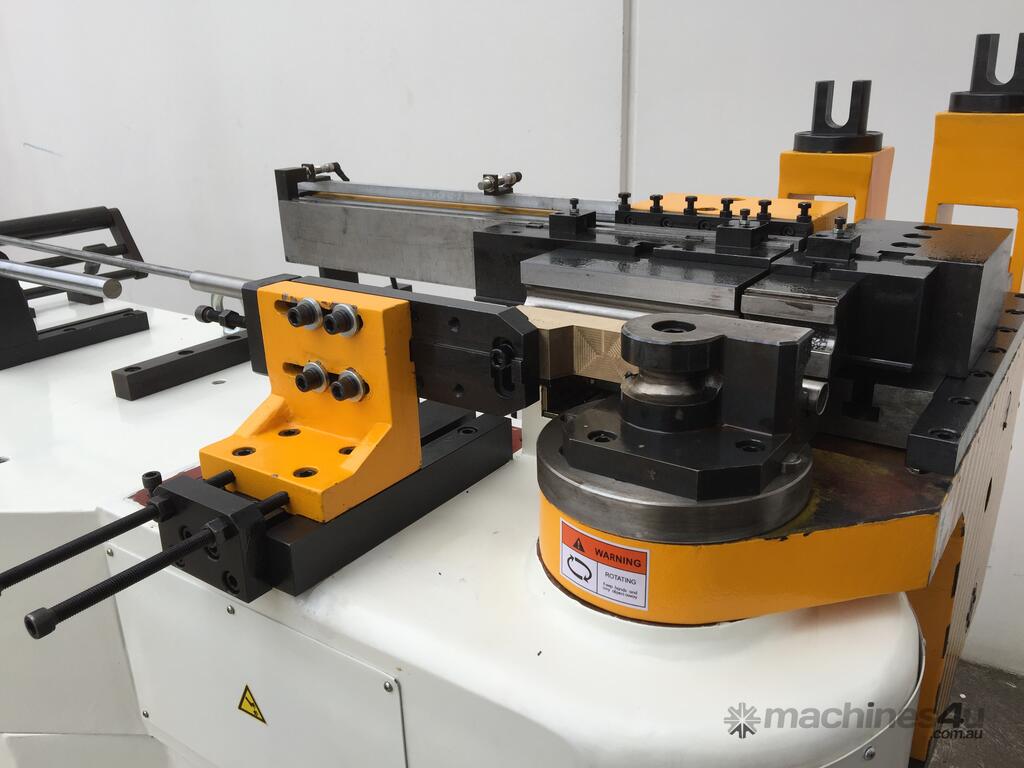

Tooling is designed as per customer requirements and we offer the following mandrel designs
1. Simple straight shank
2. Two directional shank
3. Full rotational / flexible

For More information on any of these mandrel tube & pipe bending machines, go to our Extensive or contact a Steelmaster industrial Rep.
