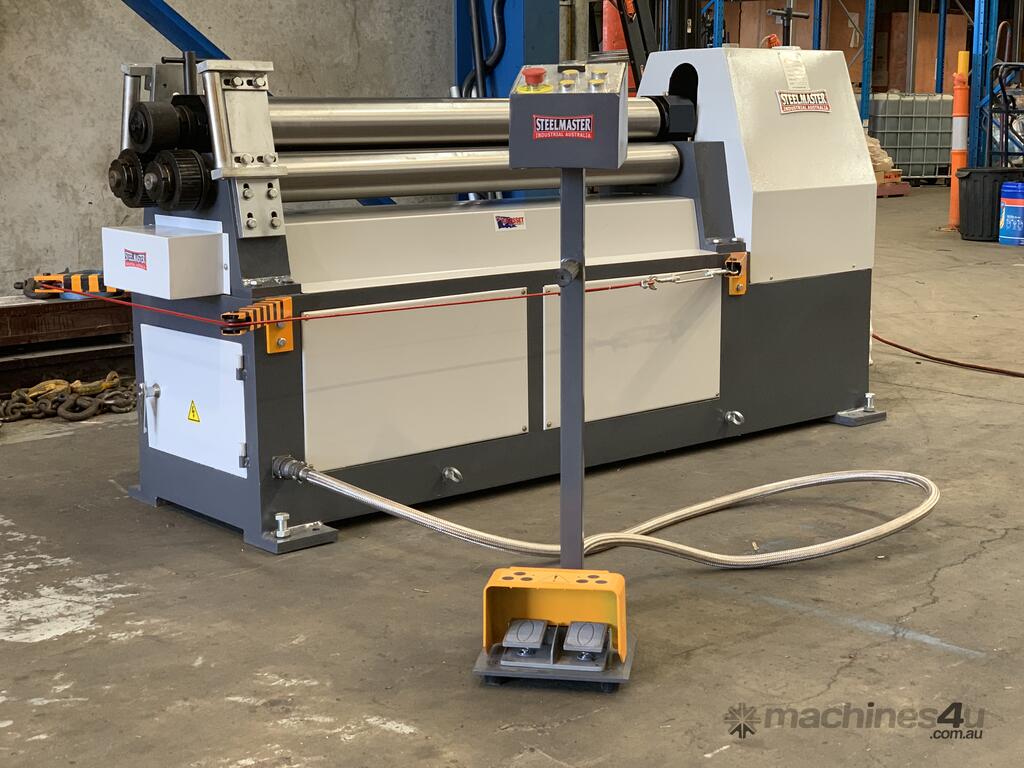

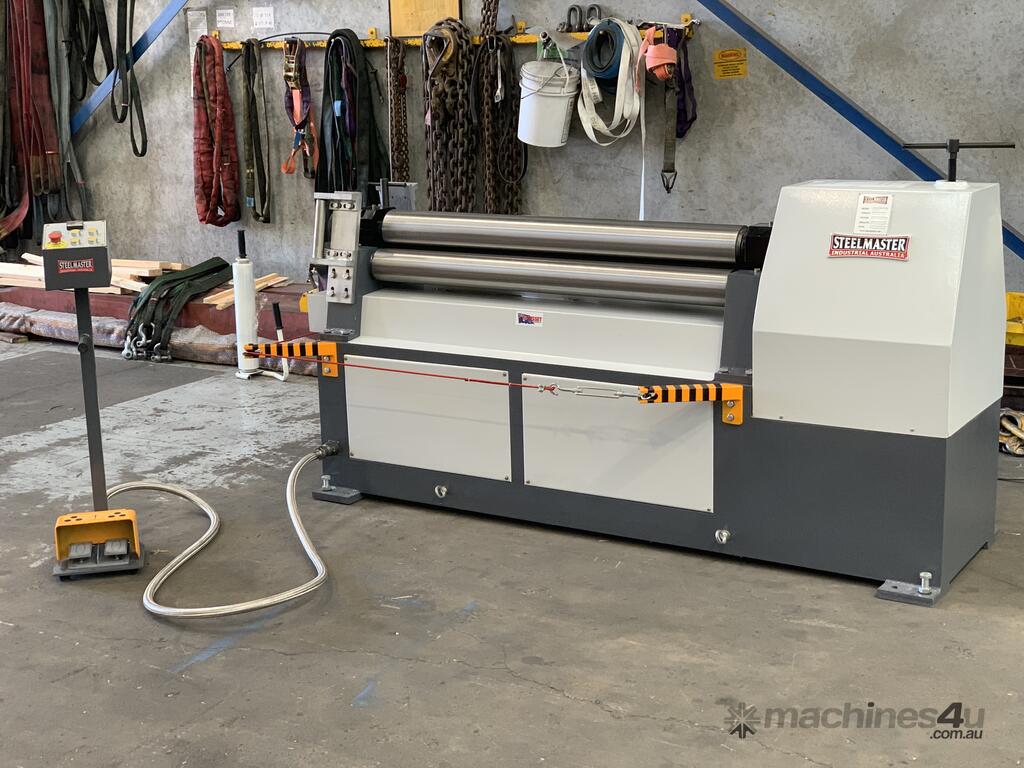

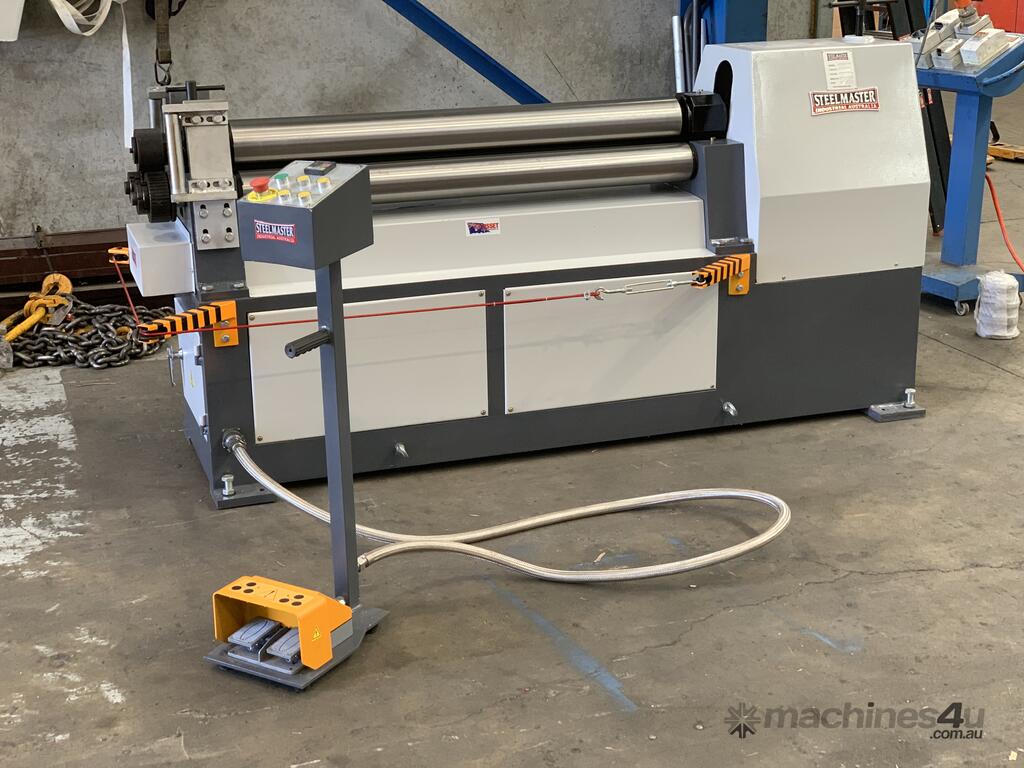

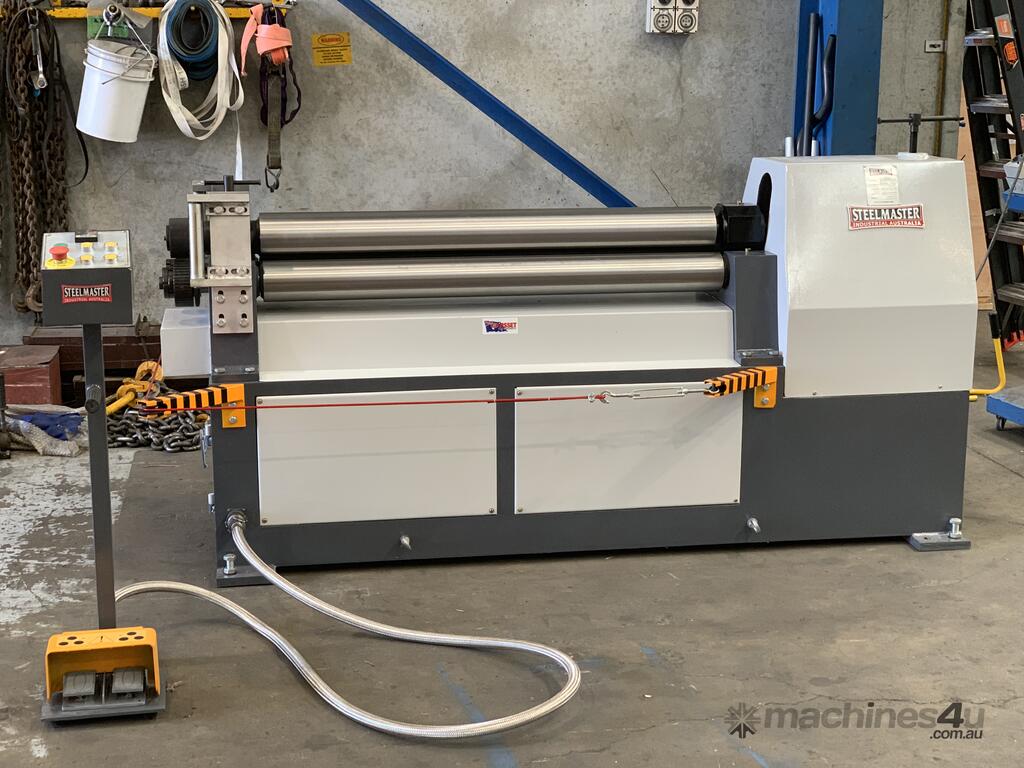

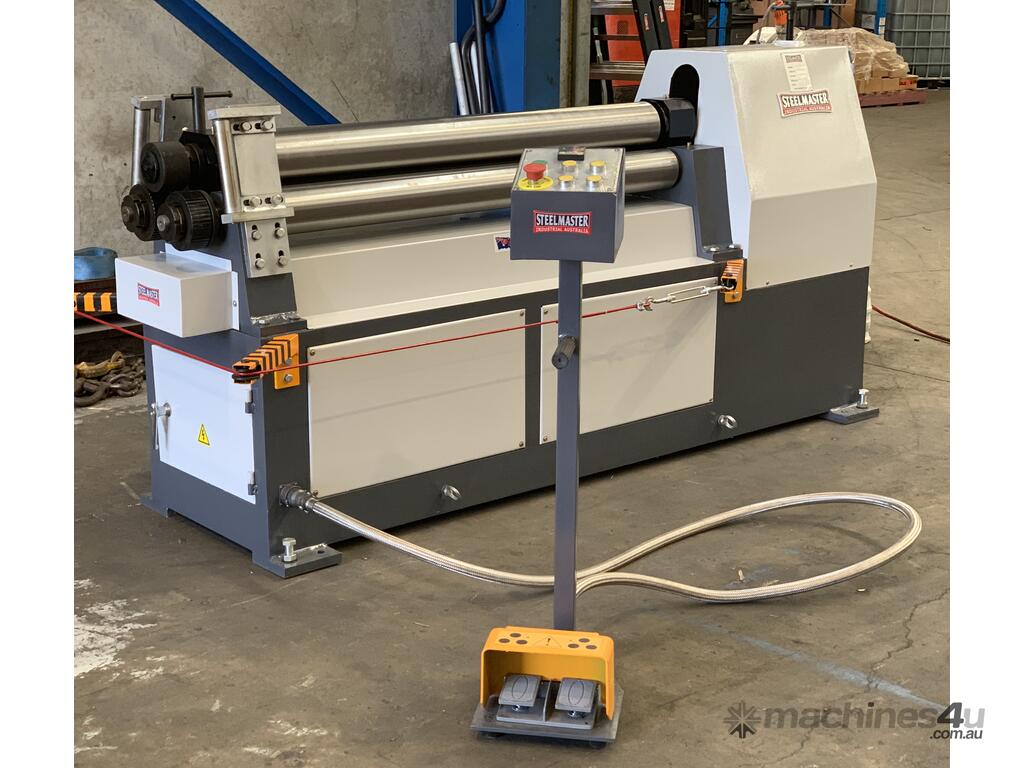

SM-MCR1304. Plate / Curving Rollers. 1300mm x 4mm Capacity. Steelmaster Motorised Operation.
Digital Top Roller Display, Swing Out Top Roller & Safety Cable. 2 x Sets Extension Stub Rollers.
## NEW DIGITAL TOP ROLL POSITION READ OUT NOW FITTED##
Description
These rollers offer great value all round, not to mention the additional section rollers on the end.

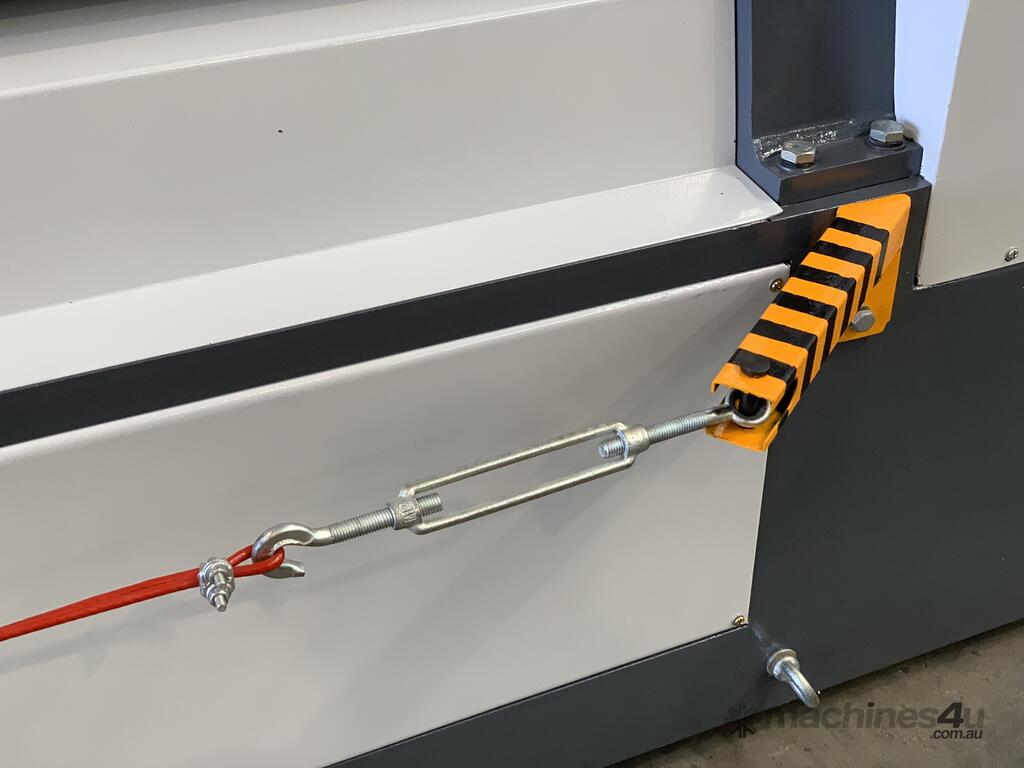

Fitted also is the surround saftey trip wire enabling power cut off with your legs - simply lean on wire.
With a 1300mm x 4.0mm capacity, add on the extension stub rollers at the end - this is a winner.
Features
?heavy duty welded frame construction
?bottom rolls powered by gearbox and gear system
?power up & down top roll for curving adjustment
?digital readout display for top roller position
?tilt and support bearings for top roller

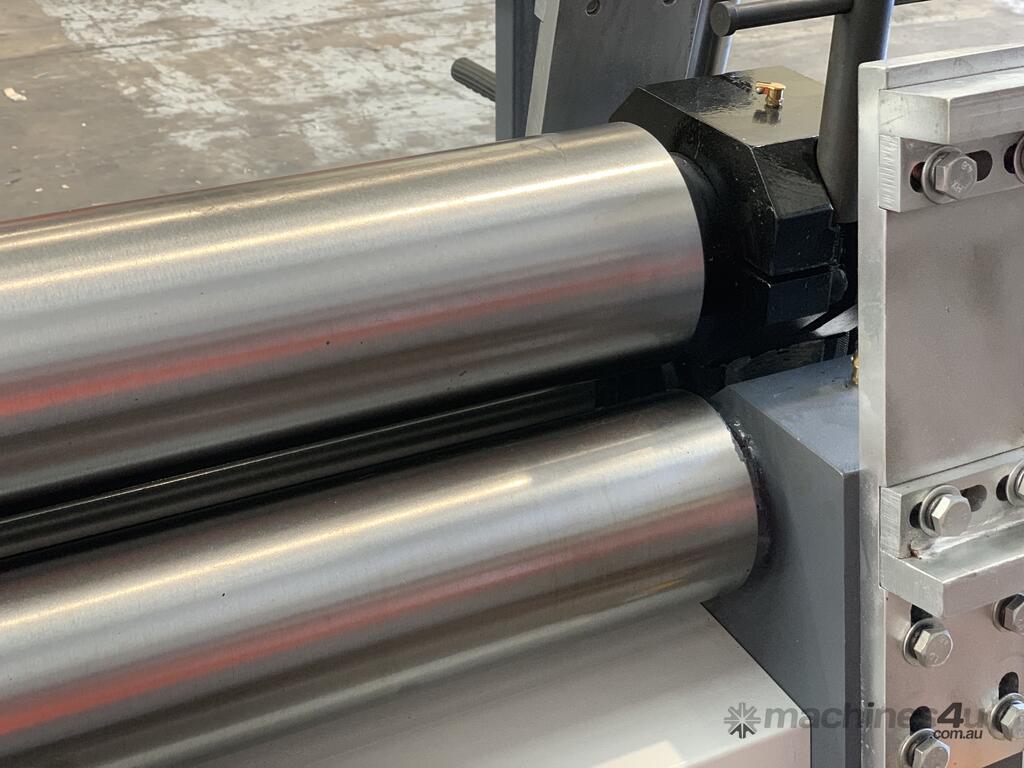

?precision ground rolls

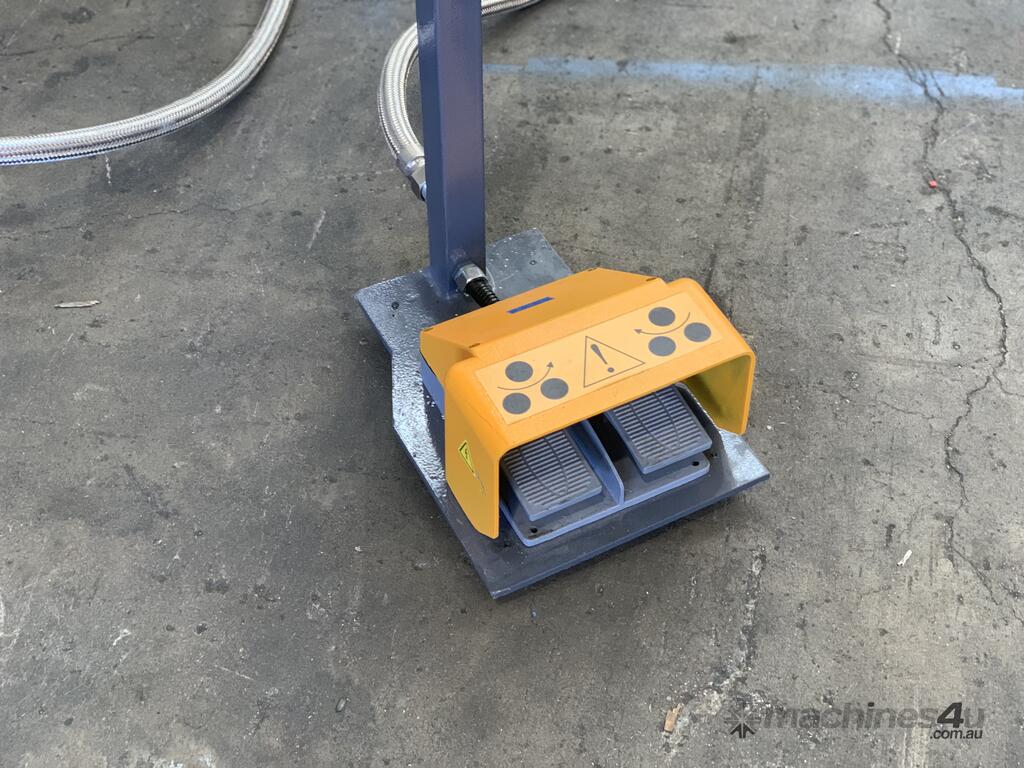

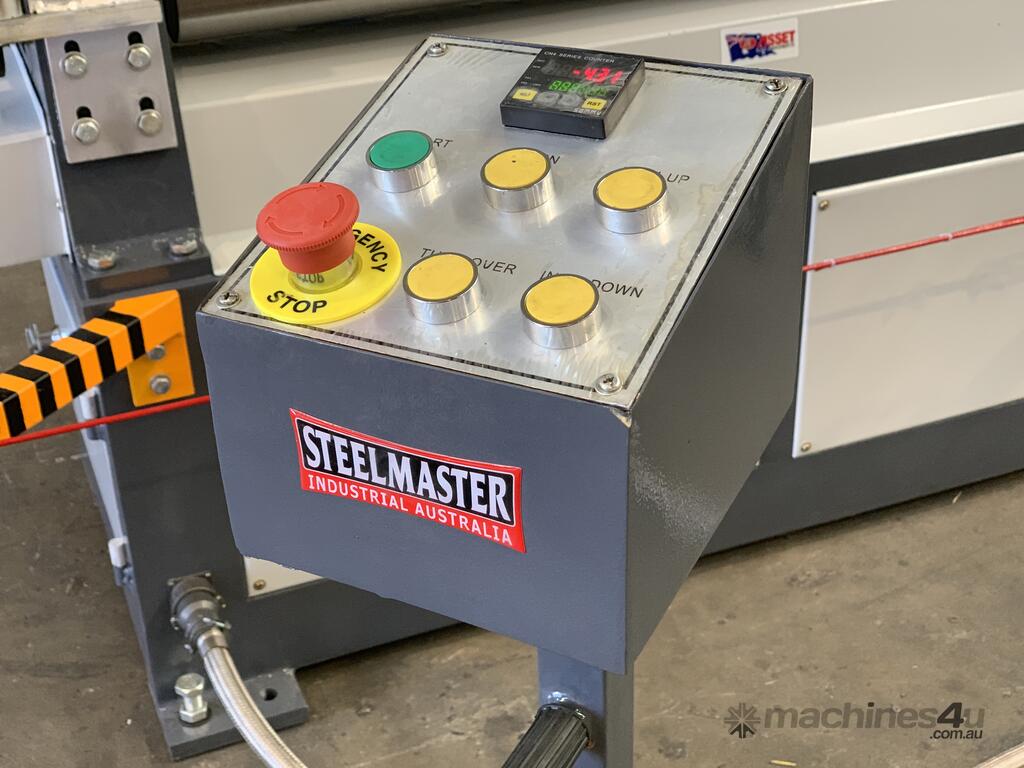

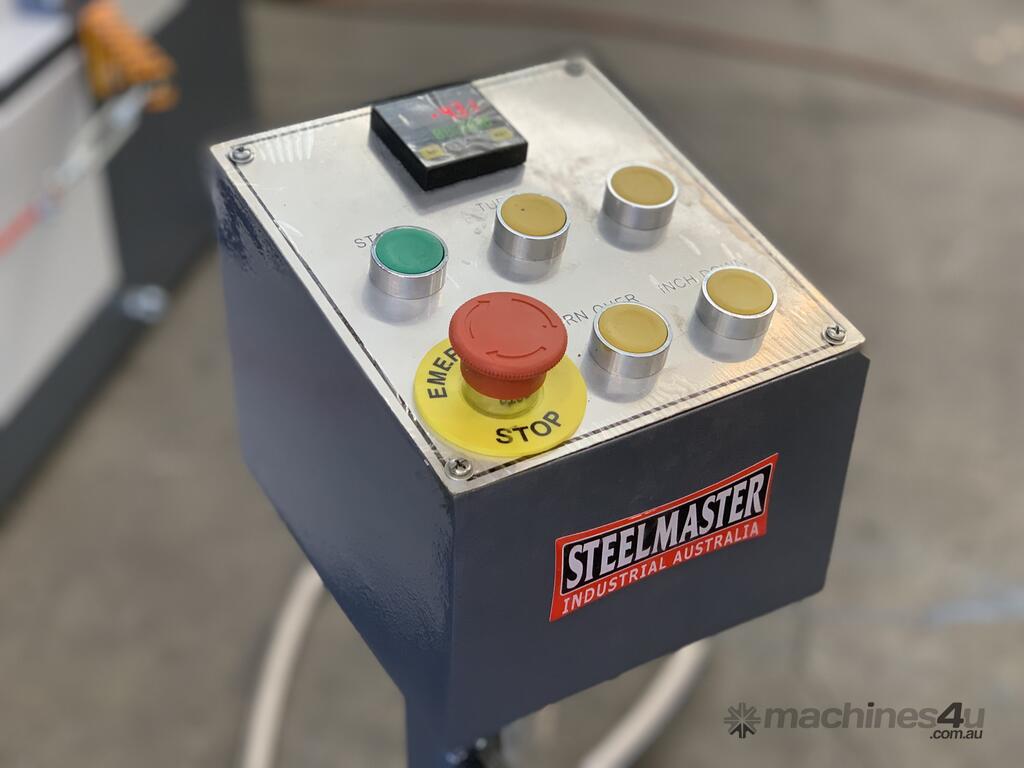

?pendent control operation with forward and reverse on the foot pedal

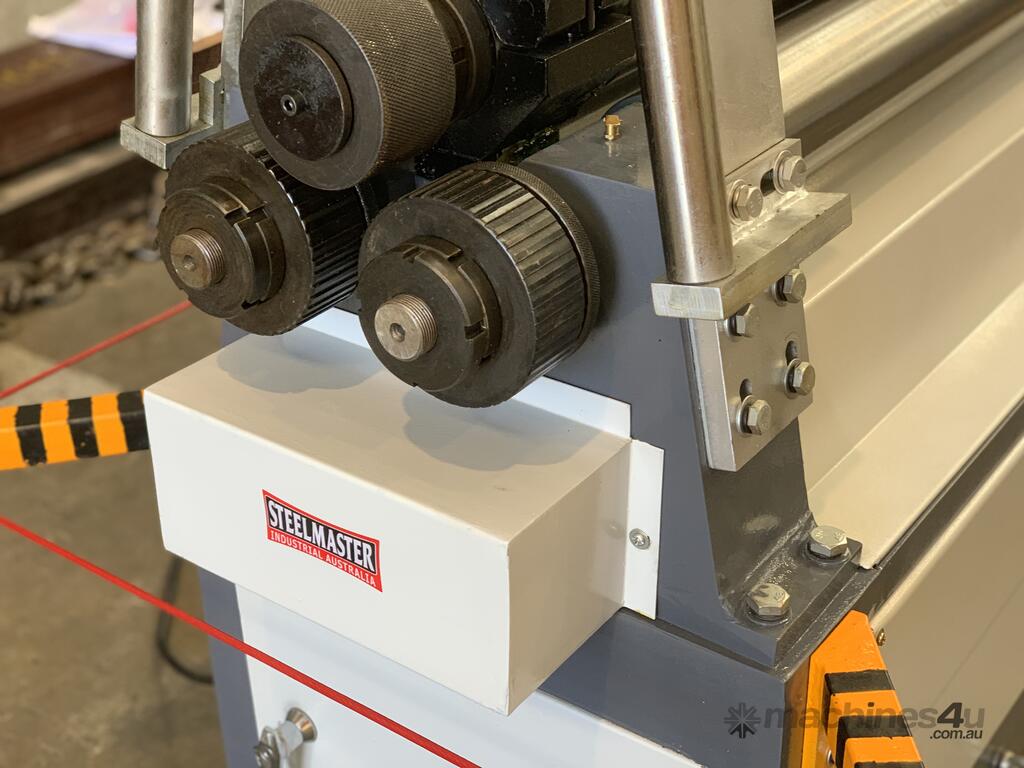

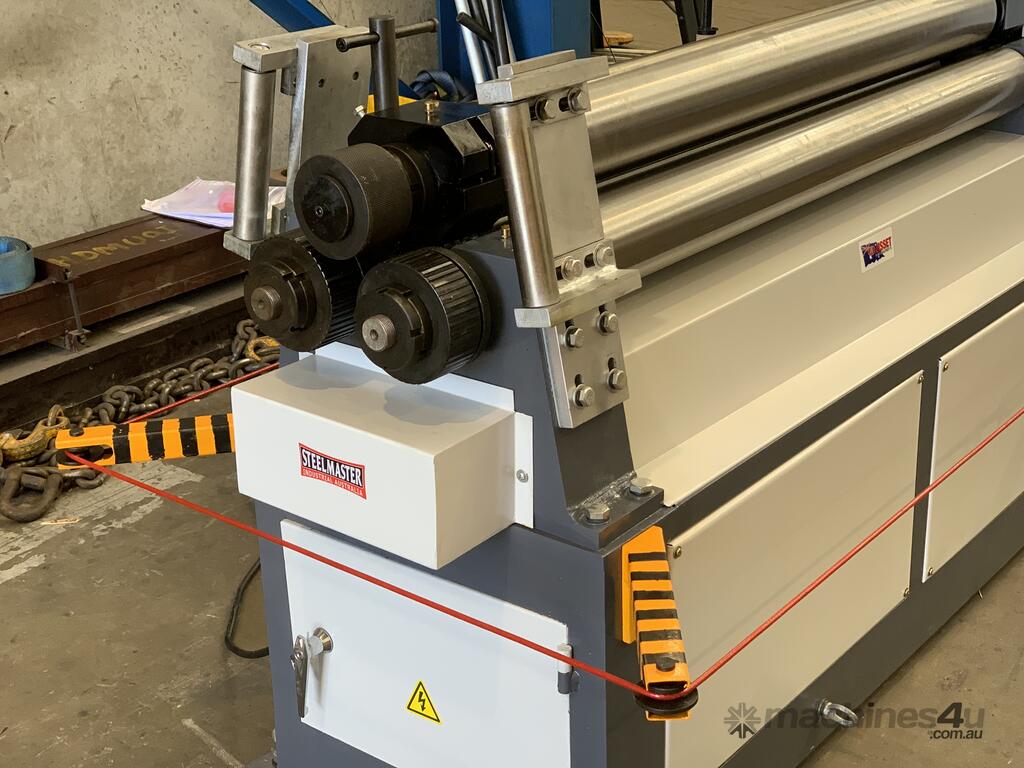

?stub extensions standard, offering basic section rolling operation

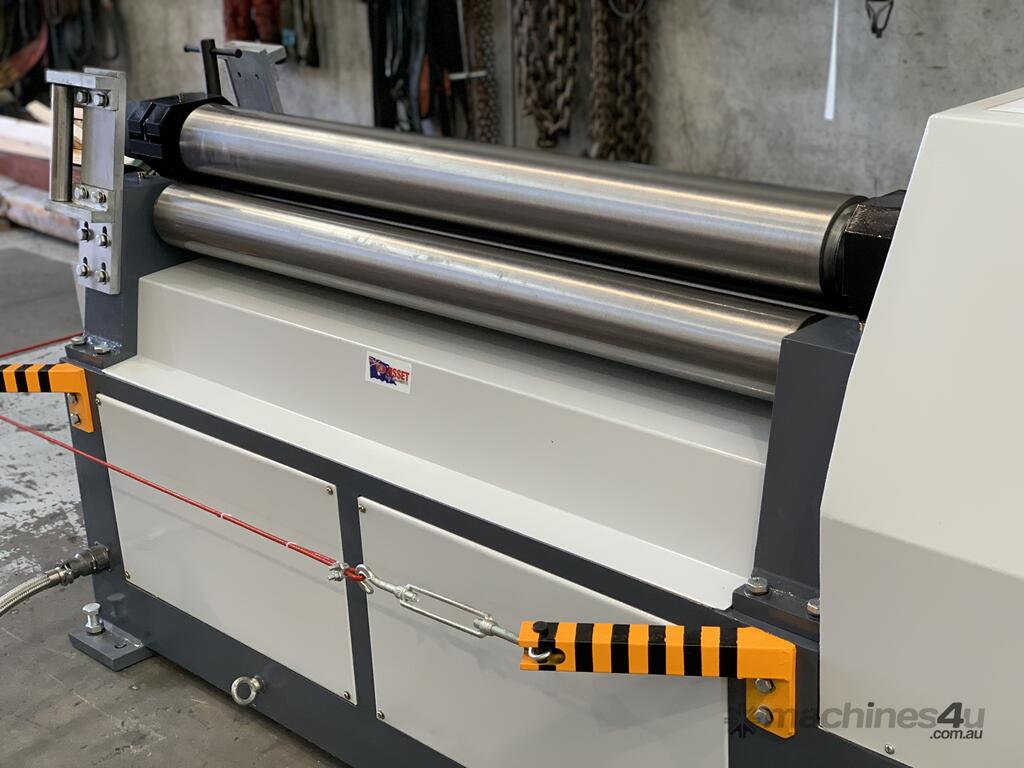

?safety interlocks and emergency shut-off device surrounding roll operation area

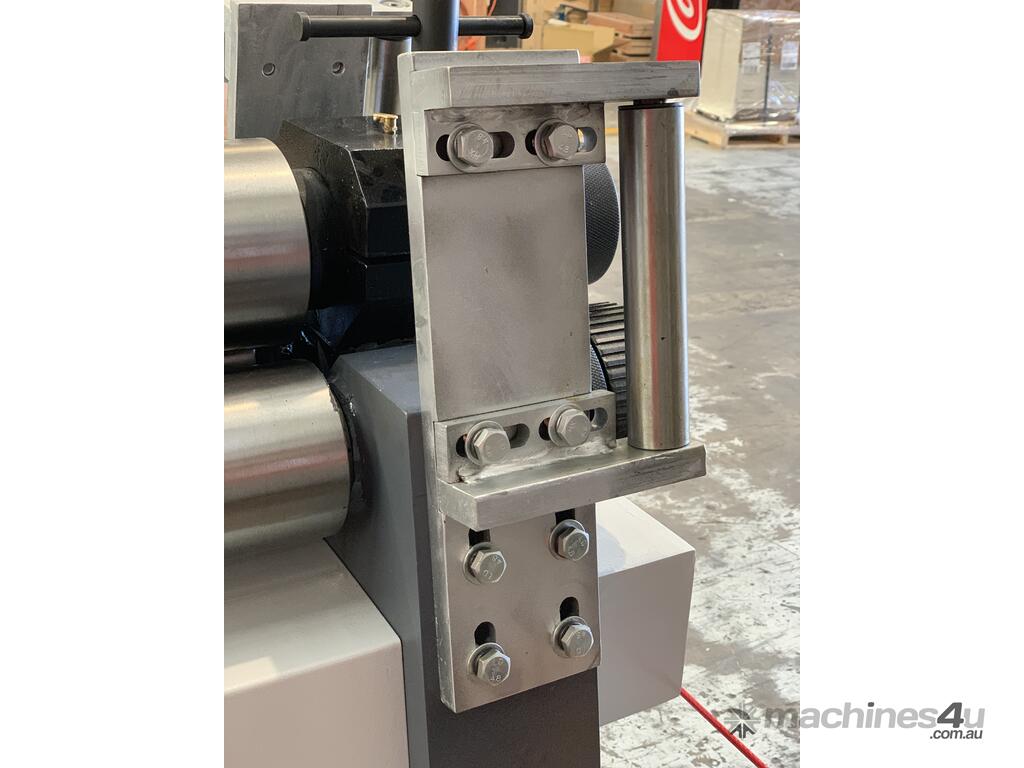

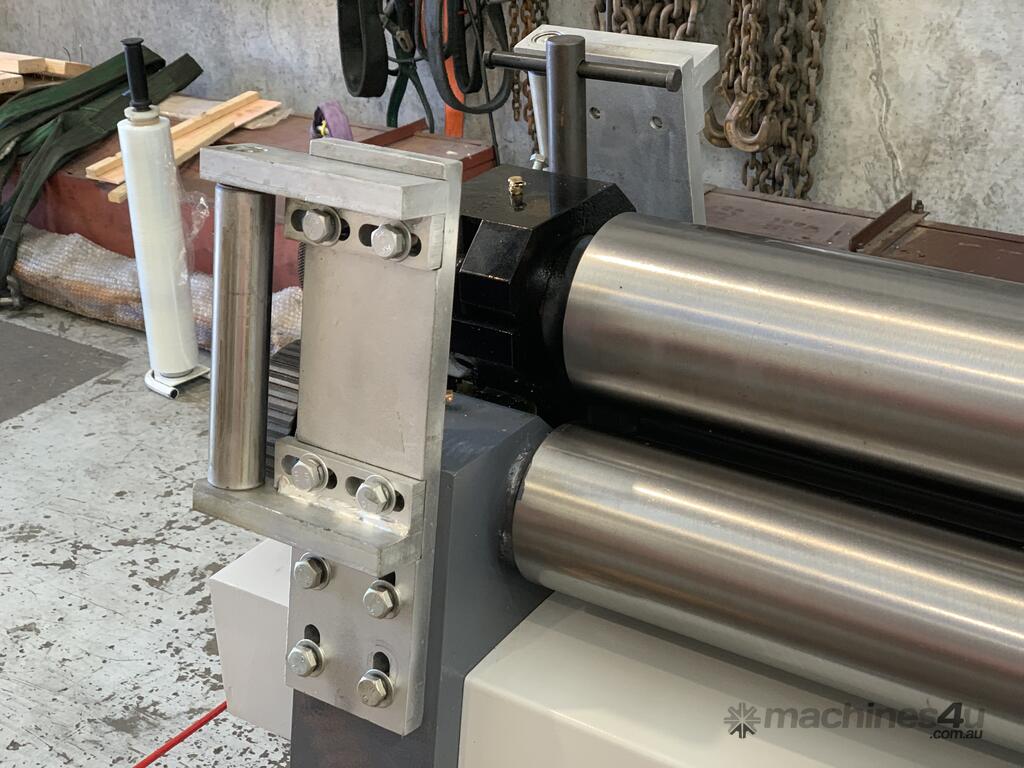

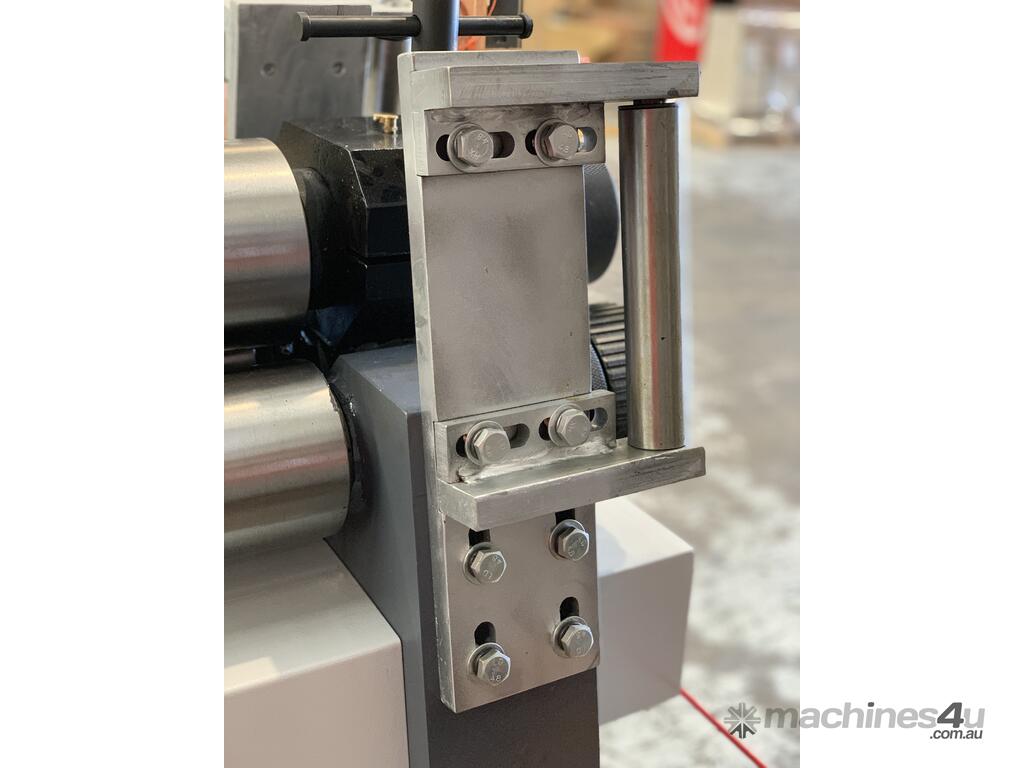

?swing out end enables complete cylinders to be removed
Includes
?pipe profile and standard section rollers 38.1mm
Technical Data Snap-Shot
?1300mm x 4.0mm capacity
?digital readout display for top roller position
?135mm top roll diameter
?110mm bottom roll diameter
?150mm minimum roll diameter
?170mm bottom roller centres
?motor capacity - 3.0Kw x Volt
?shipping dimensions - 2000mm x 750mm x 1280mm
?weight: 1280kg
MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
