SM-RD1650 – 1650mm Arm – Power Column & Locking

Currenlty $2,000 off list price of $22,850.00 + GST

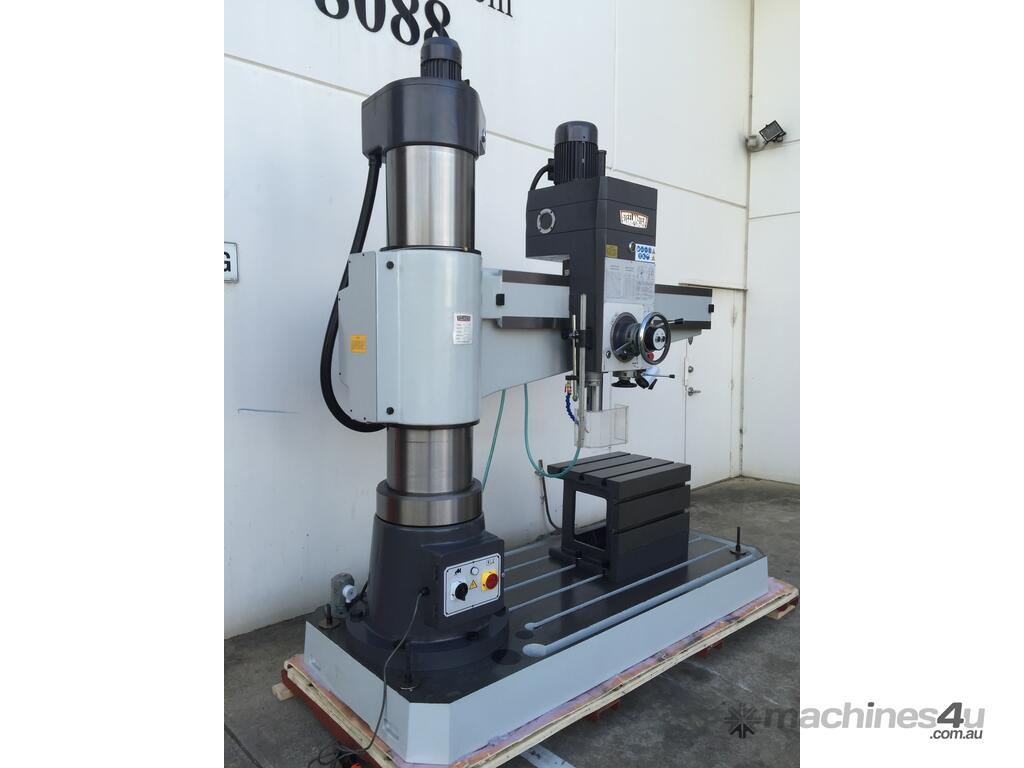

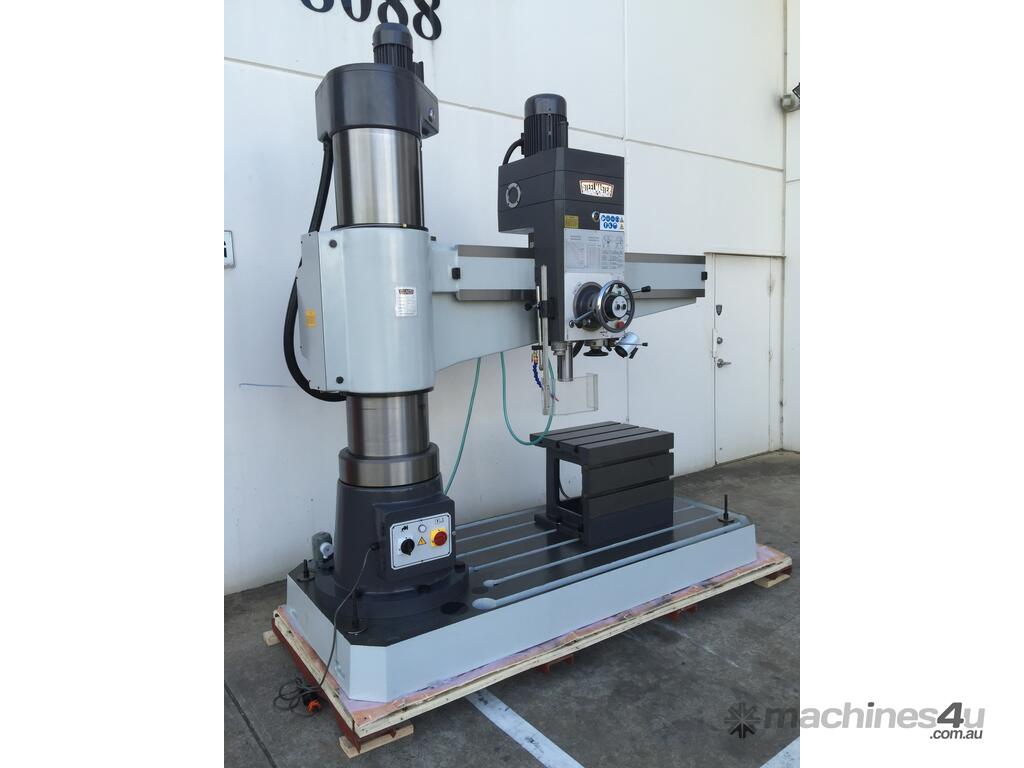

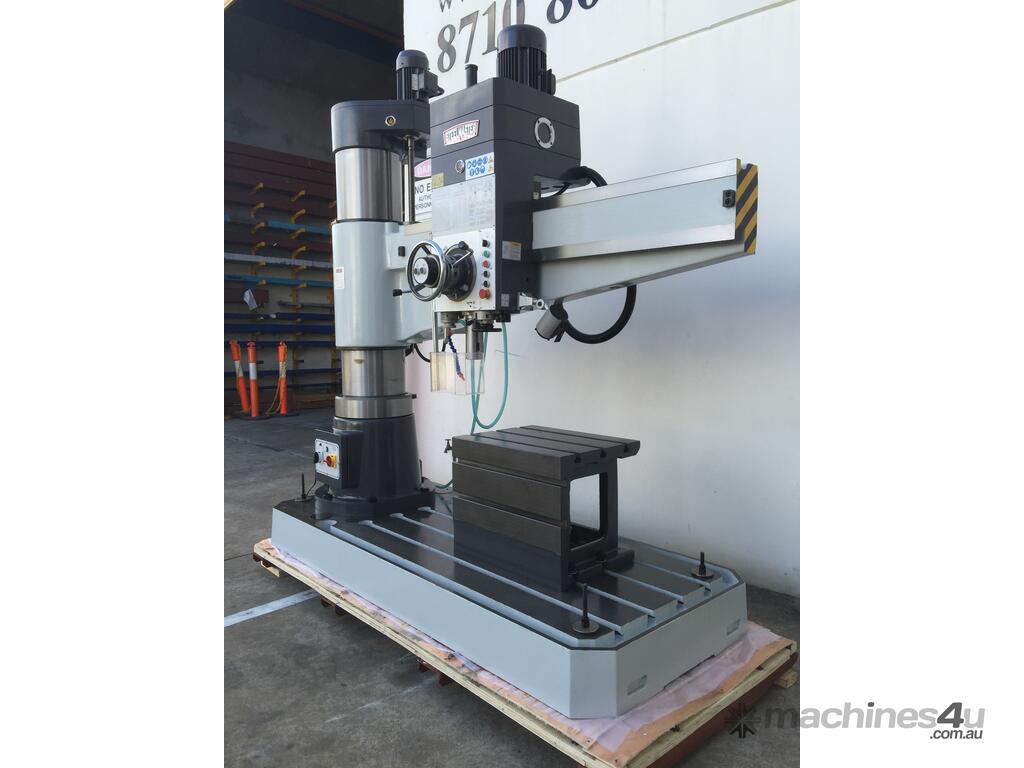

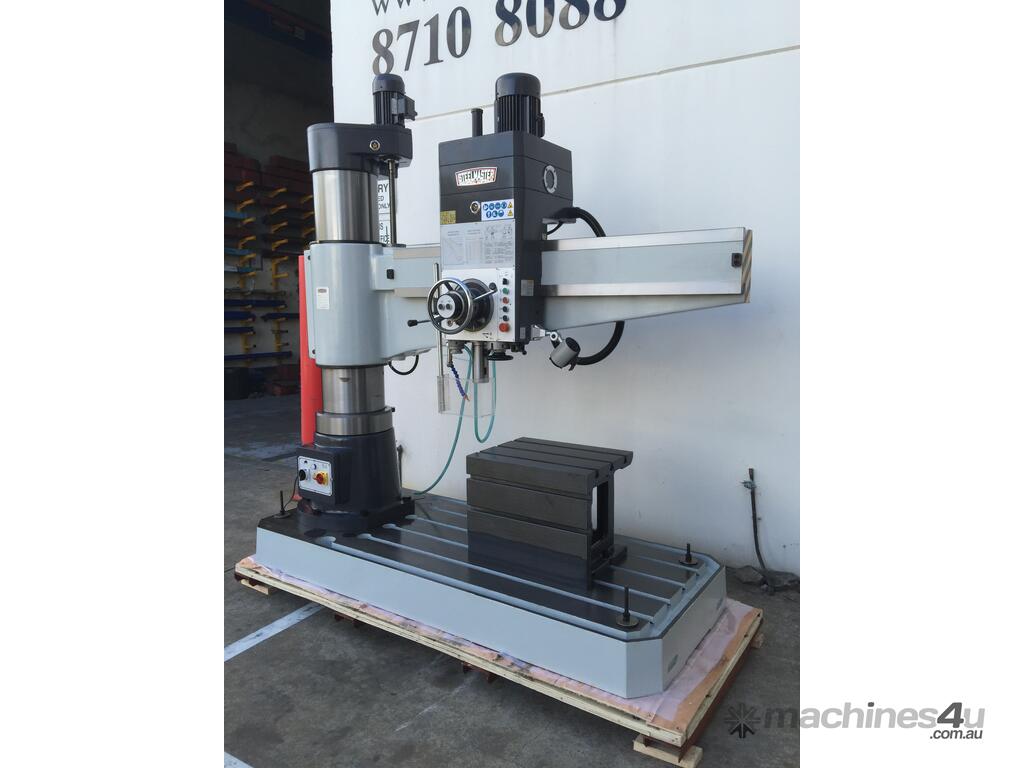

HEAVY DUTY 1650MM ARM RADIAL DRILL
Description
This Radial Drill has long been accepted in the market as a machine that can handle the work of machines costing thousands of dollars more.
We go one step further and offer you this improved model with a super-large box table.
It comes standard with drill chuck and standard accessories.

Features
- made from high quality fine grain cast iron with heavy duty ribbing to ensure extremely low vibration

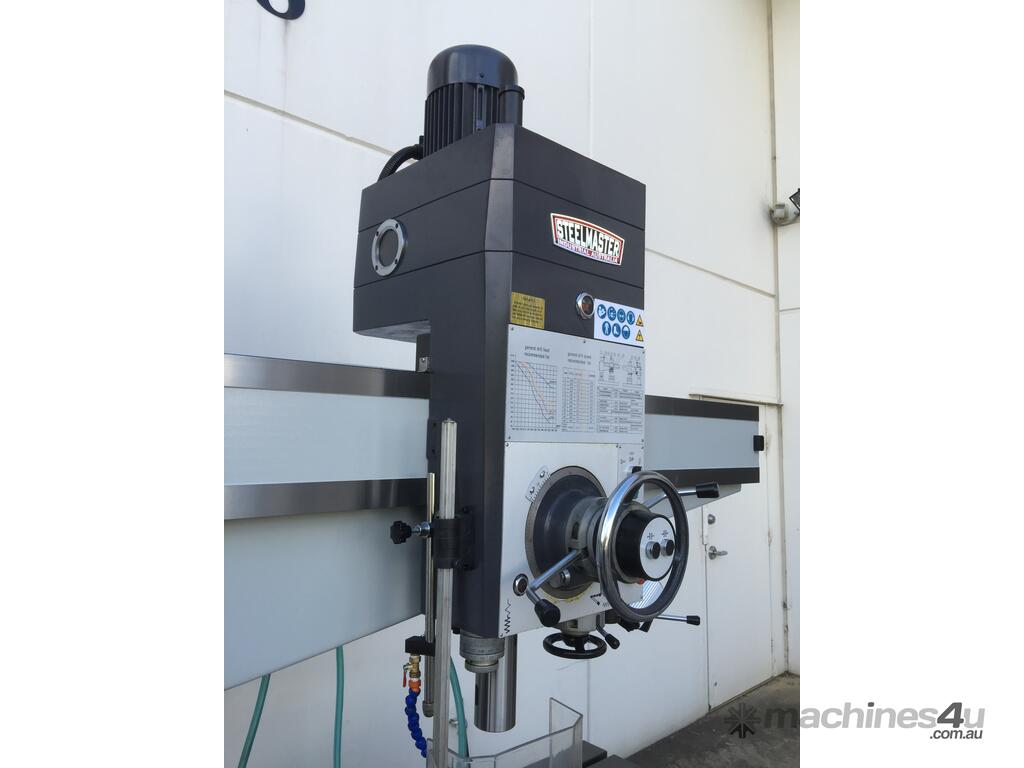

-oil bath lubricated gearbox with hardened, precise ground gears
- quiet operation

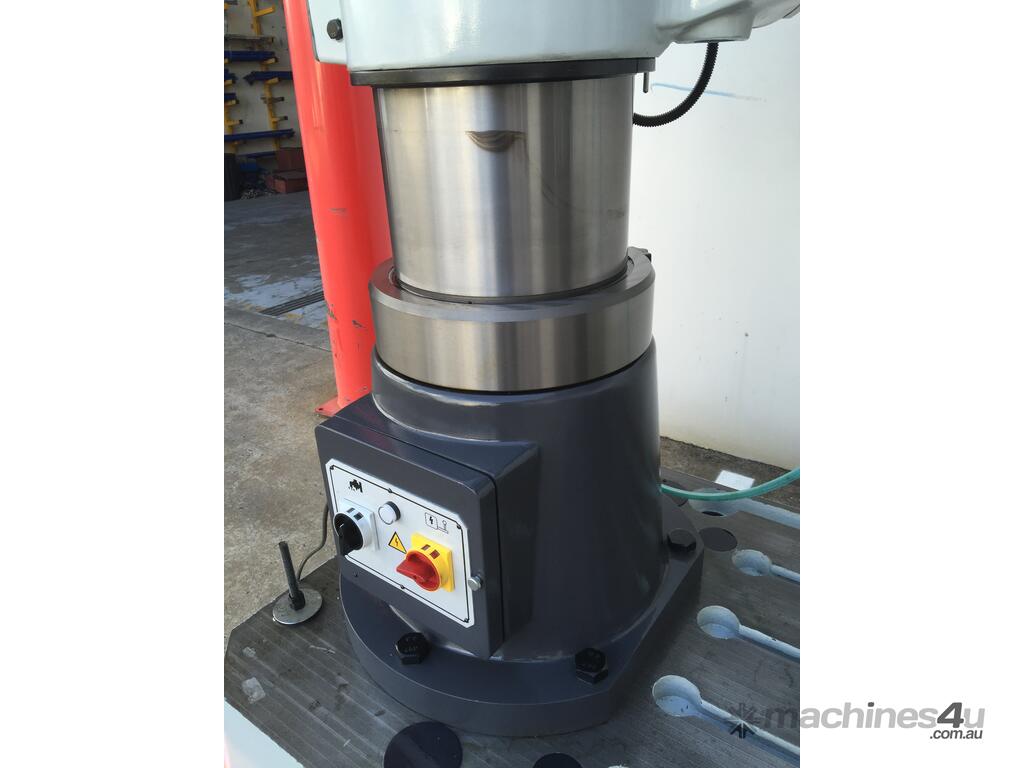

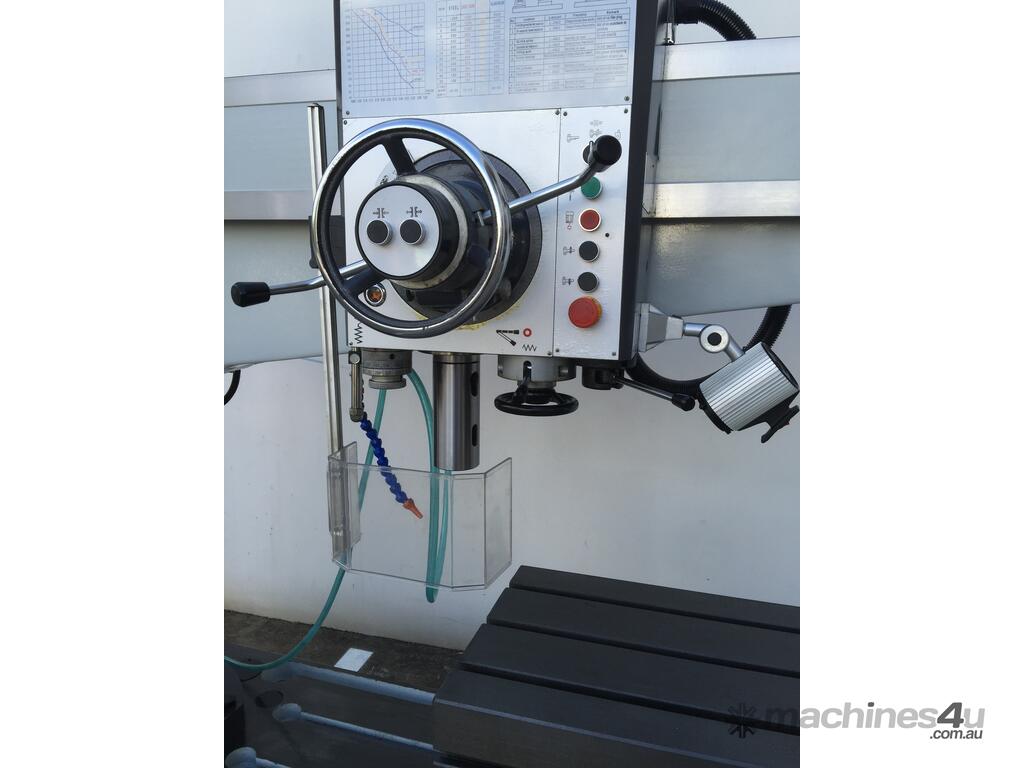

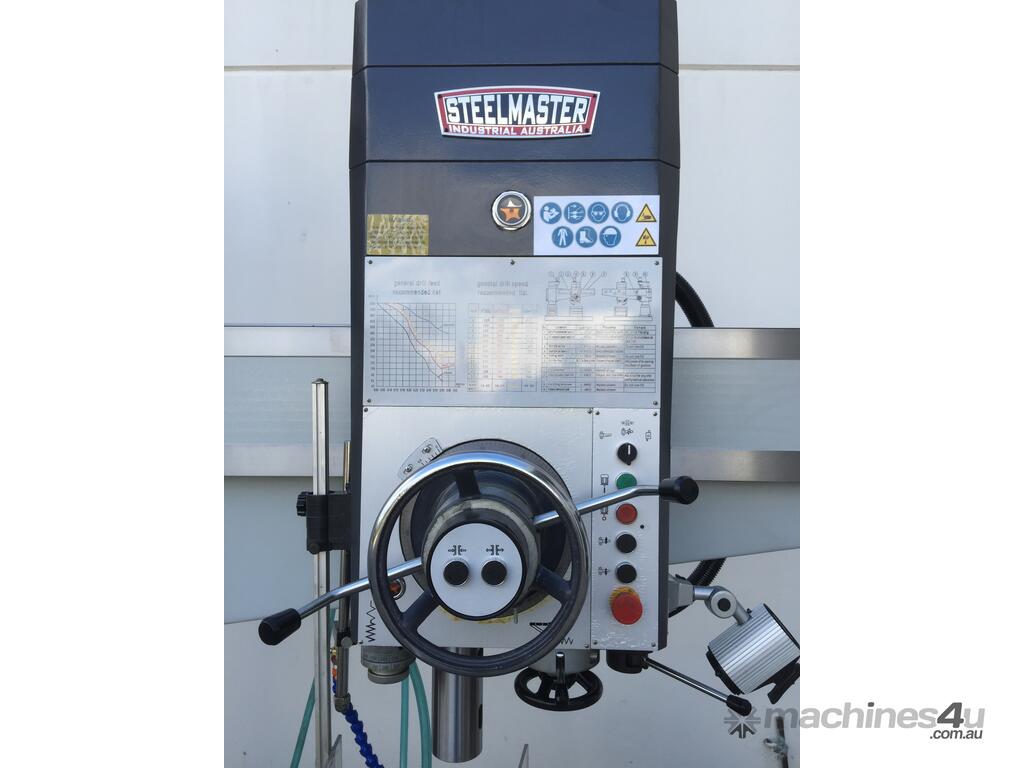

- easily accessible front panel to electrical and mechanical controls
- arm height adjustment through elevating screw and elevating motor
- hardened and ground guide ways
- power operated feed and spindle drive system ensuring long life

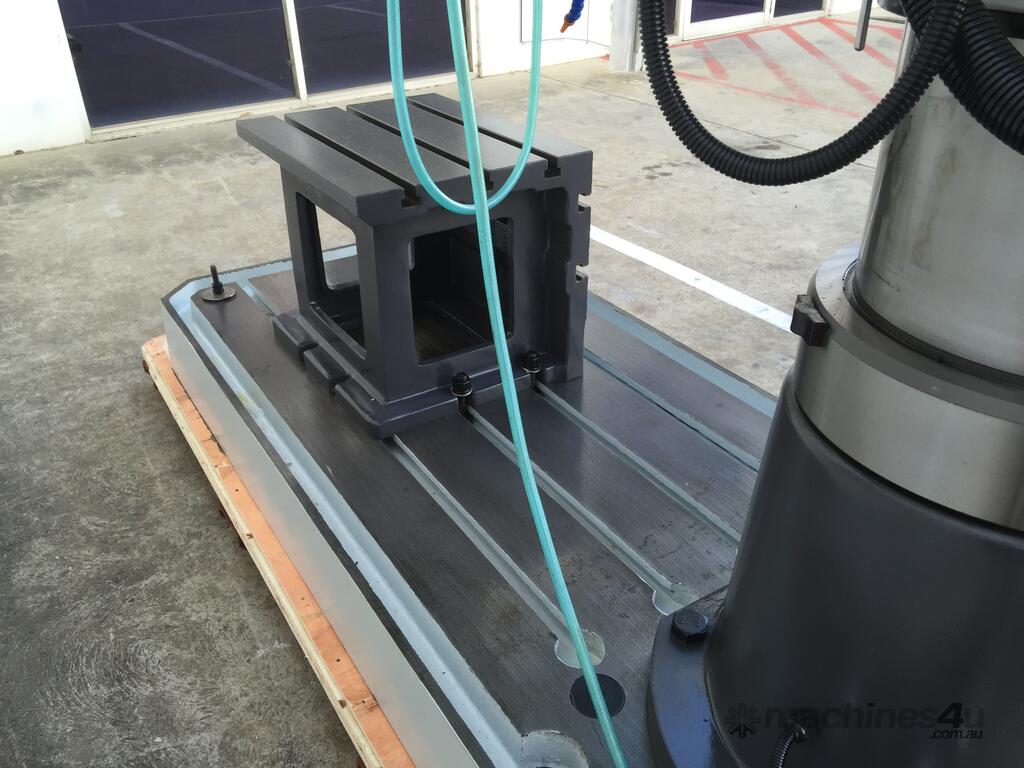

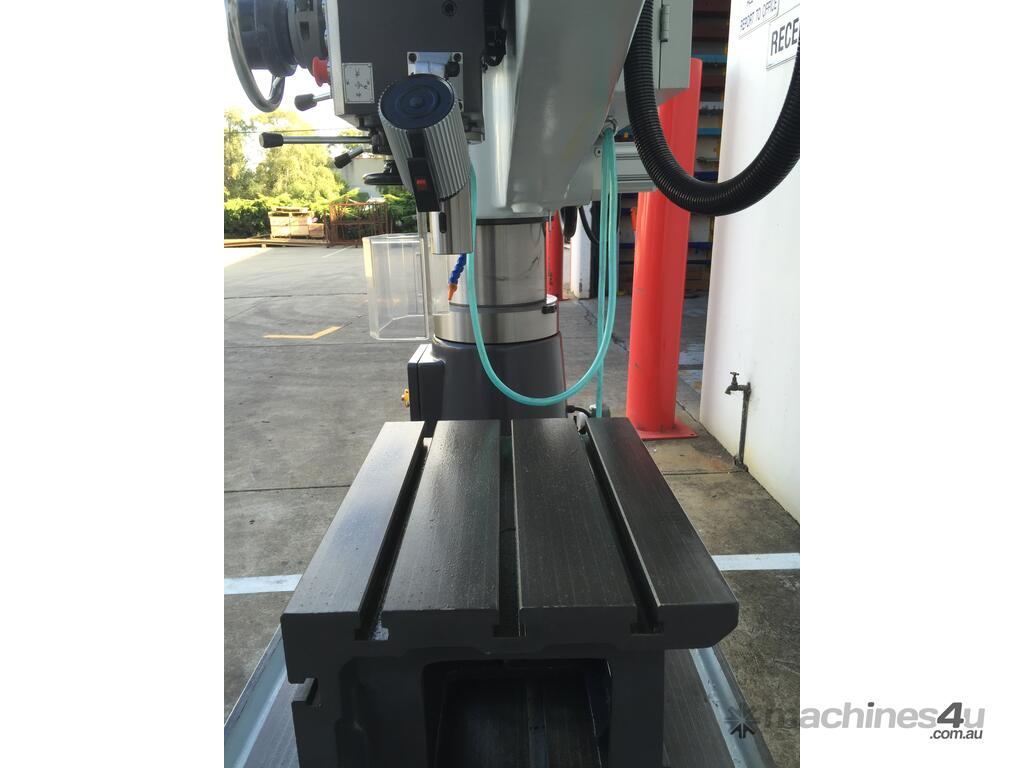

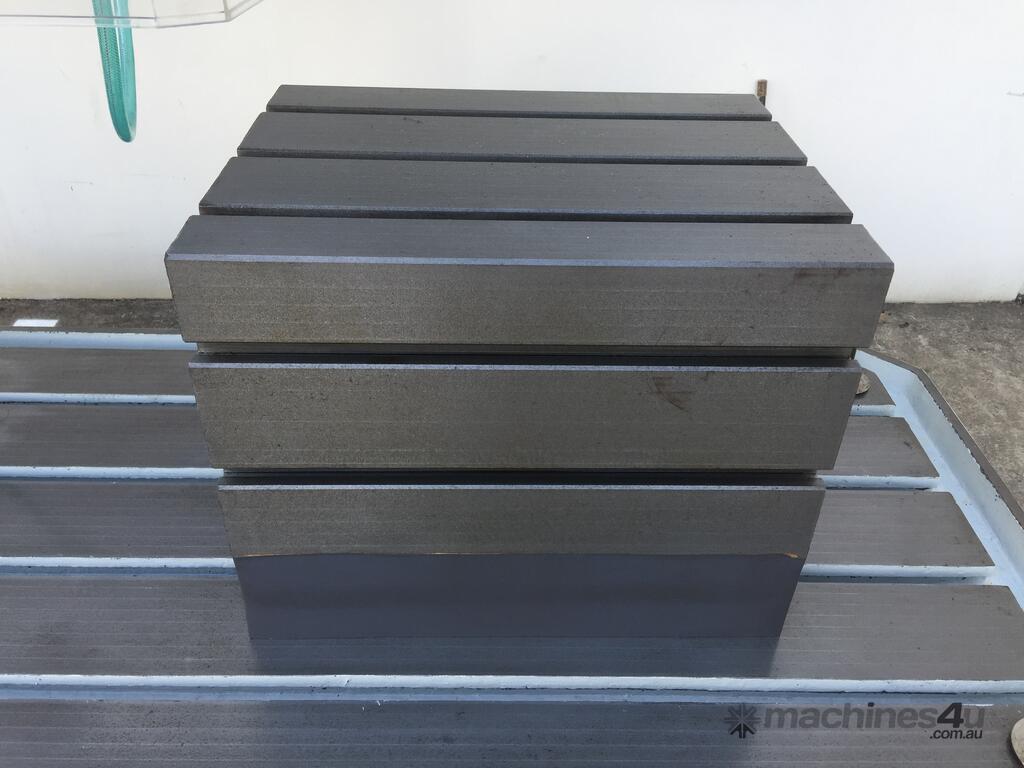

- heavy duty tee slotted box table
- up to 3000 mm capacity available

TECHNICAL DATA
- sku()11-0404
- drilling capacity (max)(mm) 50
- threading capacity (max)(metric)m42
- spindle travel(mm)315
- spindle to column travel (max)(mm)1600
- spindle to column travel (min)(mt)350
- power spindle feed(mm/rev)0.04 -3.2 / 16
- spindle holding fixture(mt)5
- distance spindle / table (max)(mm)320
- distance spindle / table (max)(mm)1220
- working table surface (l x w x h)(mm)630 x 500 x 500
- t-slot size(mm)16
- drilling table swivel(deg)360°
- spindle speeds(rpm)25 -2000
- number of steps(steps)16

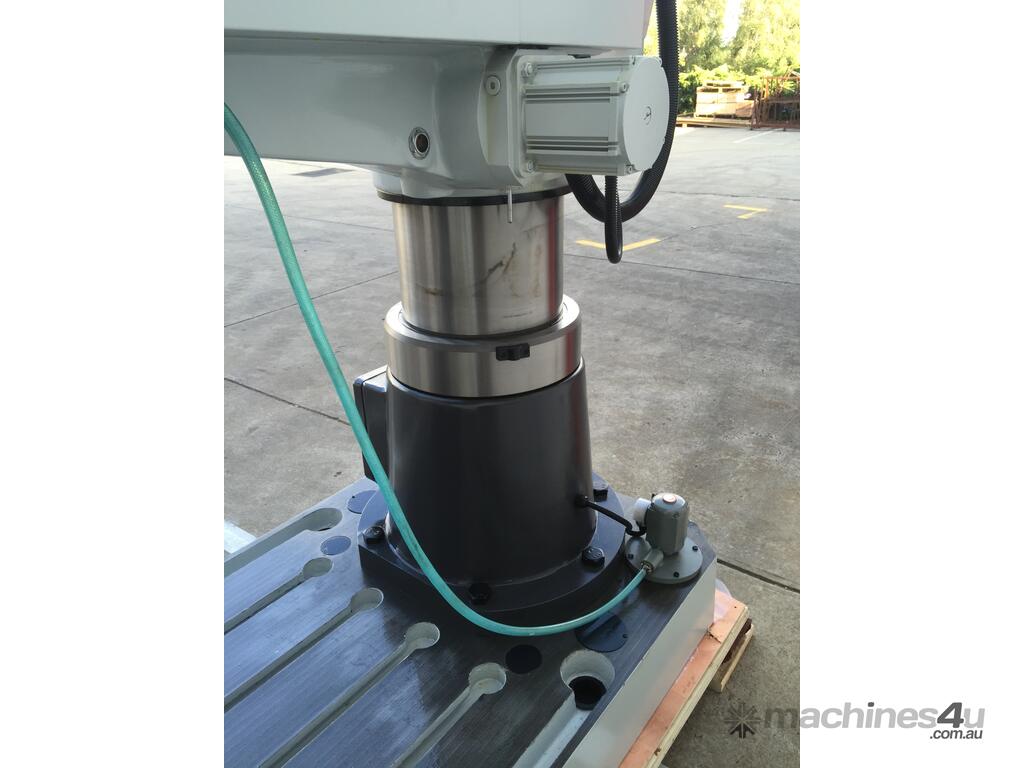

- upright diameter(mm) 350
-motor power(kw/V)4.0 /
- dimensions (l x w x h)(mm)2490 x 1060 x 2625
- weight (nt)(kg) 4350

Need more details? Can't find what you are looking for?
We have many more items available than listed here.
All supported with backup parts and service second to none.

Asset Offer a Wide Range of Drilling & Milling Machines Which Can Be Viewed Online.

Steelmaster Metal Drilling Machines.
When looking for a quality metal drill, look no further than Steelmaster Industrial. Steelmaster Industrial metal drilling machines offer the machinist a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 12 models of metal drilling machines in stock at all times for quick shipments. Steelmaster Industrial's ever growing line of metal drilling machines consists of belt drive drills, magnetic based drills, mill drills, radial arm drills, along with a large range of accessories. Depending on your needs we have the drill for you, starting with our cost effective belt drive drills to our large radial arm drills.

Belt Drive Drills
Depending on your needs, Steelmaster has a great line of cost effective belt drive drilling machines. With several models to choose from these models give the best ``bang for the buck`` of any of the Steelmaster drills. These metal drilling machines come standard with many of the features that are most important. Each drill comes standard with a stand, tee slotted table, adjustable height control, calibrated depth setting, generous spindle mount sizes, safety guards and interlocks are also all included.

Mill Drills
Steelmaster Industrial offer one of the best selections of milling and drilling machines around. From our belt drive SM-B32 to our fully spec's SM-MD45XL with 3 Axis DRO and Power up and down on dovetailed guides. Our Metal Milling & Drilling Machines have been fitted up to offer you the best selection of features and come standard with Perspex safety guards and all e stops to ensure all round safe operation. Look online at for full listing.

Geared Head Drills
Each geared head metal drilling machine comes fully guarded with halogen lights. The castings on these machines are of good quality and will offer years of rigidity and accuracy. Coolant, power feeds, digital depth display, large tee slotted tables, large MT spindles are some of the features we offer. Some models also have power raise and lower on the tables. Our Metal Geared Head Drilling Machines come standard with Perspex safety guards and all e stops to ensure all round safe operation.

Radial Arm Drills
Our radial drilling range offered geared head drills from 1000mm in arm length up to our 2000mm heavy duty range. Hydraulic power locking on the column and power up and down for the larger models, power feeds, coolant and heavy duty tee slotted box tables are all features. The castings on these machines are of good quality and will offer years of rigidity and accuracy. All our radial drilling machines are pre commissioned prior to delivery.

Magnetic Based Drills
Steelmaster Industrial also offer our ALFRA German Magnetic Based Drills. These machines are the perfect off site partner. Our range covers the smaller Piccolo model upto the larger Junior Heavy Duty Model. Strong magnetic adhesion and quality German build ensure you years of magnetic based drilling.
