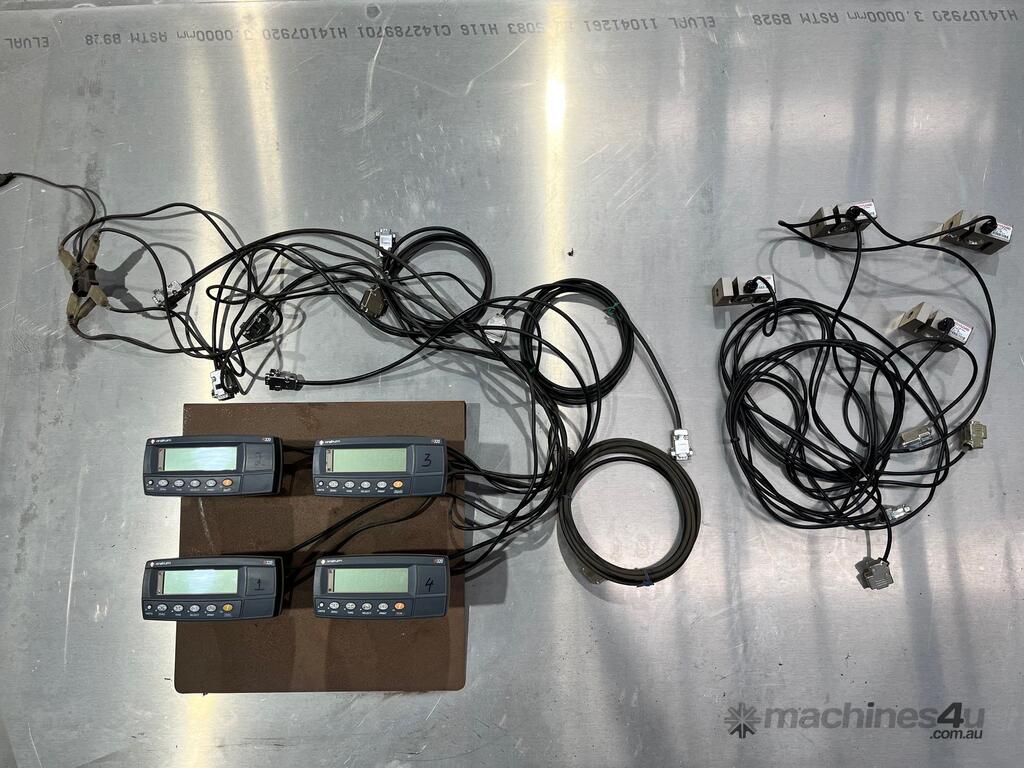

SMART WEIGHING SYSTEM RINSTRUM R320 X 4 & 101BH S-Beam Load Cell X 4

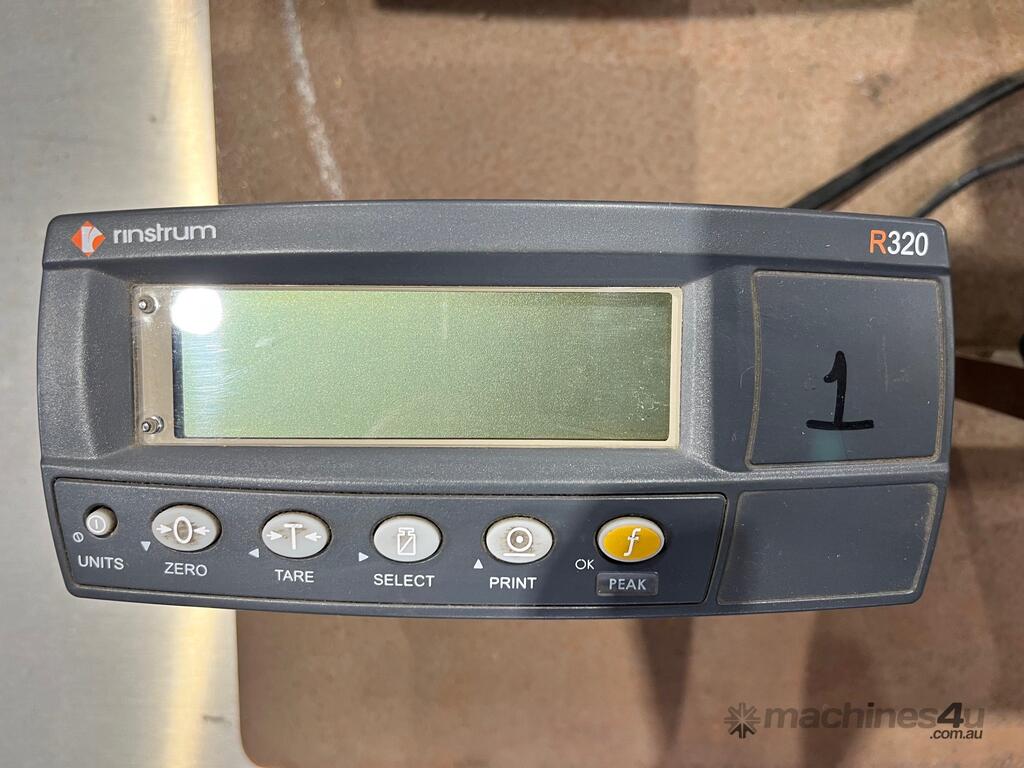

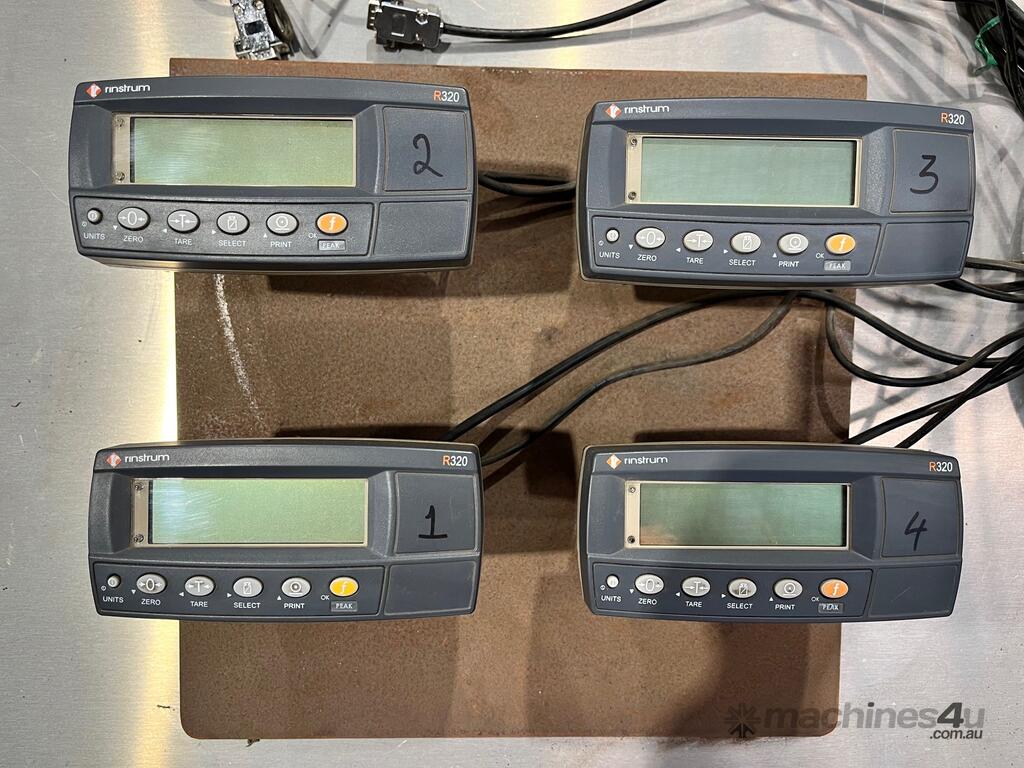

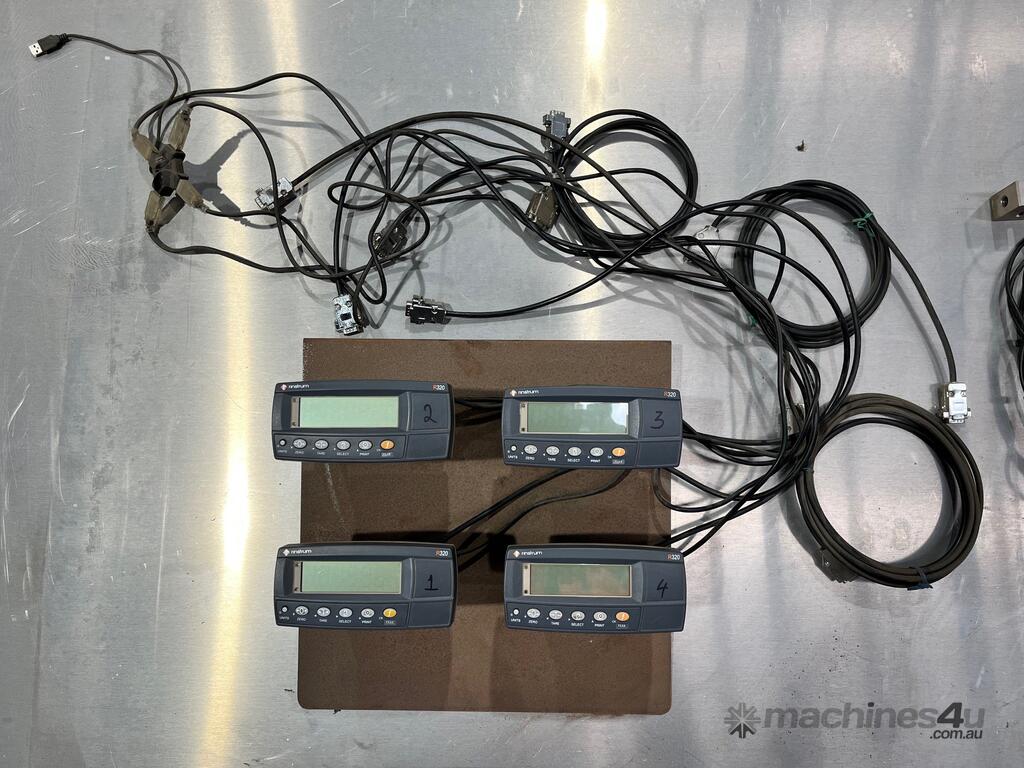

4 X R320
................

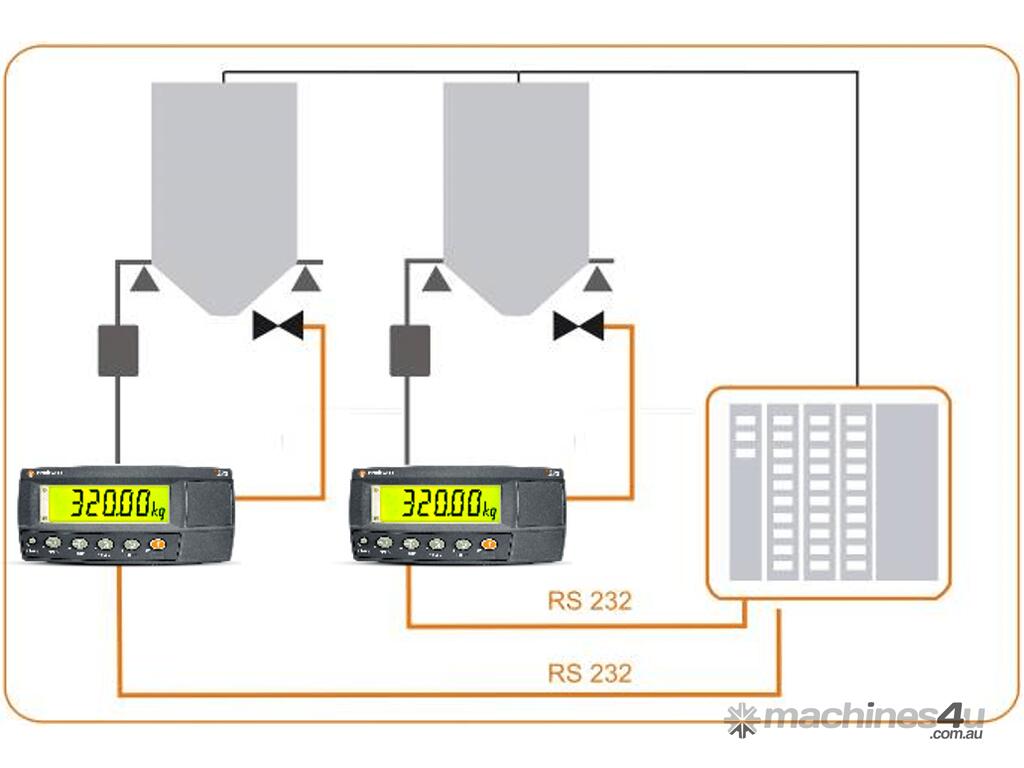

The R300 series of indicators builds on over 15 years of design experience to create a series of cost-effective reliable products that are ideal for use in mobile applications such as forklifts, platforms, inside truck cabs, crane scales and OEM applications. The compact housing and versatile power supply options make them suitable for basic weighing through to OEM applications. They are ideal for basic weight-control or level-control functions. R320 is an ABS housing with IP65 rating that is available in either a panel mount version or a full housing version using M12 connectors for simplified installation.

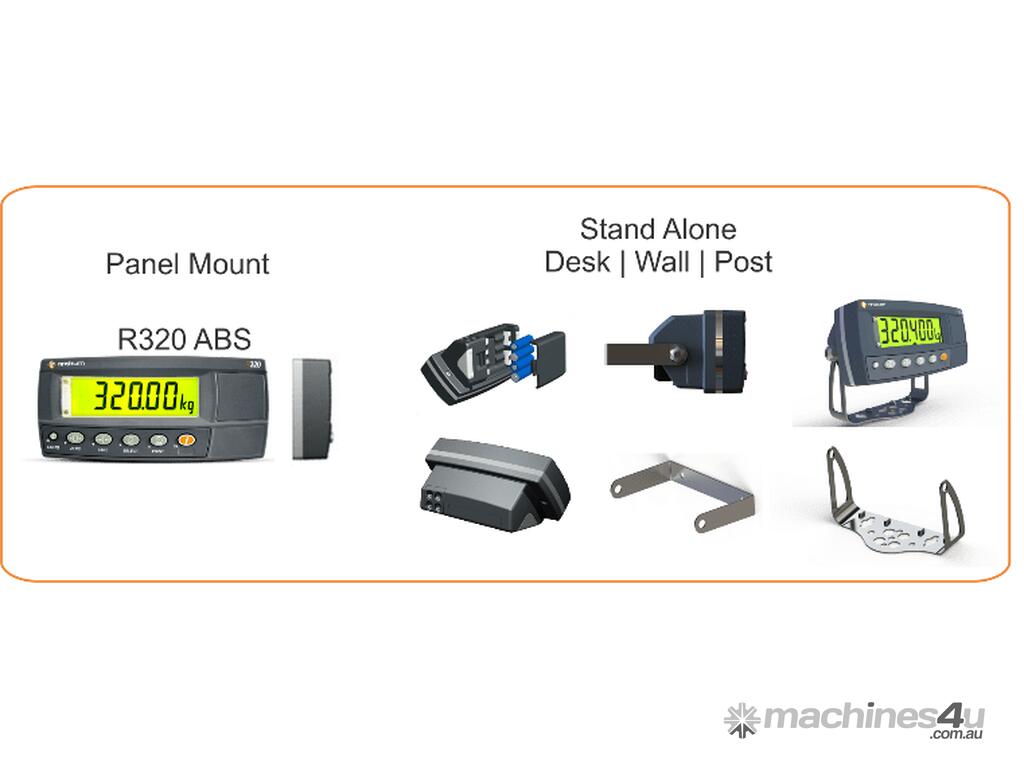

Flexible mounting options: desk, wall and pole mounting.
Wide DC operation (7-24V) to suit a variety of onboard OEM applications. Eliminates the need for third party power supplies saving on system complexity and cost.
Long life rechargeable battery options ideal for mobile installations allowing for operator flexibility.
rinLINK magnetically coupled link on front fascia for easy access in situ for updates/setup of the indicator, saving the installer time and effort.
IP65 rated housings: Dust tight and protection against projected water, increasing reliability and indicator lifetime.
Trade approved in Australia, Europe and USA. Products are export ready with approved componentry.
The R300 series indicators have a range of firmware options from most basic functionality (K342) through to full set point functionality and custom printing at the top end (K356).

NOTE: The recent change to PLP means that there is a range of cross grades available. They do not require an additional license if you already have K356.

K356 Cross Grades: Certain features are specifically available in the cross graded versions of K356 firmware, see table below for feature set. These can be downloaded off the and it will not require a passcode.


Key Highlights & Features
20mm (0.8in) LCD display with LED backlight
AC, DC 7 - 24V and rechargeable NiMH battery options
IP65 rated housing
rinLINK connector
Tough, compact ABS housing
Trade Approved Australia/Europe/USA
Versatile mounting options

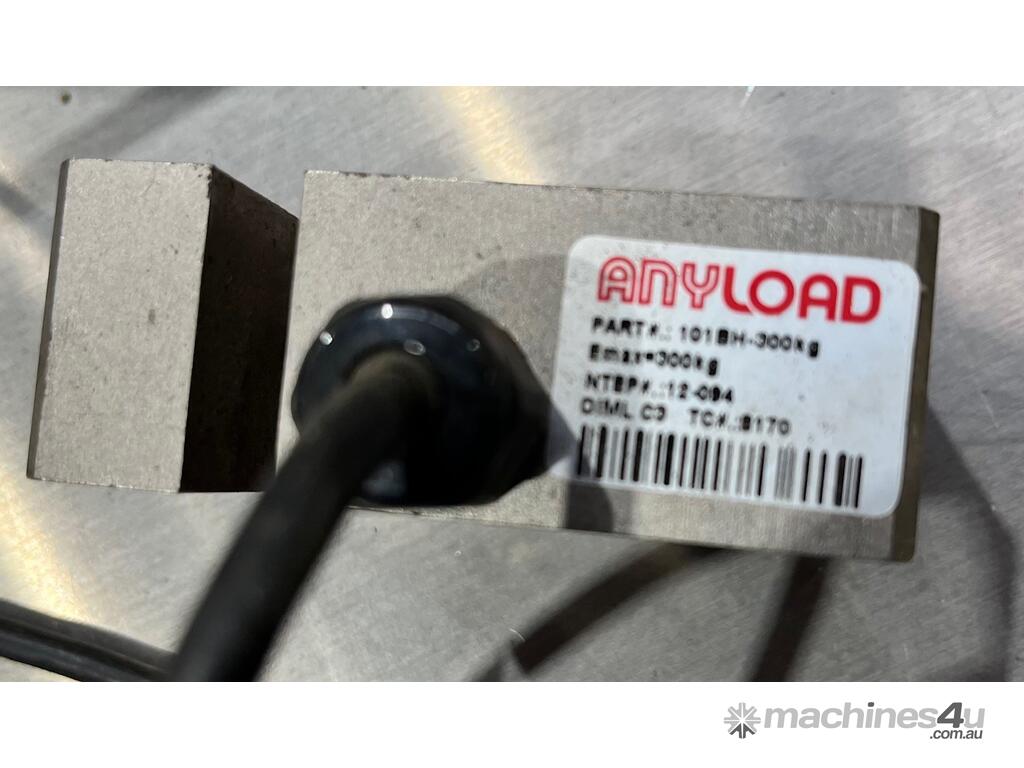

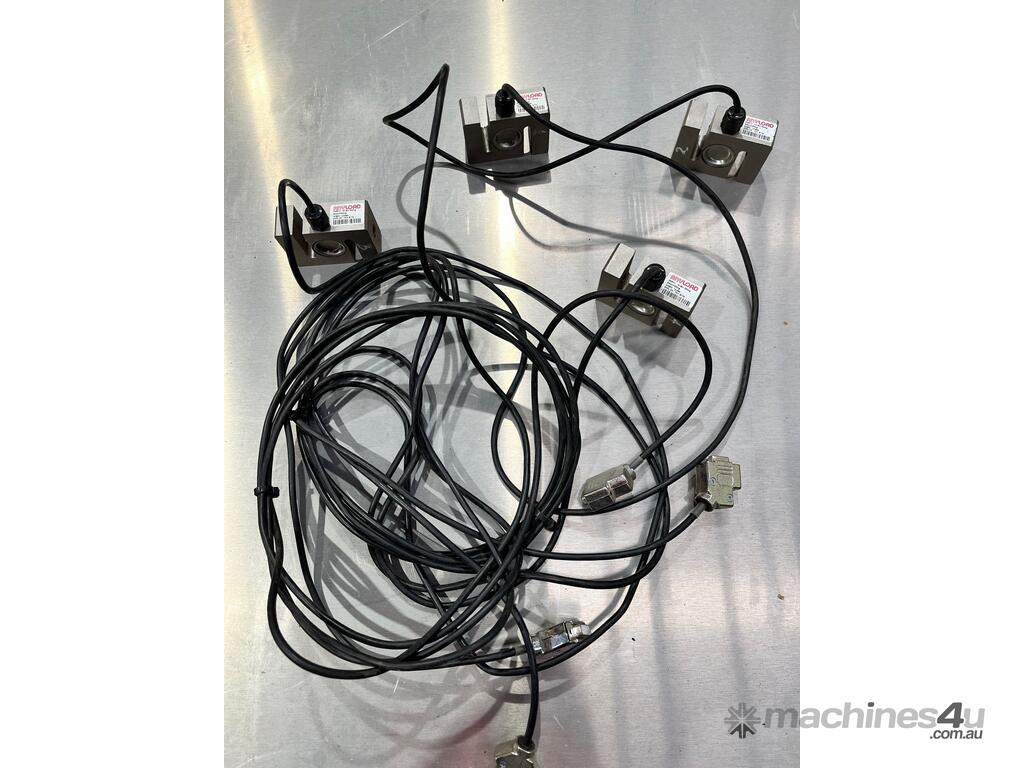

4 X 101BH S-Beam Load Cell
................................................
Description:

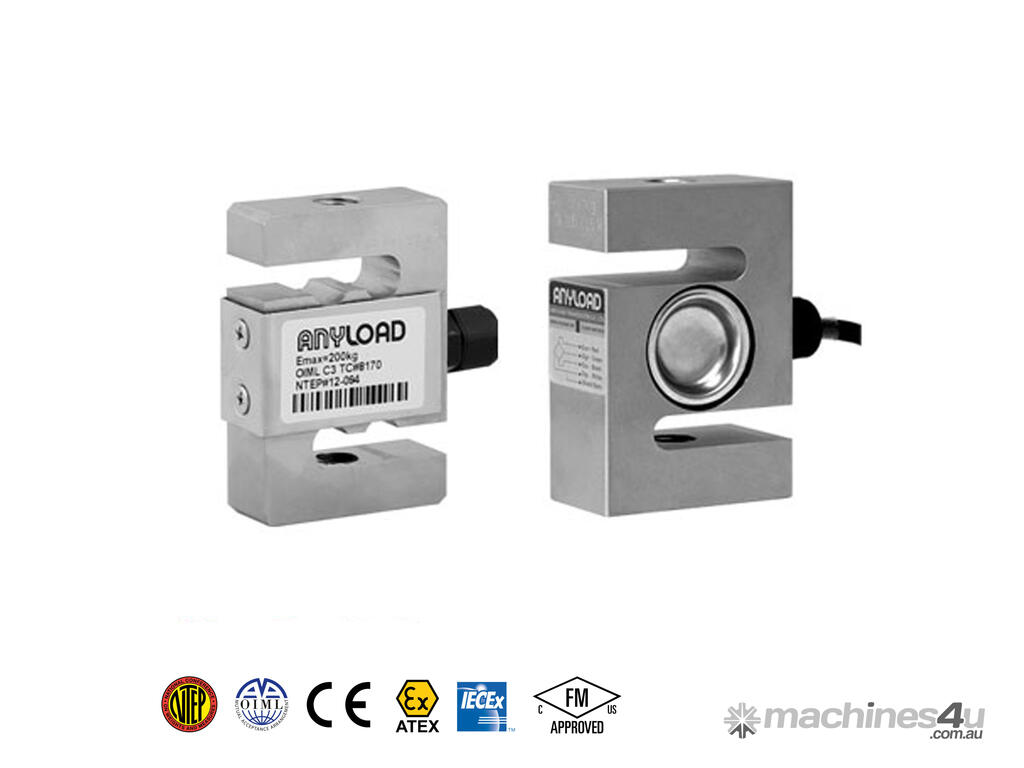

The 101BH S-beam is a highly versatile load cell with a wide range of capacities. The design offers excellent accuracy and reliability while remaining an affordable weighing solution. This model is OIML C3/C4.5 and NTEP certified and is interchangeable with Vishay Tedea-Huntleigh 615. The 101BH is ideal for many tension applications, including converting mechanical weighbridges, hopper weighing, and force measurement.

The 101BHM1 and 101BHM2 weigh modules facilitate high accuracy tension loading, including protection against stray currents. Anyload is equipping growth in the force measurement industry with this simple, portable, and reliable load cell, click here to see more force measurement products.

Features:

Material: Alloy steel
Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t
Full Scale Output: 2mV/V ± 1%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP67
NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
OIML MAA C3, Y=17 000 certified from 200kg-1.5t
OIML MAA C4.5, Y=14 000 certified from 2t-10t
CE, RoHS, Ex(NEPSI) certified
ATEX, FM, IECEx available upon request
