The SMTCL TPX series of horizontal manual boring and milling machines are a great cost effective solution for those businesses not needing a CNC boring machine but wanting a heavy duty manual borer.
The TPX range offers numerous sizes, specs and options to enhance an already well optioned up machine. Suitable for rough and finished boring and capable of milling large and box type components.
The TPX excels at inner hold boring, cylindrical turning and grooving by radial feed of the face plate. A 4 x 90 optical positioning device allows for machining accuracy when turning large pieces. The precision digital readout measurement systems ensures accuracy of coordinates and lineation.
The high quality spindle has a 3 layer mechanism ensuring high rotational accuracy and the 3 point support provides high rigidity and quality.

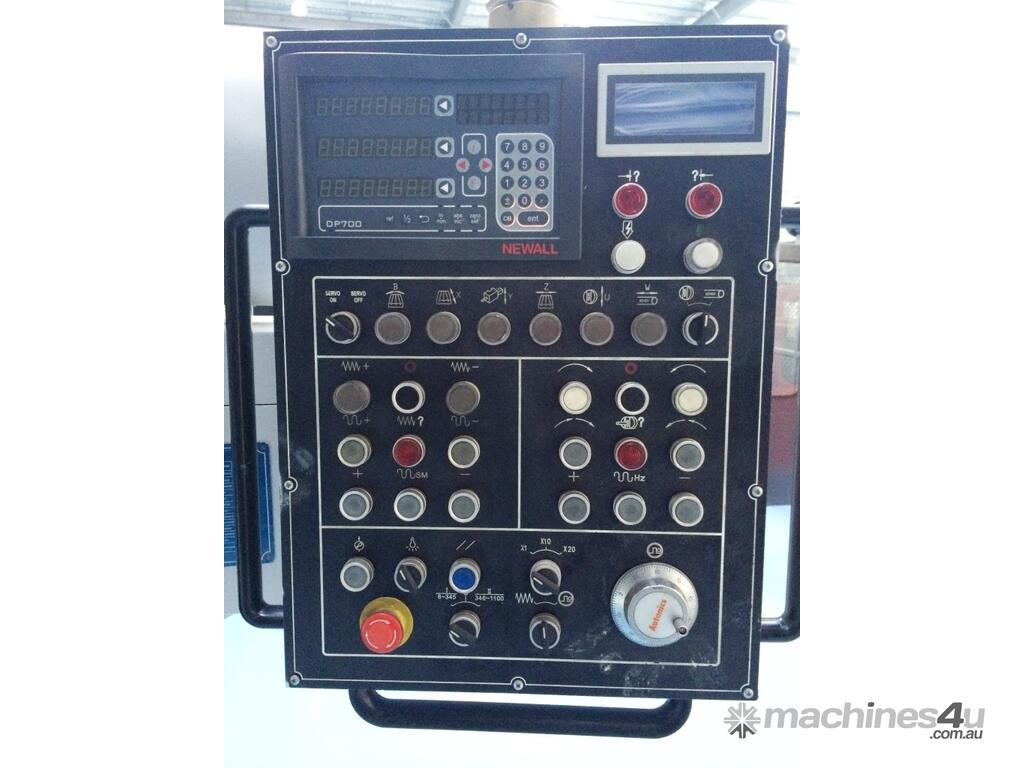

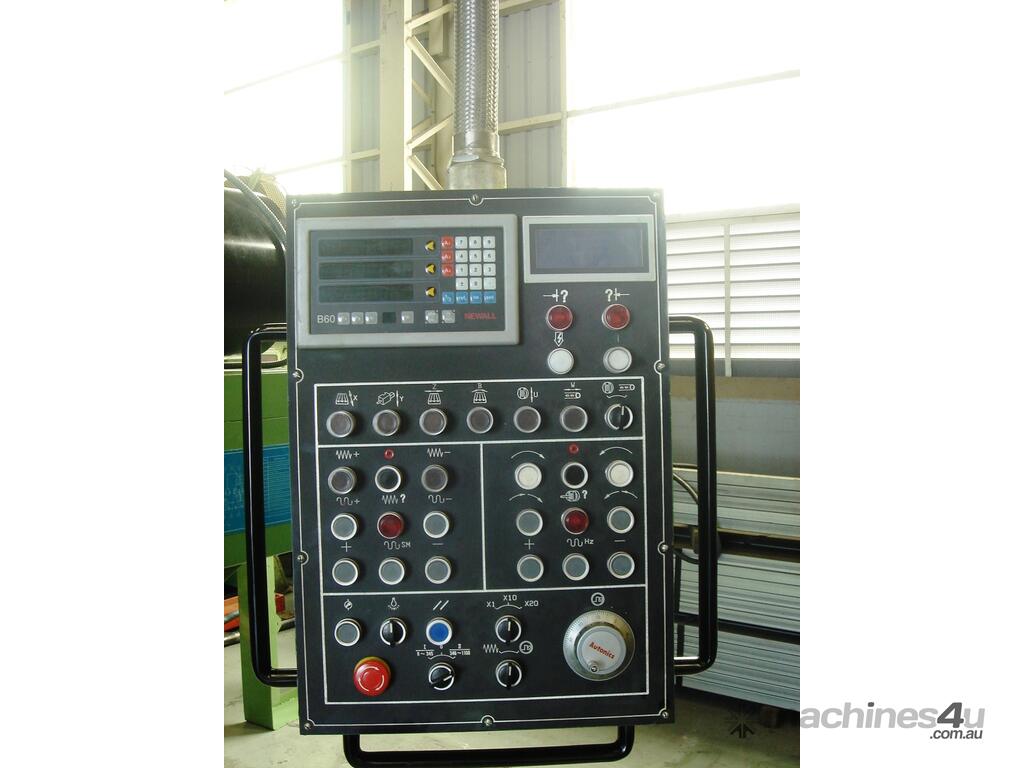

The user friendly layout of the control panel provides flexible and convenient centralised operation. The controller gives additional flexibility of hydraulic pre selection of speed and feed rates.
All moving components feature electro hydraulic interlocks. Only one component moves while all the others a locked in place.
Specs -
Spindle diameter - 130mm
Speed settings - 24
Speed range - 4-800 r/min
Main motor power - 15KW
Facing plate diameter - 750mm
Facing plate speed range - 2.5-125 r/min
Facing plate speed settings - 18
Worktable dimensions - 1800 x 1600mm
Worktable max load - 10 000kgs
Machining Range -
X axis - 2000mm
Y axis - 1800mm
Z axis - 2000mm
W axis - 900mm
U axis - 250mm
B axis - 360 degrees
Rapid traverse feed rate (X/Y/Z/W) - 2500 mm/min
The TPX range comes with a DRO for the X/Y/Z axis
Worktable with 4 x 90 degree optical laying equipment
Rear column
Adjustable pads
Angle plate
Hanging movable control panel
Heavy duty high quality machine base casting
PLC controlled system
Hydraulic system pressure adjusted via a relief valve.
Variable speed achieved by a rotary valve
Suitable for heavy cutting

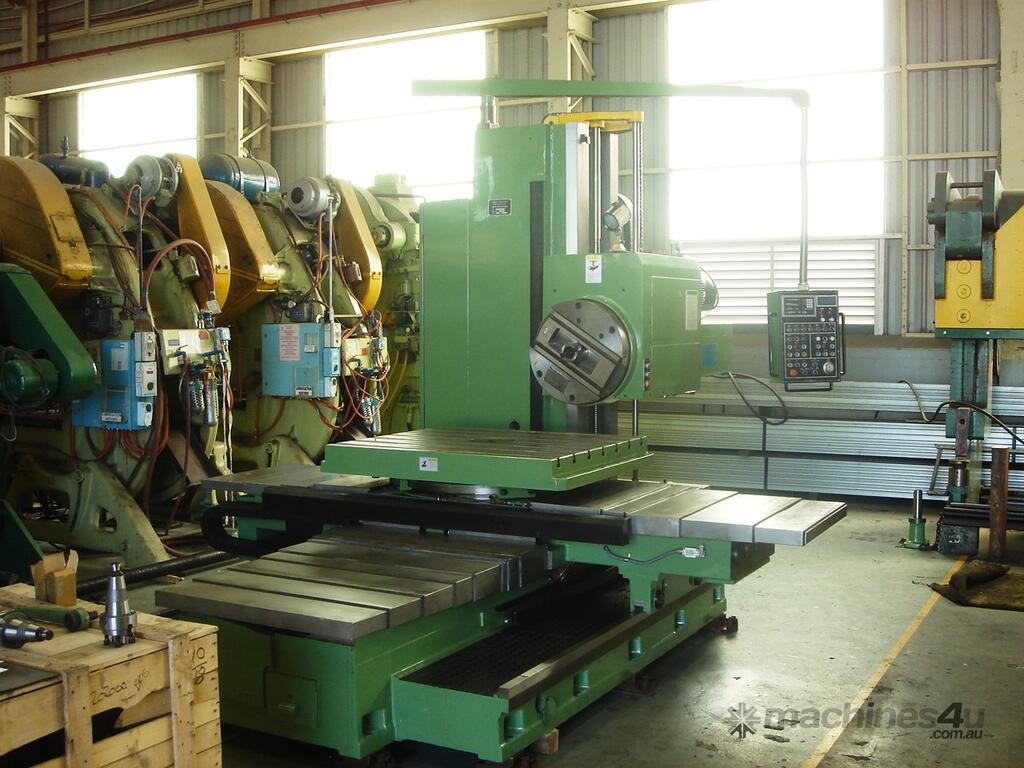

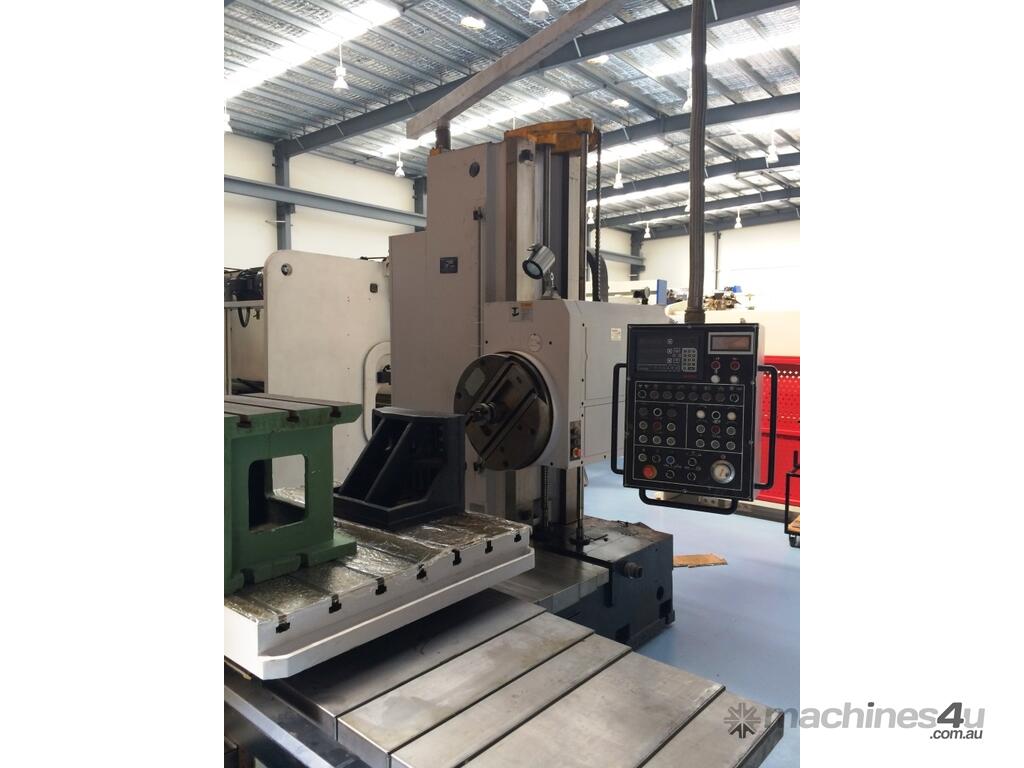

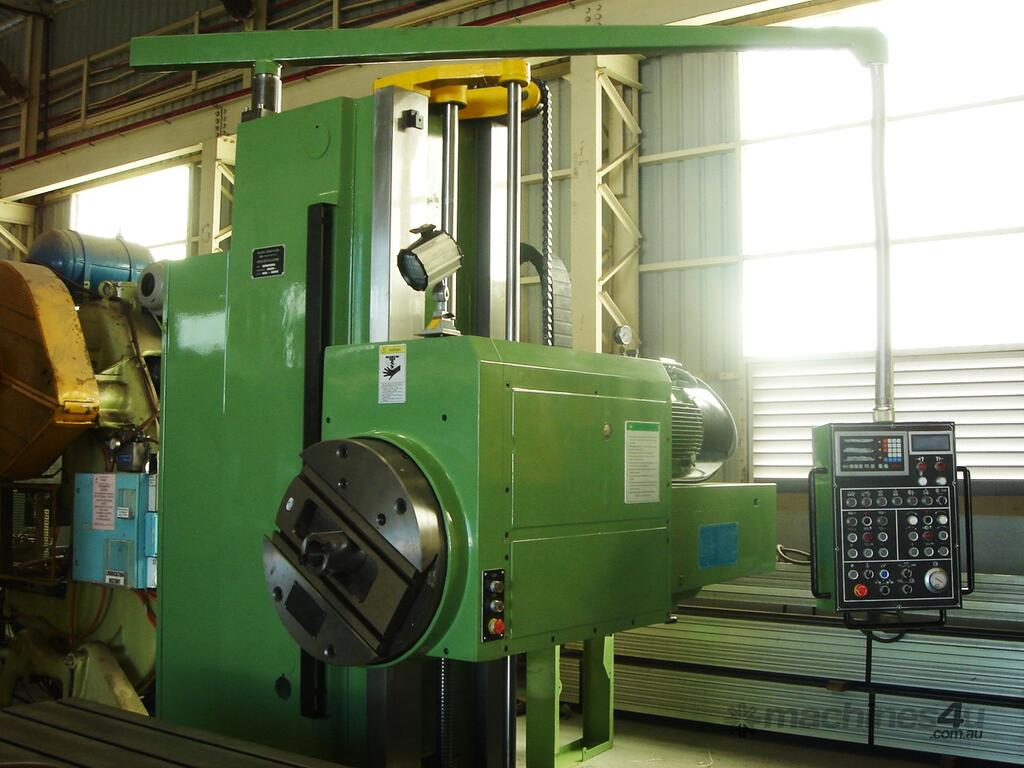

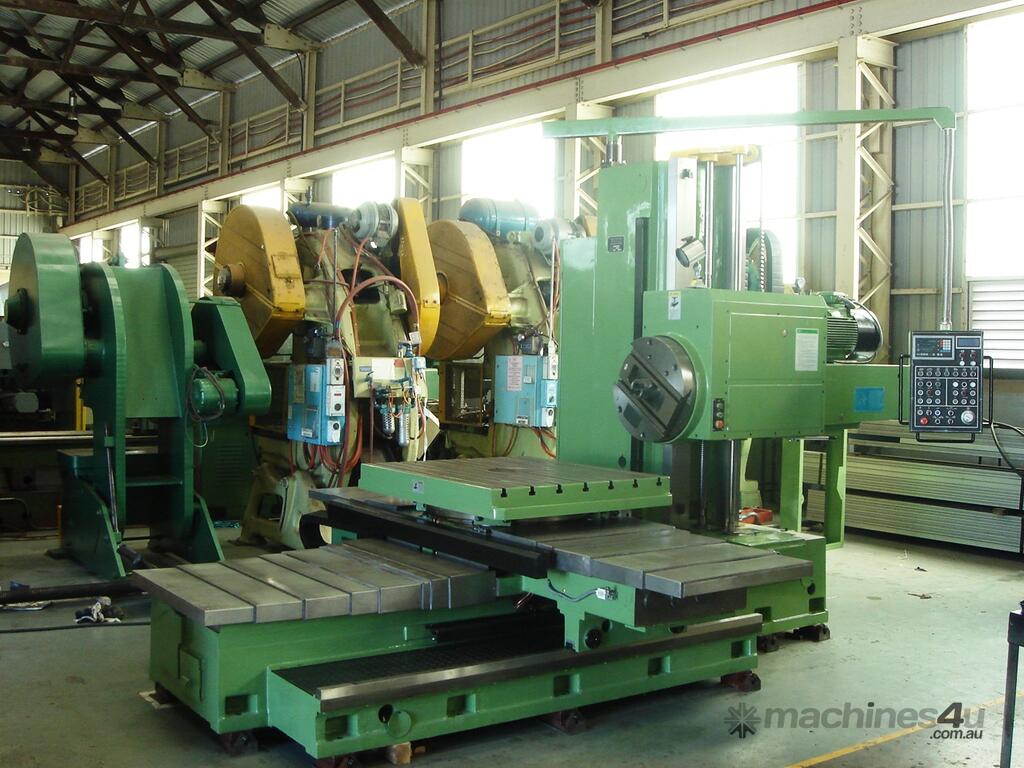

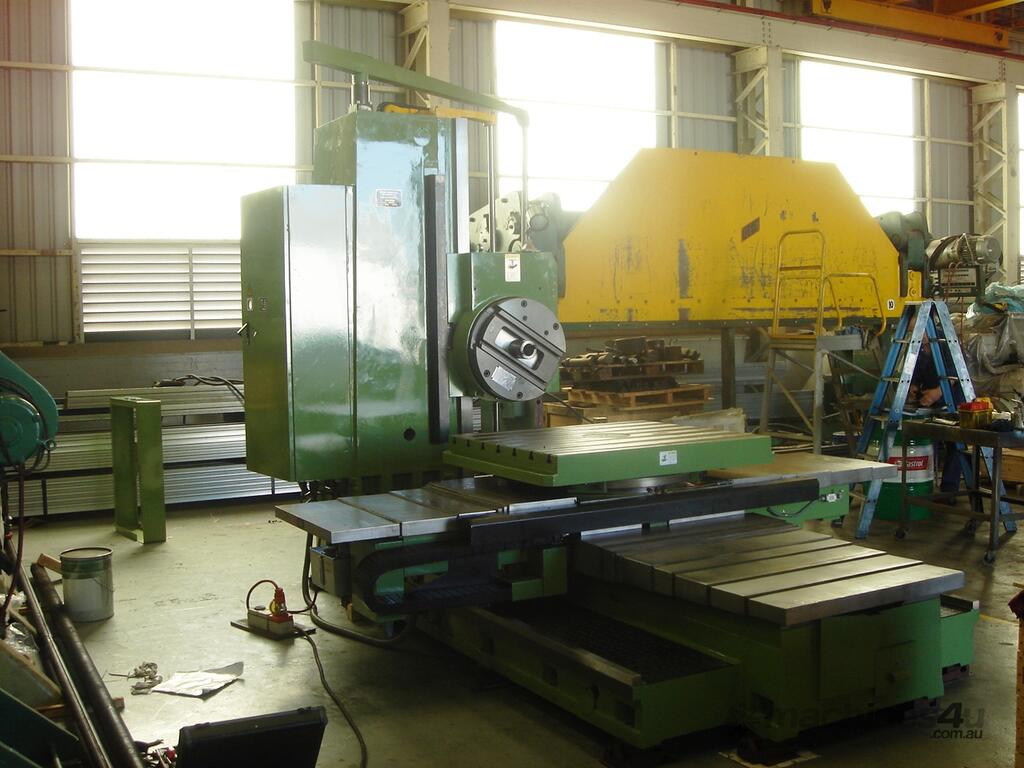

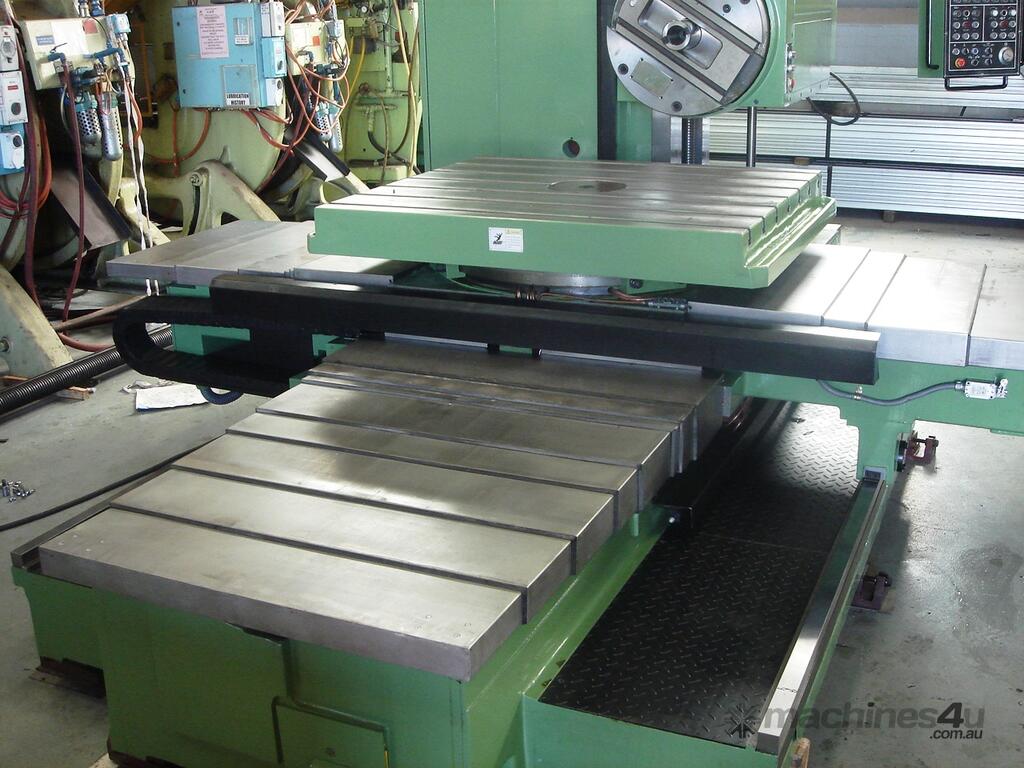

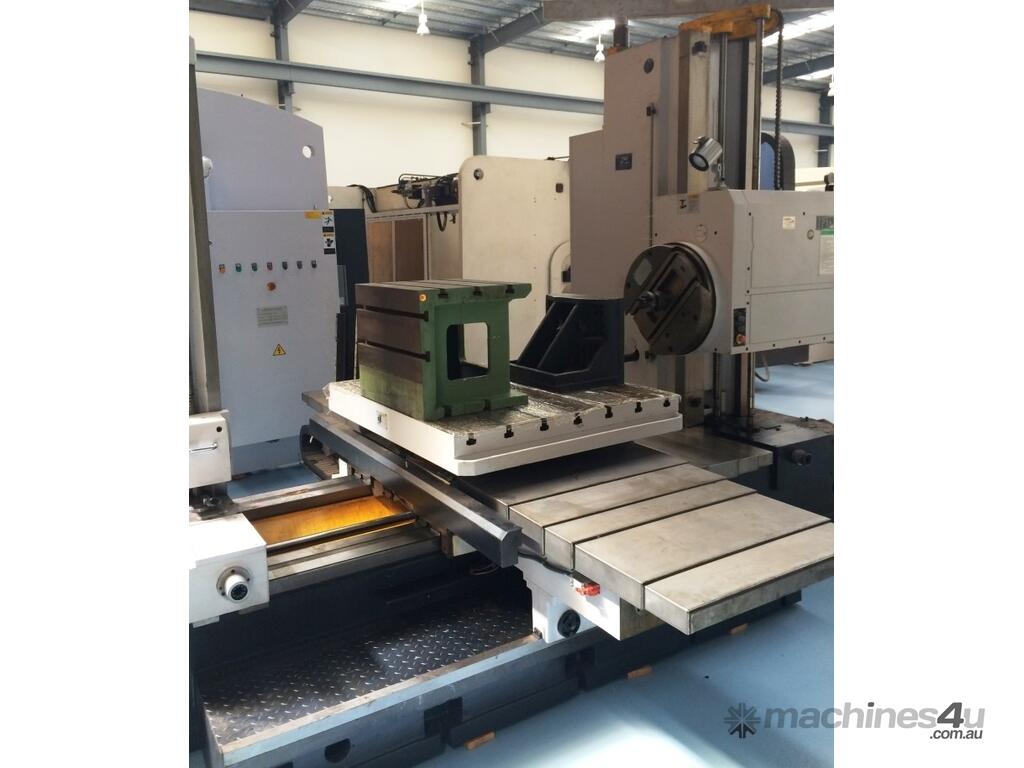

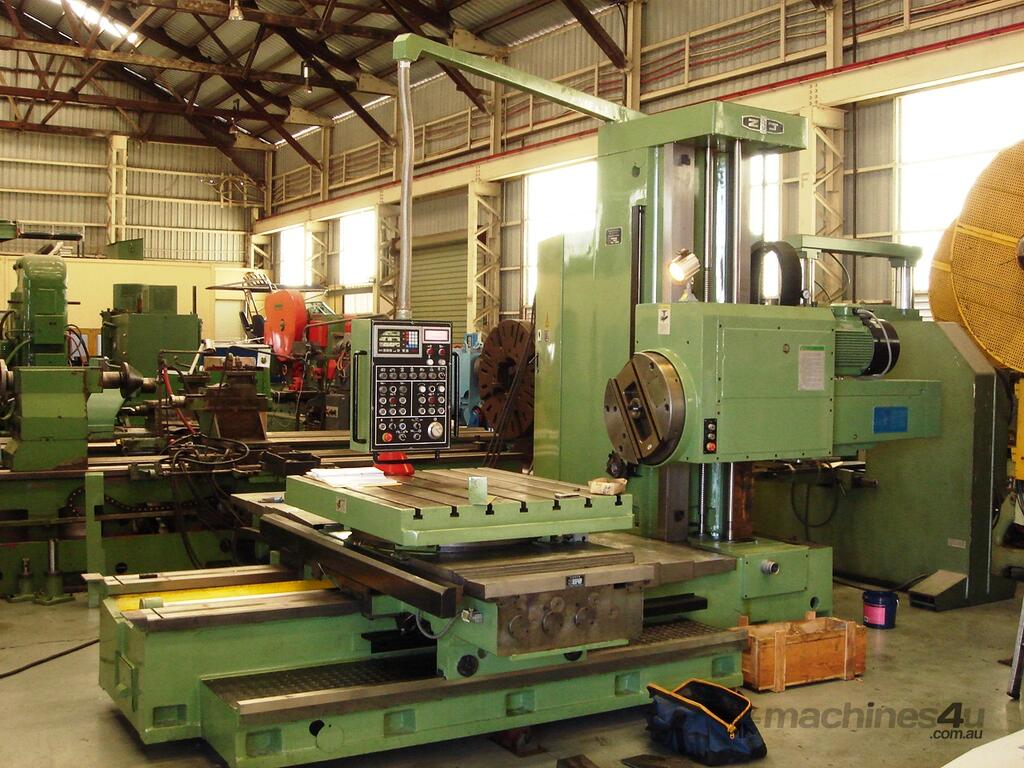

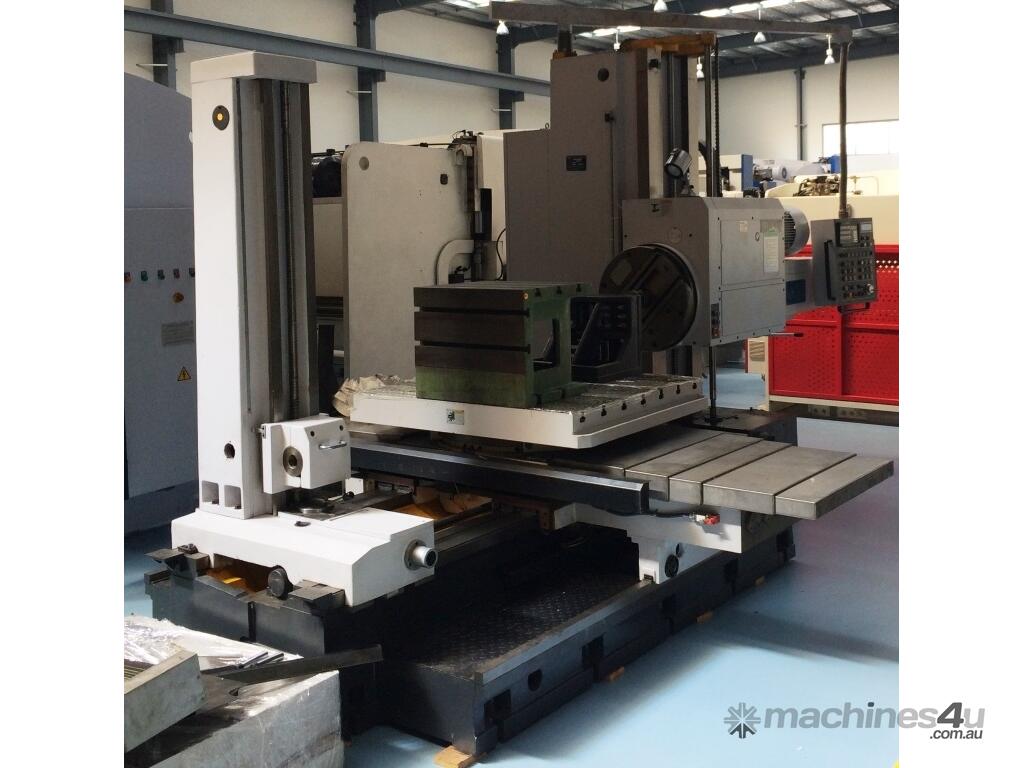

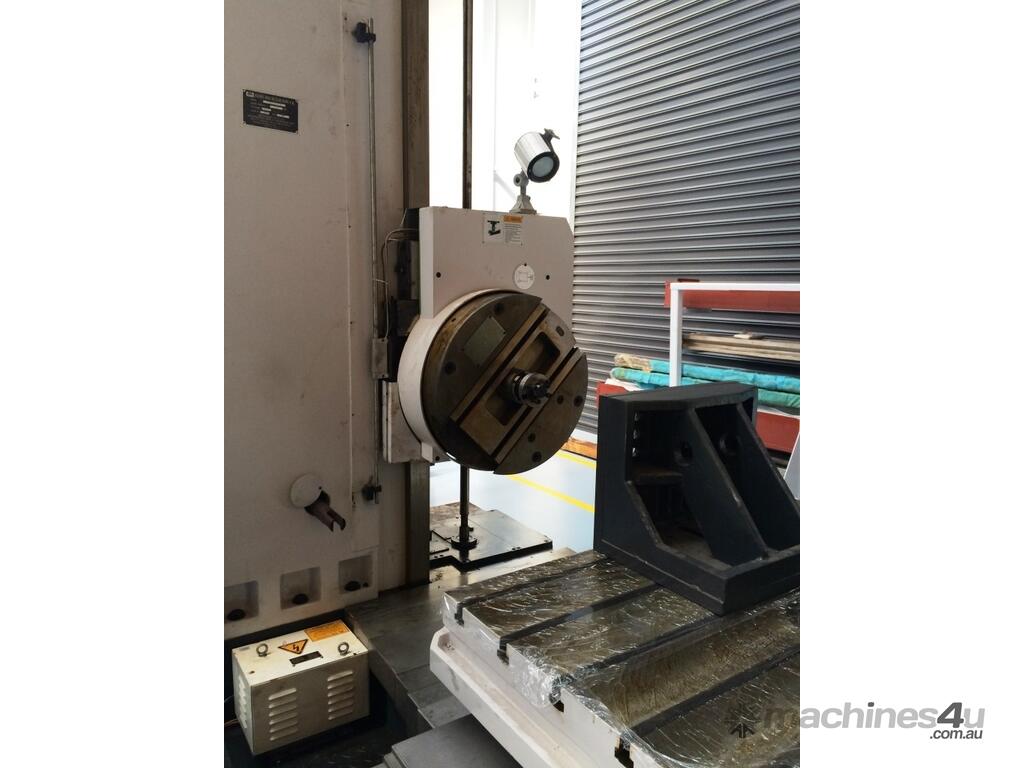

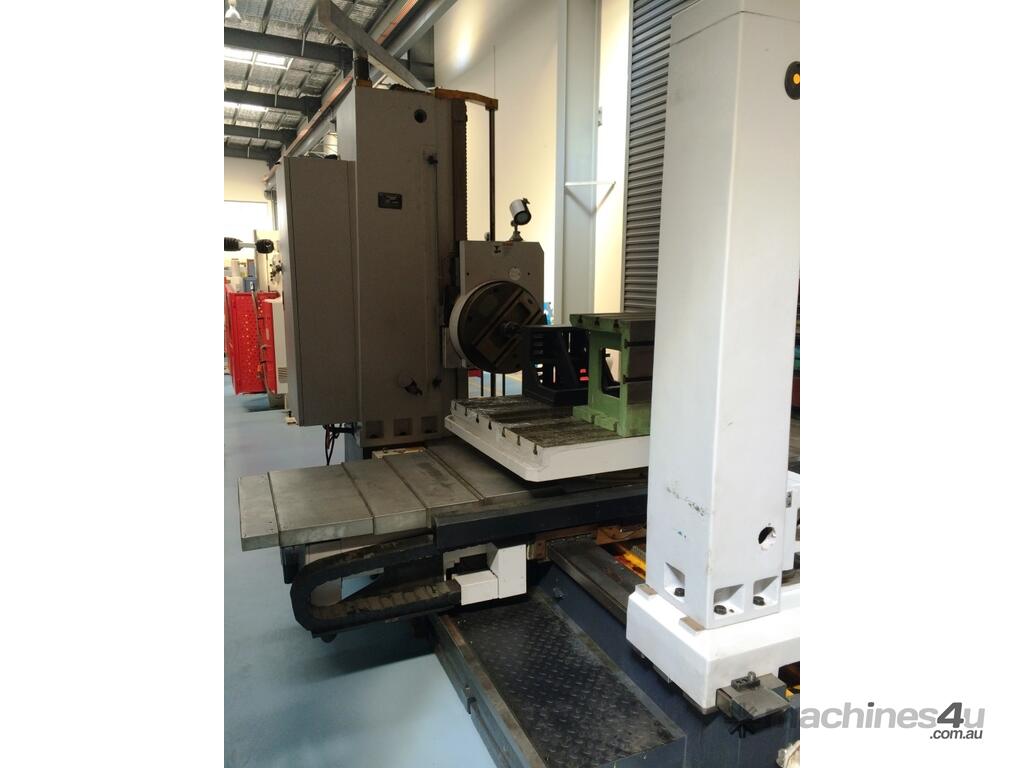

Note - Numerous models shown in the pictures for reference, video is for the TPC6111C/3
