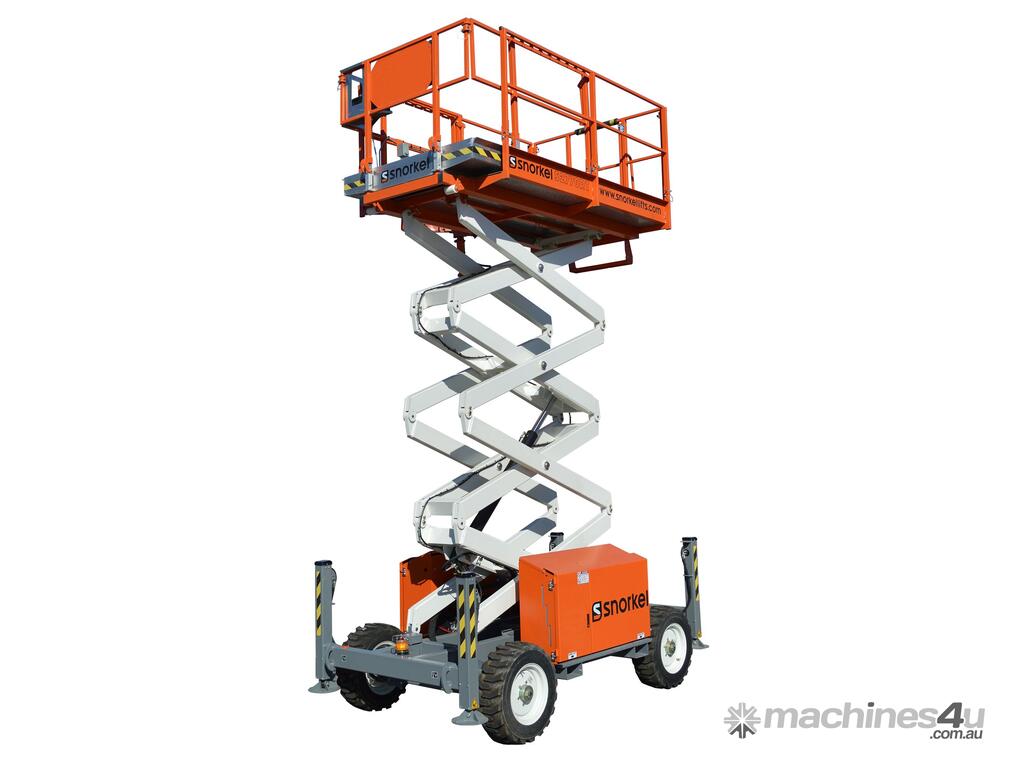

SNORKEL S2770RT ROUGH TERRAIN SCISSOR LIFT

S2770RT
The Snorkel S2770RT compact rough terrain diesel scissor lift is lightweight yet powerful. Equipped with robust 4-wheel drive, it makes easy work of rough terrain. Compact dimensions allow the S2770RT to perform outdoor work in confined spaces. Auto level outriggers and a roll-out deck extension also come as standard.

Specifications
Max. working height: 10.1m
Max. platform height: 8.1m
Platform size (stowed): 1.6m x 2.8m
Platform size (extended): 1.6m x 4.0m
Deck extension length: 1.2m
Overall length: 3.4m
Overall width: 1.8m
Min. height (guardrails folded): 1.83m
Stowed height: 2.59m
Ground clearance: 330mm
Platform capacity (SWL): 580kg
Max. drive height: 8.1m
Max. wind speed: 12.5m/s
Max. drive speed (elevated): 0.5km/h
Max. drive speed (stowed): 4.5km/h
Raise / lower time: 26 / 30 sec
Gradeability: 35%
Max. outrigger levelling (front to rear): 6º
Max. outrigger levelling (side to side): 10º
Inside turning radius: 2.44m
Outside turning radius: 4.75m

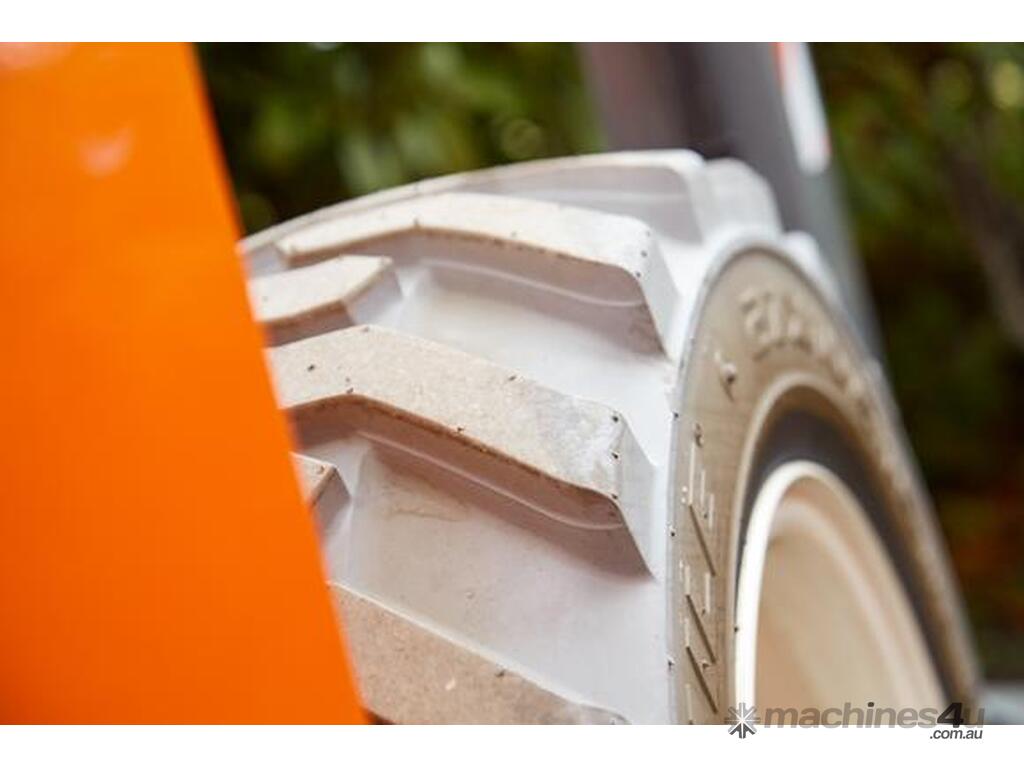

Tires: 27 x 10.5 - 15 non-marking

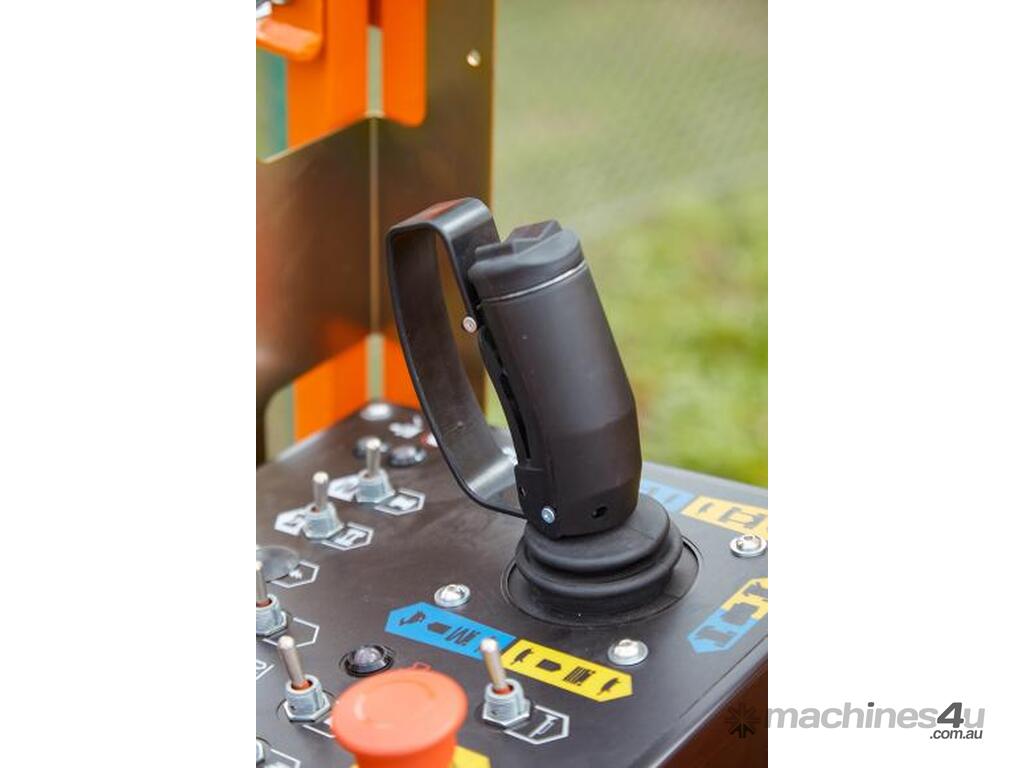

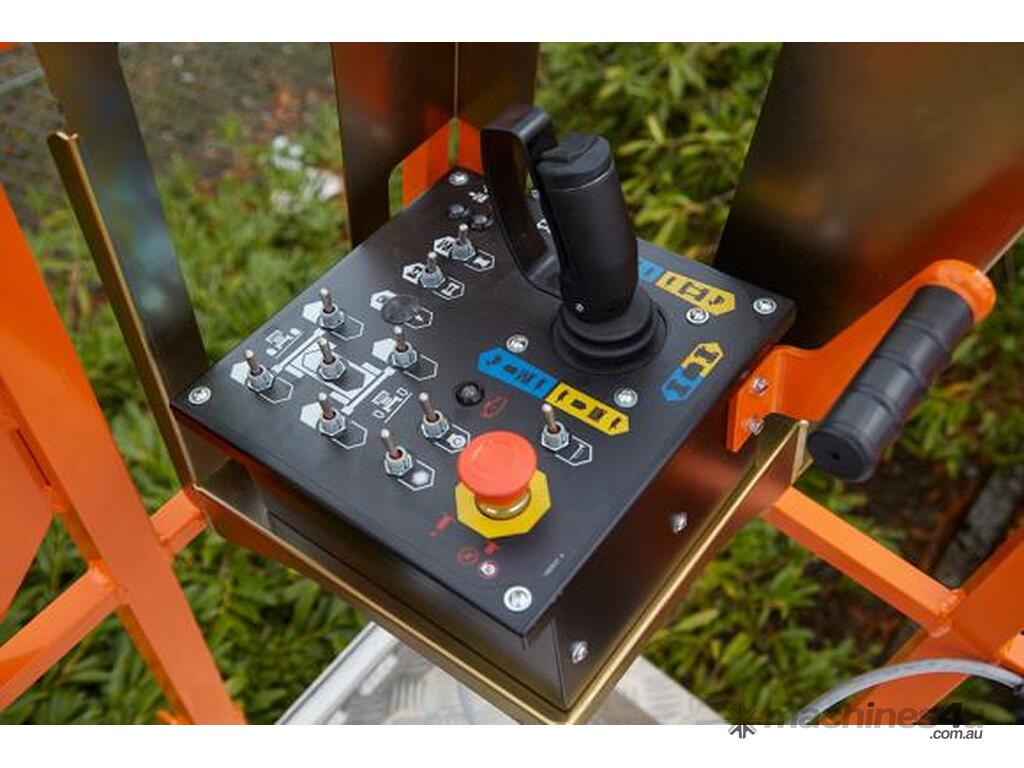

Controls: proportional joystick
Drive system: 4 wheel drive

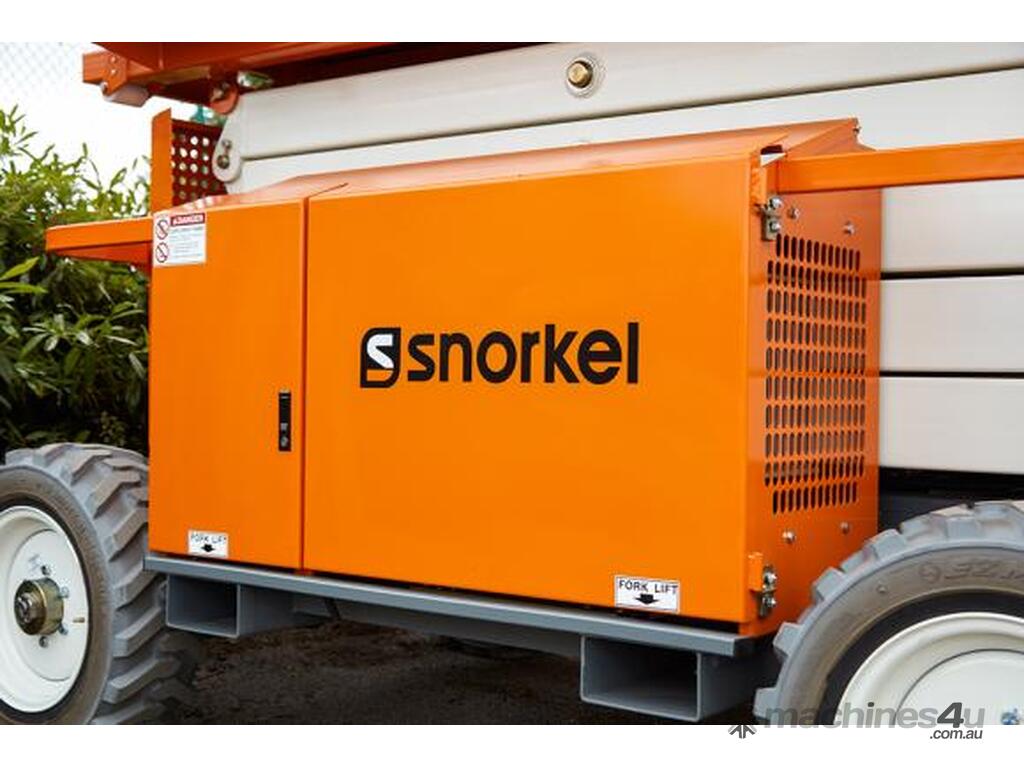

Power source: Kubota D-902 water cooled diesel 22.5 hp - Tier 4 Final
Power options: Gasoline, LPG, Combination (LPG/Gasoline), Bi-energy 24V DC
Weight: 2,800kg

Standard Features
4 wheel drive

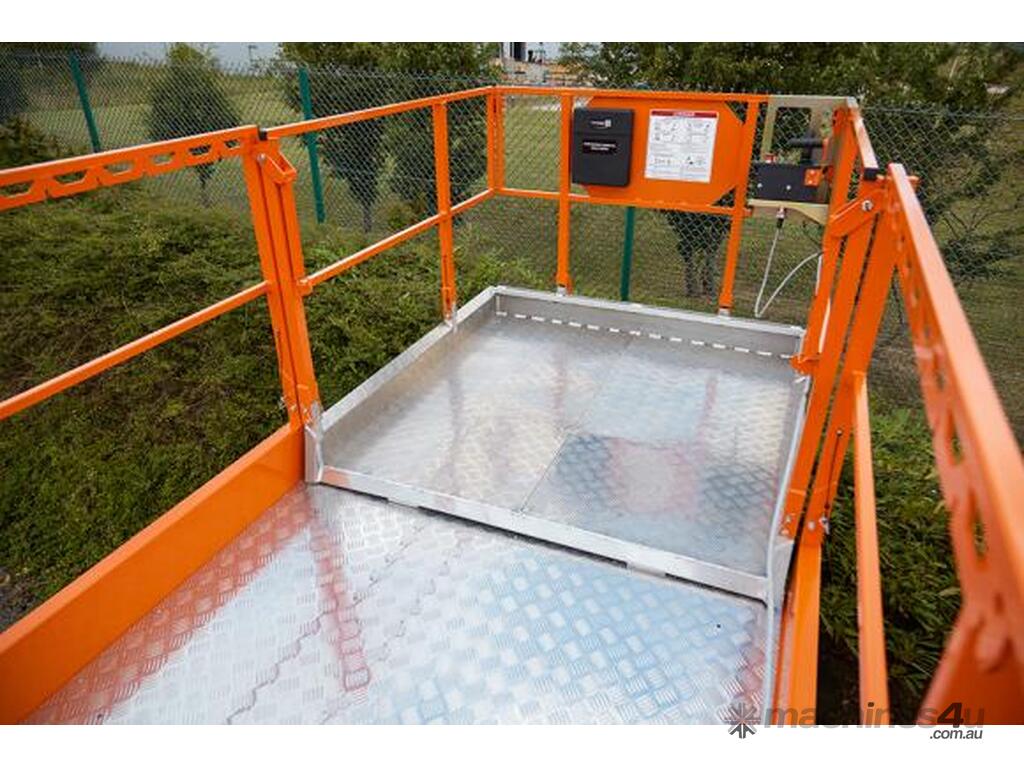

Roll-out deck extension

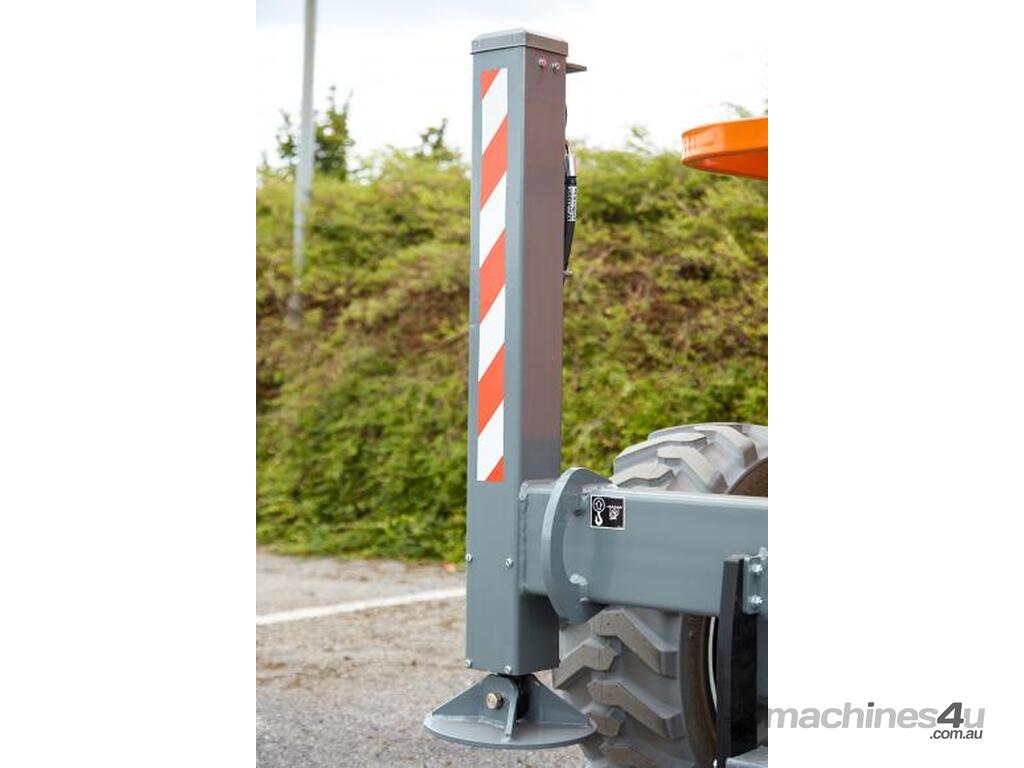

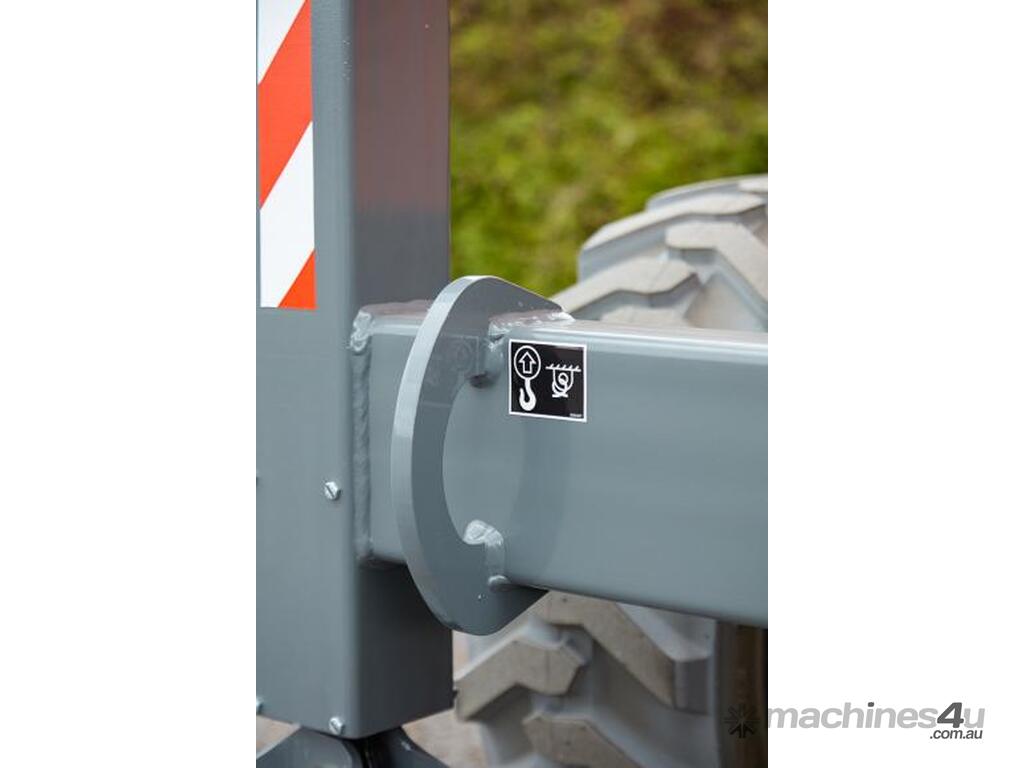

4 hydraulic stabilizers with automatic leveling
Non-marking foam filled tires
Proportional controls
Power line to platform
Drive motion alarm
Descent alarm
Fold-down guardrails
Flashing amber light (x2)
Articulating axle

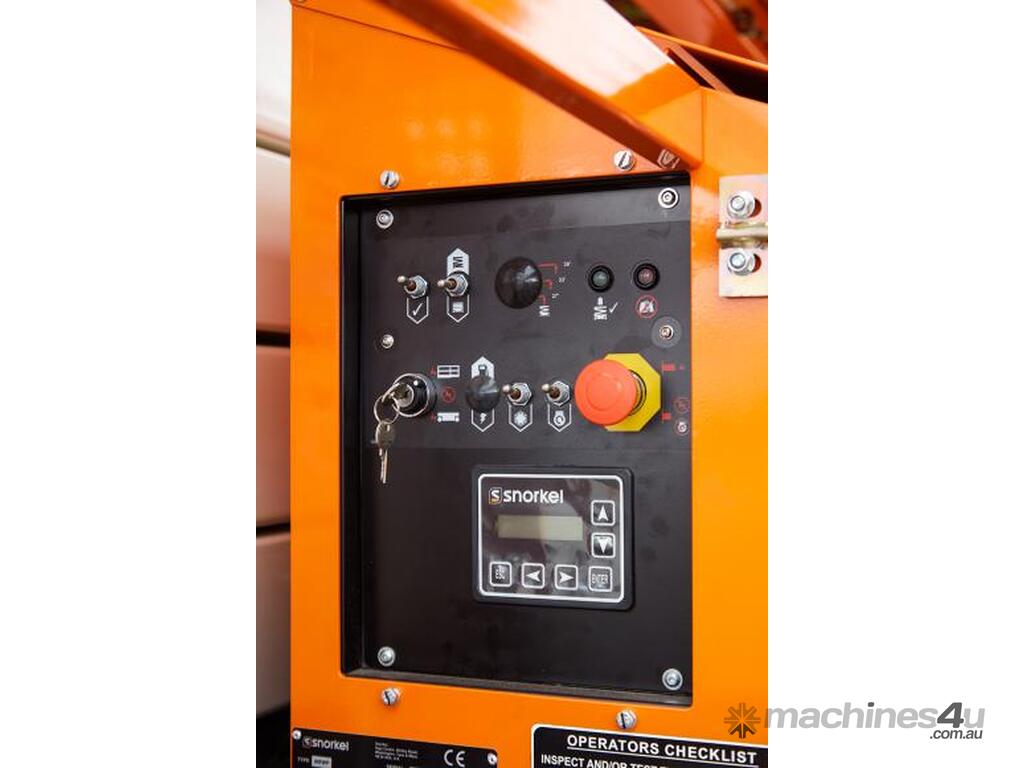

Hour meter & on-board diagnostics display
Manual lowering valve
Dual lanyard attachment points
2 years parts & labor, 5 year structural warranty
