SPECIALTY EXCAVATORS SK140SRD-7

'Proudly representing Kobelco in North East Victoria and Southern NSW'

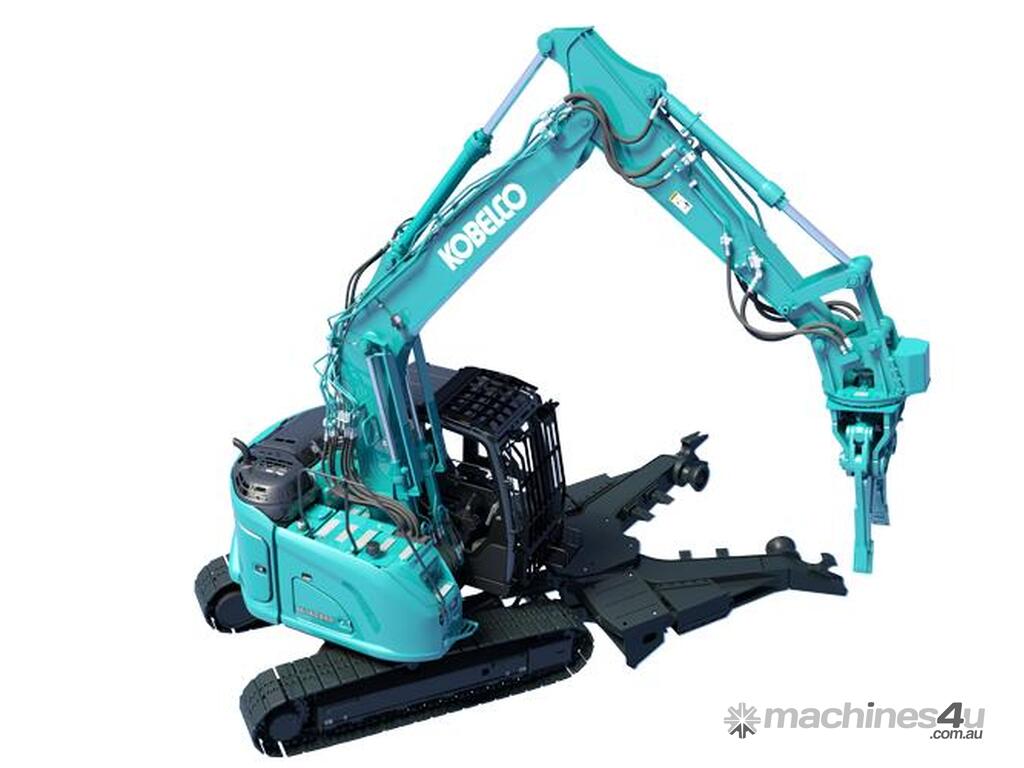

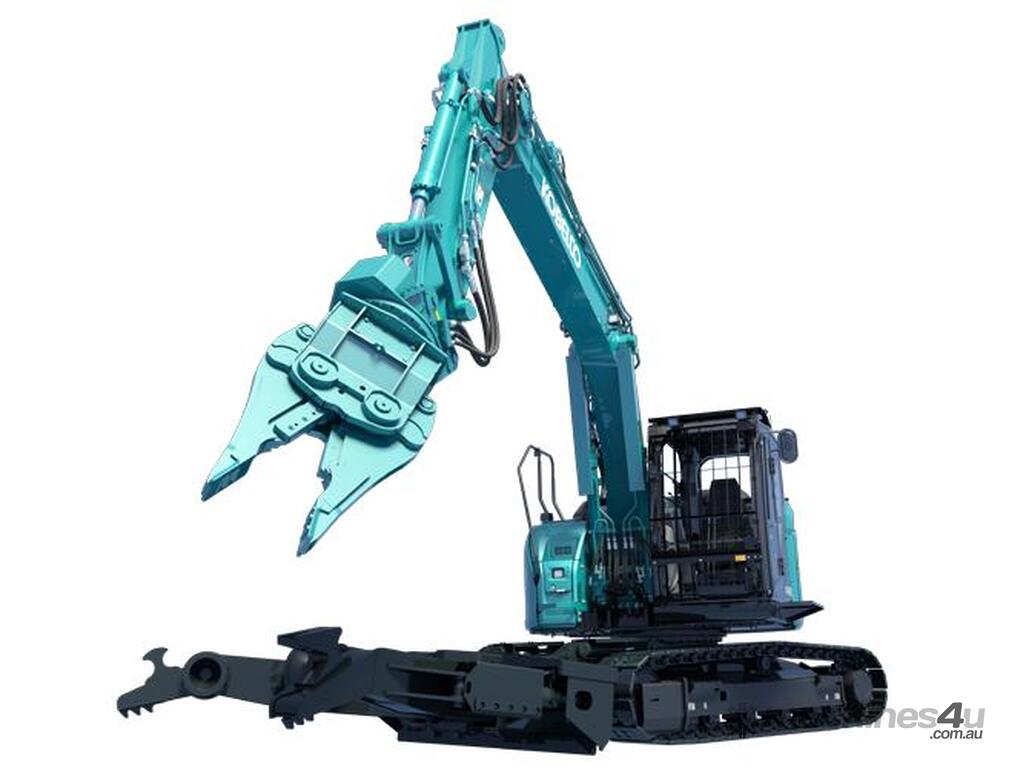

This new multi-use dismantling machine is purpose-built with specialised equipment for scrap and metal demolition.
This machine brings any dismantling operation to the next level.
2YR/3,000HR Full Machine Warranty and 4YR/6,000HR Major Component Extended Warranty.

By combining these two principles, KOBELCO has raised the bar with the SK140SRD, the new multi-use dismantling machine. Purpose-built with specialised equipment for scrap and metal demolition, this machine brings any dismantling operation to the next level.

A new heavy duty boom was developed specifically for metal demolition that uses thick plating and reinforced materials in each part and a new heavy duty arm that has a reinforced lower plate and better steel-plate materials.

KOBELCO excavators continue to provide an unforgettable experience for the operator, built to tackle any challenge.

SPECIFICATIONS
Transport Dimensions
Length, Width & Height

10.75 x 2.49 x 2.86 m

Operating Weight

20,500 kg

Refilling Capacities
Fuel Tank

186 L

Hydraulic Oil Tank

192 (89.9) L

Working Range
Max. Digging Depth

-

Max. Digging Reach

9.96 m

Engine
Rated Power Output

78.5 kW

Rated Torque

375 Nm

Breakout Force
Bucket Digging Force

-

Arm Crowding Force

-

Hydraulic System
Max. Pump Flow

2 x 130 + 60, 59.8 L/min

Standard Auxiliary

N&B + Tilt Piping
